Monogram ZDBR240NBS User manual

OWNER'S
MANUAL
Beverage Center
MONOGRAM.COM

249-60532-7
Consumer Information
Beverage Center
Introduction
Your new Monogram beverage center makes an eloquent statement of style, convenience
and kitchen planning flexibility. Whether you chose it for its purity of design or the assiduous
attention to detail, you will find that your Monogram beverage center’s superior blend of form
and function will delight you for years to come.
The information on the following pages will help you operate and maintain your beverage
center properly.
If you have any other questions, visit our Website at: monogram.com
Contents
Before
using your
beverage
center
Read this manual carefully. It is intended
to help you operate and maintain your new
beverage center properly.
Keep it handy for answers to your questions.
If you don’t understand something or need
more help, there is a list of toll-free consumer
service numbers included in the back section
of this manual.
OR
Visit our Website at: monogram.com
Write
down the
model
& serial
numbers
You will find them on a label on the ceiling
inside the beverage center.
Please write these numbers here:
Model Number
Serial Number
Use these numbers in any correspondence
or service calls concerning your beverage
center.
ATTENTION CONSUMER!
This unit is designed for storing and cooling beverages.
Do not store perishable foods in this unit.
Model and Serial Numbers............................2
Repair Service...............................................3
Safety Instructions.........................................4
Controls and Features...................................6
Care and Cleaning ......................................10
Problem Solver............................................12
Warranty......................................................15
Consumer Services...................... Back Cover

49-60532-7 3
If you
received a
damaged
appliance
The warranty does not cover damage caused
after delivery.
Immediately contact the dealer (or builder)
that sold you the beverage center.
If you
need
service
To obtain service, see the Consumer Services
page in the back of this manual.
We are proud of our service and want you to
be pleased. If for some reason you are not
happy with the service you receive, here are
steps to follow for further help.
For customers in the USA:
FIRST, contact the people who serviced your
appliance. Explain why you are not pleased.
In most cases, this will solve the problem.
NEXT, if you are still not pleased, write all the
details—including your phone number—to:
Manager, Customer Relations
Monogram
Appliance Park
Louisville, KY 40225
For customers in Canada:
FIRST, contact the people who serviced your
appliance. Explain why you are not pleased.
In most cases, this will solve the problem.
NEXT, if you are still not pleased, write all the
details—including your phone number to:
Manager, Consumer Relations
Mabe Canada Inc.
1 Factory Lane, Suite 310
Moncton, N.B. E1C 9M3
Consumer Information
Beverage Center
After
installation
is completed
• Promptly inspect your new Monogram
beverage center. If it has been damaged,
contact the Installer or Dealer immediately.
• This beverage center must be properly
leveled to ensure correct door alignment
and door closure. Contact the Installer if the
unit is not level.
• The unit should be centered in the opening.
The front face of the door should be 1"
forward of adjacent cabinetry. Contact the
installer if clearance is not correct.
• Test the door swing. Carefully open and
close the door. The door should not rub
or catch on adjacent cabinetry. Notify the
installer if the door makes contact with
cabinetry.
Please Contact the Installer or Dealer if
you experience any of these problems.
Your beverage center is shipped with a black
toekick on the front of the unit. For shipping
purposes, an optional stainless steel toekick
is secured to the back of the unit. That toekick
should have been removed and installed, or
given to you. Keep the unused toekick and
other unused or removed parts for possible
future use.
Remove
packaging
Before using, be sure all packing materials
and tape have been removed.
To assure no damage is done to the finish
of the product, the safest way to remove the
adhesive left from packaging tape on new
appliances is an application of household
liquid detergent. Apply with a soft cloth and
allow to soak. Wipe dry and then apply an
appliance polish to thoroughly clean and
protect the surface.
Save time
& money
Before you request service, check the
Problem Solver in the back of this manual.
It lists causes of minor operating problems
that you can correct yourself.

449-60532-7
Beverage Center
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
CAUTION To reduce the risk of injury when using your refrigerator, follow these basic safety
precautions.
■ Donotcleanglassshelvesorcoverswithwarmwater
when they are cold. Glass shelves and covers may
break if exposed to sudden temperature changes
or impact, such as bumping or dropping. Tempered
glass is designed to shatter into many small pieces if it
breaks.
■ Keep fingers out of the “pinch point” areas;
clearances between the doors and between the doors
and cabinet are necessarily small. Be careful closing
doors when children are in the area.
■ Thisunitisdesignedforstoringandcooling
beverages. Do not store perishable foods in this unit.
WARNING To reduce the risk of fire, explosion, electric shock, or injury when using your refrigerator, follow
these basic safety precautions:
■ Usethisapplianceonlyforitsintendedpurposeas
described in this Owner’s Manual.
■ Thisrefrigeratormustbeproperlyinstalledandlocated
in accordance with the Installation Instructions before it
is used.
■ Unplugtherefrigeratorbeforemakingrepairs,
replacing a light bulb, or cleaning.
NOTE: Power to the refrigerator cannot be
disconnected by any setting on the control panel.
NOTE: Repairs must be performed by a qualified
Service Professional.
■ Replaceallpartsandpanelsbeforeoperating.
■ Donotuseanextensioncord.
■ Donotstoreorusegasolineorotherflammable
vapors and liquids in the vicinity of this or any other
appliance.
■ Donotstoreexplosivesubstancessuchasaerosol
cans with a flammable propellant in this appliance.
■ Topreventsuffocationandentrapmenthazardsto
children,removethefreshfoodandfreezerdoorsfrom
any refrigerator before disposing of it or discontinuing
its use.
■ Toavoidseriousinjuryordeath,childrenshouldnot
stand on, or play in or with the appliance.
■ Childrenandpersonswithreducedphysical,sensory
or mental capabilities or lack of experience and
knowledge can use this appliance only if they are
supervised or have been given instructions on safe
useandunderstandthehazardsinvolved.
■ Thisapplianceisintendedtobeusedinhousehold
and similar applications such as: staff kitchen areas in
shops, offices and other working environments; farm
houses; by clients in hotels, motels, bed & breakfast
and other residential environments; catering and
similar non-retail applications.
■ Donotoperatetheunitwherethetemperaturewillgo
below 45°F (7.2°C) or above 120°F (49°C) (see Unit
ON/OFF).
■ Ensuretheoutdoor/indoorrefrigeratorisnotinstalledin
a location prone to standing water.
■ Choosealevellocationthatcanwithstand250lbs.
■ Routethepowercordsothatitdoesnotpresentatrip
hazard.
■ Surfacecanbehotindirectsunlightconditions.Use
caution.
■ Ensurethechosenlocationdoesnotpresentatip-over
situation.
■ Makesuredishescoolpriortostoringthemin
the refrigerator. Certain types of glass, ceramic,
earthenwareorotherglazedutensilsretainheat.Hot
dishes can cause the cold glass shelves to break.
■ TheuseofaGEAppliancesVacuumBreak(service
part #’s WR49X403 and WR49X10026) is not
authorizedontherefrigerator.

49-60532-7 5
Beverage Center
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
PROPER DISPOSAL OF YOUR OLD APPLIANCE
WARNING SUFFOCATION AND ENTRAPMENT HAZARD
Failure to follow these disposal instructions can result in death or serious injury
IMPORTANT: Child entrapment and suffocation are not
problems of the past. Junked or abandoned refrigerators
are still dangerous even if they will sit for “just a few
days.” If you are getting rid of your old refrigerator, please
follow the instructions below to help prevent accidents.
Before You Throw Away Your Old Appliance
■Takeoffthedoor.
■Leave the shelves in place so that children may not
easily climb inside.
Refrigerant and Foam Disposal:
Dispose of appliance in accordance with Federal and Local Regulations. Flammable insulation material used requires
special disposal procedures. Contact your local authorities for the environmentally safe disposal of your appliance.
CONNECTING ELECTRICITY
WARNING ELECTRICAL SHOCK HAZARD
Plug into a grounded 3-prong outlet.
Do not remove the ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death, fire, or electrical shock.
Do not, under any circumstances, cut or remove
the third (ground) prong from the power cord. For
personal safety, this appliance must be properly
grounded.
The power cord of this appliance is equipped with a
3-prong (grounding) plug which mates with a standard
3-prong(grounding)walloutlettominimizethepossibility
ofelectricshockhazardfromthisappliance.
Havethewalloutletandcircuitcheckedbyaqualified
electrician to make sure the outlet is properly grounded.
Where a standard 2-prong wall outlet is encountered, it
is your personal responsibility and obligation to have it
replaced with a properly grounded 3-prong wall outlet.
The appliance should always be plugged into its own
individual electrical outlet which has a voltage rating
that matches the rating plate. This provides the best
performance and also prevents overloading house wiring
circuitswhichcouldcauseafirehazardfromoverheated
wires.
Never unplug an appliance by pulling on the power cord.
Always grip the plug firmly and pull straight out from the
outlet.
Immediately discontinue use of a damaged supply cord.
If the supply cord is damaged, it must be replaced by a
qualifiedserviceprofessionalwithanauthorizedservice
part from the manufacturer.
When moving the appliance, be careful not to roll over or
damage the power cord.

649-60532-7
Controls and Features
Beverage Center
Temperature
control
The operating temperatures of the beverage
center range from 40°F (4.4°C) to 65°F
(18.3°C).
Do not install the beverage center where the
temperature will go below 55°F (12.8°C) or
above 90°F (32.2°C).
The temperature display shows the actual
temperature of the beverage center. The
actual temperature may vary slightly from
the set temperature based on factors such
as door openings, amount of beverages and
room temperature. After making adjustments,
allow 12 to 24 hours for the beverage center
to reach the temperature you have set and
before making any further adjustments. The
factory setting is 45°F (7.2°C).
To change the temperature settings,
press the +and – pads until you reach
the desired set temperature. After several
seconds, the display will return to the actual
temperature. The actual temperature will be
displayed while the unit moves toward the set
temperature.
Allow 12 to 24 hours for the beverage center
to reach the temperature you have set and
before making any adjustments to the initial
setting.
Interior light
and light pad
The interior light makes it easy to view your
beverage labels and enhances the display of
your collection.
When the pad is depressed and the word ON
is displayed, the light will remain on for one
hour before automatically turning off. When
the pad is depressed and the word OFF is
displayed, the light will come on only when the
door is opened. For best viewing, do not store
a bottle on the top shelf directly under the
light. Remember to turn off the light when it is
no longer needed.
Child control
lockout
This child control lockout feature prevents
unwanted changes to your temperature
settings.
After the desired temperature is set, the
temperature can be locked. To lock, press
both the +and –pads at the same time for
five seconds. To unlock, press both +and –
pads for five seconds.
LIGHT
LIGHT

49-60532-7 7
Controls and Features
Beverage Center
Glass
shelves
Tempered glass shelves in the beverage
center unit are removable for easy cleaning or
for storing larger items.
To remove a shelf, open the door completely
to avoid potential damage to the gasket. Lift
up on the back of the shelf slightly. Tilt the
shelf to one side at an angle while pulling
forward.
Appearance may vary
To replace a shelf, open the door completely
to avoid potential damage to the gasket.
Tilt the shelf to one side at an angle and
slide toward the back wall, placing one side
onto the shelf support. Place the other side
onto the opposite shelf support. Ensure rear
locking tabs are engaged. When installed
properly, the shelf will not slide forward when
gently pulled.

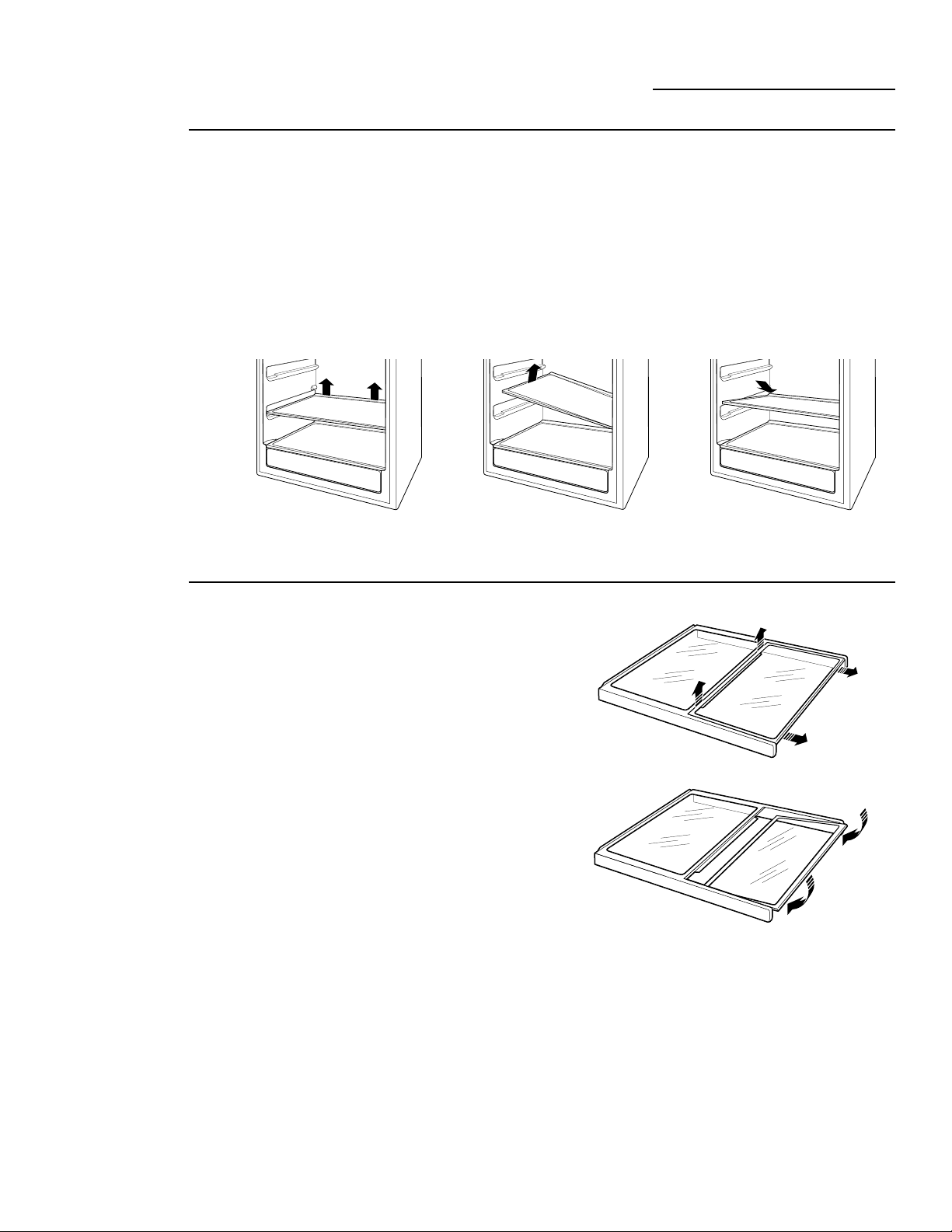

To remove, lift up on the back of
the shelf
Tilt the shelf at an angle while
removing or replacing
Place in slots when replacing the
shelf
QuickSpace™
shelf
This shelf splits in half and slides under itself
for storage of tall items on the shelf below.
Step 1: Lift the back edge of the front half of
the shelf.
Step 2: Pull slightly forward.
Step 3: Lower the back edge of the front half
of the shelf while sliding it underneath the
back half.
The entire Quick Space shelf can be removed
and replaced (see Glass Shelves section).
Step 3
Step 1
Step 2

849-60532-7
Controls and Features
Beverage Center
Loading
tips and
suggestions
The bottom two full extension drawers hold
five bottles each and are loaded with necks
facing the rear. Tall bottles should not be
loaded on the bottom drawer because they
may prevent the door from closing.
• Do not block the thermistor, located on
the right-hand side, just above the third
shelf of the beverage center. Blocking the
thermistor could impair the air circulation and
temperature control.
NOTE: This unit is for storing beverages only
and not intended for the storage of perishable
foods. Bottom drawer arrangement
Removing
full
extension
drawers
The bottom full extension drawers pull out so
bottles can conveniently be added or removed.
The upper full extension slide can be removed
for magnums or larger bottles.
To remove:
1. Pull the full extension drawer out to the
STOP position.
2. Push the tab on right drawer guide down
while pulling the tab on left guide up, and
pull the drawer out.
To replace:
1. Push the drawer slide arm back into the
unit.
2. Pull the small slide sub-assembly
completely forward.
3. Insert the sides of the drawer back into the
guides.
4. Push until the tabs lock into place.
Tab (push tab down on
right drawer guide, pull tab
up on left drawer guide)
Wood
drawer
fronts
The full extension drawer fronts on the
beverage center are unfinished cherry wood.
During use, oil from hands may accumulate
and stain the wood.
•The drawer fronts may be stained and sealed
to match adjacent cabinetry. The tinted glass
will make the stained wood appear darker. A
true color match can be seen only when the
door is opened.
•Apply the stain and sealer according to
the manufacturer’s instructions. To avoid
unpleasant odor, keep the door open to
ventilate and allow the stain/sealer to dry
completely before using the product.
NOTE: Natural wood may vary slightly in grain
and color.
NOTE: Make sure the tabs on the full
extension drawer guides are fully engaged
before loading any bottles. Pull the drawers
out all the way to the STOP position and push
back in several times to make sure locking tabs
are properly engaged.
To replace, push drawer
slide arm back into unit
Pull small slide sub-assembly
completely forward
Appearance may vary
Sub-assembly Sub-assembly

49-60532-7 9
Sabbath Mode
Beverage Center
Sabbath
Mode
The Sabbath Mode was designed for use
ontheJewishSabbathandHolidays.The
Sabbath Mode feature makes it possible for
observant Jews to use the beverage center
during the duration of the holiday.
The Sabbath Mode feature can be set to
override typical reactions caused by your
interaction with the beverage center. While
in the Sabbath Mode, your appliance will still
operate.However,itwillnotrespondtoyour
actions.
While in the Sabbath Mode, you may notice
the fan running when the door is opened,
however, this is not a result of your actions.
The compressor and fan will operate at
predetermined times.
ON/OFF - To activate the Sabbath Mode,
press and hold down the +and LIGHT buttons
on the control panel for at least 7 seconds.
SAb will be displayed on the control. SAb
will remain in the display and all the control
settingswillbefrozenandstayonthelast
mode before entering Sabbath Mode. Controls
and lights will not work until the +and LIGHT
buttons are held again for 7 seconds. The
display will show “out” for 1 second and then
resume the last operating mode.

10 49-60532-7
Glass door Use a glass cleaner or mild soap and water
and a soft cloth to clean the glass door.
Do not use any abrasive powders.
Door gasket The vinyl gasket may be cleaned with mild
soap and water, a baking soda solution or
a mild scouring powder. Rinse well.
After cleaning the door gasket, apply a thin
layer of paraffin wax or petroleum jelly to the
door gasket at the hinge side. This helps keep
the gasket from sticking and bending out of
shape.
Light bulb
replacement
To remove the light shield, push in the tab on
the left side of the shield and lower it. Replace
with a 15 watt appliance bulb or a 4.5 watt
UL Listed LED Lamp or call 800.GE.CARES
(800.432.2737) during normal business hours
to order service part.
Care and Cleaning
Beverage Center
WARNING Electrical Shock Hazard.
Unplug the beverage center before cleaning. If the unit is in a built-in location,
remove power at the circuit breaker.
WARNING Electrical Shock Hazard.
Unplug the beverage center before replacing the light bulb. If the unit is in a built-in
location, remove power at the circuit breaker
Cleaning
the outside
The exterior surfaces can be washed with mild
soap and water. Rinse thoroughly with clear
water. Never use abrasive scouring powders.
Do not use scouring pads, powdered
cleaners, bleach or cleaners containing
bleach because these products can scratch
and damage the finish.
Warranty does not cover damage due to
improper cleaning methods.
For your
safety
