Monogram ZDWC240NBS User manual

Monogram.
We bring good things to life.
®
If you have questions,call 800.626.2000 or visit our website at: www.monogram.com
Installation
Instructions
Wine Chiller
ZDWC240NBS
and
Beverage Center
ZDBC240NBS
Design Guide
With Installation Instructions

Safety Information
WARNINGS:
• Use this appliance only for its intended purpose.
• Immediately repair or replace electrical service
cords that become frayed or damaged.
• Unplug the wine chiller or beverage center before
cleaning or making repairs.
• Repairs should be made by a qualified service
technician.
ATTENTION:
• Il ne faut utiliser cet appareil que pour l’usage
pour lequel il a été construit.
• Il faut réparer ou remplacer immédiatement tout
cordon d’alimentation électrique effiloché ou
endommagé.
• Débrancher le bar ou le réfrigérateur a vin avant le
nettoyage ou toute intervention.
• Les réparations doivent être faites par un
technicien qualifié.
For Monogram local service in your area,
1-800-444-1845
For Monogram service in Canada
1-888-880-3030
For Monogram Parts and Accessories, call
1-800-626-2002.
www. monogram.com
2
BEFORE YOU BEGIN:
Read these instructions completely and carefully.
IMPORTANT - Save these instructions for
local inspector’s use.
IMPORTANT - Observe all governing codes
and ordinances.
Note to Installer - Be sure to leave these instructions
with the Consumer.
Note to Consumer - Keep these instructions with
your Owner’s Manual for future reference.
WARNING - This appliance must be
properly grounded. See “Electrical Supply” page 4.
ATTENTION - Cet appareil doit être
correctement mis à la terre. Consulter
<<Alimentation électrique>>, page 4.
If you received a damaged wine chiller or beverage
center, you should immediately contact your dealer or
builder.
Skill Level - Installation requires basic mechanical
skills. Proper installation is the responsibility of the
installer. Product failure due to improper installation is
not covered under the GE Appliance Warranty.
CONTENTS
Design Guide
The Installation Space .................................... 3
Product Clearances ........................................ 3
Side-by-Side Installation ................................ 3
Installation Instructions
Tools, Hardware ............................................... 4
Grounding the Product ................................... 4
Step 1, Remove Packaging ............................ 4
Step 2, Reverse Door Swing .......................... 5
Step 3, Leveling ................................................ 6
Step 4, Connect Power ................................... 6
Step 5, Slide Product into Cutout .................. 6
Step 6, Install Badge ....................................... 6
Step 7, Set Temperature Controls ................. 6
Template for Badge ...................... Back Cover

Design Guide

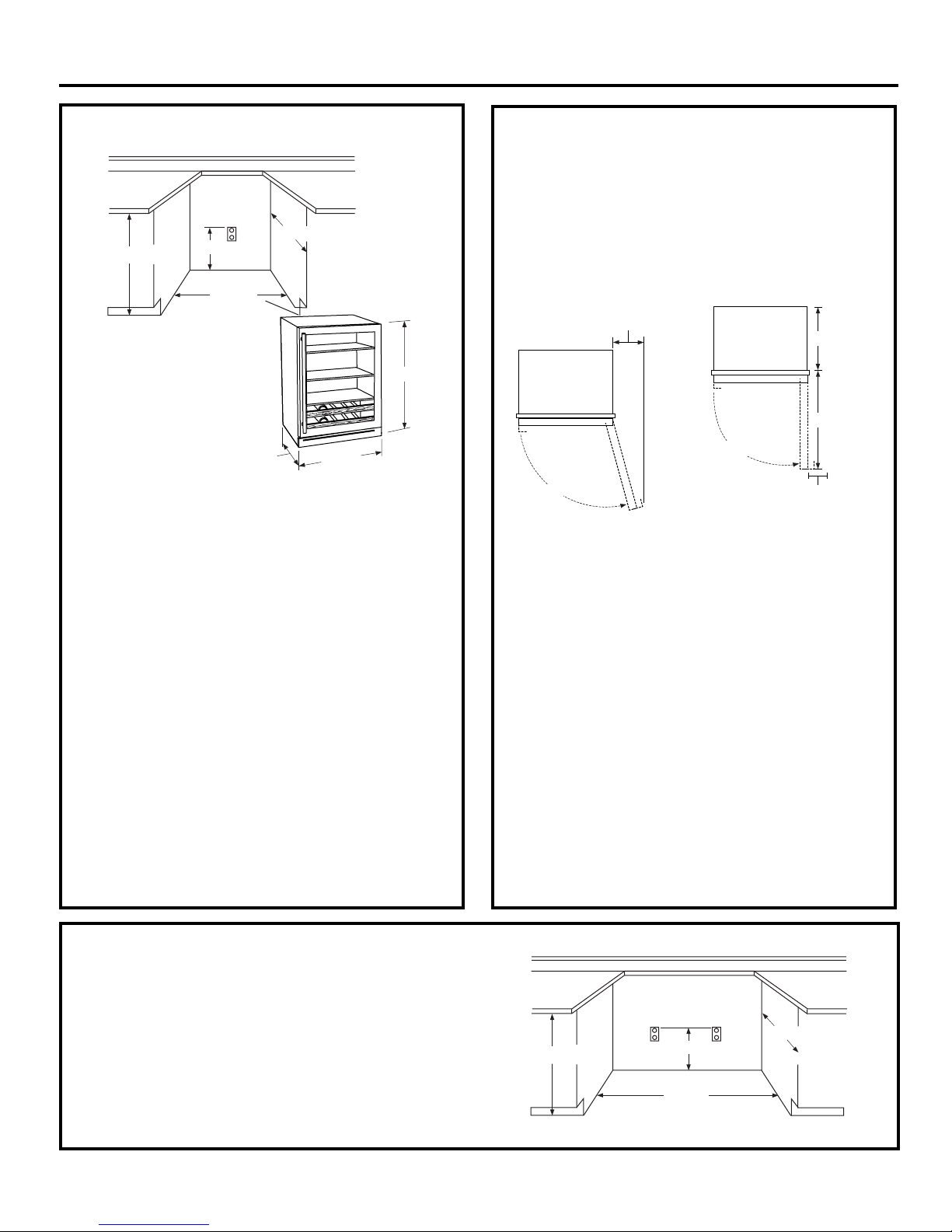

THE INSTALLATION SPACE
The cutout depth must be 24"
The cutout dimensions shown allows for a full door
swing and access to the pull-out racks when installed
as a built-in.
• The wine chiller and beverage center can be
installed freestanding.
• If installing between frameless cabinets, a 1/2" wide
filler strip or side panel may be needed on hinge
side. The filler strip will act as a spacer between the
wine chiller case and adjacent cabinet door swing.
The width of the opening must include the filler
panels. Note: The door should protrude 1" beyond
the surrounding cabinets.
Additional Specifications
• A 120 volt 60Hz., 15 or 20 amp power supply is
required. An individual properly grounded branch
circuit or circuit breaker is recommended. Install a
properly grounded 3-prong electrical receptacle
recessed into the back wall as shown. Electrical must
be located on rear wall as shown. Note: GFI (ground
fault interrupter) is not recommended.
PRODUCT CLEARANCES
The wine chiller and beverage center is factory set for
a 110°door swing.
When installed in a corner:
• Allow 4" min. clearance on the hinge side for the
90°door swing and to allow racks to slide out.
• Allow 10" minimum clearance on the hinge side for
a full 110°door swing.
• The door swing is reversible on all models. If
desired, change the door swing before installation.
Choose the location:
• The beverage center or wine chiller may be closed
in on the top and three sides as long as the front is
unobstructed for air circulation and proper access
to the door.
• Do not install the wine chiller where the tempera-
ture will go below 55°F (13°C) or above 90°F
(32°C).
• Do not install where it will be subject to direct
sunlight, heat or moisture.
Staining Wood Drawer Fronts
The wood drawer fronts on the wine chiller and
beverage center may be stained to match adjacent
cabinetry.
• The tinted glass will make the stained wood appear
darker. A true color match can be seen only when
the door is opened.
3
90°Door Swing
SIDE-BY-SIDE INSTALLATIONS
Increase storage capacity by installing two Monogram
beverage centers or wine chillers together. Or for a
complete refreshment center, install a beverage center
and wine chiller together.
• A side-by-side installation requires a 48" wide opening.
No trim kits required.
• Products must operate from properly grounded
separate receptacles.
20-3/32"
23-11/16"
4" Minimum
to Wall
90°
Locate
Outlet
34-1/2"-35"
24" Min.
48" Min.
6" Max.
10" Minimum
to Wall
110°
Locate
Outlet
34-1/2"-35"
24" Min.
24" Min.
23-7/8"
24-1/8"
34-1/4"

Installation Instructions
4
TOOLS REQUIRED
• #2 Phillips screwdriver
• 1" open-end wrench
• Torx screwdriver
• Flat edge tool
HARDWARE SUPPLIED
• Monogram Badge
• Hardware for changing door swing
GROUNDING THE WINE CHILLER
AND BEVERAGE CENTER
IMPORTANT - (Please read carefully)
FOR PERSONAL SAFETY, THIS APPLIANCE MUST
BE PROPERLY GROUNDED.
The power cord of this appliance is equipped with a
three-prong (grounding) plug which mates with a
standard three-prong (grounding) wall receptacle to
minimize the possibility of electric shock hazard from
this appliance.
Have the wall outlet and circuit checked by a quali-
fied electrician to make sure the outlet is properly
grounded.
Where a standard 2-prong wall outlet is encountered,
it is your personal responsibility and obligation to
have it replaced with a properly grounded 3-prong
wall outlet.
DO NOT, UNDER ANY
CIRCUMSTANCES, CUT
OR REMOVE THE THIRD
(GROUND) PRONG
FROM THE POWER CORD.
DO NOT USE AN ADAPTER PLUG TO CONNECT
THE REFRIGERATOR TO A 2-PRONG OUTLET.
DO NOT USE AN EXTENSION CORD WITH THIS
APPLIANCE.
STEP 1 REMOVE PACKAGING
•Remove corner blocks and foam drawer stops.
•Remove all packing material and tape.
CAUTION: Small objects are a choke
hazard for children. Remove and discard any parts
not used.
PRUDENCE – Les petits objets
peuvent étrangler les enfants. Il faut jeter toutes les
piéces qui ne sont pas utilisées.

Installation Instructions
STEP 2 REVERSE DOOR SWING
SKIP THIS STEP IF DOOR SWING SUITS THE
INSTALLATION
Parts Included:
• Top left case hinge
• Bottom left door hinge
Tools Needed:
• Phillips Screwdriver
• Torx Screwdriver–For case hinges
Note: All parts will be reused except for bottom door hinge
and top case hinge.
To remove the door:
• Remove 2 screws holding toekick.
• Remove hinge plug cover on top left side of cabinet.
• Flatten the shipping carton to use as a pad for the
door.
• Remove the 3 screws holding the top case hinge.
• Lift off case hinge, it will not be used again.
• Lift door off bottom case hinge.
• Remove bottom case hinge with cam riser attached.
• Remove fill plug and screw on top right side of door.
• Remove door hinge (it will not be used again) and
screw from bottom right side of door.
Rotate the door:
Handle will be on right side of door, hinges will go on
the left.
Reinstall the Door:
• Install bottom case hinge and cam on the left side of
the unit.
• Install door hinge from kit to bottom left of door.
• Install fill plug and screw on top left of door.
• Place door on bottom case hinge.
• Install top case hinge from kit on top left of cabinet.
• Install hinge plug cover on top right of unit.
• Move plug on toekick to opposite side.
• Install toekick. Verify that spacers are still attached to
the rear of the toekick.
• Install Monogram badge on door.
• Put remaining case and door hinge in bag for possible
future use.
Note: Verify that door is on straight and screws are
tightened. If not the door will sag.
Position badge:
See the back cover for instructions and template to
accurately locate the supplied badge.
5
Remove
Top Hinge
Move Bottom Hinge
to Left Side
Door Stop
Install
3 Hinge
Screws

Installation Instructions
6

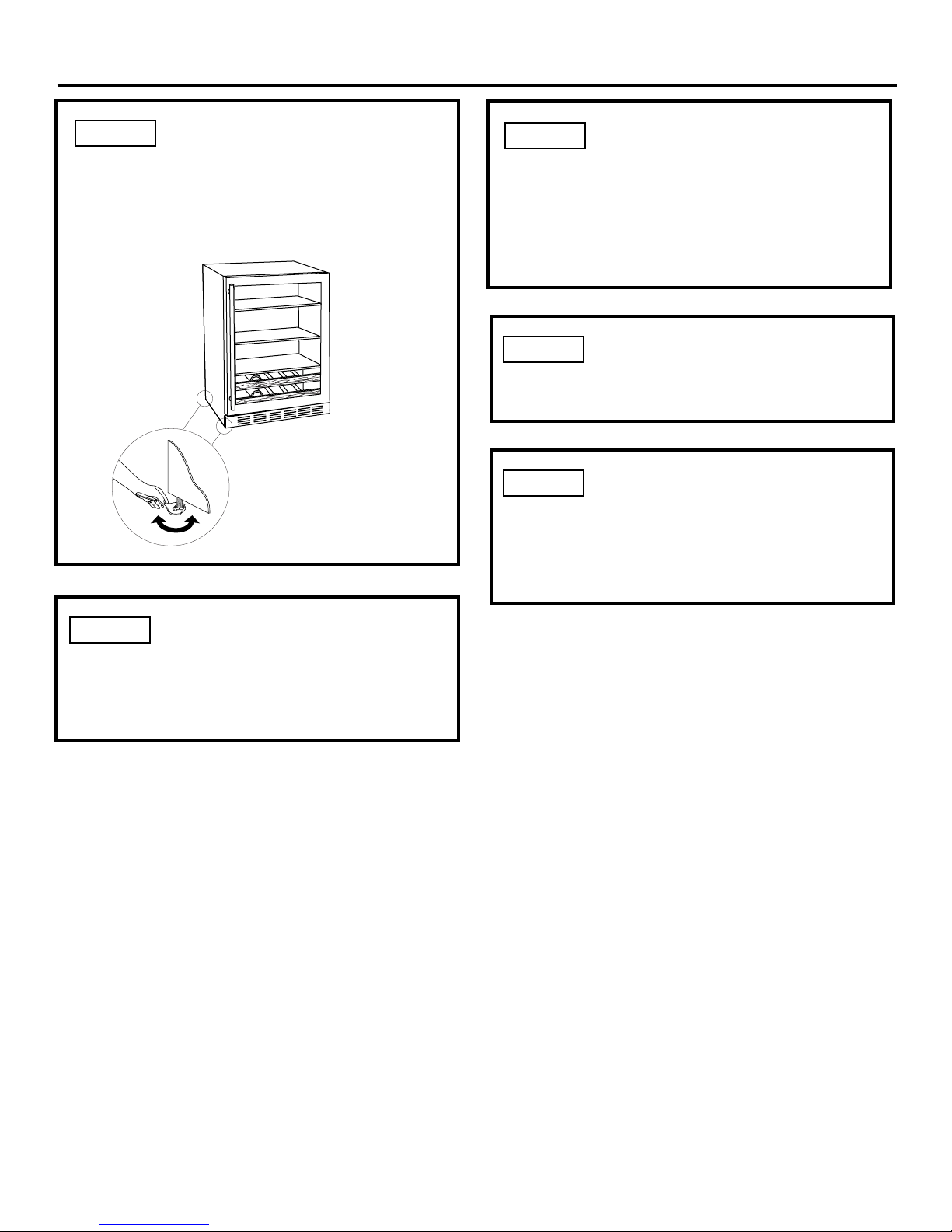

STEP 3 LEVEL
• Use a 1" open-end wrench to turn the leveling legs
and raise or lower the product.
• Adjust carefully, the wine chiller or beverage center
should be level and plumb with cabinetry, and
should align with adjacent toekick height.
STEP 5 SLIDE PRODUCT INTO
THE CUTOUT
• Carefully, slide the wine chiller or beverage center
into the opening. Be careful not to entangle power
cord.
• Make certain that the door protrudes 1" beyond the
surrounding cabinets.
STEP 4 CONNECT POWER
• Connect power cord plug to a properly grounded
receptacle.
• Check to make sure power is on by opening the door
to see if interior light turns on.
STEP 6 INSTALL BADGE
• Follow instructions on the back page for installation
of the Monogram badge.
STEP 7 SET TEMPERATURE
CONTROLS
• The temperature controls are preset. Refer to the
Owner’s Manual for more information. Allow 24
hours for temperature to stabilize.
Turn Right to Lower
Turn Left to Raise

7

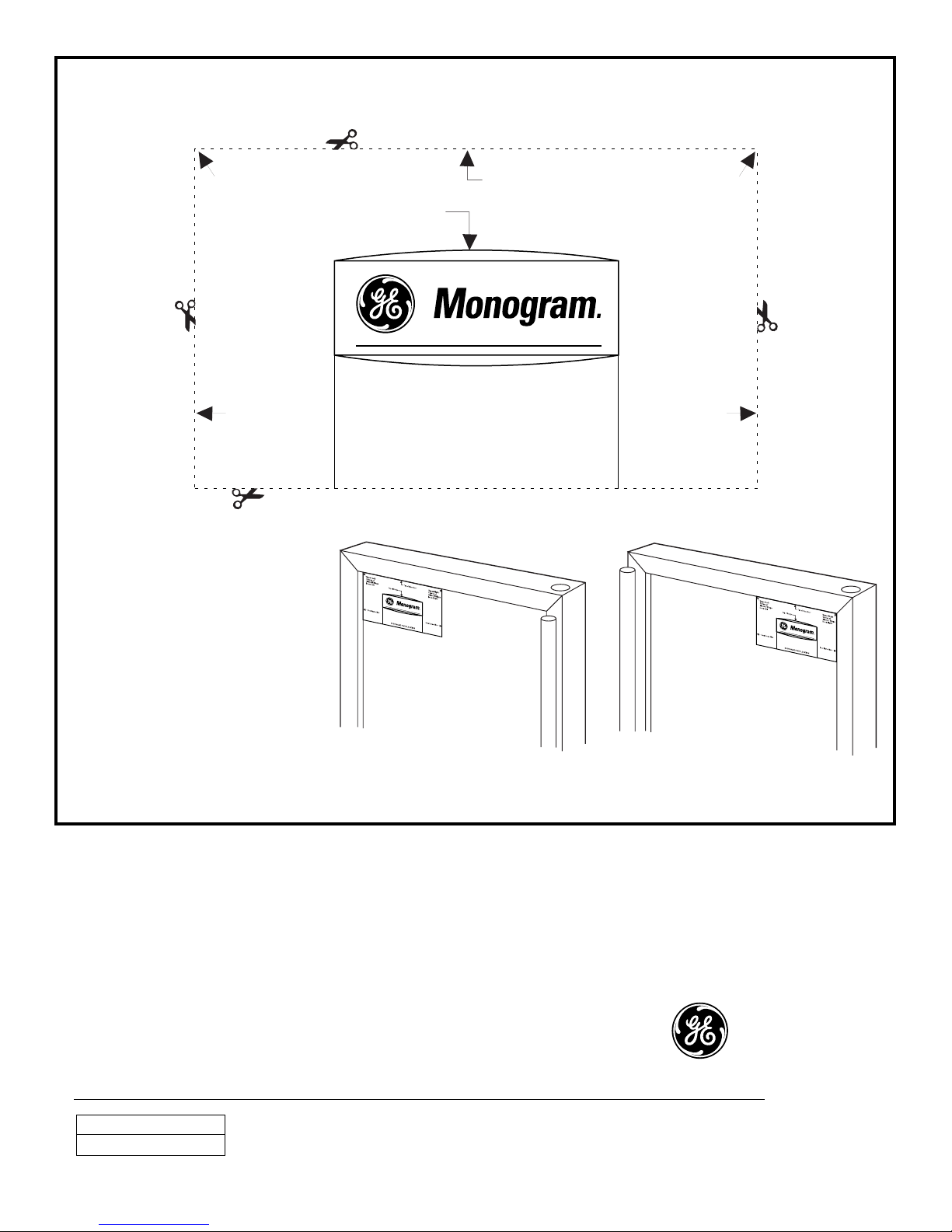

TEMPLATE FOR BADGE LOCATION ON ALL UNITS
To position badge:
• Cut template along dotted line.
• Hold or tape template behind
glass door so that it is visible from
the front side.
• Remove backing from badge.
• Place badge onto front side of
door, matching illustration on the
template.
IMPORTANT: Badge must
be placed on the opposite side of
the door handle.
Note: While performing installations described in this book,
safety glasses or goggles should be worn.
For Monogram®local service in your area, call
1-800-444-1845.
Note: Product improvement is a continuing endeavor at
General Electric. Therefore, materials, appearance and
specifications are subject to change without notice.
Pub. No. 49-60210
Dwg. No. 197D5129P001
(N.D. 502) 7/02
General Electric Company
Louisville, KY 40225
Monogram.
We bring good things to life.
®
Top of Badge
Cut on Dotted Line
Top of Glass Door
Door Frame Side
Upper Left
Corner of
Glass if Hinge
is on Left
DOOR BADGE LOCATION
Upper Right
Corner of
Glass if Hinge
is on Right
Door Frame Side
