Monoprice Z-Wave 700 Series User manual

Z-Wave® 700 Series Door/Window Sensor
P/N 43303
User's Manual

2
SAFETY WARNINGS AND GUIDELINES
Please read this entire manual before using this device, paying extra
attention to these safety warnings and guidelines. Please keep this
manual in a safe place for future reference.
•This device is intended for indoor use only.
•Do not expose this device to water or moisture of any kind.
•Do not expose this device to excessive vibration, extreme force,
shock, or fluctuations in temperature or humidity.
•Do not place or install this device in an area where it can be
exposed to excessive amounts of dust, humidity, oil, smoke, or
combustible vapors.
•Do not expose this device to excessively high temperatures. Do
not place it in, on, or near heat sources, such as a fireplace, stove,
radiator, etc. Do not leave it in direct sunlight.
•Remove the battery from the device if it will go unused for a
lengthy period of time.
•Clean using a soft, dry cloth only. Do not use chemical cleaners,
solvents, or detergents. For stubborn deposits, moisten the cloth
with warm water.
•This device has no user serviceable parts. Do not attempt to
service or modify this device.

3
INTRODUCTION
Thank you for purchasing this Z-Wave Plus® 700 Series Door/Window
Sensor from Monoprice™! This sensor is a wireless Z-Wave® enabled
device and is fully compatible with any Z-Wave enabled network.
Z-Wave is an interoperable, two-way RF mesh networking technology
used for home automation and security. Every AC powered Z-Wave
device acts as a signal repeater, so multiple devices result in more
possible transmission routes, which helps eliminate RF "dead spots" in
the network. Any Z-Wave enabled device displaying the Z-Wave logo
can be used with Z-Wave devices from other manufacturers.
This sensor mounts to a door or window, detects when it is opened or
closed, and sends a Z-Wave trigger signal to the network. These trigger
signals can be used to activate various other devices and perform
preprogrammed tasks. When the sensor is included into a secured
Z-Wave network, all communications will be encrypted. This device
supports the Security S0, Security S2 Unauthenticated, and Security S2
Authenticated protocols.
CUSTOMER SERVICE
The Monoprice Customer Service department is dedicated to ensuring
that your ordering, purchasing, and delivery experience is second to
none. If you have any problem with your order, please give us an
opportunity to make it right. You can contact a Monoprice Customer
Service representative through the Live Chat link on our website
www.monoprice.com or via email at sup[email protected]. Check
the website for support times and links.

4
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you have all
the items listed below. If anything is missing or damaged, please contact
Monoprice Customer Service for a replacement.
1x Door/Window Sensor
1x Magnet
1x CR2032 Battery
1x Strip 3M® Tape
1x DSK Card
1x User's Manual

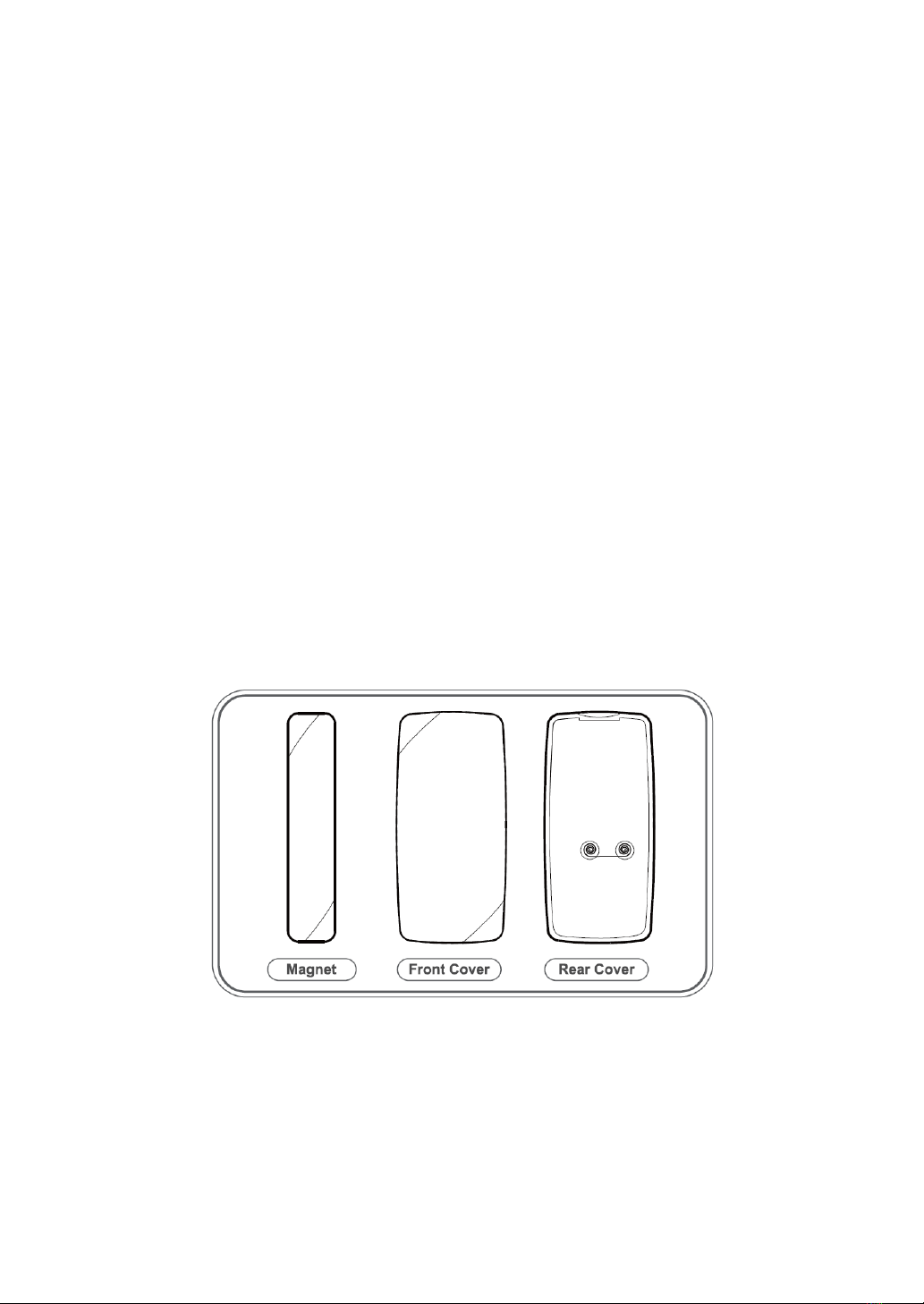

PRODUCT OVERVIEW

5
OPERATION
•Either opening the door/window to separate the magnet from
the sensor or removing the rear cover from the sensor will send a
signal to any association nodes according to the Status/Signal
Table (Notification V8 Type) and the LED will blink once.
•Either closing the door/window to mate the sensor with the
magnet or closing the front and rear covers will send a signal
according to the Status/Signal Table (Notification V8 Type).
•Under normal operation, the LED remains off.
•If the cover of the sensor is removed, the LED will blink once and
a "Wake Up Notification" is sent after 10 seconds.
INCLUSION AND EXCLUSION
Note: If you are installing a complete Z-Wave® system for the first time,
refer to the installation guide of your Z-Wave Controller before
installing this sensor.
Inclusion
Put your controller into Inclusion Mode and follow its instructions for
adding the sensor. To put the sensor in Inclusion Mode, ensure that the
rear cover has been completely closed, then trigger the reed switch 3
times within 5 seconds to send the Node Information Frame (NIF). After
it sends the NIF, Z-Wave sends the auto inclusion message, otherwise
the sensor will go to sleep after 30 seconds.

6
LED Status:
•Not Included: LED blinks 5 times
•Inclusion Complete: LED blinks 1 time
SmartStart
SmartStart simplifies the installation and setup process by having you
scan the QR code with your smartphone. Refer to your controller's
manual for instructions on activating SmartStart. When the sensor is
powered on while not included , it will go into SmartStart Inclusion
Mode. While in this mode, the sensor can be added to a Z-Wave®
controller that supports SmartStart.
Exclusion
To remove the sensor from your network, put your Z-Wave controller
into Exclusion Mode and follow its instructions to delete the sensor
from the controller. Ensure the rear cover is closed firmly, then trigger
the reed switch 3 times in 5 seconds to send the NIF for exclusion. Note
that when it is excluded, all user and network settings will be cleared
and the sensor will be set to its factory default settings.

7
ASSOCIATION
•The sensor supports two groups with 5 nodes/group.
•Group 1 = Lifeline
•Group 2 = On/Off Control
•All triggering reports and low voltage reports will be sent to the
associated nodes.
•Association is used for other grouping devices chain reaction.
WAKE UP NOTIFICATION
Remove the rear cover to put the sensor in "Wake Up Mode" for
receiving all command classes from the controller and sending a "Wake
Up Notification" message after 10 seconds. If the sensor receives a
"Wake Up No More Information" command, it will go into sleep mode
after 10 seconds. It will process all the commands after sending the
"Wake Up Notification".
AUTO WAKE UP
Use the "Wake Up" command to setup the waking time and send the
"Wake Up Notification" to the controller. You can then use commands to
change the Auto Wake Up interval from 10 minutes to 194 days, in 200
second increments. The default Auto Wake Up interval is 24 hours.

8
BATTERY CAPACITY DETECTION
Use the "Battery Get" command to report the percentage of battery
capacity remaining. It will detect the battery capacity automatically. The
Low Battery Auto Report level is set to 2.4 ±0.1 volts.
RESET TO FACTORY DEFAULT
Open the rear cover to trigger the rear cover switch to send the Alarm
Report. Trigger the reed switch 10 times in 10 seconds. The sensor will
send the "Device Reset Locally Notification" command and will reset to
its factory default settings. Note that this should only be done if the
controller is inoperable or otherwise unavailable.
OVER THE AIR FIRMWARE UPDATES
This sensor supports Over the Air (OTA) Firmware Updates. Refer to your
controller's manual for OTA update instructions. Once the OTA update is
complete, you should reset the sensor to its factory default settings and
perform the inclusion process again.
Note that the OTA update process consumes considerable battery
power. We recommend replacing the sensor's battery with a new
battery prior to performing the OTA update.

9
ADDITIONAL NOTES
•The sensor supports the Explorer Frame Function.
•Additional commands depend on the Z-Wave® standard.
•The sensor supports SmartStart. Scan the QR code on the sensor
for SmartStart. The QR code and PIN are located on the rear
cover of the sensor.
•The full Device Specific Key (DSK) string is located on a DSK card
included in the packaging. Keep this card safe for future use.
•There is a DSK label on the rear cover. Scan the DSK label to
access SmartStart if the gateway's UI supports SmartStart.
•A Security Enabled Z-Wave Controller must be used to get the
most out of this sensor.
•This device supports the Security S0, Security S2
Unauthenticated, and Security S2 Authenticated protocols.
Z-WAVE COMMAND CLASSES
COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3
COMMAND_CLASS_ASSOCATION_V2
COMMAND_CLASS_BATTERY
COMMAND_CLASS_DEVICE_RESET_LOCALLY
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5
COMMAND_CLASS_INDICATOR_V3
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
COMMAND_CLASS_NOTIFICATION_V8

10
COMMAND_CLASS_POWERLEVEL
COMMAND_CLASS_SECURITY
COMMAND_CLASS_SECURITY_2
COMMAND_CLASS_SUPERVISION
COMMAND_CLASS_TRANSPORT_SERVICE_V2
COMMAND_CLASS_VERSION_V3
COMMAND_CLASS_WAKE_UP_V2
COMMAND_CLASS_ZWAVEPLUS_INFO_V2
COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3
Z-WAVE® S2 SUPPORT COMMAND CLASSES
COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3
COMMAND_CLASS_ASSOCATION_V2
COMMAND_CLASS_BATTERY
COMMAND_CLASS_DEVICE_RESET_LOCALLY
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5
COMMAND_CLASS_INDICATOR_V3
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3
COMMAND_CLASS_NOTIFICATION_V8
COMMAND_CLASS_POWERLEVEL
COMMAND_CLASS_VERSION_V3
COMMAND_CLASS_WAKE_UP_V2

11
STATUS/SIGNAL TABLES
Notification V8 Type
Switch Type
Status
Notification Type
Reed Switch
0x06
Tamper Switch
0x07
Event
Reed Switch
Close: 0x07
Open: 0x16
Tamper Switch
Close: 0x00
Open: 0x03
Basic Set
Open
Close
Reed Switch
0xFF
0x00
TECHNICAL SUPPORT
Monoprice™ is pleased to provide free, live, online technical support to
assist you with any questions you may have about installation, setup,
troubleshooting, or product recommendations. If you ever need
assistance with your new product, please come online to talk to one of
our friendly and knowledgeable Tech Support Associates. Technical
support is available through the online chat button on our website
www.monoprice.com or through email by sending a message to
[email protected]. Check the website for support times and links.

12
To download the latest drivers, firmware, manuals, etc., go to
www.monoprice.com and type the P/N into the search bar. If available,
support files are linked at the bottom of the product page.
SPECIFICATIONS
P/N
43303
Protocol
Z-Wave Plus® V2 Series 700
Frequency
908.42 MHz
Battery Type
1x CR2032
Wireless Speeds
9.6/40/100 kbps
Outdoor Wireless Range (Direct)
Up to 200 meters
Outdoor Wireless Range
(Max. Hop/Repeat)
Up to 800 meters
Indoor Wireless Range (Direct)
Up to 100 meters
Indoor Wireless Range
(Max. Hop/Repeat)
More than 300 meters
Operating Temperature
+5 ~ +140°F (-15 ~ +60°C)
Dimensions
2.2" x 1.0" x 0.2" (56 x 26 x 6 mm)

13
REGULATORY COMPLIANCE
Notice for FCC
This device complies with Part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Modifying the equipment without Monoprice's authorization may result
in the equipment no longer complying with FCC requirements for Class
B digital devices. In that event, your right to use the equipment may be
limited by FCC regulations, and you may be required to correct any
interference to radio or television communications at your own expense.
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.

14
•Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for
help.
Notice for Industry Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003
du Canada.
Monoprice™ and all Monoprice logos are trademarks of Monoprice Inc.
Z-Wave® and the Z-Wave logo are registered trademarks of Z-Wave
Alliance Inc. in the United States and other countries.
3M® and the 3M logo are registered trademarks of 3M Company.
