Monoprice 43460 User manual
1
15-Watt Qi® Wireless Charging Pad
P/N 43460
User's Manual
SAFETY WARNINGS AND GUIDELINES
Please read this entire manual before using this device, paying extra
attention to these safety warnings and guidelines. Please keep this
manual in a safe place for future reference.
•This device is intended for indoor use only. Do not expose this
device to water or moisture of any kind. Do not touch the
device, the power cord, or any other connected cables with wet
hands.
•Do not expose this device to excessively high temperatures.
•Do not place anything on the charger other than a mobile
device. Foreign objects can cause the charger to overheat.
•Clean using a soft, dry cloth only. Do not use chemical cleaners,
solvents, or detergents. For stubborn deposits, moisten the
cloth with warm water.
•This device has no user serviceable parts. Do not attempt to
open, service, or modify this device.
•Do not use with a USB power source that has less than 5 VDC,
1.5A (7.5 watts) power output.
2
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you have all
the items listed below. If anything is missing or damaged, please contact
Monoprice™ Customer Service for a replacement.
1x Qi® Wireless Charging Pad
1x USB Charging Cable (Type-A to Type-C®)
1x User's Manual
PRODUCT OVERVIEW
1. USB-C® Input
2. LED Indicator
3. Charging Area
LED INDICATIONS
LED Status
Description
Solid Red
Connected to a USB power source
Solid Blue
Charging in progress
Off
Charging complete
Flashing Red and Blue
Foreign object detected on charging
area or charger over temperature
3
CHARGING
Perform the following steps to charge your Qi® compatible mobile
device.

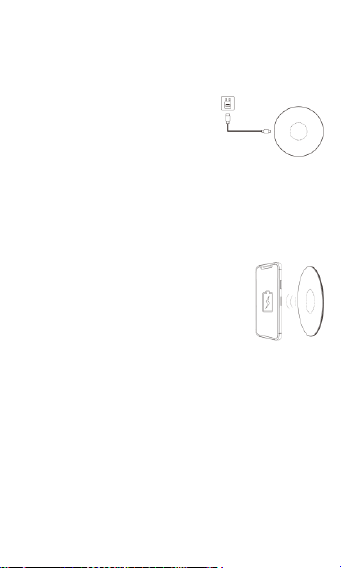

1. Plug one end of the included USB
Charging Cable into the USB-C®
Input on the charging pad, then
plug the other end into a USB
power source, such as wall charger
or power bank (available separately). The LED Indicator
illuminates Red, indicating that it is connected to a USB power
source.
Note that the USB power source must have a minimum output
of 5 VDC, 1.5A (7.5 watts).
2. Place your device on the Charging Area.
The LED Indicator illuminates Blue,
indicating that charging is in progress.
3. When charging is complete, the LED
Indicator turns off.
Note that it is normal for the charging pad and device to be warm to the
touch during charging. They will be even hotter if the device is in use
while charging is in progress, such as watching a video on your phone. If
the charging pad gets too hot, it will shut down and stop charging. If this
happens, remove your device from the charging pad and retry after it
has cooled.
4
ONLINE SUPPORT
Monoprice™ is pleased to provide free online support. For order related
issues, contact the Customer Service department through the Live Chat
link on our website www.monoprice.com or via email at
Support department through the online chat button on our website
www.monoprice.com or by sending an email to tech@monoprice.com.
Check the website for support times and links.
SPECIFICATIONS
P/N
43460
Input Power
5 VDC, 2A or 9 VDC, 1.34A or 9
VDC, 2A or 12 VDC, 2A
Wireless Output Power
5 VDC, 1A (5W) or 9 VDC, 0.83A
(7.5W) or 9 VDC, 1.12A (10W) or
9 VDC, 1.67A (15W)
Charging Efficiency
≥ 65%
Wireless Standard
Qi®
Transmission Distance
≤ 6mm
Cable Length
39.4" (1 meter)
Dimensions
ø3.9" x 0.3" (ø100 x 7.4 mm)
5
REGULATORY COMPLIANCE
Notice for FCC
This device complies with Part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Modifying the equipment without Monoprice's authorization may result
in the equipment no longer complying with FCC requirements for Class B
digital devices. In that event, your right to use the equipment may be
limited by FCC regulations, and you may be required to correct any
interference to radio or television communications at your own expense.
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
6
•Consult the dealer or an experienced radio/TV technician for
help.
Radio Notice for FCC
Caution
This FCC Part 15 radio device operates on a non-interference basis with
other devices operating at this frequency. Any changes or modification
to said product not expressly approved by Monoprice, including the use
of non-approved antennas, could void the user's authority to operate
this device.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
EU Conformity with applicable directives
This equipment complies with the essential requirements listed below:
•Radio Equipment Directive (RED) 2014/53/EU
•RoHS 2 Directive 2011/65/EU with Directive (EU) 2015/863
7
UK Conformity with the relevant Union harmonization legislation
This equipment complies with the essential requirements listed below:
•Radio Equipment Regulations 2017
•Restriction of the Use of Certain Hazardous Substances in
Electrical and Electronic Equipment Regulations 2012
Monoprice™ and all Monoprice logos are trademarks of Monoprice Inc.
Qi® and the Qi symbol are trademarks of the Wireless Power Consortium.
USB Type-C® and USB-C® are registered trademarks of USB
Implementers Forum.
