QUICK START GUIDE

MLB7-1041-RGB (MLB7-1042-RGB)

v1.0 0720

LIGHT

BAR+

WITH REMOVABLE

MULTI-POSITION

BASE

GETTING STARTED

WHAT’S IN THE BOX

• Smart Multi-Color LED Light Bar+

• Multi-position Base with Attachment Screws

• Optional Wall-Mount Adhesives and Screw

• Quick Start Guide

WHAT DO YOU NEED?

• Cellphone or tablet with

Android 6.0 or higher / iOS 10 or higher

• Wi-Fi router with an INTERNET connection

• Wi-Fi 2.4GHz 802.11n

Thank you for choosing the Smart Multi-Color LED Light Bar+ by

Monster Smart Illuminessence. This quick start guide will help

you with setup and installation of your device.

Before setup, make sure your phone is connected to the 2.4GHz

Wi-Fi network that your Light Bar+ will be placed on.

You may also need to turn on location to ﬁnd nearby devices.

TIP: Do you know your Wi-Fi network name and password? Write

it down now if it’s hard to remember.

ANYTHING ELSE?

Your Light Bar+ can be mounted on a wall. For secure

mounting with the included mounting screw, you will need a

Phillips head screwdriver (not included).

TIP: Save these instructions for future reference.

SETUP COMPLETE SETUP

BEFORE INSTALLATION

STEP 1

Remove your Smart Multi-Color LED Light Bar+ and all

components from the box.

Smart Multi-Color

LED Light Bar+

multi-position base

and attachment

screws

USB power cord

and controller

optional

wall-mount

accessories

STEP 2

Download the app from the App Store

(for iPhone) or Google Play Store (for Android phones).

free

download

NOTE: At any time after 10 seconds of pairing mode you can

disconnect the power for 10 seconds and then reconnect it to

cancel pairing and operate the product without Wi-Fi. Advanced

features will not be available.

STEP 3

Make sure your phone or tablet is successfully connected to the

2.4GHz Wi-Fi network that your Light Bar+ will be placed on.

Open the app and create an

account by following the on-screen instructions.

Monster Smart devices only work on a 2.4GHz Wi-Fi network.

Many newer home Wi-Fi networks are mixed networks that are set

to 5GHz by default (ex: AT&T, Verizon) and you may need to use

AP pairing mode to connect. If you still have diculty, contact your

Internet Service Provider for assistance with 2.4GHz network setup.

It is recommended to ﬁrst pair your Light Bar+ in a location close to

your router BEFORE installation.

Connect the USB plug to any powered 5V 2A USB power source

(not included), the Light Bar+ will begin blinking when it has

entered pairing mode and is ready to pair.

Press and hold the controller button for 5-6 seconds to enter

pairing mode or change between pairing modes.

Pairing Modes:

STEP 4

EZ MODE - RAPIDLY BLINKING LED (default)

EZ Mode is the default mode for quick and easy pairing setup.

AP MODE - SLOWLY BLINKING LED

Access Point Mode is a secondary setup that can help connect to

mixed networks. Follow the on-screen step by step instructions.

2 3

STEP 5

In the app, select the “+” in the upper

right corner of the home screen to add a new device and then

select “Lighting (Wi-Fi)” to add your device.

STEP 6

If needed, click “Net Pairing Mode” in the upper right to switch the

default EZ pairing mode for 2.4GHz Wi-Fi networks to AP mode for

mixed Wi-Fi networks.

mode

        

mode

(default)

You can now use the app to add voice control (see pg 8), adjust

settings, create custom lighting eects, set schedules, and more!

Once complete, your device will be connected to the network.

Conﬁrm or change the settings for your device and then click “Done”.

Your Light Bar+ is now setup and you can proceed to installation.

Conﬁrm that the LED indicator is RAPIDLY blinking.

Conﬁrm that the network displayed is your 2.4GHz Wi-Fi

network, then enter your Wi-Fi password and click “Conﬁrm”.

Conﬁrm that the LED indicator is SLOWLY blinking.

Conﬁrm the network is your mixed Wi-Fi network, enter your

Wi-Fi password and click “Conﬁrm”. Follow the on-screen

instructions to set up your device via wireless access point.

Once complete, your device will be connected to the network.

Conﬁrm or change the settings for your device and then click “Done”.

Your Light Bar+ is now setup and you can proceed to installation.

Conﬁrm that the LED indicator is RAPIDLY blinking.

Conﬁrm that the network displayed is your 2.4GHz Wi-Fi

network, then enter your Wi-Fi password and click “Conﬁrm”.

STEP 1

Determine where and in what orientation you would like to use

your Light Bar+, horizontal or vertical orientation on a shelf or

table, or mounted on the wall as an LED sconce.

STEP 2

Pass the USB power cord and controller through the opening

in the multi-position base.

STEP 3

For horizontal or wall mounted orientations, attach the base

in the center of the light bar using the two included screws.

For vertical orientation, route cord through the cord

channel and attach the base at the end of the light bar.

STEP 4

Connect the USB plug to any 5V 2A USB power source (not

included). The Light Bar+will automatically reconnect to the

paired Wi-Fi network and will now be ready to use!

INSTALLATION

pass through

USB plug ﬁrst

screws

HORIZONTAL OR WALL MOUNTED:

Monster logo faces away

from the base to avoid cord damage,

don’t pull the cord tight

screws

VERTICAL:

using the cord channel

makes the vertical

light bar more stable

adhesive

WALL MOUNTING TIP:

attach the base to the wall ﬁrst using the

adhesive circle and the included screw

this

side

APP CONTROL: CUSTOM SCENES

HOW TO USE

Your Light Bar+ can be easily controlled with the in-line controller,

the app to access advanced and

customizable lighting eects, or by using a compatible voice

assistant product for hands-free operation. (see page 8)

SCENES:

click - change between preset scenes

(or access the custom edits of those

scenes, requires Wi-Fi pairing and app)

RESET:

press and hold - reset the device

and to pair to your Wi-Fi network

Microphone for music reactive eects

(controlled via app)

POWER:

double click - click twice quickly

to power on or o your device

5 6

PICTURE: edit your scene thumbnail

NAME: edit your scene name

COLOR SETS: choose from 8 preset color sets

or add your own colors and arrange

and adjust them as you wish

individual color adjustments

TIP: Set Brightness to 0% create an “o” color.

TIP: Set Saturation to 0% create a white color.

MODE: choose between 3 color changing

modes, Fade, Flash, and Music

Reactive (activates built-in mic)

PATTERN: choose between 9 directional

patterns for the LED light eects

SPEED: adjust the color transition speed

SAVE: submit and save your scene!

5 6

For other frequently asked questions please visit our

website at www.monsterilluminessence.com

TROUBLESHOOTING

Don’t return this product to the retailer, we’re here to help.

Please call for customer support: 866-246-2008

Q: Why is my device failing to connect to my Wi-Fi network?

Make sure your phone or tablet is successfully connected to

the 2.4GHz Wi-Fi network that your device will be placed on.

You may ﬁrst need to enable and allow location services on

your phone or tablet to ﬁnd nearby devices.

If your Wi-Fi network is a mixed 2.4GHz/5GHz network, try using

AP pairing mode for better results.

If you still have issues with your mixed network, you may need

to access your router settings and/or call your Internet Service

Provider to create a separate 2.4GHz network.

A1:

A2:

A3:

A4:

GROUPING DEVICES

WALL MOUNTED

6 7

The Smart Multi-Color LED Light Bar+ is great to use in multiples:

You can control each Light Bar separately or easily group multiple

devices together in the app to control them all as one. Click on the

menu button in the upper right corner and then click “Create

Group” to group your devices.

       

6 7

OPTIONAL

VOICE CONTROL

At any time, go to the Alexa app to set nicknames and rooms for

your devices. You can also rename devices in the Monster Smart

app.

Using the name Light Bar, or the name you assigned your Light Bar,

you can ask Alexa to control your device, just say “Alexa,” and ask:

“Turn on my Light Bar”, “Set my Light Bar to blue”, “Set my

Light Bar to 50% brightness”, and more!

1: 2:

Open the Alexa app and go to Skills in the menu

Search for and choose

Enable the Skill and authorize your account using

your login information

Use the same login information that you used to

create your Monster Smart account

AMAZON VOICE CONTROL SETUP

STEP 1 :

STEP 2 :

STEP 3 :

NOTE :

Make sure your Amazon Alexa device is installed and setup

77 8

At any time, go to the Google Home app to set nicknames and

rooms for your devices. You can also rename devices in the

Monster Smart app.

Using the name Light Bar, or the name you assigned your Light Bar,

you can ask your Google Assistant to control your device, just say

“Hey Google” and say: “Turn on my Light Bar”, “Set my Light Bar

to blue”, “Set my Light Bar to 50% brightness”,and more!

Open the Google Home app, go to the Home

menu, and tap the “+” button

Click “Set up device”

Click “Have something already set up?”

Search for and choose and

authorize your account using your login information

Use the same login information that you used to

create your Monster Smart account

GOOGLE VOICE CONTROL SETUP

STEP 1 :

STEP 2 :

STEP 3 :

STEP 4 :

NOTE :

Make sure your Google Assistant device is installed and setup.

1: 3:

Now Siri can use your voice and custom verbal command to turn

your device on or o, activate your last used lighting scene, adjust

Light Bar at the same time as your other smart devices, or whatever

you’ve set up as your Tap To Run Smart Scene.

SIRI VOICE CONTROL SETUP

Requires iPhone running iOS 12 or later.

STEP 1 :

STEP 2 :

STEP 3 :

STEP 4 :

STEP 5 :

Open the app and go to

the “Smart” menu, tap the “+” button to create a new

Tap To Run Smart Scene

Tap “launch Tap To Run” and ﬁll out the information

Once your Smart Scene is created and saved, click the

button that appears at the bottom of the screen that

says “Add to Siri” to open the list of options

Select your new Tap To Run Smart Scene from the list

and click “Add to Siri”

Create a custom phrase to say to Siri to run your Smart

Scene (this can be any verbal command)

910

This device complies with Part 15 of the FCC. Operation is subject to the following two conditions: (1) this device

may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. Changes or modications not expressly approved by the party

responsible for compliance could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15

of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a

residential installation.This equipment generates uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the equipment o and

on, the user is encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help.

RF Exposure Statement

To satisfy FCC’s RF exposure requirements, a separation distance of 20 cm or more should be maintained between

the antenna of this device and persons during device operation.To ensure compliance, operations at closer than this

distance is not recommended.

Jem Accessories, Inc. Limited Warranty Policy for Monster Smart Products Last Updated: March 27, 2020

This limited warranty contains important information about your rights and obligations, as well as limitations and

exclusions that may apply to you.

1. WHAT THIS LIMITEDWARRANTY COVERS; PERIOD OF COVERAGE Jem Accessories, Inc. (“Jem Accessories”), 32

Brunswick Ave, Edison, New Jersey, USA, warrants to the owner of the enclosed Monster Smart-branded product

contained in this box (“Product”) will be free from defects in materials and workmanship for a period of one year.

Notwithstanding the foregoing, theWarranty Period for a factory refurbished Product is one (1) year, even if installed

by a professional. If the Product fails to conform to this LimitedWarranty during the Warranty Period, Jem Accessories

will, at its sole discretion, either (a) repair or replace any defective Product or component; with proof of purchase using

original documentation. Repair or replacement may be made with a new or refurbished product or components, at

Jem Accessories’s sole discretion. If the Product or a component incorporated within it is no longer available, Jem

Accessories may, at Jem Accessories’s sole discretion, replace the Product with a similar product of similar function.

This is your sole and exclusive remedy for breach of this LimitedWarranty. Any Product that has either been repaired or

replaced under this LimitedWarranty will be covered by the terms of this Limited Warranty for the longer of (a) ninety

(90) days from the date of delivery of the repaired Product or replacement Product, or (b) the remaining Warranty

Period.This LimitedWarranty is not transferable from the original purchaser to subsequent owners.

2. TOTAL SATISFACTION RETURN POLICY If you are the original purchaser of the Product and you are not

1 YEAR LIMITED WARRANTY

FCC Compliance

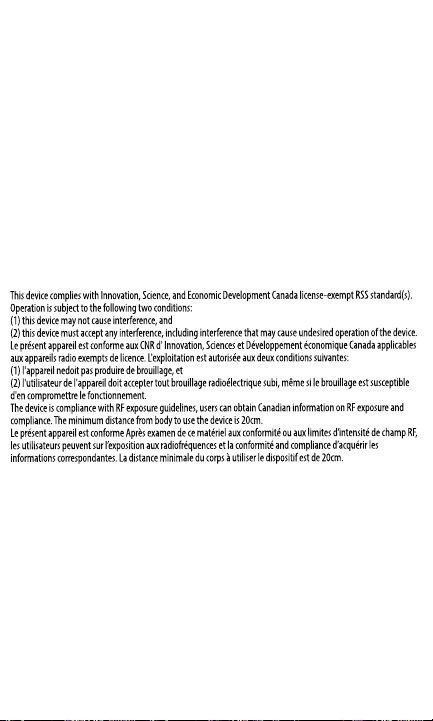

ISEDC Warning

NOTES

WARRANTY

1 Year Limited Warranty - Please read and understand all

instructions before using this product. If damage is caused by

failure to follow the instructions, this warranty is null and void.

SAFETY

• Keep these instructions

• Do not drop, puncture, or disassemble this product

• Do not install this product in any way other than what is

outlined in this guide

• Do not use this product in wet or very humid environments

or expose to dripping or splashing liquids of any kind

• Do not immerse in water

• Avoid long exposure to direct sunlight, which may cause damage

• Do not use this product in small, enclosed locations that

could limit the ﬂow of air or trap excess heat

• Do not expose this product to open ﬂames

• Do not use the product in a strong magnetic ﬁeld

• Do not use this product for emergency lighting/exits

• Do not allow small children to operate, modify, or install

this device unsupervised

• Use a clean, soft cloth to clean - do not use any corrosive

cleaners/oils to clean

• For indoor use only

PATENT PENDING

LIGHT BAR+ | Model: MLB7-1041-RGB | Input: USB 5V 2A

FCC ID: 2AHAS-MLB71041 | IC: 26069-MLB71041 | HVIN: MLB7-1041-RGB

The illustrated products and speciﬁcations may dier slightly from those supplied.

The M Monster logo and IlluminEssence are trademarks or registered trademarks of Monster,

Inc. or its subsidiaries in the U.S. and other countries and are used under license. Apple and the

Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App store is

a service mark of Apple Inc. Google and Google Play are trademarks of Google LLC.

Pre-set-up required. Amazon, Alexa, and all related logos are trademarks of Amazon.com, Inc.

or its aliates. All other brand names are trademarks of their respective owners. Neither Jem

Accessories, Inc. nor Monster, Inc. is aliated with the respective owners of their trademarks.

Licensed and Manufactured by Jem Accessories, Inc. Edison, NJ 08817. Made in China. 1110
