Monte Carlo Fan Company 3MNLR56 Instruction manual

Owner’s Guide and Installation Manual
Total fan weight with light kit
DATE OF PURCHASE:
MODEL NUMBER:
RETAILER NAME:
RETAILER ADDRESS:
Attach sales receipt to this card and retain as yourproof of purchase
To register your fixture, please visit our website www.montecarlofans.com
3MNLR56XXD Series Fan
ETL Model NO. : 3MNLR56
7.74 kgs
17.03 lbs

2
© 2013 Monte Carlo Fan Company 11/15/2013
Cautions and Warnings
Installation work and electrical wiring must be done by qualified person(s) in accordance with applicable codes and standards (ANSI/NFPA
70-1999), including fire-rated construction.
Use this unit only in the manner intended by the manufacturer. If you have any questions contact the manufacturer.
After making the wire connections, the wires should be spread apart with the grounded conductor and the equipment-grounding conductor
on one side of the outlet box and ungrounded conductor on the other side of the outlet box. The splices, after being made, should be
turned upward and pushed carefully up into the outlet box.
WARNING: Before you begin installing the fan, servicing or cleaning unit, Switch power off at Service panel and lock service disconnecting
means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
Be cautious! Read all instructions and safety information before installing your new fan. Review the accompanying assembly diagrams.
When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7 feet
from the floor to the trailing edge of the blade.
WARNING: To Reduce The Risk Of Fire, Electric Shock, or Personal Injury, Mount To Outlet Box Marked “Acceptable for Fan Support of
15.9 kg (35 lbs) or less” And Use Mounting Screws Provided With The Outlet Box.
WARNING: To reduce the risk of personal injury, do not bend blade holders during installation to motor, balancing or during cleaning. Do
not insert foreign object between rotating blades.
CAUTION: For Compliance with Local Codes and Regulations, If Installing The Secondary Support Safety Cable in the U.S., Do Not Remove
Knockouts In The Outlet Box. Mount the secondary support safety cable through the reserved nail/screw hole on the outlet box to the
building structure (or the ceiling joist).
Attach the mounting bracket using only the hardware supplied with the outlet box.
WARNING: To Reduce The Risk Of Electric Shock, This Fan Must Be Installed With a general use, isolating Wall Control/Switch.
WARNING: To reduce the risk of fire or electric shock, this fan should only be used with fan speed control part no. 7DVCF-0000113
manufactured by Pan-World Control Technologies, Inc.
WARNING: To reduce the risk of fire or electric shock, do not use this fan with any other solid state fan speed control device, or variable
speed control.
If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application.
Never place a switch where it can be reached from a tub or shower.
The combustion airflow needed for safe operation of fuel-burning equipment may be affected by this unit’s operation. Follow the heating
equipment manufacturer’s guideline safety standards such as those published by the National Fire Protection Association (NFPA), and the
American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.
CAUTION: To Reduce the Risk of Electric Shock, Disconnect the electrical supply circuit to the fan before installing the light kit.
CAUTION: The light source is designed for this specific application and can overheat if serviced by untrained personnel. If any servicing is
required, the product should be returned to an authorized service facility for examination or repair.
All set screws must be checked, and re-tightened where necessary, before installation.
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety Glasses, Stepladder and Wire Strippers
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING
READ AND SAVE THESE INSTRUCTIONS
Customer Service
800-969-3347
Customer Service Center
7400 Linder Ave.
Skokie, IL 60077
www.montecarlofans.com

3
© 2013 Monte Carlo Fan Company 11/15/2013
1 2 3
4 5 6
ON
OFF
ON
OFF
Before you begin installing the fan, Switch
power off at Service panel and lock
service disconnecting means to prevent
power from being switched on
accidentally. When the service
disconnecting means cannot be locked,
securely fasten a warning device, such
as a tag, to the service panel.
Before installing this fan makes sure the
outlet box is properly installed to the
house structure. Ensure the outlet box is
securely fastened by at least two points
to a structural ceiling member (a loose
box will cause the fan to wobble).
To reduce the risk of fire, electric shock,
or personal injury, mount to outlet box or
supporting system acceptable for fan
support.
(Mounting must support at least 35 lbs.)
Partially loosen 2 of the set screws on
mounting bracket corresponding to the slotted
holes on the canopy upper ring. Remove the
other 2 set screws. Save screws.
Use metal outlet box suitable for fan
support and use only the screws provided
with the outlet box (must support 35
lbs). Remove the two outlet box screws
provided with the box, aligning the holes
of the mounting bracket with the holes of
the outlet box. Reinstall the 2 outlet box
screws securely.
For Canadian installation and for USA fan
and light kit combinations over 35 lbs, in
both flush and downrod modes the safety
cable must be installed into the house
structure beams using 1.5” lag screws,
washers and lock washers provided.
Note: If Installing The Secondary Support
Safety Cable in the U.S., Do Not Remove
Knockouts In The Outlet Box.
Place fan assembly on styrofoam to keep
the LED light kit away from damage and
make fan installation easier.
Flip the bottom styrofoam over, aligning
the part of the LED light kit with the hole
in the styrofoam and then place the fan
assembly on it for fan installation.
Partially loosen downrod set screws from
yoke at top of motor assembly.
Remove preassembled cross pin and
keeper pin from downrod.
Ceiling
2˝x 4˝
Ceiling
Joists
Outlet
Box
Fan Wiring
Yoke
Keeper pin
Cross
pin
Downrod
Safety cable Junction
Box
Mounting
Bracket
Lag screw
Safety cable
Washer
Lock washer
LED light kit
Screw/ Washers
/Spring Washers
Ceiling joist
Outlet Box
Mounting
Bracket
SAFETY CABLE INSTALLATION

4
© 2013 Monte Carlo Fan Company 11/15/2013
7 8 9
10 11 12

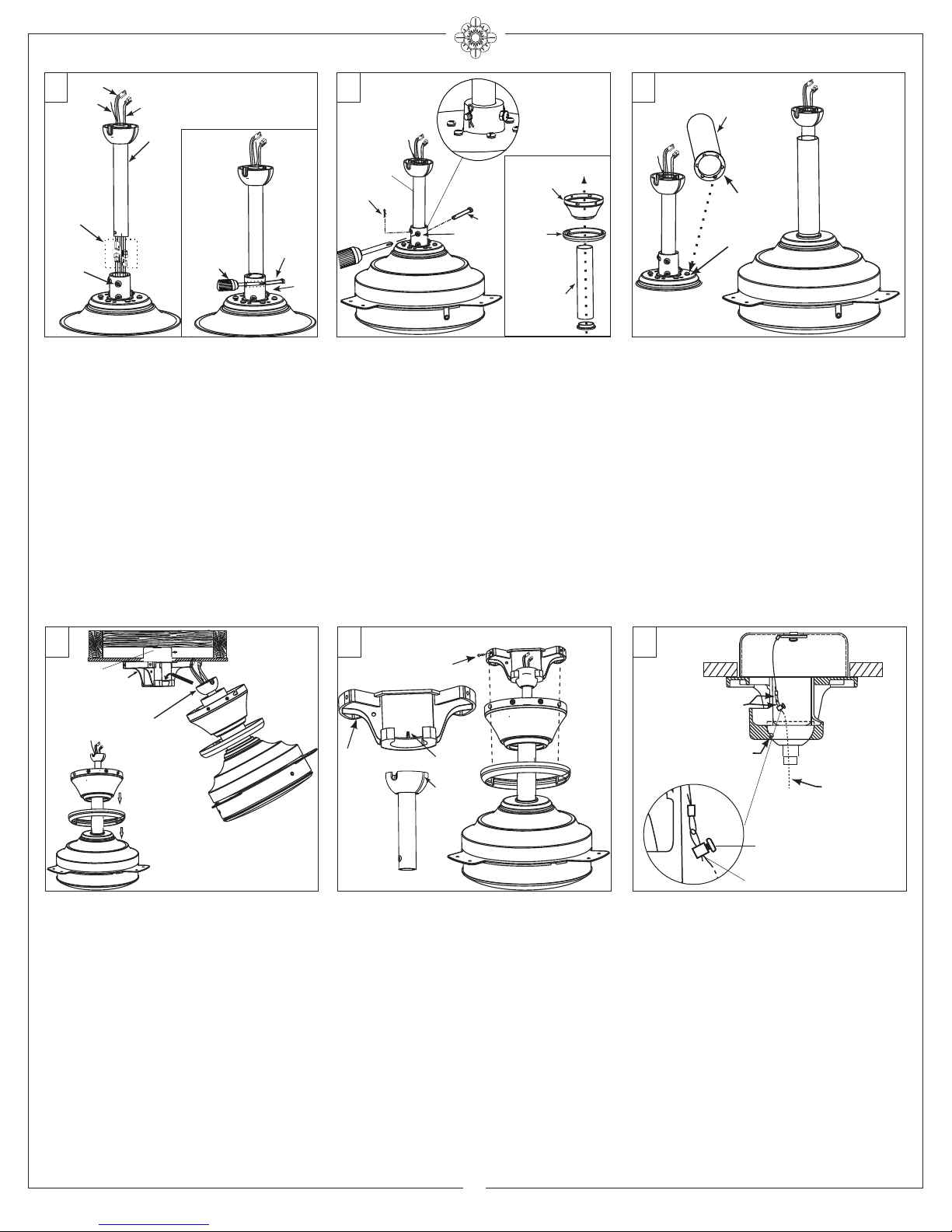

Connect the lead wires and thread safety
cable from motor assembly through
downrod.
Helpful hint: For making it easier to insert
cross pin through downrod yoke and
downrod in the next installation step,
Carefully insert a phillips screwdriver through
yoke and downrod (don’t damage the lead
wires) as a guide and then push the cross
pin and pull the screwdriver in the mean time
as shown in above inset.
Slip downrod into motor housing yoke,
aligning holes and install cross pin and
keeper pin. Insert cross pin through yoke
and downrod until point appears on the other
side, and insert keeper pin on cross pin.
Pull the downrod up tight against the cross
pin, and then evenly tighten the downrod set
screws on motor housing yoke.
Warning: Cross pin and keeper pin must be
installed securely, failure to install them will
result in serious injury.
Place column over downrod and put it in
position by aligning the recessions with
the set screws on top side of housing.
Place canopy ring and canopy over
downrod with column. Handle it carefully
to avoid damage from scratch.
Install ball end of downrod into mounting
bracket opening. To slip hanger ball
into mounting bracket by slanting fan
assembly for about 35 degree as
shown in above illustration.
Align (engage) slot on ball with tab on
mounting bracket.
Warning: Failure to align slot on ball with
tab may result in serious injury.
Connect the safety cable from fan to the
Ceiling support cable.
Slide cable clamp onto the safety cable
from fan. Place the end of cable through
the loop of ceiling support cable and then
feed end of cable into clamp hole and
firmly tighten set screw. Cut off excess
safety cable.
Make sure that when the safety cable is
fully extended the lead wires are longer
than the cable and no stress is placed on
the lead wires.
Column
Canopy
ring
Column
Column
Cover
Set screw
Attach Safety
Cable to Ceiling
Support Cable
Tab
Keeper pin Cross pin
Yoke
Canopy
Column cover
Downrod
Safety cable from fan
Canopy
Canopy ring
Downrod/Hanger
Ball Assembly
Fan wires
Fan Wiring
Light wires
Yoke
Safety
cable
Cable clamp
Set screw
Outlet Box
Hanger Bracket
Hanger ball
Hanger
Bracket
Setscrew
Tab
Slot
Philips
screwdriver
Cross
pin

5
© 2013 Monte Carlo Fan Company 11/15/2013
13
14 15 16

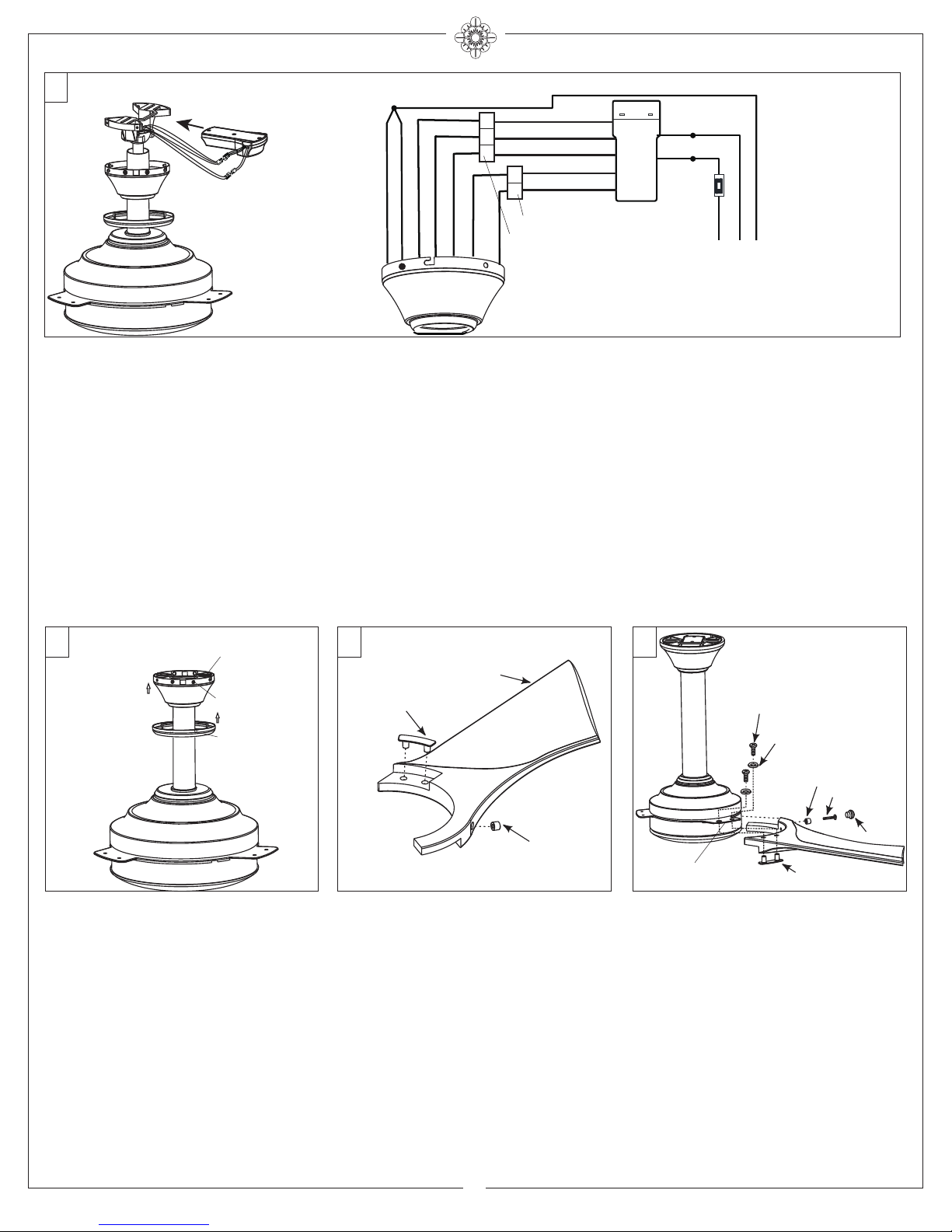

Make wiring connections using plugs with lead wires and wire connectors provided as indicated above. Connect the 2 P plug from
fan to 2 P plug from receiver and then connect the 3 P plug from fan to the 3 P plug from receiver. Connect White wire from house
to White wire from remote receiver marked AC N and then connect Black wire from house to Black wire from remote receiver
marked AC L. Connect all green grounded wires to Grounded wire from House. Make sure that no filaments are outside of the wire
connectors.
Insert the remote receiver into mounting bracket.
Raise canopy to mounting bracket, aligning
loosened screws in mounting bracket with
slotted holes in canopy. Twist canopy
clockwise to lock. Reinstall screws (with
washers) that were previously removed in step
3 and then tighten all screw securely.
Install canopy ring onto canopy by aligning the
grooves in canopy ring with the tabs on
canopy and pop it onto canopy.
Insert the blade kit and blade rubber plug
in position as shown.
Hold the blade kit by finger and flip the
blade over for installing with flywheel in
step 16.
Engage the blade with flywheel, aligning
the holes and then partially install 2 blade
set screws and washers from top and
one bolt from side of blade as shown.
Repeat this process for remaining blades.
Tighten all set screws and bolts securely
after all the blade assemblies are
installed to flywheel.
Stuff plugs into the hole on side of blade.
Set screws, bolts and plugs provided.
Helpful hint: Make small adjustment by
moving blade a little may help to align the
holes on blade with holes on flywheel.
Flywheel
BladeRubber
Plug
Fiber
Washer(6)
Blade
Setscrew(6)
Bolt (3)
Plug
BladeKit
Blade
BladeRubber
Plug
BladeKit
Canopy ring
Green or Bare Ground
Green or Bare Ground
Green From Hanger Ball
Green From Mounting Bracket
White- AC IN N
Black- AC IN L
120V Supply
(Power Supply)
Wall Switch
2P plug
3P plug
Receiver
Receiver
Mounting bracket
Canopy
Tab
Groove

6
© 2013 Monte Carlo Fan Company 11/15/2013
17
Attach glass to light pan by locating
dimples in light pan with grooves in glass
and twist clockwise until tight.
Battery
SET
+
+
-
-
Remote Transmitter
Trim plate
Wall mount cradle
Transmitter
Remove the battery cover from the remote control transmitter and
install battery. Replace the cover.
Note: Use 2 1.5V/AAA battery to replace battery. (Fig. 1)
Note: If not using for long periods of time, remove battery to
prevent damage to remote transmitter, and store the remote
transmitter away from excess heat or humidity.
Install Transmitter wall mount cradle with 2 screws provided.
Move the trim plate out from wall mount cradle and install the wall
mount cradle with 2 screws provided. Replace the trim plate. (Fig.
2)
REMOTE CONTROL SETTING and OPERATION
Fig.1
Fig.2
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS.
(1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED
OPERATION.

7
© 2013 Monte Carlo Fan Company 11/15/2013
SET
SET
+
+
-
-
Dip(Code) Switches
Set code switch
Remote Transmitter
REMOTE CONTROL SETTING and OPERATION
Press the button to get desired fan speed, Low to High.
Press the button to get desired fan speed, High to Low.
Press the OFF button to turn fan off. Fan speed will maintain last
setting if turned off.
Press this forward/reverse button to get desired airflow
direction. Fan must be running to reverse. It will take about 25
seconds for fan to slow down and change rotation direction.
Press this button quickly to turn light on or off. To dim light, hold
down the button, the light will cycle from bright to dim to bright
until button is released. Light will maintain last setting if turned
off.
The buttons on the remote control transmitter control the fan speed and light
as follows. (Fig. 4)
DownSpeed
Power ON/OFF
LED Indicator
Fan/R
UP Speed
Light ON/OFF
&Dimmer
Remote Transmitter
Universal Mode and Learning Mode
There are “Universal Mode” and “Learning Mode” with the remote controller.
If choosing “Universal Mode”, simply place both dip (code) switch at UPPER
position. Your fan with the remote controller is ready to use. (Fig. 3)
Note: If using universal mode, your fan can be controlled with other remote
transmitters with the same setting.
To control the fan with specific remote transmitter, choose “Learning Mode” by
placing the dip (code) switch at LOWER position and then make learn function
setting as below.
Make “Learn function setting” at the position within 5 meter distance from the
fan. Restore power source to your fan, press and hold the “SET” button for about
4 seconds until buzzer inside receiver sounds. Your remote controller is ready to
operate the fan. You must press the “SET” button within 1 minute of restoring
power to the fan. (Fig.3)
Note: If the power is on already, you must turn the power off for at least 5
seconds and then turn the power back for remote control learn function setting.
The buzzer inside receiver will sound for about 4 seconds after turn the power
back and then it is ready for learning function setting. If the fan is running after turn
power back, still wait for at least 5 seconds and then press and hold the “SET”
button for about 4 seconds until buzzer inside receiver sounds. Your remote
controller is ready to operate the fan.
Battery cover
Fig.3
Fig.4
Upper position
Lower position

8
© 2013 Monte Carlo Fan Company 11/15/2013
Tips for end users
1. If your fan is operated automatically after installation and power on, it is because your fan is still memorize the previous
setting at factory. Use universal mode or make learn function setting and your fan will be ready for use.
2. If fan or light isn’t working, reset power (turn the power off for at least 5 seconds and then turn the power back) and redo the
learn function setting.
3. It is not available to separately operate the remote setting for more than one fan in the same room (in the area where remote
signal can reach to) if they share the same power supply. Separate power supplies (like as using individual wall switches for each
fan) is required if you want to separately control more than one fan in same room.
4. When fan is turned on or operated forward/reverse function, it shutters & goes back & forth until it turns. It is a normal
performance of this fan and it will take for few seconds to run this operation.
The receiver provides the following protective functions
Lock protection- The DC motor has a build-in safety feature against
blade or motor obstruction during operation. If something obstructs
the fan blades or motor, the motor will keep trying to run for 3
times and then stop operation after about 30 seconds of
interruption. Please remove obstacles and reset. To reset it by turn
the fan off by remote transmitter and then turn the fan on.
Over load protection (current limit)- The device will limits the
maximum current output from the receiver/drive when the fan load
was increased abnormally.

9
© 2013 Monte Carlo Fan Company 11/15/2013
Trouble Shooting
or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults,
installation, please call our Customer Service Center at the
number printed on your parts list insert sheet.
Warning: Before servicing or cleaning unit, Switch power off at Service panel and lock service disconnecting
means to prevent power from being switched on accidentally. When the service disconnecting means cannot be
locked, securely fasten a prominent warning device, such as a tag, to the service panel.
1.Check main and branch circuit fuses or circuit breakers.
2.Check line wire connections to fan and switch wire connections in switch housing.
CAUTION: Make sure main power is turned off.
either way. Fan will not operate when switch is in the middle.
4.If this fan uses remote controller, make sure dip switches are setting properly and make
sure battery is effective.
1.Check to make sure all screws in motor housing are snug (not over tightened).
2.Check to make sure the screws which attach the fan blade holder to the motor are tight.
3.Check to make sure wire nut connectors in switch housing are not rattling against each
other or against the interior wall of the switch housing.
CAUTION: Make sure main power is turned off before entering switch housing.
4.Check to be sure light bulb is tight in socket and not touching the glass shade.
5.Some fan motors are sensitive to signals from Solid State variable speed controls.
6.Allow "break-in" periodof 24 hours. Mostnoises associated with a new fan will disappear
after this period.
1.If this is a downrod mount fan, make sure the ridge on mounting bracket engages the
notch in the downrod ball.
2.Make sure that canopy, mounting bracket or mounting plate are tightened securely to
4.Check that all blade holders are tightened securely to motor.
5.Most fan wobble problems are caused when blade levels are unequal. Check this level by
selecting a point on the ceiling above the tip of one of the blades. Measure this distance
from blade tip to ceiling. Keeping measure within 1/8", rotate the fan until the next blade
is positioned for measurement. Repeat for each blade. If all blade levels are not equal,
you can adjust blade levels by the following procedure. To adjust a blade tip down, insert
a washer (not supplied) between the blade and blade holder at the screw closest to the
motor. To adjust a blade tip up, insert washer (not supplied) between the blade and blade
holder at the two screws farthest from the motor. Reverse the position of the washer if
blades mount from top of blade.
6.If blade wobble is still noticeable, interchanging two adjacent (side by side) blades can
redistribute the weight and possibly result in smoother operation.
1.Check blue wire from fan to make sure it is connected to hot wire from house.
2.Check for loose or disconnected wires in fan switch housing.
3.Check for loose or disconnected wires in light kit.
4.Check for faulty light bulb and make sure bulb is tight in socket.
5.Remove light kit and check the plug connections if they are present.
6.If this fan uses remote controller, make sure dip switches are setting properly and make
sure battery is effective.
CAUTION: Make sure main power is turned off before entering switch housing and/or
canopy.
2. If fan sounds noisy:
3. If fan wobbles:
4. If light does not work:
1. If fan does not start:
Trouble Suggested Remedy

Nov.2013
