montpellier MSFO59X User manual

Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Installation and Operating Instructions
Built in 59ltr Single Fan Oven
MSFO59X - Stainless Steel
MSFO59B - Black
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING

Thank you for choosing this Montpellier appliance.
Our appliances have been designed to provide you with the best combination of style, reliability and performance to
give you years of trouble-free use.
You may be familiar with a similar product, but please take time to read these instructions carefully before installing
or using your appliance to ensure you get the most from your purchase.
We recommend that you keep this manual in a safe place for future
reference.
Your appliance is covered by a comprehensive two year Parts & Labour
Guarantee. In the unlikely event that you experience a problem with your
appliance, you can rest assured that you are fully protected against the cost of
repairs for the first 24 months . Please note that any claim must be
accompanied by the model reference number, serial number and proof of
purchase.
To activate your guarantee, you will need your product serial number. This can
be found inside your appliance.
NB: Please make sure that you keep a copy of your original sales invoice as this
will be needed if any service call is required.
There are three ways to register your Guarantee:
• Online: Visit the Support page on our website and complete the online
Product Registration form. www.montpellier-appliances.com
•By Post: Simply detach and fill in the form provided, attach a stamp and send
it in the post. Don't forget to include your e-mail address so that we can send
confirmation through to you.
By Phone: Contact our warranty registration department on 0808 1961388
Welcome
ACROSS ALL OUR MODELS
YEAR
GUARANTEE
PA R T S & L A B O U R
www.montpellier-appliances.com
•
Thank you for choosing this product.
This User Manual contains important safety information and instructions on the operation and
maintenance of your appliance.
Please take the time to read this User Manual before using your appliance and keep this book for
future reference.
The design and specifications are subject to change without prior notice for product improvement.

3
TABLE OF CONTENTS
Safety Instructions............................................................4
How to Save Energy.........................................................5
Unpacking.........................................................................5
Description of the Appliance..............................................6
Installation.........................................................................7
Operation...........................................................................9
Prior to First Use...............................................................9
Mechanical Timer..............................................................9
Oven.................................................................................10
Cleaning and Maintenance...............................................11
Operation in Case of Emergency .....................................13
Baking in the Oven............................................................14
Technical Information................ .......................................18

SAFET
The appliance becomes very hot during operation. Take care not to touch the heating elements
inside the oven.
WARNING :Accessible parts may become hot during use. To avoid burns, young children
should be kept away.
The mains lead of adjacent appliances may be damaged by hobs or stuck between the oven
doors,
creating a short circuit , therefore keep them at a safe distance from the appliance.
Never put pans or anything on the opened door of the oven.
Do not use the oven in the event of a technical fault. Once a technical fault has been
identified , disconnect the power and report the fault to the service centre to be repaired.
Never clean the oven with a high-pressure steam cleaning device, as it may create a short
circuit.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the door glass, as
they can scratch the surface, which could then result in the glass shattering.
The rules and provisions contained in this instruction manual should be strictly observed.
Do not allow anybody who is not familiar with the contents of this instruction manual to
operate the oven. During use, the appliance becomes hot and care should be taken to avoid
touching heating elements inside the oven.
If the power cable is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualifiedpersons , in order to avoid a hazard.
The appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have
been given supervision or instruction concern ing use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
WARNING : Ensure that the appliance is switched off before replacing the lamp, to avoid the
possibility of electri c shock.
WARNING: The appliance and its accessible parts become hot during use.
Care should be taken to avoid touching heating elements.
Children less than 8 years of age must be kept away unless continuously supervised
This appliance can be used by children aged 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge, provided
that they have been given supervision or instruction concerning use of the appliance and
understand the hazards involved. Children must not play with the appliance. Cleaning and
user maintenance must not be undertaken by children.
WARNING:
Accessible parts will become hot during use.
Young children should be kept away from the appliance.
Care should be taken to avoid touching heating elements inside the oven.
4

5
HOW TO SAVE ENERGY
Using energy in a responsible way not only saves money, but also helps the
environment. So let's save energy! And this is how you can do it:
Make use of residual heat from the oven. If the cooking time is greater than 40 minutes,
switch off the oven 10 minutes before the end time. Important: when using the timer,
set appropriately shorter cooking times according to the dish being prepared.
Make sure the oven door is properly closed.
Heat can leak through spillages on the door seals. Clean up any spillages immediately.
Do not install the oven in the direct vicinity of refrigerators/freezers, otherwise
energy consumption increases unnecessarily.
UNPACKING
During transportation, protective packaging was used to protect the appliance
against any damage.
After unpacking, please dispose of all packaging in a way that will not cause damage to
the environment.
All materials used for packaging the appliance are environmentally-friendly;
they are 100% recyclable and are marked with the appropriate symbol.
Caution!
During unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.)
should be kept out of reach of children.
DISPOSAL OF THE APPLIANCE
Old appliances should not simply be disposed of with normal household waste, but should
be delivered to a collection and recycling centre for electric and electronic equipment.
A symbol shown on the product, the instruction manual or the packaging shows that it is
suitable for recycling.
Materials used inside the appliance are recyclable and are labelled with information
accordingly. By recycling materials or other parts from used devices, you are making a
significant contribution to the protection of our environment.
Information on appropriate disposal centres for used devices can be provided by your
local authority.

6
DECRIPTION OF THE APPLIANCE
1 Temperature control knob
2 Oven function selection knob
3 Oven temperature indicator light
4 Oven door handle
5 Mechanical timer & Manual Mode
5

7
595
21.5 512
559
554
595
564
600
560 40
INSTALLATION
INSTALLING THE OVEN
The kitchen should be dry and have effective ventilation, according to the existing technical
provisions.
The mains lead behind the oven must be placed in such manner to avoid touching the back
panel of the oven, because of the heat it develops during operation
Remove any packaging materials (foils, artificial foam, nails, etc.) from the reach of children, as
they can be dangerous. Children may swallow small parts, or be suffocated by foils.
This is a built-in oven, which means that its back wall and one side wall can be placed next
to a high piece of furniture or a wall. Coating or veneer used on fitted furniture must be treated
with a heat resistant adhesive (<100℃). This prevents surface deformation or detachment of the
coating. If you are unsure of your furniture's heat resistance, you should leave approximately
2cm of free space around the oven. The wall behind the oven should also be resistant to high
temperatures. During operation, the back and side of the appliance can warm up to around 50℃
above the ambient temperature.
Create an opening with the dimensions given in the installation diagram.
The appliance must be earthed.
Insert the oven completely into the opening, fixing it with the four screws in the places shown in
the diagram.

8
INSTALLATION
Electrical connection
Warning!
All electrical work must be carried out by a suitably qualified and authorised electrician. No
changes to the the electricity supply should be carried out unless by a qualified person .
●Before attempting the connection, check whether the voltage indicated on the rating plate
corresponds to the actual mains voltage.
●Mains lead should be a minimum 1.0m in length.
●Earth wire should be installed so that it is the last one pulled out if the safety device on the
mains lead should fail.
●Mains lead behind the oven must be located so as to avoid touching the back panel of the oven,
because of the heat it develops during operation.
●The correct size and rating of cable must be used (cable type H05VV-F 3×1.5m m2). The earth
wire must be longer than the other wires.
●The means for disconnection from the mains supply, having a contact separation in all poles that
provides full disconnection under voltage category iii, shall be provided in the fixed wiring in accordance
with UK regulations .
Connection (by authorised electrician if replacing the supplied cable)
●Using a screwdriver to open the connector cover at the rear of the appliance, release two locks
located at either side of the connector bottom (see below 1-2).
●The mains lead must be fed through the safety device, protecting the cable from disconnection.
●Tighten the device securely and close the connector cover.
595
21.5 512
559
554
595
564
600
560 40






-@ 
OPERATION
 Prior to first use








I> Mechanical Timer

        

.,:er
  
        
        
·c
 
  
. \ .
. .
. . .
 
9

10
 
 

   
Manual Cooking Operation
When cooking without the need for the mechanical timer , set the timer knob to the "Hand" position .
Using manual control overrides the timer therefore the oven will not automatically turn itself off.
When using Mechanical or Manual cooking methods make sure that once you have finished cooking that both
the Temperature and Function knobs are both set to the off position (O)
Caution!
When selecting any heating function the oven will only be switched on once the temperature knob has been turned to
the required cooking temperature.
Once the oven starts to heat the oven temperature light will illuminate, this light will remain on while the oven is heating.
Once the oven has reached the required temperature the light will go out. During the cooking process the light will
continue to cycle on/off as the element turns on/off to maintain the correct temperature.
Oven Functions/Knob Settings:
Please not when using the oven or Grill the appliance is fitted with a cooling Fan, this Fan will only operate when
the oven reaches 65 degrees or over, The cooking fan will remain on after you switch off the oven until the cavity
cools to below 65 degrees.
Full Grill
This function allows a higher temperature at the top of the cooking area, which causes more intense browning of
the dish and permits larger portions to be grilled.
Warning! When using the Grill function it is required that the oven door is closed.
Warning! When the grill is in use accessible parts can become hot. It is best to keep children away from the
oven.
Fan (Defrost)
With this function, only the fan is operating, to allow defrosting or cooling of food.
I
Oven Light
By setting the knob to this position the lighting inside the oven is switched on.
Circular heater Fan
This function allows the oven to be heated up in a forced way with the thermofan which is in the central part of the
oven chamber. Heating the oven in this manner allows even heat circulation throughout the cavity and around the
shelves and what is being cooked.
The advantage of this heating method is:
•Reduced heating-up time during the initial pre-heating stage hence saving energy.
•Enables cooking on multiple shelf levels at the same time.
•Reduction in the amount of fats and juices coming out of the meat dishes which results in an improved taste and
less cleaning.

11
By ensuring proper cleaning and maintenance of your oven you can have a significant
influence on the continuing fault-free operation of your appliance.
Before you start cleaning, the oven must be switched off and you should ensure that all
knobs are set to the "0"position. Do not start cleaning until the oven has completely
cooled.
The oven should be cleaned after each use.
Cool the oven completely before cleaning.
Never clean the appliance with a pressurised hot steam cleaner.
The oven interior should only be washed with warm water and a small amount of
washing-up liquid.
-pour 250ml of water (1 cup) into abowl placed in the oven on the first level from the bottom.
-Close the oven door.
-Set the temperature knob to 100 and the function knob to position.
-Heat the oven for approximately 30 minutes.
-Open the oven door, wipe the interior inside with a cloth or sponge and wash using warm
water with washing-up liquid.
After cleaning the oven interior, wipe it dry.
Caution
Do not use cleaning products containing abrasive materials for the cleaning and
maintenance of the glass front panel.
CLEANING AND MAINTENANCE
Oven Shelf Levels
Baking pans and accessories (oven grid, baking tray, etc) may be inserted into
the oven in 5 positions.
Appropriate levels are indicated in the tables that follow.
Always count levels from the bottom upwards!
5:
4:
3:
2:
1:
Picture used is for illustration purposes only

12
Replacement of the Oven Light Bulb
Before any maintenance involving electrical parts is begun, the appliance must be
disconnected from the power supply. If the oven has been in use, allow the oven
cavity and the heating elements to cool down before attempting any maintenance.
Unscrew the protective cover. We recommend that you wash and dry the glass cover
at this point.
Carefully remove the old bulb and insert the new bulb suitable for high temperatures
(300ºC) with the following specifications: 220-240V ,50Hz, 25W, G9 fitting.
Refit the protective cover.
IMPORTANT
Never use screwdrivers or other utensils to remove the light cover.
This could damage the enamel of the oven or the lampholder. Remove only by hand.
IMPORTANT
Never replace the bulb with bare hands, as contamination from your fingers can
cause premature failure. Always use a clean cloth or gloves.
Please note:
Bulb replacement is not covered by your guarantee.

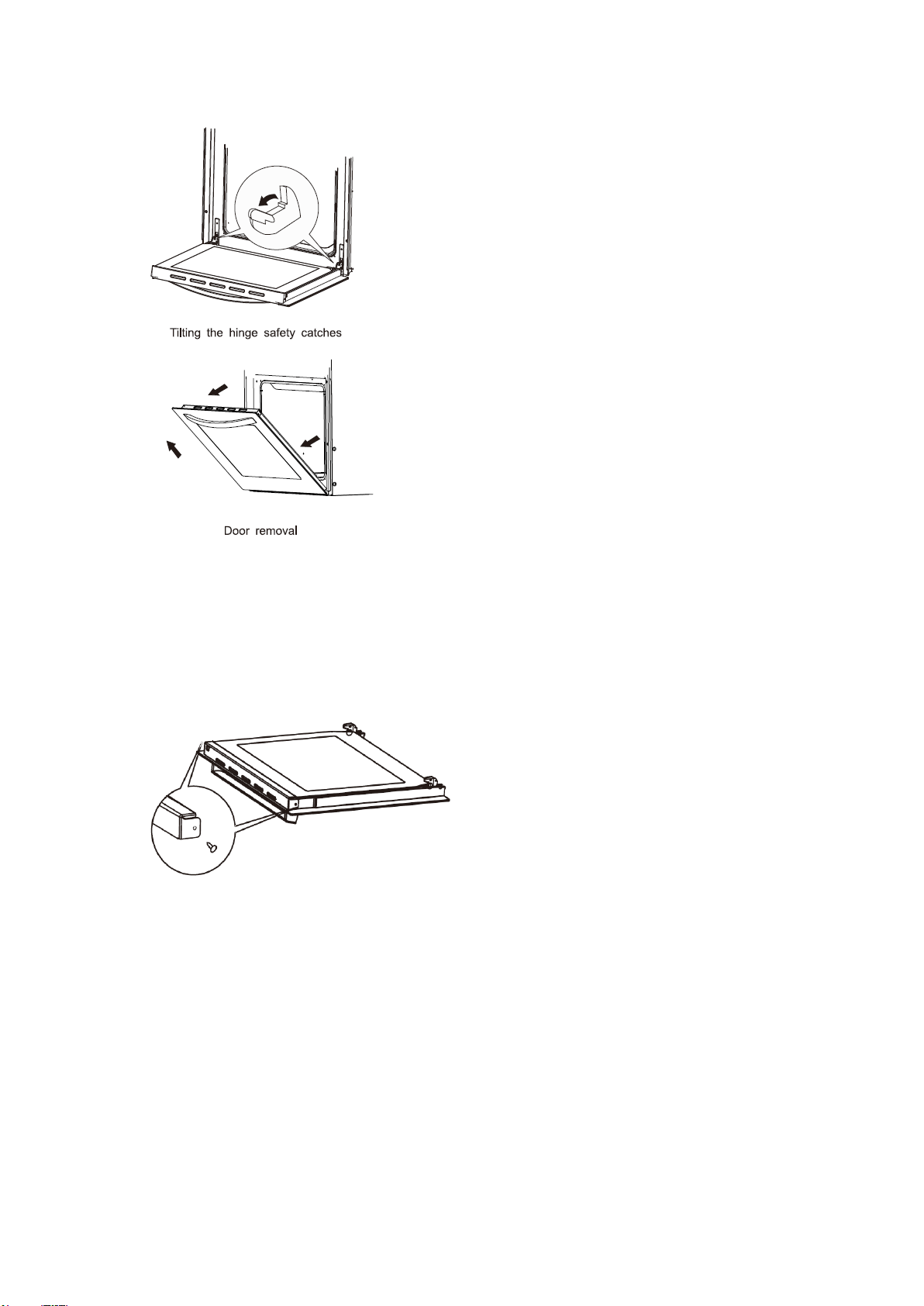

Door Removal
In order to obtain easier access to the oven interior for cleaning, it is possible to remove
the door.
To do this, tilt the safety catch part of the hinge upwards. Close the door gently, then lift
and pull it out towards you.
In order to fit the door back onto the oven, reverse the above. When fitting, ensure that
the notch of the hinge is correctly placed on the protrusion of the hinge holder.
After the door is fitted to the oven, the safety catch should be carefully lowered down
again. If the safety catch is not set, it may cause damage to the oven when closing the
door.

13
Removal of the internal glass panel
Unscrew and unfasten the plastic latch that is in the corner at the top of the door. Next
take out the glass from the second blocking mechanism. After cleaning,
insert the glass panel and screw the blocking mechanism back into place.
OPERATION IN CASE OF EMERGENCY
In the event of an emergency，you should:
Switch off the oven at the mains.
Call the service provider.
Some minor faults can be fixed by referring to the instructions given in the table
below. Before calling the customer support centre or the service provider, check the
following points:

14
PROBLEM REASON ACTION
1.The appliance does not work Break in power supply Check the household fuse box;
if there is a blown fuse replace it
with a new one
Wrong function chosen Check if function knob/temperature
knob is set to the correct position.
2.The oven lighting does not
work.
The bulb is loose or damaged Tighten or replace the faulty bulb
(see cleaning and maintenance)
BAKING IN THE OVEN
Baking pastry
Most appropriate position for baking is the application of the hot air
fan.
Warning!
Small cakes/buns can be cooked on multiple levels.
The baking parameters given in Tables are approximate and can be amended
based on your own experience and cooking preferences;
If you cannot find a particular type of cake in the tables, use the
information available for the next most similar type of cake.
Baking tips
Is the cake baked?
Pierce the cake with a wooden skewer at the thickest part, if the dough does not stick
to it, the cake is baked.You may then switch off the oven.
Cake has sunk in the middle
Check the recipe. Use less liquid next time. Follow the mixing instructions carefully,
especially when using electric kitchen mixers.
Cake is too light on the bottom
Use dark baking tray next time, place the tray one level lower.

Cheesecake is undercooked
 

Warnings regarding the baking tables
    
  

    
BAKING IN THE OVEN
   
 O 
 

   
   
   
 
   
   
   
   
 
 
 
   
   
 
   
asting:
 

Tips regarding roasting pans:
  
 
15

16
As stainless steel dishes reflect the heat, they are not recommended.
If you cover your roast or wrap it in foil, it will preserve its juices and the oven will
remain clean.
The roast will cook quicker if it is left uncovered. Large roasts can be placed
directly on the shelf with the oven tray below for catching the juices and melted fat.
Attention when roasting!
Roasting tables indicate suggested temperatures, guide level and roasting times.
Roasting time largely depends upon the type of meat, its size and quality, so you should
expect some variations.
Roasting large chunks of meat may produce excessive steaming and condensation on the
oven door. This is quite normal and does not affect the operation of the oven.
However, after roasting is completed, wipe the oven door and glass thoroughly.
Add as much liquid as necessary to prevent burning of juice or dripping from meat. Roast
meat must be checked regularly and liquid added if necessary.
At approximately the middle of the indicated time, turn the roast around, especially if you
use a deep roast dish.
When roasting on the grill pan, place the grid in the deep roasting pan and insert both into the
sliding guide. The bottom pan will collect dripping fat.
Never leave a roast to cool in the oven, as it might produce condensation and corrosion of
the oven.
Roasting Table
MEAT TYPE Roasting Time
(mins)
Temp
(°C)
Roasting
Time(mins)
Beef Per 1 cm
Roast Beef (rare) 3250 12-15
Roast Beef (medium) 3250 15-25
Roast Beef (well done) 3210-23025-30
Beef Roast Joint 2200-220120-140
Pork
Pork Roast Joint 2200-21090-140
Ham 2
2
2
2
2
2
2
200-21060-90
Veal 200-21090-120
Lamb 200-220100-120
Venison 200-220100-120
Duck
Chicken 220-25050-80
Goose (approx 2kg) 190-200150-180
Fish 210-220 50-80

Grilling
        
    
 
 
 
 
 

Tips r grilling

    
  

 
   

       
             
   
  
      
Grill Table
    
  


  400 5 240 14-16
 400 5 240 16-20

 400 5 240 20-23
 
 350 5 240 19-23
 400 5 240 20-23
   700 5 240 19-22
  700 5 240 15-18
 400 5 240 9-14
 400 5 240 9-13
17

18
1 half chicken 1400 3 240-250 28-33(1.side)
23-28(2.side.)
Fish
salmon fillets 400 4 240 19-22
whole fish in foil 500 4 230 10-13
Toast
4 slices of white
bread
200 5 240 1,5-3
2 slices of
wholemeal
200 5 240 2-3
Toasted sandwich 600 5 240 4-7
General Meat/
Poultry
Chicken 1000 3 180-200 60-70
Pork roast 1500 3 160-180 90-120
Pork scrag end 1500 3 160-180 100-180
Pork knuckle 1000 3 160-180 120-160
Roast beef fillet 1500 3 190-200 40-80
TECHNICAL INFORMATION
Model MSFO59X / MSFO59B
Voltage rating 220-240V 50Hz
Total power 2000W
Top element /
Grill element 2000W
Bottom element /
Circular element 1600W
Fan 

Here For You
After-sales assistance
If you continue to experience problems with your appliance, please call the Montpellier customer
service helpline on: 01759 487839
Please have all your product details available, including the model number, serial number, original
sales invoice (clearly showing model number,date of purchase and your retailer's details)before
registering a fault.
The service call cannot progress without this information.
Your 2 year Manufacturer's guarantee
THIS DOES NOT AFFECT YOUR S TATUTORY RIGHTS.
Your new Montpellier appliance carries a free guarantee which protects you against the cost of
repairs during the first 24 months from date of purchase provided that:
Any claim is accompanied by evidence of the model reference, model serial number and proof of
purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months
prior to the date of claim.
What is not covered under the Guarantee
• Any appliance not correctly installed and operated in accordance with the manufacturer's
instructions
• Any appliance that is used for anything other than domestic purposes.
Any defect caused by accident, misuse, unauthorised modification or inexpert repair.
• Cost of Call-out where a fault cannot be found with the appliance.
Cost of Call-out for work covering routine maintenance, such as, but not exclusively, cleaning
of filters or defrosting.
• Cost of Call-out for work required to correct the alignment of doors following door reversal
procedures carried out by you.
Use of the appliance by anyone other than the Householder.
Use in any commercial environment.
• Consumable items, such as, but not exclusively, fuses in plugs, bulbs and breakable items
which require routine replacement.
Repair costs incurred that have not been authorised by Montpellier service and/or carried out
by a nonapproved Montpellier engineer.
• Montpellier Appliances do not accept claims for consequential loss, rusting, corroding,
delivery damage or scratches.
YOUR GUARANTEE IS VALID ONLY IN THE UK & REPUBLIC OF IRELAND
To register your appliance simply complete the card in your appliance pack and return it with a
stamp affixed or alternatively you can register on line at www,montpellier-appliances.com/
support
SERVICE HELP-LINE
Should your appliance develop a fault, please call the Montpellier customer service helpline on:
01759 487839
Please remember to have all your product details available, including the model number, serial
number, date of purchase and your retailer's details before registering a fault.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall
be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product
is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product,
please contact your local city oce, your household waste disposal service or the shop where you purchased the product.
www.montpellier-appliances.com
Montpellier Domestic Appliances Ltd.
Unit 1, Tewkesbury Retail Park, Northway Lane,
Tewkesbury, Gloucestershire GL20 8JU
