Morgana DigiBook 300r2 User manual

rel. 03.00
Operator Manual
DigiBook 300r2
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920

Operator Manual Digibook 300
2 rev. 3.00
Summary
1INTRODUCTION__________________________________________________5
1.1 SYMBOLS OF SAFETY_______________________________________________________________7
1.2 SYMBOLS OF PROHIBITION AND OBLIGATORINESS _______________________________________8
1.3 THE SAFETY DURING THE USE OF THE MACHINE_________________________________________9
1.3.1 general ________________________________________________________________________ 9
1.3.2 SAFETY WARNINGS ______________________________________________________________ 9

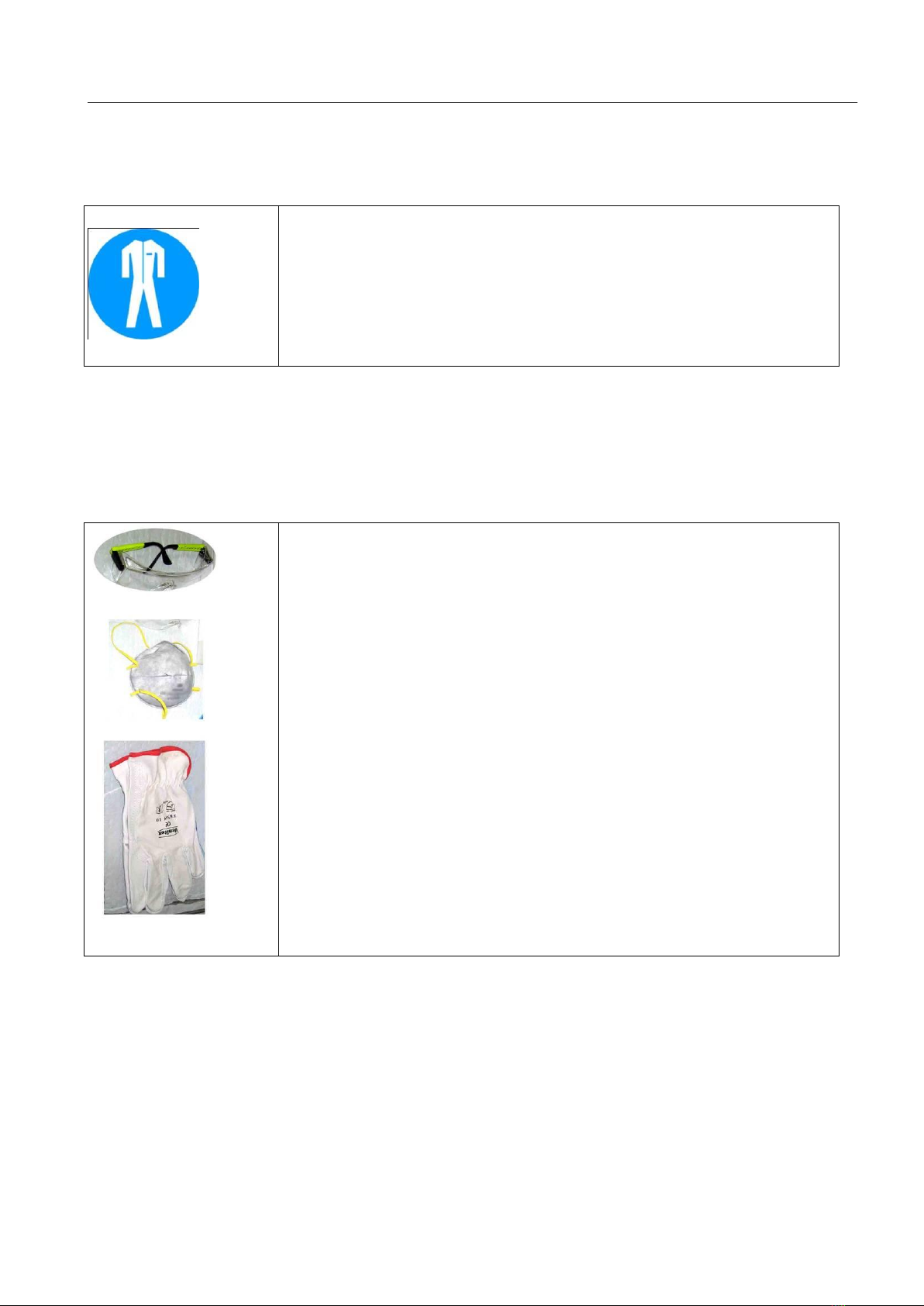

1.4 SAFETY CLOTHING _______________________________________________________________10
1.5 INSTALLATION OF ELECTRICAL CABLES AND PIPES______________________________________11
1.6 SAFETY EQUIPMENTS IN THE PERFECT BINDER _________________________________________11
1.6.1 Emergency button ______________________________________________________________ 11

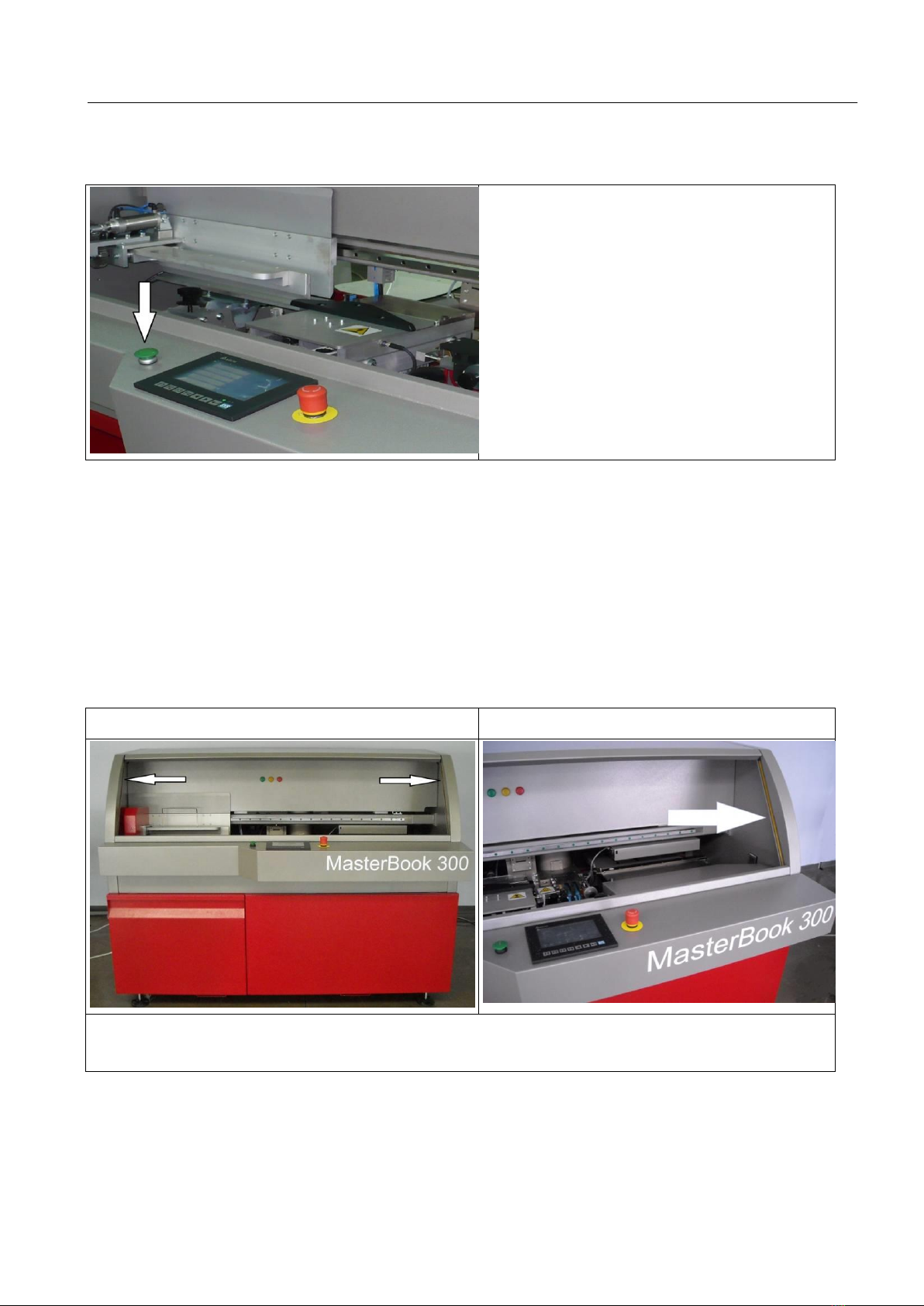

1.6.2 Green button for start cycle ____________________________________________________ 12
1.6.3 SAFETY light curtains ___________________________________________________________ 12
1.6.4 Protection plate of the milling station____________________________________________ 13
1.6.5 MAIN SWITCH __________________________________________________________________ 13
1.7 RISKS __________________________________________________________________________14
1.8 PURPOSE _______________________________________________________________________15
1.8.1 uses not provided, uses prohibited _______________________________________________ 15
2TECHNICAL SHEET MASTERBOOK300________________________________16
2.1.1 Electrical _____________________________________________________________________ 18
2.1.2 Pneumatics ____________________________________________________________________ 18
Air quality provided to the Perfect Binder _______________________________________________ 19
DIN ISO 8573-1 –air quality class ________________________________________________________ 19

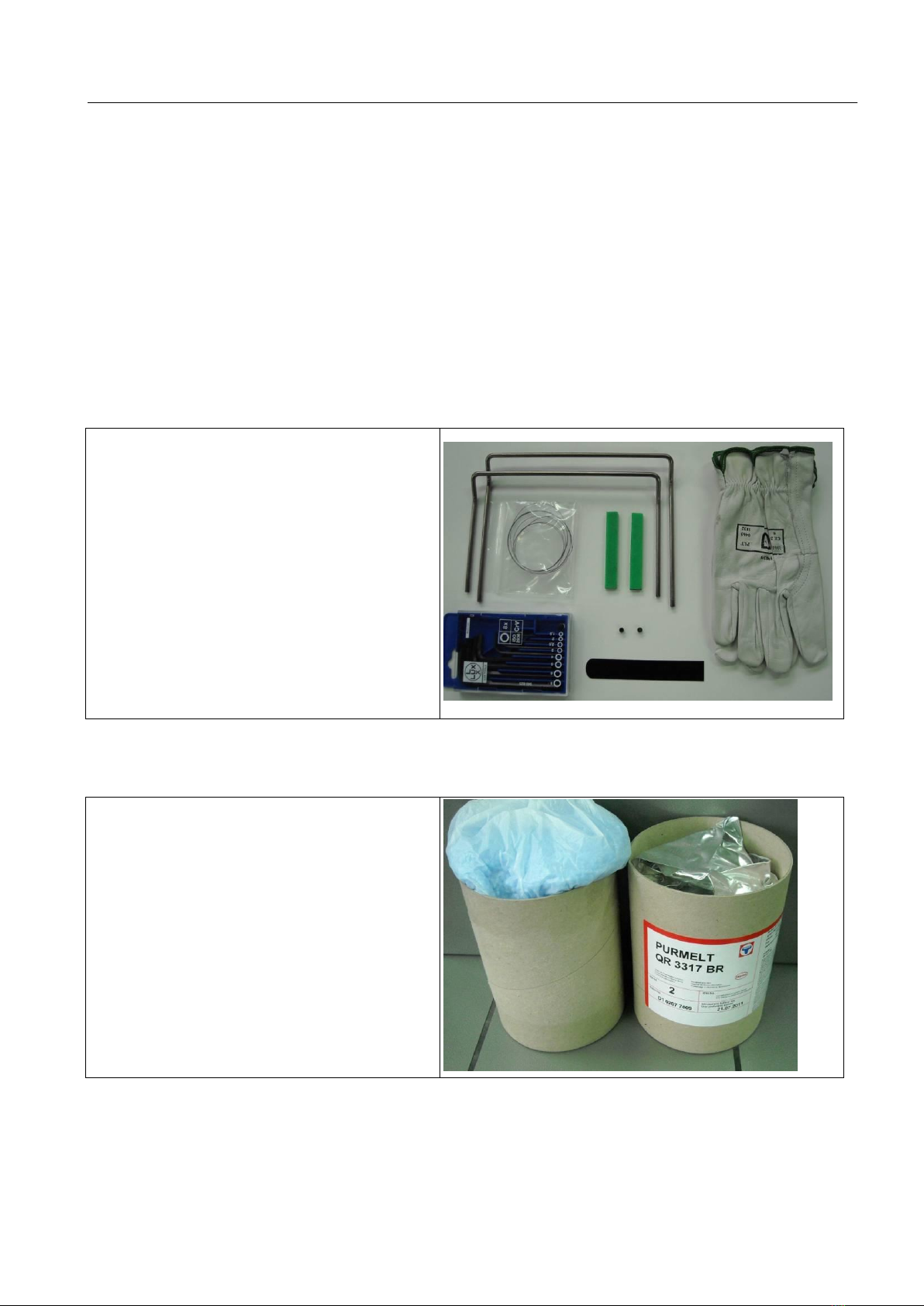

3ACCESSORIES __________________________________________________20
4TRANSPORTATION ______________________________________________21
5STORAGE _____________________________________________________23
6LAYOUT ______________________________________________________24
7POSITIONING AND WORKSPACES____________________________________24
8INSTALLATION _________________________________________________26
8.1 TECHNICAL STAFF FOR THE INSTALLATION ___________________________________________26
8.2 PHYSICAL CHARACTERISTICS OF THE AREA OF PLACEMENT ______________________________26
8.3 SUPPORT SURFACE _______________________________________________________________26
8.4 WEATHER PROTECTION ___________________________________________________________26
8.5 LIGHT _________________________________________________________________________27
8.6 ENVIRONMENTAL CONDITIONS______________________________________________________27
8.7 ELECTRICAL CONNECTION _________________________________________________________28
8.7.1 Ground connection _____________________________________________________________ 28

Operator Manual Digibook 300
3 rev. 3.00
9TRAINING OF THE OPERATOR ______________________________________29
10 POWER ON ____________________________________________________30
10.1 FUNDAMENTALS ____________________________________________________________________31
10.2 ELECTRICAL CONNECTION _____________________________________________________________33
10.3 PNEUMATIC CONNECTION _____________________________________________________________33
10.4 DESCRIPTION OF THE GROUPS __________________________________________________________34
10.5 CHIPS ASPIRATOR ___________________________________________________________________37
10.7 PUR TANK OPENING AND CLOSING,AND GLUE LOADING._________________________________________39
10.7.1 Opening of the PUR tank ________________________________________________________ 39
WARNINGS ON THE OPENESS OF PUR TANK________________________________________________ 39
10.7.2 preparation and loading of the pur glue __________________________________________ 41
10.7.3 Cleaner loading ________________________________________________________________ 43
11 FUNCTIONS OF THE PERFECT BINDER________________________________45
11.1 HOME PAGE________________________________________________ ERROR!BOOKMARK NOT DEFINED.
11.2 HOME PAGE________________________________________________ ERROR!BOOKMARK NOT DEFINED.
11.3 NAVIGATION MENU OF THE PARAMETER PAGES ________________________ ERROR!BOOKMARK NOT DEFINED.
11.4 FAST CONFIGURATION OF THE BOOK _______________________________ ERROR!BOOKMARK NOT DEFINED.
11.4.1 Navigation Through the menus_____________________________Error! Bookmark not defined.
11.4.2 Page to display production meters_________________________Error! Bookmark not defined.
12 PAGE FOR TIMER MANAGEMENT ____________ ERROR! BOOKMARK NOT DEFINED.
13 PAGES OF ALARMS ______________________ ERROR! BOOKMARK NOT DEFINED.
14 PARAMETERIZATION OF EACH GROUP _______________________________51
14.1 PARAMETER OF CLAMP /FEEDER _________________________________ ERROR!BOOKMARK NOT DEFINED.
14.2 PARAMETER OF THE MILLING STATION ______________________________ ERROR!BOOKMARK NOT DEFINED.
14.3 PARAMETER OF THE GLUE HEAD __________________________________ ERROR!BOOKMARK NOT DEFINED.
14.4 TEMPERATURE OF THE HEAD AND THE PRE-MELTING UNIT ________________ ERROR!BOOKMARK NOT DEFINED.
14.4.1 Head glue processing information __________________________Error! Bookmark not defined.
14.5 PARAMETER OF THE PRESS _____________________________________ ERROR!BOOKMARK NOT DEFINED.
14.6 PARAMETER OF THE COVER _____________________________________ ERROR!BOOKMARK NOT DEFINED.
15 ACCESS TO THE PAGES OF THE MANUAL HANDLINGERROR! BOOKMARK NOT DEFINED.
15.1 MANUAL MOVEMENTS OF THE CLAMP _______________________________ ERROR!BOOKMARK NOT DEFINED.
MANUAL MOVEMENTS OF THE FEEDER ___________________________________ ERROR!BOOKMARK NOT DEFINED.
15.2 MANUAL MOVEMENTS OF THE MILLING STATION _______________________ ERROR!BOOKMARK NOT DEFINED.
15.3 MANUAL MOVEMENTS OF THE GLUE HEAD ___________________________ ERROR!BOOKMARK NOT DEFINED.
15.4 MANUAL MOVEMENTS OF THE PRESS _______________________________ ERROR!BOOKMARK NOT DEFINED.
15.5 MANUAL MOVEMENT OF THE COVER _______________________________ ERROR!BOOKMARK NOT DEFINED.
16 OPERATION OF THE SYSTEM IN STANDBY _____ ERROR! BOOKMARK NOT DEFINED.
17 CLEANING USING CLEANER AND LOADING GLUE ERROR! BOOKMARK NOT DEFINED.
18 PAGE OF JOB MANAGEMENT_______________ ERROR! BOOKMARK NOT DEFINED.

Operator Manual Digibook 300
4 rev. 3.00
18.1 PAGE OF JOB MANAGEMENT_____________________________________ ERROR!BOOKMARK NOT DEFINED.
19 GLUE RECOVERY PROCEDURE______________________________________64
20 COVER POSITIONING _____________________________________________67
PREPARATION OF THE MACHINE TO PRODUCE A BOOK._____________________69
21 CLEANING THE MACHINE _________________________________________72
21.1 PROCEDURE TO CLEAN THE SPINE GLUE EXTRUDER.____________________________________________73
21.2 PROCEDURE TO CLEAN THE GLUE SIDE EXTRUDERS.____________________________________________75
21.3 “END OF JOB”CLEANING _____________________________________________________________78
21.4 DETAILS CLEANING_________________________________________________________________80
22 PROBLEMS - SOLUTIONS __________________________________________83
22.1 CHIPS ASPIRATOR –LESS VACUUM: ___________________________________________________83
22.2 CLAMP –IT DOES’T START:____________________________________________________________83
22.3 IRREGULAR GLUE START /STOP : ___________________________________________________83
22.4 MILLING STATION –IRREGULAR CUT AND NOTCHING: _______________________________________83
22.5 COVER PLATE MILLING STATION –IT DOES’T OPEN /CLOSE CORRECTLY: _________________________83
22.6 HEAD -OUT OF TOO MUCH OR LITTLE GLUE: ___________________________________________83
22.7 PRESS ________________________________________________________________________84
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920

Operator Manual Digibook 300
5 rev. 3.00
1INTRODUCTION
THE READING OF THIS OPERATOR AND MAINTE-
NANCE MANUAL IS FUNDAMENTAL FOR THE SAFETY
OF THE USER AND FOR THE PROPER USE OF THE
EQUIPMENT.
We thank you to have bought our product. This machine has been designed specifically
for your job and your applications, and provides a high quality production and a wide
range of functions.
This manual describes how to use the machine, starting from the configuration phase to
the most important operations. This manual has been written in order to be easily un-
derstood also by user not trained about the use of this kind of machine. For the best use
of the equipment, please read carefully this manual before to use the machine. After
reading, we suggest saving the manual in a safety place and don’t hesitate to read him
when necessary.
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920

Operator Manual Digibook 300
6 rev. 3.00
DECLARATION THAT THE MACHINE IS IN SPECIFICATION TO THE EEC
DIRECTIVE CONTROLLING THE MACHINES 2006/42/CE,
(AND FOLLOWING EEC DIRECTIVES)
We declare that the production of:
Product: Perfect Binder
Model/Type: Digibook 300
Serial Number: MB300-....
Year of construction: 2012
Follows the actual releases of the EEC Controlling Directives:
EEC Directive 2006/42/CE;
EMC Directive 89/336/CEE;
Directive controlling the Low Voltage 2006/95/CEE
And in particular the following Directives:
EN 1010
EN 60 204-1
EN 61 000-6-2, EN 61 000-6-3, EN 61 000-6-4
Assago , (MI) Italy
__/__/2012
K.G.S. S.R.L.
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920

Operator Manual Digibook 300
7 rev. 3.00
SAFETY
1.1 SYMBOLS OF SAFETY
In the manual some symbols are used to inform about dangerous situations for people
and/or things.
The following symbols mean dangerous situations for people and/or things.
If you don’t follow carefully the appropriate procedures, damages can occur to people
and/or things and in extreme situations also fatal accidents. Together with the symbols
it is written also what to do.
Attention –General danger!
Attention –Electrical voltage!
Risk of electric shock.
Attention –Sharp blades!
Risk of cut.
Attention –Hot surfaces!
Risk of burn.
Attention –Risk of rolling parts!
Risk of crushing.
Attention –Risk of moving chain!
Risk of crushing.
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920

Operator Manual Digibook 300
8 rev. 3.00
In case of not warning of the symbols damages, also great, can hap-
pen to the machine and to the accessories.
1.2 SYMBOLS OF PROHIBITION AND OBLIGATORINESS
This symbol means a prohibition.
This symbol means an imperative.
This symbol means that it is mandatory to read in this manual infor-
mation regarding specific topics (for ex. related to the specifications
of the electric and pneumatic connection).


MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920

Operator Manual Digibook 300
9 rev. 3.00
1.3 THE SAFETY DURING THE USE OF THE MACHINE
1.3.1GENERAL
The manufacturer guarantees that the contents of this manual are in specification with
the procedures required by the machine. The manufacturer therefore will be not re-
sponsible if the machine will be used in a different way.
1.3.2 SAFETY WARNINGS
Before the use of the machine, please read carefully the manual.
Save the manual for further needs.
By apply different procedures, and not the specific procedures described in the manual,
can produce operational problems.
Please, read carefully the following Safety rules.
It is forbidden to use the machine when occurs one of the following situ-
ations:
in explosive environment;
in flammable atmosphere;
in excessive durst environments.
Danger!
Failure to comply with some or all the instructions listed in this manual
could cause damage to the machine and / or personal injury. The manu-
facturer is not responsible for an arbitrary and improper use of the ma-
chine such as:
Using the machine by untrained personnel;
Use contrary to law;
Incorrect installation;
Defects in electrical power and / or pneumatic;
Partial or total failure to comply with the instructions;
Lack of maintenance and / or use of aftermarket parts;
Changes or other actions not authorized by the manufacturer;

MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920

Operator Manual Digibook 300
10 rev. 3.00
1.4 SAFETY CLOTHING
Clothing to use during the cleaning and /or maintenance operations
Eye protection against any spray of PUR glue or high temperature
cleaner
Respiratory Mask
Protective gloves
Tight clothing, to avoid that they remain engaged with protruding parts.
Long hair must be covered or otherwise collected by using e. g. a protective screen.
Do not wear watches or jewels.
Safety clothing
The safety clothing IS NOT INCLUDED in the machine and must be
procured by the machine user.
The operator should wear clothing appropriate to the situation
and specially during the following operations:
-Maintenance
-Replacing of the PUR glue
-Cleaning of the PUR system
a) Eye protection against any spray of PUR glue or high tempera-
ture cleaner
b) Respiratory Mask
c) Protective gloves for high temperature
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920

Operator Manual Digibook 300
11 rev. 3.00
1.5 INSTALLATION OF ELECTRICAL CABLES AND PIPES
Cables and pipes must be put inside of special cable channels to avoid the people to
stumble and get hurt.
1.6 SAFETY EQUIPMENTS IN THE PERFECT BINDER
DANGER! It is forbidden to remove or render ineffective the safety
guards for the safety of persons, and to tamper and / or modify, even
partially, safety devices installed on the machine. In case of alarm sig-
nals due to the intervention of the safety, the operator must request the
immediate intervention of technical people trained on the maintenance.
The manufacturer is not responsible of any damage to persons or animals
caused by tampering with the guards."
1.6.1 EMERGENCY BUTTON
It is located on the front, easily accessible from the operator's position.
In the diagrams the emergency button is
identified 15S1
.
Activation state of emergency: the push-
button must be pressed
OFF state emergency stop: the button
must be turned clockwise"
.
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920

Operator Manual Digibook 300
12 rev. 3.00
1.6.2 GREEN BUTTON FOR START CYCLE
The green button executes the command
to start cycle, it means that the clamp
closes and moves to the right, the mill if
activated will run the cut, the glue will
be applied, and if the press has been ac-
tivated will crush the book; all this hap-
pens if I put the book block in the clamp
and place a cover on the press.
1.6.3 SAFETY LIGHT CURTAINS
Two safety light curtains are placed at the ends of the binder.
In case of occupation of the work place during the production cycle, the machine stops
instantly in a state of emergency, preventing and avoiding of shocking or crushing ob-
jects or hands or arms of the operator.
Detail: SAFETY curtain
In the diagrams the SAFETY curtains are identified in the following way:
Left SAFETY curtain 15SS2, right SAFETY curtain 15SS1
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920

Operator Manual Digibook 300
13 rev. 3.00
1.6.4PROTECTION PLATE OF THE MILLING STATION
The plate consists of a mobile plate that, ex-
cept when the book block is moving, covers
the cutter in all operating conditions, even at
a standstill.
An elastic cord exerts constantly on the
plate (F) a force (see arrows) that covers
the mill disc. A sensor monitors and the
cutter stops if the guard is opened, the
motor of the cutter is also equipped with
a brake."
1.6.5MAIN SWITCH
It is located on the left side of the machine.
Position OFF
The switch is
open. The ma-
chine is off.
Position ON
The switch is
closed.
The machine is
on.

Operator Manual Digibook 300
14 rev. 3.00
1.7 RISKS
There are risks that cannot be completely eliminated by either protective or as designed
by the machine.
Area of the glue head.
Attention –Hot surfaces!
Risk of burn.
Use protective gloves.
Area of glue loading.
Attention –Hot surfaces!
Risk of burn.
Use protective gloves.
Area of the mill.
The disc contains several
types of milling cutters. Use
protective gloves, in case of
removing the Notching
Roughening or the brush.
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920

Operator Manual Digibook 300
15 rev. 3.00
1.8 PURPOSE
The machine is used to bind books using the following materials:
a) Signatures, or sheet of paper (printed or not) for the block book
b) Cardboard as cover of the book
Within the limits specified in the data sheet, included in this manual.
1.8.1USES NOT PROVIDED,USES PROHIBITED
Any other use such as,
- Milling / Roughening of book spines already binder ( Adhe-
sive binder, stitching book, Sewing Book, etc.)
- Use of materials other than those specified in a) and b)
- Operations beyond the technical specifications are not to
be regarded as intended use.
The user has the total responsibility of the damages to people or things due to an im-
proper use, outside of their intended use.


MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920

Operator Manual Digibook 300
16 rev. 3.00
2TECHNICAL SHEET Digibook 300
Machine features:
Cycle/Hour 300 mechanical cycles
Spine length 100 –450 mm
Workable height of the book 120 –320 mm
Max. Cover size 710x460/240x110 mm
Workable thickness of the book 2 –50 mm
Max. Cover Weight 500 g/m2
Control Screen
Touch - Screen Yes
Copy Counter Yes
Memory of the jobs Yes
Diagnostic and Check Yes
Setting size, temperature control Yes
Speed Yes
Book Loading
Adjustment of the clamp Automatic, following the parameters introduced by the
user
Clamp opening Automatic, electrically driven
Clamp closing Adjustable air
Spine preparation
Milling disks Ø 160 mm
Notching 2
Roughening for spine processing 4
Brush for spine processing and cleaning 1
Excludable mill Mechanical (with position control)
Milling thickness 0 - 2.3 mm
Chips aspirator Included in the machine
Glue application system
Tank PUR/Hot-Melt glue 3 Kg sealed
Extrusion system of PUR/Hot-melt Integrated and sealed
Extrusion head adjustment Automatic
Side adjustment (used for signatures or wire stapling) Mechanical (high accuracy)
Glue Stop Adjustable by Touch-Screen
Cleaning / sealing Yes
Press:
Press Electro-pneumatic servo-controlled
Adjustment Force / pressure, pressing time

Operator Manual Digibook 300
17 rev. 3.00
Mechanical Adjustment Automatic/mechanical height adjustment
Mechanical Adjustment
Cover back bar adjustment Automatic, driven by the parameters on the
Touch-Screen Cover loading Hand made by the operator
Dimensions / Weight
Length 1850 mm
Width 1090 mm
Height 1370 mm
Weight 500 Kg
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920

Operator Manual Digibook 300
18 rev. 3.00
2.1.1ELECTRICAL
Electrical power 400 V ±5%, 50 Hz, 3 ph + N + PE
Power of the machine
Protection fuses on the power network are du-
ties of the customer
Distribution cabinet, customer side
16 A
Differential protection class A 300mA
2.1.2PNEUMATICS
Supply pressure
The pneumatic system of the user must ensure, in the inlet connection of the compressed air in
the perfect binder, the following values:
Min.: 7 bar
air consumption: 200 l/h
air quality: Class 3
Pneumatic Characteristics of the machine
Compressed air consumption
200 l/h
Calibration of input gauge
6 bar
Min. working pressure
5.5 bar. If the pressure value falls below this value the machine enter in an “alarm” condition
Diameter of air inlet
10mm
The 10 mm diameter pipe for the connection to the compressor is not provided together with the
machine.
It is suggested the use of a compressor equipped with the automatic condensate drain, to
avoid verify weekly if there is some water inside the compressor.
It is suggested to use a silenced compressor, if the compressor is located inside the working
plant.
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920

Operator Manual Digibook 300
19 rev. 3.00
Air quality provided to the Perfect Binder
CLASS 3, DIN ISO 8573-1
Durst: 5 micron - 5 mg/m3
Water: -20°C - 0,88 g/m3
Oil: 1 mg/m3
The compressed air system upstream of the machine must be equipped with
a dryer.
Periodically check the quality of the compressed air supplied to the machine
and the operating values .
AIR QUALITY PROVIDED TO THE PERFECT BINDER
To make work the pneumatic devices in an affordable, efficient and safe way, the com-
pressed air supplied to the pneumatic device must have the following quality features:
Pressure, Quantity, Water content, solids content, oil content.
DIN ISO 8573-1 –AIR QUALITY CLASS
The manufacturers of pneumatic components refer to the quality of compressed air to
use on their products, referring to the table below.
The compressed air used in the industry contains water, oil, dust and other impurities.
The interaction of these elements produces an aggressive mixture that can damage the
compressed air devices and also the PUR glue contained in the PUR tank, the results will
be a low quality production and increased maintenance costs.
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920

Operator Manual Digibook 300
20 rev. 3.00
3ACCESSORIES
The standard composition includes:
–Cleaning Kit
–Start- up Kit
CLEANING KIT
Polizene green spatula (to remove excess
glue or cleaner)
Steel Wire 0.4" (for cleaning the channels
of leakage of the lateral glue)
Lamella thickness of 0.4 (for cleaning the
slit of leakage of the spine glue)
Spare Headless screws for the closure of
the ducts
Protective gloves
Set of L wrenches
START-UP KIT
One pack of 2 kg of PUR Glue Henkel
One pack of 2 liters of beans Cleaner-
Blue Henkel
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920
