Harry Ramsden’s Large Family Fryer
Please read and keep these instructions
Getting the best from your new fryer...
Safety first: Hot oil
Don’t attempt to move the fryer while it is still hot
- wait 3 hours after frying for your fryer to cool.
Easy cleaning
Your fryer breaks down into component parts for
easy cleaning with a removable oil tank, lid and control panel.
Ladle
For the best results with battered items,
take out the basket and use the ladle to turn items.
45076 MUK Rev 1
For replacement parts, help with using your Morphy Richards product,
problems and lots more, contact us by phone or through our website.
UUKKHHeellpplliinnee::0088770000660022661133
RReeppllaacceemmeennttppaarrttss::0088770011667766664444
IIrreellaanndd11880000440099111199
Takes apart
for easy
cleaning
Easy
Easy
clean
clean
system
system
45076 rev1 22/3/07 08:52 Page 2

UK Helpline 0870 060 2614 Replacement Parts 0870 157 6645 Ireland Helpline 1800 409119
IMPORTANT
SAFETY
INSTRUCTIONS
The use of any electrical
appliance requires the following
common sense safety rules.
Primarily there is danger of
injury or death and secondly the
danger of damage to the
appliance. These are indicated in
the text by the following two
conventions:
WARNING: Danger to the
person!
IMPORTANT: Damage to the
appliance! In addition we offer
the following safety advice.
Personal safety
•WARNING: Never attempt to
move your fryer until it is
completely cool. This can
take up to three hours. Use
the carrying handles. Î
•WARNING: To protect
against the risk of electric
shock do not immerse the
fryer body in water or other
liquid.
• Unplug from the electrical outlet
when not in use and before
cleaning. Allow to cool before
putting or taking off parts, and
before cleaning the appliance.
• Never leave the fryer unattended
when connected to the
electricity supply.
• Never lean over the fryer when it
is in use.
• When opening the lid, stand
back as some hot steam may be
released.
• Always use oven gloves when
removing or replacing lid during
use.
• Be careful not to touch those
surfaces of the fryer which
become hot when in use.
• This appliance is not attended
for use of persons (including
children) with reduced physical,
sensory or mental capabilities,
or lack of experience and
knowledge, unless they have
been given supervision or
instruction concerning use of
the application by a person
responsible for their safety.
Product safety
WARNING: The control pod
must never be immersed in
water.
WARNING: When unpacking
the fryer, make sure all
packing material is
removed.
• Never connect the fryer to the
electricity supply without oil in
the tank.
• Never operate with the oil level
below minimum mark (2.0 litres)
or above maximum mark (3.1
litres).
Location
• Place the appliance on a
horizontal, flat and stable
surface away from a heating
source and where it cannot be
splashed by water.
• Allow adequate air space above
and on all sides for air
circulation.
• Do not use your fryer under
cupboards or shelves.
• Do not use outdoors.
Other safety
considerations
• Do not operate any appliance
with a damaged cord or plug or
after the appliance malfunctions
or has been damaged in any
manner. Telephone the helpline
number (the telephone number
can be found on the front cover)
for advice on examination and
repair.
• Do not use the fryer for anything
other than its intended purpose.
• The use of attachments or tools
not recommended or sold by
45076 rev1 22/3/07 08:52 Page 3

2244
Morphy Richards may cause
fire, electric shock or injury.
• Always dry food before frying
eg. chips which are too wet can
cause the hot oil to froth
excessively.
• Never pour oil out of the fryer
with the bowl in position.
Children
• Never allow a child to operate
this appliance. Teach children to
be aware of dangers in the
kitchen, warn them of the
dangers of reaching up to areas
where they cannot see properly
or should not be reaching.
• Children should be supervised
to ensure that they do not play
with the appliance.
Scalds
• Run cold water over the affected
area immediately. Do not stop to
remove clothing, seek medical
help immediately.
Mains lead
• The mains lead should reach
from the socket to the base unit
without straining the
connections.
• Do not let the cord hang over
the edge of the table or the
counter and keep it away from
any hot surface.
• Do not let the lead run across an
open space eg. between a lower
socket and table.
ELECTRICAL
REQUIREMENTS
Check that the voltage on the
rating plate of your appliance
corresponds with your house
electricity supply which must be
A.C. (Alternating Current).
If the socket outlets in your
home are not suitable for the
plug supplied with this appliance
the plug should be removed and
the appropriate one fitted.
WARNING: The plug
removed from the mains
lead, if severed must be
destroyed as a plug with a
bared flexible cord is
hazardous if engaged into a
live socket outlet.
Should the fuse in the 13 amp
plug require changing, a 13 amp
BS1362 fuse must be fitted.
WARNING: This appliance
must be earthed.
45076 rev1 22/3/07 08:52 Page 4

33UUKKHHeellpplliinnee0088770000660022661144RReeppllaacceemmeennttPPaarrttss0088770011557766664455IIrreellaannddHHeellpplliinnee11880000440099111199

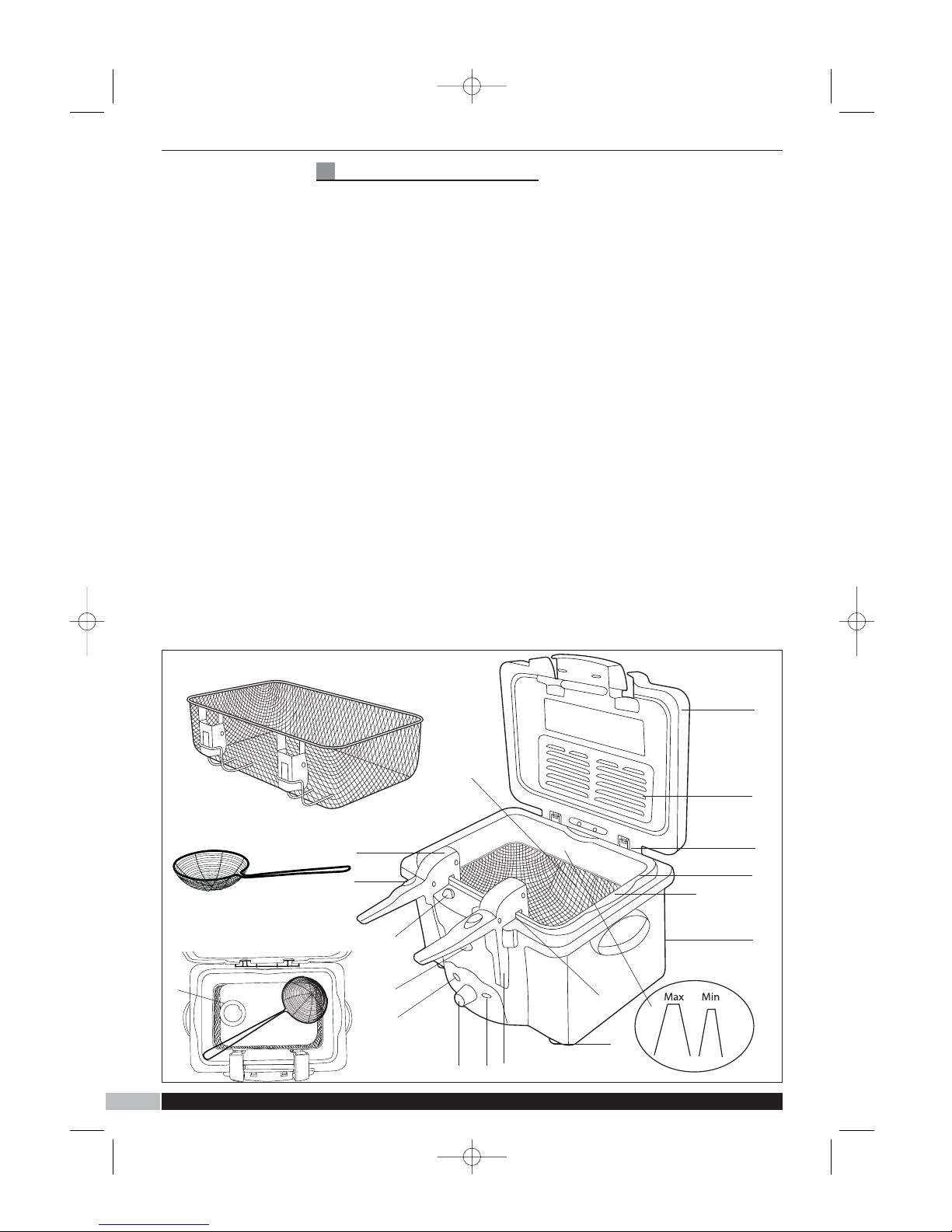

Features
⁄ Spring loaded removable lid
¤Lid location guides (not shown)
‹Viewing window
›Steam vents
fiLid release button
flBasket
‡Basket handles x 2
·Handle release button
‚Basket rest
„Lid lock catch
‰Basket handle rest position
ÂRemovable oil tank
ÊOil tank finger lifting lip
ÁPower on light (red)
ËTemperature ready light (green)
ÈVariable temperature control
ÍMin and max oil levels inside
tank
ÎCarrying handles
ÏNon slip feet on base
ÌFryer body
ÓLadle
ÔOil storage container
55
⁄
¤
‹
›
fi
fl
‡
·
‚
„
‰
Ì
Ï
Î
Í
È
Ë
Á
Ê
Â
fl
Ó
Ô
45076 rev1 22/3/07 08:52 Page 5

4466
BEFORE FIRST USE
Refer to the assembly sequence
in section
‘Assembly/disassembly
sequence’.
When unpacking the fryer, make
sure all packaging material is
removed.
WARNING: make sure that
your fryer is disconnected
from the electricity supply.
Please note: Remove the filter
from the lid before washing lid.
Remove the oil storage
container, ladle, frying basket,
non stick oil tank, lid, body and
wash these by hand in hot
soapy water. Please note: do not
leave in water to soak for a long
period of time.
WARNING: Do not immerse
the control panel in water.
Dry all parts of your fryer
thoroughly and replace the oil
tank, basket and lid.
Replace the oil tank with the
max/min lines to the rear.
(Please follow the cleaning
instructions).
OPERATION
Lid operation

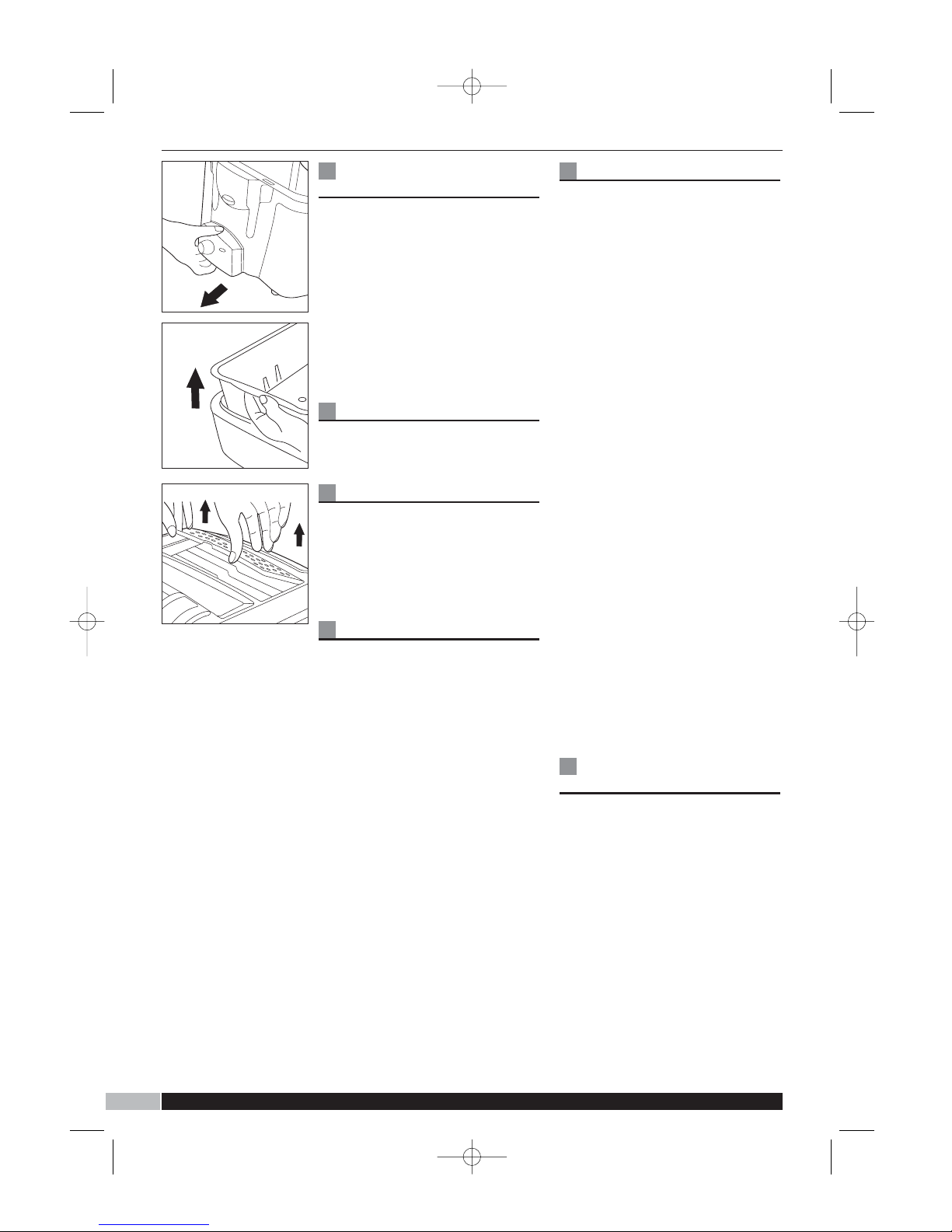

Press the lid release button, the
lid is spring loaded and will rise
up on its own A.
In the upper position the lid will
lift out of its guides at the back
for easy cleaning.To replace,
locate in the guides and slide
back into position.
Close the lid by pressing down
in the centre and ensure locking
catch „is fully engaged B.
Attaching the handle
to a basket
Rest the basket on a level, firm
surface, locate the handle into
the slots of the basket and pull
upwards against the spring
force C.
Removal of handles
Rest the basket on a level, firm
surface, press the handle down
against the spring force and
remove D.
Basket operation
The handles are removable so
they can be attached to the
basket D.
Location of basket to
drain
With the lid open and in the
vertical position, the basket can
be raised into the rest draining
position or removed completely
E.
When in the draining position
the basket should be hooked on
the basket rest lip (shown by the
arrow). When lowering the
basket back, lift up to remove
from the basket rest position,
push forward slightly and lower
down. Press the basket release
button and allow the handle to
lower.
When using the basket, both
basket release buttons must be
pressed to allow the basket to
lower into the oil F.
Assembly/
Disassembly
sequence
The fryer has to be
disassembled and assembled
following this procedure.
• Open the lid and remove.
• Remove the basket.
• Lift out the tank.
• Pull out the control panel.
Assembly is the reverse of the
above process.
A
B
C
D
E
F
45076 rev1 22/3/07 08:52 Page 6

5577
Removal of the
control panel
1Lift up the fryer body at the front
as shown and pull out the
control panel G.
2Replace by locating the control
panel in the guides and push
fully in.
3Once the control panel is in
place route the mains cable to
the side or out of the back,
whichever is convenient.
Replacing the oil tank
Ensure tank contacts are dry
before replacing H.
Filter
Press the 2 locking tabs back
and lift out the panel. The mesh
filter can be left to soak in hot
soapy water to clean. Allow to
drain and dry before replacing
I.
Filling with oil
Pour oil into the tank up to the
maximum level indicated
(approx. 3.1 litres of oil).
Lightly smear the inside of the
viewing window with the oil to
inhibit any condensation which
could reduce visibility.
Use good quality liquid
vegetable oil, see ‘Getting the
best from your fryer’ on page 6.
COOKING
WARNING: Never operate
the fryer without oil in the
oil tank.
1Lower the basket (if required)
and close the lid.
2Plug into the mains and switch
the power on at the socket.
3The red power light and green
temperature light will illuminate.
4Set the variable temperature
control to the required setting
see ‘frying times and
temperature section’ on page
9/10.
5The fryer is now pre-heating the
oil, the green temperature light
may go out and come back on
once or twice during pre-heat.
This is normal. After approx. 15
minutes the oil will be at the
correct temperature.
6Lift the lid.
• Do not over fill the basket when
frying, the food must be covered
with the bubbling hot oil,
depending on the size and
shape of the food to be cooked.
There are two methods of
cooking in your fryer, one
general method for most food
types and another for home
battered products.
General cooking
method (with the basket)
1Place the basket in the raised
position. The basket should
always be in the raised position
when it is to be filled with food.
2Place the food, which should be
dry as possible, into the raised
basket. When frying frozen food,
avoid adding ice particles to the
hot oil. Remove the basket from
the fryer, add the frozen food
and shake the basket to remove
excess ice and frost. The oil
temperature and oil life
expectancy will be improved.
3Lower the basket onto the
basket rest ‚.
UUKKHHeellpplliinnee0088770000660022660044RReeppllaacceemmeennttPPaarrttss00887700116677666633IIrreellaannddHHeellpplliinnee11880000440099111199
G
H
I
45076 rev1 22/3/07 08:52 Page 7

8
8866
4Lower the lid (to prevent spitting
of hot oil).
5Lower the basket to the frying
position.
• You can observe the cooking
process by raising the lid or
looking through the viewing
window to observe progress.
6When the food is cooked, raise
the lid, lift the basket out of the
oil, give it a shake, and place it
in its raised rest position for a
few seconds to drain.
7Lift the basket out and shake
the fried food into a dish with oil
absorbing kitchen paper.
8After use, disconnect from the
mains supply and allow to cool.
Wipe any spilt oil from the fryer
body.
Cooking home-
battered foods
(without the basket)
This method allows for the fact
that if wet batter is placed in the
basket prior to cooking the food
may stick.
1Leave the basket fully
submerged in the oil.
2Dip food in the batter until it is
evenly coated and allow to drain
for a moment to remove excess
batter.
• To check that the oil is hot
enough for your battered food,
drop a drip of batter into the oil.
If the oil is hot enough the batter
should immediately rise to the
surface but should not smoke. If
this action causes any smoke
then the temperature is too high
and should be reduced.
3Once evenly coated, carefully
lower your battered food into the
hot oil and allow to ‘seal’ for
about 30 seconds before
turning. See table on page 9/10
for frying times and quantities of
food per fry.
4Fry until batter is golden brown
and the food inside is cooked
but not dried out.
WARNING: Take care as the
oil may spit as the food is
added.
45076 rev1 22/3/07 08:52 Page 8

77
GETTING THE BEST
FROM YOUR FRYER
Oil
• Always ensure that you use
good quality oil for deep frying.
We recommend liquid vegetable
oils, alternatively use corn,
groundnut or rapeseed oil. Avoid
mixing oils of different types and
quality.
• Solid fat (lard) and solid oil can
be used, this should be first
melted in a pan until softened,
then carefully transferred into
the fryer tank.
• Change the oil when it becomes
brown or cloudy in colour,
usually after frying 15 times.
IMPORTANT: Do not switch the
fryer on until the fryer tank is
filled with oil or solid oil or lard.
Cooking tips
• Your food must always be
completely dry in order to avoid
overflowing, to prolong the use
of the oil and to give a crispier
finish to the food.
• Pieces of food should be of the
same size and thickness.
• As a general guide pre-cooked
foods need a higher cooking
temperature than raw foods.
• Do not overload the basket as it
may cause a drop of
temperature that may leave the
food greasy.
• Cook your food thoroughly.
Remember that your food may
begin to turn golden brown
before it is cooked through.
• Avoid leaving food to drain for
too long in the basket as the
food may become soft and lose
its crunchiness.
• Select your cooking utensils
with care. Do not use utensils
that may melt. When using metal
utensils, take care not to
damage the non-stick coating of
the bowl.
• All foodstuffs contain moisture.
When lowered into the hot oil
the water turns to steam. Most
of the steam escapes
harmlessly through the lid vent,
but trapped steam may escape
when opening the lid - so care is
needed.
Chips
• Old potatoes are ideal for
making chips.Your chips should
be evenly sized so that they
cook evenly. They should be
rinsed in a colander under a
cold tap and dried using a
kitchen towel or absorbent
paper. For best results fry your
chips for 10-12 minutes; shaking
the basket at intervals to ensure
chips get an overall browning.
• For best results, we recommend
no more than 900g of frozen
chips or 1.2kg of fresh chips are
fried per batch.
UUKKHHeellpplliinnee0088770000660022660044RReeppllaacceemmeennttPPaarrttss00887700116677666633IIrreellaannddHHeellpplliinnee11880000440099111199
45076 rev1 22/3/07 08:52 Page 9

88
EMPTYING,
CLEANING &
STORING
WARNING: Cleaning should
only be carried out with the
plug removed from the
socket. The fryer should
have completely cooled.
Allow 3 hours for cooling.
1Remove the lid.
2Remove the basket.
3Take the oil storage container
and remove the lid, ensuring the
filter is left in.
4Lift out the tank Jand carefully
pour the oil from the corner of
the tank, Kinto the oil storage
container.
• Once the oil is in the storage
container screw the lid back on.
5Wash the lid, basket, handle,
ladle and the inside of the tank
by hand with hot soapy water.
• The lid can be washed in a
dishwasher.
• The basket and tank should
NOT be washed in a
dishwasher.
6Clean the body of the fryer with
a warm moistened cloth,
washing up liquid can be used.
WARNING: Never immerse
the control panel in water,
if required remove any
stains with a moistened
cloth.
7Dry all parts of your fryer
thoroughly and reassemble all
parts with the max and min at
the back of the oil tank. Refer to
the ‘Assembly Sequence’ on
page 4.
• The outside of the tank is not
non-stick coated, if care is
taken, it is unlikely to become
dirty. If oil does drip down the
exterior when the oil is being
emptied out, make sure that it is
hand washed thoroughly. The
exterior may appear
discoloured, this is quite normal
and will not detract from the
performance of the fryer.
8Place the basket back into the
tank, then the oil storage
container and ladle L. This
allows for efficient storage.
HELPLINE
If you have any difficulty with
your appliance, please do not
hesitate to call us.
We are more likely to be able to
help than the store from where
you bought it.
Please have the following
information ready to enable our
staff to deal with your query
quickly.
• Name of the product.
• Model number as shown on the
underside of the appliance.
• Serial number as shown on
underside of the appliance.
UK Helpline 0870 0602604
Replacement Parts 0870 1676635
Ireland Helpline 1800409119
J
K
L
45076 rev1 22/3/07 08:52 Page 10

99UUKKHHeellpplliinnee0088770000660022661144RReeppllaacceemmeennttPPaarrttss0088770011557766664455IIrreellaannddHHeellpplliinnee11880000440099111199
FRYING TIMES AND TEMPERATURE CHART
These frying times are intended as a guide only and should be adjusted to suit quantity or
thickness of food and your own taste. Times listed are normally the maximum time required.
Fresh cut chips 1.2kg
190°C 10-12 mins
Frozen chips 900g
190°C 2-15 mins
Fresh cod or haddock 300g/400g 2 or 3 pieces
190°C 8-10 mins
Frozen cod or haddock 300g/400g 2 or 3 pieces
170°C 10-15 mins
Frozen plaice 1x150g piece
190°C 5-6 mins
Whitebate (just enough to cover base of basket)
190°C 1-2 mins
Scampi (frozen in crumbs)
170°C 3-5 mins
Just enough to cover base of basket.
Beefburgers*
150° or 170°C
2oz/55g 4 pieces 4-6 mins
4oz/110g 2 pieces 5-10 mins
45076 rev1 22/3/07 08:52 Page 11

FRYING TIMES AND TEMPERATURE CHART continued
Fresh or defrosted chicken portions in crumbs* 2 x 200g pieces
170°C 20-25 mins
Frozen chicken portions in crumbs* 2 x 200g pieces
170°C 25-30 mins
Mushrooms 200g
190°C 2-3 mins
Weights stated are maximum advised.
*Chicken and beef burgers taint the oil leaving a taste you may not want when frying other foods, if
so change the oil.
Serves 4
85 calories, 3g fat (per serving)
Ingredients
450g frozen peas
20 mint leaves
2 tablespoons of semi
skimmed milk
1 knob of unsalted butter
Sea salt
Black pepper
Method
1Lay the peas on a tray to
defrost for 10 minutes.
Whilst peas are defrosting
blanche the mint in boiling
water for 20 seconds,
remove and set a side.
2When the peas are still
very cold place into a
blender along with the mint
and blitz until very smooth.
(If needed you can add just
splash of water to help).
Once blitzed push the
puree through a fine sieve.
3Return puree to the
blender and add remaining
ingredients for a final blitz.
4Heat the butter and milk in
a saucepan and add the
puree stirring well.
5Once hot remove and
season to taste.
Great because:
• This healthy dip is low in
fat and full of fibre with
more than third of your
days fibre needs in one
serving.
• It is good for iron which is
vital for good energy levels
and has almost half of your
day’s vitamin C which
helps the iron to be
absorbed and boosts
immunity.
Tips
• This makes a fantastic
base on which to serve
fish.
• For a delicious cold dip
omit method number 4.
Pea and Mint Puree - A delicious accompaniment for fish.
1100
45076 rev1 22/3/07 08:52 Page 12
