Operator’s Manual
for Morse Forklift-Karrier
Model 285A
Serial Number 0613 to ____ (MMYY)
Receiving Procedures
Every Morse drum handler is inspected prior to shipping. However,
damage may be incurred during transit.
Check for visible damage. If you choose to accept damaged•
freight, always sign noting the damage on the Bill of
Lading.
Document the damage and have the truck driver sign. We•
recommend keeping a digital camera at your receiving dock
for this purpose.
Open packages expeditiously to check the condition of the•
goods. There is only a 24 hour window to notify the carrier
of any concealed damage.
Immediately• report all damage to the shipping company!
Then you may contact Morse for assistance with your
freight claim.
Morse Manufacturing will not be held responsible for any•
damaged freight that is not signed for as damaged.
Limited 2 Year Warranty
Morse drum handling equipment is guaranteed against defects in
workmanship or materials for two years when used properly within
its rated capacity. Warranty does not cover wear from normal use
or damage from accident or abuse. Motors and other purchased
parts carry the warranties of their manufacturers.
For warranty claims, contact your Morse Dealer to obtain a
return authorization number, and for return freight advice. Return
freight must be prepaid.
In all instances, liability is limited to the purchase price paid or to
repairing or replacing the product. Customer assumes liability for
anymodications,unauthorizedrepairsorpartssubstitution.
Safety Information
While Morse Manufacturing Co. drum handling equipment is
engineeredforsafetyande󰀩ciency,ahighdegreeofresponsibility
must be placed upon the machine operator to follow safe practices,
based primarily on common sense, upon which true safety
depends.
Failure to follow the safety precautions in this manual can result in
personal injury or property damage. Observe the same precautions
as with similar machinery where carelessness in operating or
maintenance is hazardous to personnel. Carefully read the safety
precautions below and throughout this manual.
Review the Material Safety Data Sheet(s) for the material(s) in
the drum(s) and take all necessary precautions. Safety shoes,
work gloves, hard hat and other personal protective devices are
recommended.
Prior to initial use, inspect all moving parts and test rotation of
chain wheel and saddle assembly. Inspect saddle assembly
for proper operation. Perform necessary load test, inspections,
operator training, etc.

The Specialist In Drum Handling Equipment
Model 285A
Forklift-Karrier
Operator’s Manual for Morse Forklift-Karrier Model 285A
Serial Number 0613 to ____ (MMYY)
morsedrum.com
Copyright 2019 - Morse Mfg. Co., Inc. Form PL285A (0613-____) (Updated 12 Jun, 2019 4:10 PM) 2
Safety Information (continued)
DANGER - Indicates a situation which, if not avoided, will result in serious injury or death.
This signal word is limited to the most extreme situations.
WARNING - Indicates a situation which, if not avoided, could result in serious injury or
death.
CAUTION - Indicates a situation which, if not avoided, can result in damage to the machine.
WARNING - The Forklift-Karrier is designed to handle one drum of the types listed at the top of page
3. Machine Description. DO NOT attempt to handle any other type of drum or object. DO NOT
exceed the weight capacity of 800 Lb. Exceding these ratings is unsafe and could result in equipment
damage, excessive wear or awkward handling.
WARNING -DoNotModifytheUnit.Undernocircumstancesshouldanymodicationsbemadeto
theMorsemachinerywithoutfactoryauthorization.Anymodicationsmayvoidthewarranty.This
machinewasdesignedtoperformaspecicjobandalterationsmayresultininjurytooperatoror
machine.
WARNING -NoLooseFittingClothing.Wearclose-ttingclothingandsafetyequipmentappropriate
tothejob.Loosettingclothingmaybecomecaughtonthemachineryandcauseseverepersonal
injury.
CAUTION – Do Not Transport with Drum Raised. Always lower the drum holder to lowest position
before transporting.
CAUTION - Wear safety shoes with non-slip soles and hard toe protection.
CAUTION: DONOTallowdrumtoimpactonoor,ground,ordumpingstation,etc.
WARNING: This product can expose you to chemicals including barium sulfate, cobalt, titanium dioxide, and
2-methylimidazole, which are known to the State of California to cause cancer, and bisphenol-A, which is known to
the State of California to cause birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov

The Specialist In Drum Handling Equipment
Model 285A
Forklift-Karrier
Operator’s Manual for Morse Forklift-Karrier Model 285A
Serial Number 0613 to ____ (MMYY)
morsedrum.com
Copyright 2019 - Morse Mfg. Co., Inc. Form PL285A (0613-____) (Updated 12 Jun, 2019 4:10 PM) 3
Machine Description
The Model 285A Forklift-Karrier is designed to lift, transport, and dispense a
ribbed55-gallonsteelorberdrum22”to23.5”indiameter.Themaximum
full-drum capacity is 800 Lb. The capacity is derated to 500 Lb. for a half-
full drum. The half-full rating is based on the tilt mechanism’s capacity for
handling an unbalanced bottom-heavy drum.
Options
A smaller diameter drum can be handled with the correct size 55/30•
Series Diameter Adaptor installed (see Diameter Adaptor literature).
The• Bracket Assembly (Part # 4556-P) is required to handle a plastic
drumwithoutatoprim(seegure2.1).Itisalsorecommendedtomore
securelyhandleaberdrum.YoucanusetheBracketAssemblywith
a55-gallonplastic,steelorberdrum.Thebraceattopandbottomof
the drum prevent it from slipping lengthways through the drum holder. It
adjustsforadrum31”to39”tall.
The• Top Rim Clamp (Part # 4560-P) grips the upper rim of your drum
topreventitfromslippingthroughthedrumholder(seegure2.2).To
handle a 55-gallon plastic drum with top rim, you must install either
theBracketAssemblyortheTopRimClamp.YoucanusetheTopRim
Clampwitha55-gallonplastic,steelorberdrumwithsuitabletoprim.
Important
Please read all instructions thoroughly before attempting to operate your1.
new Morse drum handler.
When loading, unloading, operating, or maintaining your MORSE drum2.
handler, always use care and good judgment. Maintain secure footing
andarmhold.Keephandsandlooseclothingawayfromallmoving
parts. Never allow anyone to be below any part of a raised drum handler
or drum. Read operating instructions and review the pictures in the sales
brochure before operation.
This model is a front-end attachment for a forklift, OSHA recommends3.
that “… the truck (forklift) be marked to identify the attachment(s) and
show the approximate weight of the truck and attachment combination
atmaximumelevationwithloadlaterallycentered.”Seecenterofgravity
dimensions on page 5 for calculating lost load on your equipment.
Figure 2.2
Plastic drum being lifted
with part number 4560-P
Top Rim Clamp Assembly
installed.
Figure 2.1
Plastic drum being lifted with
partnumber4556-PBracket
Assembly installed.

The Specialist In Drum Handling Equipment
Model 285A
Forklift-Karrier
Operator’s Manual for Morse Forklift-Karrier Model 285A
Serial Number 0613 to ____ (MMYY)
morsedrum.com
Copyright 2019 - Morse Mfg. Co., Inc. Form PL285A (0613-____) (Updated 12 Jun, 2019 4:10 PM) 4
Operating Instructions
Beforeslidingforkliftforksintotheforktubes,adjustforksto1.
aninsidespreadof25”minimum.Lockforksintopositionon
the forklift carriage.
Drive the forklift forward to slip the forks into the fork tubes.2.
Tighten tee screws (item #8) to secure the Forklift Karrier to
the forks.
Release the cinch chain (item #112) and hang the loose end3.
from the upright peg on the front of the gear block. Swing the
ratchet hinge plate to the open position.
DrivetheforkliftwiththeForkliftKarriernearoorlevelto4.
position the saddle band around the middle of the drum
between the ribs.
Drape the cinch chain across the front of the drum and insert5.
one link into the slot on the ratchet handle (shown right). Turn
the ratchet handle clockwise to tighten the cinch chain around
the drum (see detail).
Remove pull chain (item #11) from chain box on base frame6.
and place end of loop near operator’s seat.
Raiseforkstocleartheoorandtransportdruminvertical7.
position to dispensing location.
To pour drum: pull on chain (item #11), rotating drum to angle8.
required for dispensing. To control the pouring angle of the
drum, pay out one side of chain and pull the other side to
prevent the drum from free-wheeling.
If the Forklift-Karrier is equipped with the MORStop Tilt-9.
Brake,thereisnoneedtoholdtensiononbothsidesofthe
chainloop.Brakingisimmediateandself-actuating,without
additional steps by the operator. To add the MORStop Tilt-
BraketoyourForklift-Karrier,orderkitforeldinstallation(part
#3900-P).
When dispensing is completed, rotate the drum back to10.
vertical and return drum. While transporting, ensure that the
drumisraisedawayfromtheoortopreventthedrumbottom
from interfering with a pallet or other obstacle.
Maintenance
Periodicinspectionforthegeneralconditionofstructuralandmechanicalcomponentsisimperativeforsafeande󰀩cientoperation.
Lubricate gear teeth and roller chain.1.
Clean and oil ratchet, pawl and other moving parts periodically. Clean and lubricate more often in environments where dust, dirt or2.
otherforeignparticleswille󰀨ecttheperformanceofmovingparts.
Periodically inspect all moving parts, framework, drum holder and contact areas for signs of wear, fatigue, or loosening. Tighten,3.
adjust, or replace parts as necessary to prevent failure and maintain proper function.
Worn or damaged parts must be properly replaced with the correct, genuine Morse parts.4.

The Specialist In Drum Handling Equipment
Model 285A
Forklift-Karrier
Operator’s Manual for Morse Forklift-Karrier Model 285A
Serial Number 0613 to ____ (MMYY)
morsedrum.com
Copyright 2019 - Morse Mfg. Co., Inc. Form PL285A (0613-____) (Updated 12 Jun, 2019 4:10 PM) 5

The Specialist In Drum Handling Equipment
Model 285A
Forklift-Karrier
Operator’s Manual for Morse Forklift-Karrier Model 285A
Serial Number 0613 to ____ (MMYY)
morsedrum.com
Copyright 2019 - Morse Mfg. Co., Inc. Form PL285A (0613-____) (Updated 12 Jun, 2019 4:10 PM) 6

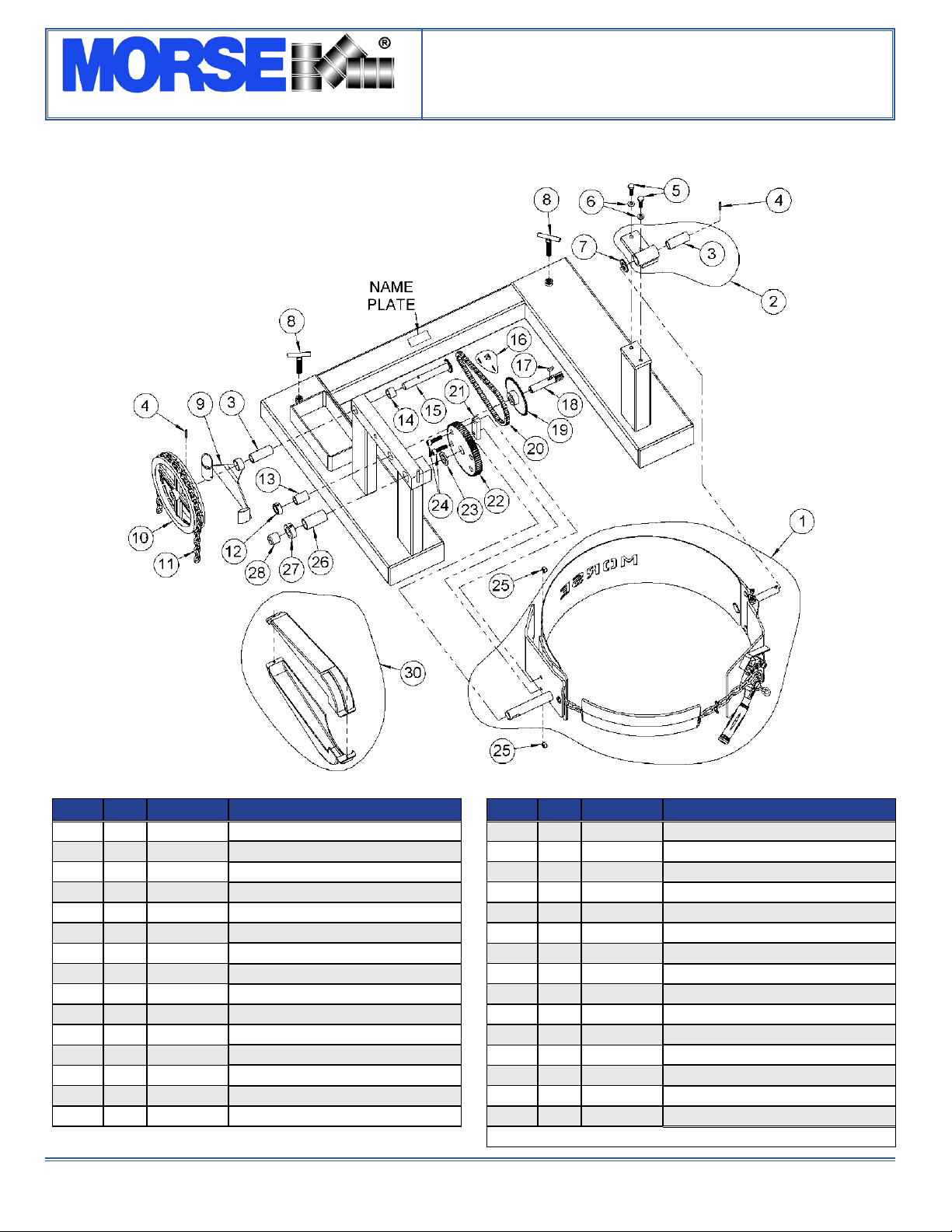

ITEM QTY. PART # DESCRIPTION
1 1 5000-P SADDLE ASM, MORCINCH, MOR
2* 1 3849B-P BEARINGBLOCK,SLIDINGIDLER
3* 2 19-P BEARING,3/4”IDX2-1/2”
4* 2 64-P ROLLPIN,3/16X1-1/4
5 2 535-P HHCS,3/8-16X1-1/4GR5
6 2 1474-P WASHER, 3/8 SPLIT LOCK
7 1 55-P WASHER, 3/4 SAE FL 1-1/2 OD
8 2 58-P SET SCREW, LOCK TEE, 285
9* 1 1304-P GUIDE,POCKETCHAINWHEEL
10* 1 1303-P POCKETCHAINWHEEL,3/4BORE
11* 1 3-285-P CHAIN,PULL,POCKET20’LENGTH
12 1 15-P COLLAR,3/4”ID
13* 1 7-P BEARING,3/4”IDX1-1/2”
14* 1 1411-P SPACER, SHAFT W/ 12T SPROCKET
15* 1 1302-P SHAFT W/ 12T SPROCKET, POCKET
ITEM QTY. PART # DESCRIPTION
16 1 795-P LINK, MASTER, #35 CHAIN
17* 1 735-P KEY,WOODRUFF,SIZE9,ASA606
18* 1 14-P GEAR,PINION,7TOOTH
19* 1 13-P SPROCKET#3536T,3/4”BORE
20* 1 12-P CHAIN, ROLLER, #35 W/ M LINK
21 1 4473-P SPACER,SPURGEAR,MOR
22* 1 23-P GEAR,SPUR,72T,1”HOLE
23 1 29-P SPACER,SPURGEAR.15”
24 2 4370-P SHCS,3/8-16X1-3/8
25 2 1169-P NUT,3/8-16REVHEXLOCK
26* 1 18-P BEARING,1”IDX2-1/2”
27 1 16-P COLLAR,1”ID
28 1 4235-P CAP, PLASTIC, DRIVE SHAFT
29 2 2182-P WIRE/CABLETIE,4-33/64(NOTSHOWN)
30 1 4285-P COVERSET,30:1GEARS,REG
* Recommended spare parts.

The Specialist In Drum Handling Equipment
Model 285A
Forklift-Karrier
Operator’s Manual for Morse Forklift-Karrier Model 285A
Serial Number 0613 to ____ (MMYY)
morsedrum.com
Copyright 2019 - Morse Mfg. Co., Inc. Form PL285A (0613-____) (Updated 12 Jun, 2019 4:10 PM) 7

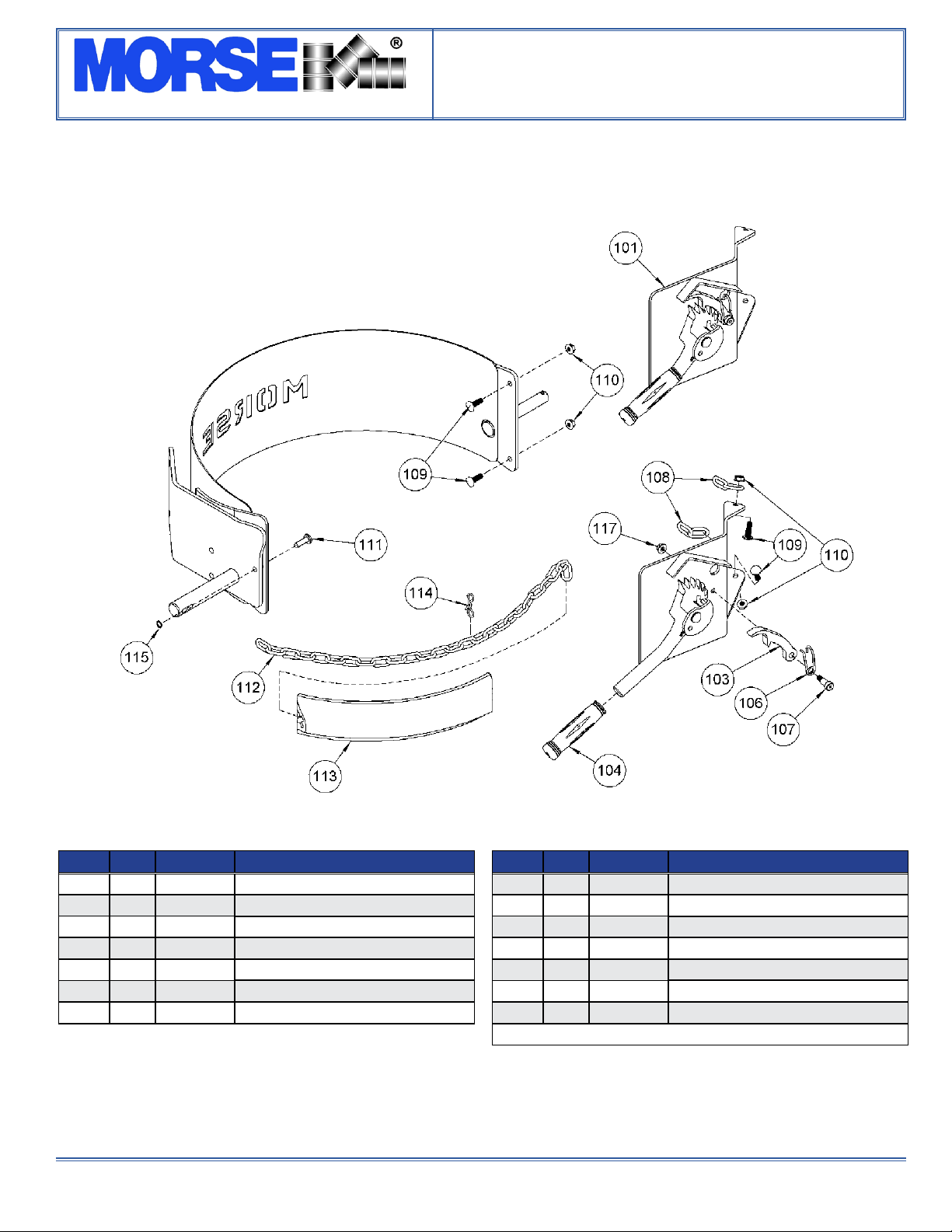

ITEM QTY. PART # DESCRIPTION
101* 1 4214A-P RATCHET PLATE CPT, MOR
103 1 168-P PAWL, WITH DRILLED HOLE
104 1 136-P GRIP,HANDLE7/8”X4-3/4”
106 1 169-P SPRING,PAWL
107 1 170-P SCREW,3/8DIAX5/8SHOULDER
108* 2 5019-P CHAIN,HINGE,9/32ALLOY2LK
109* 4 4177-P BOLT,5/16-18X1CARRIAGERIB
ITEM QTY. PART # DESCRIPTION
110* 4 4178-P NUT,5/16-18FLANGELOCK,MOR
111* 1 4172SP-P PIN, S.P., CINCH CHAIN, 5000-P
112* 1 5017-P CHAIN,CINCH,9/32,38LINK
113* 1 4414-P COVER,CINCHCHAIN,FLEXPVC
114 1 4710-P PIN,BOWTIECOTTER,MOR
115* 1 4744-P SNAPRING,EXTERNAL,3/8”
117 1 1634-P NUT, 5/16-18 WHIZ LOCK
* Recommended spare parts.
