Receiving Procedures
Every Morse drum handler is inspected prior to shipping. However,
damage may be incurred during transit.
Check for visible damage. If you choose to accept damaged•
freight, always sign noting the damage on the Bill of
Lading.
Document the damage and have the truck driver sign. We•
recommend keeping a digital camera at your receiving dock
for this purpose.
Open packages expeditiously to check the condition of the•
goods. There is only a 24 hour window to notify the carrier
of any concealed damage.
Immediately• report all damage to the shipping company!
Then you may contact Morse for assistance with your
freight claim.
Morse Manufacturing will not be held responsible for any•
damaged freight that is not signed for as damaged.
Limited 2 Year Warranty
Morse drum handling equipment is guaranteed against defects in
workmanship or materials for two years when used properly within
its rated capacity. Warranty does not cover wear from normal use or
damage from accident or abuse. Motors and other purchased parts
carry the warranties of their manufacturers.
For warranty claims, contact your Morse Dealer to obtain a
return authorization number, and for return freight advice. Return
freight must be prepaid.
In all instances, liability is limited to the purchase price paid or to
repairing or replacing the product. Customer assumes liability for
anymodications,unauthorizedrepairsorpartssubstitution.
Safety Information
While Morse Manufacturing Co. drum handling equipment is
engineeredforsafetyandefciency,ahighdegreeofresponsibility
must be placed upon the machine operator to follow safe practices,
based primarily on common sense, upon which true safety
depends.
Failure to follow the safety precautions in this manual can result in
personal injury or property damage. Observe the same precautions
as with similar machinery where carelessness in operating or
maintenance is hazardous to personnel. Carefully read the safety
precautions below and throughout this manual.
Review the Material Safety Data Sheet(s) for the material(s) in
the drum(s) and take all necessary precautions. Safety shoes,
work gloves, hard hat and other personal protective devices are
recommended.
Prior to initial use, inspect all moving parts and test rotation of chain
wheel and saddle assembly. Inspect saddle assembly for proper
operation. Perform necessary load test, inspections, operator
training, etc.

The Specialist In Drum Handling Equipment
MODEL 285A
Forklift-Karrier
Operator’s Manual for Morse Forklift-Karrier Model 285A
Serial Number 0793 to 0109 (MMYY)
morsedrum.com
Copyright 2008 - Morse Mfg. Co., Inc. Form PL285A (0793-0109) (Updated June 11, 2012 3:12 PM) 2
Safety Information (continued)
DANGER - Indicates a situation which, if not avoided, will result in serious injury or death.
This signal word is limited to the most extreme situations.
WARNING - Indicates a situation which, if not avoided, could result in serious injury or
death.
CAUTION - Indicates a situation which, if not avoided, can result in damage to the machine.
CAUTION – Do Not Transport with Drum Raised. Always lower the drum holder to lowest position
before transporting.
WARNING - The Forklift-Karrier is designed to handle one drum of the types listed at the top of page 3.
Machine Description. DO NOT attempt to handle any other type of drum or object. DO NOT exceed
the weight capacity of 800 Lb.
WARNING - Do Not Modify the Unit.
Under nocircumstancesshouldanymodicationsbemadetotheMorsemachinerywithoutfactory
authorization.Any modications may void thewarranty. Thismachinewasdesigned to perform a
specicjobandalterationsmayresultininjurytooperatorormachine.
WARNING - No Loose Fitting Clothing
Wear close-ttingclothing andsafety equipment appropriate to the job. Loose tting clothing may
become caught on the machinery and cause severe personal injury.
CAUTION - Wear Safety Shoes
Wear safety shoes with non-slip soles and hard toe protection.
CAUTION: DONOTallowdrumtoimpactonoor,ground,ordumpingstation,etc.

The Specialist In Drum Handling Equipment
MODEL 285A
Forklift-Karrier
Operator’s Manual for Morse Forklift-Karrier Model 285A
Serial Number 0793 to 0109 (MMYY)
morsedrum.com
Copyright 2008 - Morse Mfg. Co., Inc. Form PL285A (0793-0109) (Updated June 11, 2012 3:12 PM) 3
Important
Review the Material Safety Data Sheet(s) for the material(s) in the drum(s) and take all necessary precautions. Safety shoes, work1.
gloves, hard hat and other personal protective devices are recommended.
Please read all instructions thoroughly before attempting to operate your new Morse drum handler.2.
The model 285A has a maximum capacity rating of 800 Lb. full drum and 500 Lb. half-full drum and is designed to lift, move and pour3.
a 55-gallon steel drum. DO NOT exceed these ratings. Exceeding these ratings or handling drums other than those mentioned above
is unsafe and could result in equipment damage, excessive wear or awkward handling.
When loading, unloading, operating, or maintaining your MORSE drum handler, always use care and good judgment. Maintain secure4.
footingandarmhold.Keephandsandlooseclothingawayfromallmovingparts.Neverallowanyonetobebelowanypartofaraised
drum handler or drum. Read operating instructions and review the pictures in the sales brochure before operation.
Because the model 285A is a front-end attachment for a forklift, OSHA recommends that5.
“… the truck (forklift) be marked to identify the attachment(s) and show the approximate
weight of the truck and attachment combination at maximum elevation with load laterally
centered.” See center of gravity dimensions of model 285A on page 5 for calculating lost
load on your equipment.
Prior to initial use, inspect all moving parts and test rotation of chain wheel and saddle6.
assembly. Inspect saddle assembly for proper operation. Perform necessary load test,
inspections, operator training, etc.

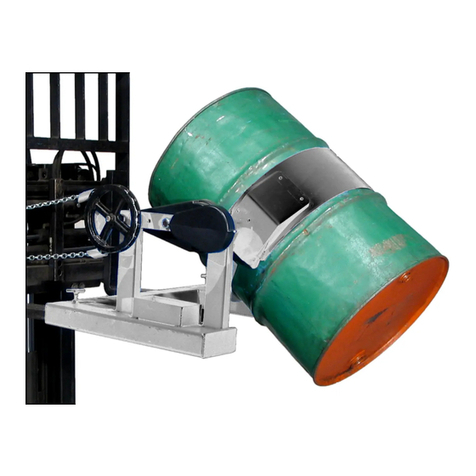

Machine Description
The Model 285A Forklift-Karrier is designed to lift, transport, and dispense a ribbed 55-gallon
steel drum 22.5” in diameter. The maximum full-drum capacity is 800 Lb. The capacity is
derated to 500 Lb. for a half-full drum. The half-full rating is based on the tilt mechanism’s
capacity for handling an unbalanced bottom-heavy drum.
Options
A smaller diameter drum can be handled with the correct size 55/30 Series Diameter Adaptor installed•
(see Diameter Adaptor literature)

The Specialist In Drum Handling Equipment
MODEL 285A
Forklift-Karrier
Operator’s Manual for Morse Forklift-Karrier Model 285A
Serial Number 0793 to 0109 (MMYY)
morsedrum.com
Copyright 2008 - Morse Mfg. Co., Inc. Form PL285A (0793-0109) (Updated June 11, 2012 3:12 PM) 4
Operating Instructions
Before sliding forklift forks into the fork tubes, adjust forks to an1.
inside spread of 24.5” minimum. Lock forks into position on the
forklift carriage.
Drive the forklift forward to slip the forks into the fork tubes (see2.
item #36). Tighten tee screws (item #37) to secure the Forklift-
Karrier to the forks.
Release the cinch chain (item #19), and hang the loose end3.
from the upright peg on the front of the gear block. Swing the
ratchet hinge plate to the open position.
Drive the forklift with the Forklift-Karrier near oor level to4.
position the saddle band around the middle of the drum between
the ribs.
Drape the cinch chain across the front of the drum and insert5.
one link into the slot on the ratchet handle (item #33). Turn the
ratchet handle clockwise to tighten the cinch chain around the
drum (Figure 3.2).
Remove pull chain (item #3) from chain box on base frame6.
(item #36) and place end of loop near operator’s seat.
Raise forks to clear the oor and transport drum in vertical7.
position to dispensing location.
To pour drum: pull on chain (item #3), rotating drum to angle8.
required for dispensing. To control the pouring angle of the drum,
pay out one side of chain and pull the other side to prevent the
drum from free-wheeling.
If the Forklift-Karrier is equipped with the MORStop Tilt-Brake,9.
there is no need to hold tension on both sides of the chain loop.
Braking is immediate and self-actuating, without additional
steps by the operator. To add the MORStop Tilt-Brake to your
Forklift-Karrier,orderkitforeldinstallation(part#3900-P).
When dispensing is completed, rotate the drum back to vertical10.
and return drum. While transporting, ensure that the drum is
raised away from the oor to prevent the drum bottom from
interfering with a pallet or other obstacle.
Maintenance
Periodicinspectionforthegeneralconditionofstructuralandmechanicalcomponentsisimperativeforsafeandefcientoperation.
Lubricate gear teeth and roller chain.1.
Clean and oil ratchet, pawl and other moving parts periodically. Clean and lubricate more often in environments where dust, dirt or other2.
foriegn particles will effect the performance of moving parts.
Periodically inspect all moving parts, framework, drum holder and contact areas for signs of wear, fatigue, or loosening. Tighten, adjust,3.
or replace parts as necessary to prevent failure and maintain proper function.
Worn or damaged parts must be properly replaced with the correct, genuine Morse parts.4.
Figure 3.2
Figure 3.1

The Specialist In Drum Handling Equipment
MODEL 285A
Forklift-Karrier
Operator’s Manual for Morse Forklift-Karrier Model 285A
Serial Number 0793 to 0109 (MMYY)
morsedrum.com
Copyright 2008 - Morse Mfg. Co., Inc. Form PL285A (0793-0109) (Updated June 11, 2012 3:12 PM) 5

The Specialist In Drum Handling Equipment
MODEL 285A
Forklift-Karrier
Operator’s Manual for Morse Forklift-Karrier Model 285A
Serial Number 0793 to 0109 (MMYY)
morsedrum.com
Copyright 2008 - Morse Mfg. Co., Inc. Form PL285A (0793-0109) (Updated June 11, 2012 3:12 PM) 6
ITEM QTY. PART # DESCRIPTION
1 * 1 1303-P POCKET CHAIN WHEEL, 3/4 BORE
2 1 1304-P GUIDE, POCKET CHAIN WHEEL
3 * 1 3-285-P PULL CHAIN, POCKET, 20’ LENGTH
4 1 15-P COLLAR, 3/4” ID
5 * 1 19-P BEARING, 3/4” ID X 2-1/2”
6 * 1 7-P BEARING, 3/4” ID X 1-1/2”
7 1 16-P COLLAR, 1” ID
8 * 1 18-P BEARING, 1” ID X 2-1/2”
9 1 1411-P SPACER, FOR SHAFT W/ 12T
10 2 64-P ROLL PIN, 3/16 X 1-1/4
11 * 1 1302-P SHAFT W/ 12T SPROCKET, POCKET
12 * 1 12-P CHAIN, ROLLER, #35 W/ M LINK
13 * 1 14-P GEAR, PINION, 7 TOOTH
14 * 1 735-P KEY, WOODRUFF, SIZE 9, ASA606
15 * 1 13-P SPROCKET #35 36T, 3/4” BORE
16 1 29-P SPACER, SPUR GEAR .15”
17 * 1 23-P GEAR, SPUR, 72T, 1” HOLE
18 1 4081-P NUT, M8 ESNA, 8MM
ITEM QTY. PART # DESCRIPTION
19 * 1 180-P CHAIN, CINCH, 3/16 ALLOY 33 LK
20 1 4079-P HHCS, M8 X 60 MM CL8.8, 8MM
22 1 725A-P SADDLE ASM CPT, 285A, 400
23 1 1296-P 1/4 - 20 X 7-1/2 HHCS GR 5 STL
24 2 55-P WASHER, 3/4 SAE FL 1-1/2 OD
25 1 1297-P 1/4 - 20 REV HEX LOC NUT
26 2 22-P 3/8 - 24 X 5/8” SHCS STL
27 * 1 165KIT-P KIT, RATCHET CHAIN TIGHTENER
28 1 731-P RATCHET HINGE PLATE ONLY 1/4 A (NOT SOLD SEPERATELY)
29 1 168-P PAWL, WITH DRILLED HOLE
30 1 169-P PAWL SPRING
31 1 710-P RETAINER, RATCHET PUSH ON 3/4”
32 1 170-P 3/8” DIA X 5/8” SHOULDER SCREW
33 1 165-P RATCHET, MALLEABLE, FOR SADDLE
34 1 136-P HANDLE GRIP, 7/8” X 4-3/4”
35 1 726-P RATCHET HINGE PLATE CPT 1/4” A
36 1 770A-P BASE FRAME 285A W/BRG
37 2 58-P LOCK TEE SET SCREW, 285
* Recommended spare parts
