Mosa GE 12054 HBS Guide

GE 12054 HBS
© MOSA 23/01/13 25934M00
preparato da UPT
approvato da DITE
USE AND MAINTENANCE MANUAL
SPARE PARTS CATALOGS
259349003 - GB
0 1 1 3

GE 12054 HBS
DESCRIPTION OF THE MACHINE
M
0
REV.0-01/13
The generating set is a unit which transforms the mechanical energy, generated by endothermic engine,
into electric energy, through an alternator.
The assembling is made on a steel structure, on which are provided elastic support which must damp the
vibrations and also eliminate sounds which would produce noise.
The unit has a protective closed frame which protects it against unintentional impacts during the handling
and /or transport, the front panel is completely wrapped by the structure so that the components are pro-
tected. The fuel tank and battery starter complete the main parts of the machine.
BATTERY
FRONT PANEL
FRAME
FUEL TANK
ALTERNATOR
VIBRATION
DAMPER
VIBRATION
DAMPER
MUFFLER

Quality system
M
01
REV.4-03/12
UNI EN ISO 9001 : 2008
10/10/02 M01-GB
MOSA has certied its quality system according
to UNI EN ISO 9001:2008 to ensure a constant,
highquality of its products. This certication covers
thedesign, production and servicing of engine dri-
venwelders and generating sets.
The certifying institute, ICIM, which is a member
ofthe International Certication Network IQNet,
awarded the ofcial approval to MOSA after an-
examination of its operations at the head ofce
andplant in Cusago (MI), Italy.
This certication is not a point of arrival but a
pledgeon the part of the entire company to maintain
a levelof quality of both its products and services
whichwill continue to satisfy the needs of its clients,
aswell as to improve the transparency and thecom-
munications regarding all the company’s activesin
accordance with the ofcial procedures and inhar-
mony with the MOSA Manual of Quality.
The advantages for MOSA clients are:
·Constant quality of products and services at thehigh
level which the client expects;
· Continuous efforts to improve the products andtheir
performance at competitive conditions;
· Competent support in the solution of problems;
· Information and training in the correct applicatio-
nand use of the products to assure the security
ofthe operator and protect the environment;
· Regular inspections by ICIM to conrm that the-
requirements of the company’s quality systemand
ISO 9001 are being respected.
All these advantages are guaranteed by the CER-
TIFICATE OF QUALITY SYSTEM No.0192 issued
by ICIM S.p.A. - Milano (Italy ) - www.icim.it

GE 11000 HBS/GS
GE 12000 HBS/GS
GE 12054 HBS
INDEX
M
1
REV.0-06/10
I
GB
F
04/06/10 25930-GB
M 01 QUALITY SYSTEM
M 1.01 COPYRIGHT
M 1.1 NOTES
M 1.4 CE MARK
M 1.4.1 DECLARATION OF CONFORMITY
M 1.5 TECHNICAL DATA
M 2 - 2.1 SYMBOLS AND SAFETY PRECAUTIONS
M 2.5 -…. INSTALLATION AND ADVICE BEFORE USE
M 2.6 INSTALLATION AND ADVICE
M 2.7 INSTALLATION AND DIMENSIONS
M 3 UNPACKING
M 4.1 TRANSPORT AND DISPLACEMENTS
M 6.6 ASSEMBLY: CTM10
M 25 SET-UP FOR OPERATION
M 26 STARTING AND STOPPING THE ENGINE
M 30 LEGEND / CONTROLS
M 37 -….. USE AS A GENERATOR
M 40 -….. TROUBLE SHOOTING
M 43 -….. MAINTENANCE
M 45 STORAGE
M 46 CUST OFF
M 60 ELECTRICAL SYSTEM LEGEND
M 61-….. ELECTRICAL SYSTEM
R 1 SPARE PARTS TABLES
GR ... SPARE PARTS
K .... ACCESSORIES

Copyright
M
1.01
REV.0-10/02
 All rights are reserved to said Company.
It is a property logo of MOSA division of B.C.S. S.p.A.
All other possible logos contained in the documen-
tation are registered by the respective owners.
+ The reproduction and total or partial use, in any
form and/or with any means, of the documen-
tation is allowed to nobody without a written
permission by MOSA division of B.C.S. S.p.A.
To this aim is reminded the protection of the author’s
right and the rights connected to the creation and
design for communication, as provided by the laws
in force in the matter.
In no case MOSA division of B.C.S. S.p.A. will be
held responsible for any damaga, direct or indirect,
in relation with the use of the given information.
MOSA division of B.C.S. S.p.A. does not take any
responsibility about the shown information on rms
or individuals, but keeps the right to refuse services
or information publication which it judges discutible,
unright or illegal.
10/10/02 M1-01-GB
This use and maintenance manual is an important
part of the machines in question.
The assistance and maintenance personel must
keep said manual at disposal, as well as that
for the engine and alternator (if the machine is
synchronous) and all other documentation about
the machine.
We advise you to pay attention to the pages
concerning the security (see page M1.1).
ATTENTION
!

INFORMATION
Dear Customer,
We wish to thank you for having bought a high quality set.
Our sections for Technical Service and Spare Parts will
work at best to help you if it were necessary.
To this purpose we advise you, for all control and over-
haul operations, to turn to the nearest authorized Service
Centre, where you will obtain a prompt and specialized
intervention.
+ In case you do not prot on these Services and some
arts are replaced, please ask and be sure that are
used exclusively original parts; this to guarantee that
the performances and the initial safety prescribed by
the norms in force are re-established.
+The use of non original spare parts will cancel
immediately any guarantee and Technical Service
obligation.
NOTES ABOUT THE MANUAL
Before actioning the machine please read this manual
attentively. Follow the instructions contained in it, in this
way you will avoid inconveniences due to negligence,
mistakes or incorrect maintenance. The manual is for
qualied personnel, who knows the rules: about safety
and health, installation and use of sets movable as well
as xed.
You must remember that, in case you have difculties
for use or installation or others, our Technical Service is
always at your disposal for explanations or interventions.
The manual for Use Maintenance and Spare Parts is an
integrant part of the product. It must be kept with care
during all the life of the product.
In case the machine and/or the set should be yielded to
another user, this manual must also given to him.
Do not damage it, do not take parts away, do not tear
pages and keep it in places protected from dampness
and heat.
You must take into account that some gures contained in
it want only to identify the described parts and therefore
might not correspond to the machine in your possession.
INFORMATION OF GENERAL TYPE
In the envelope given together with the machine and/or
set you will nd: the manual for Use Maintenance and
Spare Parts, the manual for use of the engine and the
tools (if included in the equipment), the guarantee (in the
countries where it is prescribed by law).
Our products have been designed for the use of gene-
ration for welding, electric and hydraulic system; ANY
OTHER DIFFERENT USE NOT INCLUDED IN THE
ONE INDICATED, relieves the manufacturer from the
risks which could happen or, anyway, from that which
was agreed when selling the machine. The manufacturer
excludes any responsibility for damages to the machine,
to the things or to persons in this case.
Our products are made in conformity with the safety
norms in force, for which it is advisable to use all these
devices or information so that the use does not bring
damage to persons or things.
While working it is advisable to keep to the personal safety
norms in force in the countries to which the product is
destined (clothing, work tools, etc.).
Do not modify for any motive parts of the machine (faste-
nings, holes, electric or mechanical devices, others..) if
not duly authorized in writing: the responsibility coming
from any potential intervention will fall on the executioner
as in fact he becomes maker of the machine.
Notes
M
1-1
REV.0-10/02
+ Notice: this manual does not engage the manufacturer,
who keeps the faculty, apart the essential characte-
ristics of the model here described and illustrated,
to bring betterments and modications to parts and
accessories, without putting this manual uptodate
immediately.
10/10/02 M 1-1 GB_NEUTRO

CE MARK
M
1.4
REV.5-03/11
10/10/02 M1-4 GB
Any of our product is labelled with CE marking attesting its conformity to appliable directives and
also the fulllment of safety requirements of the product itself; the list of these directives is part
of the declaration of conformity included in any machine standard equipment.
Here below the adopted symbol:
CE marking is clearly readable and unerasable and it can be either part of the data-plate.

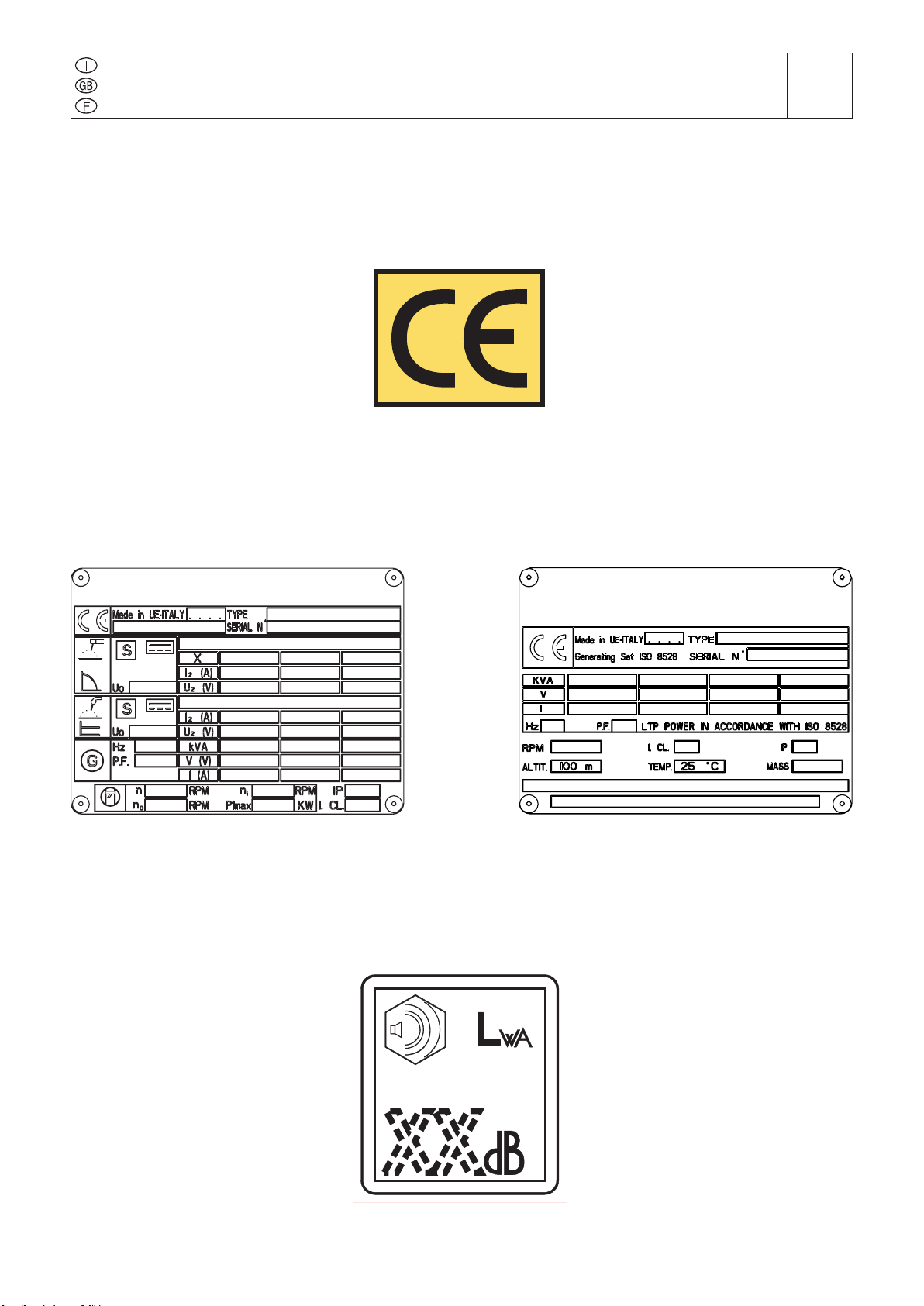

Furthermore, on each model it is shown the noise level value; the symbol used is the following:
The indication is shown in a clear, readable and indeleble way on a sticker.

04/06/10 M1.4.1
Dichiarazione conformità
Declaration of conformity
Déclaration de conformité
M
1.4.1
REV.1-01/13
I
GB
F
MM 083.0
BCS S.p.A.
Sede legale:
Via Marradi 1
20123 Milano - Italia
Stabilimento di Cusago, 20090 (Mi) - Italia
V.le Europa 59
Tel.: [phone]
Fax: [phone]
DICHIARAZIONE DI CONFORMITA'
Déclaration de Conformité – Declaration of Conformity – Konformitätserklärung
Conformiteitsverklaring – Declaración de Conformidad
BCS S.p.A. dichiara sotto la propria responsabilità che la macchina:
BCS S.p.A. déclare, sous sa propre responsabilité, que la machine:
BCS S.p.A. declares, under its own responsibility, that the machine:
BCS S.p.A. erklärt, daß die Aggregate:
BCS S.p.A. verklaard, onder haar eigen verantwoordelijkheid, dat de machine:
BCS S.p.A. declara bajo su responsabilidad que la máquina:
GRUPPO ELETTROGENO DI SALDATURA / WELDING GENERATOR
GRUPPO ELETTROGENO / POWER GENERATOR
Marchio / Brand : MOSA
Modello / Model :
Matricola / Serial number:
è conforme con quanto previsto dalle Direttive Comunitarie e relative modifiche:
est en conformité avec ce qui est prévu par les Directives Communautaires et relatives modifications:
conforms with the Community Directives and related modifications:
mit den Vorschriften der Gemeinschaft und deren Ergänzungen übereinstimmt:
in overeenkomst is met de inhoud van gemeenschapsrichtlijnemen gerelateerde modificaties:
comple con los requisítos de la Directiva Comunitaria y sus anexos:
2006/42/CE - 2006/95/CE - 2004/108/CE
Nome e indirizzo della persona autorizzata a costituire il fascicolo tecnico:
Nom et adresse de la personne autorisée à composer le Dossier Technique:
Person authorized to compile the technical file and address:
Name und Adresse der zur Ausfüllung der technischen Akten ermächtigten Person:
Persoon bevoegd om het technische document, en bedrijf gegevens in te vullen:
Nombre y dirección de la persona autorizada a componer el expediente técnico:
ing. Benso Marelli - Consigliere Delegato / COO; V.le Europa 59, 20090 Cusago (MI) – Italy
_______________
Cusago, Ing. Benso Marelli
Consigliere Delegato
COO
Konformitätserklärung
Declaración de conformidad
Declaração de conformidade

24/01/13 25934-GB
Technical data
GE 12054 HBS
M
1.5
REV.0-01/13
2000 / 14 / CE
OUTPUT
Declared power according to ISO 8528-1 (temperature 25°C, 30% relative humidity, altitude 100 m above sea level).
(*Stand-by) = maximum available power for use at variable loads for a yearly number of hours limited at 500 h. No overload is
admitted.
(**Prime power PRP) = maximum available power for use at variable loads for a yearly illimited number of hours. The average
power to be taken during a period of 24 h must not be over 80% of the PRP.
It’s admitted overload of 10% each hour every 12 h.
In an approximative way one reduces: of 1% every 100 m altitude and of 2.5% for every 5°C above 25°C.
ACOUSTIC POWER LEVEL
ATTENTION: The concrete risk due to the machine depends on the conditions in which it is used. Therefore, it is up to the end-
user and under his direct responsibility to make a correct evaluation of the same risk and to adopt specic precautions (for
instance, adopting a I.P.D. -Individual Protection Device)
Acoustic Noise Level (LWA) - Measure Unit dB(A): it stands for acoustic noise released in a certain delay of time. This is not
submitted to the distance of measurement.
Acoustic Pressure (Lp) - Measure Unit dB(A): it measures the pressure originated by sound waves emission. Its value changes
in proportion to the distance of measurement.
The here below table shows examples of acoustic pressure (Lp) at different distances from a machine with Acoustic Noise Level
(LWA) of 95 dB(A)
Lp a 1 meter = 95 dB(A) - 8 dB(A) = 87 dB(A) Lp a 7 meters = 95 dB(A) - 25 dB(A) = 70 dB(A)
Lp a 4 meters = 95 dB(A) - 20 dB(A) = 75 dB(A) Lp a 10 meters = 95 dB(A) - 28 dB(A) = 67 dB(A)
PLEASE NOTE: the symbol when with acoustic noise values, indicates that the device respects noise emission limits
according to 2000/14/CE directive.
Technical Data GE 12054 HBS
GENERATOR
*Stand-by three-phase power 13 kVA (10.4 kW) / 400 V / 18.7 A
*PRP three-phase power 11.5 kVA (9.2 kW) / 400 V / 16.6 A
*PRP single-phase power 6 kVA / 230 V / 26 A
Frequecy 50 Hz
Cos ϕ 0.8
* Output powers according to ISO 8528-1
ALTERNATOR Self-excited, self-regulated
Type synchronous, three-phase
Insulation class H
ENGINE
Mark / Model Honda / GX 630
Type / Cooling system Gasoline 4-Stroke / air
Cylinder / Displacement 2 / 688 cm3
*Stand-by net power 14.5 kW (19.7 HP)
*PRP net power 10.5 kW (14.3 HP)
Speed 3000 rpm
Fuel consumption (75% of PRP) 3.9 l/h
Engine oil capacity 1.9 l
Starter Electric
* Powers according to SAE J1349
GENERAL SPECIFICATION
Fuel tank capacity 18 l
Running time (75% of PRP) 4.5 h
Protection IP 54
*Dimensions on base Lxwxh 935x525x645
*Weight on base 142 Kg
Acoustic power LwA (pressure LpA) 99 dB(A) (74 dB(A) @ 7 m)
* Dimensions and weight without trolley/trailer. **For indoor use

SYMBOLS AND SAFETY PRECAUTIONS
M
2
REV.0-11/99
SYMBOLS IN THIS MANUAL
- The symbols used in this manual are designed to call
your attention to important aspects of the operation of
the machine as well as potential hazards and dangers
for persons and things.
IMPORTANT ADVICE
- Advice to the User about the safety:
+ N.B.: The information contained in the manual can be
changed without notice. Potential damages caused
in relation to the use of these instructions will not be
considered because these are only indicative.
Remember that the non observance of the indications
reported by us might cause damage to persons or
things. It is understood, that local dispositions and/or
laws must be respected.
WARNING
Situations of danger - no harm to persons
or things
Do not use without protective devices provided
Removing or disabling protective devices on the
machine is prohibited.
Do not use the machine if it is not in good technical
condition
The machine must be in good working order before
being used. Defects, especially those which regard
the safety of the machine, must be repaired before
using the machine.
SAFETY PRECAUTIONS
This heading warns of an immediate danger for persons
as well for things. Not following the advice can result in
serious injury or death.
This heading warns of situations which could result in
injury for persons or damage to things.
To this advice can appear a danger for persons as well
as for things, for which can appear situations bringing
material damage to things.
These headings refer to information which will assis you
in the correct use of the machine and/or accessories.
!
26/11/99 M2GB
WARNING
DANGEROUS
CAUTION
IMPORTANT
NOTE
ATTENTION
!
!
!
!
!
!

SYMBOLS AND SAFETY PRECAUTIONS
M
2-1
REV.2-06/10

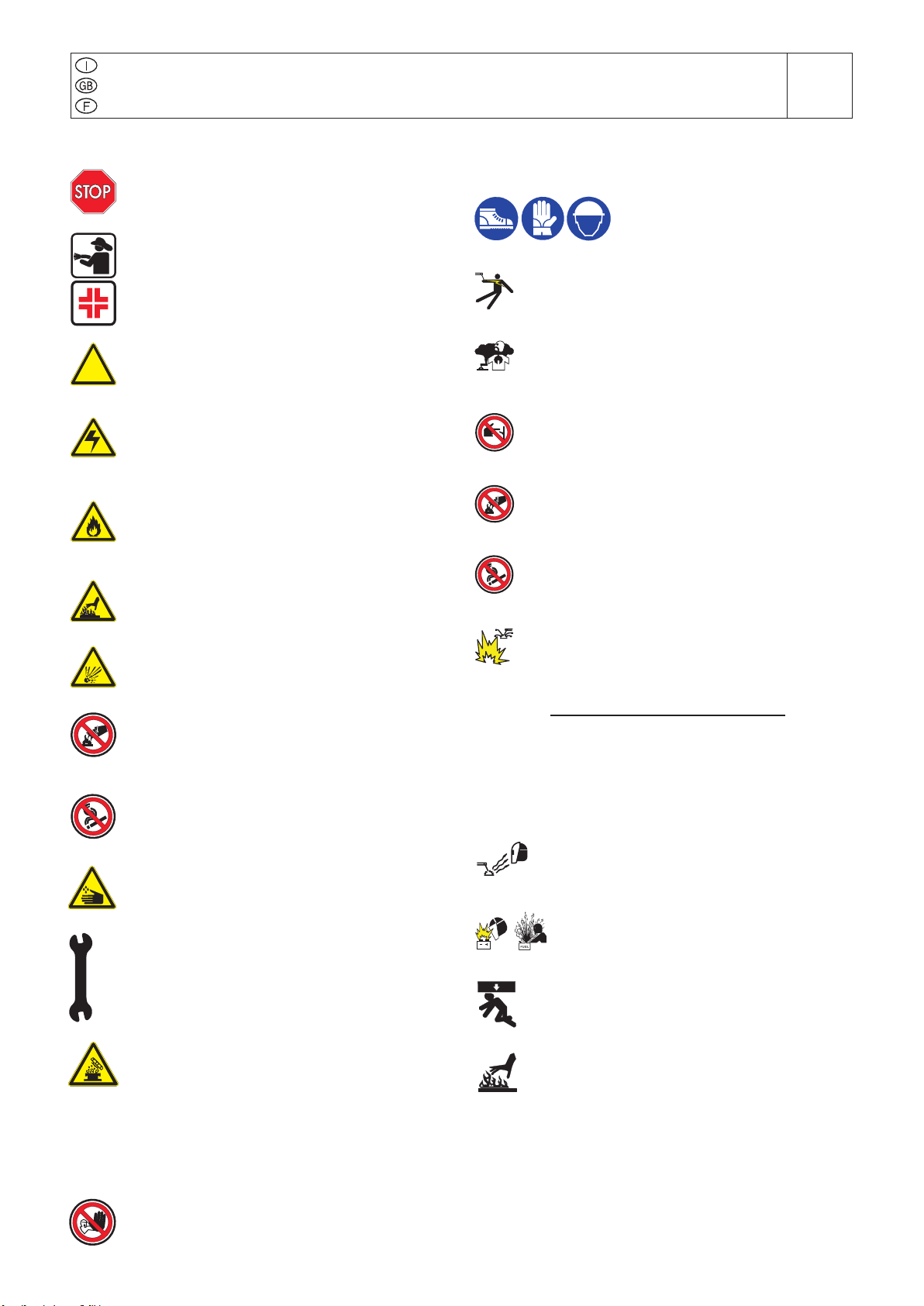

SYMBOLS
STOP - Read absolutely and be duly attentive
Read and pay due attention
GENERAL ADVICE - If the advice is not
respected damage can happen to persons or
things.
HIGH VOLTAGE - Attention High Voltage.
There can be parts in voltage, dangerous
to touch. The non observance of the advice
implies life danger.
FIRE - Danger of ame or re. If the advice is
not respected res can happen.
HEAT - Hot surfaces. If the advice is not
respected burns or damage to things can be
caused.
EXPLOSION - Explosive material or danger
of explosion. in general. If the advice is not
respected there can be explosions.
WATER - Danger of shortcircuit. If the advice
is not respected res or damage to persons
can be caused.
SMOKING - The cigarette can cause re or
explosion. If the advice is not respected res
or explosions can be caused.
ACIDS - Danger of corrosion. If the advice is
not respected the acids can cause corrosions
with damage to persons or things.
WRENCH - Use of the tools. If the advice is
not respected damage can be caused to things
and even to persons.
PRESSION - Danger of burns caused by the
expulsion of hot liquids under pressure.
PROHIBITIONS No harm for persons
Use only with safety clothing -
It is compulsory to use the personal
protection means given in equip-
ment.
Use only with safety clothing -
It is compulsory to use the personal protection
means given in equipment.
Use only with safety protections -
It is a must to use protection means suitable for
the different welding works.
Use with only safety material -
It is prohibited to use water to quench res on
the electric machines.
Use only with non inserted voltage -
It is prohibited to make interventions before
having disinserted the voltage.
No smoking -
It is prohibited to smoke while lling the tank
with fuel.
No welding -
It is forbidden to weld in rooms containing
explosive gases.
ADVICE No harm for persons and things
Use only with safety tools, adapted to the specic
use -
It is advisable to use tools adapted to the various
maintenance works.
Use only with safety protections, specically suitable
It is advisable to use protections suitable for the
different welding works.
Use only with safety protections -
It is advisable to use protections suitable for
the different daily checking works.
Use only with safety protections -
It is advisable to use all protections while
shifting the machine.
Use only with safety protections -
It is advisable to use protections suitable for
the different daily checking works.and/or of
maintenance.
!
26/11/99 M2-1GB
ACCES FORBIDDEN to non authorizad peaple.

INSTALLATION AND ADVICE BEFORE USE
M
2-5
REV.0-06/00
The installation and the general advice concerning the operations, are nalized to the correct use of the ma-
chine, in the place where it is used as generator group and/or welder.
!
+ FIRSTAID. In case the operator shold be sprayed by accident, from corrosive liquids a/o hot toxic gas
or whatever event which may cause serious injuries or death, predispose the rst aid in accordance
with the ruling labour accident standards or of local instructions.
+ FIREPREVENTION. In case the working zone,for whatsoever cause goes on re with ames liable to
cause severe wounds or death, follow the rst aid as described by the ruling norms or local ones.
10/06/00 M2-5I
ENGINE
Stop engine when fueling
CHECKINGBOARD
Do not touch electric devices
if you are barefoot or with wet
clothes.
Do not smoke, avoid ames, sparks or electric tools when fueling.
Unscrew the cap slowly to let out the fuel vapours. Always keep off leaning sur-
faces during work operations.
Slowly unscrew the cooling liquid tap if the liquid must be topped up.
The vapor and the heated cooling liquid under pressure can burn face, eyes, skin. Static electricity can demage
the parts on the circuit.
Do not ll tank completely.
Wipe up spilled fuel before starting engine. An electric shock can kill
Shut off fuel of tank when moving machine (where it is assembled).
Avoid spilling fuel on hot engine.
Sparks may cause the explosion of battery vapours
Skin contact Wash with water and soap
Eyes contact Irrigate with plenty of water, if the irritation persists contact a specialist
Ingestion Do not induce vomit as to avoid the intake of vomit into the lungs, send for a doctor
Suction of liquids from
lungs
If you suppose that vomit has entered the lungs (as in case of spontaneous vomit) take the subject to the
hospital with the utmost urgency
Inhalation In case of exposure to high concentration of vapours take immediately to a non polluted zone the person involved
EXTINCTIONMEANS
Appropriated Carbonate anhydride (or carbon dioxyde) powder, foam, nebulized water
Not to be used Avoid the use of water jets
Other indications Cover eventual shedding not on re with foam or sand, use water jets to cool off the surfaces close to the re
Particular protection Wear an autorespiratory mask when heavy smoke is present
Useful warnings Avoid, by appropriate means to have oil sprays over metallic hot surfaces or over electric contacts
(switches,plugs,etc.). In case of oil sprinkling from pressure circuits, keep in mind that the inamability
point is very low.
WARNING
THE MACHINE MUST NOT BE USED IN AREAS WITH EX-
PLOSIVE ATMOSPHERE
WARNING CAUTION
DANGEROUS
!
!
!
!

INSTALLATION AND ADVICE
M
2.6
REV.1-06/07

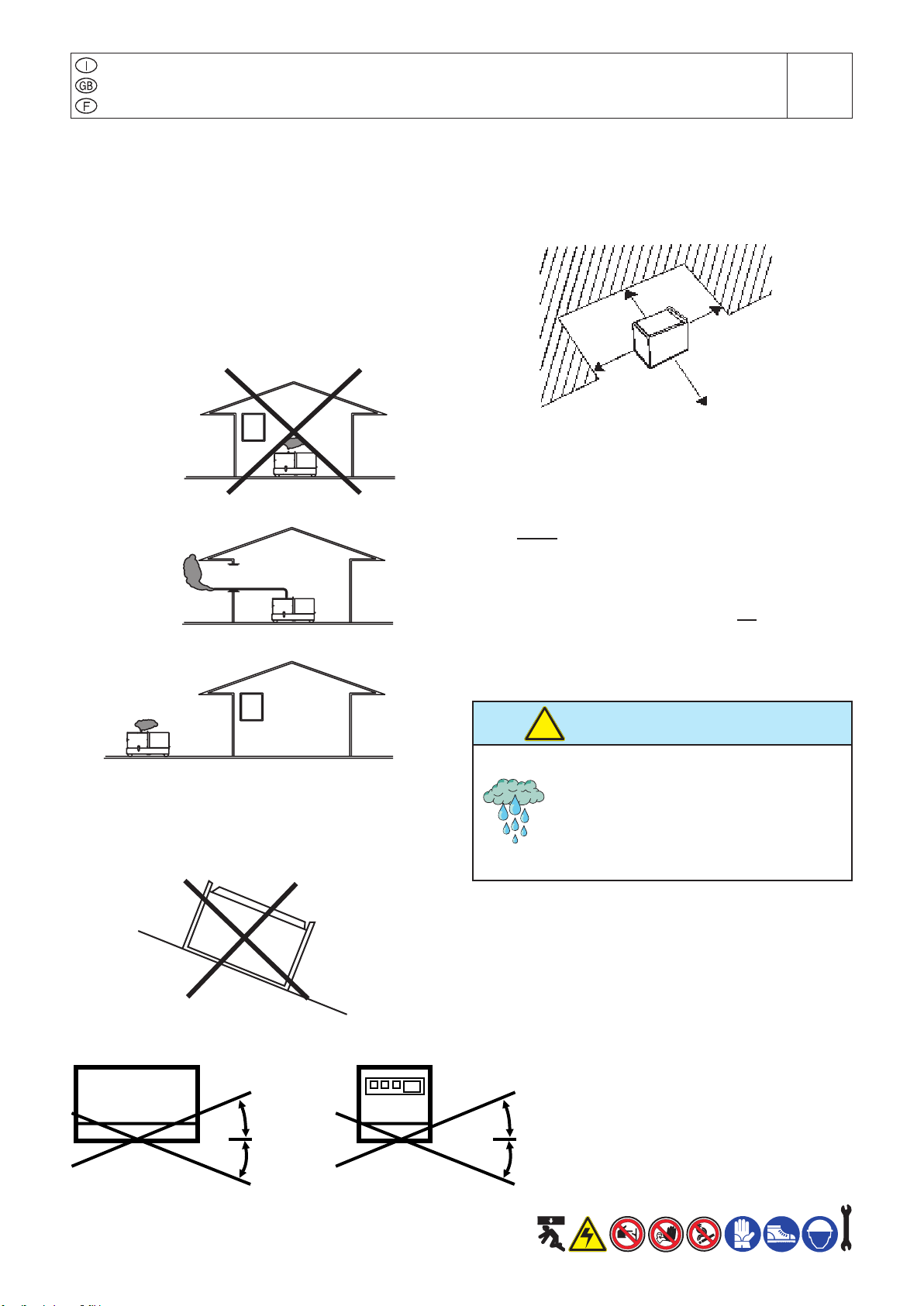

INSTALLATION AND ADVICE BEFORE USE
GASOLINE ENGINES
+Use in open space, air swept or vent exhaust gases,
which contain the deathly carbone oxyde, far from
the work area.
DIESEL ENGINES
+ Use in open space, air swept or vent exhaust gases
far from the work area.
POSITION
Place the machine on a level surface at a distance of at
least 1,5 m from buildings or other plants.
Check that the air gets changed completely and the hot
air sent out does not come back inside the set so as to
cause a dangerous increase of the temperature.
+ Make sure that the machine does not move during the
work: block it possibly with tools and/or devices made
to this purpose.
Maximum leaning of the machine (in case of dislevel)
10°
10° = 20° max
10°
10° = 20° max
26/11/99 M2-6GB
1,5 m
1,5 m
1,5 m
GAS DI SCARICO
EXHAUST OUTPUT
MOVES OF THE MACHINE
+ At any move check that the engine is off, that there are
no connections with cables which impede the moves.
PLACE OF THE MACHINE
ATTENTION
For a safer use from the operator DO NOT
t the machine in locations with high risk
of ood.
Please do not use the machine in weather
conditions which are beyond IP protection
shown both in the data plate and on page
named "technical data" in this same manual.
!

04/06/10 25930-I
Installazione e dimensioni
Installation and dimensions
Installation et dimensions
GE 11000 HBS/GS
GE 12000 HBS/GS
GE 12054 HBS
M
2.7
REV.0-06/10
I
GB
F
Luftzirkulation und abmessungen
Instalación y dimensiones
525
645
600
935
785
850
205
385
1320
700
M1.4
M1.4

NOTE

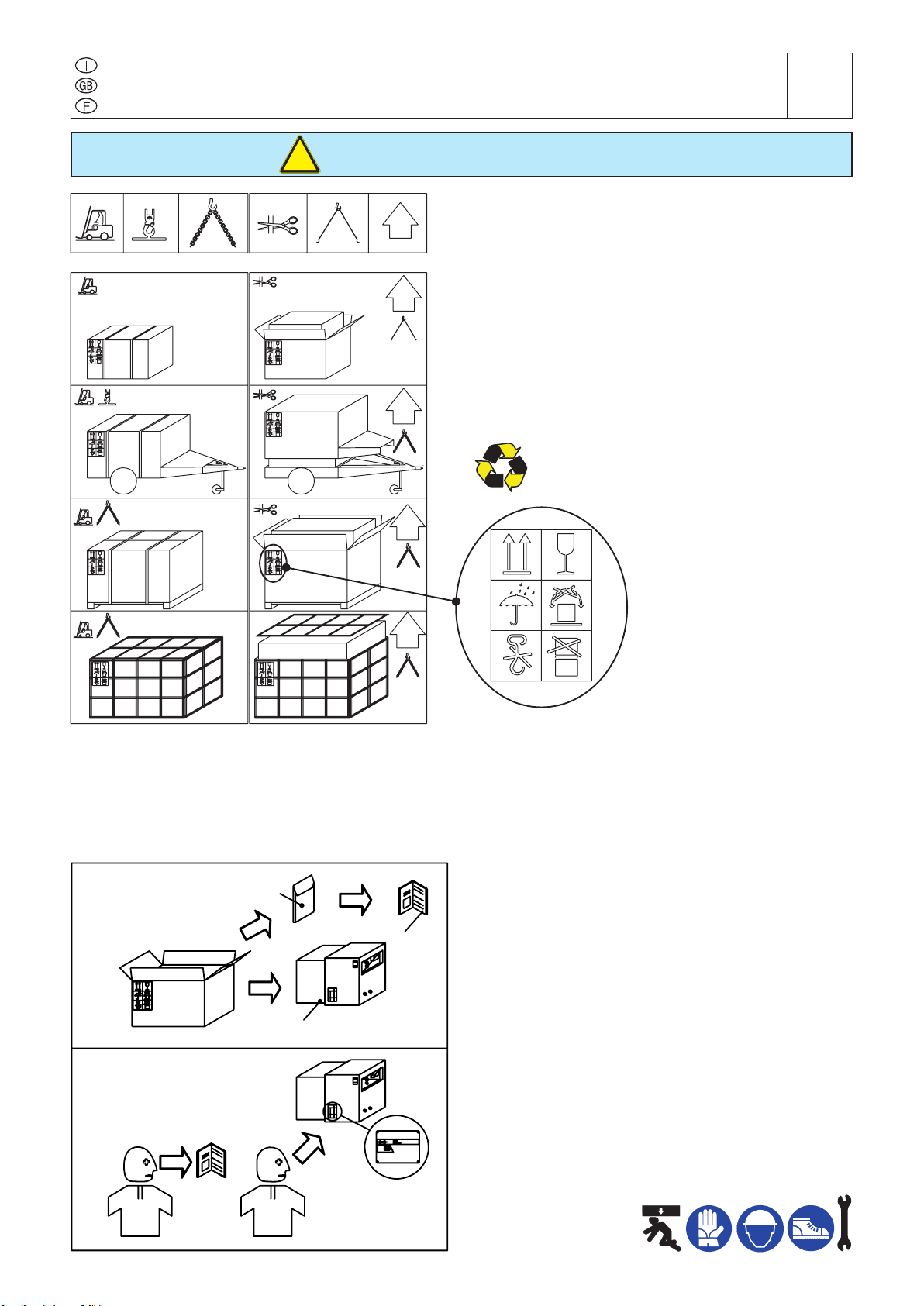

UNPACKING
M
3
REV.1-02/04
!
+ Be sure that the lifting devices are: correctly mounted,
adequate for the weight of the machine with it’s pack-
aging, and conforms to local rules and regulations.
When receiving the goods make sure that the product
has not suffered damage during the transport, that
there has not been rough handling or taking away of
parts contained inside the packing or in the set.
In case you nd damages, rough handling or absence
of parts (envelopes, manuals, etc.), we advise you to
inform immediately our Technical Service.
For eliminating the packing materials, the User
must keep to the norms in force in his country.
1) Take the machine (C) out of the shipment packing.
Take out of the envelope (A) the user’s manual (B).
2) Read: the user’s manual (B), the plates xed on the
machine, the data plate.
30/03/00 M3GB
2
B
A
1
C

TRANSPORT AND DISPLACEMENTS COVERED UNITS
M
4-1
REV.2-09/11
NOTE
!
Transportation must always take place with the engine off, electrical cables and starting battery disconnected and
fuel tank empty.
Be sure that the lifting devices are: correctly mounted, adequate for the weight of the machine with it’s packaging,
and conform to local rules and regulations.
Only authorized persons involved in the transport of the machine should be in the area of movement.
DO NOT LOAD OTHER PARTS WHICH CAN MODIFY WEIGHT AND BARICENTER POSITION.
IT IS STRICTLY FORBIDDEN TO DRAG THE MACHINE MANUALLY OR TOW IT BY ANY VEHICLE (model with
no CTM accessory).
If you did not keep to the instructions, you could damage the structure of the machine.
15/01/01 M4GB
Weight max. per person: 35 kg
Total max. weight; 140 kg

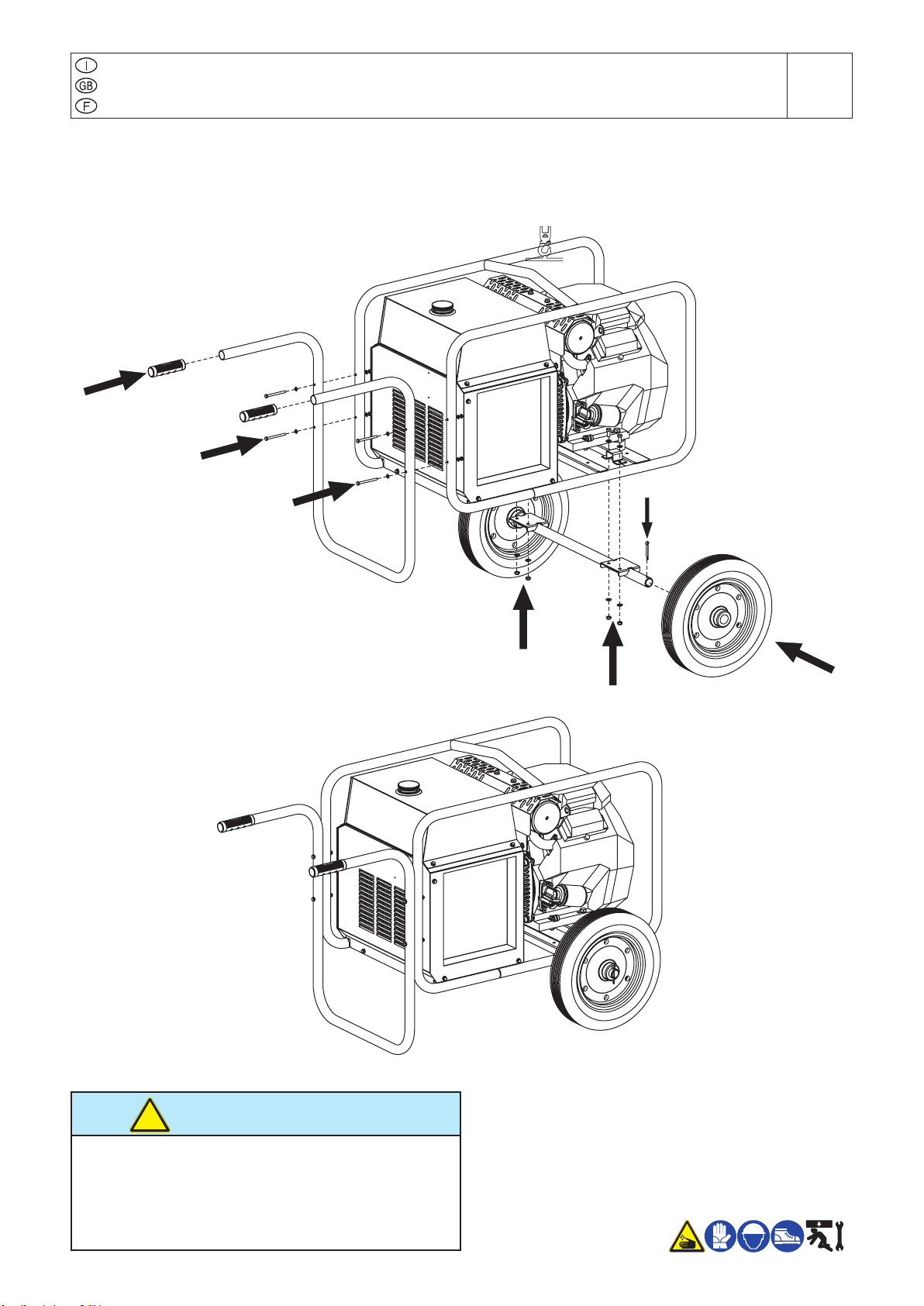

ASSEMBLY CTM 10
Note: Lift the machine and assemble the parts as shown in the drawing
M
6.6
REV.1-06/10
10/06/00 M6GB
ATTENTION
The CTM accessory cannot be removed from the
machine and used separately (actioned manually
or following vehicles) for the transport of loads or
anyway for used different from the machine mo-
vements.
!

31/01/13 M25GB_IP54
SETTING-UP THE UNIT (GASOLINE ENGINES)
GE 7554 HBS
GE 7554 HBS-L
GE 12054 HBS
M
25
REV.0-01/13
I
GB
F
LIVELLO
OPERATIVO
ASTINA LIVELLO
OLIO
MAX
MIN
LUBRICANT
Check the level of the engine oil using the
(appropriate oil dipstick: the level should
be between the minimum and maximum
marks.
lf necessary, add more oil through the appropriate
inlet
OIL RECOMMENDED
The manufacturer advises to choose AGIP for the
type of oil.
Please keep to the label put on the engine for the
recommended products.
+ NOTE: before starting and switching off, see
instructions in the engine owner’s manual he-
rewith attached.
FUEL
Check the level of fuel in the tank and, if necessary,
add unleaded gasoline.
For further information regarding the fuel which has
to be used, see instructions in the engine owner’s
manual herewith attached.
If during the lling of the tank some gasoline is ac-
cidentally spilled around the engine chassis, clean
it immediately before starting up the engine.
BATTERY WITHOUT MAINTENANCE
Connect the cable + (positive)
to the pole + (positive) of the
battery (after having taken away
the protection), by properly
tightening the clamp.
Check the state of the battery
from the colour of the warning light which is in the
upper part.
- Green colour: battery OK
- Black colour: battery to be recharged
- White colour: battery to be replaced
DO NOT OPEN THE BATTERY.
ENGINE WITH OIL ALERT DEVICE
The OIL ALERT device will stop the engine in case
of no oil or insufcient amount of oil in the engine.
In case one tries to start the engine with
oil below the minimum level, the warning
light (when assembled) will light and the
device will not allow starting.
CLEANING OF DRY AIR FILTER
Check that the dry air lter is correctly installed and
that there are no leaks around the lter which could
lead to inltrations of non-ltered air to the inside of
the motor.
GROUNDING
+Machines equipped with insulation resistance
monitor allow intentionally not to connect the
ground terminal PE (12) to an earthing system.
Located on the front of the machine the insu-
lation resistance monitor has the function of
continuously monitoring the ground insulation
of live parts.
If the insulation resistance falls below the pre-set
fault value, the insulation resistance monitor will
interrupt the supply of the connected equipment.
It is important that the power cords of the devices
are provided with the green-yellow circuit pro-
tective conductor, so as to ensure the bonding
among all the grounds of the equipment and the
ground of the machine; the latter provision does
not apply to equipment with double insulation or
reinforced insulation.
NOTE: it is possible to connect the PE terminal (12)
to an own ground connection. In this case an IT ear-
thing system is accomplished, this means with the
active parts isolated from earth and the equipment
cases grounded.
In this case, the insulation resistance monitor checks
the insulation resistance of the active parts both to-
wards case and ground, for example, the insulation
towards ground of the power cables.
