Mosa GE 4000 MI User manual

MADE IN ITALY
CK9000119003
09.2020
INVERTER
GE 4000 MI
Codice
Code
Code
Codigo
Kodezahl
Código
Код
Code
Edizione
Edition
Édition
Edición
Ausgabe
Edição
Издание
Editie
• Gruppo Elettrogeno
• Generating Set
• Groupe Electrogene
• Grupos Electrógenos
• Stromerzeuger
• Grupo Gerador
• Генераторная Установка
• Stroomaggregaten
• Skupina generátoru
USE AND MAINTENANCE MANUAL
TRANSLATION OF THE ORIGINAL INSTRUCTIONS – ENGLISH
language

Thank you for choosing a silent inverter gasoline engine generator set of our company.
This manual contains the information on how to do that. Please read it carefully before operating.
Operating safely and correctly can help you get the best results.
All information in this publication is based on the latest product information available at the time
of printing. The contents in this manual may be different from the actual parts due to revision and
other changes.
Our company reserves the right to make changes at any time without notice and without incur-
ring any obligation. No part of this publication may be reproduced without our company’s written
permission.
This manual should be considered a permanent part of the generator and should accompany the
generator if it is resold.
19/12/19 Manuale GE 4000 MI INVERTER_EN
1

SAFETY WARNINGS
Personal safety and property safety of you and others are very important. . Please read
these messages which is preceded by a symbol or carefully.
NOTICE
DANGER
You WILL be KILLED or SERIOUSLY HURT if you don’t follow instructions.
You CAN be KILLED or SERIOUSLY HURT if you don’t follow instructions.
You CAN be HURT if you don’t follow instructions.
Your generator or other property could be damaged if you don’t follow instructions.
WARNING
CAUTION
NOTICE
19/12/19 Manuale GE 4000 MI INVERTER_EN
2

CONTENTS
SAFETY WARNINGS................................................................... 2
1. SAFETY INFORMATION....................................................... 4
2. DESCRIPTION. ..................................................................... 8
3. CONTROL FUNCTION......................................................... 10
4. PREPARATION. ................................................................... 13
5. OPERATION....................................…. ................................ 15
6. MAINTENANCE. .................................................................. 21
7. STORAGE. ........................................................................... 27
8. TROUBLESHOOTING. ........................................................ 29
9. SPECIFICATIONS................................................................ 30
10. WIRING DIAGRAM. ............................................................. 31
19/12/19 Manuale GE 4000 MI INVERTER_EN
3

Never use it indoors Never use it in a wet condition
1. SAFETY INFORMATION
Read and understand this owner’s manual before operating your generator.
It will help you avoid accidents if you get familiar with your generators safe
operation procedures.
Never directly connect it to a home power system
19/12/19 Manuale GE 4000 MI INVERTER_EN
4

Keep at least 1 meter away from
ammable substances Never smoke when refueling
Don’t spill when fueling Stop the engine before refueling
19/12/19 Manuale GE 4000 MI INVERTER_EN
5

Connections to a Home Power Supply
If the generator is to be connected to a home power supply as a standby, connection
shall be performed by a professional electrician or by another person with procient
electrical skill.
When the loads are connected to the generator, please carefully check whether
electrical connections are safe and reliable. Any improper connection may cause
damage to the generator, or cause a re.
NOTICE
19/12/19 Manuale GE 4000 MI INVERTER_EN
6

System ground
The generator has a system ground that connects the generator frame components
to the ground terminals on the AC output receptacles. The generator neutral is
oating, which means that the AC stator winding is isolated from the grounding
fastener and the AC receptacle ground pins. Electrical devices, such as RCD,
requiring a grounded neutral may not operate properly from this generator.
NOTICE
Make sure the control panel, louver and the inverter bottom side cooling well and
without chips, mud and water come in. it may damage the engine, inverter or
alternator if the cooling vent blocked.
Do not mix the generator with other stuff If moving, storing or running the unit.
It may cause the generator damage or bring property safety issue when the
generator in leakage.
19/12/19 Manuale GE 4000 MI INVERTER_EN
7

① Carrying handle
② Spark plug maintenance cover
③ Fuel tank cap
④ Control panel
⑤ Recoil starter
⑥ Oil ller cap
⑦ Mufer
2. DESCRIPTION
2
1
4
3
1
5
6
7
19/12/19 Manuale GE 4000 MI INVERTER_EN
8

2.1 Electrical components
The following components can be selected
Components Description
13 in 1 switch knob (including start/stop
switch, fuel valve and choke)
2AC receptacle
3DC receptacle
4Indicator light
5Protector
6ESC (Engine Smart Control)
7Ground (earth) terminal
8Start electric push button
19/12/19 Manuale GE 4000 MI INVERTER_EN
9

OFF
ON
CHOKE
3. CONTROL FUNCTION
3.1 3 in 1 switch knob
①Engine switch \fuel valve “OFF”;
Ignition circuit is switched off. Fuel is switched off.
The engine will not run.
② Engine switch \fuel valve \ chock “ON”;
Ignition circuit is switched on. Fuel is switched on. Chock is switched on.
The engine can be running.
③ Engine switch \fuel valve \ chock “CHOKE” ;
Ignition circuit is swwitched on. Fuel is switched on. Chock is switched off. The
engine can be start.
TIP: The chock “ ” is not required to start a warm engine.
OVERLOAD
OUTPUT
3.2 Oil warning light (red)
When the oil level falls below the lower level, the oil warning light comes on and
then the engine stops automatically. Unless you rell with oil, the engine will not
start again.
Tip: If the engine stalls or does not start,
turn the engine switch to “ON” and then pull the recoil
starter.
If the oil warning light ickers for a few
seconds, the engine oil is insufcient. Add oil and re-
start.
19/12/19 Manuale GE 4000 MI INVERTER_EN
10

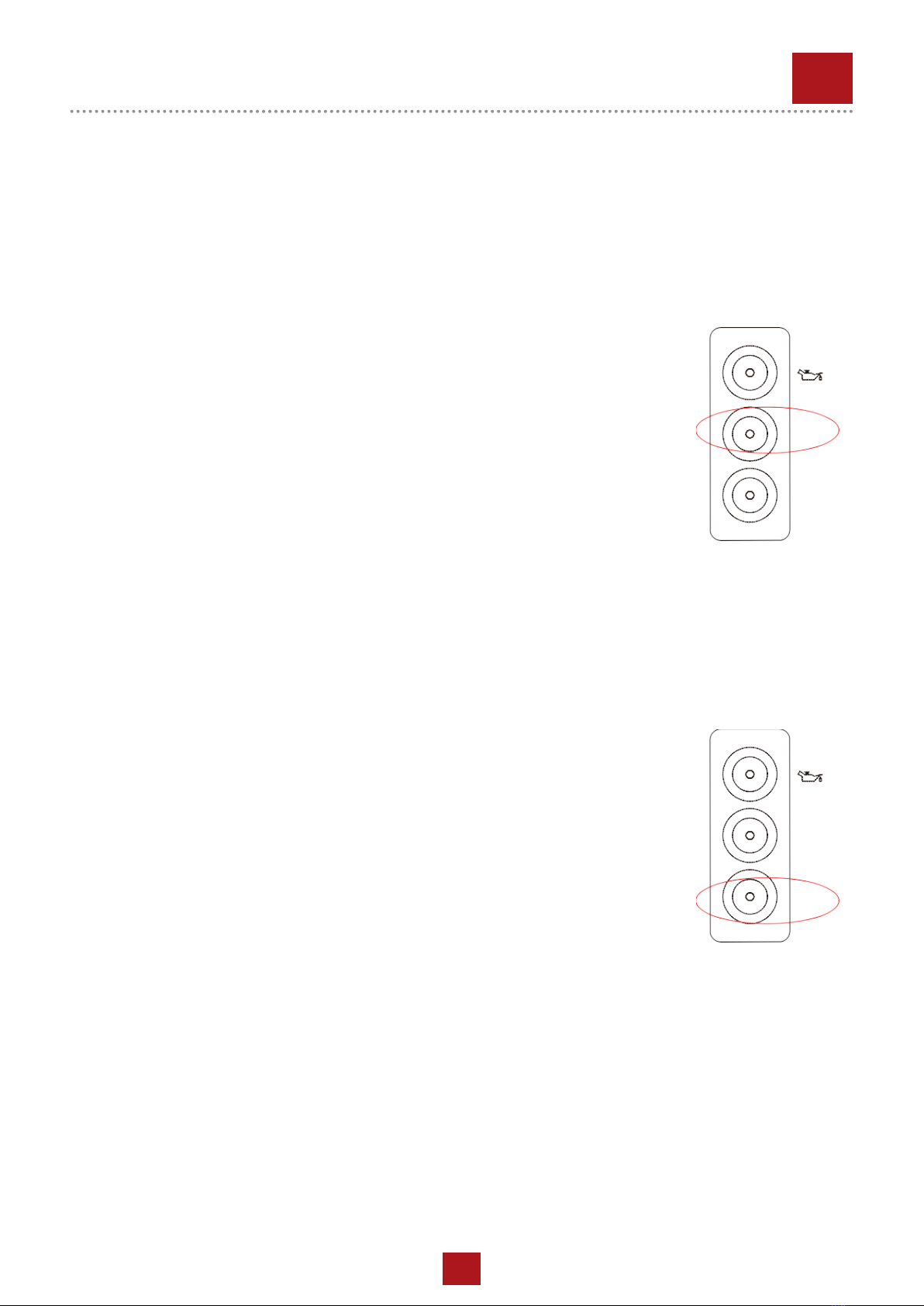

3.3 Overload indicator light (Red)
The overload indicator light comes on when an overload of a connected electrical
device is detected, the inverter control unit overheats, or the AC output voltage ri-
ses. Then, the AC protector will trip, stopping power generation in order to protect
the generator and any connected electric devices. The AC pilot light (Green) will go
off and the overload indicator light (Red) will stay on, but the engine will not stop
running.
When the overload indicator light comes on and power genera-
tion stops, proceed as follows:
1. Turn off any connected electric devices and stop the engine.
2. Reduce the total wattage of connected electric devices within
the rated output.
3. Check for blockages in the cooling air inlet and around the
control unit. If any blockages are found, remove.
4. After checking, restart the engine.
Tip: The overload indicator light may come on for a few seconds at rst when
using electric devices that require a large starting current, such as a compressor
or a submergible pump. However, this is not a malfunction.
OVERLOAD
OUTPUT
OVERLOAD
OUTPUT
3.4 AC pilot light (Green)
The AC pilot light comes on when the engine starts and
produces power.
19/12/19 Manuale GE 4000 MI INVERTER_EN
11

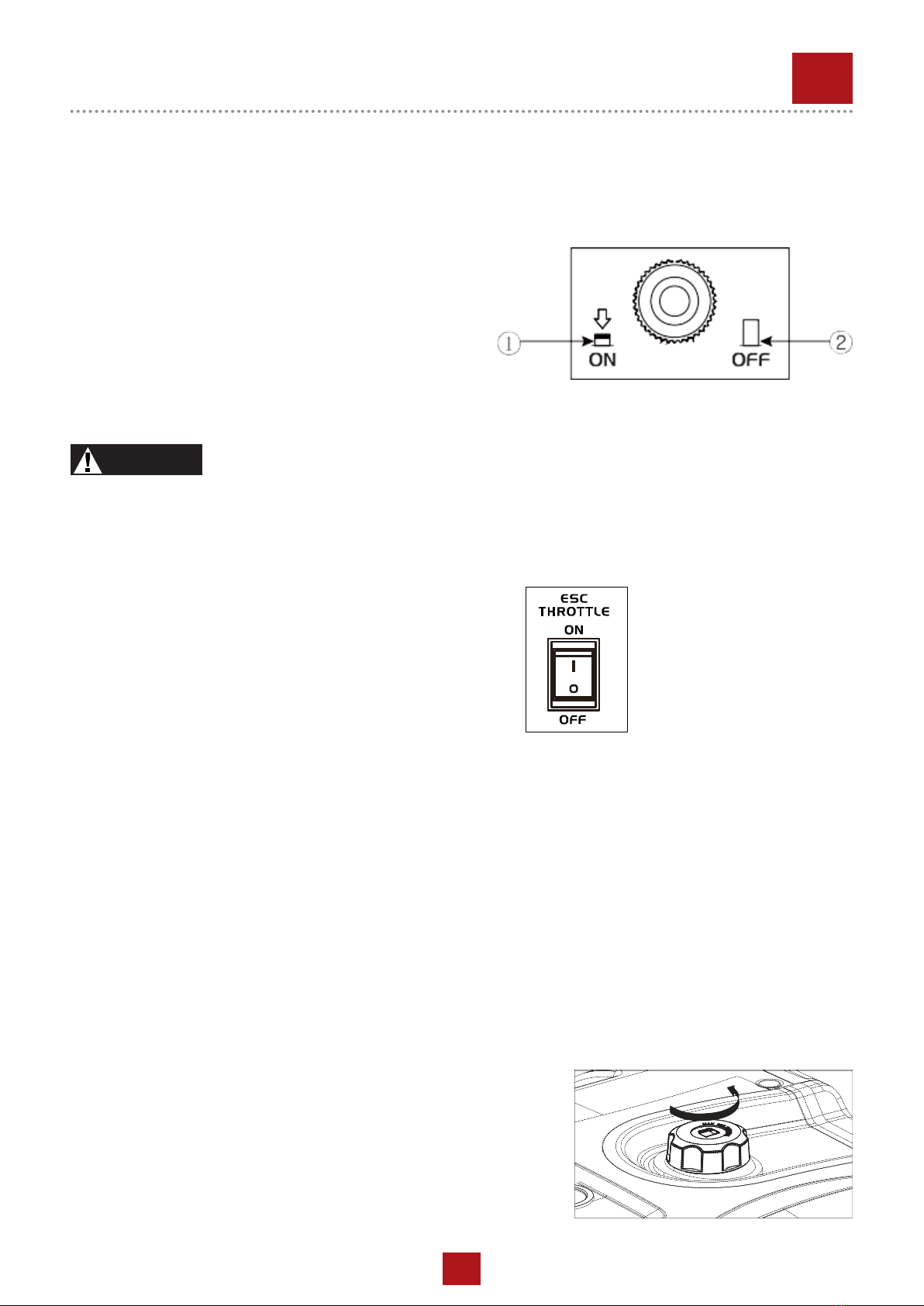

3.5 DC protector
The DC protector turns to “OFF” ②automatically when electric device being con-
nected to the generator is operating and current above the rated ows. To use this
equipment again, turn on DC protector by pressing its button to “ON” ①
① ON”
Direct current is output.
② “OFF”
Direct current is not output.
Reduce the load of the connected electric device below the specied rated output
of the generator if the DC protector turns off. If the DC protector turns off again,
stop using the device immediately and consult our company authorized dealer.
CAUTION
3.6 Engine smart control (ESC)
① “ON”
When the ESC switch is turned to “ON”, the economy control unit controls the
engine speed according to the connected load. The results are better fuel con-
sumption and less noise.
② “OFF”
When the ESC switch is turned to “OFF”, the engine runs at the rated
r/min (3600r/min) regard-less of whether is a load connected or not.
Tip:
The ESC must be turned to “OFF” when using electric devices that require a large
starting current, such as a compressor of a submergible pump.
3.7 Fuel tank cap
Remove the fuel tank cap by turning it counter-
clockwise.
19/12/19 Manuale GE 4000 MI INVERTER_EN
12

4. PREPARATION
4.1 Fuel
• Fuel is highly ammable and poisonous. Check “SAFETY INFORMATION” ca-
refully before lling.
• Do not overll the fuel tank, otherwise it may overow when the fuel warms up
and expands.
• After ll the fuel, make sure the fuel tank cap
is tightened securely.
DANGER
NOTICE
• lmmediately wipe off spilled fuel with a clean, dry, soft cloth, since fuel may de-
teriorate painted surfaces or plastic parts.
• Use only unleaded gasoline. The use of leaded gasoline will cause severe da-
mage to internal engine parts.
Remove the fuel tank cap and ll the fuel into the tank up to the red level.
Recommended fuel: Unleaded gasoline
Fuel tank capacity: Total: 12 l
4.2 Engine oil
The generator has been shipped without engine oil. Do not start the engine till ll
with the sufcient engine oil.
1 Place the generator on a level surface.
2 Remove the cover.
3 Remove the oil ller cap.
NOTICE
Cover
19/12/19 Manuale GE 4000 MI INVERTER_EN
13

4 Fill the specied amount of the recommended engine oil, and then install and
tighten the oil ller cap.
5 Install the cover and tighten the screws.
Recommended engine oil: SAE SJ 10W-40
Recommended engine oil grade: API Service SJ type or higher
Engine oil quantity: 0.55 L
4.3 PRE-OPERATION CHECK
If any item in the Pre-operation check is not working properly, have it inspected and
repaired before operating the generator.
The condition of a generator is the owner’s responsibility. Vital components can
start to deteriorate quickly and unexpectedly, even if the generator unused.
TIP: Pre-operation checks should be made each time the generator is used.
Pre-operation check
Fuel
• Check fuel level in fuel tank.
• Refuel if necessary.
Engine oil
• Check oil level in engine.
• If necessary, add recommended oil to specied level.
• Check generator for oil leakage.
WARNING
19/12/19 Manuale GE 4000 MI INVERTER_EN
14

5. OPERATION
• Never operate the engine in a closed area or it may cause unconsciousness and
death within a short time. Operate the engine in a well ventilated area.
• Belare starting the engine, do not connect any electric devices
• The generator has been shipped without engine oil. Do not start the engine till ll
with the sullicient engine oil.
• Do not tilt the generator when adding engine oil. This could result in overlling
and damage to the engine.
TIP: The generator can be used with the rated output load at standard atmospheric
conditions.
“Standard atmospheric conditions”
Ambient temperature 25°C
Barometric pressure 100kPa
Relative humidity 30%
The output or the generator varies due to change temperature, altitude (lower air
pressure at higher altitude) and humidity.
The output of the generator is reduced when the temperature, the humidity and the
altitude are higher than standard atmospheric conditions.
Additionally, the load must be reduced when using in a conned areas. as generator
cooling is affected.
5.1 Starting the engine
1. Turn the ESC switch to “OFF”.
WARNING
NOTICE
19/12/19 Manuale GE 4000 MI INVERTER_EN
15

2. Turn the 3 in 1 switch to “CHOKE”.
a. Ignition circuit is switched on.
b. Fuel is switched on.
c. chock is switched off.
TIP: The choke is not required to start a
warm engine. Push the choke knob in to the
position “ON”.
3. Pull slowly on the recoil starter until it is
engaged, then pull it briskly.
TIP: Grasp the carrying handle rmly to prevent
the generator from falling over when pulling the
recoil starter.
4. Electric stater
Press the start button and wait a moment for the engine start.
5. After the engine starts, warm up the engine until the
engine does not stop when the choke knob is
returned to the “ON” position.
TIP: When starting the engine, with the ESC “ON”, and there is no load on the
generator:
• In ambient temperature below 0°C (32°F), the engine will run at the rated r/min
(3600r/min) for 5 minutes to warm up the engine.
• In ambient temperature below 5°C (41°F), the engine will run at the rated r/min
3600r/min) for 3 minutes to warm up the engine.
• The ESC unit operates normally after the above time period, while the ESC is
“ON”.
5.2 Stopping the engine
TIP: Turn off any electric devices.
1. Turn the ESC to “OFF”.
Recoil starter.
OFF
ON
CHOKE
OFF
ON
CHOKE
19/12/19 Manuale GE 4000 MI INVERTER_EN
16

2. Disconnect any electric devices.
3. Turn the 3 in 1 switch to “OFF”.
a. Ignition circuit is switched off.
b. Fuel is switched off.
5.3 Alternating Current (AC) connection
Be sure any electric devices are turned off before plugging them in.
• Be sure all electric devices including the lines and plug connections are
in good condition before connection to the generator.
• Be sure the total load is within generator rated output.
• Be sure the receptacle load current is within receptacle rated current.
1. Start the engine.
2. Turn the ESC to “ON”.
3. Plug in to AC receptacle.
4. Make sure the AC pilot light is on.
5. Turn on any electric devices.
TIP: the ESC must be turned to “OFF” to increase engine speed to rated rpm.
If the generator is connected to multiple loads or electricity consumers, please
remember to rst connect the one with the highest starting current. and last connect
the one with the lowest starting current.
WARNING
19/12/19 Manuale GE 4000 MI INVERTER_EN
17

5.4 Battery Charging
TIP:
• The generator DC rated voltage is 12V.
• Start the engine rst, and then connect the generator to the battery for charging.
• Before starting to charge the battery, make sure that the DC protector is turned
on.
1. Start the engine.
2. Conncet the red battery charger lead to the positive (+) battery terminal.
3. Connect the black battery charger lead to the negative (-) battery terminal.
4. Turn the ESC “off” to start battery charging.
• Be sure the ESC is turned off while charging the battery.
• Be sure to connect the red battery charger lead to the positive (+) battery ter-
minal, and connect the black lead to the negative (-) battery terminal. Do not
reverse these positions.
• Conncet the battery charger leads to the battery terminals securely so that they
are not disconnected due to engine vibration or other disturbances.
• Charge the battery in the correct procedure by following instructions in the ow-
ner’s manual for the battery.
• The DC protector turns off automatically if current above the rated ows during
battery charging. To restart charging the ballery, tum the DC protector on by
pressing its button to “ON”. If the DC protector turns off again, top charging the
battery immediately and consult our company authorized dealer.
TIP:
• Follow instructions in the owner’s manual for the battery lo determine the end or
battery charging.
• Measure the specic gravity of electrolyte to determine if the battery is fully char-
ged. At full charge, the electrolyte specic gravity is between 1.26 and 1.28.
19/12/19 Manuale GE 4000 MI INVERTER_EN
18
