The digital system comprises of a Transmitter and a Receiver, whose output RF
frequency is in the Band 1.9GHz to 2.9GHz. The RF band is approximately 300MHz.
Transmitter is comprised of a MPEG2 Video Encoder which will take composite
Video and digitize this and compressed, the output transport stream [DVB-TS] is then
converted to DVB-ASI, which is then Modulated with COFDM (or any other digital
modulators). The COFDM modulator is compliant to DVB-T non-hierarchical modes.
This modulated signal is then converted to the appropriate with an IF of 480MHz thus
providing the means to tune over a band at the RF signal.
Receiver will down convert from the RF signal to an IF of 480MHz. This IF is then
demodulated providing a DVB-TS. This data stream is then MPEG2 Video Decoded
and provided as analogue Video output, together with the Audio channels.

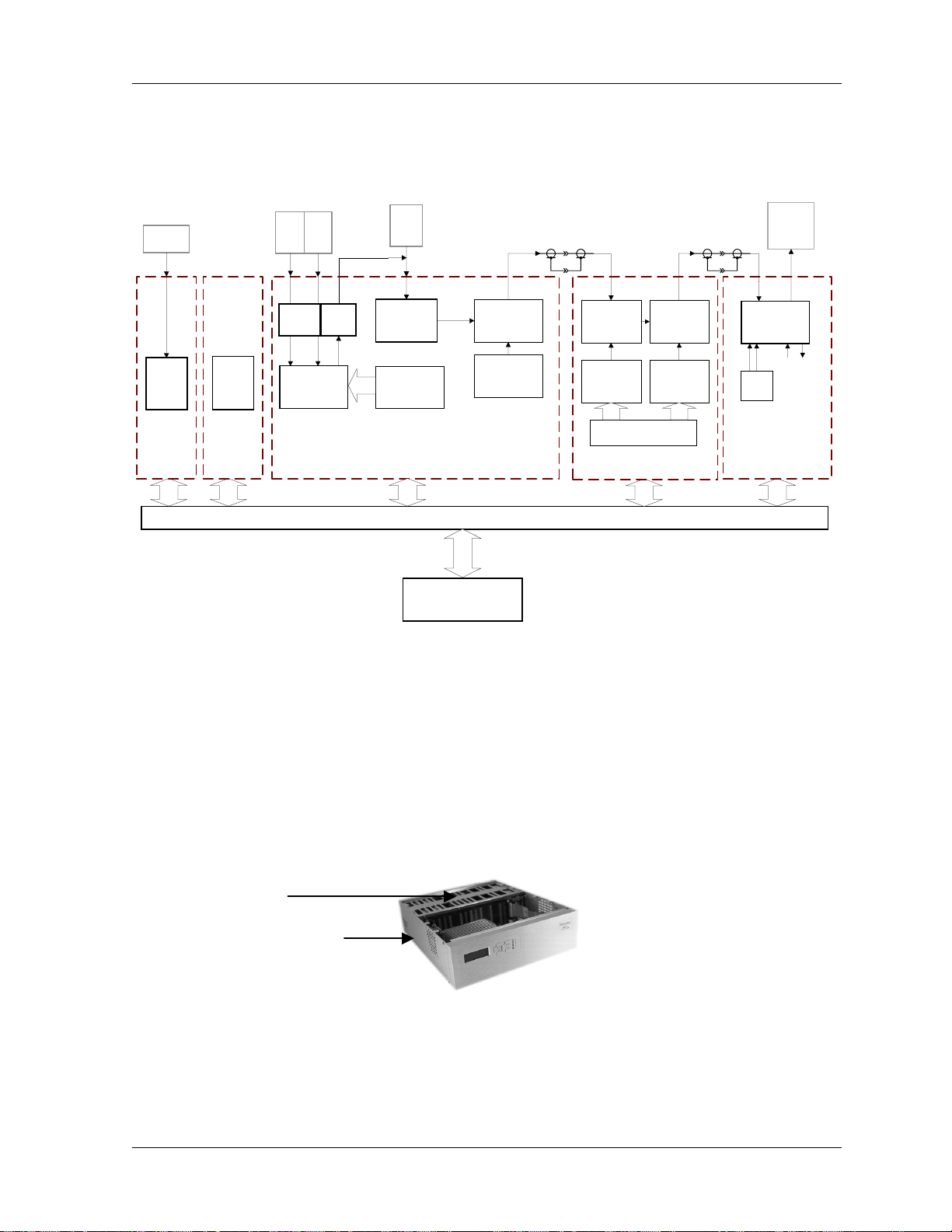

Figure 1: Expedio Modular Open Architecture

System Description 1-2
602-13729-01 Rev B Expedio Digital Electronic News Gathering Radio
1.2 System Features
1.2.1 Transmit Chain
The Block diagram below shows the various functional units that make up the
transmitter.
MPEG 2
ENCODER
COFDM
MODULATOR
DVB-T
Double up
Convertor Power Amplifier
Video
2 Audio
Channels
RF ouput
to Antenna
Figure 2: Transmit Chain
1.2.2 Receive Chain
The Block diagram below shows the various functional units that make up the
Receiver.
MPEG 2
DECODER
COFDM
DEMODULATOR
DVB-T UHF Downcnvertor LNA ad
First Downconverto
Video
2 Audio
Channels
Recever
Figure 3: Receive Chain

1-3 System Description
602-13729-01 Rev B Expedio Digital Electronic News Gathering Radio
1.2.3 Video Encoder
Video input is Composite video at 75ohms BNC, with a monitor port available.
There are 2 Audio channels whose input are through the XLR connections.
The data is encoded using advanced MPEG-2 encoding technology. The
compressed data is formatted and transmitted using the DVB-ASI standard. The unit
compresses the incoming video using an adaptive field/frame MPEG-2 Main Profile
@ Main Level algorithm, achieving variable bit rate of 512 Kbps-12 Mbps.
c] The Data Output that is DVB-SPI shall be converted to DVB-ASI with the data to
be 188 byte only, the COFDM modulator will insert the Reed Solomon Encoding
frames.
Standard Compliance
Video Encoding ISO/IEC 13818-2 (MPEG-2), 4:2:0 MP@ML,
and MP@LL
System Multiplexing ISO/IEC 13818-1 (MPEG-2).
Generated Stream Types
Video ES Video Elementary Stream.
Audio ES Packetized Audio Elementary Stream.
Video PES Packetized Video Elementary Stream.
Program Program Stream.
Transport Transport Stream.
Video Encoder
Video Input Format Analog: Composite NTSC (30 fps),
Composite PAL(25 fps)
Video Input Bit Resolution 9 bits.
Preprocessor Programmable 2D (7x6) filter. Temporal and Spatial noise
reduction.
Bit Rates CBR and VBR, 512 Kbps to 12 Mbps.
Bit Rate Resolution 1000 Hz
Variable Frame Rate Programmable frame rate decimation (1 fps through 30/25
fps) support for low bit rate applications.
Programmable Picture Resolution Horizontal: 720, 640, 544, 480, 360, 320, 160
Vertical: 112, 240, 480 (NTSC)
144, 288, 576 (PAL)
Motion Estimation Horizontal: +/-100 H, Vertical: +/-34V.
Same search area in P and B pictures, in both forward and
backward searches.
Half PEL accuracy.
Aspect Ratio Square, 4:3, 16:9
Picture type I, P, B frame processing.
GOP Structure I(M=0), IP(M=1), IPB(M=2), IPBB(M=3)

System Description 1-4
602-13729-01 Rev B Expedio Digital Electronic News Gathering Radio
Audio Input
Audio Input Format Two mono or single analog stereo inputs - Balanced
Output Interfaces
Digital Interface DVB-ASI
1.3 Typical Configurations
1.3.1 Transport Rate
Table 1-1 provides basic data channel capabilities for the Expedio. See (Installation Section) for
more detailed information.
Table 1-1. Expedio Data Channel Configurations
A8 MHz DVB-T COFDM Payload Data Rate
Modulation Code Bit Rate (Mbit/s @ each Guard Interval
Type Rate 1/32 1/16 1/8 1/4
A1/2 6.032086 5.854671 5.529412 4.976471
QPSK 2/3 8.042781 7.806228 7.372549 6.635294
2 3/4 9.048128 8.782007 8.294118 7.464706
Bits/Sym 5/6 10.053476 9.757785 9.215686 8.294118
A7/8 10.556150 10.245675 9.676471 8.708824
A1/2 12.064171 11.709343 11.058824 9.952941
16-QAM 2/3 16.085561 15.612457 14.745098 13.270588
4 3/4 18.096257 17.564014 16.588235 14.929412
Bits/Sym 5/6 20.106952 19.515571 18.431373 16.588235
A7/8 21.112299 20.491349 19.352941 17.417647

1-5 System Description
602-13729-01 Rev B Expedio Digital Electronic News Gathering Radio
1.3.2 Standalone Operation
The Expedio may be used as a standalone simplex radio with a internal in the MPEG2 Encoder /
Decoder system or utilize external MPEG2 units and feed DVB-ASI with 188byte format on the
Input and have DVB-ASI out coming out on the Receiver.
1.4 Regulatory Notices
FCC Part 15 Notice
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference, in which case the user will be required to correct the interference at his expense.
Any external data or audio connection to this equipment must use shielded cables.
EC Declaration of Conformity
1.5 System Description
1.5.1 Introduction
The product is a simplex digital radio. The following sections describe the TX system, RX
system, followed by sub-system components. Please reference the accompanying block
diagrams for clarification.
We will follow the typical end-to-end progression of a radio system starting with the TX baseband
inputs, to the COFDM modulator, followed by the upconversion process and the power amplifier.
We then proceed to the RX preamplifier input, the down conversion process, followed by the
COFDM demodulator and baseband outputs.

System Description 1-6
602-13729-01 Rev B Expedio Digital Electronic News Gathering Radio

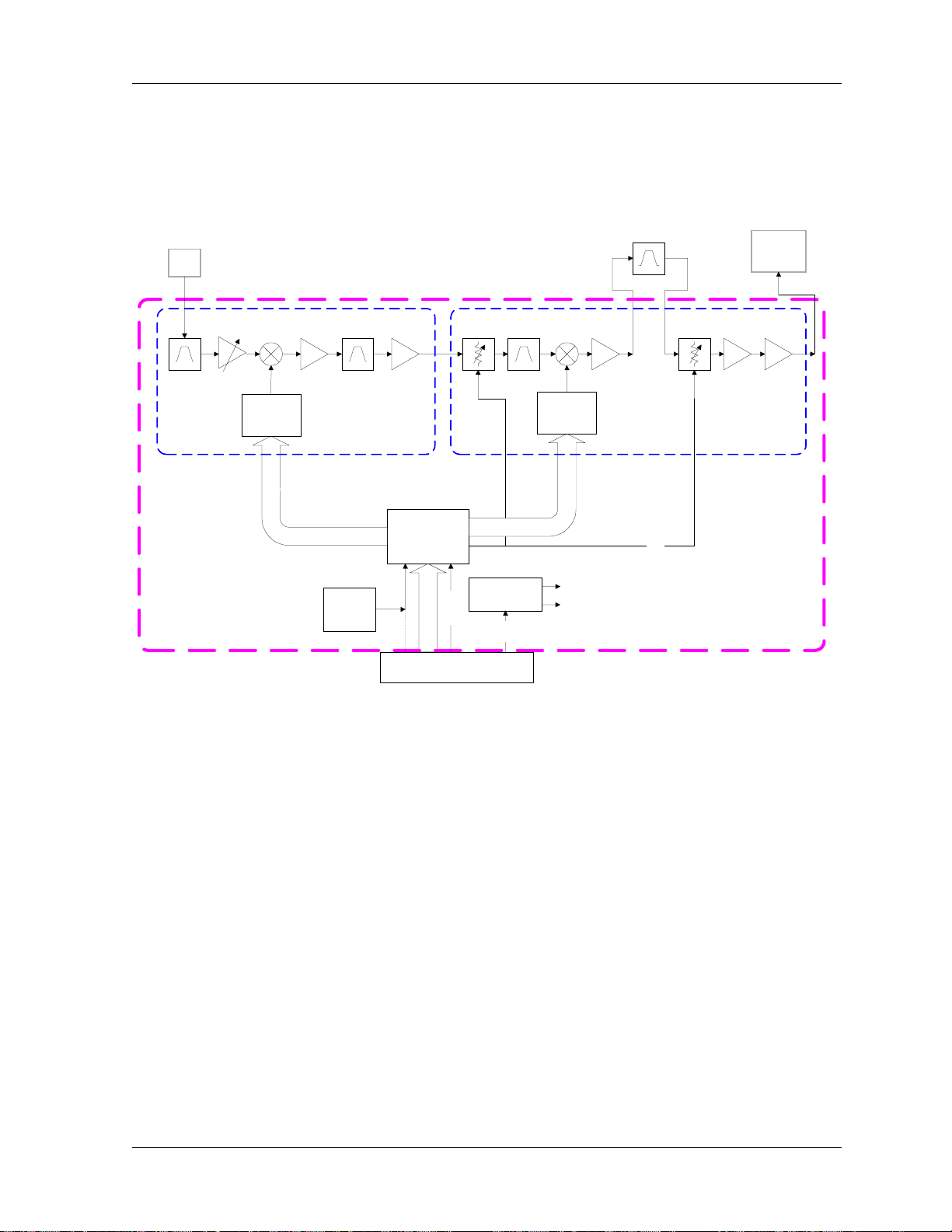

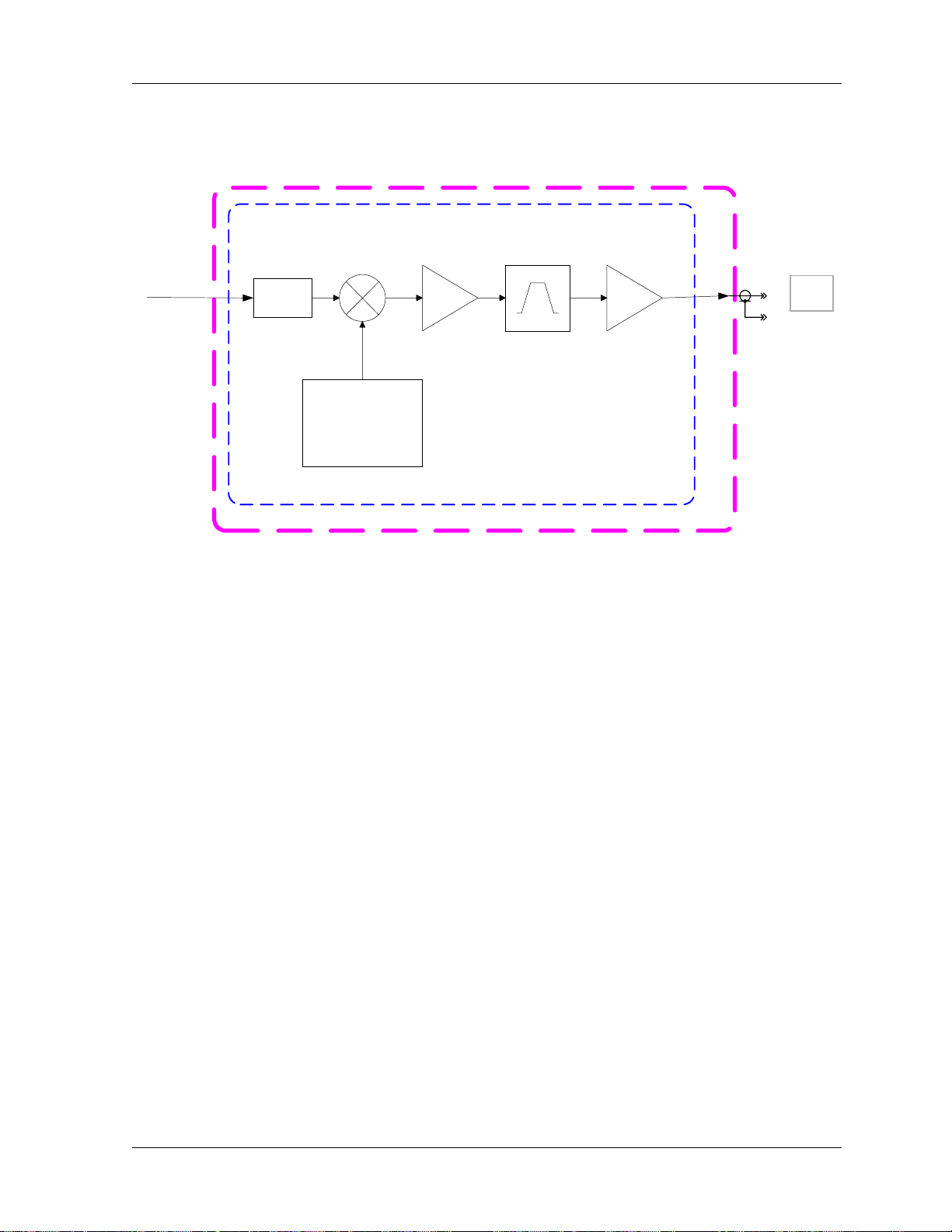

J2P2
70 MHz
IF OUT 70 MHz IF IN
TX OUT
1W
1990-2110
MHz
2450-2500
MHz
FRONT
PANEL
CONTROLS
Expedio Transmitter
Starlink/NXE1
Chassis
J2P2
EXCITE
OUT EXCITE
IN
BACK PLANE
PLUG-IN RF AMP
9MHZ
IF
OUT
110-220 VAC
12-48VDC
70 MHZ
CONVERTER
CONTROLLER
79.14286 MHZ
XTAL OSC
LINEAR
POWER AMP
DC
CNVTR
+5V +10V
dc
pwr
cntl telem
NMS
CNTRL
NMS
CARD
POWER
SUPPLY
+5V
+12V
PS
CARD
MPEG2
ENCODER
DVB
ASI
OUT
AUDIO
IN
ANA/
DIG
VIDEO
IN
ANA/
DIG
COFDM
ENCODER
MPEG
VIDEO
DVB
ASI
IN
SPI-
TO-
ASI
EXPEDIO
ENCODER
SIGNAL
INTRFC 480MHZ
CONVERTER 2 GHZ CONVERTER
SYNTH
550 MHZ
SYNTH
1.51-1.63 GHZ
1.97-2.02 GHZ
CONTROLLER
RF DOUBLE
UP-CONVERTER
Figure 4: Expedio Transmit System Block Diagram
All modules (excluding the Front Panel and Power Amplifier) are interconnected via the
backplane that traverses the entire width of the unit. The backplane contains the various
communication buses as well as the PA (Power Amplifier) control and redundant transfer
circuitry. See Figure 5 below for locations of the Backplane and the Power Amplifier. The power
supply levels and status are monitored on the backplane and the NMS/CPU card processes the
data.
Figure 5: Location of the EXPEDIO Backplane and Power Amplifier
The NMS/CPU card incorporates microprocessor and FPGA logic to configure and monitor the
overall operation of the system via front panel controls, LCD screen menus, status LEDs and the
bar graph display. Module settings are loaded into the installed cards and power-up default
settings are stored in non-volatile memory. LCD screen menu software is uploaded into memory,
Backplane
Digital Radio

1-7 System Description
602-13729-01 Rev B Expedio Digital Electronic News Gathering Radio
providing field upgrade capability. A Windows-based PC interface is available for connection at
the rear panel DATA port.
1.5.2 COFDM Modulator / IF Upconverter
ASI to SPI
Convertor
DVB-ASI
I/P FEC Reed Solomon
Interleaver
Viterbi
Mapping
Modulation
Inverse
FFT
2K
DAC
BP Filter [9MHz]
&
Gain control
9MHz
IF
Control
Lines
Control from Hitachi
COFDM MODULATOR
Figure 6: COFDM Block Diagram
The COFDM (Coded Orthogonal Frequency Division Multiplex) Modulator is the transmit portion
of the card. The unit also houses the IF Upconverter.
The COFDM Modulator accepts the aggregate data stream via the DVB-ASI Port on the rear
panel (see Figure 6 above).
The modulated signal is provided via low IF of 9MHz which is converted ---------------

System Description 1-8
602-13729-01 Rev B Expedio Digital Electronic News Gathering Radio
IF UPCONVERTOR
79MHZ
XTAL
OSCILLATOR IF Upconvertor
70MHz SAW
Pad
8dB
9MHz
I/P
70MHz
IF OUT
Figure 7: IF Upconverter Block Diagram
The resultant carrier is translated up to 70 MHz by the IF Upconverter. This is accomplished by a
standard mixing of the carrier with a phase-locked LO. A 70 MHz SAW filter provides an
exceptional, spectrally clean output signal.

1-9 System Description
602-13729-01 Rev B Expedio Digital Electronic News Gathering Radio
1.5.3 RF Double Upconverter
Expedio Double Up-Converter
MICROCONTLR
EXCITER OUT
+5 dBm
1990-2110 MHz
2450-2500 MHz
REF OSC
I6 MHZ
INTERNAL
DC
CONVERTERS
BACKPLANE INTERFACE
70 MHz
RF IN
-10dBm
I2C
+12V
+5 Vdc/
200 mA
+10 Vdc/
250 mA
ALC
PA telem
SYNTH
550 MHZ 480 MHZ
CONVERTER
70MHZ/
9MHZ
480MHZ/
25MHZ
AGC 45dB 13dB 14dB
SYNTH
1.51-1.63 GHZ
1.97-2.02 GHZ 2-2.5 GHZ
CONVERTER
480MHZ/
25MHZ
0-15dB 0-5dB19dB 17dB 12dB
Figure 8: RF Upconverter Block Diagram
The IF output carrier of the IF Upconverter daughter card is fed to the transmit portion of the RF
Module via an external (rear panel) semi-rigid SMA cable. This module performs the necessary
upconversion to the RF carrier. There is an on-board CPU for independent control of the critical
RF parameters of the system.
Since this is a linear RF processing chain, an automatic leveling control loop (ALC) is
implemented here to maintain maximum available power output (and therefore maximum system
gain). The ALC monitors the PA forward power (FWD) output sample, and controls the up
converter gain per an algorithm programmed in the CPU. The ALC also controls the power-up
RF conditions of the transmitter output.
1.5.4 Power Amplifier (PA)
The Power Amplifier (PA) is a separate module that is mounted to a heat sink and is fan-cooled
for reliable operation. The PA is a design for maximum linearity in an amplitude modulation-based
system.

System Description 1-10
602-13729-01 Rev B Expedio Digital Electronic News Gathering Radio
1.5.5 RF First Downconverter
Single Down-Converter
MICROCONTLR
REF OSC
I6 MHZ
INTERNAL
DC
CONVERTERS
BACKPLANE INTERFACE
I2C
+12V
+5 Vdc/
200 mA
+10 Vdc/
250 mA
P2
RF input
-40 to -90 dBm
1990-2110 MHz
2450-2500 MHz
1: 2050 MHz/
120 MHz
2: 2475 MHz/
50MHz
480 MHz
UHF
OUT
SYNTH
1.51-1.63 GHZ
1.97-2.02 GHZ
2-2.5 GHZ
CONVERTER
480MHZ/
25MHZ
13dB 14dB
17dB
Figure 9: RF Downconverter Block Diagram
The receiver handles the traditional RF to UHF conversion from the carrier to 480 MHz.
Considerations are given to image rejection, intermodulation performance, dynamic range, agility,
and survivability. A separate AGC loop was assigned to the RF front end to prevent
intermodulation and saturation problems associated with reception of high level undesirable
interfering RF signals resulting from RF bandwidth that is much wider than the IF bandwidth.

1-11 System Description
602-13729-01 Rev B Expedio Digital Electronic News Gathering Radio
1.5.6 COFDM Demodulator & UHF Downconverter
PLL
CX22702
ADC
SAW(s)
36.16 MHz
SDI SCI
MPEG
TS
Delayed AGC
SCO
SDO
20.48 MHz
Figure 10: UHF Downconverter Block Diagram
This Module receives a UHF COFDM signal and demodulates them using the DVB-T
specifications, and outputs an MPEG2 Transport stream (TTL compatible) for use to decode the
Video stream out of that.

System Description 1-12
602-13729-01 Rev B Expedio Digital Electronic News Gathering Radio
This page is intentionally blank.

2-1 Status Monitor Program
602-13729-01 Rev B Expedio Digital Electronic News Gathering Radio
2 Status Monitor Program
2.1 Description
The Expedio Status Monitor Program is a application that allows you to monitor the status of the
Expedio unit from any Windows-based PC.
2.2 Software Installation
1. Power OFF the Expedio unit and the PC.
2. Connect the serial cable (RS-232) from the PC to the Expedio unit.
3. Turn the Expedio power ON, and then turn the PC power ON.
4. Run the Expedio Self-Extracting Executable from the Expedio CD.
To launch Expedio, double click the Expedio icon on your PC desktop. The first time you run the
Expedio Status Monitor Program, the Communications Settings window appears.
To begin communicating with the Expedio unit, the Communications Settings must be properly
configured.
• In the Comm Port field, select the Comm Port to which the Serial Cable to the Expedio
unit is connected.
• In the Baud Rate field, select the Baud Rate as configured on the Expedio unit. For more
information about configuring the baud rate, see the section of this manual regarding
hardware setup.
• Optional: Check Status on Startup automatically causes the Status Monitor Program to
begin monitoring the Expedio unit each time the program is launched.
Click OK to accept these communication settings.

Status Monitor Program 2-2
602-13729-01 Rev B Expedio Digital Electronic News Gathering Radio
2.3 Using the Status Monitor Program
2.3.1 Start/Stop Status Check
Status Checking can be started in either of two methods:
• Automatically: Select Check Status on Startup in the Communication Settings. With
this selection, every time program is launched, it first reads the current settings from the
Expedio unit, then starts status checking.
• Manually, by

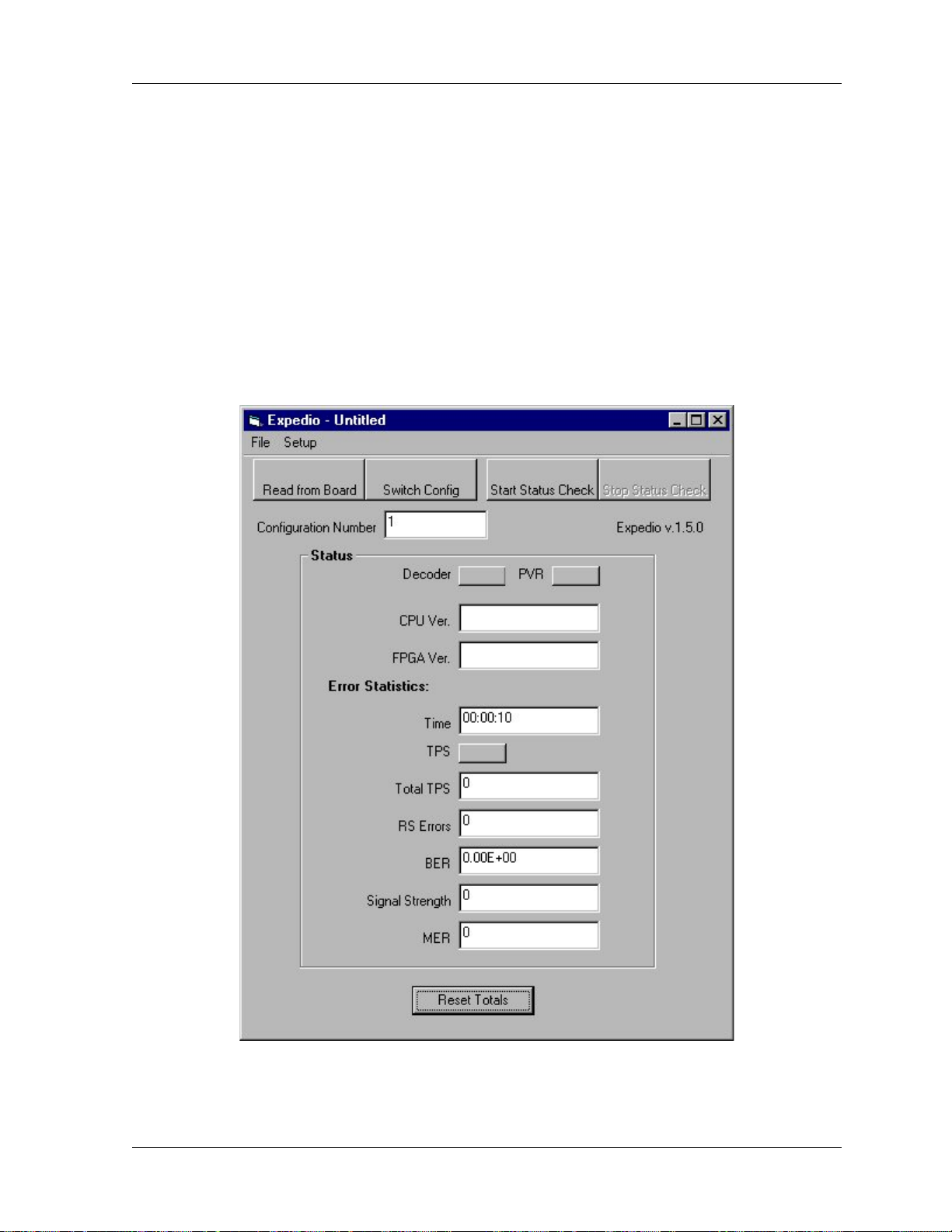

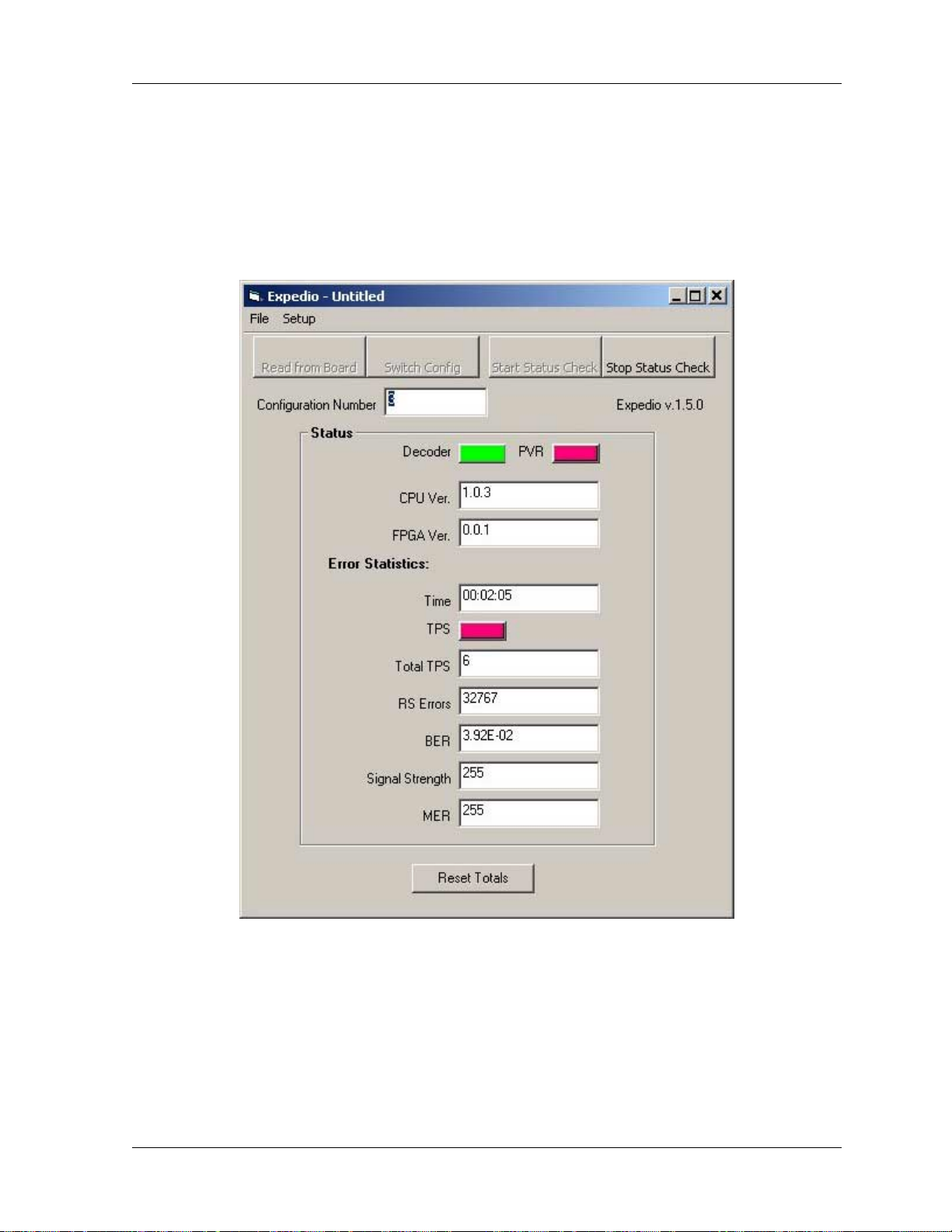

Upon launching the Status Monitor Program, the main screen appears, as pictured below. (Note
that in the example below, the Status Monitor is not currently communicating with the Expedio
unit, thus there are no or zero values in some of the fields.)
To begin monitoring the status of the Expedio unit, click Start Status Check. A progress
bar appears, indicating that the PC is attempting to connect to the Expedio unit. The amount of

2-3 Status Monitor Program
602-13729-01 Rev B Expedio Digital Electronic News Gathering Radio
time required to make a connection and retrieve data depends upon factors such as the speed of
the connection and the quantity of data.
Once the connection is made, Expedio continues to send data until you click Stop Status
Check.
The Status area of the screen displays information that received from the Expedio unit. During
monitoring, the Error Statistics continue to update anytime a change occurs on the Expedio unit
itself.
The communication link between the PC and the Expedio unit processes only one command at a
time; therefore, other features that involve communicating with the Expedio unit cannot be
performed while Status Checking is started.
2.3.2 Expedio Unit Data
The upper portion of the Status area displays information about the unit. Except for PVR, this
information is static, that is, it will not change while you are monitoring the unit.

Status Monitor Program 2-4
602-13729-01 Rev B Expedio Digital Electronic News Gathering Radio
Decoder Indicates the operating mode of the unit:
GREEN = decoder
RED = encoder
NO COLOR (background) = Unknown
PVR Indicates the PVR status:
GREEN = Valid
RED = Invalid
NO COLOR (background) = Unknown, only occurs before status is
obtained or during reset.
CPU Version The version of firmware.
FPGA Version The version number of the unit’s operating system.
Updates to the CPU Version or the FPGA Version can only be performed under the guidance of
Moseley Technical Support.
Read from Board returns status information (excluding PVR) without starting Status Check.
2.3.3 Error Statistics
The lower portion of the Status area displays Error Statistics. This is live data that the system
updates as changes occur on the unit. The represented values include:
• Time Gives the elapsed time since Status Checking started.
• TPS GREEN = Valid
RED = Invalid
NO COLOR (background) = Unknown
• Total TPS Number of invalid TPS checks since Status Checking started.
• RS Errors
• BER
• Signal Strength
• MER
The Reset Totals button returns a field values to zero. The system then updates the fields with
the current values.
