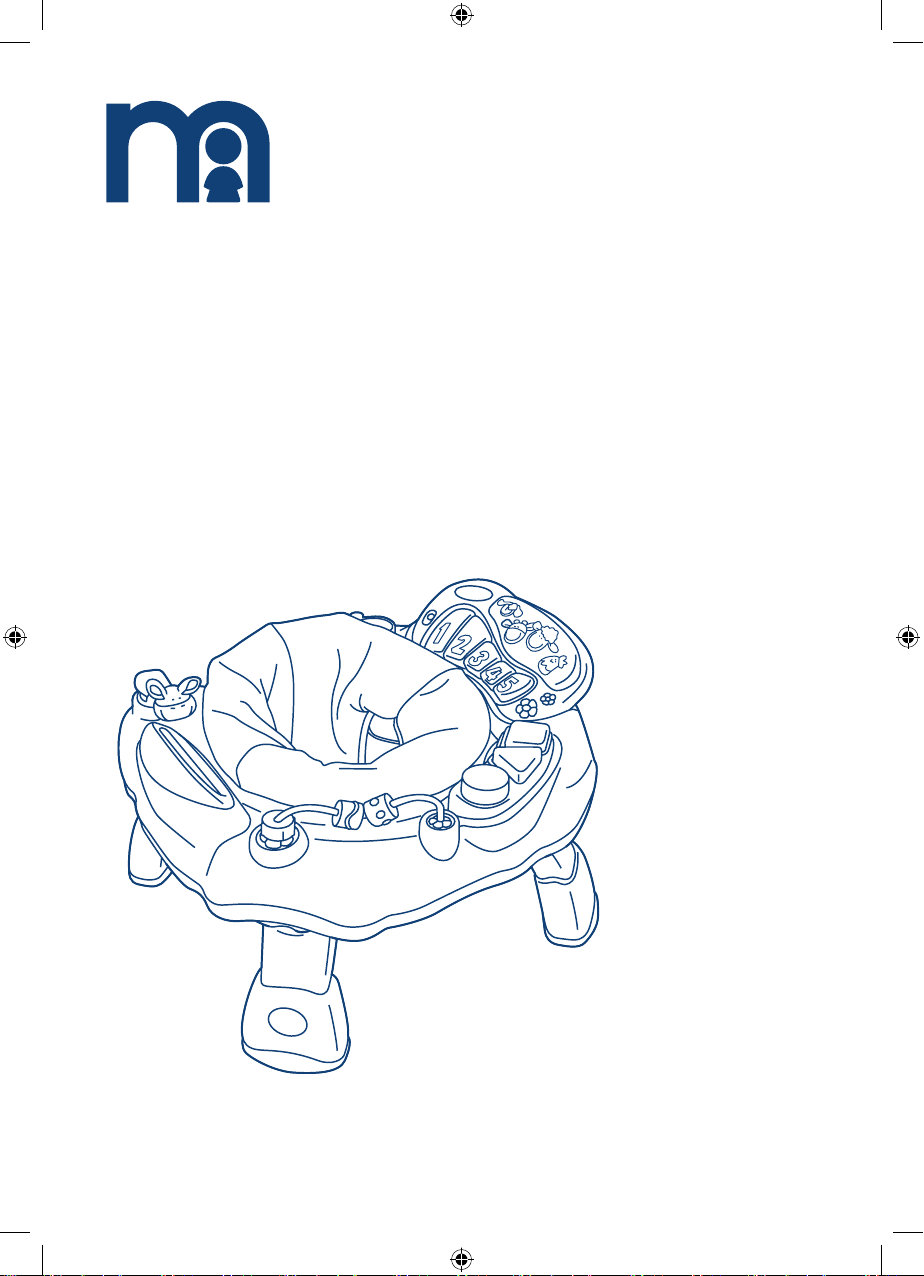

mothercare farmyard activity station User manual
Important! Keep for future reference
farmyard activity
station
Farmyard activity D3.2.indd 1 25/9/08 11:05:25
Read these instructions carefully before use and keep them for future
reference. Your child’s safety may be affected if you do not follow these instructions.
Suitable for a child that can support its head unaided up to a maximum of 1kgs and
until they can walk. Adult assembly required. Do not leave your child unattended in the
activity station.
introduction
1
parts check list
1. Seat
. Light and
sound
keyboard
. Legs
4. Activity station
Locate legs into the Activity Station.
Pull red button out and push leg into the
socket. Release the button into the slots
on the side of the leg to achieve the
desired height (dia a).
a
b
c
installing the legs
preparation for use
The height of the Activity Station can be
adjusted by pulling the red button and sliding
the leg up or down, releasing the button to
lock into the available slot (dia b).
All four legs are assembled into the Activity
Station. Ensure all legs are assembled at
the same height (dia c).
Farmyard activity D3.2.indd 2-3 25/9/08 11:05:28
4
installing the seat
Place seat onto the Activity Station and push
down to 'click' into place (dia d).
Once the seat is in place, you can rotate in
either direction (dia e).
d
e
preparation for use
h Replace the battery door, slide into place
and tighten screw to secure (dia h).
f
g
installing the batteries
The Light and Sound Keyboard takes x AA
batteries. Unscrew the battery door using
a Phillips screwdriver and insert batteries
(dia f).
Ensure battery polarities are correctly
aligned with the polarities within the
battery compartment (dia g).
preparation for use
Farmyard activity D3.2.indd 4-5 25/9/08 11:05:30
Insert the Light and Sound Keyboard into
the Activity Station (dia i).
Slot into the station and push back onto
location pegs to hold the keyboard in place
(dia j).
i
j
installing the keyboard
Slide the switch down (dia 4a) to select
the following:
OFF
PRESS KEYS FOR INDIVIDUAL SOUNDS
PRESS KEYS TO PLAY SOOTHING
MELODIES
Press the animals for 4 fun animal sounds.
4a
preparation for use
in use
4
remove the seat cover
Remove the seat from the Activity Station
by pulling the seat up (dia a).
care of your product
Unhook the fabric from the hooks on the
seat rim. To replace seat cover, hook fabric
onto the seat rim and clip seat back onto
the Activity Station (dia b).
b
using the keyboard
cleaning the seat cover
Refer to the care label attached to the seat cover.
< The Activity Station can be cleaned by sponging with warm water and
mild detergent.
< Do not submerge the Activity Station in water. The Activity Station must be dried
thoroughly before using or storing.
<
< Never clean with abrasive, ammonia based,bleach based or spirit type cleaners.
a
Farmyard activity D3.2.indd 6-7 25/9/08 11:05:33
safety notes
The Farmyard Activity Station is intended to be used by children that can support
its head unaided up to a maximum of 1kgs.
<
<
<
<
<
<
<
<
< Batteries should be inserted into the compartment found under the Light and
Sound Keyboard.
< Do not mix old and new batteries.
< Do not mix alkaline, standard (carbon zinc) or rechargeable
(nickel-cadmium batteries).
< Remove batteries after long periods of non-use.
< Battery leakage and corrosion may damage this toy.
< Avoid short circuiting the terminals of the batteries
< Remove exhausted batteries from toys.
< Batteries should be inserted with correct polarity.
< Do not use rechargeable batteries.
< Non rechargeable batteries should not be recharged.
< Only batteries of the same or equivalent type as recommended should be used.
< Batteries must only be changed by an adult.
< Rechargeable batteries are only to be charged under adult supervision and
rechargeable batteries are to be removed from the toy before being charged.
:
. .
.
. . .
)(
)(
)(
)(
.
.
)(
)( .
.
.)(
.)(
.)(
.AA
.)(
.)(
.)(
)( .
( .
)
: )(
.
!
.)(
.
.)(
.
.
.
. . !
.
.
. !
.
. !
. !
. !
!
. .
.
. . !
.
.
:
.
( )(
) -
.
.
.
.
.
.
.
.
.
.
