Motorola MBP161 User manual

User’s Guide
Digital Audio Baby Monitor
Models: MBP161, MBP161-2
The features described in this User’s Guide are subject to modifications without prior notice.

Welcome...
to your new Motorola Digital Audio Baby Monitor!
Thank you for purchasing the Digital Audio Baby Monitor. Now you can hear
your baby sleeping in another room. The Digital Audio Baby Monitor also
comes with a baby care timer that can help you remember important baby-
care tasks or maintain your baby's feeding, diaper change and napping
schedule when he or she is with other caregivers
Please retain your original dated sales receipt for your records.
For warranty service of your Motorola product, you will need to provide a
copy of your dated sales receipt to confirm warranty status.
Registration is not required for warranty coverage.
For product-related questions, please call:
This User's Guide provides you with all the information you need to get the
most from your product.
Before you use the digital audio baby monitor, we recommend that you
insert and fully charge the battery in the parent unit, so that it continues to
work if you disconnect it from the electrical outlet to carry it to another
location. Please read the Safety Instructions on page 7 before you install
the units.
Got everything?
• 1 x Parent unit with desktop stand
• 1 x Baby unit
• 1 x Rechargeable Ni-MH battery pack for the Parent unit
• 1 x Battery door for Parent unit
• 1 x Power adapter for Parent unit
• 1 x Power adapter for Baby unit
In packs with multi baby units, you will find one or more additional baby
units with power adapters.
US and Canada 1-888-331-3383
Email: [e-mail]

Overview of the Parent Unit
1. Sound Level Indicator
2. LCD Display
3. Timer Buttons
4. Control Key Panel
UP / VOLUME +
Press to increase speaker volume.
While in a menu, press to scroll up.
DOWN / VOLUME -
Press to decrease speaker volume.
While in a menu, press to scroll down.
POWER ON/OFF
Press and hold to power on or off.
Press to turn the screen on or off.
MENU/SELECT
Press to enter the menu.
While in a menu, press to choose an
option, or save a setting.
TALK T
Press and hold to talk to the baby unit.
5. Night Light
Press to turn nightlight on or off.
6. Microphone
7. Lullaby
Press to start or stop lullaby playback.
8. Power jack
9. Speaker
10. Battery compartment cover
11. Desktop Stand
7
1
4
5
9
10
11 8
2
3
6

Parent Unit display icons
Connection status
- Displays when the parent unit is linked to the baby unit.
- Flashes when the link between the baby unit and the parent unit is lost
or the parent unit is out of range of the baby unit.
Battery status
-scrolls when battery is charging.
-displays when battery is fully charged.
-displays when battery is low and needs charging.
-displays when battery is empty and needs charging.
Sound Alert
- Displays when sound alert is ON.
- Flashes when sound alert is triggered.
Volume off
- Displays when speaker volume is turned off.
Nightlight
- Displays when nightlight is ON.
Lullaby
- Displays when lullaby is playing.

Overview of the Baby Unit
1
23
4
5
6
Important guidelines for installing your digital audio baby monitor
• To use your baby unit and parent unit together, you must be able to establish a radio link
between them, and the range will be affected by environmental conditions.
• Any large metal object, like a refrigerator, a mirror, a filing cabinet, a metallic door or
reinforced concrete, between the baby unit and parent unit may block the radio signal.
• The signal strength may also be reduced by other solid structures, like walls, or by radio
or electrical equipment, such as TVs, computers, cordless or mobile phones,
fluorescent lights or dimmer switches.
• If the signal is poor, try moving the parent unit and/or the baby unit to different positions
in the rooms.
1. Temp e r a t ure Sensor
2. Speaker
3. Power jack
4. Power/Link indicator
On steadily when the baby unit is
powered on and linked to the parent
unit.
Off when the baby unit is powered
off.
Flashes when the baby unit is out of
range of the parent unit.
5. Control Key Panel
UP / VOLUME +
Press to increase speaker volume.
DOWN / VOLUME -
Press to decrease speaker volume.
POWER/ LULLABY
Press and hold to power the baby unit
on or off.
In idle mode: Press to enter lullaby
menu.
In lullaby menu: Press to play or select
lullaby.
PLAY/STOP
Press to start or stop lullaby playback.
NIGHT LIGHT
Press to turn nightlight on or off.
6. Microphone

6Table of contents
Table of contents
1. Safety Instructions..................................................................................... 7
2. Getting Started........................................................................................ 10
2.1 Baby unit power supply............................................................................. 10
2.2 Parent unit battery installation and power supply.................................... 11
2.3 Belt clip/stand on parent unit.................................................................... 12
3. Using Your Digital Audio Baby Monitor.................................................. 13
3.1 Power on or off.......................................................................................... 13
3.2 Speaker volume ........................................................................................ 13
3.3 Nightlight................................................................................................... 14
3.4 Timers........................................................................................................ 14
3.5 Lullaby ....................................................................................................... 17
3.6 Select display language for the parent unit.............................................. 17
3.7 Turn sound alert on or off.......................................................................... 17
3.8 Talk to the baby unit.................................................................................. 18
3.9 Reset settings to default............................................................................ 18
4. Disposal of the Device (Environment).................................................... 19
5. Cleaning .................................................................................................. 20
6. Troubleshooting ...................................................................................... 21
7. General Information ................................................................................ 23
8. Technical Specifications ......................................................................... 28

Safety Instructions 7
ENGLISH
1. Safety Instructions
WARNING:
Strangulation Hazard. Children have
STRANGLED in cords. Keep this cord out
of the reach of children (more than 3ft
(1m) away). Never use extension cords
with AC Adapters. Only use the AC
Adapters provided.

8Safety Instructions
WARNING
This Digital Audio Baby Monitor is compliant with all relevant standards
regarding electromagnetic fields and is, when handled as described in the
User's Guide, safe to use. Therefore, always read the instructions in this User's
Guide carefully before using the device.
• Adult assembly is required. Keep small parts away from children when
assembling.
• This product is not a toy. Do not allow children to play with it.
• This Digital Audio Baby Monitor is not a substitute for responsible adult
supervision.
• Keep this user's guide for future reference.
• Keep the cords out of reach of children.
• Do not cover the Digital Audio Baby Monitor with a towel or blanket.
• Test this monitor and all its functions so that you are familiar with it prior to
actual use.
• Do not use the Digital Audio Baby Monitor in damp areas or close to water.
• Do not install the Digital Audio Baby Monitor in extreme cold or heat, direct
sunlight, or close to a heat source.
• Only use the chargers and power adapters provided. Do not use other
chargers or power adapters as this may damage the device and battery pack.
• Only insert a battery pack of the same type.
• Do not touch the plug contacts with sharp or metal objects.
• Connect the power adapters to easily accessible electrical outlets.
BABY MONITOR SET UP & USE:
• Determine a location for the digital audio baby monitor that will
provide the best audio reception of your baby in his/her crib.
• Place the Baby Unit on a flat surface, such as a dresser, bureau or
shelf, or mount the Unit on a wall securely using the keyhole slots
under the stand.
• NEVER place the Baby Unit or cords within the crib.

Safety Instructions 9
ENGLISH
CAUTION
There is a risk of explosion if the battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
Use only rechargeable battery pack with rating: 2.4V 450mAh

10 Getting Started
2. Getting Started

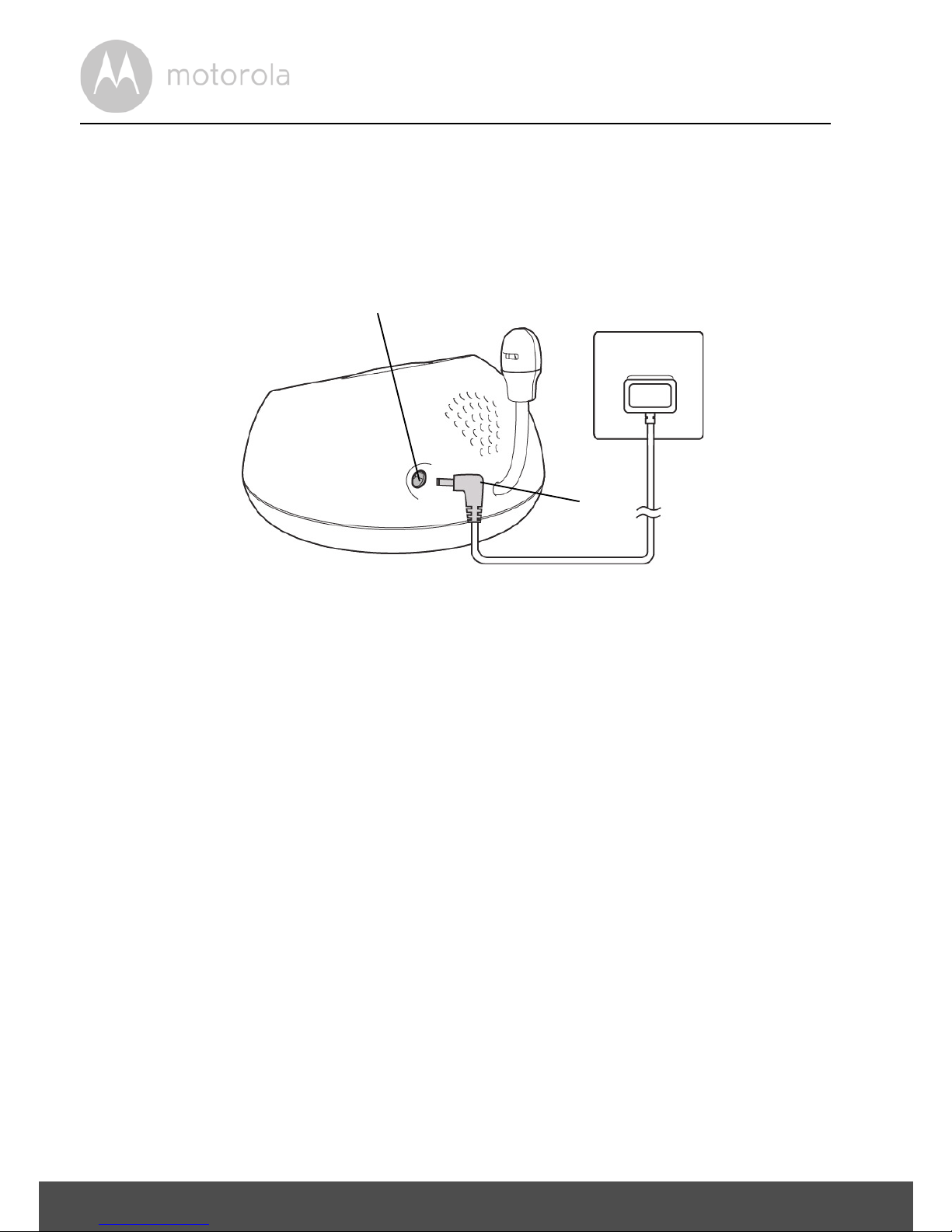

2.1 Baby unit power supply
1. Insert the DC plug of the power adapter with the bigger DC plug into the
DC jack on the back of the baby unit.
2. Connect the other end of the power adapter to a suitable electrical outlet.
NOTE
Only use the provided power adapter.
DC JACK
DC PLUG

Getting Started 11
ENGLISH
2.2 Parent unit battery installation and power supply
A rechargeable battery pack is supplied and should be fitted, so that the parent
unit can be carried to another location without losing the link with the baby
unit(s). Charge the parent unit before using it for the first time or when the
parent unit indicates that battery is low. We recommend that the unit be
charged for 15 hours prior to first use.
1. Slide off the battery compartment cover.
2. Insert the plug of the rechargeable battery pack into the jack inside the
battery compartment.
3. Fit the battery pack into the compartment, with the label THIS SIDE UP
facing up.
4. Slide the battery compartment cover back until it clicks into place.
5. Insert the DC plug of the power adapter with the smaller DC plug into the
DC jack on the side of the parent unit.
6. Connect the other end of the power adapter to a suitable electrical outlet.
7. The charging indicator comes on.
NOTE
Only use the provided power adapter and battery pack.
We recommend that you install and fully charge the battery in the parent unit,
so that it continues to work if you disconnect it from the electrical outlet to carry
it to another location.
DC PLUG
DC JACK

12 Getting Started
2.3 Belt clip/stand on parent unit
The parent unit comes with a desktop stand attached to the back of the unit.
To place the parent unit on a desk, simply pull out the stand as shown above.
NOTE
Place the parent unit on a flat, even surface.

Using Your Digital Audio Baby Monitor 13
ENGLISH
3. Using Your Digital Audio Baby Monitor
Please read these instructions carefully, and be aware that this digital audio baby
monitor is only intended as an aid. It is not a substitute for responsible and proper
adult supervision.
3.1 Power on or off
3.1.1 Power on or off the baby unit
• Press and hold to power on the baby unit. The Power/Link indicator turns
on.
• Press and hold again to power off the baby unit. The Power/Link indicator
turns off.
3.1.2 Power on or off the parent unit
• Press and hold to power on the parent unit. The LCD screen turns on.
• Press and hold again to power off the parent unit. The LCD screen turns
off.
NOTE
If you place the parent and baby units too close together, you may hear a high
pitched noise. This is not a fault. The units are designed to be operated at some
distance apart, e.g. in separate rooms, so move the units further apart.
If the Power/Link indicator flashes on the baby unit or parent unit, they are not
linked to each other. Make sure that both units are powered on, and reduce the
distance between the units, but not closer than 3 feet.
3.2 Speaker volume
3.2.1 Adjust speaker volume of the baby unit
You can adjust the speaker volume of the baby unit from Volume 1 to Volume 5 .
• Press or on the baby unit.
3.2.2 Adjust speaker volume of the parent unit
You can adjust the speaker volume of the parent unit from Volume 1 to Volume 3 , or
turn it off.
• Press or on the parent unit when it is not in use.
The sound level indicator lights up when you adjust the speaker volume.

14 Using Your Digital Audio Baby Monitor
The number of LED lights indicate how loud the volume has been raised.
When the speaker volume is set to off, the screen displays .
3.3 Nightlight
Turn on nightlight so that the room is gently lit and isn’t so dark at night. The soft
glow can allay a child’s fears and help them or you avoid obstacles when up and
around the room at night.
3.3.1 Turn on or turn off nightlight on the baby unit
1. When nightlight is off, press to turn it on.
The bottom part of the baby unit lights up.
2. When nightlight is on, press to turn it off.
3.3.2 Turn on or turn off nightlight on the parent unit
1. When the nightlight is off, press to turn it on.
The LCD screen lights up.
2. When the nightlight is on, press to turn it off.
3.4 Timers
You can set timers on the parent unit to remind you or caregivers of the time to
feed the baby, change baby’s diaper or put the baby to bed. If the time limit is
reached, the corresponding timer button will light up and the parent unit will
emit an alarm. Press to stop the timer.
3.4.1 Set feeding timer
1. Press on the parent unit when it is not in use.
2. Press -or +to adjust timer.
Each key press represents an interval of 30 minutes, up to an interval of 24
hours.
If the next feeding time is 4 hours later, press -or +to adjust the timer
until
04:00 is displayed.
3. Press again to save the timer.
The screen will display the timer for 3 seconds before returning to idle
mode.

Using Your Digital Audio Baby Monitor 15
ENGLISH
NOTE
If the time limit is reached, the corresponding timer button will light up and the
parent unit will emit an alarm. Press to stop the timer.
3.4.2 Reset feeding timer
1. Press on the parent unit when it is not in use.
2. Press to stop the timer.
3. Press -or +to adjust the timer.
4. Press again to save the timer.
The screen will display the timer for 3 seconds before returning to idle
mode.
NOTE
If no key is pressed within 3 seconds after adjusting the timer in step 3, the
adjusted timer will be saved automatically.
3.4.3 Set diaper change timer
1. Press on the parent unit when it is not in use.
2. Press -or +to adjust timer.
Each key press represents an interval of 30 minutes, up to an interval of 24
hours.
If the next diaper change is 3 hours later, press -or +to adjust the timer
until
03:00 is displayed.
3. Press again to save the timer.
The screen will display the timer for 3 seconds before returning to idle
mode.
NOTE
If the time limit is reached, the corresponding timer button will light up and the
parent unit will emit an alarm. Press to stop the timer.
3.4.4 Reset diaper change timer
1. Press on the parent unit when it is not in use.
2. Press to stop the timer.
3. Press -or +to adjust the timer.

16 Using Your Digital Audio Baby Monitor
4. Press again to save the timer.
The screen will display the timer for 3 seconds before returning to idle
mode.
NOTE
If no key is pressed within 3 seconds after adjusting the timer in step 3, the
adjusted timer will be saved automatically.
3.4.5 Set sleep timer
1. Press on the parent unit when it is not in use.
2. Press -or +to adjust timer.
Each key press represents an interval of 30 minutes, up to an interval of 24
hours.
If the next napping time is 2 hours later, press -or +to adjust the timer
until
02:00 is displayed.
3. Press again to save the timer.
The screen will display the timer for 3 seconds before returning to idle
mode.
NOTE
If the time limit is reached, the corresponding timer button will light up and the
parent unit will emit an alarm. Press to stop the timer.
3.4.6 Reset sleep timer
1. Press on the parent unit when it is not in use.
2. Press to stop the timer.
3. Press -or +to adjust the timer.
4. Press again to save the timer.
The screen will display the timer for 3 seconds before returning to idle
mode.
NOTE
If no key is pressed within 3 seconds after adjusting the timer in step 3, the
adjusted timer will be saved automatically.

Using Your Digital Audio Baby Monitor 17
ENGLISH
3.5 Lullaby
You can play lullaby to drown out disturbances so that your child can slumber
peaceful and easily.
3.5.1 Select lullaby on the baby unit
1. Press on the baby unit to enter lullaby menu.
2. Press repeatedly to select your preferred lullaby.
3.5.2 Start or end lullaby playback from the baby unit
1. Press on the baby unit to enter lullaby menu.
2. Press or to start playing the last selected lullaby.
3. Press or to end playback.
3.5.3 Start or end lullaby playback from the parent unit
1. To start lullaby playback, press when the parent unit is not in use.
2. To end lullaby playback, press .
3.6 Select display language for the parent unit
Choose from 3 languages.
1. Press on the parent unit when is not in use.
2. Press -or +to scroll to
LANGUAGE and then press .
3. Press -or +to select
ENGLISH , FRANCAIS or ESPANOL .
4. Press to confirm your selection.
3.7 Turn sound alert on or off
You can turn on the sound alert so that the parent unit beeps when a loud sound
is detected by the baby unit.
is displayed when sound alert is enabled.
1. Press on the parent unit when it is not in use.
2. Press -or +to scroll to
SOUND ALERT and then press .
3. Press -or +to select
ON? when the current setting is off, or OFF? when the
current setting is on.
4. Press to confirm.

18 Using Your Digital Audio Baby Monitor
3.8 Talk to the baby unit
You can use the TALK function of the parent unit to talk to and comfort your
baby.
To talk to the baby unit:
1. Press and hold Ton the parent unit.
2. Speak towards the microphone on the parent unit.
Your voice is broadcast to the baby unit.
3.9 Reset settings to default
1. Press and hold on the parent unit when it is not in use.
2. Press -or +to scroll to
RESET and then press .
3. Press to confirm.
All settings will be reset to default.

Disposal of the Device (Environment) 19
ENGLISH
4. Disposal of the Device (Environment)
At the end of the product lifecycle, you should not dispose of
this product with normal household waste. Take this product to
a collection point for the recycling of electrical and electronic
equipment. The symbol on the product, user's guide and/or
box indicates this.
Some of the product materials can be re-used if you take them
to a recycling point. By reusing some parts or raw materials from used products
you make an important contribution to the protection of the environment.
Please contact your local authorities in case you need more information on the
collection points in your area.
Dispose of the battery pack in an environmentally-friendly manner according to
your local regulations.

20 Cleaning
5. Cleaning
Clean your Digital Audio Baby Monitor with a slightly damp cloth or with an anti-
static cloth. Never use cleaning agents or abrasive solvents.
Cleaning and care
• Do not clean any part of the Digital Audio Baby Monitor with thinners or other
solvents and chemicals - this may cause permanent damage to the product
which is not covered by the warranty.
• Keep your Digital Audio Baby Monitor away from hot, humid areas or strong
sunlight, and do not let it get wet.
• Every effort has been made to ensure high standards of reliability of your
Digital Audio Baby Monitor. However, if something does go wrong, please
do not try to repair it yourself - contact Customer Service for assistance.
IMPORTANT
Always switch off and disconnect the power adapter before cleaning your
digital audio baby monitor.
