Motorola MBP162CONNECT User manual

USER’S GUIDE

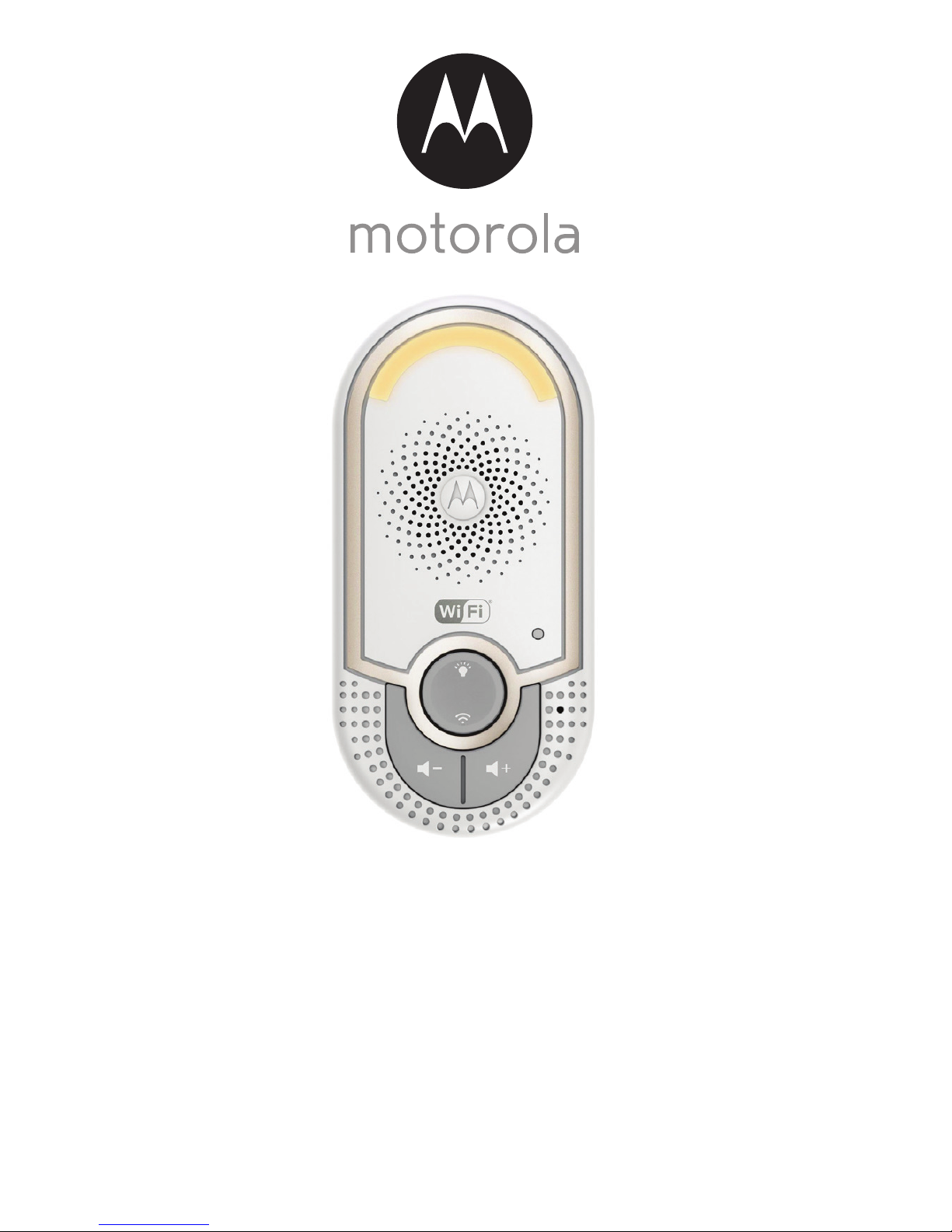

Smart Monitoring Companion
Model: MBP162CONNECT
The features described in this guide are subject to modifications without prior notice.

Welcome...
to your new Motorola Smart Monitoring Companion!
Thank you for purchasing the Smart Monitoring Companion.
Please keep your original dated sales receipt for your records. For warranty
service of your Motorola product, you will need to provide a copy of your dated
sales receipt to confirm warranty status. Registration is not required for warranty
coverage.
For product related questions, please call:
This User’s Guide has all the information you need to make the most out of your
product.
Please read the Safety Instructions on pages 5 - 6 before you install the unit.
Inside the Box
•
•
1 x Wi-Fi® Camera Unit
1 x Quick Start Guide
US and Canada 1-888-331-3383
E-mail: [email protected]
On the Web: www.motorolastore.com
Thank you for purchasing the Smart Monitoring Companion. Now you can hear
your baby sleep in the room or you can monitor your older children in their
playroom. You can install the Companion only from your iPhone®/iPad® or
Android™ devices and hear the Audio Stream from your PC or Notebook, as
well as from your iPhone®/iPad® or Android™ devices.

Welcome...
to your new Motorola Smart Monitoring Companion!
Thank you for purchasing the Smart Monitoring Companion.
Please keep your original dated sales receipt for your records. For warranty
service of your Motorola product, you will need to provide a copy of your dated
sales receipt to confirm warranty status. Registration is not required for warranty
coverage.
For product related questions, please call:
This User’s Guide has all the information you need to make the most out of your
product.
Please read the Safety Instructions on pages 5 - 6 before you install the unit.
Inside the Box
•
•
1 x Wi-Fi® Camera Unit
1 x Quick Start Guide
US and Canada 1-888-331-3383
E-mail: [email protected]
On the Web: www.motorolastore.com
Thank you for purchasing the Smart Monitoring Companion. Now you can hear
your baby sleep in the room or you can monitor your older children in their
playroom. You can install the Companion only from your iPhone®/iPad® or
Android™ devices and hear the Audio Stream from your PC or Notebook, as
well as from your iPhone®/iPad® or Android™ devices.
Important guidelines for installing your Smart Monitoring Companion Unit
•
•
Use of other 2.4 GHz products, such as other wireless networks, Bluetooth®
systems or microwave ovens may cause interference with this product. Keep
the Wi-Fi® Companion Unit away from these types of products, or turn them off
if they appear to be causing interference.
Always ensure that you have a good Wi-Fi® connection available.
Overview of the Smart Monitoring Companion
5
6
7
2
4
1
3
1. Night Light
Lights in Amber color for local.
Flashs when in pairing mode.
2. Speaker
3. Power Indicator
Lights in Green when plug the device into power socket.
4. Power Plug
5. Night Light button
Press to turn on/off the nightlight.
6. PAIR button
Press and hold for 3s to enter to pairing mode.
Press and hold for more than 20s to de-register from Smart Nursery App
and reset to factory default.
7. Volume buttonsolume buttons
Press to decrease/increase speaker volume.

4
Table of contents
1 Safety Instructions ..............................................................................................5
2 Getting Started...................................................................................................6
3Using the Smart Monitoring Companion...........................................................7
3.1 Set nightlight.................................................................................................. 7
3.2 Adjust speaker volume................................................................................... 7
4 System Requirements.........................................................................................8
5 Connecting Devices...........................................................................................9
5.1 Setup .............................................................................................................. 9
5.2 What you need............................................................................................... 9
5.3 User Account and MBP162CONNECT setup on Android™ Devices ....... 10
5.5.1 Download Smart Nursery App. .......................................................... 10
5.5.2 Smart Nursery App on Android™ Device......................................... 10
5.5.3 Add the MBP162CONNECT to your account................................... 11
5.4 User Account and MBP162CONNECT setup on iOS® Devices ............... 13
5.5.1 Download Smart Nursery App ........................................................... 13
5.5.2 Run Smart Nursery App on your iOS® Device.................................. 13
5.5.3 Add the MBP162CONNECT to your account................................... 15
Table of contents
5.5Reset the Smart Monitoring Companion .....................................................17
6Overview of Hubble App................................................................................... 18
7Disposal of the Device (Environment)............................................................ 19
8Cleaning........................................................................................................... 20
9Troubleshooting.............................................................................................. 21
10 General Information........................................................................................ 25
11 Technical Specifications................................................................................. 31

5
ENGLISH
Safety Instructions
1. Safety Instructions
WARNING:
Presence of important operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
This digital audio baby monitor is compliant with all relevant standards
regarding electromagnetic fields and is, when handled as described in the
User’s Guide, safe to use. Therefore, always read the instructions in this User’s
Guide carefully before using the device.
• The socket outlet shall be installed near the equipment and shall be easily accessible.
• Determine a location for the baby monitor that will provide the best audio reception
of your baby in his cot.
• NEVER place the baby monitor within the cot.
• Adult assembly is required. Keep small parts away from children when assembling.
• This product is not a toy. Don’t allow children to play with it.
• This baby monitor is not a substitute for responsible adult supervision.
• Keep this User’s Guide for future reference.
• Do not cover the baby monitor with a towel or blanket.
• Test this monitor and all its functions so that you are familiar with it prior to actual use.
• Do not use the baby monitor near water.
• Do not install the baby monitor near a heat source.
CAUTION
In order to reduce the risk of fire or electrical shock, do not expose the device to
water or humidity. Never disassemble the device. Opening the casing is
dangerous and will invalidate the warranty.
Main plug is used as disconnect device and it should remain readily operable
during intended use. In order to disconnect the apparatus from the mains
completely, the mains plug should be disconnected from the mains socket
outlet completely.
Presence of un-insulated "dangerous voltage" within the product’s
enclosure that may be of sufficient magnitude to constitute a risk
of electric shock to persons.

6
2. Getting Started
2.1 Connecting to the power supply
The Smart Monitoring Companion powers on automatically when it is
connected to the power supply.
1 Choose a proper location with easy access to the electrical outlet.
2. Plug the Companion Unit into the suitable power outlet in your baby’s
room.
Ensuring sufficient clearance is given for it to detect sound and no
more than 3 feet from the baby crib.
3. The Power LED lights up in Green for approximately 5 seconds.
Getting Started

7
ENGLISH
3. Using the Smart Monitoring Companion
Please read these instructions carefully, and be aware that this Companion
Unit is only intended as an aid. It is not a substitute for responsible, correct
parental supervision.
3.1 Set nightlight
The nightlight feature is for giving the room a soft glow so the baby can be
observed without disrupting it with bright lights.
1. When the nightlight is off, press to turn it on.
2. When the nightlight is on, press to turn it off.
3.2 Adjust speaker volume
There are 5 volume levels on the parent unit, including volume off.
Press
to increase or
to decrease the volume of the parent unit
respectively, the sound level will be detected on your iPhone®/iPad® or
Android™ devices that paired.
Using the Smart Monitoring Companion

8
4. System Requirements
Smartphones / Tablets: Android™ and iOS® only.
Minimum requirement: iOS 8.0, Android 5.0 or above.
For more information, please visit: https://hubbleconnected.com/
requirements
System Requirements

9
ENGLISH
5. Connecting Devices
When a user tries to access the Comanion Unit, our secure server
authenticates the user’s identity and permits access to the Camera.
5.1 Setup
Plug the Smart Monitoring Companion into an electrical outlet and the Unit
will be automatically on, make sure the Unit must be within range of the Wi-
Fi® router with which you want to connect. Make sure the password of the
router is available for entering during the in-app setup process.
5.2 What you need
• MBP162CONNECT
• DevicewithAndroid™system5.0orabove
• orAnyiOS®DevicewithiOSversion8.0orabove
Note: You can only setup via a compatible smartphone or tablet and not via a
PC.
Connecting Devices
How does it work?
Access your
Dream Machine
locally
MBP162CON
NECT
Wi-Fi Router
Receive notification from
any compatible device
remotely

10
5.3 User Account and MBP162CONNECT setup on
Android™ Devices
5.3.1 Download Smart Nursery App.
• GotoGooglePlay™StoretosearchforSmart Nursery .
• DownloadSmart Nursery App from Google Play™ Store and install it
on your Android™ device.
5.3.2 Smart Nursery App on Android™ Device.
• EnsurethatyoursmartdeviceisconnectedtoyourWi-Fi®router.
• RunSmart Nursery App, SIGN UP by entering your account
information, read through the Terms & Conditions, then select "I
agree to the Terms of Use".
(Picture A1, A2)
Note: If you already have a Smart Nursery App account, please select
Already have an Account? to go to the next steps.
Connecting Devices
A1 A2

11
ENGLISH
5.3.3 Add the MBP162CONNECT to your account
• TaponAudioMonitoringCompaniontoaddthedevice,readythrough
the features of MBP161CONNECT or tap on Skip to setup.
(Pictures A3, A4)
• PressandholdthePAIR button at the front of MBP162CONNECT, the
nightlight blinks in amber alternately indicating that the device is ready
for pairing.
• TapNext.
Connecting Devices
A3 A4
• TapthedeviceSSID ( AudioMonitor-0162XXXXXX ) to connect to the
App. (picture A6)
• TheAppwillautomaticallysearchforyourMachineasshowninthe
picture below. (picture A5)

12
• TapNexttosearchfortheWi-Firouter.(PictureA7)
Connecting Devices
A5 A6
• SelectyourWi-Fi®network,enteryourpasswordandthentapSearch.
(Picture A8)
A7 A8
• ItwilltakeafewminutesfortheMachinetoconnecttotheWi-Fi®
network.
• Ifconnectionfails,pleasetapRetryandrepeatthestepsstartingfrom
steps 5.3.3.

13
ENGLISH
5.4 User Account and MBP162CONNECT setup on
iOS® Devices
5.4.1 Download Smart Nursery App
• GotoAppStoretosearchfor"Smart Nursery" App.
• Download"Smart Nursery" App and install it on your iOS® device.
Connecting Devices
5.4.2 Run Smart Nursery App on your iOS® Device
• EnsurethatyouriOS®deviceisconnectedtoyourWi-Fi®Router.
• Runthe"Smart Nursery" App, enter your account information, read
through the Terms and Conditions, and then select "I agree to the
Terms of Use".
(Pictures i1, i2)
i1 i2
Note: If you already have a Smart Nursery App account, please select
Already have an Account? to go to the next step.

14 Connecting Devices
5.4.3 Add the MBP162CONNECT to your account
• TaponAudioMonitoringCompaniontoaddthedevice,readythrough
the features of MBP161CONNECT or tap on Skip to setup. (pictures i3,
i4)
i3 i4
• The following setup instructions will appear on the screen. (pictures i5, i6, i7)
i5 i6 i7

15
ENGLISH
Connecting Devices
• PressandholdthePAIR button at the front of MBP162CONNECT, the
nightlight blinks in amber color alternately indicating that the device
is ready for pairing.
• GotoSettings>Wi-FimenuonyouriOS®device.(Picturei8)
i9 i10i8
• SelectyourdeviceSSID( AudioMonitor-0162XXXXXX ) from the list of
networks. (Pictures i9, i10)
• ReturntotheSmartNurseryapptoresumesetup.

16 Connecting Devices
• SelectyourWi-Fi®networkandtapSearch.(picturei11)
i11 i12
• EnteryourWi-Fi®passwordandtapOK.(picturei12)
• ItwilltakeafewminutesforthedevicetoconnecttotheWi-Fi®
network before showing the connection status. (Pictures i13, i14)
i13 i14
• Ifconnectionfails,pleasetapRetryandrepeatthestepsstartingfrom
5.4.3.

17
ENGLISH
Connecting Devices
5.5 Reset the Smart Monitoring Companion
Note: If your Companion Unit is moved from one router (e.g. home)
to another (e.g. office) or you have setup issues, then the Unit must
be reset.
Press and hold PAIR button for more than 20s to enter to de-
register mode and perform factory default.
Register your device to Smart Nursery App by following the steps in
section 5.3.3 for Android TM devices or in section 5.4.3 for iOS®
devices.
•
•

18Overview of Hubble App
. Overview of Hubble App 6.
Audio Monitoring
and 2-Way
communication
mode
• Tap on the button to enter Audio
Monitoring and 2-Way Communication.
Audio Monitoring
On/Off
• Toggle the switch (in the center) to activate
Audio Monitoring On/Off.
Menu • Tap on the button to enter the following
options:
1. Triggers - to trigger the functions of
Noise Detection, Projection, Music and
Light.
2. Notifications - to send push alert of Noise
Detection, Temperature & Humidity.
You can set the Temperature Unit °C or °F,
Temperature and Relative Humidity alert
limit.
3. Settings - to review
Device name ,
Device ID , Firmware ID , Check for App
updates
, Time format (12 hrs or 24 hrs).
To set the default
Timer , to Delete Device

19
ENGLISH
Disposal of the Device (Environment)
7.Disposal of the Device (Environment)
At the end of the product life cycle, you should not dispose of
this product with normal household waste. Take this product to
a collection point for the recycling of electrical and electronic
equipment. The symbol on the product, user's guide and/or
box indicates this.
Some of the product materials can be re-used if you take them
to a recycling point. By reusing some parts or raw materials from used products
you make an important contribution to the protection of the environment.
Please contact your local authorities in case you need more information on the
collection points in your area.
Dispose of the battery pack in an environmentally-friendly manner according to
your local regulations.

20 Cleaning
8.Cleaning
Clean your Smart Monitoring Companion with a slightly damp cloth orwith ananti-
static cloth. Never use cleaning agents orabrasive solvents.
Cleaning and care
• Do not clean any part of the Smart Monitoring Companion with thinners or
other solvents and chemicals - this may cause permanent damage to the
product which is not covered by the warranty.
• Keep your Smart Monitoring Companion away from hot, humid areas or
strong sunlight, and do not let it get wet.
• Every effort has been made to ensure high standards of reliability of your
Smart Monitoring Companion. However, if something does go wrong,
please do not try to repair it yourself -contact Customer Service for
assistance.
IMPORTANT
Always switch off and disconnect the power adapter before cleaning your
Smart Monitoring Companion .
