Motorola E680 - Smartphone - GSM User manual

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EC1
INSTRUCTION MANUAL
An English version preliminary draft copy of the Users Manual follows:
EXHIBIT 8

DRAFT

DRAFT
1

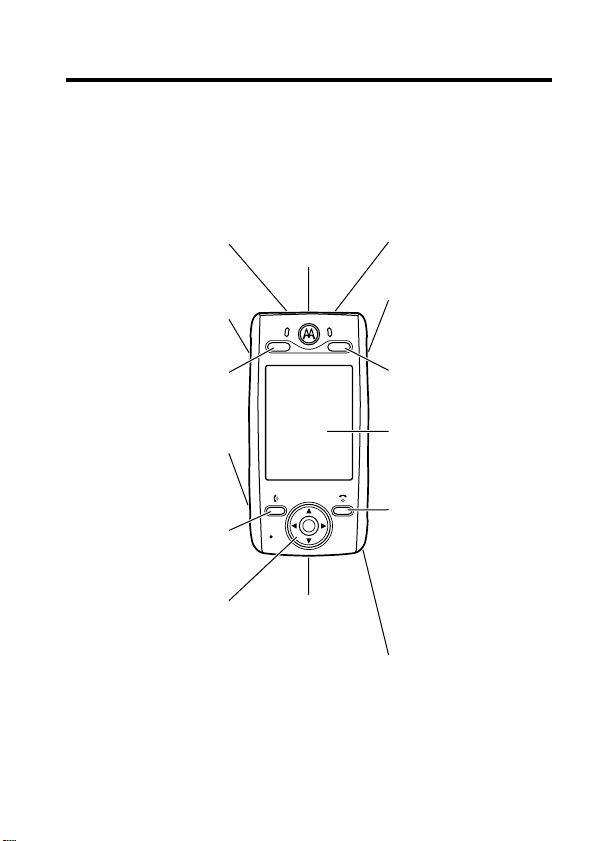

Welcome
Welcome to the world of Motorola digital wireless
communications! We are pleased that you have chosen the
Motorola E680 GSM wireless phone.
Note: Your phone may not appear exactly as shown above.
All features and functions remain the same regardless of your
phone’s appearance.
040112o
Game Card &
Memory Card
Slot
Phone Lock
Switch
Up Volume &
Right Game Key
Down Volume &
Left Game Key
4-Way Navigation
Key with Center
Select
Headset Jack
Game Key "A"
Send Key
Make & answer
calls.
Touchscreen
Display
Camera Key
Game Key "B"
Stylus
Power & End Key
Turn phone
on/off, end calls,
return to main
screen.
USB Connector

DRAFT
2

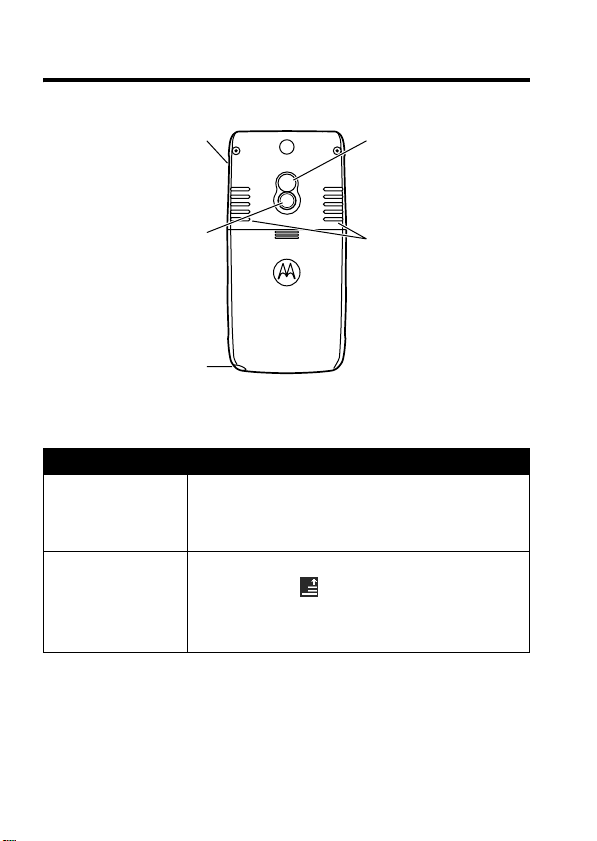

Check It Out!
Feature Description
Take Photo
Press the camera key to activate the
camera, point lens at subject, then press
the camera key to take a photo.
Record Video Press the camera key to activate the
camera. Tap , then tap
Record Video . Tap
Record to start video recording. Tap Done to
stop video recording.
041013o
Stylus
Camera Key
Activate camera
& take photos.
Mirror
Aim camera lens
for self portraits.
Camera Lens Stereo Speakers

DRAFT
3

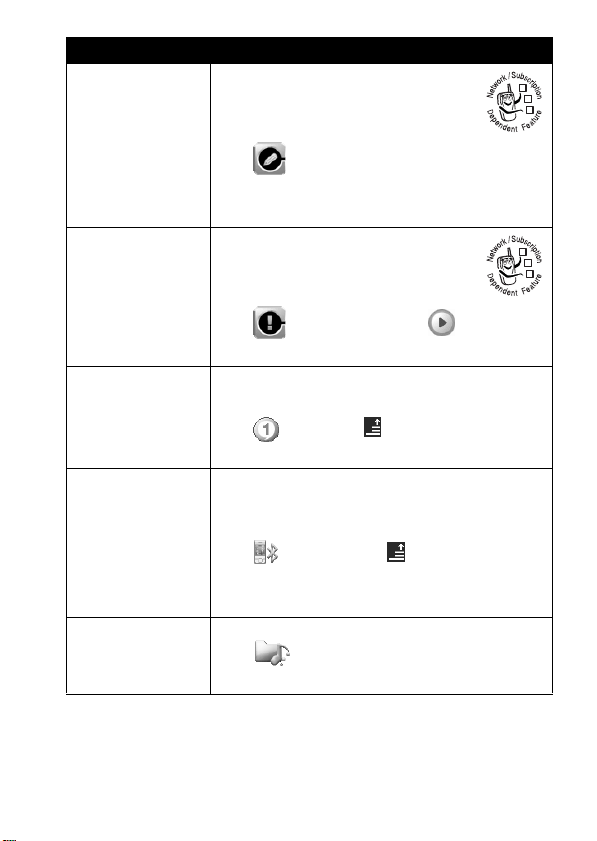

Send
Multimedia
Message
Send a multimedia message
with pictures, animations,
sounds, and videos:
Tap , then tap
Compose . Tap
the message type pull-down menu, then
tap
MMS .
Read
Multimedia
Message
Read a new multimedia
message that you have
received:
Tap , tap
Download , tap
to play.
Play Music or
Video Clip
Play a song or watch a video clip stored
on your phone:
Ta p
Media , tap , then tap Open . Tap
File , then tap filename to play.
Wireless
Connection
Set up a Bluetooth
®
wireless connection
to a headset accessory, car kit, or
external device:
Ta p
Bluetooth , tap , tap Setup . Tap
Turn On . Tap Search to locate the Bluetooth
device.
Phone Theme Apply a phone theme:
Ta p
Theme , tap and hold
theme name, tap
Set to Current .
Feature Description
032380o
032380o

DRAFT
4
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
www.motorola.com
1-800-331-6456 (United States)
1-888-390-6456 (TTY/TDD United States for hearing impaired)
1-800-461-4575 (Canada)
MOTOROLA and the Stylized M Logo are registered in the US Patent &
Trademark Office. The Bluetooth trademarks are owned by their proprietor and
used by Motorola, Inc. under license. Java and all other Java-based marks are
trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and
other countries. Microsoft, Windows, ActiveSync and Windows Media are
registered trademarks of Microsoft Corporation; and Windows XP and
Windows Mobile are trademarks of Microsoft Corporation. All other product or
service names are the property of their respective owners.
© Motorola, Inc. 2004.
Caution: Changes or modifications made in the radio phone, not expressly
approved by Motorola, will void the user’s authority to operate the equipment.
Manual number: 68XXXXXX46-O

DRAFT
5
Contents
Safety and General Information . . . . . . . . . . . . . . . . . . . . 8
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

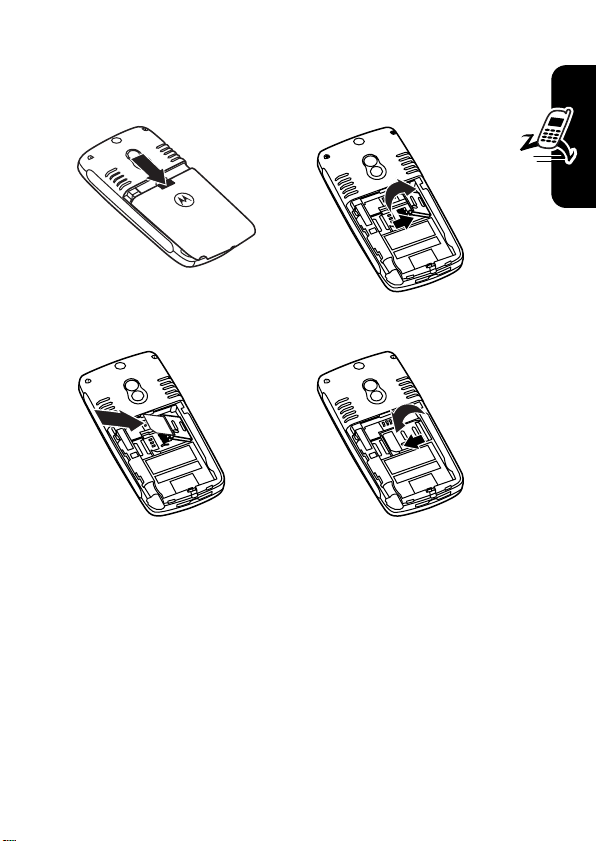

Installing the SIM Card . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Installing a Memory Card . . . . . . . . . . . . . . . . . . . . . . . . 18
Battery Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Charging the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Turning Your Phone On. . . . . . . . . . . . . . . . . . . . . . . . . . 22
Turning Your Phone Off. . . . . . . . . . . . . . . . . . . . . . . . . . 22
Adjusting Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Making a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Answering a Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Changing the Call Alert. . . . . . . . . . . . . . . . . . . . . . . . . . 24
Viewing Your Phone Number . . . . . . . . . . . . . . . . . . . . . 25
Locking and Unlocking Your Phone . . . . . . . . . . . . . . . . 25
Highlight Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Using the Camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Sending a Multimedia Message . . . . . . . . . . . . . . . . . . . 29
Receiving a Multimedia Message . . . . . . . . . . . . . . . . . . 32
Using the RealOne Media Player . . . . . . . . . . . . . . . . . . 34
Using a Bluetooth® Wireless Connection. . . . . . . . . . . . 35
Learning to Use Your Phone . . . . . . . . . . . . . . . . . . . . . . 39
Using the Touchscreen Display. . . . . . . . . . . . . . . . . . . . 39
Using the 4-Way Navigation Key. . . . . . . . . . . . . . . . . . . 42
Using the Game Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Opening Phone Features . . . . . . . . . . . . . . . . . . . . . . . . 43
Entering Text. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

DRAFT
6
Using the Handsfree Speaker . . . . . . . . . . . . . . . . . . . . 48
Changing a Code, PIN, or Password. . . . . . . . . . . . . . . 48
Locking and Unlocking Your Phone. . . . . . . . . . . . . . . . 49
If You Forget a Code, PIN, or Password . . . . . . . . . . . . 50
Using the Address Book . . . . . . . . . . . . . . . . . . . . . . . . 50
Setting Up Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Storing Your Name and Phone Number . . . . . . . . . . . . 52
Setting the Date and Time . . . . . . . . . . . . . . . . . . . . . . 53
Setting a Ring Style. . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Setting a Phone Theme . . . . . . . . . . . . . . . . . . . . . . . . 54
Setting Backlight Brightness and Duration . . . . . . . . . . 56
Conserving Battery Power . . . . . . . . . . . . . . . . . . . . . . 57
Calling Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Changing the Active Line . . . . . . . . . . . . . . . . . . . . . . . 58
Redialing a Number . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Using Automatic Redial. . . . . . . . . . . . . . . . . . . . . . . . . 59
Using Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Canceling an Incoming Call . . . . . . . . . . . . . . . . . . . . . 60
Turning Off a Call Alert . . . . . . . . . . . . . . . . . . . . . . . . . 60
Calling an Emergency Number . . . . . . . . . . . . . . . . . . . 60
Dialing International Numbers. . . . . . . . . . . . . . . . . . . . 61
Direct Dialing an Extension or Voicemail Number. . . . . 61
Dialing an Extension Number During a Call . . . . . . . . . 62
Dialing Recent Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Calling With Turbo Dial . . . . . . . . . . . . . . . . . . . . . . . . . 63
Putting a Call On Hold. . . . . . . . . . . . . . . . . . . . . . . . . . 63
Muting a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Dialing Another Number During a Call . . . . . . . . . . . . . 64
Transferring a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

DRAFT
7
Phone Features
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Calling Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Instant Messaging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Email. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Address Book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Personalizing Features . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Special Dialing Features. . . . . . . . . . . . . . . . . . . . . . . . . 75
Call Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Handsfree Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Sending and Receiving Data . . . . . . . . . . . . . . . . . . . . . 77
Network Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
File Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Voice Instruction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Personal Organizer Features . . . . . . . . . . . . . . . . . . . . . 79
Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
News and Entertainment . . . . . . . . . . . . . . . . . . . . . . . . 82
Specific Absorption Rate Data . . . . . . . . . . . . . . . . . . . . 84
Software Copyright Notice . . . . . . . . . . . . . . . . . . . . . . . 86
RF Energy Interference . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

DRAFT
8
Safety and General Information
IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION.
READ THIS INFORMATION BEFORE USING YOUR PHONE.
The information provided in this document supersedes the general safety
information in user’s guides published prior to December 1, 2002.
Exposure To Radio Frequency (RF) Energy
Your phone contains a transmitter and a receiver. When it is ON, it
receives and transmits RF energy. When you communicate with your
phone, the system handling your call controls the power level at which
your phone transmits.
Your Motorola phone is designed to comply with local regulatory
requirements in your country concerning exposure of human beings to RF
energy.
Operational Precautions
To assure optimal phone performance and make sure human exposure to
RF energy is within the guidelines set forth in the relevant standards,
always adhere to the following procedures.
External Antenna Care
Use only the supplied or Motorola-approved replacement antenna.
Unauthorized antennas, modifications, or attachments could damage the
phone.
Do NOT hold the external antenna when the phone is IN USE. Holding
the external antenna affects call quality and may cause the phone to
operate at a higher power level than needed. In addition, use of
unauthorized antennas may result in non-compliance with the local
regulatory requirements in your country.

DRAFT
9
Phone Operation
When placing or receiving a phone call, hold your phone as you would a
wireline telephone.
Body-Worn Operation
To maintain compliance with RF energy exposure guidelines, if you wear a
phone on your body when transmitting, always place the phone in a
Motorola-supplied or approved clip, holder, holster, case, or body harness
for this phone, if available. Use of accessories not approved by Motorola
may exceed RF energy exposure guidelines. If you do not use one of the
body-worn accessories approved or supplied by Motorola, and are not
using the phone held in the normal use position, ensure the phone and its
antenna are at least 1 inch (2.5 centimeters) from your body when
transmitting.
Data Operation
When using any data feature of the phone, with or without an accessory
cable, position the phone and its antenna at least 1 inch (2.5 centimeters)
from your body.
Approved Accessories
Use of accessories not approved by Motorola, including but not limited to
batteries and antennas, may cause your phone to exceed RF energy
exposure guidelines. For a list of approved Motorola accessories, visit our
website at
www.Motorola.com .
RF Energy Interference/Compatibility
Note: Nearly every electronic device is susceptible to RF energy
interference from external sources if inadequately shielded, designed, or
otherwise configured for RF energy compatibility. In some circumstances
your phone may cause interference.

DRAFT
10
Facilities
Turn off your phone in any facility where posted notices instruct you to do
so. These facilities may include hospitals or health care facilities that may
be using equipment that is sensitive to external RF energy.
Aircraft
When instructed to do so, turn off your phone when on board an aircraft.
Any use of a phone must be in accordance with applicable regulations per
airline crew instructions.
Medical Devices
Pacemakers
Pacemaker manufacturers recommend that a minimum separation of
6 inches (15 centimeters) be maintained between a handheld wireless
phone and a pacemaker.
Persons with pacemakers should:
• ALWAYS keep the phone more than 6 inches (15 centimeters) from
your pacemaker when the phone is turned ON.
• NOT carry the phone in the breast pocket.
• Use the ear opposite the pacemaker to minimize the potential for
interference.
• Turn OFF the phone immediately if you have any reason to suspect
that interference is taking place.
Hearing Aids
Some digital wireless phones may interfere with some hearing aids. In the
event of such interference, you may want to consult your hearing aid
manufacturer to discuss alternatives.
Other Medical Devices
If you use any other personal medical device, consult the manufacturer of
your device to determine if it is adequately shielded from RF energy. Your
physician may be able to assist you in obtaining this information.

DRAFT
11
Use While Driving
Check the laws and regulations on the use of phones in the area where
you drive. Always obey them.
When using your phone while driving, please:
• Give full attention to driving and to the road.
• Use handsfree operation, if available.
• Pull off the road and park before making or answering a call if driving
conditions so require.
Responsible driving best practices may be found in the “Wireless Phone
Safety Tips” at the end of this manual and at the Motorola website:
www.Motorola.com/callsmart .
Operational Warnings
For Vehicles With an Air Bag
Do not place a phone in the area over an air bag or in the air bag
deployment area. Air bags inflate with great force. If a phone is placed in
the air bag deployment area and the air bag inflates, the phone may be
propelled with great force and cause serious injury to occupants of the
vehicle.
Potentially Explosive Atmospheres
Turn off your phone prior to entering any area with a potentially explosive
atmosphere. Do not remove, install, or charge batteries in such areas.
Sparks in a potentially explosive atmosphere can cause an explosion or
fire resulting in bodily injury or even death.
Note: The areas with potentially explosive atmospheres referred to above
include fueling areas such as below decks on boats, fuel or chemical
transfer or storage facilities, areas where the air contains chemicals or
particles, such as grain, dust, or metal powders. Areas with potentially
explosive atmospheres are often but not always posted.

DRAFT
12
Blasting Caps and Areas
To avoid possible interference with blasting operations, turn OFF your
phone when you are near electrical blasting caps, in a blasting area, or in
areas posted “Turn off electronic devices.” Obey all signs and instructions.
Batteries
Batteries can cause property damage and/or bodily injury such as burns if
a conductive material such as jewelry, keys, or beaded chains touch
exposed terminals. The conductive material may complete an electrical
circuit (short circuit) and become quite hot. Exercise care in handling any
charged battery, particularly when placing it inside a pocket, purse, or
other container with metal objects.
Use only Motorola original batteries
and chargers.

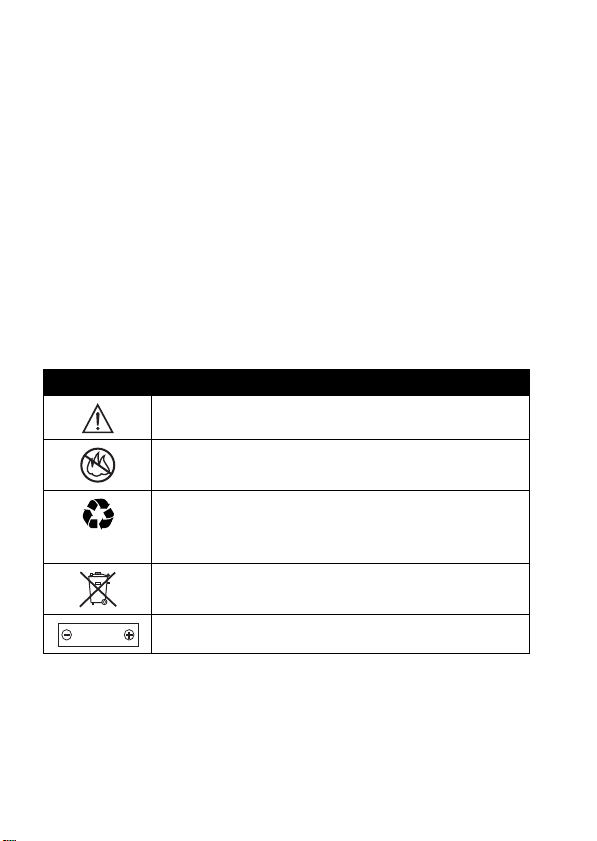

Your battery or phone may contain symbols, defined as follows:
Seizures/Blackouts
Some people may be susceptible to epileptic seizures or blackouts when
exposed to flashing lights, such as when watching television or playing
Symbol Definition
Important safety information will follow.
Your battery or phone should not be disposed of in a
fire.
Your battery or phone may require recycling in
accordance with local laws. Contact your local
regulatory authorities for more information.
Your battery or phone should not be thrown in the
trash.
Your phone contains an internal lithium ion battery.
LiIon BATT

DRAFT
13
video games. These seizures or blackouts may occur even if a person
never had a previous seizure or blackout.
If you have experienced seizures or blackouts, or if you have a family
history of such occurrences, please consult with your doctor before
playing video games on your phone or enabling a flashing-lights feature
on your phone. (The flashing-light feature is not available on all products.)
Parents should monitor their children's use of video game or other
features that incorporate flashing lights on the phones. All persons should
discontinue use and consult a doctor if any of the following symptoms
occur: convulsion, eye or muscle twitching, loss of awareness, involuntary
movements, or disorientation.
To limit the likelihood of such symptoms, please take the following safety
precautions:
• Do not play or use a flashing-lights feature if you are tired or need
sleep.
• Take a minimum of a 15-minute break hourly.
• Play in a room in which all lights are on.
• Play at the farthest distance possible from the screen.
Repetitive Motion Injuries
When you play games on your phone, you may experience occasional
discomfort in your hands, arms, shoulders, neck, or other parts of your
body. Follow these instructions to avoid problems such as tendonitis,
carpal tunnel syndrome, or other musculoskeletal disorders:
• Take a minimum 15-minute break every hour of game playing.
• If your hands, wrists, or arms become tired or sore while playing,
stop and rest for several hours before playing again.
• If you continue to have sore hands, wrists, or arms during or after
play, stop playing and see a doctor.

DRAFT
14
European Union Directives Conformance
Statement
Hereby, Motorola declares that this product is in compliance
with
• The essential requirements and other relevant provisions of
Directive 1999/5/EC
• All other relevant EU Directives
The above gives an example of a typical Product Approval Number.
You can view your product’s Declaration of Conformity (DoC) to Directive
1999/5/EC (the R&TTE Directive) at
www.motorola.com/rtte - to
find your DoC, enter the product Approval Number from your product’s
label in the “Search” bar on the Web site.
IMEI: 350034/40/394721/9
0168
Type: MC2-41H14
Product
Approval
Number

DRAFT
15
Getting Started
Getting Started
About This Guide
This guide describes the basic features of your Motorola
wireless phone.
To obtain the More Here guide for your phone, or another
copy of this guide, see the Motorola Web site at:
http://motorola.com/consumer/manuals (U.S.A.)
http://motorola.ca/consumer (Canada)
or contact the Motorola Customer Call Center at
1-800-331-6456 (U.S.A.) or 1-800-461-4575 (Canada).
Optional Features
This label identifies an optional network, SIM
card, or subscription-dependent feature that may
CAUTION: Before using the phone for the
first time, read the
Important Safety and
Legal Information
included in the
gray-edged pages at the back of this guide.
032259o
Note: A More Here reference guide for your
phone is also available that describes your
phone’s features in more detail.
032380o

DRAFT
16
Getting Started
not be offered by all service providers in all geographical
areas. Contact your service provider for more information.
Optional Accessories
This label identifies a feature that requires an
optional Motorola Original™ accessory.
Installing the SIM Card
Yo u r Subscriber Identity Module (SIM) card contains your
phone number, service details, address book, and
messages.

DRAFT
17
Getting Started
Caution: Do not bend or scratch your SIM card. Avoid
exposing your SIM card to static electricity, water, or dirt.
1. 2.
3. 4.

DRAFT
18
Getting Started
Installing a Memory Card
You can insert a Secure Digital (SD) memory
card or MultiMedia Card (MMC) memory card
into the game card slot on your phone, and
use the memory card to store and retrieve
multimedia objects (such as photos, videos, and MP3
music files).
Note: Due to a known Microsoft ® Windows ® USB driver
issue, a computer running Windows 2000 with Service
Pack 1 or Service Pack 2 will not recognize a memory card
inserted into your phone when you attempt to transfer or
synchronize data between your phone and computer
through a USB cable connection.
Battery Use
Battery performance depends on many factors, including
your wireless carrier’s network configuration; signal
strength; the temperature at which you operate your
phone; the features and/or settings you select and use;
accessory items attached to the phone; and your voice,
data, and other application usage patterns.
Caution: To prevent injuries or burns, do not allow metal
objects to contact or short-circuit the battery terminals.
To maximize your battery’s performance:
• Always use Motorola Original batteries and battery
chargers. The phone warranty does not cover damage
caused from using non-Motorola batteries and/or
battery chargers.
