Car Phone Installation Guide
Product parts
Head Control unit
Swivel
Holder
GPS Antenna
(M800 only)
Speaker
Power Cable
AUX +12V GND MUTE IGN
2A Fuses
Antenna
(Optional)
Microphone
Octopus Control
Cable
Privacy
Handset +
Holder
(Optional)
M930.IG.book Page 1 Wednesday, March 7, 2007 2:00 PM

Motorola Propietary
2
GB
Head control unit
When installing the fixed mobile car phone avoid positioning the head control unit where
it may disrupt the proper operation of the vehicle and/or its components, such as car
stereo, air bags, cubbyhole, glove compartments, ashtray, lighter, gear stick, hand brake,
etc....
Attach the car phone to a stable surface, in a position that is safe and convenient for the
driver to use.
Special warning: Do not position the head control unit in front of the air bag or where it
may impair air bag performance, as the air bag might inflate in an accident and cause
damage.
Verify that the control unit does not face the sun or source of humidity, such as air
conditioner vents.
When the phone is powered off insert the SIM into socket at the right side of the phone
(M900, M930 only).
Swivel Holder
M930.IG.book Page 2 Wednesday, March 7, 2007 2:00 PM

Motorola Propietary
3
GB
Microphone
Install the microphone at a distance of no more
than 30 cm (12 inch) away from the driver’s
mouth, ideally on the upper right hand side of the
sun visor and away from any noise source such as
windscreens, window, fan/air conditioner, car
stereo etc.
Make sure the microphone is at a distance of at
least 1.5 m (4.9 ft) from the speaker and is not
directed towards the speaker.
Make sure that the microphone is correctly
positioned. See picture below for microphone
position.
Do not thread the microphone cable close to antenna cable, to avoid audio interference.
Plug the microphone cable into the compatible connection in the octopus control cable.
Important: Make sure that the microphone cable does not come in contact and does not
interfere with the steering wheel and/or the pedals of the vehicle.
Attention! The speaker and microphone (which is fitted on the sun visor above the driver)
should be pointed towards
opposite directions to avoid echo.

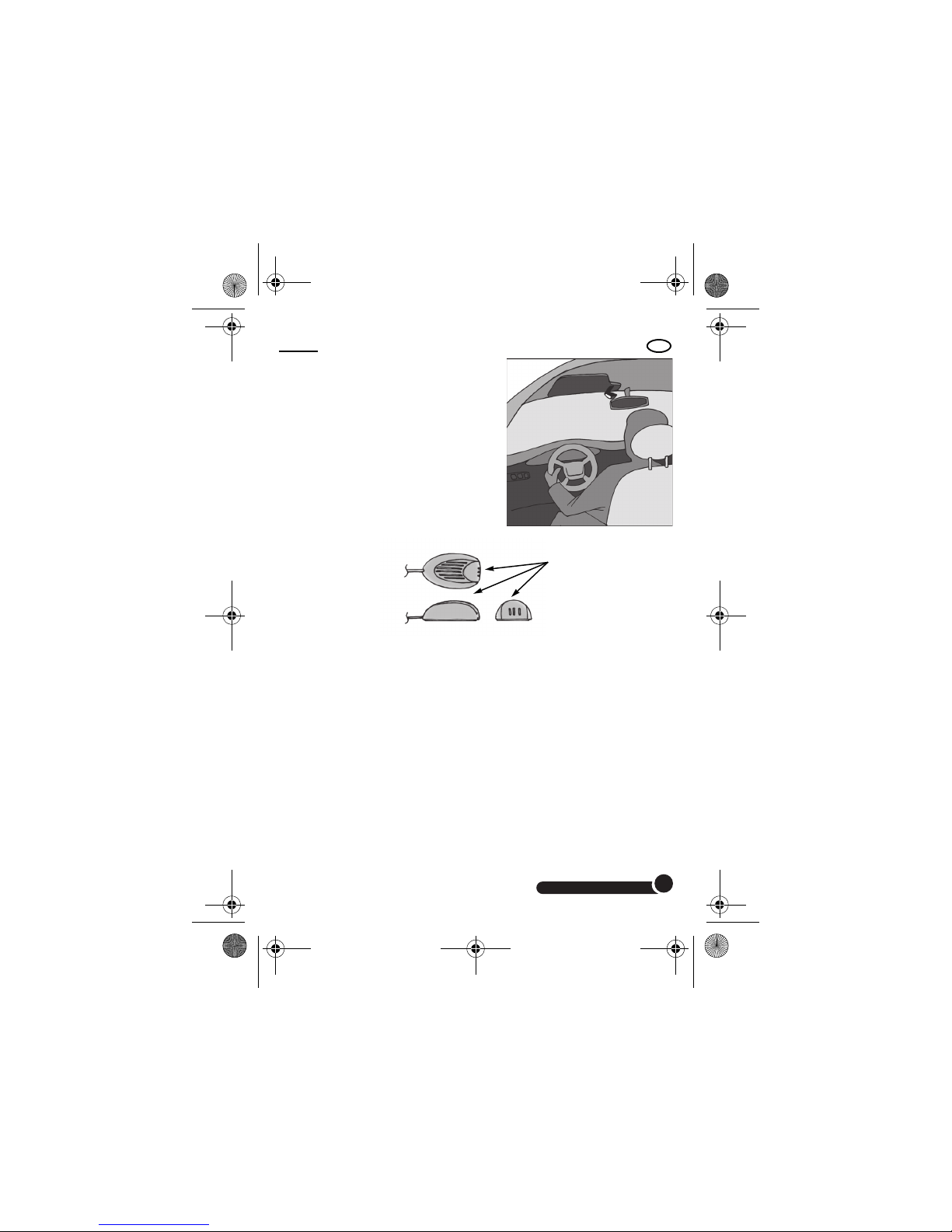

Microphone location
Slot towards the driver
M930.IG.book Page 3 Wednesday, March 7, 2007 2:00 PM

Motorola Propietary
4
GB
Speaker
Install the speaker on the side of the central console, ideally alongside the legs of the
passenger sitting beside the driver, as far as possible from the microphone.
Thread the speaker cable under the carpet along the floor of the vehicle.
Plug the speaker cable into the compatible connection in the octopus control cable.
Verfiy that the cable does not interfere with the proper operation of the vehicle and/or its
componets.
Do not conceal the speaker behind any obstacle such as dashboard, glove compartment,
carpet or any other barrier which will result in bad audio quality.
Attention! The speaker and microphone (which is fitted on the sun visor above the driver)
should be pointed towards
opposite directions to avoid echo, speaker slots should be
pointed towards passenger door.
speaker location
M930.IG.book Page 4 Wednesday, March 7, 2007 2:00 PM

Motorola Propietary
5
GB
RF Antenna

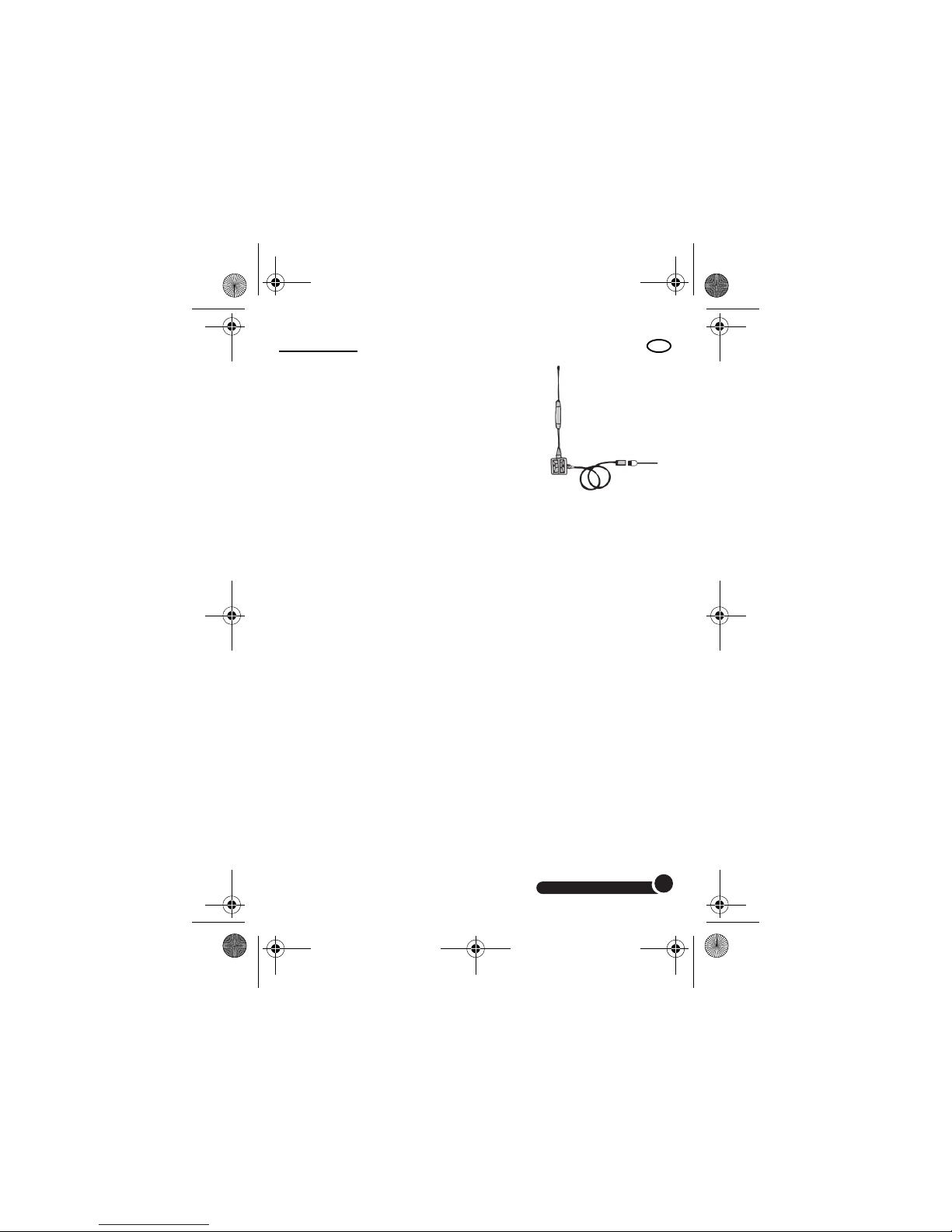

On-glass antenna specifications
M900, M930 (GSM):
Frequency band: 900+1800MHz (850+ 1900MHz)
VSWR:Tx<=1.5:1 ; Rx <=2:1
Gain: 3dBi @ 900MHz & 2dBi @ 1800MHz (3dBi @
850MHz & 2dBi @ 1900MHz)
Recommended antenna:
(1) 900/1800MHz, GDE-5M, Mfr. Panorama
Antenna, UK
(2) 850/1900MHz. APDM928M, Mfr. PC-TEL
Antenna Product USA, Part Number Z2307
M800 (CDMA):
Frequency band: 800+1900MHz
VSWR:Tx<=1.5:1; Rx <=2:1
Gain: 3dBi @ 850 MHz & 2dBi @ 1900MHz
Recommended antenna:
(1) 850/1900MHz, APDM928M, Mfr. PCTEL Antenna Product USA
Additional Information
RF Cable: RG58U, PVC coated / polyethylene dialeptic cable, length 5M
RF Connector: M800, M900 (900/1800), M930 (900/1800): Mini UHF Male
M900 (850/1900), M930 (850/1900): SMA Male
Radiator and Foot cover:The following environmental parameters are mandatory:
Operating temperature: -30°C to +85°C
Heat and UV stabilised
Flammability UL94V0
Adhesive pads: Operating temperature: -40°C to +90°C and bond not effected by
moisture.
Attention! Ensure the antenna is located at least 20 cm from driver or passengers.
M930.IG.book Page 5 Wednesday, March 7, 2007 2:00 PM

Motorola Propietary
6
GB
Antenna Installation

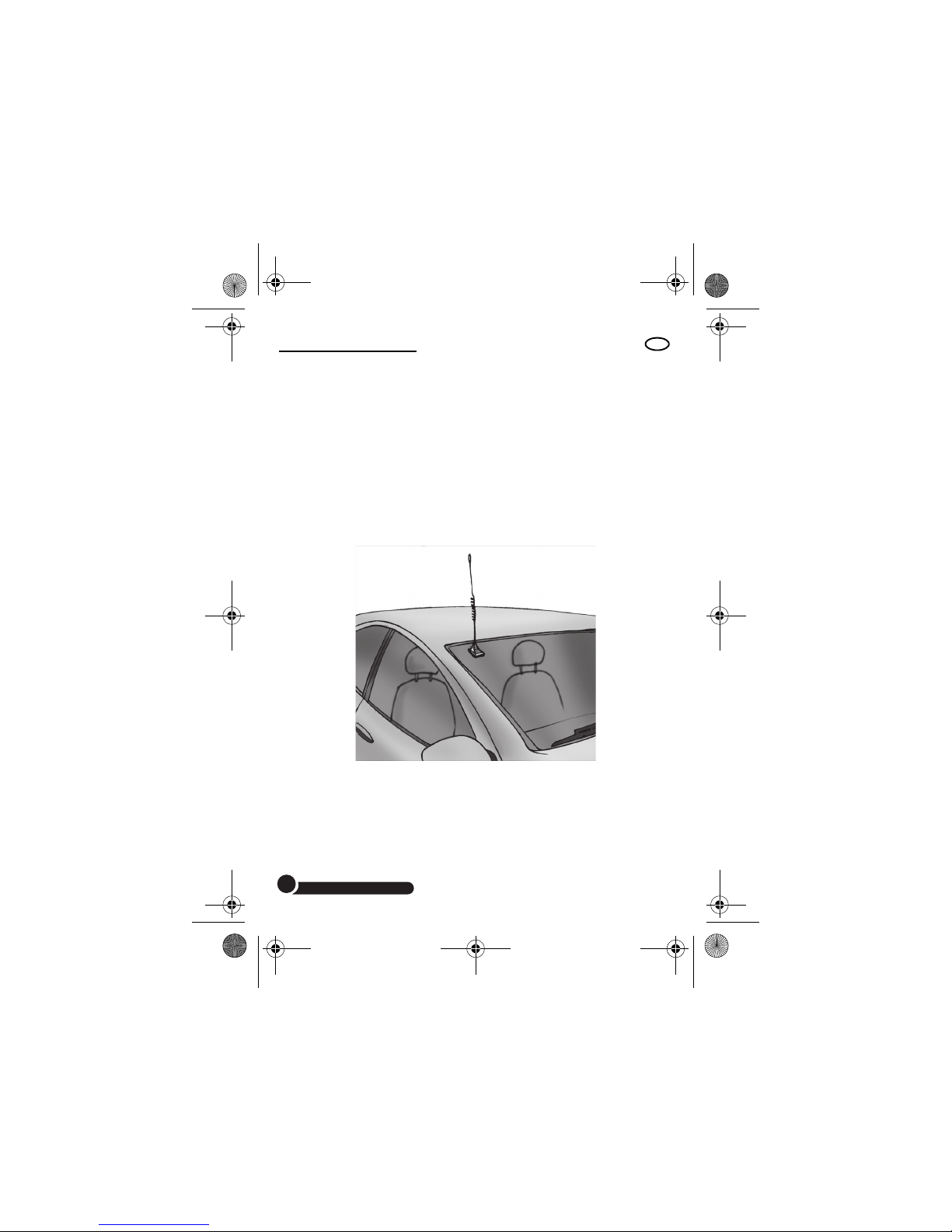

The preferred position for the antenna is on the upper right side of the windshield
Should another cellular device already be installed in the vehicle, the antennas should be
located at a distance of at least 30 cm (1ft) from each other.
Remember: In certain car models (such as “Renault Megane” and “Renault Kangoo”), the
anterior windshield has a radiation filter, and therefore it is necessary to paste the antenna
in the side or rear windshield only.
Remember: Do not thread the antenna cable close to the microphone cable to avoid
audio interference.
Use original antenna plug and clamping tools only.
Test antenna and cable performance using a VSWR meter.
Note: In certain M800 models there is a GPS connection to be used with 4V external
active GPS antenna for navigation services
M930.IG.book Page 6 Wednesday, March 7, 2007 2:00 PM

Motorola Propietary
7
GB
Cable connections
Power
Connect the RED wire to a positive (+) 12V pole for steady power supply. Ensure the use
of a 2A/250V fuse.
Ground
Connect the BLACK wire to a negative pole (-) in the vehicle body. Ensure the use of a 2A/
250V fuse.
Ignition
Connect the GREEN wire to car IGN voltage and check the appropriate voltage using
voltmeter. This connection switches the phone on when turning the ignition on and it
switches the phone off when turning the ignition off. Ensure the use of a 2A/250V fuse.
Entertainment Mute
Connect the ORANGE wire to the car stereo system entertainment mute connection to
mute the stereo system when receiving or dialling a call.
*Ent. Mute is an optional feature
Auxiliary alert
Connect the WHITE wire to the car's horn and/or to the car's light connection to turn on
the lights and/or to activate the horn when receiving a call.
*Aux. Alert is an optional feature
*Certain M800 models have a 3-wire connection, without Auxiliary alert and enterainment mute wires.
M930.IG.book Page 7 Wednesday, March 7, 2007 2:00 PM

Motorola Propietary
8
GB
Cable connections (continue)
Entertainment Mute & Auxiliary Alert - open collector connections
M800/M900/M930
Command signal
12V
Relay Common
Normally
Close
Normally
Open
Connect to white wire (for Aux.
Alert) or to orange wire (for
Ent. Mute)
AUX +12V GND MUTE IGN
2A Fuses
M930.IG.book Page 8 Wednesday, March 7, 2007 2:00 PM

Motorola Propietary
9
GB
Heavy vehicles with 24v
When installing the Fixed Mobile Car Phone in trucks or in any other heavy vehicle with 24
volt battery, connect the RED wire via 24VDC to 12VDC (50W) voltage converter.
The Ignition line (GREEN) in M900 & M930 can be connected directly to the truck ignition
switch (24V) and in M800
must be connected to 12V only.
Data connection/maintenance cable
The Data connection wire in M800 and the mini USB connection in M900 & M930 enable
using the fixed mobile car phone as a modem or to synchronise data with external
computers using Motorola MPT program.
The data connections also enable authorised technicians to maintain the fixed mobile car
phone for technical service purposes (Software programming).
Mini USB
Connection
(M900 & M930
only)
Octopus control
cable
Data cable
M930.IG.book Page 9 Wednesday, March 7, 2007 2:00 PM

Motorola Propietary
10
GB
Connections summary
Wire colour Function Connect to... Ensure...
RED To supply steady (+)
power source. 12V steady power.
An additional fuse is
supplied that must be
connected to the
positive (+) pole.
The use of a 2A/250V
fuse.
BLACK To supply steady (-)
power source. Vehicle body That the contact point is only connected to
the vehicle body.
GREEN To switch the phone
on when the car
ignition is turned on,
and off when the car
ignition is turned off.
IGN voltage The appropriate
voltage using
voltmeter. Ensure the
use of a 2A/250V fuse.
ORANGE To mute the car stereo
system when
receiving or dialling a
call.
Car stereo system
Entertainment Mute
connection (optional)
That the connection
between the Fixed
Mobile Car Phone and
car stereo system
should be done by an
authorised installer
only, sink shoud be up
to 150mA.
WHITE To operate car lights/
horn to indicate
incoming call.
Car lights/horn
connections (optional) That the connection between the Fixed
Mobile Car Phone and
the car lights/horn
should be done by an
authorised installer
only, sink shoud be up
to 300mA.
M930.IG.book Page 10 Wednesday, March 7, 2007 2:00 PM

Motorola Propietary
11
GB
Privacy Handset/Headset
Mount the privacy handset using the plastic base and connect the handset jack to the
socket at the bottom of the main control unit.
Attach the privacy handset cable to the head control unit's holder using plastic strip.
Handset
base Handset base mount
Unit Holder
Plastic Strip
Verify that the
cable is not tight
M930.IG.book Page 11 Wednesday, March 7, 2007 2:00 PM

Motorola Propietary
12
GB
Special functions
Smart Key
The Smart Key is the blue illuminated key on the top side of the main control unit. This
special button, designed as a mouse key is a multiple operations button which enables
the user to voice activate Name & Number dialling, notice incoming calls, record voice
memos and end or receive phone calls by clicking on the button once.
Volume keys
The volume keys, located on the left hand side of the main control unit enable the users to
adjust audio volume during a call and to adjust the ringer volume during stand by. While
installing the phone in the vehicle don't place the main control unit close to the car
dashboard or to any other component that might interrupt with the volume keys
operation.
Soft keys and shortcuts
The two soft keys located on the lower part of the phone display enable users to
customise their phone and set useful menus for their convenience and intuitive location
on their phone display.
The navigation key enables the users to launch pre-defined menus (phone book, browser,
volume level setup) in a very quick and intuitive way instead of entering the phone
menus. The navigation key setup may vary from model to model.
Smart key
Soft keys
Navigation key
Volume keys
M930.IG.book Page 12 Wednesday, March 7, 2007 2:00 PM

Propriété Motorola
1
F
Guide d’installation du téléphone de véhicule
Composants
Téléphone (unité de
commande principale)
Support
Antenne GPS (M800
uniquement)
Haut-parleur
Câble d’alimentation
AUX +12V GND MUTE IGN
Fusibles 2A
Antenne (en
option)
Micro
Câble de commande
multiple
Support +
combiné
additionnel (en
option)
M930.IG.book Page 1 Wednesday, March 7, 2007 2:00 PM

Propriété Motorola
2
F
Téléphone (unité de
commande principale)
Pour l’installation de ce type d’appareil, évitez de placer le téléphone là où il pourrait
gêner le fonctionnement du véhicule et/ou de ses composants, comme la stéréo du
véhicule, les airbags, le vide-poches, la boîte à gants, le cendrier, l'allume-cigare, le levier
de vitesse, le frein à main, etc ...
Fixez le téléphone sur une surface stable, dans une position fiable et pratique pour le
conducteur.
Avertissement particulier : N’installez pas le téléphone à l’avant de l'airbag ou dans tout
endroit susceptible de bloquer le fonctionnement approprié de celui-ci. En cas d’accident,
il peut se gonfler ce qui provoquerait des dommages.
S'assurez que le téléphone (unité de commande) ne soit pas face au soleil ou à toute
source d’humidité, comme les sorties d'air de climatisation.
Avec le téléphone éteint, insérez la carte SIM dans son logement sur le côté droit du
téléphone (M900, M930 uniquement).
Support
M930.IG.book Page 2 Wednesday, March 7, 2007 2:00 PM

Propriété Motorola
3
F
Micro
Installez le micro à moins de 30 cm de la bouche
du conducteur, l’idéal étant le côté droit supérieur
du pare-soleil et dans un endroit éloigné des
sources de bruit comme le pare-brise, les glaces,
le ventilateur/climatiseur, la stéréo du véhicule, etc
…
Assurez-vous que le micro est au moins à 1,5 m du
haut-parleur et n’est pas dirigé vers le haut-parleur.
Assurez-vous que le micro est correctement
installé. Voir l’illustration ci-dessous pour
l’installation du micro.
Ne placez pas le câble du micro près du câble de l’antenne, ceci afin d’éviter les parasites.
Branchez le câble du micro dans le connecteur approprié du câble de commande
multiple.
Important : assurez-vous que le câble du micro ne touche pas et ne gêne pas le volant et/
ou les pédales du véhicule.
Attention ! le haut-parleur et le micro (installé sur le pare-soleil au-dessus du conducteur)
doivent être orientés
à l’opposé l’un de l’autre pour éviter un écho.
Emplacement du micro
Fentes vers le
conducteur
M930.IG.book Page 3 Wednesday, March 7, 2007 2:00 PM

Propriété Motorola
4
F
Haut-parleur
Installez le haut-parleur sur le côté de la console centrale, l'idéal étant le long des jambes
du passager assis derrière le conducteur, et le plus loin possible du micro.
Passez le câble du haut-parleur sous le tapis le long du plancher du véhicule.
Branchez le câble du haut-parleur dans le connecteur approprié du câble de commande
multiple.
Assurez-vous que le câble ne gêne pas le fonctionnement du véhicule et/ou de ses
composants.
Ne dissimulez pas le haut-parleur derrière un obstacle comme le tableau de bord, la boîte
à gants, le tapis, etc. qui pourraient avoir des conséquences négatives sur la qualité du
son.
Attention ! le haut-parleur et le micro (installé sur le pare-soleil au-dessus du conducteur)
doivent être orientés
à l’opposé l’un de l’autre pour éviter un écho, les fentes du haut-
parleur doivent être orientées vers la porte du passager.
Emplacement du haut-parleur
M930.IG.book Page 4 Wednesday, March 7, 2007 2:00 PM

Propriété Motorola
5
F
Antenne RF
Caractéristiques de l’antenne montée sur
glace
M900, M930 (GSM) :
Bande de fréquence : 900+1800MHz (850+ 1900MHz)
VSWR :Tx<=1.5:1 ; Rx <=2:1
Gain : 3dBi @ 900MHz & 2dBi @ 1800MHz (3dBi @
850MHz & 2dBi @ 1900MHz)
Antenne recommandée :
(1) 900/1800MHz, GDE-5M, Mfr. Antenne Panorama, UK
(2) 850/1900MHz. APDM928M, Mfr. PC-TEL
Antenne, production États-Unis, Numéro de pièce Z2307
M800 (CDMA) :
Bande de fréquence : 800+1900MHz
VSWR :Tx<=1.5:1 ; Rx <=2:1
Gain : 3dBi @ 850 MHz & 2dBi @ 1900MHz
Antenne recommandée :
(1) 850/1900MHz, APDM928M, Mfr. PCTEL Antenne, production États-Unis
Détails supplémentaires
Câble RF : RG58U, câble enduit PVC / polyéthylène, longueur 5 m
Connecteur RF :M800, M900 (900/1800), M930 (900/1800) : Mini UHF Mâle
M900 (850/1900), M930 (850/1900) : mâle SMA
Radiateur et couvre-pieds :les paramètres suivant concernant le milieu sont obligatoires :
Température de fonctionnement de -30 °C à +85 °C
Stabilité aux UV et à la chaleur
Inflammabilité UL94V0
Tampons adhésifs : température de fonctionnement : de -40 °C à +90 °C et résistance à
l’humidité.
Attention ! Assurez-vous que l’antenne se trouve à au moins 20 cm du conducteur et des
passagers.
M930.IG.book Page 5 Wednesday, March 7, 2007 2:00 PM

Propriété Motorola
6
F
Installation de l’antenne
L’endroit idéal pour installer l’antenne se trouve sur le côté droit supérieur du pare-brise
Si un autre périphérique cellulaire est déjà installé dans le véhicule, les antennes doivent
être espacées d’au moins 30 cm l’une de l’autre.
Rappel : sur certains modèles de véhicule (comme « Renault Megane » et « Renault
Kangoo »), le pare-brise avant a un filtre anti-rayonnement. Il faut donc coller l’antenne
sur le côté ou sur le pare-brise arrière.
Rappel : Ne placez pas le câble de l’antenne près du câble du micro, ceci afin d’éviter les
parasites.
N’utilisez que les outils de serrage et la prise d’antenne d’origine.
Testez le câble et l’antenne avec un appareil de mesure VSWR.
Remarque : certains modèles M800 ont une connexion GPS qui est utilisée avec une
antenne GPS active externe 4V pour les options de navigation.
M930.IG.book Page 6 Wednesday, March 7, 2007 2:00 PM
