Getting Started Guide
MOTOTM W845

1
congratulations!
Congratulations on your new MOTO ™ W845 CDMA
wireless phone! Its rugged, sporty design fits your
energetic lifestyle.
Take pictures and video in a snap with the 1.3 megapixel
camera with 4x digital zoom. Listen to your favorite
music with the digital music player, and watch your
music come to life with stunning visual effects.
We’ve crammed all of the main features of your phone
into this handy guide, and in a matter of minutes we’ll
show you just how easy your phone is to use. So go on,
check it out, and put your phone to work.
more information
To learn even more about your phone and accessories,
go to
www.motorola.com/support .
Caution: Before using your phone for the first time,
please read the important
Safety & Legal information
at the back of this guide (page 63).

2
this guide
symbols in this guide
This means a feature is network, SIM card, or
subscription dependent and may not be
available in all areas. Contact your service
provider for more information.
This means a feature requires an optional
accessory.

3
contents
your phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
settings menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
let’s go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
basics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
home screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
push to talk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
phonebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
text entry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
tips & tricks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
personalize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Web . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Bluetooth® wireless. . . . . . . . . . . . . . . . . . . . . . . . . 50
cable connections. . . . . . . . . . . . . . . . . . . . . . . . . . . 53
memory card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

4
tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
service & repairs. . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Legal & Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

your phone
5
your phone
the important keys & connectors
– Power/
End Key
Turn on/off, hang
up, exit menus.
s Center Key
Open menu & select.
Right Soft Key
2.5 mm Headset
Jack
Voice Key
| Clear/
Back Key
Speaker Key
Volume Keys
Send Key
¯
Make & answer
calls.
Navigation Key S
Scroll up/down/left/right.
Left Soft Key
Push To Talk Key
CameraKey
e
Micro USB
Connector
Charge & connect
to PC.

main menu
6
mai n menu
L Phonebook
•New
• Contact List
• Groups
• Speed Dial
j Multimedia
• Music & Sounds
•Camera
• Pictures
• Camcorder
• Videos
•StorageDevice
u Settings
• (see next page)
@metro
ô MetroWEB
g Messaging
• Inbox
• Create Message
• Conversations
•Email
•IM
•Voicemail
•Outbox
•Drafts
m Tools
• Voice Commands
• Datebook
•AlarmClock
• World Clock
• Calculators
•Notepad
•Stopwatch
Û Phone Info
• My Number
•SW/HWVersion
• Icon Glossary
q Recent Calls
• Received Calls
• Missed Calls
• Dialed Calls
• All Calls
•Timers
G Datebook
— Music Player
à Ringtones
This is the standard main menu layout.
Your phone’s menu may be different.

settings menu
7
setting s menu
• Sounds
• Call Ringtone
• Message Ringtone
• Voicemail Ringtone
•Ring&Vibrate
• Alert Reminders
• Service Alerts
•PowerOn/Off
• Voice Readout
• Keypad Volume
• Volume Sidekeys
•Display
• Banner
• Backlight
• Brightness
• Wallpaper
•Skins
•ClockFormat
• Phone
• Airplane Mode
• Shortcuts
• Widgets *
• Language
• Location
• Security
• Network Selection
• ActiveLine*
•TextLearning
•Call
• Answer Options
• Auto Retry
• TTY Setup
• One Touch Dial
• Int’l Dialing
• DTMF Tones
• Hearing Aid
• Bluetooth
•AddNewDevice
•USB
•MassStorage
• Modem/COM
• Storage Device
• Save Options **
• Phone Memory
•MemoryCard**
• Phone Info
* Optional and/or network dependent
feature. Not available in all areas.
** Available only when optional microSD
memory card is installed.

let’s go
8
let’s go
let’s get you up & running
Caution: See Battery Use & Safety (page 63).
1 unlock cover: 2 cover off:
3 microSD: 4 battery:
5 cover on & lock: 6 charge:
4H

basics
9
basic s
here’s a few essentials
turn it on & off
Press and hold – for a few
seconds or until the screen lights
up.
make & answer
calls
To make a call , enter a phone
number and press
¯ .
To
answer a call when your
phone rings and/or vibrates, just
open the flip or press
¯ .
During a call, you can press
Mute , Spkr On , or press Options to
select other in-call options (page 14).
end a call
To hang up , close the flip or
press
– .

basics
10
menu navigation
Press the center key s to open
the main menu.
Press the navigation key
S up,
down, left, or right to highlight a
menu option.
Press
s to select the highlighted
option.
If necessary, press
– to return
to the home screen.

basics
11
store contacts
1 Enter a phone number in the home screen.
2 Press Save .
3 Highlight Create New Contact , and press s .
4 Set the number type ( Mobile 1 , Mobile 2 , Home , Work , or
Fax ), and press s .
5 Enter contact details, and press Save .
call or text contacts
Find it: s > LPhonebook > Contact List
1 Highlight the contact.
Shortcut: To jump to a contact, enter the first few
letters of the name.
If a contact has more than one number, scroll left or
right to choose a number.
2 To call , press ¯ .
To
send a text message , press Send Msg .

home screen
12
home screen
quick access to the information you need most
The home screen appears when you turn on the phone,
or when you press
– . Status indicators appear at the
top of the home screen:
Tip: For a description of the status indicators that can
appear on your phone, press
s > ÛPhone Info
>
Icon Glossary > Status Bar .

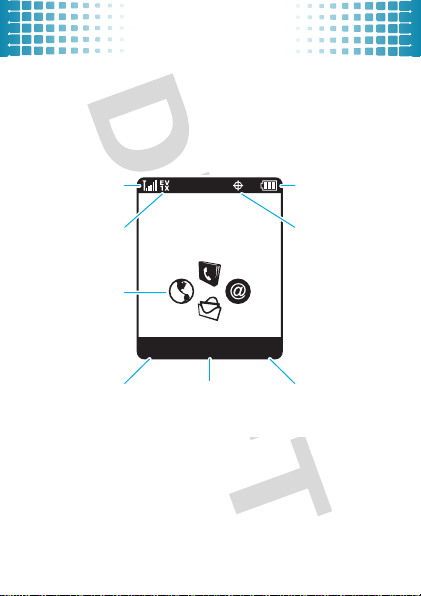

Wed 10/15/10 12:15 pm
Service Provider
Contacts @metroMenu
Left Soft Key
Signal Strength
EVDO & 1xRTT
Coverage
Press
S up,
down, left, or
right to open
shortcuts.
Press
s
to open the
main menu.
Right Soft Key
Battery Level
Location On

calls
13
calls
it’s good to talk
For the basics, see page 9.
redial a number
From the home screen, press ¯ to see All Calls . Scroll to
a number, and press
¯ to call it. Press s to view call
details.
go handsfree
To activate the speakerphone during a call, press the
speaker key (page 5) on the side of your phone. The
phone plays an audible alert, and shows
q and
Speaker Phone On .
To
turn off the speakerphone , press the speaker key
again. Your phone shows
Speaker Phone Off .
Note: You can also use headsets or car kits with a
2.5 mm wired connection (page 5) or Bluetooth®
wireless connection (page 50). The speakerphone won’t
work when your phone is connected to a handsfree
headset or car kit.

calls
14
Note:
Using a mobile device or accessory while driving
may cause distraction and may be illegal. Always obey
the laws and drive safely.
in-call options
features
mute a call
Press Options > Mute
start a 3-way call
Dial the next number and press ¯ , then
press
¯ again.
To dial a
contact , press Options > Contacts .
To dial a
recent call , press Options > Recent Calls .
connect/disconnect a Bluetooth® headset
Press Options > Bluetooth .
read or send a message
Press Options > Messaging .

calls
15
emergency calls
Note: Your service provider programs one or more
emergency phone numbers (such as 911 or 112) that you
can call under any circumstances, even when your phone
is locked. Emergency numbers vary by country. Your
pre-programmed emergency number(s) may not work in
all locations, and sometimes an emergency call cannot
be placed due to network, environmental, or interference
issues.
To call an emergency number, enter the emergency
number and press
¯ .
Note: Your mobile device can use AGPS satellite signals
to help emergency services find you (page 67).
see your phone number
Press Options > Phone Info > My Number .
read or make an appointment
Press Options > Datebook .
features

push to talk
16
push to talk
the clue’s in the name—just push to talk
Push to Talk (PTT) lets you talk walkie-talkie style with
one or more other PTT subscribers.
PTT is a network/subscription dependent feature,
and is not available in all areas. PTT connectivity
requires PTT-compatible phones.
make a PTT call
You can make and receive PTT calls when m appears at
the top of the home screen:
1 Enter a PTT subscriber’s phone number, or select a
contact or group from a list:
• PTT Contacts (press the PTT key to open the list).
Note: To change the list that appears when you

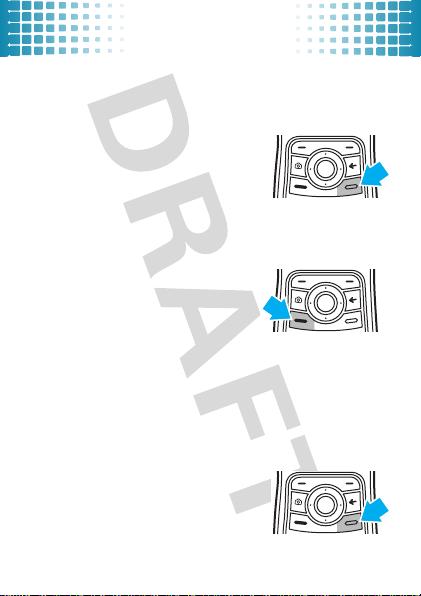

press the PTT key, see page 20.
• PTT Quick Group (press the PTT key > Options
>
Quick Group ). This lets you select more than one
contact for the call.
• PTT Groups (press the PTT key > Options > Filter by
>
Groups ).

push to talk
17
2 Hold the PTT key and speak after you hear the tone.
Release the PTT key to let others speak. Only one
person can speak at a time.
3 To end the call, press – . If nobody speaks for
20 seconds, the call automatically ends (actual
timing varies by network).
To
send a PTT alert instead of a standard PTT call, scroll
to a contact in
PTT Contacts and press Options > PTT Invite . The
contact’s phone rings or vibrates, and the contact can
speak first. If the contact doesn’t respond, the call ends.
You can’t send a PTT alert to a group.
answer a PTT call
When you receive a PTT call, you hear a tone or alert
followed by conversation from the caller.
• To speak when the caller stops speaking, hold the
PTT key and speak after the tone. Only one person
can speak at a time.
• To end the call , press – .
Note: If you change My Answer Mode to Manual , your phone
does not automatically answer PTT calls (page 20).
