Motorola MOTO XT316 User manual

MOTOROLA FIRE TM

1Congratulations
Congratulations
Your MOTOROLA FIRE™ key phone is loaded with
features, including videos, music, web, powerful
business tools and more—all in a stylish phone.
• Mobile video: Record and watch videos, download
or stream videos to watch on your phone.
• Photos: Take and share great photos with a high
performance camera.
•Web:Get more from the web, with support for
Adobe® Flash® Player. Search, browse, everything
you want to do, all made easier.
Note: Certain apps and features may not be available
for all countries/carriers.
Caution: Before assembling, charging or using your
phone for the first time, please read the important
legal and safety information at the back of this
guide.
Want more?
• Support: Online help and more at
www.motorola.com/support.
• Accessories: Find accessories for your phone at
www.motorola.com/products.

2Your phone
Your phone

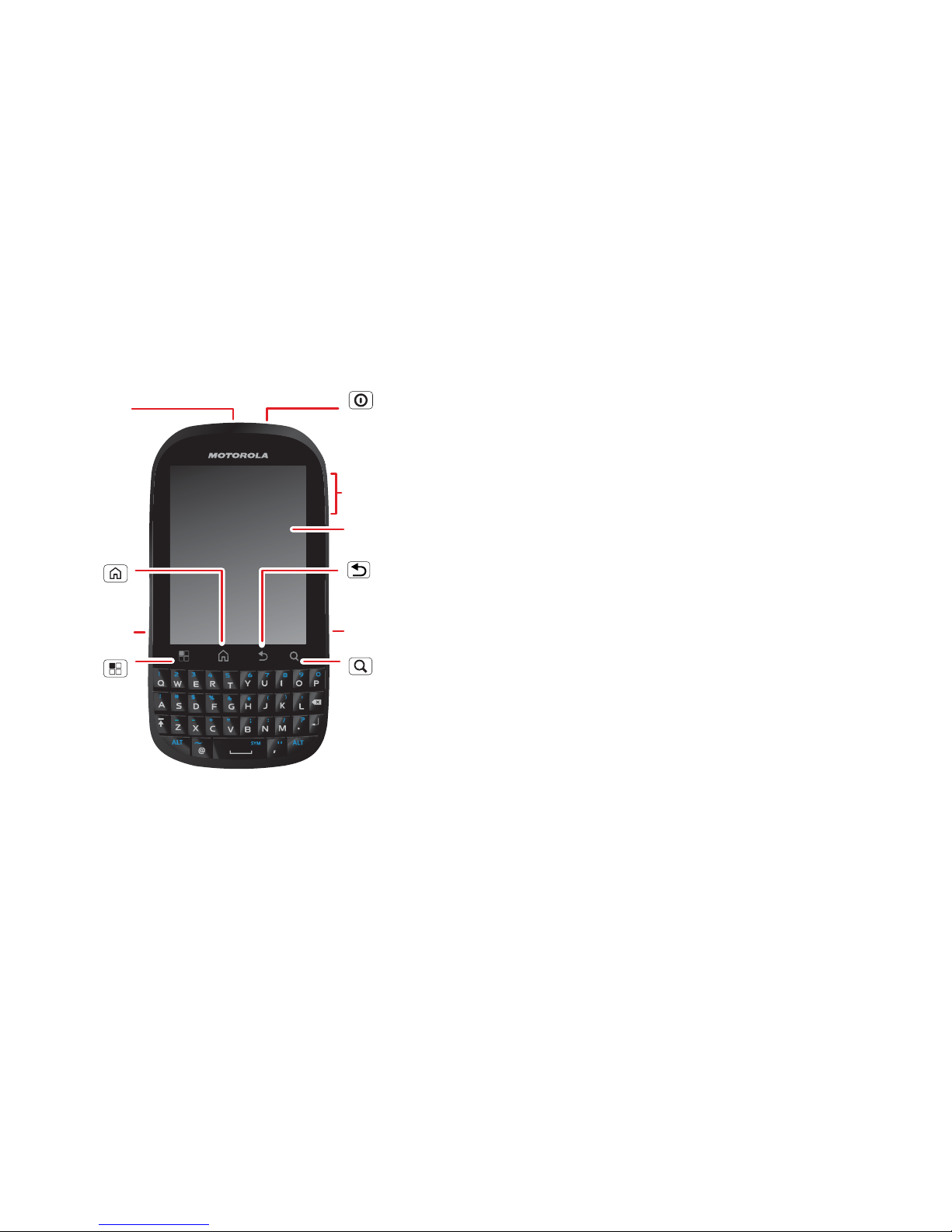

the important keys & connectors
Note: Your phone might look a little different.
Press = sleep.
Hold = turn off.
3.5mm
headset jack
Back key
Menu key
Home key
To u chscreen
Power/
Lock key
Volume keys
Touch to open
menu options.
Camerakey
Search
key
Micro USB
connector
Contents
Let’s go. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Touchscreen & keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Home screen & apps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Personalise. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Messaging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Text entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Web . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Photos & videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Music. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Tips & tricks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Safety, regulatory & legal. . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

3Let's go
Let's go
let's get you up and running
Assemble & charge
Caution: Please read “Battery use & safety” on
page 31.

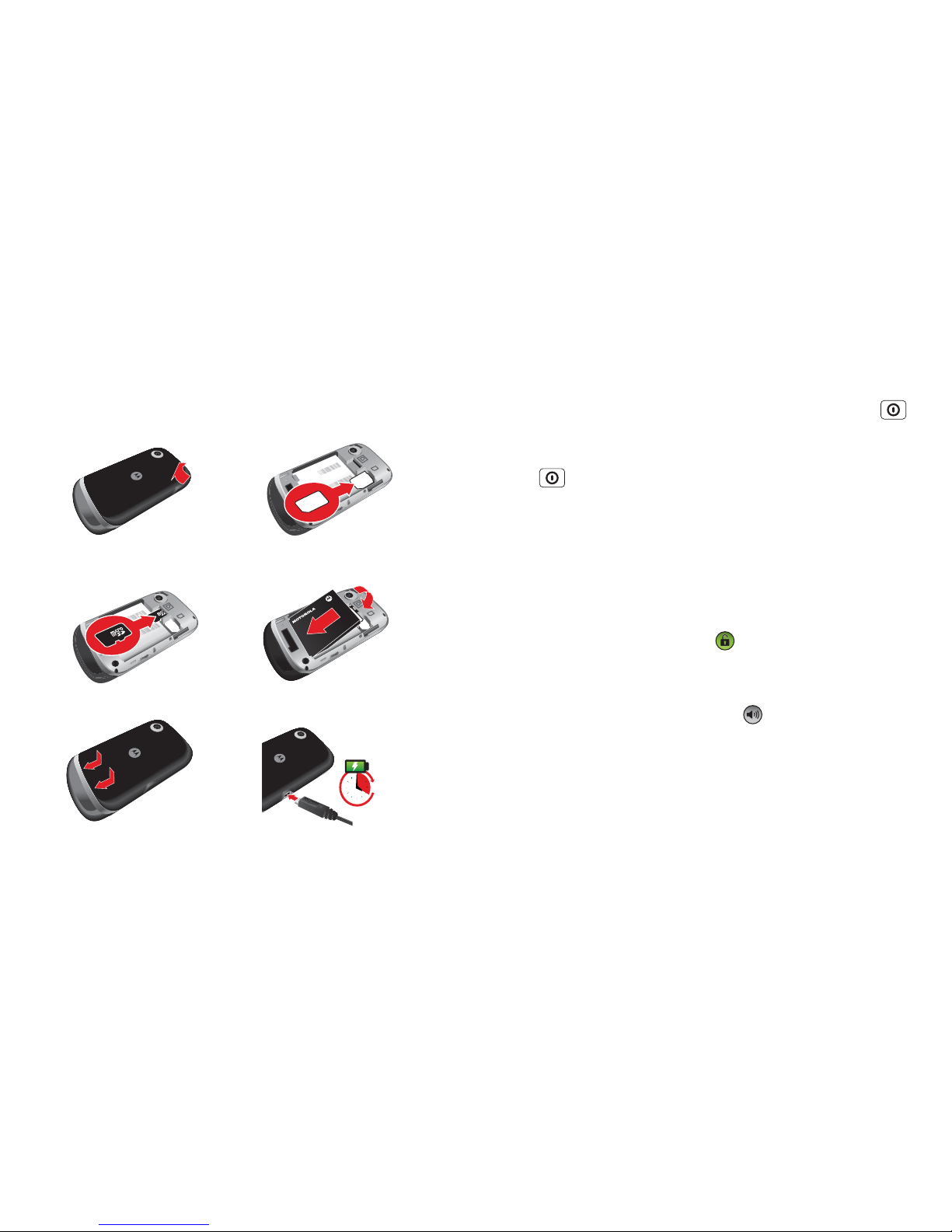

1Cover off 2SIM in
3microSD in (may
already be inserted)
4Battery in
5Cover on 6Charge up
4H
Tip: To save battery life, see “Battery tips” on
page 28.
Turn it on & off
To turn your phone on, press the Power/Lock key
(on the top right).
To turn your phone off, press and hold the Power/Lock
key , then touch Power off.
Note: This phone supports data-intensive apps and
services. It is strongly recommended that you
purchase a data plan that meets your needs. Contact
your service provider for details.
Unlock
To unlock your phone, drag to the right.
Sounds off & on
To turn phone sounds off, drag to the left.

4Touchscreen & keys
Wi-Fi connect
You can use a Wi-Fi connection for even faster Internet
access. Touch Menu > Settings > Wireless &
networks > Wi-Fi settings. Touch .Wi-Fi to turn it on
and search for nearby wireless networks. Touch a
network to connect. There's more in “Wi-Fi networks”
on page 25
Touchscreen & keys
Touchscreen on/off
a few essentials
Your touchscreen is on when you need it and off when
you don't.
•To make your touchscreen sleep or wake up, just
press the Power/Lock key .
•When you hold the phone to your ear during calls,
your touchscreen sleeps to prevent accidental
touches.
•To let the touchscreen adjust brightness
automatically, touch Menu > Settings > Display
> Brightness and select Automatic brightness.
Touch tips
Here are some tips on how to navigate around your
phone.
Touch
To choose an icon or
option, touch it.

5Touchscreen & keys
Touch & hold
To open special options,
touch and hold an icon
or other item. Try it: On
the home screen, touch
> Contacts,
then touch and hold a
contact to open
options.
Drag
To scroll through a list or
move slowly, drag
across the touchscreen.
Try it: On the home
screen, touch >
Contacts, then drag
your Contacts list up or
down.
Tip: When you drag or
flick a list, a scroll bar
appears on the right.
Drag the scroll bar to
move the list to a letter
A – Z.
Phone Call log Contact Favourites
Barry Smyth
Cheyenne Medina
Christine Fanning
Barry Smyth
View contact
Add to favourites
Phone Call log Call log Favourites
A
Arthur Baudo
Barry Smyth
Cheyenne Medina
Christine Fanning
Christopher Somers
Flick
To scroll through a list or move quickly, flick across the
touchscreen (drag quickly and release).
Tip: When you flick a long list, touch the screen to stop
it from scrolling.
Pinch-to-zoom
Get a closer look at maps, webpages or photos. To
zoom in, touch the screen with two fingers and then
slide them apart. To zoom out, drag your fingers
together.
Messaging Market
N Clark St
Wacker Dr
M
E Ohio St
N Rush St
N Park St
N New St
N Wabash Ave
N Dearborn St
E Grand Ave
E Randolph St
N Michigan Ave
N Michigan Ave
rDsubmuloCN
W Lake St W Lake St
E Wacker Pl
State/lake
Grand Red
Lake
Randolph
St Metra
Randolph/
Wabash
Washington-Blue
E S WaterSt
M
M
M
M
E Randolph St
Ontario St E Ontario St
ph
p
h
ra
ra
a
do
d
o
et
et
t
o
d
o
ph St
h
ER d l
MarketMarke
E
E Randolph St
E
ER
Ra
an
nd
do
ol
olp
ph
hS
St
p
p
h
h
Messaging
a
cker Dr
M
a
rborn St
N Michigan Ave
W Lake St W Lak
e
E Wacker Pl
State/lake
Lake Randolph/
Wabash
W
ashington-Blue
E S
M
M
M
R
andolph St
Pinch to zoomin.

6Touchscreen & keys
Key tips
Menu, home, back & search
Touch Home to close any menu or app and return
to the home screen. On the home screen, touch and
hold Home to show the last few apps you used,
then touch an app to open it.
Touch Search for text search.
Touch Menu to open menu options, or touch
Back to go back.
Sleep & wake up
To save your battery, prevent accidental touches, or
when you want to wipe smudges off your
touchscreen, put the touchscreen to sleep by pressing
the Power/Lock key . To wake up the touchscreen,
just press the Power/Lock key again.
To change how long your phone waits before the
screen goes to sleep automatically, touch Menu
> Settings > Display > Screen timeout.
Back key
Menu key
Home key
Touch to open
menu options. Touch for text
search.
Search
key
Power key menu
Press and hold the Power/Lock key to open the
power key menu, where you can turn off the phone
(Power off) or turn Silent mode or Flight mode on or
off.
Adjust volume
Press the volume keys to change
the ringer volume (on the home
screen), or the earpiece volume
(during a call).
Rotate the screen
The touchscreen can spin to stay the right way up
when you rotate your phone:
Find it: Menu > Settings > Display > Auto-rotate
screen
Volume
keys

7Home screen & apps
Home screen & apps
a few essentials
Quick start: Home screen
The home screen gives you all your latest information
in one place. It's what you see when you turn on the
phone or touch Home from a menu. It’s basically
like this:
Use the widgets, shortcuts and panels to show what’s
important to you—whether it's home, work or play.
Settings
Calculator
Contacts
Browser
Notifications
Status indicators
Touch to see
all your apps.
Touch to open. Touch &
hold to move or delete.
Widgets
Flick down to see details.
Use & change your home screen
On your home screen, shortcuts are icons that open
your favourite apps, web bookmarks, contacts, mail
labels or music playlists. Widgets show you news,
weather, messages and other updates.
Flick the home screen left or right to open other panels
of shortcuts and widgets.
•To open something, touch it. Touch Home to
return to the home screen.
Tip: When you open a widget, touch Menu to
show any options or settings.
•To add something or change your wallpaper, touch
and hold an empty spot until you see the Add to
Home screen menu.
You can add a folder to organise your shortcuts.
•To move or delete something, touch and hold it
until you feel a vibration, then drag it to another
spot, another panel or the bin at the bottom of
the screen.

8Home screen & apps
Phone status & notifications
At the top of the screen, icons on the left notify you
about new messages or events (notifications). Icons
on the right tell you about phone status. Flick the bar
down to show notification details.
voicemail message USB connection
Bluetooth™ active Bluetooth
connected
Wi-Fi™ active flight mode
vibrate mode silent mode
mute call speakerphone
active
firewall active alarm set
battery
(fully charged)
battery (charging)
Clear
Notifications
Notifications
11 June 2011
12:09
10:32
New voicemail
Dial (your voicemail number)
10:32
New voicemail
Dial (your voicemail number)
11 June 2011
12:09
Apps
The app menu shows
you all of your
applications. To open
it from the home
screen, touch .
Flick up and down to see all of your apps. Any new
apps that you download are added to the app menu.
To close the app menu, touch Home or Back .
Running multiple apps
No need to close an app before opening another one.
Your phone runs multiple apps, all at the same time.
You can open a new app while running another. Touch
Home to return to the home screen, touch to
open the main menu, then touch the app you want. To
switch from one running app to another, touch and
hold Home to see what apps are already open,
then touch the one you want.

9Personalise
download apps
To download new apps from Android Market™, touch
> Market. Touch Search to find an app, or
touch My apps to show or reinstall the apps you
downloaded. To download apps from websites, you
need to change your security settings: Touch
Menu > Settings > Applications > Unknown
sources.
Warning: Apps downloaded from the web can be from
unknown sources. To protect your phone and personal
data, only download apps from sources you trust.
To move or uninstall your apps, touch Menu >
Settings > Applications > Manage applications. Touch
an app in the list to show details and options.
On your computer, you can browse and manage apps
for all your devices powered by Android™ at
market.android.com.
Personalise
add your personal touch
Customise your phone’s sounds and appearance to
make it unique to you!
Quick start: personalise
From the home screen, touch Menu > Settings >
Sound or Display.

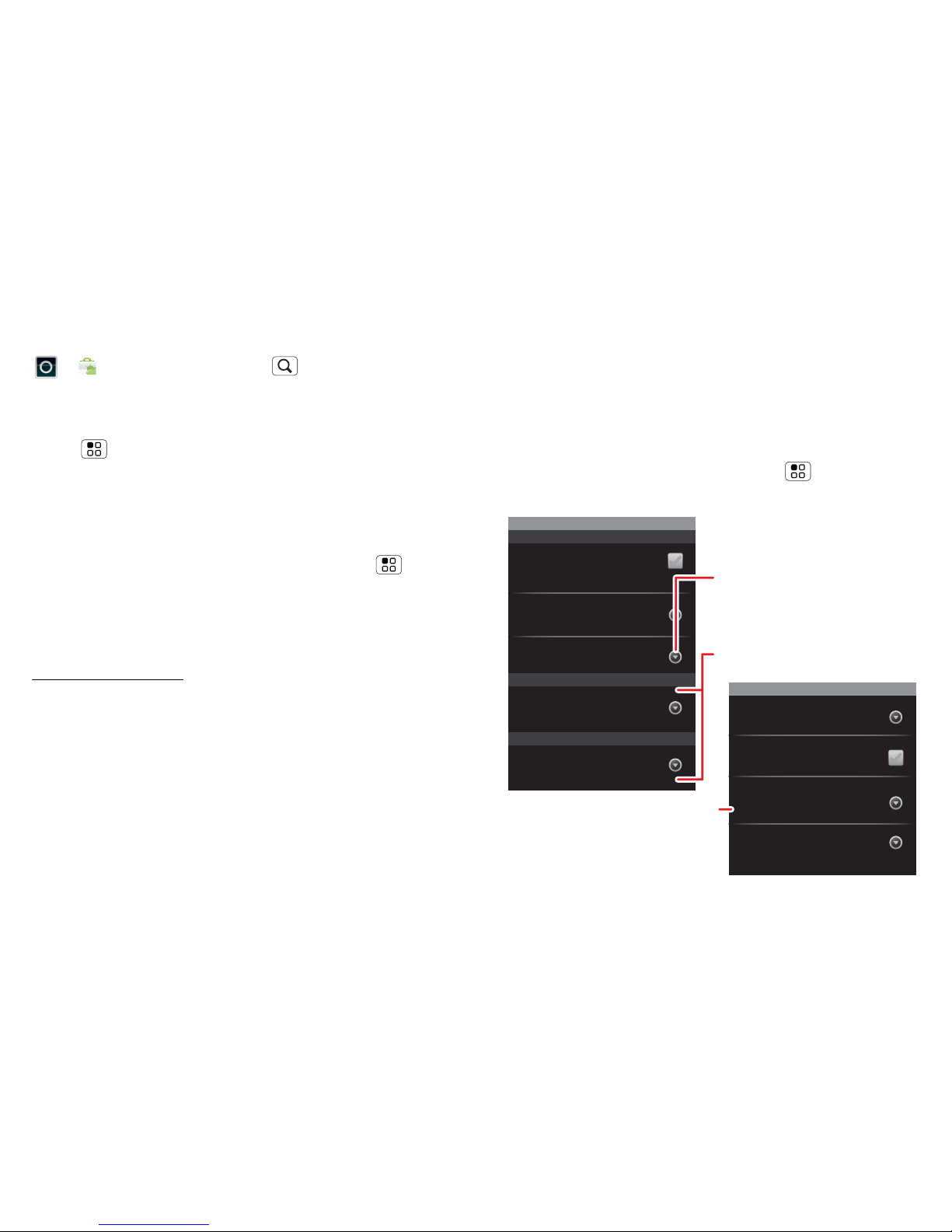

Display settings
Brightness
Screen timeout
All window animations are shown
Animation
Auto-rotate screen
Adjust the delay before the screen
automatically turns off
Sound settings
General
Incoming calls
Only in Silent mode
Vibrate
Volume
Silent mode
Silence all sounds except media &
alarms
Phone ringtone
Notifications
Notification ringtone
Choose separate volume
settings for incoming calls,
media, alarms and notifications.
Call & message notifications
Turn on or off menu animations.

10 Personalise
•To choose a ringtone or vibration for calls and
messages, touch Menu > Settings > Sound,
then choose Phone ringtone, Notification ringtone
or Vibrate.
•To change the volume, touch Menu > Settings
> Sound > Volume.
•To tu rn dial pad sounds on or off, touch Menu >
Settings > Sound > Audible touch tones.
•To turn menu selection sounds on or off, touch
Menu > Settings > Sound > Audible selection.
•To change your wallpaper, touch and hold an empty
spot on the home screen, then touch Wallpapers.
•To change shortcuts and widgets on your home
screen, touch and hold them. For details, see “Home
screen & apps” on page 7.
•To set display brightness, touch Menu >
Settings > Display > Brightness.
•To control whether some apps rotate the screen
when you rotate your phone, touch Menu >
Settings > Display> Auto-rotate screen.
•To turn on or off animations that make your menus
look smoother, touch Menu > Settings >
Display > Animation.
•To calibrate the sensors used by some games or
navigation apps, touch Menu > Settings >
Display > G-Sensor calibration (movement) or
E-Compass calibration (direction).
Language & region
To set your menu language and region, touch
Menu > Settings > Language & keyboard > Select
language

11Calls
Calls
it’s good to talk
Quick start: Calls
From the home screen, touch > Phone.
Call log
Phone Favourites
Contacts
A
B
C
Arthur Baudo
Barry Smyth
Cheyenne Medina
Christine Fanning
Search New contact
Accounts Import/export More
Display options
11:19PM
Dial padAdd call
SpeakerMuteRecord
End
Christine Fanning
Home 222-333-4444
Hold
31 May 2012
Christine Fanning
Call log
Phone Favourites
Contacts
Open your Contacts, Call log
(recent calls) or Favourites, then
touch an entry to call.
Hide the dialler to show a list of
both recent calls and Contacts.
Start & stop recording (stored in
a file on your memory card).
Hang up.
Start a conference call.
Call
Note: Recording of calls is subject to varying State and
Federal laws regarding privacy and recording of
conversations. Always obey the laws and regulations
on the use of this feature.
•To make a call, touch > Phone, enter a
number, then touch .
When dialling, touch Menu to add a pause
(pauses two seconds), or wait (waits for your
confirmation). To enter the international dialling
code, touch and hold .
•To answer a call, drag to the right.
•Duringa call, touch Menu to switch to a
Bluetooth headset. Touch Home or Back to
hide the active call display (to reopen it, touch >
Phone).
Note: Using a mobile device or accessory while
driving may cause distraction and may be illegal.
Always obey the laws and drive safely.
•To end a call, touch .
•To ignore a call, drag to the left.
Tip: Touch > Phone > Favourites, then touch
Menu to edit your Favourites.
0
+
End call

12 Calls
Recent calls
To show recent calls, touch > Phone > Call log
•Touch and hold an entry to call it, send a text
message, view call details or add the number to
your contacts.
•Touch Menu > Clear call log to clear the list.
Conference calls
To start a conference call, call the first number. After
they answer, touch Add call and call the next number.
When the next number answers, touch Merge calls.
Your phone number
To show your phone number, touch Menu
> Settings > Aboutphone > Status > My phone
number
Your caller ID
To hide your number from the people you call, touch
Menu > Settings > Callsettings > Additional
settings > CallerID.
Call forwarding & waiting
To forward calls, touch Menu > Settings
> Callsettings > Callforwarding. You can forward
calls all the time, or only when your phone is busy,
unanswered or unreachable (not on the network)
To turn on call waiting, touch Menu > Settings
> Callsettings > Additional settings > Callwaiting.
Call waiting lets you answer new calls when you're
already on a call. If call waiting is off, new calls go
straight to your voicemail.
Restricted calls
To restrict your phone so that it can only dial a few
numbers, touch Menu > Settings > Callsettings
> Fixed dialling numbers.
•To turn fixed dialling on, touch Enable FDN.
•To add or delete the allowed numbers, touch FDN
list.
Cool down
In very limited circumstances, such as where your
phone has been exposed to extreme heat, you may
see "Cool down" messages. To avoid possible damage
to your battery and phone, you should follow these
instructions until the phone is within its recommended
temperature range. When your phone is in "Cool down"
mode, only emergency calls can be made.

13Contacts
Emergency calls
Note: Your service provider programs one or more
emergency phone numbers that you can call under any
circumstances, even when your phone is locked.
Emergency numbers vary by country. Your
pre-programmed emergency number(s) may not work
in all locations and sometimes an emergency call
cannot be placed due to network, environmental or
interference issues.
1Open the phone, then touch > Phone (if your
phone is locked, touch Emergencycall).
2Enter the emergency number.
3To u ch Call to call the emergency number.
Note: Your mobile device can use AGPS satellite
signals to help emergency services to find you
(“Location services (GPS & AGPS)” on page 36).
Contacts
contacts like you’ve never had before
Keep each friend’s email, phone number and even
address all in your Contacts for quick access.

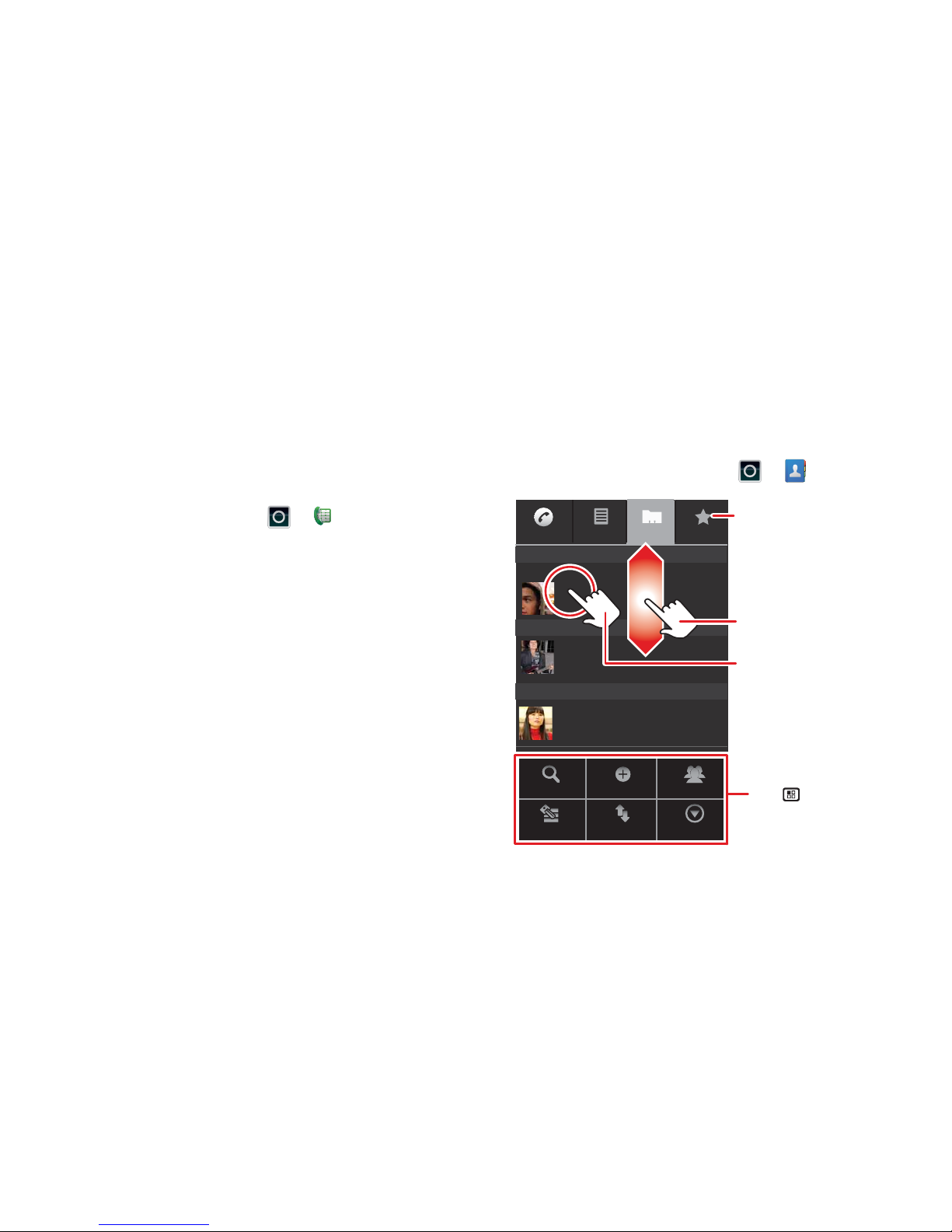

Quick start: Contacts
From the home screen, touch > Contacts.
Cheyenne Medina
Call log
Phone Favourites
Contacts
A
B
C
Arthur Baudo
Barry Smyth
Search New contact
Accounts Import/export More
Display options
Drag or flick to scroll.
Switch to the dialler, recent
calls or favourites.
Touch to open and call or text
Touch & hold for options.
Touch to search, create
and more.

14 Contacts
•To create a contact, touch > Contacts
> Menu > New contact, choose where you
want to store the contact, then enter details (to
close the display keyboard, touch Back ).
•To open a contact's details, touch >
Contacts, then touch the contact.
•To edit or text a contact, touch > Contacts,
then touch and hold the contact.
Favourites
For quick access to a favourite contact, open the
contact, then touch the star next to their name. To
show your favourites, touch > Phone and touch
Favourites at the top.
To add a shortcut to your favourites, touch and hold a
blank spot on your home screen, then touch Folders >
Starred contacts. You can also add a shortcut for an
individual contact: Touch and hold a blank spot on your
home screen, then choose Shortcuts > Contacts.
SIM and memory card contacts
When you create a new contact you can choose to
store it in your Google™ account, phone memory or
your SIM card.
If you need to import or export contacts on your SIM
or memory card, touch > Contacts, then
touch Menu > Import/export.

15Messaging
Messaging
sometimes it's better to text or email...
Send and receive text with photos or other
attachments, in quick text messages or full emails.

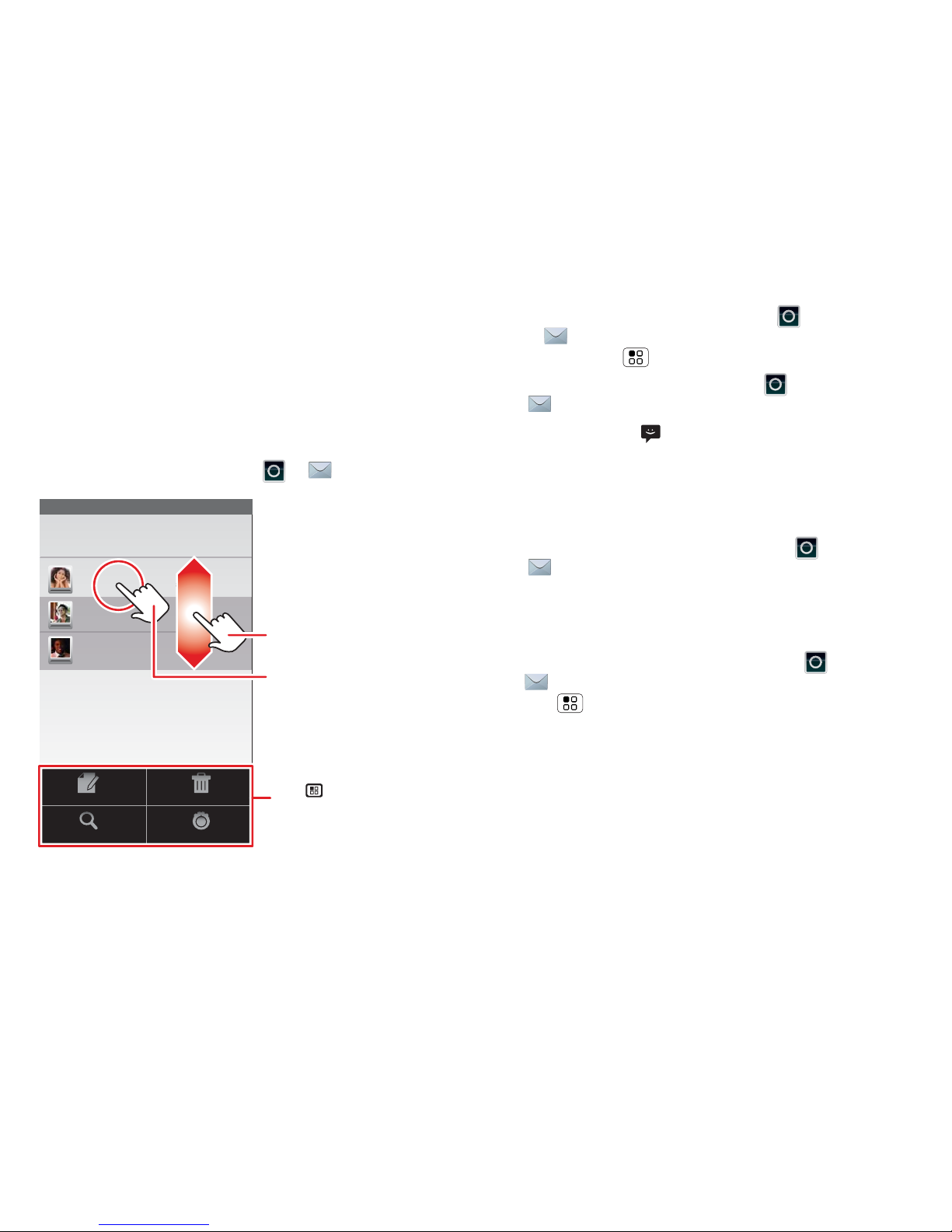

Quick start: Text messaging
From the home screen, touch > Messaging.
Tip: To see more messages, flick or drag up.
Messaging
New message
Compose new message
12254558787
14447772222
You had 1 missed call from 07254545878 ... 17 Aug
Wanna get something to eat tonight? How about ... 17 Aug
12223334545
Ha! Thanks.
16 Aug
Settings
Delete threads
Search
Compose
Touch to open. Touch & hold
to open options.
Drag or flick to scroll.
Touch to change settings
and more.
•To create a text message, touch
> Messaging > New message. For options,
touch Menu .
•To open text messages, touch >
Messaging, then touch the sender's name.
When you see in the status bar at the top of your
screen, flick down the status bar and touch the new
message to open it.
•To respond to a text message, just open it and
enter your response in the text box at the bottom.
•To forward, copy and more, touch >
Messaging, touch the sender's name, then
touch and hold the message.
attachments
To send a file in a text message, touch
> Messaging > New message, then touch
Menu > Attach.
When you open a message with an attachment, touch
Download to download it. Touch the downloaded
attachment to open it, then touch it again to save it,
share it and more.
Tip: To send and receive large attachments faster, use
“Wi-Fi networks” on page 25.

16 Messaging
Email
•To set up Gmail or Corporate Microsoft™ Exchange
server accounts, touch Menu > Settings >
Accounts & sync > Add account. For details, contact
the account provider.
To set up a standard email account, touch >
Email and follow the wizard. To add more
standard accounts, open Email and touch
Menu > Accounts > Menu > Add account.
For details, contact the account provider.
•To open email, touch > Email or Gmail.
Touch a message to open it.
Tip: Touch Menu for options like Refresh or
Search.
•To create an email, touch > Email or
Gmail, then touch Menu > Compose.
Tip: Touch Menu for options like Attach or Add
Cc/Bcc.
Voicemail
When you have a new voicemail, shows in the
status bar at the top of your screen. To hear
voicemails, touch > then touch and hold 1.
If you need to change your voicemail number, on the
home screen touch Menu > Settings > Call
settings > Voicemail settings.

17Text entry
Text entry
keys when you need them
Typing tips
To...
Enter alternative characters From the number
keyboard, touch
Alt . Touch again
to return to
symbols/numbers.
Enter one capital letter Touch Shift .
Enter only capital letters,
until you touch Shift
again
To u ch S h i ft
twice. Touch again to
revert to lowercase.
Cut or copy selected text Touch and hold text
to select, then touch
and hold to Cut or
Copy.
Paste cut or copied text Touch and hold
location to paste
then touch Paste.
Delete a character (hold to
delete more)
To u ch D e l e t e .
To change your text entry settings and see the
dictionary of terms you've used, from the home
screen, touch Menu > Settings > Language &
keyboard.
Text input settings
Find it: Menu > Settings > Language & keyboard
•To edit your dictionary, touch User dictionary.
•To change the language and the style for your
touchscreen keyboard, touch Select language.
•To change the device keypad settings, touch Built-in
keyboard.

18 Schedule
Schedule
helping you stay in control
Yo u r Calendar events can synchronise with your
Google™ account and the Clock can wake you up!
Quick start: Schedule
From the home screen, touch > Calendar.
Sun
Mon Tue Wed Thu Sat
Fri
28 29 30 31 123
456 8910
11 12 13 15 16 17
18 19 20 22 23 24
25 26 27 29 30 31
123 567
7
14
21
28
4
June 2012
Day Week
Diary Today More
Month
Touch to open. Touch & hold to
open options.
Drag or flick to scroll.
Colour indicates events.
Touch to choose the calendar
view. Choose More to create an
event or change settings.
•To create an event, touch > Calendar >
Menu > More > New event, then enter details
(to close the display keyboard, touch Back ).
•To edit or delete an event, touch > Calendar,
touch the event to open it, then touch Menu >
Edit event or Delete event.
Alarm clock
To set an alarm (like to wake up), touch > Clock,
then touch the alarm.
•To turn an alarm on or off, touch next to it.
•To add an alarm, touch Add alarm, then enter alarm
details.
•To change an alarm, touch the time.
•To set a snooze period, in the Alarm clock list
touch Menu > Settings > Snooze duration.
When an alarm sounds, touch Dismiss to turn it off or
Snooze to delay it. To cancel a snoozed alarm, drag
down the status bar and touch the alarm name.
Date & time
To set the date, time, time zone and formats, touch
Menu > Settings > Date & time.
