Motorola ROKR E1 User manual

1
HELLOMOTO
Introducing your new motorola ROKR model E1 GSM wireless phone. Here’s a quick anatomy lesson.

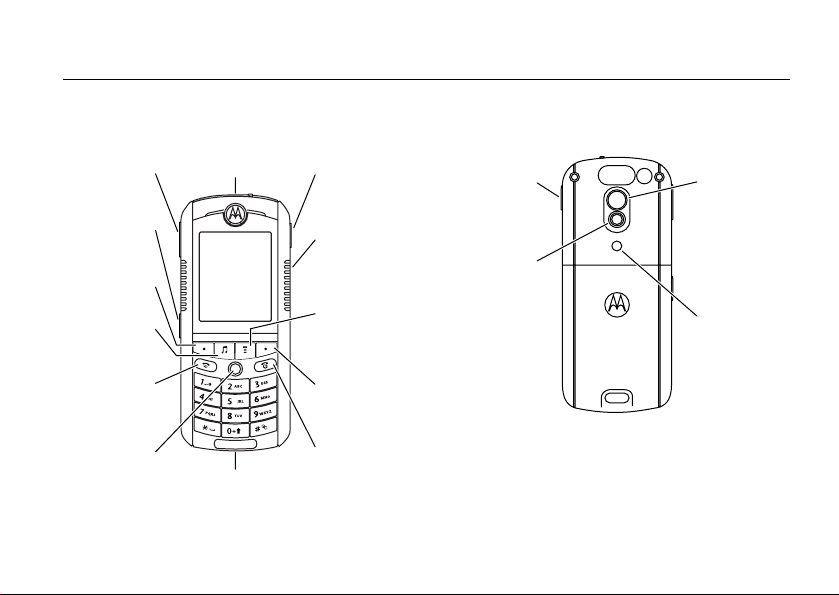

032385o.eps
Smart Key
Camera Key
Right Soft
Key
Volume Keys
5-Way
Joystick with
Center Select
Left Soft Key
iTunes
®
Key
Menu Key
Stereo
Speakers
(both sides)
Turn on &
off, hang up,
exit menus.
Make &
answer calls.
Integrated
Short Range
Light
Mirror
Aim camera
lens for self
portraits
Camera Lens
Camera Key
Headset Jack
Accessory
Connector Port
Note: The above illustration is for reference
only. There may be slight differences between
the appearance of handset and keys, operations
and contents of display used in this manual and
those of your handset. Please refer to your
handset for actuality.

2
Check it out!
Check it out!
features
transfer music files
Use the memory card as the default USB
connection:
M > Settings > Connectivity > USB Settings
> Memory Card
On your computer, open iTunes
®
and
connect your phone to your computer using
the included USB cable. Then drag and drop
songs in the iTunes Source list to your
phone.
Tip: You must have a memory card installed
in the phone in order to transfer songs to
the phone and play them using iTunes (see
page 37).
play music
Play a song on your phone using iTunes:
iTunes > Songs > song name > PLAY
Tip: Disconnect your phone from your
computer to play songs.
Tip: You must have a memory card installed
in the phone in order to transfer songs to
the phone and play them using iTunes (see
page 37).
features

3
Check it out!
create playlist in iTunes for your phone
Create a playlist of songs to transfer to your
phone:
On your computer, open iTunes, click the
Add ( + ) button, and type a name for the
playlist. Then drag songs from your music
library to your playlist.
Connect your phone to your computer with
the provided USB cable. Then drag and drop
the playlist from the iTunes Source list to
your phone.
rhythm lights
Activate lights to flash in sync with the
sounds around you:
M > Settings > Personalise > Rhythm Lights
features
ring lights
Choose ring lights for incoming calls:
M > Settings > Ring Styles > Ring Lights >
>light pattern
take photo & send
Press j to activate the camera. Point lens
and press
Capture to take a photo.
To send, press the
Store key and select
Send In Message .
record a video
To record a new video:
M > Multimedia > Video Camera
Press the Capture key to start recording and
the
Stop key to end the recording.
features

4
Mobile Devices Business
(852)2506-3888 (Hong Kong)
www.motorola.com.hk
MOTOROLA and the Stylised M Logo are registered
in the US Patent & Trademark Office.
Java and all other Java-based marks are trademarks
or registered trademarks of Sun Microsystems, Inc. in
the U.S. and other countries.
All other product or service names are the property of
their respective owners.
© Motorola, Inc., 2005.
Software Copyright Notice
The Motorola products described in this manual may
include copyrighted Motorola and third-party
software stored in semiconductor memories or other
media. Laws in the United States and other countries
preserve for Motorola and third-party software
providers certain exclusive rights for copyrighted
software, such as the exclusive rights to distribute or
reproduce the copyrighted software. Accordingly, any
copyrighted software contained in the Motorola
products may not be modified, reverse-engineered,
distributed, or reproduced in any manner to the
extent allowed by law. Furthermore, the purchase of
the Motorola products shall not be deemed to grant
either directly or by implication, estoppel, or
otherwise, any licence under the copyrights, patents,
or patent applications of Motorola or any third-party
software provider, except for the normal,
non-exclusive, royalty-free licence to use that arises
by operation of law in the sale of a product.
While Products specifications and features may be
subject to change without notice, we are making
send multimedia message
Send a message with pictures,
animations, sounds, and videos:
M > Messages > New Message
>
New Multimedia Msg
features

5
every possible effort to ensure that user manuals are
updated on a regular basis to reflect product
functionality revisions. However, in the unlikely event
that your manual version does not fully reflect the
core functionality of your product, please let us know.
You may also be able to access up-to-date versions
of our manuals from our Motorola web site, at
http://www.motorola.com.hk.
Certain mobile phone features are dependent on the
capabilities and settings of your service provider's
network. Additionally, certain features may not be
activated by your service provider, and/or the
provider's network settings may limit the feature
availability and functionality. Always contact your
service provider about feature availability and
functionality. All features, functionality, and other
product specifications, as well as the information
contained in this user's guide are based upon the
latest available information and are believed to be
accurate at the time of printing. Motorola reserves
the right to change or modify any information or
specifications without notice or obligation.
Manual Number: 6887370Z21

6
feature locator
feature locator
main menu
n Phonebook
s Recent Calls
• Received Calls
• Dialed Calls
• Notepad
• Call Times
•DataTimes
•DataVolumes
e Messages
• New Message
• Email Msgs
• Message Inbox
•Voicemail
•BrowserMsgs
•InfoServices
•QuickNotes
• Outbox
•Drafts
• MMS Templates
É Tools
• SIM Applications *
•Calculator
• Datebook
• Shortcuts
•AlarmClock
• Shortcuts
• Dialling services
•FixedDial*
•QuickDial
• Voice Dial *
Q Games & Apps
á Web Access
•Browser
• Web Shortcuts
•StoredPages
•History
•GoToURL
•BrowserSetup
• Web Sessions
h Multimedia
• Themes
•Camera
•Pictures
• Sounds
• Videos
• Video Camera
iTunes
w Settings
• (see next page)
This is the standard main
menu layout.
Your phone’s
menu may be a little
different.
* optional features

7
feature locator
settings menu
l Personalise
•RhythmLights
• Home Screen
• Main Menu
•Skin
• Greeting
• Wallpaper
• Screen Saver
t Ring Styles
•Style
• Style Detail
•RingLights
• Event Lights
L Connectivity
• Bluetooth Link
•Sync
• USB Settings
H Call Divert
• Voice Calls
•FaxCalls
• Data Calls
• Cancel All
•DivertStatus
U In-Call Setup
• In-Call Timer
• Call Cost Set-up *
• My Caller ID
• Talk and Fax *
• Answer Options
• Call Waiting
Z Initial Setup
• Time and Date
• 1-Touch Dial
• Display Timeout
• Backlight
•Scroll
• Vibe Sync
• Language
• Battery Save
• Brightness
•DTMF
• Master Reset
• Master Clear
m Phone Status
• My Tel. Number
• Active Line *
• Battery Meter
• Storage devices
• Other Information *
• Software Update
S Headset
• Auto Answer
• Voice Dial
J Car Settings
• Auto Answer
• Auto Handsfree
•Power-offDelay
• Charger Time
j Network
•NewNetwork
•NetworkSetup
• Available Networks
• My Network List
•ServiceTone
• Network Jingle
• Call Drop Tone
u Security
• Phone Lock
• Lock Keypad
• Lock Application
•FixedDial*
• Call Barring
• SIM PIN
•NewPasswords
• Certificate Mgmt
c Java Settings
• Java App Loader *
• Java System
• Delete All Apps
• App Vibration
•AppVolume
•AppPriority
• App Backlight
• Set Standby App
* optional features

8
contents
contents
Check it out! . . . . . . . . . . 2
feature locator . . . . . . . . . 6
Safety Information . . . . 10
Recycling Information . . 17
EU Conformance . . . . . . 18
Recycling Information . . 18
Essentials . . . . . . . . . . . . 19
about this guide. . . . . . 19
SIM card . . . . . . . . . . . 19
Battery. . . . . . . . . . . . . 21
turn it on & off . . . . . . . 23
make a call. . . . . . . . . . 23
answer a call . . . . . . . . 23
your phone number . . . 24
Main attractions . . . . . . 25
use iTunes
®
. . . . . . . . . 25
take & send a photo . . 30
record & play video clip 31
multimedia messages . 33
lights . . . . . . . . . . . . . . 35
memory card . . . . . . . . 37
Bluetooth® wireless . . 40
Basics . . . . . . . . . . . . . . . 43
display . . . . . . . . . . . . . 43
menus . . . . . . . . . . . . . 46
text entry . . . . . . . . . . . 48
volume. . . . . . . . . . . . . 52
navigation key . . . . . . . 53
smart key. . . . . . . . . . . 53
handsfree speaker . . . . 53
codes & passwords. . . 54
lock & unlock phone . . 54
lock & unlock keypad . . 55
airplane mode . . . . . . . 55

9
contents
Customize . . . . . . . . . . . 56
ring style. . . . . . . . . . . 56
time & date. . . . . . . . . 57
wallpaper . . . . . . . . . . 57
screen saver . . . . . . . . 57
themes . . . . . . . . . . . . 58
display appearance . . . 59
answer options. . . . . . 59
vibrations . . . . . . . . . . 59
Calls . . . . . . . . . . . . . . . . 60
turn off a call alert. . . . 60
recent calls . . . . . . . . . 60
redial. . . . . . . . . . . . . . 61
return a call. . . . . . . . . 61
notepad . . . . . . . . . . . 62
hold or mute a call . . . 62
call waiting . . . . . . . . . 62
caller ID . . . . . . . . . . . 63
emergency calls . . . . . 63
international calls . . . . 63
1-touch dial . . . . . . . . . 64
voicemail . . . . . . . . . . 64
Other features. . . . . . . . 65
advanced calling . . . . . 65
phonebook . . . . . . . . . 67
messages . . . . . . . . . . 72
email. . . . . . . . . . . . . . 73
Personalising . . . . . . . 75
call times & costs . . . . 77
handsfree . . . . . . . . . . 78
data & fax calls . . . . . . 79
network . . . . . . . . . . . 79
personal organizer . . . 80
security. . . . . . . . . . . . 81
fun & games. . . . . . . . 81
MyMobileSoft.com. . . 83
Troubleshooting . . . . . . 85
SAR Data. . . . . . . . . . . . 86
index . . . . . . . . . . . . . . . 88

10
Safety Information
Safety and General Information
Safety Information
IMPORTANT INFORMATION ON SAFE AND
EFFICIENT OPERATION. READ THIS INFORMATION
BEFORE USING YOUR PHONE.
1
Exposure To Radio Frequency
(RF) Energy
Your phone contains a transmitter and a receiver.
When it is ON, it receives and transmits RF energy.
When you communicate with your phone, the system
handling your call controls the power level at which
your phone transmits.
Your Motorola phone is designed to comply with
local regulatory requirements in your country
concerning exposure of human beings to RF energy.
Operational Precautions
To assure optimal phone performance and make sure
human exposure to RF energy is within the guidelines
set forth in the relevant standards, always adhere to
the following instructions.
External Antenna Care
If your phone has an external antenna, use only the
supplied or Motorola-approved replacement antenna.
Unauthorised antennas, modifications, or
attachments could damage the phone and/or may
result in non-compliance with local regulatory
requirements in your country.
Do NOT hold the external antenna when the phone is
IN USE. Holding the external antenna affects call
quality and may cause the phone to operate at a
higher power level than needed.
Phone Operation
When placing or receiving a phone call, hold your
phone as you would a wireline phone.

11
Safety Information
Body-Worn Operation: Voice
Communication
To maintain compliance with RF energy exposure
guidelines, if you wear a phone on your body when
transmitting voice communica-tions, always place
the phone in a Motorola-supplied or approved clip,
holder, holster, case, or body harness for this phone,
if available. Use of accessories not approved by
Motorola may exceed RF energy exposure guidelines.
If you do not use one of the body-worn accessories
approved or supplied by Motorola, and are not using
the phone held in the normal use position, ensure the
phone and its antenna are at least 2.5 centimeters (1
inch) from your body when transmitting.
Data Operation
When using any data feature of the phone, with or
without an accessory cable, position the phone and
its antenna at least 2.5 centimeters (1 inch) from
your body.
Approved Accessories
Use of accessories not approved by Motorola,
including but not limited to batteries , antennas, and
convertible covers may cause your phone to exceed
RF energy exposure guidelines. For a list of approved
Motorola accessories, visit our website at
www.motorola.com.
RF Energy
Interference/Compatibility
Note: Nearly every electronic device is susceptible to
RF energy interference from external sources if
inadequately shielded, designed, or otherwise
configured for RF energy compatibility. In some
circumstances your phone may cause interference.
Note: This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.

12
Safety Information
Facilities
Turn off your phone in any facility where posted
notices instruct you to do so. These facilities may
include hospitals or health care facilities that may be
using equipment that is sensitive to external RF
energy.
Aircraft
Turn off your wireless device whenever instructed to
do so by airline staff. If your device offers a flight
mode or similar feature, consult airline staff about
use in flight. If your device offers a feature that
automatically turns on the phone, then turn off this
feature before boarding an airplane or entering an
area where the use of wireless devices is restricted.
Medical Devices
Pacemakers
Pacemaker manufacturers recommend that a
minimum separation of 15 centimeters (6 inches) be
maintained between a handheld wireless phone and
a pacemaker.
Persons with pacemakers should:
• ALWAYS keep the phone more than 15
centimeters (6 inches) from your pacemaker
when the phone is turned ON.
• NOT carry the phone in the breast pocket.
• Use the ear opposite the pacemaker to
minimise the potential for interference.
• Turn OFF the phone immediately if you have
any reason to suspect that interference is
taking place.
Hearing Aids
Some digital wireless phones may interfere with
some hearing aids. In the event of such interference,
you may want to consult your hearing aid
manufacturer to discuss alternatives.
Other Medical Devices
If you use any other personal medical device, consult
the manufacturer of your device to determine if it is
adequately shielded from RF energy. Your GP may be
able to assist you in obtaining this information.

13
Safety Information
Use While Driving
Check the laws and regulations on the use of phones
in the area where you drive. Always obey them.
When using your phone while driving, please:
• Give full attention to driving and to the
road.Using a phone may be distracting in
certain circumstances. Discontinue a call if
you can't concentrate on driving.
• Use hands-free operation, if available.
• Pull off the road and park before making or
answering a call if driving conditions so
require.
Responsible driving best practices can be
found at the Motorola website:
www.motorola.com/callsmart.
Operational Warnings
For Vehicles With an Air Bag
Do not place a phone in the area over an air bag or in
the air bag deployment area. Air bags inflate with
great force. If a phone is placed in the air bag
deployment area and the air bag inflates, the phone
may be propelled with great force and cause serious
injury to occupants of the vehicle.
Gas or Petrol Stations
Obey all posted signs with respect to the use of radio
equipment in gas or petrol stations. Turn off your
wireless device if instructed by authorized staff.
Potentially Explosive Atmospheres
Turn off your phone prior to entering any area with a
potentially explosive atmosphere
. Do not remove,
install, or charge batteries in such areas. Sparks in a
potentially explosive atmosphere can cause an
explosion or fire resulting in bodily injury or even
death.

14
Safety Information
Note: The areas with potentially explosive
atmospheres referred to above include fueling areas
such as below decks on boats, fuel or chemical
transfer or storage facilities, areas where the air
contains chemicals or particles, such as grain, dust,
or metal powders. Areas with potentially explosive
atmospheres are often but not always posted.
Blasting Caps and Areas
To avoid possible interference with blasting
operations, turn OFF your phone when you are near
electrical blasting caps, in a blasting area, or in areas
posted “Turn off electronic devices.” Obey all signs
and instructions.
Damaged Products
If your phone or battery has been submerged in
water, punctured, or subjected to a severe fall,
do not use it until you take it to a Motorola
Authorized Service Center to determine if it has
been damaged. Do not attempt to dry it with an
external heat source, such as a microwave
oven.
Batteries and Chargers
Batteries can cause property damage and/or bodily
injury such as burns if a conductive material such as
jewelry, keys, or beaded chains touch exposed
terminals. The conductive material may complete an
electrical circuit (short circuit) and become hot. Take
care when handling a charged battery, particularly
when placing it inside a pocket, purse, or other
container with metal objects.
Use only Motorola
Original
TM
batteries and chargers.
Caution
: To avoid risk of personal injury, do not
dispose of your battery in a fire.
Your battery, charger, or phone may contain symbols,
defined as follows:

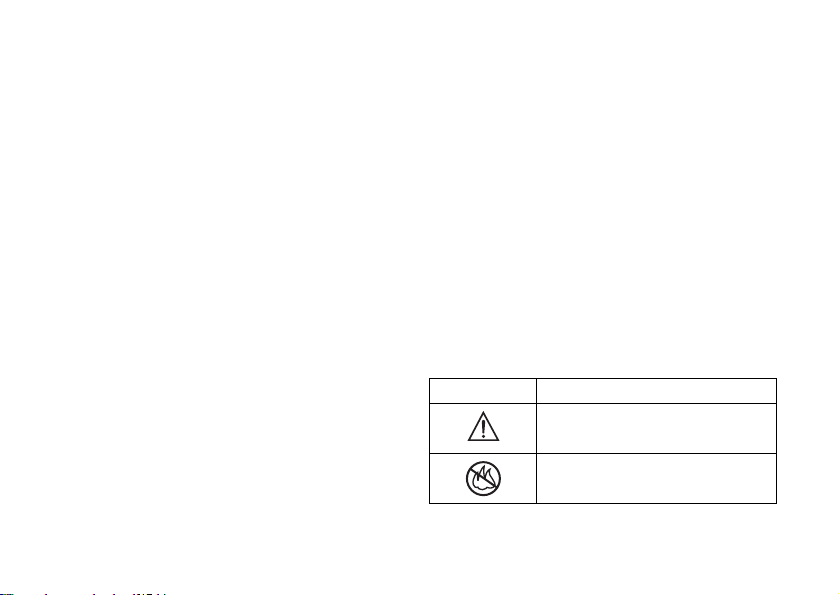

Symbol Definition
Important safety information will
follow.
Your battery or phone should not
be disposed of in a fire.

15
Safety Information
Choking Hazards
Your phone or its accessories may include detachable
parts, which may present a choking hazard to small
children. Keep your phone and its accessories away
from small children.
Seizures/Blackouts
Some people may be susceptible to epileptic seizures
or blackouts when exposed to flashing lights, such as
when watching television or playing video games.
These seizures or blackouts may occur even if a
person never had a previous seizure or blackout.
If you have experienced seizures or blackouts, or if
you have a family history of such occurrences, please
consult with your doctor before playing video games
on your phone or enabling a flashing-lights feature on
your phone. (The flashing-light feature is not
available on all products.)
Parents should monitor their children's use of video
game or other features that incorporate flashing
lights on the phones. All persons should discontinue
use and consult a doctor if any of the following
symptoms occur: convulsion, eye or muscle
twitching, loss of awareness, involuntary
movements, or disorientation.
To limit the likelihood of such symptoms, please take
the following safety precautions:
• Do not play or use a flashing-lights feature if
you are tired or need sleep.
• Take a minimum of a 15-minute break hourly.
• Play in a room in which all lights are on.

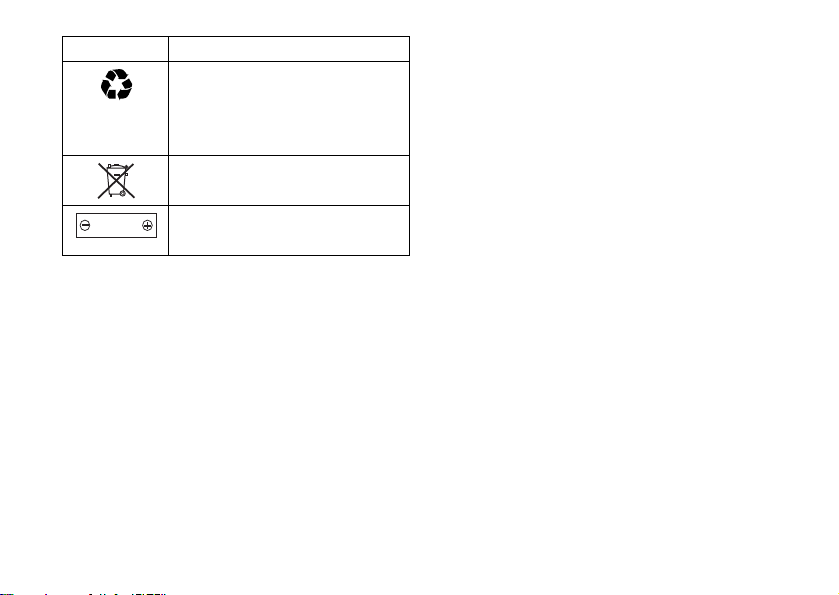

Your battery or phone may require
recycling in accordance with local
laws. Contact your local regulatory
authorities for more information.
Your battery or phone should not
be thrown in the trash.
Your phone contains an internal
lithium ion battery.
Symbol Definition
LiIon BATT

16
Safety Information
• Play at the farthest distance possible from
the screen.
Repetitive Motion Injuries
When you repetitively perform actions such as
pressing keys or entering finger-written characters,
you may experience occasional discomfort in your
hands, arms, shoulders, neck, or other parts of your
body. Follow these instructions to avoid problems
such as tendonitis, carpal tunnel syndrome, or other
musculoskeletal disorders:
• Take a minimum 15-minute break every hour
of game playing.
• If your hands, wrists, or arms become tired or
sore while playing, stop and rest for several
hours before playing again.
• If you continue to have sore hands, wrists, or
arms during or after play, stop playing and
see a doctor.
1.The information provided in this document
supersedes the general safety information in
user’s guides published prior to January 28,
2005.

17
Recycling Information
Caring for the Environment by Recycling
Recycling Information
When you see this symbol on a Motorola
product, do not dispose the product with
household waste.
Recycling Mobile Phones and Accessories
Do not dispose of mobile phones or electrical
accessories, such as chargers or headsets, with your
household waste. In some countries or regions,
collection systems are set up to handle electrical and
electronic waste items. Contact your regional
authorities for more details. If collection systems
aren’t available, return unwanted mobile phones or
electrical accessories to any Motorola Approved
Service Centre in your region.

18
EU Conformance
European Union Directives Conformance Statement
EU Conformance
Hereby, Motorola declares that this product is
in compliance with
• The essential requirements and other
relevant provisions of Directive
1999/5/EC
• All other relevant EU Directives
The above gives an example of a typical
Product Approval Number.
You can view your product's Declaration of
Conformity (DoC) to Directive 1999/5/EC (the
R&TTE Directive) at www.motorola.com/rtte -
to find your DoC, enter the product Approval
Number from your product's label in the
"Search" bar on the Web site
Recycling Information
IMEI: 350034/40/394721/9
0168
Type: MC2-41H14
Product
Approval

19
Essentials
Essentials
about this guide
This guide shows how to locate a menu
feature as follows:
Find it: Press M > Recent Calls > Dialed Calls
This example shows that, from the home
screen, you press
M to open the menu,
highlight and select
sRecent Calls , then
highlight and select
Dialed Calls .
Press
S to scroll to and highlight a menu
feature. Press the
Select key to select the
highlighted menu feature.
SIM card
Yo u r Subscriber Identity Module (SIM) card
contains personal information like your phone
number and phonebook entries.
symbols
This means a feature is
network/subscription dependent
and may not be available in all areas.
Contact your service provider for
more information.
This means a feature requires an
optional accessory.

20
Essentials
Caution: Don’t bend or scratch your SIM card.
Keep it away from static electricity, water, and
dirt.

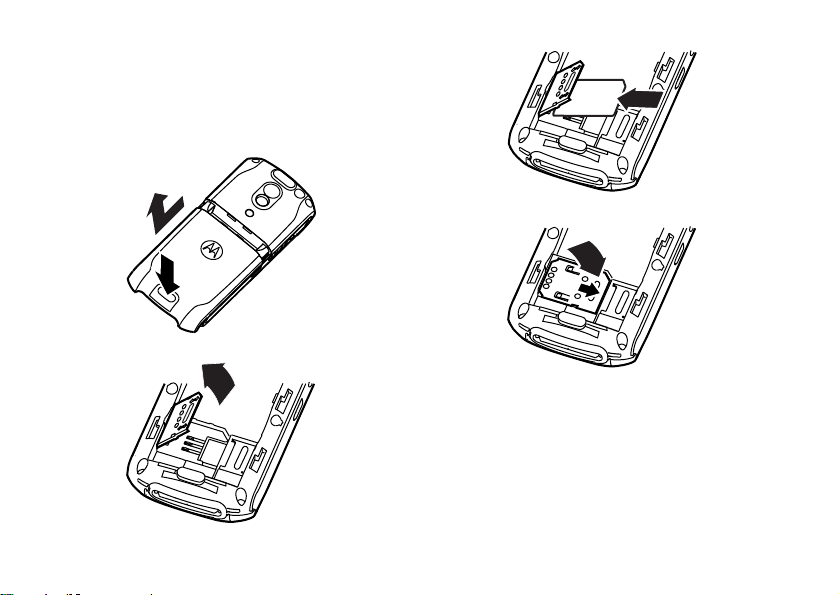

032386o
1.
032387o
2.
032388o
3.
032389o
4.
