Introducing your new Motorola W315 CDMA wireless phone. Here’s a quick anatomy lesson.
Left Soft Key
Volume Keys
Make &
answer calls.
Clear/Back Key
Turn on & off,
hang up, exit
menus.
Scroll up,
down, left, or
right.
Right Soft Key
Select.

2

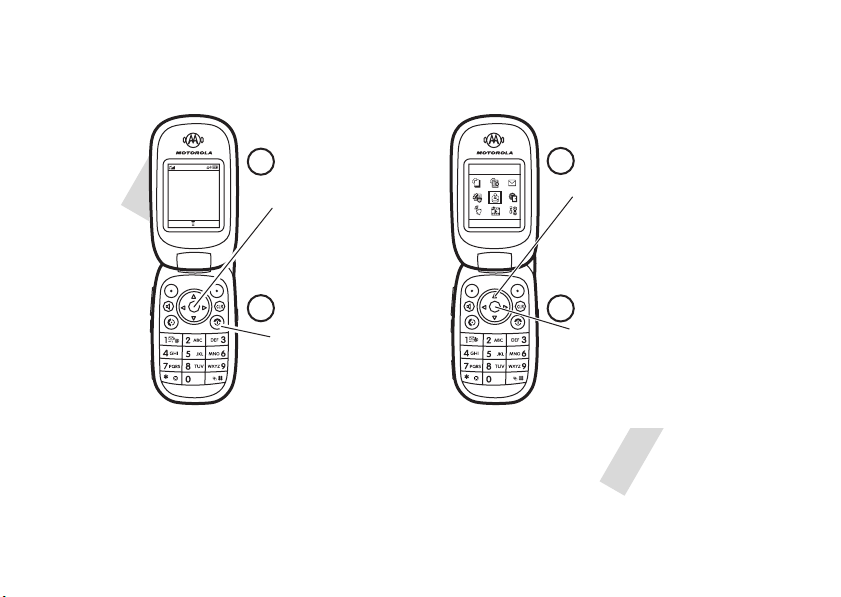

Home Screen Main Menu
12:00
Exit Select
Games & Apps
Service Provider
08/25/06
Styles Settings
u
1
Press the
Main Menu
soft key to open the
Main Menu .
2
Press the Center Key in
(
s ) to select it.
Press the Navigation Key
up, down, left, or right ( S )
to highlight a menu feature.
3
4
Press and hold the
Power Key for a
few seconds or until
the display lights up
to turn on your
phone.

3
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
www.hellomoto.com
Certain mobile phone features are dependent on the capabilities
and settings of your service provider’s network. Additionally,
certain features may not be activated by your service provider,
and/or the provider's network settings may limit the feature’s
functionality. Always contact your service provider about feature
availability and functionality. All features, functionality, and other
product specifications, as well as the information contained in this
user's guide are based upon the latest available information and
are believed to be accurate at the time of printing. Motorola
reserves the right to change or modify any information or
specifications without notice or obligation.
MOTOROLA and the Stylized M Logo are registered in the US
Patent & Trademark Office. All other product or service names are
the property of their respective owners. The Bluetooth trademarks
are owned by their proprietor and used by Motorola, Inc. under
license. Java and all other Java-based marks are trademarks or
registered trademarks of Sun Microsystems, Inc. in the U.S. and
other countries.
© Motorola, Inc., 2006.
Caution: Changes or modifications made in the radio phone, not
expressly approved by Motorola, will void the user’s authority to
operate the equipment.
Manual Number:

4
contents
contents
menu map . . . . . . . . . . . . 6
Use and Care . . . . . . . . . . 8
essentials . . . . . . . . . . . . . 9
about this guide. . . . . . . 9
battery . . . . . . . . . . . . . 10
turn it on & off . . . . . . . 11
make a call. . . . . . . . . . 12
answer a call . . . . . . . . 12
store a phone
number . . . . . . . . . . . . 12
call a stored phone
number . . . . . . . . . . . . 12
your phone number . . . 13
main attractions . . . . . . 14
text message. . . . . . . . 14
digital audio player. . . . 14
cable connections . . . . 16
basics . . . . . . . . . . . . . . . 17
display . . . . . . . . . . . . . 17
text entry . . . . . . . . . . . 20
volume. . . . . . . . . . . . . 24
navigation key . . . . . . . 25
smart key. . . . . . . . . . . 25
external display . . . . . . 25
handsfree speaker. . . . 25
codes & passwords. . . 26
lock & unlock phone . . 26
customize. . . . . . . . . . . . 27
ring style . . . . . . . . . . . 27
time & date . . . . . . . . . 28
wallpaper . . . . . . . . . . . 28
screen saver . . . . . . . . 29
themes . . . . . . . . . . . . 29
display appearance . . . 30
answer options . . . . . . 31
calls. . . . . . . . . . . . . . . . . 32
turn off a call alert . . . . 32
recent calls . . . . . . . . . 32
redial . . . . . . . . . . . . . . 33
return a call . . . . . . . . . 33
caller ID . . . . . . . . . . . . 34
emergency calls . . . . . 34
voicemail . . . . . . . . . . . 35
other features . . . . . . . . 36
advanced calling . . . . . 36
contacts. . . . . . . . . . . . 40
messages . . . . . . . . . . 42
personalizing . . . . . . . . 45
call times & costs . . . . 48
handsfree . . . . . . . . . . 48

contents
5
data calls . . . . . . . . . . 49
network . . . . . . . . . . . 50
personal organizer . . . 51
security. . . . . . . . . . . . 52
fun & games. . . . . . . . 52
service and repairs . . . . 55
Specific Absorption
Rate Data . . . . . . . . . . . 56
Safety and General
Information . . . . . . . . . . 61
Motorola Limited Warranty
for the United States and
Canada . . . . . . . . . . . . . 66
Hearing Aid
Compatibility with
Mobile Phones . . . . . . . 70
Information from the
World Health
Organization . . . . . . . . . 71
Smart Practices
While Driving . . . . . . . . 73
index . . . . . . . . . . . . . . . 75

6
menu map
menu map
main menu
n Contacts
s Recent Calls
• Received Calls
• Dialed Calls
• Missed Calls
• Notepad
•ViewTimers*
•DataVolumes*
e Messaging
•Voicemail
• New TXT Msg
• Inbox
•Drafts
•Saved
•QuickNotes
• Sent
•Settings
t Alert Styles
•Style
•Style Detail
• Sounds
h Gallery
•Pictures
• Sounds
w Settings
• (see next page)
É To o l s
•Calculator
• Calendar
•Alarm
•Games
l Phone Info
x Shortcuts
* optional features
This is the standard main
menu layout. Your phone’s
menu may be a little different.

menu map
7
settings menu
Personalize
• Main Menu
• Scroll Keys
• Color Style
• Greeting
• Banner
• Flip Tone
• Wallpaper
• Themes
• Speed Dial
Initial Setup
• Time and Date
• Auto PIN Dial
• Auto Redial
• Backlight
• Animation
• Language
• Brightness
• Contrast
• TTY Setup
•DTMF
• Master Reset
• Master Clear
Connection
• Incoming Call
In-Call Setup
• In-Call Timer
• Answer Options
• SpeakerPhone
Phone Info
Security
• Phone Lock
• Lock Side Keys
• Lock Application
• Restrict Calls
• New Passwords
Location
•LocationOn
•911Only
* optional features
Network
• Current Network
• Set Mode
• Service Tone
• Call Drop Tone
More
• Car Settings
• Headset

8
menu map
Use and Care
Use and Care
To care for your Motorola phone, please keep it away from:
liquids of any kind dust and dirt
Don’t expose your phone to water, rain,
extreme humidity, sweat, or other moisture.
Don’t expose your phone to dust, dirt, sand,
food, or other inappropriate materials.
extreme heat or cold cleaning solutions
Avoid temperatures below -10°C/14°F or
above 45°C/113°F.
To clean your phone, use only a dry soft cloth.
Don’t use alcohol or other cleaning solutions.
microwaves the ground
Don’t try to dry your phone in a microwave
oven.
Don’t drop your phone.

9
essentials
essentials
about this guide
This guide shows how to locate a menu
feature as follows:
Find it: s > sRecent Calls > Dialed Calls
This example shows that, from the home
screen, you press the center key
s to open
the menu. Scroll to and select
sRecent Calls ,
then scroll to and select
Dialed Calls .
Press the navigation key
S to scroll to a
menu feature. Press the center key
s to
select the highlighted menu feature.
CAUTION: Before using the
phone for the first time, read the
Important Safety and Legal
Information
included in the gray-
edged pages at the back of this
guide.
symbols
This means a feature is
network/subscription dependent
and may not be available in all areas.
Contact your service provider for
more information.
This means a feature requires an
optional accessory.

10
essentials
battery
battery tips
Battery life depends on the network, signal
strength, temperature, features, and
accessories you use.
• Always use Motorola
Original batteries and
chargers. The warranty does
not cover damage caused by
non-Motorola batteries and/or chargers.
• New batteries or batteries stored for a
long time may take more time to
charge.
• When charging your battery, keep it
near room temperature.
When storing your battery, keep it
uncharged in a cool, dark, dry place.
• Never expose batteries to
temperatures below -10°C (14°F) or
above 45°C (113°F). Always take your
phone with you when you leave your
vehicle.
• It is normal for batteries to gradually
wear down and require longer charging
times. If you notice a change in your
battery life, it is probably time to
purchase a new battery.
Contact your local recycling center for
proper battery disposal.
Warning: Never dispose of batteries in a fire
because they may explode.
Before using your phone, read the battery
safety information in the “Safety and General
Information” section included in this guide.
032375o

11
essentials

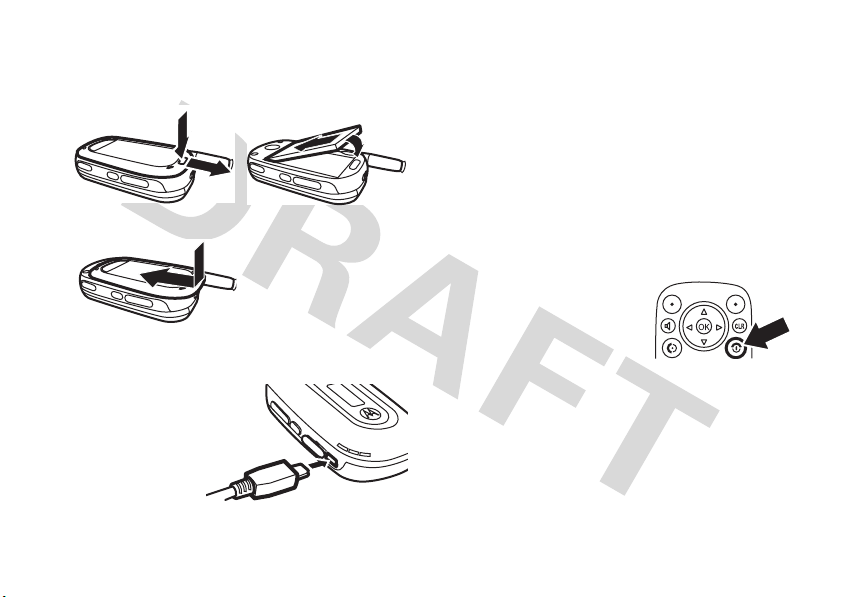

battery installation
battery charging
New batteries
are not fully
charged. Plug
the battery
charger into your
phone and an
electrical outlet. Your phone might take
several seconds to start charging the battery.
Your display shows
Charge Complete when
finished.
Tip: Relax, you can’t overcharge your battery.
It will perform best after you fully charge and
discharge it a few times.
turn it on & off
To turn on your phone,
press and hold
O for a
few seconds or until the
display turns on. If
prompted, enter your four-digit unlock code.
To turn off your phone, press and hold
O for
two seconds.
12
3

12
essentials
make a call
Enter a phone number and press N to make
a call.
To “hang up,” close the flip or press
O .
answer a call
When your phone rings and/or vibrates, just
open the flip or press
N to answer.
To “hang up,” close the flip or press
O .
store a phone number
You can store a phone number in Contacts :
1 Enter a phone number in the home
screen.
2 Press the Store key.
Select
Create New Contact , if necessary.
3 Enter a name and other details for the
phone number. To select a highlighted
item, press the center key
s .
4 Press the Done key to store the number.
To edit or delete a
Contacts entry, see page 40.
To store an email address, press
s > nContacts > Create New Contact . Enter the
new contact’s name and
Email information.
call a stored phone
number
Find it: s > nContacts
1 Scroll to the Contacts entry.
Shortcut: In Contacts , press keypad keys to
enter the first letters of an entry you want.
You can also press
* and # to see the

13
essentials
entries you use frequently, or entries in
other categories.
2 Press N to call the entry.
your phone number
From the home screen, press B# to see
your number.
Tip: Want to see your phone number while
you’re on a call? Press
Options > My Tel. Numbers .

14
main attractions
main attractions
You can do much more with your phone than
make and receive calls!
text message
Your phone can play song files:
Find it: s > hGallery > Sounds and select the
file you want to play.
Press
S up to play or
pause. Press
S down to
stop. Press
S right or
left to go forward or back.
To download songs to
your phone, see page 53.
Note: Your phone may not play MP3 files that
have a bit rate higher than 128 kbps. If you try
to download or play one of these files, your
phone might show you an error or ask you to
delete the file.
digital audio player
Your phone can play and store MP3
song files. You can use a removable
memory card with your phone to store more
songs (see page 20).
Find it: s > QGames & Apps > Digital Audio Player
Press S up or down to scroll to an option,
and press the center key
s to select it:

15
main attractions
When you select a song, press the
center key
s to play , or pause , press
S left for previous , or press S right for
next .
Use the volume keys on the left side of your
phone to control volume.
load music files
To download songs to your phone, see
page 53.
Note: Your phone may not play MP3 files that
have a bit rate higher than 128 kbps. If you try
to download or play one of these files, your
phone might show you an error or ask you to
delete the file. Metadata information is
not
supported for
MP4 formatted files.
create a playlist
Find it: s > QGames & Apps > DigitalAudioPlayer
>
Playlists > Create aPlaylist
options
Playlists Create or play a playlist (see
page 15).
Artists Select an artist to show or play
their songs.
Albums Select an album to show or play
its songs.
Songs Show and play individual songs.
Note: All of your phone’s songs
appear in the
Songs list. Some
songs do not have any
Artist ,
Album , or Genre information stored,
so they don’t appear in those
lists.
Genres Select a type of music to show
or play songs.
About Show audio player version
information.

16
main attractions
1 Enter a name for the play list.
2 Press the Done key. Your phone shows a
list of song titles.
3 Press the Tick key to select songs for the
playlist.
4 Press the Done key to store the list. Your
phone shows the songs in the playlist,
and lets you change the order.
5 Press the Grab key to select a song, and
press
S to move it up or down in the
order. When you have it in the right spot,
press the
Insert key.
6 Press the Done key to store the list.
To hear your playlist, highlight it under
Playlists
and press play .
cable connections
Your phone
has a
mini-USB port so
you can connect it
to a computer to
transfer data.
Note: Motorola Original USB data
cables and supporting software
may be sold separately. Check your
computer or hand-held device to
determine the type of cable you need. To
make
data calls through a connected
computer, see page 49.

17
basics
basics
See page 1 for a basic phone diagram.
display
The home screen shows when you turn on
the phone. To dial a number from the home
screen, press number keys and
N .
Note: Your home screen may look different
from the one below, depending on your
service provider.

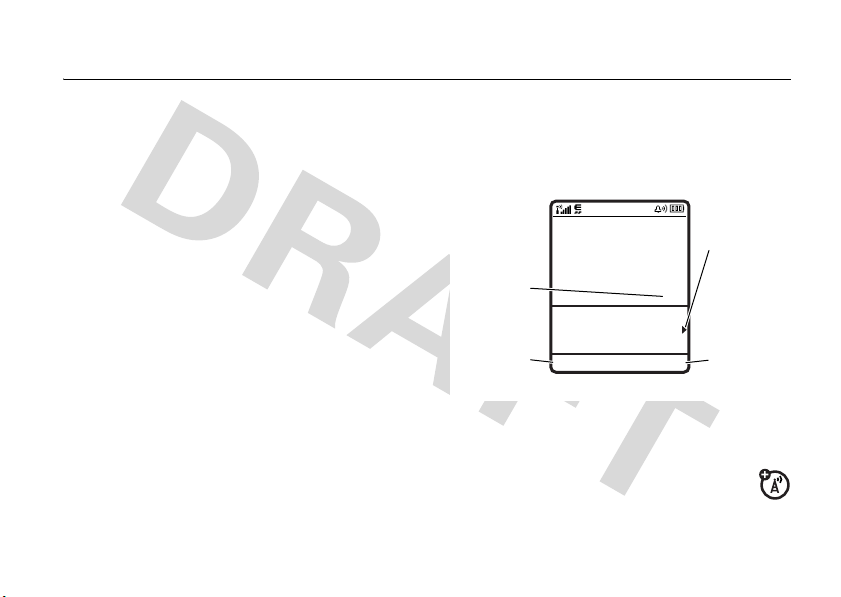

Soft key labels show the current soft key
functions. For soft key locations, see page 1.
Your home screen might show
headlines from your service provider at
Clock
Press
S
right to see
more
headlines,
if available.
Right Soft
Key Label
Left Soft
Key Label
Service Provider
12:00
Headlines and graphics from
your Service Provider
Options Main Menu
