Motorola SB5100 - SURFboard - 38 Mbps Cable Modem User manual

Title
SB5100 Series Cable Modem User Guide
Click your selection (there is a complete Contents on page v):
Introduction
Introduces your SURFboard cable modem and the controls on the Top and Front Panel
and Rear Panel.
Before You Begin
Lists the items needed to install your SURFboard cable modem and describes
Precautions, Signing Up for Service, and Computer System Requirements.
Installation and Configuration Overview
Provides an overview and links for cabling and configuring your SURFboard cable
modem, including Setting Up a USB Driver.
Troubleshooting
Provides suggestions to fix common problems.
Contact Us
Provides contact information.
Frequently Asked Questions
Provides answers to common questions about the SURFboard cable modem.
SURFboard
R
Cable Modem

SB5100 Series Cable Modem User Guide ii
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS DEVICE TO RAIN OR MOISTURE. THE DEVICE SHALL NOT BE
EXPOSED TO DRIPPING OR SPLASHING AND NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE DEVICE.
CAUTION: TO ENSURE REGULATORY AND SAFETY COMPLIANCE, USE ONLY THE PROVIDED POWER AND INTERFACE CABLES. TO
PREVENT ELECTRICAL SHOCK, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE, OR OTHER OUTLET UNLESS THE
BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
CAUTION: DO NOT OPEN THE UNIT. DO NOT PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN THE INSTALLATION AND
TROUBLESHOOTING INSTRUCTIONS UNLESS YOU ARE QUALIFIED TO DO SO. REFER ALL SERVICING TO QUALIFIED SERVICE PERSONNEL.
Caution: Changes Or Modifications Not Expressly Approved By The Party Responsible For Compliance Could Void The User’s Authority To
Operate The Equipment.
It is recommended that the customer install an AC surge arrestor in the AC outlet to which this device is connected. This is to avoid damaging the
equipment by local lightning strikes and other electrical surges.
This product was qualified under test conditions that included the use of the supplied cable between system components. To be in
compliance with regulations, the user must use this cable and install it properly.
Different types of cord sets may be used for connections to the main supply circuit. Use only a main line cord that complies with all
applicable product safety requirements of the country of use.
Installation of this product must be in accordance with national wiring codes.
To prevent overheating, do not block the ventilation holes on the sides of the cable modem.
Wipe the cable modem with a clean, dry cloth. Never use cleaning fluid or similar chemicals. Do not spray cleaners directly on the unit or use forced
air to remove dust.

SB5100 Series Cable Modem User Guide iii
Caring for the Environment by Recycling
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
When you see this symbol on a Motorola product, do not dispose of the product with residential or commercial waste.
Recycling your Motorola Equipment
Please do not dispose of this product with your residential or commercial waste. Some countries or regions, such as the European
Union, have set up systems to collect and recycle electrical and electronic waste items. Contact your local authorities for information
about practices established for your region. If collection systems are not available, call Motorola Customer Service for assistance.

SB5100 Series Cable Modem User Guide iv
This device must be installed and used in strict accordance with the manufacturer’s instructions as described in the user documentation that
comes with the product.
This Class B digital device complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
This product is provided with a separate a separate Regulatory, Safety, Software License, and Warranty Information card. If one is not provided
with this product, please ask your service provider or point-of-purchase representative, as the case may be.
•THIS PRODUCT IS IN COMPLIANCE WITH ONE OR MORE OF THE STANDARDS LISTED ON THE REGULATORY, SAFETY,
SOFTWARE LICENSE, AND WARRANTY INFORMATION CARD. NOT ALL STANDARDS APPLY TO ALL MODELS.
• NO WARRANTIES OF ANY KIND ARE PROVIDED BY MOTOROLA WITH RESPECT TO THIS PRODUCT, EXCEPT AS STATED ON THE
REGULATORY, SAFETY, SOFTWARE LICENSE, AND WARRANTY INFORMATION CARD. MOTOROLA’S WARRANTIES DO NOT
APPLY TO PRODUCT THAT HAS BEEN REFURBISHED OR REISSUED BY YOUR SERVICE PROVIDER.
Copyright © 2005 by Motorola, Inc.
All rights reserved. No part of this publication may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation or adaptation)
without written permission from Motorola, Inc.
Motorola reserves the right to revise this publication and to make changes in content from time to time without obligation on the part of Motorola to provide notification of such revision or
change. Motorola provides this guide without warranty of any kind, either implied or expressed, including, but not limited to, the implied warranties of merchantability and fitness for a
particular purpose. Motorola may make improvements or changes in the product(s) described in this manual at any time.
MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. Microsoft, Windows, and Windows Me are registered trademarks and Windows XP is a trademark
of
Microsoft Corporation. Microsoft Windows screen shots are used by permission of Microsoft Corporation. Macintosh is a registered trademark of Apple Computer, Inc. Navigator is a
registered trademark of
Netscape Communications Corporation . UNIX is a registered trademark of the Open Group in the United States and other countries. Linux is a registered trademark
of Linus Torvalds. All other
product or service names are the property of their respective owners. © Motorola, Inc. 2005.

SB5100 Series Cable Modem User Guide v
Contents
Introduction ............................................................................................................................................ 1
Top and Front Panel .............................................................................................................................. 2
Rear Panel .............................................................................................................................................. 3
Before You Begin ................................................................................................................................... 4
Precautions ............................................................................................................................................ 5
Signing Up for Service .......................................................................................................................... 6
Computer System Requirements ......................................................................................................... 7
Ethernet Card ..................................................................................................................................... 7
USB Connection ................................................................................................................................ 7
Installation and Configuration Overview ............................................................................................. 8
Cabling and Startup for a Single User ................................................................................................. 9
Setting Up a USB Driver ...................................................................................................................... 11
Setting Up a USB Driver in Windows 98 Second Edition ................................................................. 12
Setting Up a USB Driver in Windows 2000 ........................................................................................ 16
Setting Up a USB Driver in Windows Me ...........................................................................................20
Setting Up a USB Driver in Windows XP ...........................................................................................21
Configuring TCP/IP .............................................................................................................................. 22
Configuring TCP/IP in Windows 95, Windows 98 SE, or Windows Me ........................................... 23
Configuring TCP/IP in Windows 2000 ................................................................................................ 26

SB5100 Series Cable Modem User Guide vi
Configuring TCP/IP in Windows XP ................................................................................................... 30
Verifying the IP Address ..................................................................................................................... 36
Verifying the IP Address in Windows 95, Windows 98 SE, or Windows Me .................................. 37
Verifying the IP Address in Windows 2000 or Windows XP ............................................................ 38
Renewing Your IP Address ................................................................................................................. 39
Cabling for Multiple Users .................................................................................................................. 40
Ethernet and USB ............................................................................................................................ 40
Ethernet ........................................................................................................................................... 41
Troubleshooting .................................................................................................................................. 42
Front-Panel Lights and Error Conditions .......................................................................................... 44
Removing the USB Driver from Windows 98 Second Edition or Windows Me .............................. 45
Removing the USB Driver from Windows 2000 ................................................................................ 47
Removing the USB Driver from Windows XP ................................................................................... 50
Running the Motorola USB Driver Removal Utility ........................................................................... 55
Contact Us ............................................................................................................................................ 59
Frequently Asked Questions .............................................................................................................. 60
Glossary ............................................................................................................................................... 62
Software License ................................................................................................................................. 64

SB5100 Series Cable Modem User Guide 1
Introduction Before You Begin Installation & Configuration FAQ
Troubleshooting
Glossary License
Introduction
Congratulations, you have a new Motorola® SURFboard® cable modem. It provides
high-speed access to the Internet and other online services. This cable modem transmits
and receives data much faster than traditional dial-up or ISDN modems. Unlike a dial-up
modem, your cable modem is always online. Just open your browser and surf!
You can use your high-speed, upgradeable cable modem to connect one or more
computers in your home or business to the Internet. You can connect:
• A single computer equipped with a Universal Serial Bus (USB) port directly to the
USB port on the SURFboard cable modem
• A single computer equipped with an Ethernet adapter directly to the Ethernet port on
the SURFboard cable modem
• Two computers; one to the USB port and one to the Ethernet port
• Up to 63 computers to a single SURFboard cable modem using an Ethernet hub as
shown in “Cabling for Multiple Users” on page 40
Easier!
Unlike dial-up modems or ISDN, you’re always on,
always connected. For easiest set-up, use the
Installation Assistant on the SURFboard Cable
Modem CD-ROM.
Faster!
Your cable modem is up to 100 times faster than a
dial-up modem. It lets you enjoy surfing the Web
without the long wait. Because many network and
other factors can affect performance, the actual
speed will vary.
Better!
Your cable modem is made by the company with
over 50 years of cable TV expertise.

SB5100 Series Cable Modem User Guide 2
Introduction Before You Begin Installation & Configuration FAQ
Troubleshooting
Glossary License

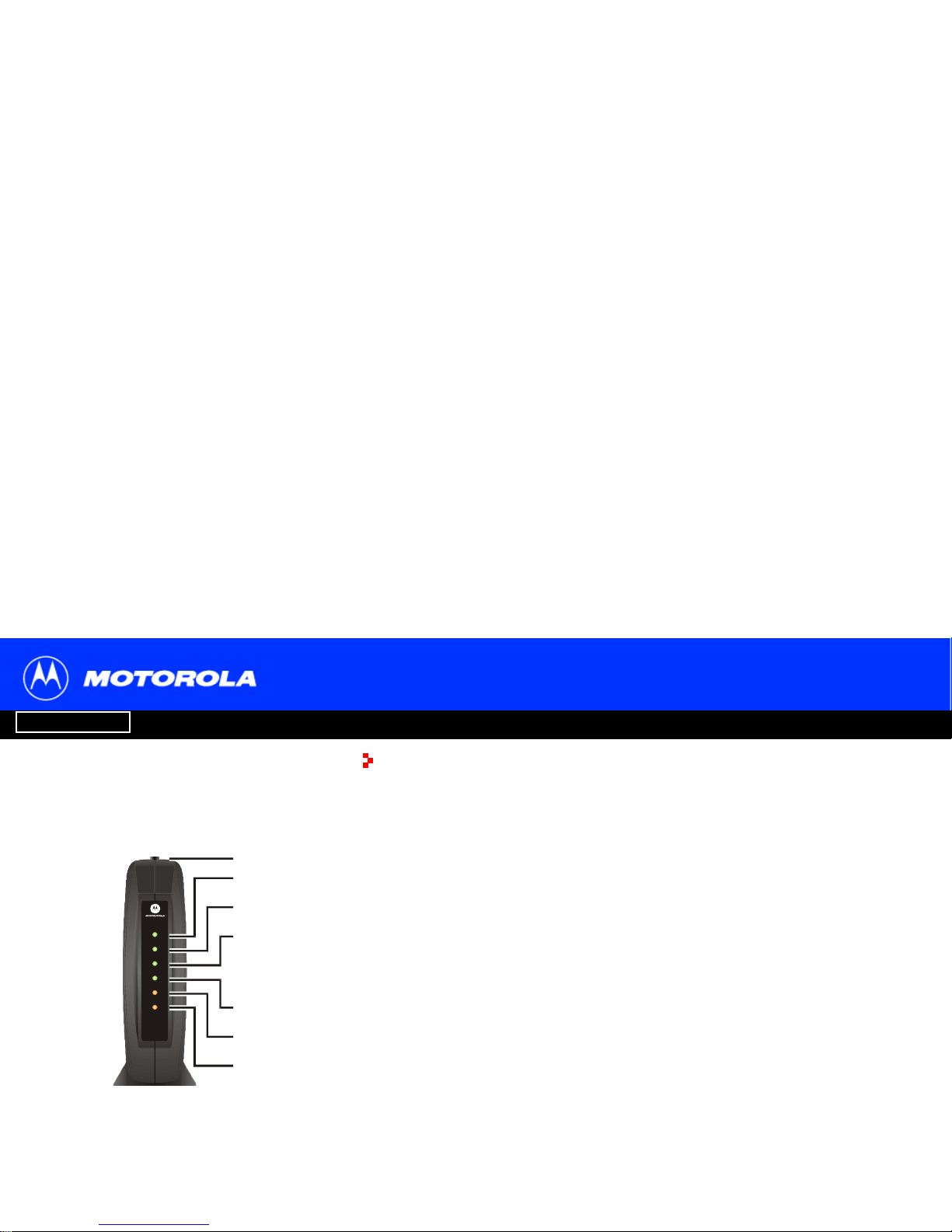

Top and Front Panel
For added security, you can press the Standby button (1) to suspend your Internet
connection. No data is transmitted or received from the Internet when the Standby light
is on. All other front-panel lights turn off until you press the Standby button again.
The lights provide information about power, communications, and errors:
During normal operation, the Power, Receive, Send, and Online lights are on and the
PC/Activity light flashes when the cable modem is transferring data.
Key Light Flashing On
2Power Startup diagnostics in progress The cable modem is powered on
3 Receive Scanning for a receive
(downstream) channel connection
The downstream channel is
connected
4Send Scanning for a send (upstream)
channel connection
The upstream channel is connected
5Online Scanning for a network
connection
The startup process is complete
6 PC/Activity Transmitting or receiving data A device, such as a computer or
hub, is connected to the USB or
Ethernet connectors on the back
panel.
7 Standby This light does not flash Internet service is blocked because
the Standby button was pressed. If
this light is on, all other lights are off.
The model number on your cable modem may
be different than in the illustrations and screen
images in this guide.
SB5100
SURF b o ard ®
Ca ble M o de m
R
E
C
E I V
E
P
O
W
E
R
S
E
N D
O
N
L I N
E
P
C
/
A
C
T I
V
I
T
Y
S
T
A
N
D
B
Y
1
2
3
4
5
6
7

SB5100 Series Cable Modem User Guide 3
Introduction Before You Begin Installation & Configuration FAQ
Troubleshooting
Glossary License

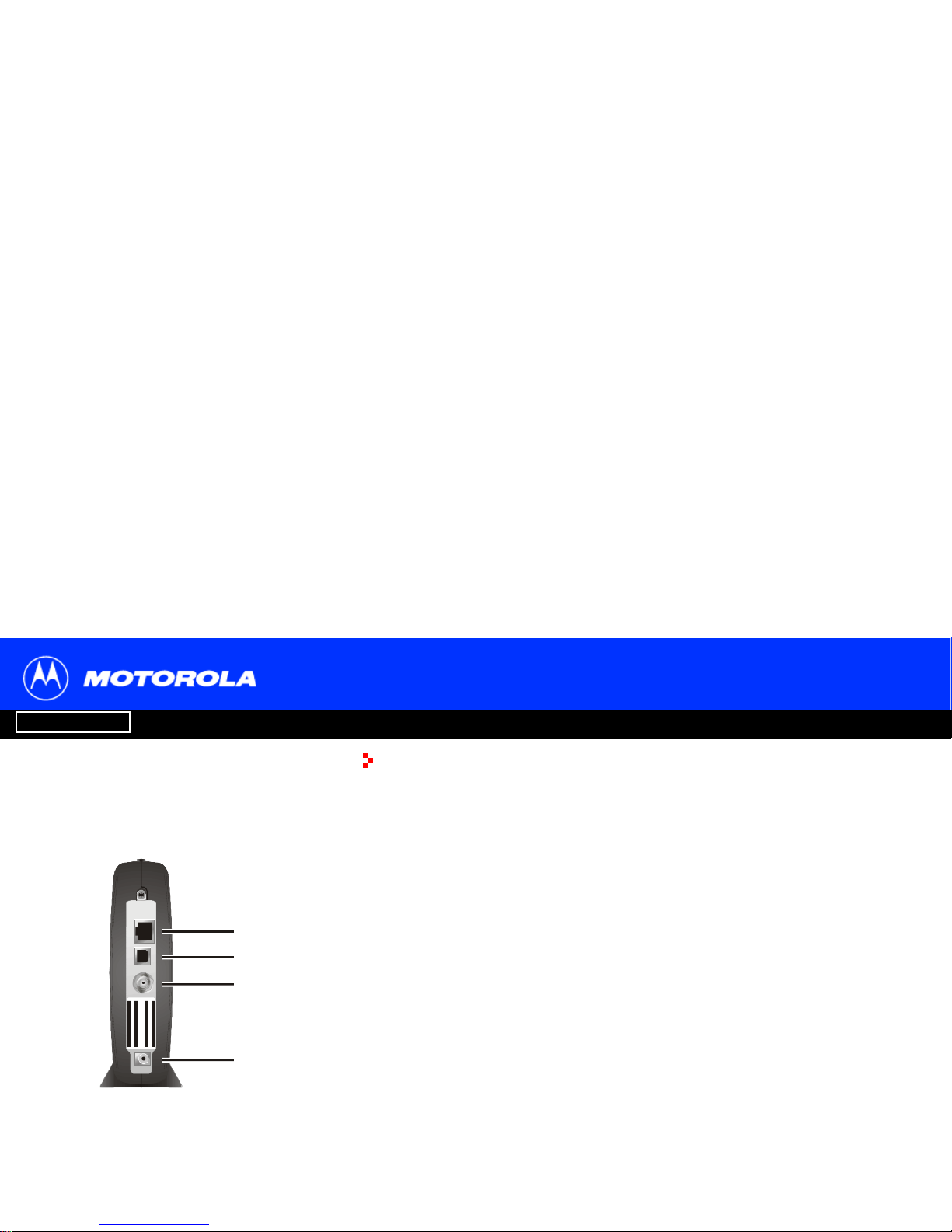

Rear Panel
The rear panel provides cabling connectors and the power receptacle.
Key Item Description
1ETHERNETThe Ethernet port provides a connection to Ethernet equipped computers
using a cable terminated with an RJ-45 connector.
2USB The USB port provides a connection to USB equipped computers.
3 CABLE The CABLE port provides a connection to the coaxial cable (coax) outlet.
4 +12VDC This connector provides power to the cable modem.
ETHERNET USB CABLE
+12VDC
USBCP E MACID: ABDCEF012345 S/N: PPPPMMYJJJS SSSSCAABBCCCC HFCM AC ID: ABCDEF012 345 CUSTOMERS/N:B CDF GHJKLMNP
1
2
3
4

SB5100 Series Cable Modem User Guide 4
Introduction Before You Begin Installation & Configuration FAQ
Troubleshooting
Glossary License
Before You Begin
Before you begin the installation, check that you received the following items with your
SURFboard cable modem:
You will need 75-ohm coaxial cable with F-type connectors to connect your cable
modem to the nearest cable outlet. If a TV is connected to the cable outlet, you may
need a 5-900 MHz RF splitter and a total of three coaxial cables to connect both the TV
and the cable modem. The coaxial cable and RF splitter are available at consumer
electronic stores.

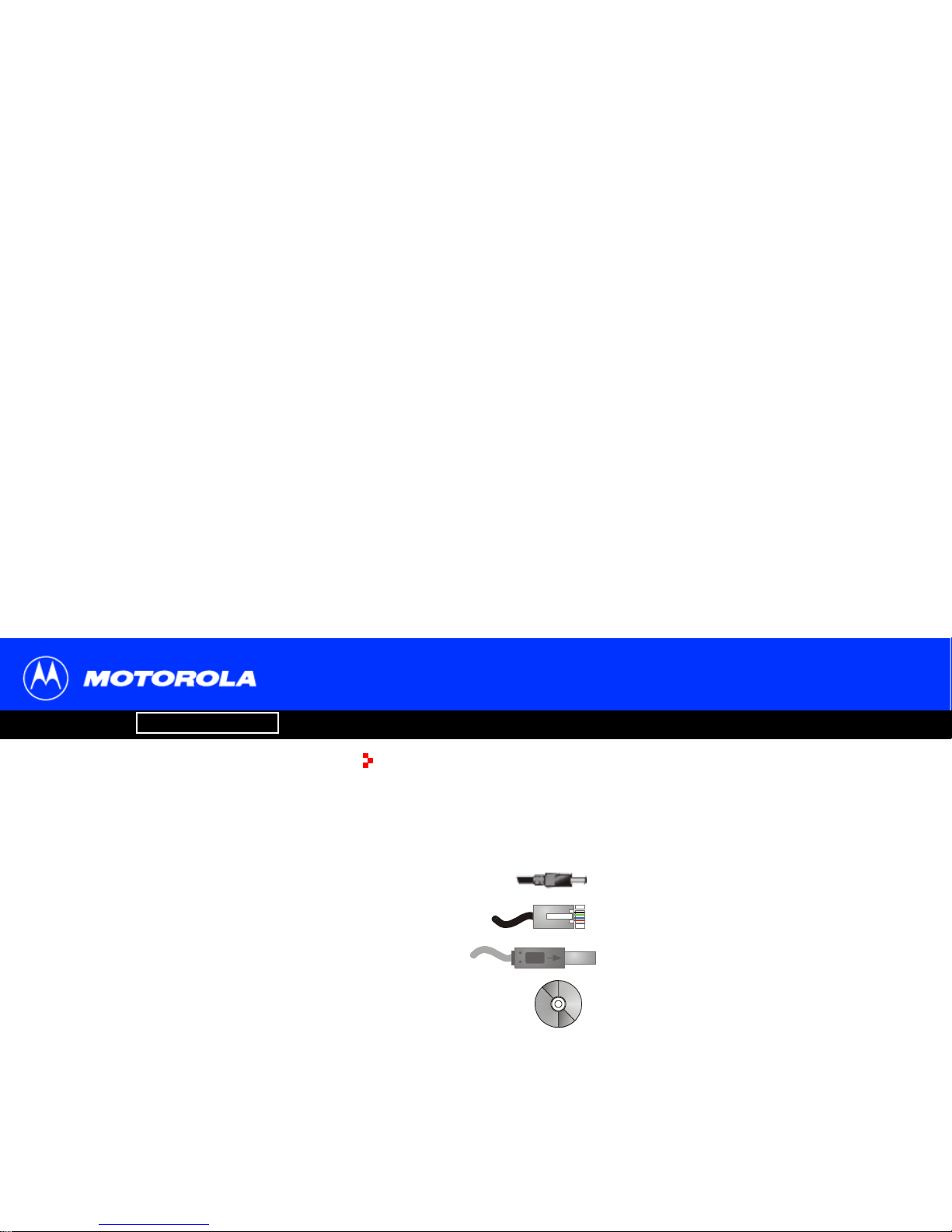

Item Description
Power adapter Connects the SURFboard cable modem to a power
adapter to connect to the AC electrical outlet
10/100Base-T
Ethernet cable
Connects to the Ethernet port
USB cable Connects to the USB port
SURFboard Cable
Modem CD-ROM
Contains the User Guide and USB drivers

SB5100 Series Cable Modem User Guide 5
Introduction Before You Begin Installation & Configuration FAQ
Troubleshooting
Glossary License
Precautions
Postpone cable modem installation until there is no risk of thunderstorm or lightning
activity in the area.
To avoid damaging the cable modem with static electricity:
• Always first connect the coaxial cable to the grounded cable TV wall outlet.
• Before you connect or disconnect the USB or Ethernet cable from your cable
modem or PC, always touch the coaxial cable connector on the cable modem to
release any static charges.
To prevent overheating the cable modem, do not block the ventilation holes on its sides.
Do not open the cable modem. Refer all service to your cable service provider.
Wipe the cable modem with a clean, dry cloth. Never use cleaning fluid or similar
chemicals. Do not spray cleaners directly on the unit or use forced air to remove dust.
ETHERNET USB CABLE
+12VD C
USBCPE MAC ID: ABDCEF012345 S/N:PPPPMMY JJJSSSSSCAABBCCCC HFCMA C ID: ABCDEF012345 CUSTOMERS/N:BCDF GHJKLM NP
Always make the wall
connection first.
To avoid damaging your cable
modem or PC with static electricity:
Before you connect or disconnect the USB or
Ethernet cable, always touch the coaxial
cable connector on the cable modem.

SB5100 Series Cable Modem User Guide 6
Introduction Before You Begin Installation & Configuration FAQ
Troubleshooting
Glossary License
Signing Up for Service
You must sign up with a cable service provider to access the Internet and other online
services.
To activate your service, call your local cable service provider.
To receive data service, you need to provide the MAC address printed on the bar code
label marked CM HFC MAC ID on the bottom of the cable modem. You can record it
here:
00 : ______ : ______ : ______ : ______ : ______
You should ask your cable service provider the following questions:
• Do you have any special system requirements?
• When can I begin to use my cable modem?
• Are there any files I need to download after I am connected?
• Do I need a user name or password to access the Internet or use e-mail?

SB5100 Series Cable Modem User Guide 7
Introduction Before You Begin Installation & Configuration FAQ
Troubleshooting
Glossary License
Computer System Requirements
Your SURFboard cable modem is compatible with Microsoft Windows®, Macintosh®, and
UNIX®computers.
Ethernet Card
You can use the Ethernet connection with any Windows, Macintosh, Linux®, or UNIX
computer equipped with a 10Base-T or 10/100Base-T Ethernet card.
Windows®95, UNIX, Linux, or Macintosh computers must use the Ethernet connection.
If you use an Ethernet card, it must be installed in your computer before you install the
cable modem. If it is not installed, follow the installation instructions provided with your
Ethernet card.
USB Connection
You can use the USB connection with any PC running Windows®98 Second Edition,
Windows®2000, Windows Me®, or Windows XP™that has a USB interface. The USB
connection requires special USB driver software that is supplied on the SURFboard
Cable Modem CD-ROM.
You can upgrade your USB drivers from our Downloads page
http://broadband.motorola.com/noflash/usb_drivers.asp.
You can use any Web browser such as Microsoft®
Internet Explorer or Netscape Navigator®with
your SURFboard cable modem.
For Microsoft Windows computers, the Installation
Assistant application automatically checks your
system configuration.
You can start the Installation
Assistant from the Main Menu on the SURFboard
Cable Modem
CD-ROM.

SB5100 Series Cable Modem User Guide 8
Introduction Before You Begin Installation & Configuration FAQ
Troubleshooting
Glossary License
Installation and Configuration Overview
To install and configure your cable modem for a single PC running Microsoft Windows,
you can use the Installation Assistant.
Otherwise, to install and configure your cable modem:
1Install the cables as described in one of:
• “Cabling and Startup for a Single User” on page 9
• “Cabling for Multiple Users” on page 40
2If you are using the USB port only, go to “Setting Up a USB Driver” on page 11.
Ethernet users can skip this step.
3Configure TCP/IP and verify the IP address for your computer following one of:
• “Configuring TCP/IP” on page 22
• Your Macintosh or UNIX user manual
To connect a single PC running Microsoft Windows
to a SURFboard cable modem, we recommend
using the Installation Assistant application .
You can start the Installation
Assistant from the
Main Menu on the SURFboard Cable Modem
CD-ROM. In most cases, the Installation Assistant
automatically configures your cable modem.

SB5100 Series Cable Modem User Guide 9
Introduction Before You Begin Installation & Configuration FAQ
Troubleshooting
Glossary License
Cabling and Startup for a Single User
Allow 5 to 30 minutes to power up the first time because the SURFboard cable modem
must find and lock on the appropriate channels for communications.
1Be sure your computer is on and the cable modem is unplugged.
2Connect one end of the coaxial cable to the cable outlet or splitter. Connect the
other end of the coaxial cable to the CABLE connector on the cable modem.
Hand-tighten the connectors to avoid damaging them.
3Insert the SURFboard Cable Modem CD-ROM into your CD-ROM drive.
4Plug the power cord into the +12VDC connector on the cable modem and the
electrical outlet. This turns the SURFboard cable modem on. You do not need to
unplug it when not in use.
5Check that the lights on the cable modem front cycle through this sequence:
• Power flashes during the self-test and changes to solid green when the self-test
is successfully complete.
• Receive flashes while scanning for the receive (downstream) channel and
changes to solid green when it is connected.
• Send flashes while scanning for the send (upstream) channel and changes to
solid green when it is connected.
• Online flashes while the cable modem downloads configuration data and
changes to solid green when the download is complete.
ETHERNET USB CABLE
+12VDC
USBCP E MACID: ABDCEF012345 S/ N: PPPPMM YJJJSSSSSCAABBCCCC HFCM AC ID: ABCDEF012 345 CUSTOMERS/N:B CDF GHJKLMNP
SURFboard cable modem
To electrical
outlet (step 4)
To cable
outlet
(step 2)
Always connect coaxial cable to the wall outlet first.

Cabling and Startup for a Single User, continued
Introduction Before You Begin Installation & Configuration FAQ
Troubleshooting
Glossary License
SB5100 Series Cable Modem User Guide 10

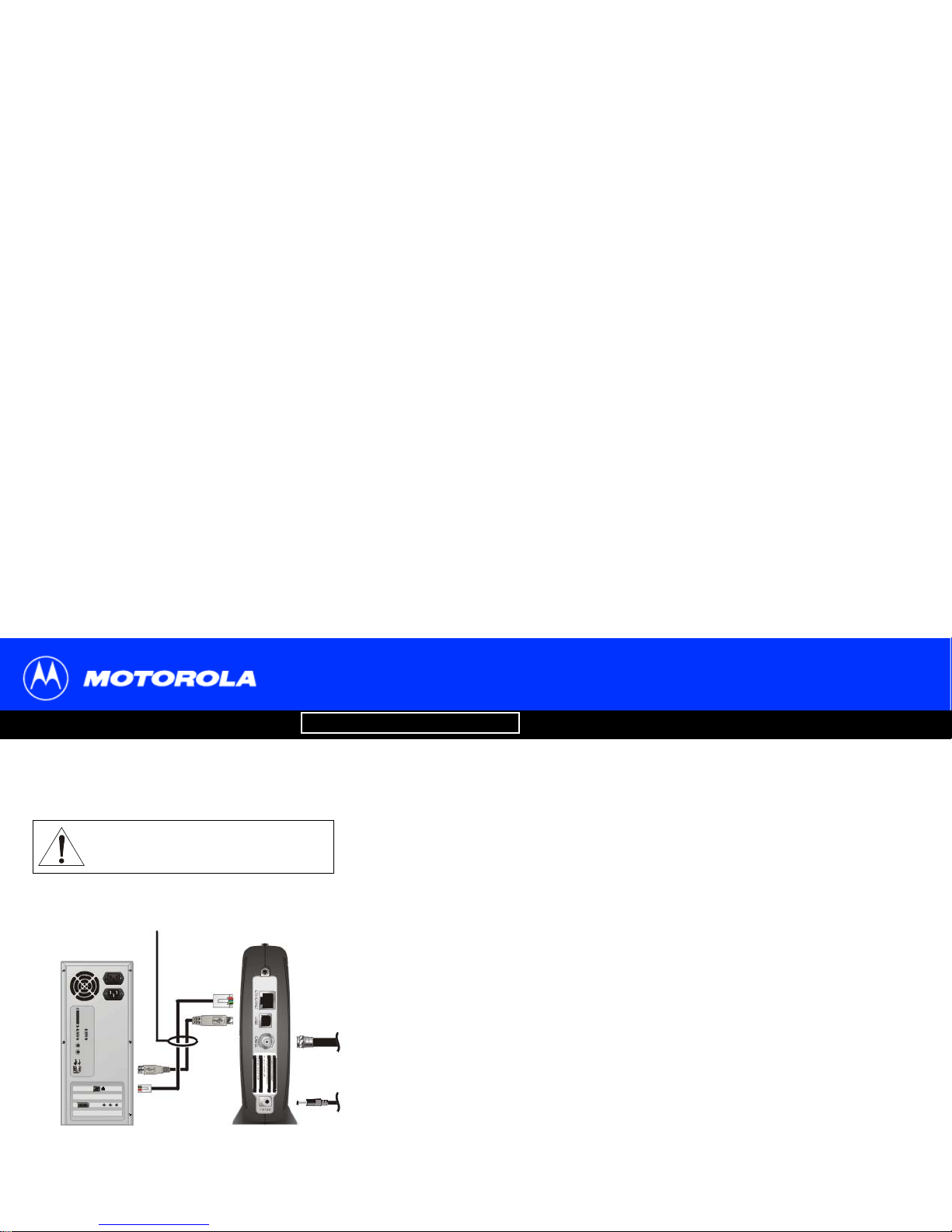

6Connect your computer to the cable modem using USB or Ethernet:
USB: Be sure the SURFboard Cable Modem CD-ROM is inserted in your CD-ROM
drive. Connect the USB cable to the USB port on the cable modem. Connect the
other end to the USB port on your computer. Then perform “Setting Up a USB
Driver” on page 11.
Ethernet: Connect the provided Ethernet cable to the Ethernet connector on the
cable modem. Connect the other end to the Ethernet port on your computer.
Ethernet users do not need to set up USB.
7Perform the procedures for “Configuring TCP/IP” on page 22.
C
au
ti
on
Do not connect both the Ethernet
and USB cables to the same
computer.
Computer SURFboard cable modem
Connect to either
Ethernet or USB

SB5100 Series Cable Modem User Guide 11
Introduction Before You Begin Installation & Configuration FAQ
Troubleshooting
Glossary License
Setting Up a USB Driver
The following subsections describe setting up a USB driver. Perform the appropriate
procedure for your Windows version:
• “Setting Up a USB Driver in Windows 98 Second Edition” on page 12
• “Setting Up a USB Driver in Windows 2000” on page 16
• “Setting Up a USB Driver in Windows Me” on page 20
• “Setting Up a USB Driver in Windows XP” on page 21
When you finish setting up the USB driver, you can continue with “Configuring TCP/IP”
on page 22.
The SURFboard cable modem USB driver does not support Macintosh or UNIX
computers. For those systems, you can connect through Ethernet only.
Be sure the SURFboard Cable Modem
CD-ROM is inserted in your CD-ROM drive
before you plug in the USB cable.

SB5100 Series Cable Modem User Guide 12
Introduction Before You Begin Installation & Configuration FAQ
Troubleshooting
Glossary License
Setting Up a USB Driver in Windows 98
Second Edition
Be sure the SURFboard Cable Modem CD-ROM is inserted in your CD-ROM drive
before you plug in the USB cable. This CD contains the USB drivers and must be
inserted and read by the PC before you connect the cable modem to the PC.
A few seconds after you complete the USB connection, the Add New Hardware Wizard
window is displayed.
1Click Next.
2Be sure “Search for the best driver for your device” is selected.
3Click Next.

Setting Up a USB Driver in Windows 98 Second Edition, continued
Introduction Before You Begin Installation & Configuration FAQ
Troubleshooting
Glossary License
SB5100 Series Cable Modem User Guide 13
4Be sure “CD-ROM drive” is the only box checked.
5Click Next.
The message “Please wait while Windows searches for a new driver for this device”
is displayed.
6If your computer successfully locates the driver, skip to step 8.
If your computer does not locate the driver, the previous window is displayed again.
Select Specify a location and type the location of your CD-ROM drive.
To load the driver successfully, you may need to click Browse to manually select the
driver file from the CD-ROM. For the SB5100 or SB5101, select the NetMotCM.sys
file.
Or
For the SB5120, select the SB5120.inf file.
7Click Next.

Setting Up a USB Driver in Windows 98 Second Edition, continued
Introduction Before You Begin Installation & Configuration FAQ
Troubleshooting
Glossary License
SB5100 Series Cable Modem User Guide 14

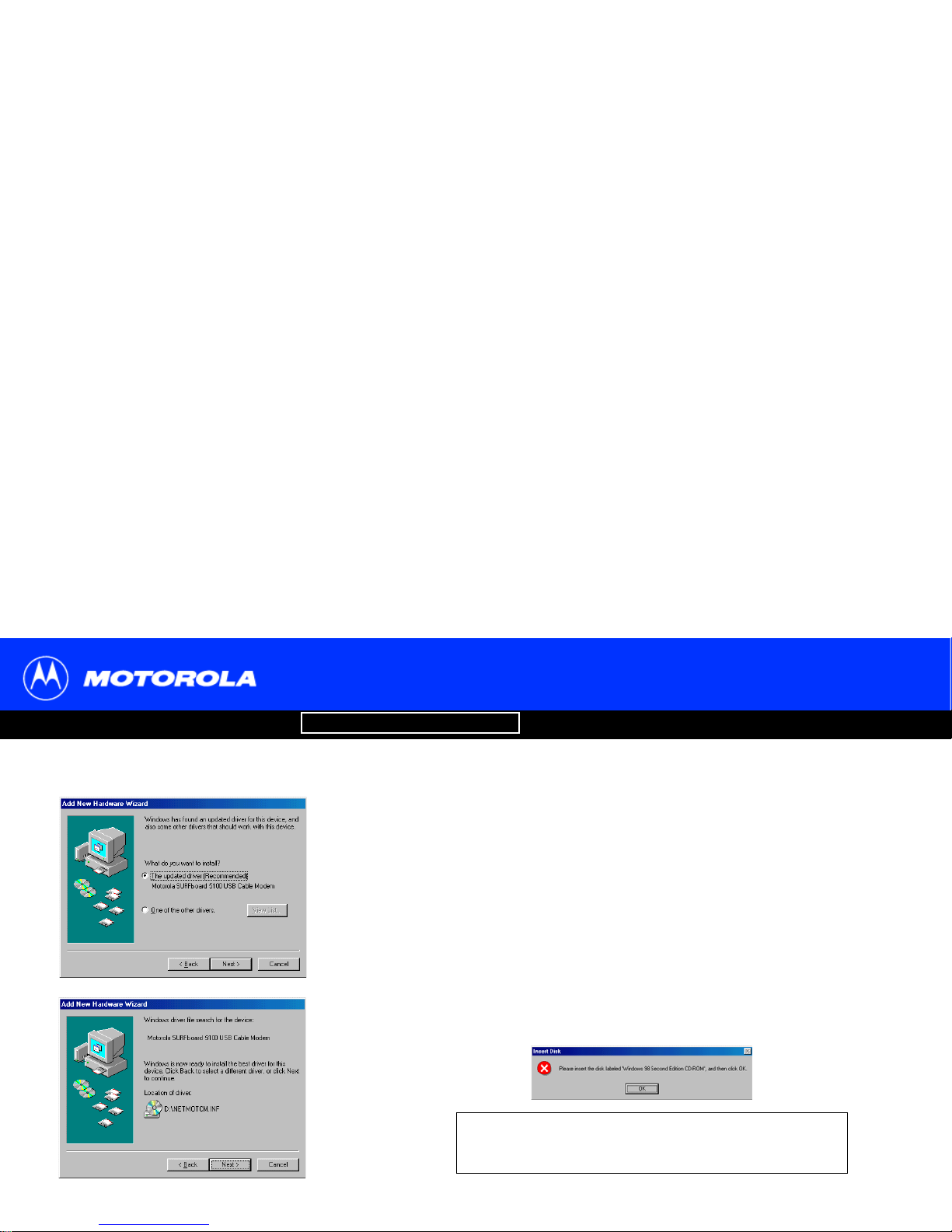

8Select The updated driver... and click Next.
If this window is not displayed, verify that the SURFboard Cable Modem CD-ROM is
properly inserted in the CD-ROM drive. If you still cannot find the correct driver file,
click Cancel to cancel the installation and perform the procedure for “Removing the
USB Driver from Windows 98 Second Edition or Windows Me” on page 45. Then
repeat this procedure.
9After the window at bottom left is displayed, click Next.
If a window with the message Copying Files... displays and asks for your CD-ROM
drive, type your CD-ROM drive letter (for example, “D:”) and click OK.
If an Insert Disk window similar to the one below is displayed, Windows system files
are needed to complete the installation. To install the files, insert your Windows 98
Second Edition CD-ROM in the CD-ROM drive and click OK.
Although your SURFboard cable modem model number may
be different than in the images in this guide, the procedure is
the same.
