Motorola FOCUS89 User manual

USER’S GUIDE
Wi-Fi®Home Video Camera
The features described in this user’s guide are subject to modifications without prior notice.
MODELS: FOCUS89, FOCUS89-2, FOCUS89-3, FOCUS89-4
FOCUS89-W, FOCUS89-W2, FOCUS89-W3, FOCUS89-W4

Welcome...
to your new Motorola Wi-Fi®Home Video Camera!
Thank you for purchasing your new Motorola Wi-Fi®Home Video Camera.
If you have always wondered what happens when you are away, wonder no
more. Now you can monitor your children, pets or property with this easy to
use system. You can install the Camera only from your iPhone®/iPad®or
Android™ devices and view the Camera video from your PC or Notebook, as
well as from your iPhone®/iPad®or Android™ devices.
Please keep your original dated sales receipt for your records. For warranty
service of your Motorola product, you will need to provide a copy of your dated
sales receipt to conrm warranty status. Registration is not required for warranty
coverage.
For product related questions, please call:
US and Canada 1-888-331-3383
Email: [email protected]
This User’s Guide has all the information you need to make the most out of your
product.
Please read the Safety Instructions on pages 5 - 6 before you install the unit.
Inside the Box
• 1 x Wi-Fi®Camera Unit
• 1 x Power Adapter
• 1 x Quick Start Guide
In multi-camera packs, you will find one or more additional Camera Units with
power adapter units.

Overview of your Camera
Important guidelines for installing your Wi-Fi®Camera Unit
• Use of other 2.4 GHz products, such as other wireless networks, Bluetooth™
systems or microwave ovens may cause interference with this product. Keep the
Wi-Fi®Camera Unit away from these types of products, or turn them off if they
appear to be causing interference.
• Always ensure that you have a good Wi-Fi®connection available.
4
5
2
1
37
8
9
6
1. Light Sensor (for night mode
detection)
2. Power / Status indicator
3. Microphone
4. Camera Lens
5. Infrared LEDs (for night vision)
6. Speaker
7. Micro USB socket
8. PAIR Button
9. SD Card slot

4Table of contents
Table of contents
1. Safety Instructions ..................................................................................... 5
2. Minimum System Requirements............................................................... 7
3. Getting started - Connecting Devices...................................................... 8
3.1 Setup .............................................................................................................. 8
3.2 User Account and Camera Setup on Android™ Devices ............................ 9
3.2.1 Power ON and Connect the Camera ............................................... 9
3.2.2 Download Hubble for Motorola Monitors App ................................. 9
3.2.3 Run Hubble for Motorola Monitors App on Android™ device ........ 9
3.2.4 Add the Camera to your account.................................................... 10
3.3 User Account and Camera Setup on iPhone®/iPad®.............................14
3.3.1 Power ON and Connect the Camera ............................................. 14
3.3.2 Download Hubble for Motorola Monitors App ............................... 14
3.3.3 Run Hubble for Motorola Monitors App on iPhone®/iPad®........14
3.3.4 Add the Camera to your account.................................................... 15
4. Camera Functions ................................................................................... 19
4.1 Connecting the Camera Unit to power ...................................................... 19
4.2 Overview of the Features on Hubble App................................................... 19
5. Working with PC/Notebook ................................................................... 21
6. Procedure for Resetting the Camera ...................................................... 22
7. Help.......................................................................................................... 23
8. General Information................................................................................ 29
9. TechnicalSpecications.......................................................................... 35

5
ENGLISH
Safety Instructions
1. Safety Instructions
WARNING:
STRANGULATION HAZARD - In case this unit is being used to monitor
infants or children, keep the unit and adapter cord more than 1 metre
away from the cot and out of their reach. Never place the Camera or
cords within a cot or near a bed. Secure the cord away from children’s
reach. Never use extension cords with AC Adapters. Only use the AC
Adapters provided.
As with any electrical device, supervision of your pet’s usage should
be exercised until your pet is acclimated to the product. If your pet is
prone to chewing, we strongly recommend you keep this and all other
electrical devices out of its reach.
Wi-Fi®CAMERA UNIT SET UP & USE:
• Place the Wi-Fi®Camera Unit on a flat surface, such as a chest of
drawers, desk, shelf or wall-mount it using the provided self adhesive
pad.
• NEVER place the Wi-Fi®Camera Unit or cords within the cot.

6Safety Instructions
WARNING
This Wi-Fi® Camera Unit is compliant with all relevant electromagnetic eld
standards and is, when handled as described in the User’s Guide, safe to use.
Therefore, always read the instructions in this User’s Guide carefully before
using the device.
• Adult assembly is required due to small parts. Keep all small parts away from
children.
• This product is not a toy. Do not allow children to play with it.
• This Wi-Fi®Camera Unit is not a substitute for responsible adult
supervision.
• Keep this User Guide for future reference.
• Do not place the Wi-Fi®Camera Unit or cords in the cot or within reach of
the baby (the unit should be at least 1 metre away).
• Keep the cords out of reach of children.
• Do not cover the Wi-Fi®Camera Unit with a towel or blanket.
• Test the Wi-Fi®Camera Unit and all its functions so that you are familiar with
it prior to use.
• Do not use the Wi-Fi®Camera Unit near water.
• Do not install the Wi-Fi®Camera Unit near a heat source.
• Only use the Power Adapter provided. Do not use other power adapters as
this may damage the device.
• Never use extension cords with Power Adapters.
• Do not touch the plug contacts with sharp or metal objects.

7
ENGLISH
Minimum System Requirements
2. Minimum System Requirements
Web Portal
• Windows®7
• Mac OS®10.7
• Chrome™ 24
• Internet Explorer®9
• Safari®6
• Java™ 7
• Firefox®18.0
• Adobe®Flash®Player 15.0
Android™ System
• Version 4.4.2 or above
iPhone®/iPad®iOS
• Version 9.0 or above
High Speed (Wi-Fi®) Internet
• At least 0.6 Mbps upload bandwidth per camera (you can test your internet
speed on this site: http://www.speedtest.net)
• If using a MicroSD Card it can be up to 32MB, and must be speed class 4 or
above for best video quality.

8Getting started - Connecting Devices
3. Getting started - Connecting Devices
How does it work?
When a user tries to access the Camera, our Hubble server authenticates the
user’s identity and permits access to the Camera.
3.1 Setup
Connect the Camera to the Power Adapter, then plug into an electrical outlet.
The Camera must be within range of the Wi-Fi® router with which you want to
connect. Make sure the password of the router is available for entering during
the in-app setup process.
Status of LED Indication:
- Pair / Setup state: LED cycles from Blue to Purple to Red
- Unconnected state: LED is Red and Flashing
- Connected state: LED is Blue and always on
- Live Streaming: LED is Blue and Flashing
-
Ready for connection state: LED is Red and Flashing
Note: You can only setup via a compatible smartphone or tablet and not via a
PC.

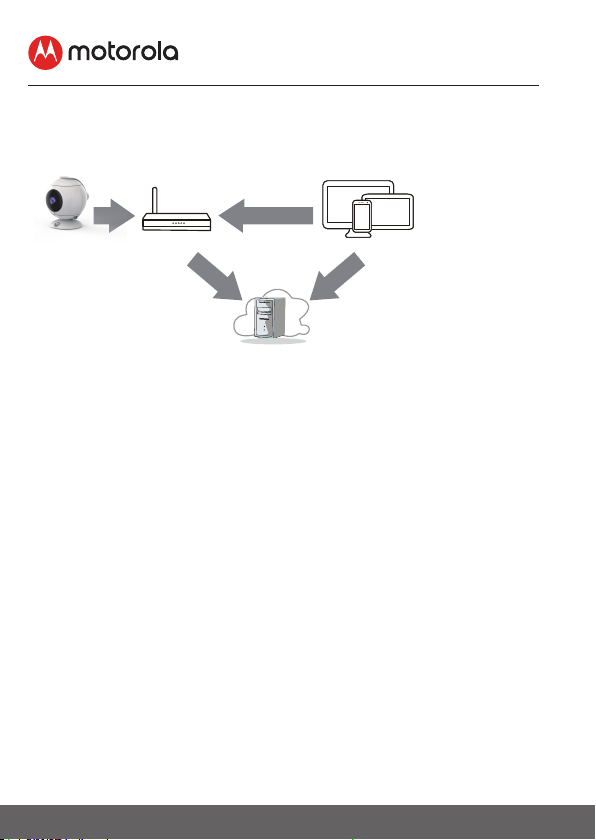

Access your
Camera locally
View your Camera from any
compatible device remotely
Wi-Fi RouterFOCUS89
Camera
Hubble
Service

9
ENGLISH
Getting started - Connecting Devices
3.2 User Account and Camera Setup on Android™ Devices
What you need
• Wi-Fi®Camera Unit
• Power adapter for the Camera
• Device with Android™ system version 4.4.2 and above
3.2.1 Power ON and Connect the Camera
• Connect the power adapter to an electrical outlet and insert the plug into
the micro USB socket on the back of the Camera Unit.
• The Camera’s Red LED Flashes after the Camera has finished booting.
3.2.2 Download Hubble for Motorola Monitors App
• Go to Google Play™ Store to search for “Hubble for Motorola Monitors”.
• Download “Hubble for Motorola Monitors” App from Google Play™ Store
and install it on your Android™ device
3.2.3 Run Hubble for Motorola Monitors App on Android™ device
• Ensure that your Android™ device is connected to your Wi-Fi®router.
• Run “Hubble for Motorola Monitors” App, enter your account information,
read through the Terms of Service, then select “By signing up you agree to
our Terms & Conditions” before you tap SIGNUP. (Picture A1)

10 Getting started - Connecting Devices
Note:
If you already have a Hubble App account, please select Already have an
Account? to go to the next step.
A1
3.2.4 Add the Camera to your account
• Tap on the lower right corner of the screen to add camera. (Picture A2)
A2

11
ENGLISH
Getting started - Connecting Devices
• The following setup instructions will appear on the screen. (Pictures A3)
A3
• Plug in and switch on the camera, and wait for a couple of minutes for it to
warm up.
• The following setup instructions will appear on the screen. (Picture A4, A4a)
A4 A4a

12 Getting started - Connecting Devices
• To pair the camera - Press and hold the PAIR button on the back of the
Camera Unit for 8 seconds. You will then hear a beep tone, followed by a
voice prompt indicating that the Camera is ready for pairing.
Pair the device
• Tap DETECT CAMERA.
• The App will automatically search for your Camera, select your Camera from
the list of networks as shown in the pictures A6 below. (Pictures A5, A6, A7)
• The LED on the camera will cycle from Red to Blue to Purple.
A5 A6 A7

13
ENGLISH
Getting started - Connecting Devices

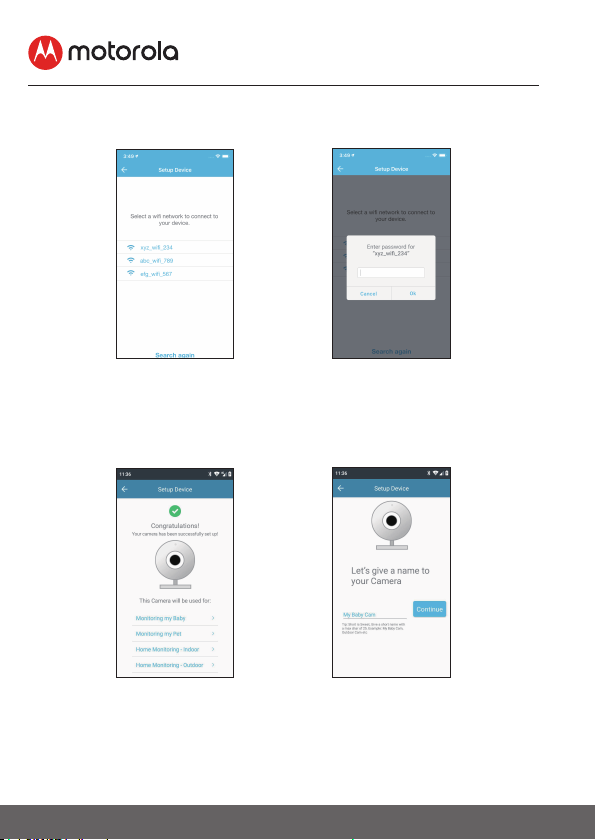

• Select your Wi-Fi®Network, enter your password and then tap Connect.
(Pictures A8, A9, A10)
A8 A9 A10
• It will take a few minutes for the Camera to connect to the Wi-Fi®network
before showing the connection status. (Pictures A11)
• If connection fails, please tap Retry and repeat the steps starting from 3.2.4.
A11

14 Getting started - Connecting Devices
3.3 User Account and Camera Setup on iPhone®/iPad®
What you need
• Wi-Fi®Camera Unit
• Power adapter for the Camera
• iPhone®/iPad®with iOS version 9.0 and above
3.3.1 Power ON and Connect the Camera
• Connect the power adapter to an electrical outlet and insert the plug into
the micro USB socket at the back of the Camera.
• The Camera’s Blue LED is lit after the Camera has finished booting.
3.3.2 Download Hubble for Motorola Monitors App
• Go to App Store to search for “Hubble for Motorola Monitors”.
• Download “Hubble for Motorola Monitors” App and install it on your
iPhone®/iPad®.
3.3.3 Run Hubble for Motorola Monitors App on iPhone®/iPad®
• Ensure that your iPhone®/iPad®is connected to your Wi-Fi® Router.
• Run the “Hubble for Motorola Monitors” App, enter your account
information, read through the Terms of Service, and then select “By signing
up you agree to our Terms & Conditions” before you tap SIGNUP. (Picture i1)

15
ENGLISH
Getting started - Connecting Devices
Note:
If you already have a Hubble App account, please select Already have an
Account? to go to the next step (Picture i1).
i1
3.3.4 Add the Camera to your account
• Tap on the lower right corner of the screen to add camera. (Picture i2).
i2

16 Getting started - Connecting Devices
• The following setup instructions will appear on the screen. (Pictures i3, i3a)
i3 i3a
• Plug in and switch on the camera, and wait for a couple of minutes for it to
warm up.
• The following setup instructions will appear on the screen. (Picture i4, i5)
i4 i5

17
ENGLISH
Getting started - Connecting Devices
• To pair the camera - Press and hold the PAIR button on the back of the
Camera for 8 seconds. You will then hear a beep tone, followed by a voice
prompt indicating that the Camera is ready for pairing.
Pair the device
• Go to Settings > Wi-Fi menu on your iPhone®/iPad®. (Picture i5)
• Select your Camera from the list of networks. (Picture i6)
• Return to the Hubble app to resume setup and press Next (Picture i7)
• Your device will detect available networks (Picture i8)
i6 i7 i8

18 Getting started - Connecting Devices
• Select your Wi-Fi® network. (Picture i9)
• Enter your Wi-Fi® password and tap OK. (Picture i10)
i9 i10
• It will take a few minutes for the Camera Unit to connect to the Wi-Fi®
network before showing the connection status.
• Select what your camera will be used for. (Picture i11)
• Give your camera a name. (Picture i12)
i11 i12

19
ENGLISH
Camera Functions
4. Camera Functions
4.1 Connecting the Camera Unit to power
• Connect the power adapter to an electrical outlet and insert the plug into
the micro USB socket on the back of the Camera Unit.
• The Blue LED will illuminate after approximately 30 seconds if the camera is
set up. The Red LED will flash if the camera is not set up. (Note: To switch off
the device, unplug the power supply.)
• Run the Hubble App on your smart device.
4.2 Overview of the Features on Hubble App
Event History • Tap Event History to access the video
record list that is triggered by Motion or
Sound detection.
• Delete Events Tap to delete selected
event(s).
Photo/Video • Take a photo or record a video from your
Camera.
• Tap the Video icon to activate Video
function. Tap and hold the red button to
start recording and release to stop.
• Tap the Camera icon to switch to Camera
mode. You can capture photos from Camera
view.
Note:
Photos and videos will be stored in the internal
flash memory of your smart device, and can be
accessed via the Gallery or Media Player
(Android Device). To play videos, please use the
Hubble App.

20 Camera Functions
Lullabies Tap to access the Melody menu and select one
of the 5 pre-set melodies you wish to play on your
Camera Unit.
Two-way
communication
Tap to activate the function. Press the round
button once to speak through the Camera
Unit. Toggle the button again to listen to the audio
feedback from the Camera Unit.
Speaker Tap to toggle speaker on or off.
Setting You can change the Camera settings by tapping
on the Settings icon.
Add Camera Enter Add Camera procedures.
