Welcome
We are pleased that you have chosen the Motorola K1c wireless phone.
040128o
Left Soft Key
Perform function
in lower left
display.
Voice Key
Create voice
records & voice
dial names.
Smart/
Speakerphone
Key
Volume Keys
Camera Key
4-Way Navigation Key
with Center Select
From home screen, press
center key to open main menu.
Clear Key
Right Soft Key
Perform function
in lower right
display.
Power & End Key
Turn phone
on/off, end calls,
exit menu
system.
Accessory
Connector Port
Insert charger &
phone
accessories.
Send Key
Make & answer
calls.

2
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
www.hellomoto.com
1-800-331-6456 (United States)
1-888-390-6456 (TTY/TDD United States for hearing
impaired)
1-800-461-4575 (Canada)
Certain mobile phone features are dependent on the
capabilities and settings of your service provider’s
network. Additionally, certain features may not be
activated by your service provider, and/or the provider's
network settings may limit the feature’s functionality.
Always contact your service provider about feature
availability and functionality. All features, functionality,
and other product specifications, as well as the
information contained in this user's guide are based
upon the latest available information and are believed to
be accurate at the time of printing. Motorola reserves
the right to change or modify any information or
specifications without notice or obligation.
Caution: Changes or modifications made in the
radio phone, not expressly approved by Motorola,
will void the user's authority to operate the
equipment.
MOTOROLA and the Stylized M Logo are registered in
the US Patent & Trademark Office. The Bluetooth
trademarks are owned by their proprietor and used by
Motorola, Inc. under license. All other product or service
names are the property of their respective owners.
© Motorola, Inc. 2006
Manual number: 6809

3
Contents
DRAFT
Contents
Use and Care . . . . . . . . . 5
Getting Started . . . . . . . . 6
About this Guide. . . . . . 6
Installing the Battery . . 7
Battery Tips . . . . . . . . . 7
Charging the Battery . . 8
Turning On Your
Phone . . . . . . . . . . . . . . 9
Adjusting Volume . . . . 10
Making a Call . . . . . . . 10
Answering a Call. . . . . 10
Changing the Call
Alert . . . . . . . . . . . . . . . 11
Viewing Your Phone
Number . . . . . . . . . . . . 11
Highlight Features . . . . 12
Recording and Playing
Video Clips . . . . . . . . . 12
Taking and Sending a
Photo . . . . . . . . . . . . . 14
Sending a Multimedia
(Pix/Flix) Message . . . 16
Receiving a Multimedia
(Pix/Flix) Message . . . 18
Downloading
Pictures . . . . . . . . . . . 19
Downloading V CAST
Videos. . . . . . . . . . . . . 20
Bluetooth
Connections . . . . . . . . 20
Synchronize Data . . . . 22
TTY Operation . . . . . . 23
Learning to Use Your
Phone
. . . . . . . . . . . . . . 25
Using the Display . . . . 25
Using the 5-Way
Navigation Key . . . . . . 28
Using Menus . . . . . . . 28
Entering Text. . . . . . . . 30
Using the Handsfree
Speaker. . . . . . . . . . . . 36
Using the External
Display . . . . . . . . . . . . 37
Turning On Airplane
Mode . . . . . . . . . . . . . 37
Changing a Code, PIN,
or Password . . . . . . . . 38
Locking and Unlocking
Your Keypad . . . . . . . . 38
Locking and Unlocking
Your Phone . . . . . . . . . 39
If You Forget a Code,
PIN, or Password . . . . 39

4
Contents
DRAFT
Setting Up Your
Phone
. . . . . . . . . . . . . . 40
Ringer/Alert Styles and
Detailed Settings . . . . . 40
Activating Ringer IDs . . 41
Talking Phone
Settings . . . . . . . . . . . . 41
Setting Answer
Options . . . . . . . . . . . . 42
Setting a Wallpaper
Image . . . . . . . . . . . . . 42
Setting a Screen
Saver Image . . . . . . . . 43
Adjusting the
Backlight . . . . . . . . . . . 43
Hiding or Showing
Location Information . . 44
AGPS Limitations and
Tips . . . . . . . . . . . . . . . 44
Conserving Battery
Power . . . . . . . . . . . . . 45
Calling Features . . . . . . 46
Changing the Active
Line . . . . . . . . . . . . . . . 46
Redialing a Number . . . 46
Using Automatic
Redial. . . . . . . . . . . . . . 46
Calling an Emergency
Number . . . . . . . . . . . . 47
Using AGPS During an
Emergency Call . . . . . . 47
Viewing Recent Calls. . 48
Returning an
Unanswered Call . . . . . 49
Attaching a Number. . . 50
Calling with Speed
Dial . . . . . . . . . . . . . . . 50
Calling with 1-Touch
Dial . . . . . . . . . . . . . . . 50
Using Voicemail . . . . . . 50
Phone Features . . . . . . . 52
Main Menu . . . . . . . . . 52
Settings & Tools Menu 53
Messages . . . . . . . . . . 54
Contacts . . . . . . . . . . . 56
Personalizing Features. 59
Menu Features . . . . . . 62
Dialing Features. . . . . . 64
Call Monitoring . . . . . . 64
Handsfree Features . . . 65
Bluetooth Wireless
Connections . . . . . . . . 66
Data and Fax Calls . . . . 67
Network Features . . . . 68
Personal Organizer
Features. . . . . . . . . . . . 69
Security . . . . . . . . . . . . 70
News and
Entertainment . . . . . . . 70
Service & Repairs . . . . 72
Specific Absorption Rate
Data
. . . . . . . . . . . . . . . 73
Index . . . . . . . . . . . . . . 75

5
DRAFT
Use and Care
To care for your Motorola phone, please keep it away from:
liquids of any kind dust and dirt
Don’t expose your phone to
water, rain, extreme humidity,
sweat, or other moisture.
Don’t expose your phone to
dust, dirt, sand, food, or other
inappropriate materials.
extreme heat or cold cleaning solutions
Avoid temperatures below -
10°C/14°F or above 45°C/113°F.
To clean your phone, use only a
dry soft cloth. Don’t use alcohol
or other cleaning solutions.
microwaves the ground
Don’t try to dry your phone in a
microwave oven.
Don’t drop your phone.

6
Getting Started
DRAFT
Getting Started
About this Guide
This guide shows how to locate a menu
feature as follows:
Find it: Press MENU ( s )  ARECENT CALLS
 Dialed
This example shows that from the home
screen, you must press
MENU ( s ), scroll
across to
RECENT CALLS on the main menu, then
scroll down to and select
Dialed . Press S to
scroll across and down, and the center
key
s to select a menu option.
CAUTION: Before using the phone for the
first time, read the
Important Safety and
Legal Information
included in the
gray-edged pages at the back of this guide.
032259o
symbols
This means a feature is network/
subscription dependent and may not
be available in all areas. Contact your
service provider for more
information.
This means a feature requires an
optional accessory.

7
Getting Started
DRAFT
Installing the Battery Battery Tips
Battery life depends on the network, signal
strength, temperature, features, and
accessories you use.
• Always use Motorola
Original batteries and
chargers. The warranty
does not cover damage
caused by non-Motorola batteries and/
or chargers.
• New batteries or batteries stored for a
long time may take more time to
charge.
• When charging your battery, keep it
near room temperature.
• When storing your battery, keep it
uncharged in a cool, dark, dry place.
• Never expose batteries to
temperatures below -10°C (14°F) or
1.
2.
3.
4.

8
Getting Started
DRAFT
above 45°C (113°F). Always take your
phone with you when you leave your
vehicle.
• It is normal for batteries to gradually
wear down and require longer charging
times. If you notice a change in your
battery life, it is probably time to
purchase a new battery.
Contact your local recycling center for
proper battery disposal.
Warning: Never dispose of batteries in a fire
because they may explode.
Before using your phone, read the battery
safety information in the “Safety and General
Information” section included in this guide.
Charging the Battery
New batteries are shipped partially charged.
Before you can use your phone, you need to
install and charge the battery as described
below. Some batteries perform best after
several full charge/discharge cycles.
Using the Charger
1 Insert the
charger into the
USB connector
on your phone
as shown.
2 Plug the other
end of the
charger into the appropriate electrical
outlet.
3 When your phone indicates Charge Complete ,
remove the charger.

9
Getting Started
DRAFT
Tip: You can safely leave the charger
connected to the phone after charging is
complete. This will
not damage the battery.
When you charge the battery, the battery level
indicator in the upper right corner of the
display shows how much of the charging
process is complete. At least 1 segment of
the battery level indicator must be visible to
ensure full phone functionality while charging.
Charging from a Computer
You can charge your battery by connecting a
cable from your phone's mini-USB port to a
high-power USB port on a computer (not a
low-power one such as the USB port on your
keyboard or bus-powered USB hub). Typically,
USB high-power ports are located directly on
your computer.
Both your phone and the computer must be
turned on, and your computer must have the
correct software drivers installed. Cables and
software drivers are available in
MotorolaOriginal data kits, sold separately.

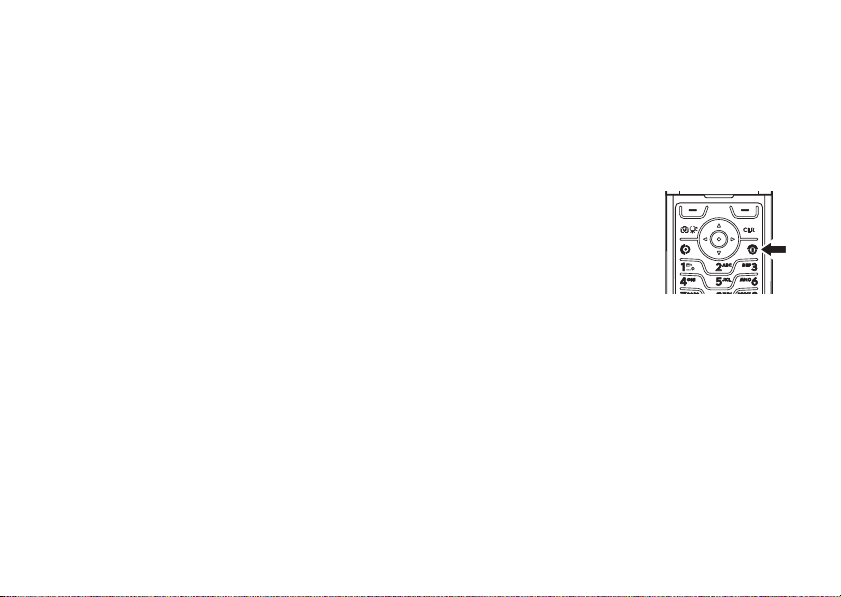

Turning On Your Phone
1 Open your phone.
2 Press and hold the
power key for 3
seconds.
The phone may
require several
seconds to power on.
3 If necessary, enter your 4-digit unlock
code (the last 4 digits of your phone
number) and press
OK to unlock the
phone.

10
Getting Started
DRAFT

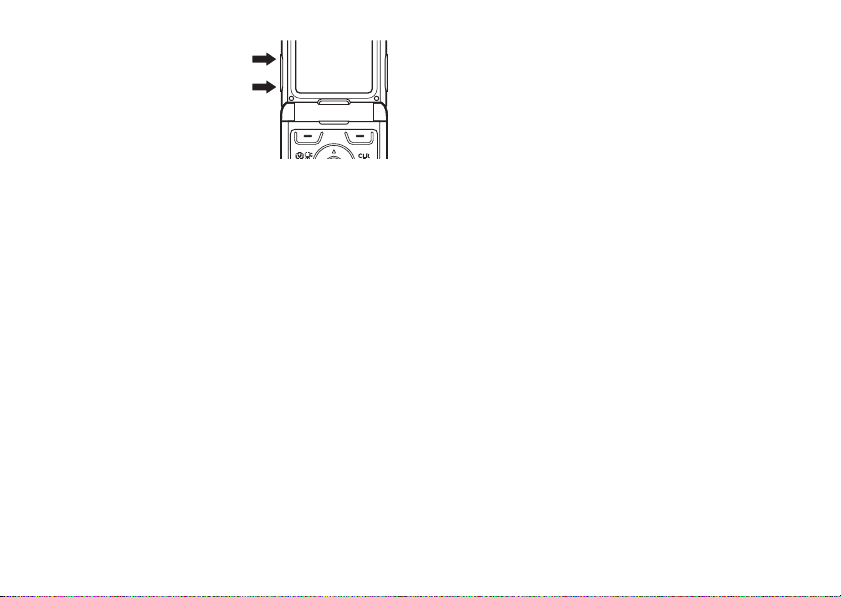

Adjusting
Volume
Press the up or down
volume keys to:
• increase or decrease earpiece volume
during a call
• increase or decrease ringer volume
setting when the home screen is
visible (phone must not be in a call and
flip must be open)
• silence an incoming call alert
Making a Call
1 Dial the number.
Tip: If you make a mistake, press the
clear key
B to delete the last digit. Press
and hold
B to clear all digits.
2 Press N to make the call.
3 Press P to end the call.
Tip: Closing the flip also ends the call unless
you are using the speakerphone feature (see
page 36).
Note: You must dial the phone number from
the home screen. See page 25.
Answering a Call
When you receive a call, your phone rings
and/or vibrates and displays an incoming call
message.
1 Press N to answer.
2 Press P to end the call.
Tip: You can set the phone to answer calls
when you open the flip. (To activate, press
MENU ( s )  DSETTINGS & TOOLS  Call Settings
 In-Call Setup  Answer Options  Open To Answer .)
040135o

11
Getting Started
DRAFT
Note: If the phone is locked, you must first
enter your 4-digit unlock code to answer the
call.
Changing the Call Alert
Phone Flip
Open
In the home screen,
press the down volume
key to switch to lower
call alert volume, then
switch to
Vibrate , then Alarm , and, finally, All Off .
Press the up volume key to cycle back from
silent alert to vibrate and then to the lowest
alert volume setting.
Phone Flip Closed
Press the up or
down volume
key, then press
the smart/
speakerphone
key to scroll through the alert styles:
Master
Volume
, Alarm Only , Vibrate Only , and All Off . The alert
styles are shown on the external display.
After scrolling to the desired alert style, press
the up or down volume key to save the setting
and return to the home screen.
Viewing Your Phone
Number
To view your phone number from the home
screen, press
B# .
While you are on a call, press
Options , then
select
My Tel. Numbers .
040135o
Volume Keys
Smart/
Speakerphone
Key

12
Highlight Features
DRAFT
Highlight Features
You can do much more with your phone than
make and receive calls! This section
describes some of your phone’s highlights.
Recording and Playing
Video Clips
You can record a video clip with your phone
and send it to other wireless phone users in a
multimedia message.
Record a Video Clip
To activate your phone’s video camera:
1 Press S left to open the GET PIX & FLIX
menu.
2 Scroll to Take FLIX and press OK ( s ).
Tip: You can also activate the video
camera viewfinder by pressing and
holding the camera key
b .
Camera Lens
Smart/
Speakerphone
Key
Take self-portrait
photo with
camera when flip
is closed.
External Display
View incoming
call information,
use as camera
viewfinder when
flip is closed.

13
Highlight Features
DRAFT
The active viewfinder image appears on
your display.
3 Point the camera lens at the video
subject.
Press
S left and right to zoom in and out.
Press
Options to open the OPTIONS menu (see
“Adjust Video Recording Settings” on
page 13).
4 Press REC ( s ) to begin recording.
Press
Pause to temporarily stop recording,
then press
Resume to continue.
5 Press Stop ( s ) to stop recording.
6 Press Save to save the video.
or
Press SEND ( s ) to save the video and go
to the
CREATE PIX MESSAGE screen.
or
Press Erase to delete the video and return
to active viewfinder.
Adjust Video Recording
Settings

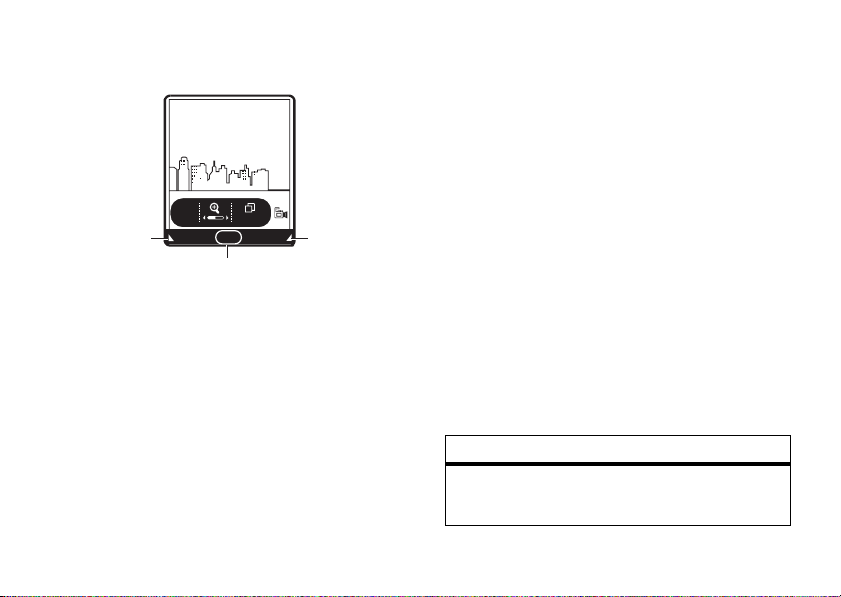

When the video camera is active, press Options
to open the OPTIONS menu, which can include
the following options:
ß
480x640
Press right soft
key to view
Options menu.
Press left soft
key to view
My FLIX.
Press sto
begin recording.
My FLIX Options
REC
N
Option
Brightness
Adjust image brightness.

14
Highlight Features
DRAFT
Play a Video Clip
To play a video clip stored on your phone:
1 Press S left to open the GET PIX & FLIX
menu.
2 Scroll to My FLIX and press OK ( s ).
3 Scroll to the clip you want to view and
press
PLAY ( s ).
Press
Mute while the video clip is playing to
mute the video clip sound. Press
Mute
again to turn sound on again.
Taking and Sending a
You can take a photo with your phone, and
send it to other wireless phone users in a
multimedia message.
Take and Send a Photo
To activate your phone’s camera:
1 Press S left to open the GET PIX & FLIX
menu.
2 Scroll to Take PIX and press OK ( s ).
Tip: You can also activate the camera
viewfinder by pressing the camera
key
b .
White Balance
Adjust for different lighting.
Duration
Specify standard lengths of video clips of 5,
10, or 15 seconds.
Color Effects
Select Normal , Sepia , Black & White , or Negative .
Option

15
Highlight Features
DRAFT
The active viewfinder image appears on
your phone’s display.
3 Point the camera lens at the photo
subject, then press
TAKE ( s ) to take a
photo.
Press
S left and right to zoom in and out.
Press
Options to open the OPTIONS menu (see
“Adjust Camera Settings” on page 15).
4 Press Save to save the photo.
or
Press SEND ( s ) to save the photo and go
to the
Create Pix Msg screen.
or
Press Erase to delete the photo and return
to active viewfinder.
Adjust Camera Settings
When the camera is active, press Options to
open the
OPTIONS menu, which can include the
following options:
ß
480x640
Press right soft
key to view
Options menu.
Press left soft
key to view
My PIX.
Press sto Take
photo.
My PIX Options
TAKE
N
Option
Resolution
Set resolution to High (1280x1024) ,
Medium (640x480) , Low (320x240) , or
Thumbnail (160x120) .
Self timer
Set a timer for the camera to take a photo.

16
Highlight Features
DRAFT
Sending a
Multimedia (Pix/Flix)
Message
A multimedia message contains embedded
media objects (possibly including photos,
pictures, animations, sounds, voice records).
You can send a multimedia message to other
Verizon Wireless multimedia messaging-
capable phones and to other email addresses.
Create and Send Message
Find it: Press MENU ( s )  CMESSAGING
 New Pix Msg
Brightness
Adjust image brightness.
White Balance
Adjust for different lighting.
Image Quality
Select Fine , Normal , or Economy .
Shutter Sound
Activate a tone that plays when you take a
photo.
Color Effects
Select Normal , Sepia , Black & White , or Negative .
Multishot
Set the camera to take multiple photos with
a single press of the camera key
b .
Option
Fun Frame
Go to Fun Frames to select an amusing frame
for your photo.
Option

17
Highlight Features
DRAFT
1 Press keypad keys, then OK ( s ), to enter
a phone number.
or
Press Add  Contacts , then OK ( s ). For each
Contacts entry you want to add, highlight the
entry and press
OK ( s ). Press Done when
finished adding
Contacts entries.
or
Press Add  Recent Calls , then OK ( s ). For
each call you want to add, highlight the
entry and press
OK ( s ). Press Done when
finished adding entries from
Recent Calls .
2 Scroll to the Text entry box.
3 Press keypad keys to enter message text.
4 Scroll to the Pix or Flix entry box and press
Gallery .
5 Scroll to Pix Gallery (for pictures) or Flix Gallery
(for video clips) and press
OK ( s ).
6 Scroll to and highlight a picture or video
clip to insert, and press
OK ( s ).
7 Scroll to the Sound entry box and press
Sounds .
8 Scroll to and highlight a sound to insert,
and press
OK ( s ).
9 Scroll to Subject .
10 Press keypad keys, then OK ( s ), to enter
the message subject.
or
Press Options , scroll to Add Quick Text , then
press
OK ( s ), to select a Quick Text item as
the message subject.
11 Press SEND ( s ) to send the message.
