Motorola T505 - MOTOROKR - Speaker Phone User manual

Quick Start Guide
motorola
T505
Before using this product, read the Impo
pamphlet and follow its instructions.
Take a moment before you get started to fa
m
T505 Bluetooth
®
In-Car Speakerphone & Di
g
BEFORE
Y

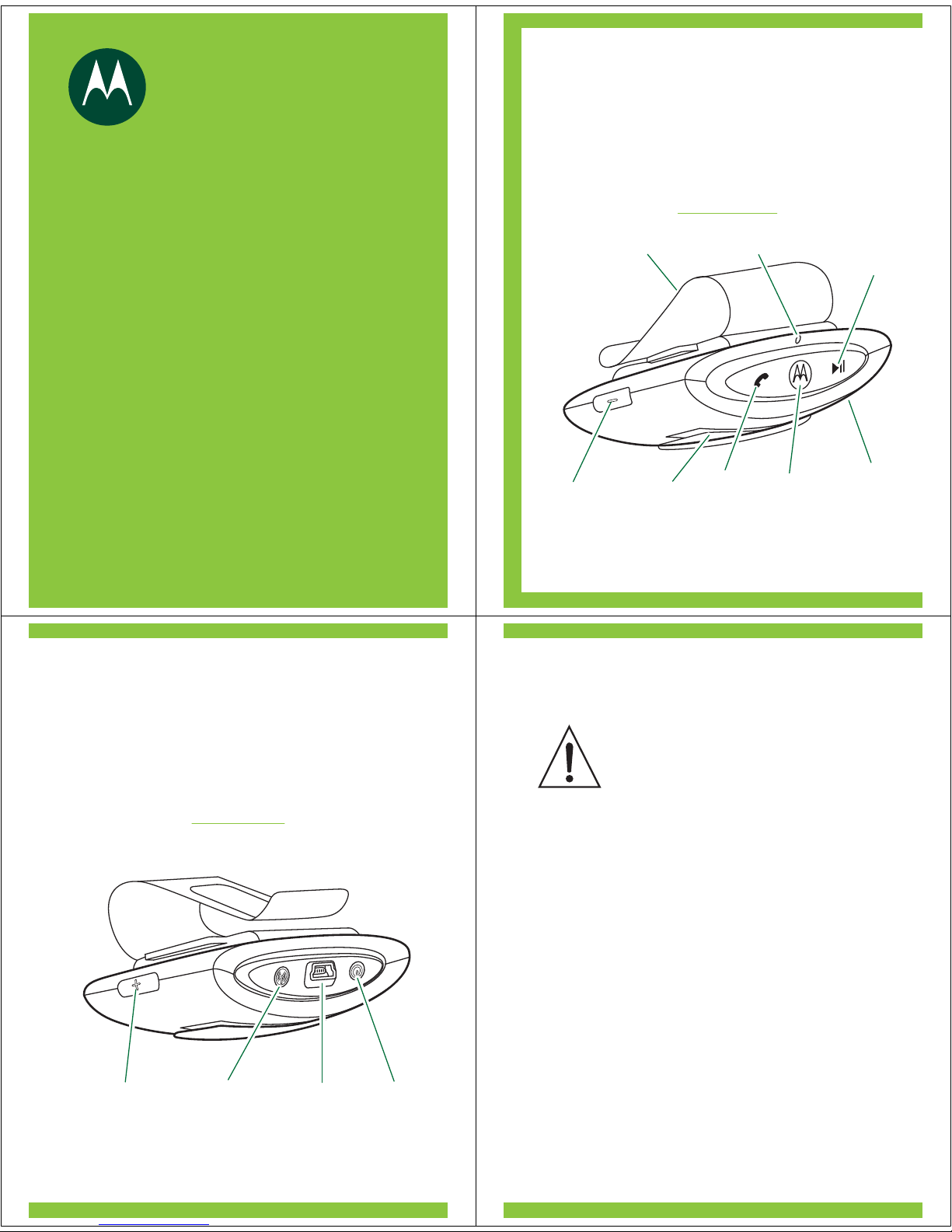

Front View
Volume Down
Button
Call
Button
Main
Indicator
Light
Microphone
Visor Clip Play/Pause
Button
Speaker FM Indicator
Light
(on bottom)
rtant Safety and Legal Information
m
iliarize yourself with your new MOTOROKR
™
g
ital FM Transmitter.
Y
OU BEGIN
START HERE >
Rear View
Volume Up
Button
FM
Button
Charging
Port
Power
Button
NOTICE
032374o
Handsfree call audio broadcast to
your FM radio using the
transmitter feature can potentially
be picked up by another radio in
close proximity. Call audio heard
on the internal speaker is not
impacted.

1
PAIR
Your MOTOROKR T505
Before you can use your MOTOROKR T505, you
must pair (link) it with your Bluetooth device.
Step A - ENSURE T505 IS IN PAIRING MODE
Verify any Bluetooth devices previously
paired with your T505 are turned off.
Power on your T505 by pressing and holding
the Power button for approximately three
seconds. The main indicator light flashes and
you hear an audible tone sequence to
indicate the device is powered on.
After a few moments, the main indicator
light will be steadily lit to indicate T505 is in
pairing mode.
If your T505 is not pairing mode, see
TROUBLESHOOTING for help.
1
2
Main Indicator Light
(steadily blue
for pairing mode)
Press (Menu)> Settings > Connection >
Bluetooth Link > Setup.
Scroll to Power.
Select Change.
Scroll to On.
Press Select to turn on the Bluetooth
feature. The Bluetooth feature remains on
until you turn the feature off.
Note: These steps are for most Motorola phones.
For other phones, see your phone's user's guide.
To use your MOTOROKR T505, you must turn
on the Bluetooth feature in your phone or music
device.
For most Motorola phones:
M
1
2
3
4
5
Step B - TURN ON BLUETOOTH FEATURE
ON YOUR DEVICE
Step C - SET YOUR DEVICE TO LOOK FOR
YOUR T505
While your T505 is in pairing mode, use your
phone or music device to perform a device
discovery. Refer to your device’s manual for
detailed instructions on accessing Bluetooth and
placing it in device discovery mode.
For most Motorola phones:
3
4
5
1
2
Press (Menu)> Settings > Connection >
Bluetooth Link > Handsfree > Look for Devices.
The phone lists Bluetooth devices it finds.
Select Motorola T505.
Select OK or Ye s to pair your T505 with your
phone.
If prompted, enter the passkey: 0000
Select OK.
Note:These steps are for most Motorola phones. For
other devices, see your device's user's guide.
When your T505 successfully pairs and
connects with your phone or music device, the
main indicator light flashes purple and blue.
M
TEST AND USE
Yo u r M OTO ROKR T505 and phone or music
device are now paired and connected. Do the
following to verify proper operation:
2
●
To verify handsfree calling operation,
dial the number you want to call on the
phone and press SEND key on your
phone. If your phone and T505 are
successfully paired, you will hear ringing
on your T505.
To verify streaming audio operation,
play music on your portable Bluetooth
music device. If your music source and
T505 are successfully paired and
connected for streaming music, you hear
music on your T505.
●

MOTOROLA and the Stylized M Logo are registered in the US
Patent & Trademark Office. The use of wireless devices and their
accessories may be prohibited or restricted in certain areas.
Always obey the laws and regulations on the use of these
products. The Bluetooth trademarks are owned by their
proprietor and used by Motorola, Inc. under license. All other
product or service names are the property of their respective
owners.
© Motorola, Inc. 2008
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
www.hellomoto.com
1-877-MOTOBLU
1-888-390-6456 (TTY/TDD United States for
hearing impaired)
Guide Number: 6809503A46-P
Bluetooth QD ID:B013331
YOU’RE FINISHED!
After you have successfully set up your
MOTOROKR T505, you don't need to repeat
these steps.
For daily use, ensure that your T505 is turned
ON and your phone and/or music device’s
Bluetooth feature is ON.
To use the T505 with your FM car radio, see
“Using With Your FM Car Radio” on the
reverse side.
To configure T505 settings, see “Configure
Your MOTOROKR T505”.
TIPS
Use the following tips when using your T505:
If your T505 remains in an idle state (not
connected to a Bluetooth device) for 15
minutes, it stops searching for the last
connected device.
When this occurs, you can manually initiate a
search (or “page”) for the last connected
device by tapping the Call button.
If your T505 remains in an idle state for 30
minutes, it will automatically turn off.
When this occurs, turn on your T505 to
connect to your device.
When answering an incoming call, a single
tone indicates when call setup is complete.
●
●
●
USING YOUR
MOTOROKR
T505
See
Features and
Functions Guide
on the reverse side
for details on
using your T505

CONFIGURE
Your MOTOROKR T505
Yo u r M OTO ROKR T505 uses a default set of
configuration settings. You may change the
default settings at anytime.
To modify T505 configuration settings, enter
setup mode by pressing and holding the Call
button while powering up. The main indicator is
steadily lit in green to indicate your T505 is in
setup mode.
There are four configurable settings in your T505
(default setting in italics).
1
Voice prompt language
Description: Set language for voice prompts
Options: English, French, Spanish, and
Portuguese
Caller ID
Description: Hear the phone number of the
the incoming caller
Options: On or Off
2
3
Voice prompt type
Description: Replace spoken prompts with
tones (FM stations are always
spoken)
Options: On or Off
Voice prompt volume
Description: Adjust the loudness of the
voice prompts (or tones)
Options: Seven volume levels (steps)
4
For each setting, press the Volume up and down
keys to select a different option. To make a
selection, press the Play/Pause key. The main
indicator light flashes green to confirm your
selection.
Upon completing configuration, your T505 plays
power up tones and enters the standard power
up sequence.
If you fail to complete all four customization
settings, your T505 will not save your changes.
My MOTOROKR T505 will not enter pairing
mode.
Make sure that any devices previously paired with
the T505 are turned off. If the main indicator light
is pulsing in blue, first turn off the other device,
then turn your T505 off and on. The main indicator
light becomes steadily lit in blue indicating the
T505 is now in pairing mode.
My phone/music device doesn't find my
MOTOROKR T505.
Make sure the indicator light on your T505 is on (li
t
in blue) and steady when your phone/music
device is searching for devices (see step 1a).
My MOTOROKR T505 worked before but now
it's not working.
Make sure your phone/music device is on and the
Bluetooth feature is turned on in your device (see
step 1b). If the Bluetooth feature was turned off o
r
was turned on only temporarily, you may need to
restart the Bluetooth feature (see step 1b) and pai
r
your device and T505 again (see step 1c).
Support.
If you need more help, contact us at
1-877-MOTOBLU or visit us at
www.hellomoto.com/Bluetoothsupport
TROUBLESHOOTING
t
r
r

Features and
Functions Guide
IMPORTANT:
Be sure to first follow the
Quick Start Guide
on the reverse side
of this guide
to complete initial setup
of your MOTOROKR T505.
TURNING
ON AND OFF
To turn your T505 on, press and hold the
Power button until you hear an ascending
tone sequence, and the main indicator light
flashes blue three times.
To turn your T505 off, press and hold the
Power button until you hear descending
tone sequence, and the main indicator light
flashes blue three times.
Your T505 automatically powers down when
not connected to a Bluetooth device for 30
consecutive minutes.
Power
Button
To install the T505 in your car, first slide metal
visor clip onto T505, then secure T505 to the sun
visor in your car as shown below.
INSTALLING IN CAR
Tip: The visor clip attaches to your T505 in both directions.
Slide the clip in the direction of the embossed arrow on the
clip. While you may reverse the direction of the clip if you
prefer, the Call Button should always be facing towards you.
IMPORTANT: Your T505 should not be left in the heat of
an unattended vehicle for an extended period of time.
1
2
When your MOTOROKR T505 is connected and
operating with your phone and/or music device,
you can route call and music audio to your car’s
FM radio.
To hear calls and streaming music over your FM
car radio:
USING WITH YOUR FM
CAR RADIO
Press FM button on rear of your T505. The
FM indicator light initially flashes in white,
then turns solid white and announces the
previously used frequency when ready.
Turn on your car’s FM radio and tune to the
station (frequency) announced during step 1
above. Audio from calls and streaming music
is broadcast on your FM radio.
1
2
To turn off FM broadcast and use your T505 ‘s
speaker for audio, press and hold FM button
until the FM indicator light turns off.
The FM transmitter automatically powers off
if idle for 10 minutes.

SETTING
Using St
a
Upon turning on FM broadcast, your T505
transmits call and music audio on the last
selected station frequency. When audio
performance is unsatisfactory, you may desire
to select another transmit frequency.
To search for another station to broadcast call
and music audio:
Press FM button. Your T505 searches for
the best station available. While searching,
call audio is muted and music audio is
paused.
When a station is found, it is announced
twice, and call/music audio is broadcast to
that station.
Tune your FM radio to the announced
station. If station works well, press and
hold both Play/Pause and FM buttons to
save as a preferred station. Preferred
stations are given priority during future
searches.
1
2
FM STATION
a
tionFinder™
Note: Up to 5 preferred stations can be saved on
your T505. When storing additional preferred stations,
the oldest station in the existing list will be replaced.
To continue searching, repeat steps 1 and
2 until you find a satisfactory station.
When turned off, your T505’s FM
transmitter remembers the last station
used, and begins with that station when
you turn it back on.
3
As your environment changes (i.e. driving
around a building, entering a city, etc.), the
audio quality over FM may begin to degrade.
This may occur more frequently in urban areas.
If this occurs, perform steps 1 and 2 until you
find a station with satisfactory audio quality.

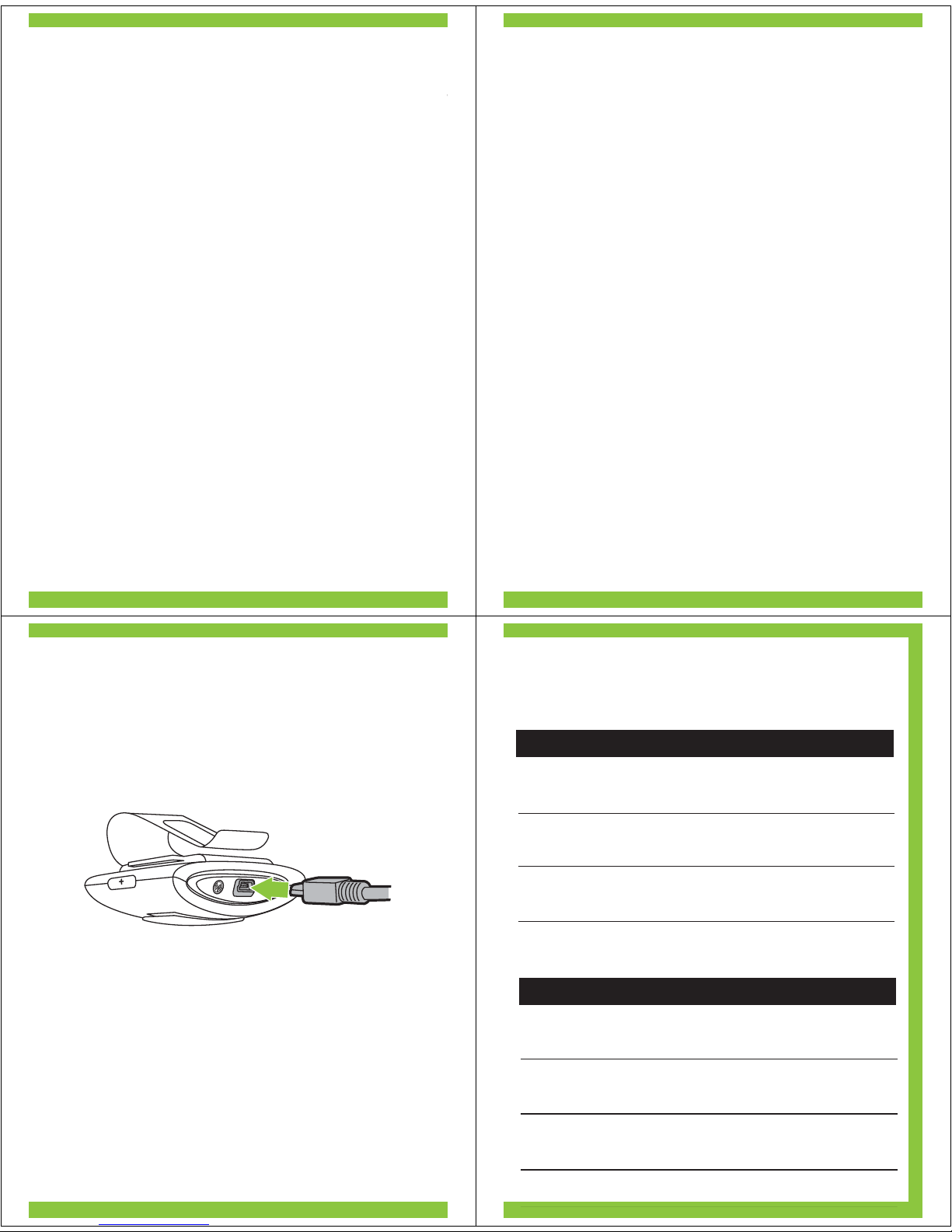

CHARGING BATTERY
Plug the Motorola charger into the charging
port on the rear of your T505 as shown.
The main indicator light turns red or yellow
when the battery is charging. It may take
up to 1 minute for the indicator light to turn
on. When the T505's battery is close to fully
charged (about 5 hours), the indicator light
turns green.
Disconnect the charger.
1
2
Note: Your T505 is operational while charging; however, it is
not recommended to charge your T505 while clipped to
your sun visor.
LISTENING TO MUSIC
Function Action
Play/Pause music Tap Play/Pause
button
Skip to next track Tap Volume Up
button
Skip to previous track Tap Volume Down
button
When using FM Broadcast
Function Action
Play/Pause music Tap Play/Pause
button
Increase volume Tap Volume Up
button
Decrease volume Tap Volume Down
button
When using T505 Internal Speaker

• The essential requirements and
other relevant provisions of Directive
1999/5/EC.
• All other relevant EU Directives.
European Union Directives
Conformance Statement
Product
Approval
Number
The above gives an example of a typical Product
Approval Number.
You can view your product’s Declaration of Conformity
(DoC) to Directive 1999/5/EC (to R&TTE Directive) at
www.motorola.com/rtte. To find your DoC, enter the
product Approval Number from your product’s label in
the “Search” bar on the web site.
Hereby, Motorola declares that this
product is in compliance with:
MAKING CALLS
Function Action
Make a voice dial call Tap the Call button
and speak the
name after the tone
End a call Tap the Call button
Answer a call Tap the Call button
and talk after second
tone
Reject a call Tap either Volume
button
Redial last call Press and hold the
Call button for at least
2 seconds until you
hear a voice prompt
Transfer call audio to Press and hold Power
your phone button (to turn off
T505)
Note: Your T505 supports both Handsfree and Headset
Profiles. Accessing call functions depends upon which profile
your phone supports. See your phone's user's guide for mor
e
information.
e
MAKING CALLS CONTINUED
Function Action
Mute or unmute a call Tap Play/Pause
button
Answer a second Press and hold the
incoming call Call button (places
first call on hold)
Toggle between two Press and hold the
calls Call button
Note: Some features are phone/network dependent.
USING FM BROADCAST
Function Action
Turn on FM broadcast Tap FM button
Search for new station Tap FM button
Set a preferred station Press and hold both
Play/Pause and FM
buttons
Turn off FM broadcast Press and hold FM
button until FM
indicator light turns off
Indicator Status
Off FM transmitter off
On FM transmitter on
Note: After 10 minutes of inactivity, the FM transmitter
automatically powers down and the indicator light turns off.
FM INDICATOR LIGHT
MAIN INDICATOR LIGHT
When T505 Off and Charger Plugged In
Indicator Status
Red Charging (battery
level less than 80%
charge)
Yellow Charging (battery
level more than 80%
charge)
Green Charging complete

MAIN INDICATOR LIGHT
When T505 On
Indicator Status
Steady green Setup menu active
Steady blue Pairing mode
Rapid blue/purple flashes Pairing successful
Slow green pulse Music streaming
Quick blue flash Incoming/outgoing call
Slow blue pulse Connected (on a call)/
Standby (not on a call)
Slow red pulse Idle (not connected to
Bluetooth device)
Slow purple pulse Connected call muted
Quick red flash Low battery
Note: After 20 minutes on a call or of inactivity, the indicator
light stops flashing to conserve power (but the T505 remains
on).
AUDIO TONES
AudioTone Status
Rapid ascending tone Powering on
Rapid descending tones Powering off
Four ascending tones Charger connected
Four descending tones Charger disconnected
Single tone Connected/
disconnected call
Two short tones when Volume at minimum
pressing Volume button or maximum
Two rapid ascending Connect successful/
tones FM transmitter on/
set preferred station/
mute enabled
Two rapid descending Mute disabled
tones
AUDIO TONES CONTINUED
AudioTone Status
High/low tones Low battery
repeated every 60 sec.
No audio indications; Out of range
deteriorating quality
ADVANCED FEATURES
Function Action
Enter pairing mode Press and hold both
Volume buttons for
5 seconds
Reset station finder Press and hold FM
button to turn on FM
transmitter
When T505 Turned On
Function Action
Enter Setup mode Press and hold both
Call and Power
buttons for 5
seconds
Exit Setup mode Tap Power button
Clear Bluetooth Press and hold both
device list Volume Down and
Power buttons for 5
seconds
Reset to factory Press and hold both
default condition Volume Up and
(and clears preferred Power buttons for
FM stations) 5 seconds
When T505 Turned Off
ADVANCED FEATURES
CONTINUED
