IT210
Level Converter, Direction Signal Decoder and programmable pulse divider
Product features:
Level Converter (RS-422, HTL Single Ended, HTL Differential,
TTL and and vice-versa
Implementation between the two types of representations for the direction
of rotation (A/B 90 °, A/B Direction and vice versa)
Adjustable division ratio of directional A / B pulses
Adjustable division ratio for the Z pulse
Reset of the Z divider by external input (defined setting)
Zero setting of the A / B / Z divider by external input (defined Start / Stop)
Z divider can also be used as an independent second divider
Limit frequency up to 1 MHz, depending on the input format
Push-pull outputs direct SPS control
9 to 30 VDC power supply

It210_01a_oi_e.docx / Jan-19 Page 2 / 17
Version:
Description:
It210_01a/CF/ Oct 2018
Version 1
Legal notices:
All contents included in this manual are protected by the terms of use and copyrights of motrona GmbH. Any reproduction,
modification, usage or publication in other electronic and printed media as well as in the internet requires prior written
authorization by motrona GmbH.
Table of Contents
1. Safety Instructions and Responsibility ........................................................ 3
1.1 General Safety Instructions...................................................................................3
1.2 Use according to the intended purpose ................................................................3
1.3 Installation.............................................................................................................4
1.4 Cleaning, Maintenance and Service Notes...........................................................4
2. Introduction ................................................................................................ 5
3. Block diagram ............................................................................................. 5
4. Terminal Assignments and Connections...................................................... 6
5. Progarmmable A/B Divider.......................................................................... 8
5.1. Level converter A/B Pulse (A/B Divider: All OFF)..................................................8
5.2. Input/Output Mode Converter (A/B Divider: All OFF)............................................8
5.3. Setting the A/B Divider (at A/B Dir to A/B 90°)....................................................9
5.4. Setting the A/B divider (for all other modes)......................................................10
5.5. Setting to zero the A/B divider with ZERO_A Signal..........................................11
5.6. Informationen over the signal change A/B Dir....................................................11
6. Programmable Z Divider............................................................................ 12
6.1. Pegel conversion Z Puls (Z Divider: all OFF) ........................................................12
6.2. Setting the Z Divider ...........................................................................................12
6.3. Location and width of the Z pulse.......................................................................13
6.4. Independent Z Divider .........................................................................................14
6.5. Automatic generation of a Z pulse......................................................................15
6.6. Reset the Z divider with ZERO_Z Signal .............................................................15
7. Error Output .............................................................................................. 15
8. Dimensions............................................................................................... 16
9. Technical Specifications ........................................................................... 17

It210_01a_oi_e.docx / Jan-19 Page 3 / 17
1.Safety Instructions and Responsibility
1.1 General Safety Instructions
This operation manual is a significant component of the unit and includes important rules and
hints about the installation, function and usage. Non-observance can result in damage and/or
impairment of the functions to the unit or the machine or even in injury to persons using the
equipment!
Please read the following instructions carefully before operating the device and observe all
safety and warning instructions! Keep the manual for later use.
A pertinent qualification of the respective staff is a fundamental requirement in order to use
these manual. The unit must be installed, connected and put into operation by a qualified
electrician.
Liability exclusion: The manufacturer is not liable for personal injury and/or damage to property
and for consequential damage, due to incorrect handling, installation and operation. Further
claims, due to errors in the operation manual as well as misinterpretations are excluded from
liability.
In addition the manufacturer reserve the right to modify the hardware, software or operation
manual at any time and without prior notice. Therefore, there might be minor differences
between the unit and the descriptions in operation manual.
The raiser respectively positioner is exclusively responsible for the safety of the system and
equipment where the unit will be integrated.
During installation or maintenance all general and also all country- and application-specific
safety rules and standards must be observed.
If the device is used in processes, where a failure or faulty operation could damage the system
or injure persons, appropriate precautions to avoid such consequences must be taken.
1.2 Use according to the intended purpose
The unit is intended exclusively for use in industrial machines, constructions and systems. Non-
conforming usage does not correspond to the provisions and lies within the sole responsibility
of the user. The manufacturer is not liable for damages which has arisen through unsuitable
and improper use.
Please note that device may only be installed in proper form and used in a technically perfect
condition - in accordance to the “Technical Specifications” (see chapter 8). The device is not
suitable for operation in explosion-proof areas or areas which are excluded by the EN 61010-1
standard.

It210_01a_oi_e.docx / Jan-19 Page 4 / 17
1.3 Installation
The device is only allowed to be installed and operated within the permissible temperature
range. Please ensure an adequate ventilation and avoid all direct contact between the device
and hot or aggressive gases and liquids.
Before installation or maintenance, the unit must be disconnected from all voltage-sources.
Further it must be ensured that no danger can arise by touching the disconnected voltage-
sources.
Devices which are supplied by AC-voltages, must be connected exclusively by switches,
respectively circuit-breakers with the low voltage network. The switch or circuit-breaker must
be placed as near as possible to the device and further indicated as separator.
Incoming as well as outgoing wires and wires for extra low voltages (ELV) must be separated
from dangerous electrical cables (SELV circuits) by using a double resp. increased isolation.
All selected wires and isolations must be conform to the provided voltage- and temperature-
ranges. Further all country- and application-specific standards, which are relevant for structure,
form and quality of the wires, must be ensured. Indications about the permissible wire cross-
sections for wiring are described in the Technical Specifications (see chapter 8).
Before first start-up it must be ensured that all connections and wires are firmly seated and
secured in the screw terminals. All (inclusively unused) terminals must be fastened by turning
the relevant screws clockwise up to the stop.
Overvoltages at the connections must be limited to values in accordance to the overvoltage
category II.
For placement, wiring, environmental conditions as well as shielding and earthing/grounding of
the supply lines the general standards of industrial automation industry and the specific
shielding instructions of the manufacturer are valid. Please find all respective hints and rules on
www.motrona.com/download.html --> “[General EMC Rules for Wiring, Screening and
Earthing]”.
1.4 Cleaning, Maintenance and Service Notes
To clean the front of the unit please use only a slightly damp (not wet!), soft cloth. For the rear
no cleaning is necessary. For an unscheduled, individual cleaning of the rear the maintenance
staff or assembler is self-responsible.
During normal operation no maintenance is necessary. In case of unexpected problems, failures
or malfunctions the device must be shipped for back to the manufacturer for checking,
adjustment and reparation (if necessary). Unauthorized opening and repairing can have
negative effects or failures to the protection-measures of the unit.

It210_01a_oi_e.docx / Jan-19 Page 5 / 17
2. Introduction
The IT210 is a universal interface using with incremental measuring systems.
The device allows the solution of the following problems:
•Level conversion (RS-422, HTL single ended, HTL differential, TTL and vice versa)
•Division of two-track A / B pulses with adjustable ratio 1: 1 to 1: 2048
•Division of the Z pulse with adjustable ratio 1: 1 to 1: 256
•External HTL signals for various functions
•Implementation between the two types of representations for the direction of rotation
(A/B 90 °, A/B Dir and vice versa, Division possible)
All settings are made on the DILL switches on the housing. The device consists of a compact
housing with screw terminals and can be mounted on a DIN rail.Block diagram
3.Block diagram

It210_01a_oi_e.docx / Jan-19 Page 6 / 17
4.Terminal Assignments and Connections
The input pulses are connected to the screw terminals X4. The unused inputs must remain open
(HTL Single Ended as opposed to HTL Differential), or possibly be completed (unused Z-track in
RS-422 or HTL Differential format). On the X4 screw terminal 9, 8, an auxiliary voltage of
+ 5.5 V / 250 mA is available for the encoder supply.
Depending on the DIL switch setting, the pulses are available at the outputs of the screw
terminal X3 in HTL or RS-422 format and are independent of the connected format. In the HTL
setting, the height of the pulse level at the push-pull outputs corresponds to the input voltage
at the supply input X1.
The Control HTL inputs (reset of the internal dividers) to X2 have PNP characteristics and must
be switched against + to activate the function. The supply voltage is connected to X1.
It should be noted that all inputs and outputs refer to the same ground potential GND, which at
the same time represents the negative pole of the device supply. At any time, the total
transmission characteristics of encoder, external components and capacity of the cable must
ensure proper signals at the input terminals of the unit, with respect to the levels, the shape
and the phase displacement A/B.

It210_01a_oi_e.docx / Jan-19 Page 7 / 17
The green LED signals operational readiness (power switched on).
The yellow LED signals an input error. (RS-422 or HTL Differential only)
An HTL Error Signal (input error, only for RS-422 or HTL differential) is available on the X3
screw terminal 1. (Error = low)
Basic settings:
At the front DIL switches DIL1 and DIL2, some basic presets have to be made when
commissioning. These determine the input/output mode, the input and output format, as well
as settings of the Z Pulse.
Changes in the settings on the DIL switches will only be taken over by the
device after the supply voltage has been switched on again!
Configuration
DIL1 (Front 8-pole)
Function
1
2
3
4
5
6
7
8
ON
Level for HTL Single Ended: UL< 10V / UH > 14V
OFF
Level for HTL Single Ended: U < 5V / U > 9V
ON
ON
Input format: TTL
ON
OFF
Input format: HTL Single Ended
OFF
ON
Input format: RS-422
OFF
OFF
Input format: HTL Differential
ON
ON
Z-pulse length: 1 Z-Puls, independent of A / B
OFF
ON
Z-pulse length: ynchronized with AOUT / BOUT
ON
OFF
Z-pulse length: synchronized with AIN / BIN
OFF
OFF
Z-pulse length: 1 Z-Puls, a depending on A/B
ON
Input Mode : A/B Dir (Pulse / Direction)
OFF
Input Mode : A/B 90°
ON
Output Mode : A/B Dir (Pulse / Direction)
OFF
Output Mode : A/B 90°
ON
ZERO_A : Zero setting delayed, no errors
OFF
ZERO_A : Zero setting immediately, error
possible
Configuration
DIL2 (Front 3-pole)
Function
1
2
3
ON
Z-pulse: Generation of a Z-pulse from AIN & BIN, AOUT & BOUT
OFF
Z-pulse: Z input is used
OFF
Test mode deactivated: OFF
ON
Output format : HTL Differential, HTL Single Ended (UX1(2) –2V)
OFF
Output format: RS-422, TTL (5V)

It210_01a_oi_e.docx / Jan-19 Page 8 / 17
5.Progarmmable A/B Divider
5.1. Level converter A/B Pulse (A/B Divider: All OFF)
If the A/B pulse have to be switched unchanged from the input to the output (no division, no
change in length and position), then the DIL switch position listed below must be chosen. A
level conversion is only possible if the input mode (A/B 90 ° or A/B dir) corresponds to the
output mode. (DIL1/6 = DIL1/7).
Divider [A/B]
DIL5
(Left 8-pole)
DIL6
(Left 3-pole)
Comment
1
2
3
4
5
6
7
8
1
2
3
Binary value
1
2
4
8
16
32
64
128
256
512
1024
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
AIN = AOUT, BIN = BOUT
5.2. Input/Output Mode Converter (A/B Divider: All OFF)
If input mode differs from output mode and in addition, the DIL switches DIL5 and DIL6 of the
divider A/B are all set to OFF, the following signal characteristics are set up at the output.
Case 1: Input A/B 90°, Output A/B Dir
DIL1/6 = OFF, DIL1/7 = ON with A/B Divider setting: DIL5, 6 = all OFF
If the direction of the A/B 90 ° signal changes at the input, a change takes place at the BOUT
output signal. (A/B dir). There is no division.
Case 2: Input A/B Dir, Output A/B 90°
DIL1/6 = ON, DIL1/7 = OFF with A/B Divider setting: DIL5, 6 = all OFF
If a change takes place at the BIN input signal (A/B dir), the direction of the A/B 90 ° signal
changes at the output. Here is a division 1:2, from the input in relation to the output.

It210_01a_oi_e.docx / Jan-19 Page 9 / 17
5.3. Setting the A/B Divider (at A/B Dir to A/B 90°)
The division ratio for the A/B pulses is set at the DIL switches DIL5 and DIL6. The switch
positions use a binary code like shown in the subsequent list. (DIL1/6 = ON, DIL1/7 = OFF).
Divider [A/B]
DIL5
(Left 8-pole)
DIL6
(Left 3-pole)
Comment
1
2
3
4
5
6
7
8
1
2
3
Binary value
division =>
1 : (Binary value +1) x2
1
2
4
8
16
32
64
128
256
512
1024
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
value 1 => 1 : 4
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
value 2 => 1 : 6
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
value 3 => 1 : 8
OFF
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
value 4 => 1 : 10
ON
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
value 5 => 1 : 12
...etc.
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
OFF
1 : 1026
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
1 : 2050
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
1 : 4096
Example: Input A/B dir, output A/B 90 ° with A/B division 1:6 (setting DIL6, 5: OFF ON OFF)
Division 1:2: See Input/Output Mode Conversion (A/B Divider: All OFF)

It210_01a_oi_e.docx / Jan-19 Page 10 / 17
5.4. Setting the A/B divider (for all other modes)
The division ratio for the A/B pulses is set at the DIL switches DIL5 and DIL6. The switch
positions use a binary code like shown in the subsequent list. (DIL1/6 = OFF, DIL1/7 = X).
Divider [A/B]
DIL5
(Lefts 8-pole)
DIL6
(Left 3-pole)
Comment
1
2
3
4
5
6
7
8
1
2
3
Binary value
Division =>
1 : Binary value +1
1
2
4
8
16
32
64
128
256
512
1024
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
value 1 => 1 : 2
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
value 2 => 1 : 3
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
value 3 => 1 : 4
OFF
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
value 4 => 1 : 5
ON
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
value 5 => 1 : 6
OFF
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
value 6 => 1 : 7
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
value 7 => 1 : 8
...etc.
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
OFF
1 : 513
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
1 : 1025
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
1 : 2048
Example: Input A/B 90°, output A/B 90 ° with A/B division 1:6 (setting DIL6, 5: OFF ON OFF
Example: Input A/B 90°, output A/B 90 ° with A/B division 1:3 (setting DIL6, 5: OFF ON OFF
Example: Input A/B 90°, output A/B 90 ° with A/B division 1:3 (setting DIL6, 5: OFF ON OFF

It210_01a_oi_e.docx / Jan-19 Page 11 / 17
5.5. Setting to zero the A/B divider with ZERO_A Signal
If the DIL switch DIL1/8 is set to OFF, the divider is reset immediately and remains as long as a
high level at the ZERO_A control input is applied. The A/B pulse can be trimmed by switching.
A/B, 90 ° signals can cause illegal states when the ZERO_A is switched on and off. In the case
of A/B dir Signals, the reset is also done at the same time.
If the DIL switch DIL1/8 is set to ON, the divider will be reset in the zero phase of the output
signals AOUT and BOUT and will remain as long as the signal is attached. This prevents the
miscounting of subsequent circuits. This function can only be applied to A/B 90°, it is
independent of the divider ratio.

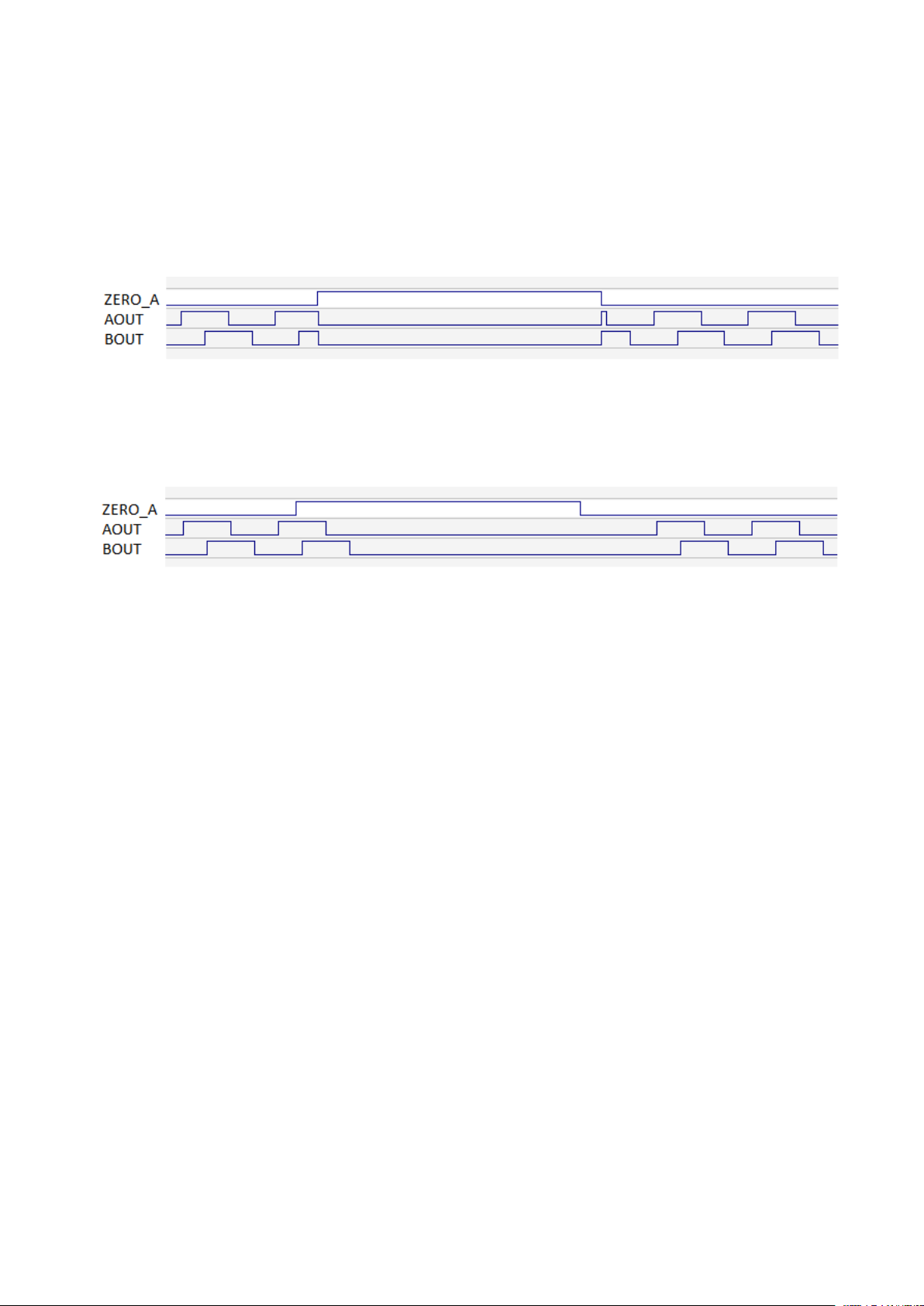

If there is a high signal at ZERO_A the A/B divider is reset and has the starting state AOUT =
BOUT = Low. The divider is in a defined state. Depending on the direction of the input signals,
the next split A/B pulse appears immediately after the reset, or after the set division ratio. The
length of the ZERO_A pulse has to be greater than the period of frequency, than it can be
switched off. This feature can be used for define start and stop.
The Z track can be set to zero with the ZERO_A input. The DIL switch DIL1/8 has been set to
ON, A/B 90 ° output signals have been selected and the Z Pulse length has been synchronized
to the output.
5.6. Informationen over the signal change A/B Dir
Signal changes from B (direction) should appear shortly before or latest at the same time as the
A flank so that the change can be detected correctly.

It210_01a_oi_e.docx / Jan-19 Page 12 / 17
6.Programmable Z Divider
6.1. Pegel conversion Z Puls (Z Divider: all OFF)
If the Z pulse have to be switched unchanged from the input to the output (no division, no
change in length and position), then the DIL switch position listed below must be chosen.
Divider [Z]
DIL4 (right 8-pole)
Comment
Binary value
1
2
3
4
5
6
7
8
1
2
4
8
16
32
64
128
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ZIN = ZOUT (ZERO_Z = Low)
The output at the level conversion can be set to zero (ZOUT = Low) with the control input X2(3)
ZERO_Z = High.
The function is active as long as there is a high level at the control input. The Z pulse can be
trimmed by switching.
6.2. Setting the Z Divider
The programming of the Z divider is subject to the same rules as the programming of the A/B
divider.
Divider [Z]
DIL4 (right 8-pole)
Comment
Binary value
Divider => 1: Binary value +1
1
2
3
4
5
6
7
8
1
2
4
8
16
32
64
128
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
1 : 2
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
1 : 3
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
1 : 4
OFF
OFF
ON
ON
ON
ON
ON
ON
1 : 253
ON
OFF
ON
ON
ON
ON
ON
ON
1 : 254
OFF
ON
ON
ON
ON
ON
ON
ON
1 : 255
ON
ON
ON
ON
ON
ON
ON
ON
1: 256

It210_01a_oi_e.docx / Jan-19 Page 13 / 17
6.3. Location and width of the Z pulse
If the DIL switch DIL4 of the Z divider is completely set to OFF, the Z Pulse is forwarded from
the input directly to the output (see pegel converstion Z Puls).

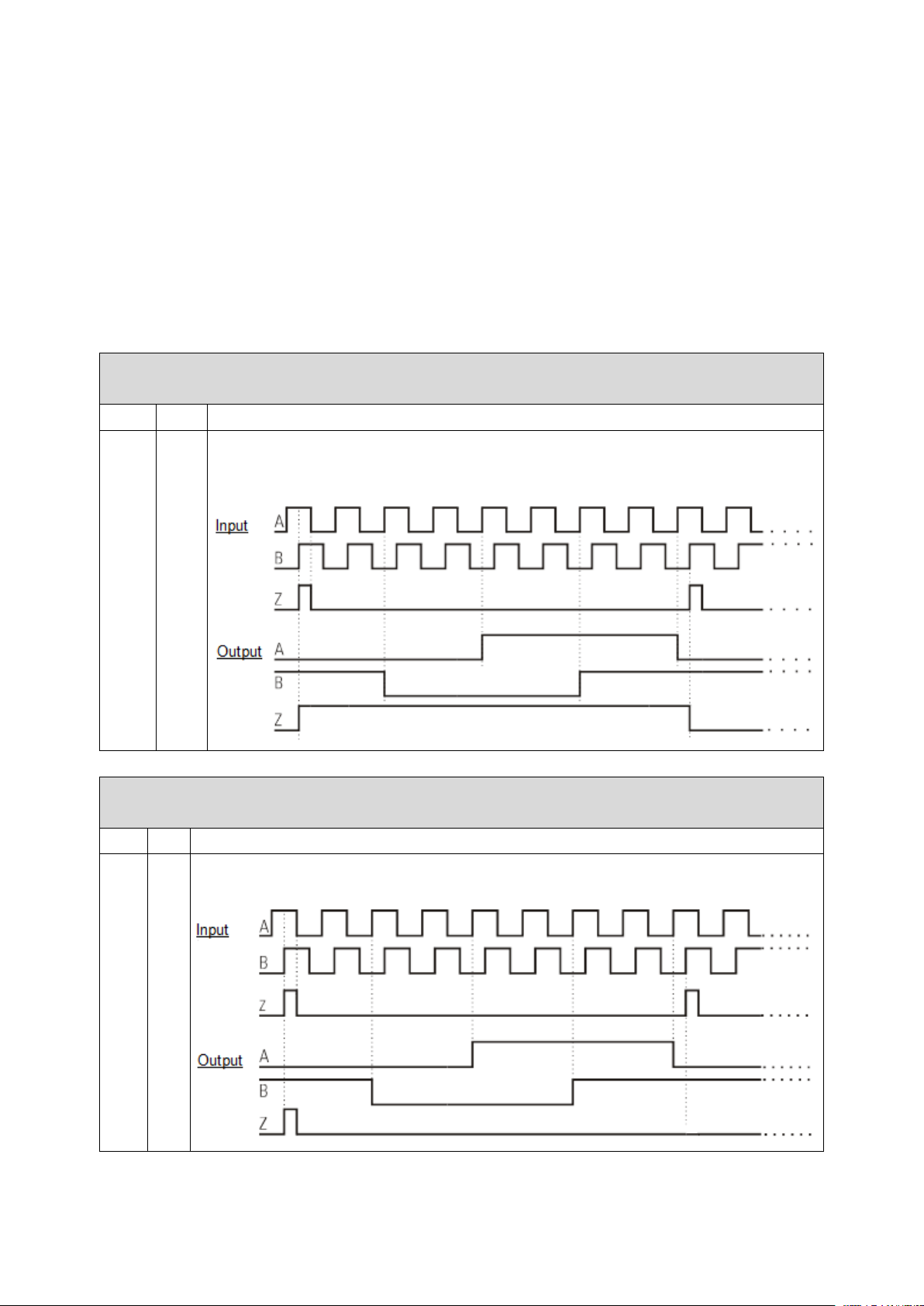

All pictures in this section assume that the A/B divider is set to 8. The Z Pulse is divided
according to its divider (additionally DIL2/1 on OFF, ZIN is used, Z dividers not complete on
OFF).
Depending on the length or location of the Z Pulses input and through the synchronization to
the input or output signals, the Z pulse at the output can fluctuate around an input or output
period (not with DIL1/5 = DIL1/4 = ON).
DIL1 Front
8-pole
Wide Z pulse (a full encoder turn)
4
5
ON
ON
The pulse width at the output corresponds to the full distance between two Z
pulses at the input.
DIL1 Front
8-pole
Narrow Z pulse (1/4 output-periode)
(Only applicable to input signals A/B 90°, DIL1/6 = OFF)
4
5
OFF
ON
The pulse width at the output corresponds to ¼ period of pulse width at the input.

It210_01a_oi_e.docx / Jan-19 Page 14 / 17
DIL1 Front
8-pole
Narrow Z pulse (1/4 output-periode)
(Only applicable to output signals A/B 90°, DIL1/7 = OFF)
4
5
ON
OFF
The pulse width at the output corresponds to ¼ period of pulse width at the
output.
In this operation mode, only division ratios may be used, which together with the A/B divisor
deliver clear and completely results. A division with rest causes that the Z pulse at the output
can fluctuate around an input or output period.
Example:
If at an encoder with 1000 pulses the A/B devider were set to 3 and at the same time the Z
Pulse divider were set to 2, then the Z Pulse at the output would have to appear after 666,666
pulses, which is not physically possible.

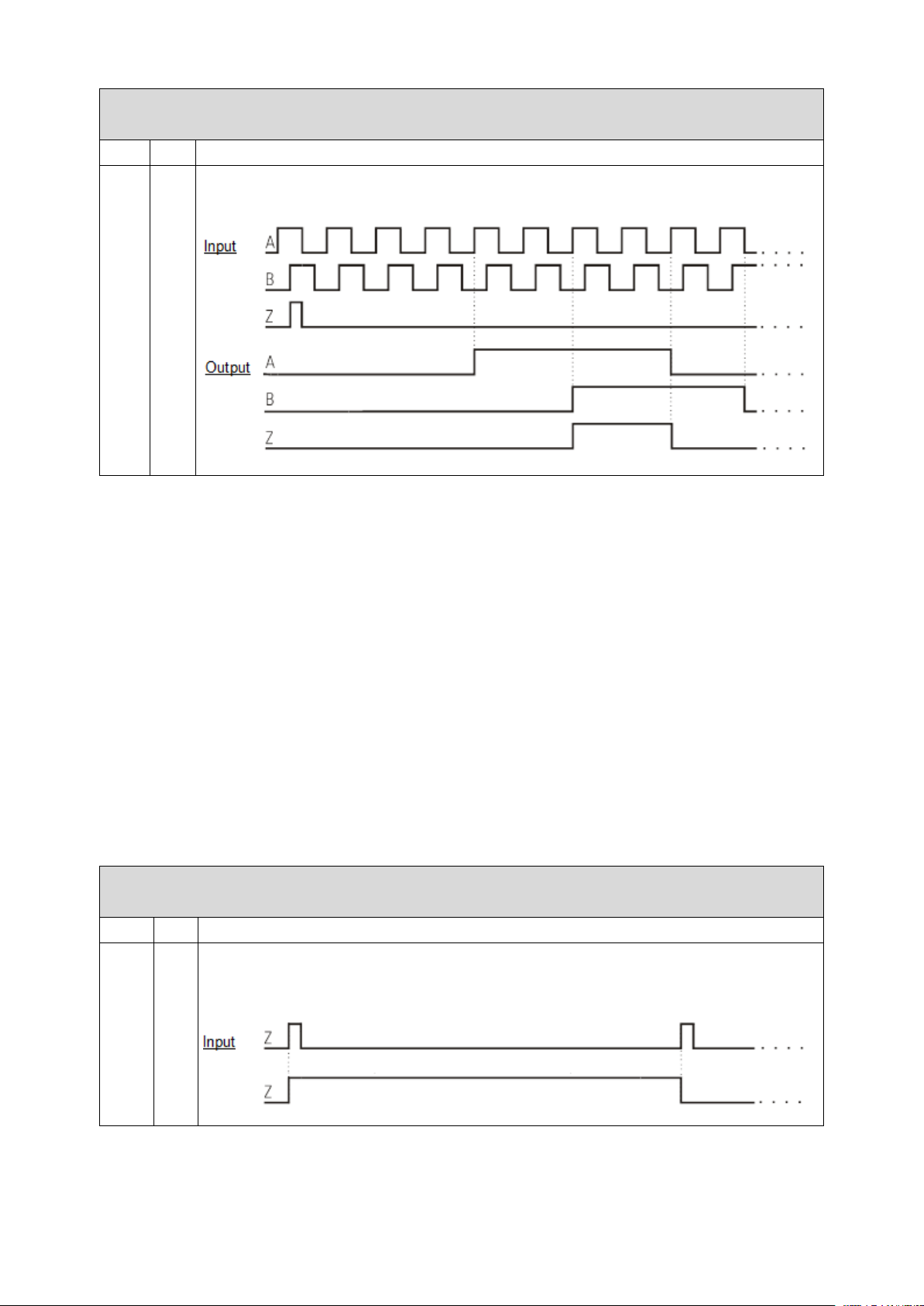

6.4. Independent Z Divider
The Z divider works independently of the A/B track, the directional evaluation of the A/B signal
does not affect the counting sequence (additionally DIL2/1 on OFF, ZIN is used, Z divider not
completely set to OFF).
DIL1 Front
8-pole
Wide Z pulse (a full encoder turn)
4
5
ON
ON
The pulse width at the output corresponds to the full distance between two
Z pulses at the input.

It210_01a_oi_e.docx / Jan-19 Page 15 / 17
6.5. Automatic generation of a Z pulse
If the DIL switch DIL2/1 is set to ON, a Z pulse can be automatically generated.
The Z input is ineffective and does not need to be connected (Z divider not completely set on
OFF).
DIL1 Front
8-pole
Narrow Z puls e (1/4 output- or input-period)
4
5
OFF
ON
The Z pulse is generated from the input signal A/B. Each input period
generates one count for the Z divider.
The Z pulse width at the output corresponds to 1/4 period of the pulse width of
the input signal A/B (Only applicable to input signals A/B 90°, DIL1/6 = OFF).
ON
OFF
The Z pulse is generated from the output signal A/B. Each output period
generates one count for the Z divider.
The Z pulse width at the output corresponds to 1/4 period of the pulse width of
the output signal A/B (Only applicable to output signals A/B 90°, DIL1/7 = OFF).
6.6. Reset the Z divider with ZERO_Z Signal
The Z divider can be reset by applying a high signal to the control input ZERO_Z.
The reset will act immediately and as long as the signal is applied.
Depending on the direction of the A/B track, the next Z pulse appears immediately after the
reset or according to the set division ratio (not at the independent Z divider).
The reset of the Z divider can also be performed in case of automatic generation of the Z pulse.
By setting the Z-divider = all OFF, the setting of the ZERO_Z input causes an immediate zero
setting of the output ZOUT (see level conversion Z pulse).
Note the special case in which the ZERO_A signal can also set the Z output to zero (see Setting
to zero of the A/B divider with ZERO_A signal)
7.Error Output
An HTL error signal is available on the X3 screw terminal 1. (Error = Low).
The error (short circuit or line break) is triggered by the input lines A, /A, B, /B or Z, /Z (Test
mode OFF, DIL2/2 = OFF). The corresponding channel can be selected with the DIL switch DIL3
(right, 3-pole).
If the DIL switch DIL3/1 is set to OFF, no errors are evaluated on the A, /A line, the DIL switch
DIL3/2 refers to the line B, /B and the DIL switch DIL3/3 to the line Z, /Z.
An error can only be detected in RS-422 or HTL differential format, all other formats do not
trigger an error.

It210_01a_oi_e.docx / Jan-19 Page 16 / 17
8. Dimensions

It210_01a_oi_e.docx / Jan-19 Page 17 / 17
9. Technical Specifications
Technical Specifications
Power supply:
Input voltage:
Protection circuit:
Ripple:
Consumption:
Connections:
9 … 30 VDC
reverse polarity protection
≤10 %
approx. 40 mA (at 9 V, unloaded)
approx. 30 mA (at 30 V, unloaded)
screw terminal, 1.5 mm² / AWG 16
Sensor supply:
Output voltage:
Output current:
Connections:
+ 5,5 VDC +/- 5 %
max. 250 mA
screw terminal, 1.5 mm² / AWG 16
Control input:
Signal levels:
Input current:
Frequency:
Connections:
HTL, UL< 5V/ UH> 9V
approx 3 mA
20 kHz, 50 us
screw terminal, 1.5 mm² / AWG 16
Incremental inputs:
Signal level:
Traces:
Frequency:
Connections:
RS422, differential voltage > 1 V
HTL Differential, differential voltage > 2 V
HTL Single Ended, UL< 10V/ UH> 14V
HTL Single Ended, UL< 5V/ UH> 9V
TTL, UL< 0.7V/ UH> 2.2V
A, B, Z (HTL Single Ended, TTL)
A, /A, B, /B, Z, /Z (RS422, HTL Differential )
RS422, 1 MHz
HTL Differential, 1MHz
HTL Single Ended, 350kHz
TTL, 350kHz
screw terminal, 1.5 mm² / AWG 16
Inkremental-Ausgang:
Signal level:
Traces:
Delay:
Output current:
Connections:
8 … 29 V bei HTL
(Depending on supply voltage)
5 V at RS422
A, /A, B, /B, Z, /Z
Approx. 600ns
max. 20 mA / Push-Pull
screw terminal, 1.5 mm² / AWG 16
Housing:
Material:
Mounting:
Dimensions (w x h x d):
Protection class:
Weight:
plastic
35 mm top hat rail (according to EN 60715)
22,5 x 102 x 102 mm / 0,886 x 4,016 x 4,016”
IP20
approx. 100 g
Ambient temperature:
Operation:
Storage:
0 °C … +60 °C / +32 … +140 °F (not condensing)
-25 °C … +70 °C / -13 … +158 °F (not condensing)
Failure rate:
MTBF in years:
109,3 (long-term usage at 60 °C / 140 °F )
Conformity &
standards:
EMC 2004/108/EC:
2011/65/EU:
EN 61000-6-(2-4)
RoHS
