Movincool PC7 User manual

OPERATION MANUAL
READ THIS MANUAL CAREFULLY FOR INSTRUCTIONS ON CORRECT
INSTALLATION AND USAGE, AND READ ALL SAFEGUARDS.
SECCION EN ESPANOL
SECTION EN FRANÇAIS
~
‘

F
O
R
E
w
O
R
D
*
C
O
N
T
E
N
T
S
Congratulations on purchasing the MovinCool portable air conditioner. This manual explains
how to install and operate the MovinCool PC7 portable air conditioning unit. Please
read this operation manual thoroughly to familiarize yourself with the features of the unit and
to ensure years of reliable operation. You may also find it useful to keep this operation
manual on hand for reference.
Components and/or procedures are subject to change without prior notice.
Foreword
1
2
4
5
6
9
10
11
12
13
14
Contents
Instructions
Unit description and function
Operation of remote control
Use of control panel
Water drainage methods
Maintenance/service
Storage methods
Safety cautions
Troubleshooting
Installation
Window kit installation
Attention:
(1) The unit is not intended for use by young children without supervision.
(2) The plug should be accessible after installing the unit.
(3) The unit should be installed in accordance with national wiring regulations/codes.
(4) If the power cord is damaged, it must be replaced by the manufacturer or
a qualified service contractor. Contact your reseller for more information.

INTRODUCTION
The PC7 is a small appliance,which can adjust the temperature and humidity in
a room making it easy to use in different occasions. It also has multiple modes,
including cooling, dehumidifying and fan only.This unit was designedto be used
in a family house, office, etc.
MOBILE AIR CONDITIONER
1
Other air conditioning solutions are recommended when the indoor temperature
is either below 650F(170C) or above 950F(350C) .
Before you use your PC7 air conditioner,please read entire instruction
manual carefully.
This instruction manual is used for information only and does not form part of a
contract. We reserve the right to make technical changes without prior notice.
ATTENTION

2
FRONT
BACK
control panel
hot air outlet grill
condenser air inlet grill
evaporator air inlet grill
air oulet
up/down air swinging fins
caster cable (power
cordandplug)
water tank
handle
left/right air swinging fins
UNIT DESCRIPTION AND FUNCTION

3
Sets the room
temperature
SWING Button
Pressing this button
will activate/deactivate
auto-swing feature for
front louvers
FAN SPEED Button
Pressing this button
will cycle through high,
middle,or low fan speed.
MODE Button
Pressing this button will
cycle through cooling,
drying,or fan-only mode
TIMER Button
Press this button to set the
timerfor switch-on,switch-
off or to stop the timer.
TIME Button
This button sets
the present time
and TIMER .
POWER
Indication
light
WATER
FULL
indication
light
ON/OFF Button
Press this button will turn
the unit ON or OFF
TEMP Button
Displayspreset temperature and failure codes
*When SET is displayed,the displayed digits
indicate the preset temperature
*When FAULT is displayed.the displayed digits
indicate the code of failures.
MODE
COOL
DRY
FAN
HEAT
FAN SPEED HIGH MED LOW
SWING
SET FAULT C
0
OFF
ON
0peration mode
indicator
Timer Display
The displayed digits
indicate the remaining
time of on/off operation
Louver indicator
Fan speed indicator
F
0
TIMER TIME
POWER WATER FULL
SWING
FAN SPEEP MODE
TEMP
MODE
COOL
DRY
FAN
HEAT
FAN SPEED HIGH MED LOW
SWING
SET FAULT C
0
OFF
ON
+
-
MODE
F
0
UNIT DESCRIPTION AND FUNCTION

4
OPERATION OF REMOTE CONTROL
SETTING CURRENT TIME
When batteries are inserted, Time is automatically set to AM 12:00
Example:Set time to AM 10:30
Display screen
Temperature setting button
This button is used to set the
room temperature,Each
pressing of the" " or " "
button, will increase or
decreased the set temp by
10C or 10F.
ON/OFF Button
Pressing this button
will turn the machine
ON or OFF.
MODE selection
Button
Pressing this button will
cycle through cooling,
dehumidification, or
fan mode
SWING button
Allows the louver
grills to oscillate
back and forth
automatically
HOLD button
Press this button to
lock or unlock the
keyboard.
FAN SPEED Button
Pressing this button
chooseshigh, medium, or
low fan speed.
TIMER button
Used to program unit timer.
When used together with the
"HOUR" button, the time setting
can be madewithin the range
of 1-12 hours, with the interval
of one hour.
Time Setting button
This button is used to set
the current time or the time
for timed switch-on or switch-
off.
ON/OFF
MODE
TIMER
HOUR
HOLD
MIN
FAN SPEED
SWING
HEAT
COOL DRY FAN
AM PM ON
OFF
H
**
oF
**
Press the CLK button.
Remove the back cover push the clock botton with
the tip of a ball pen, etc. The time indicator will flicker
and can be set to the present time.
1
2
3
4
Press the HOUR button. (Set to AM 10 )
Press the MIN button. (Set to 30)
Press the CLK botton again, then reattach
the back cover.
NOTE Current time must be set correctly for timer
to operate correctly.
ON/OFF
MODE
TIMER
HOUR
HOLD
MIN
FAN SPEED
SWING
HEAT
COOL DRY FAN
AM PM ON
OFF
H
**
CLK ACL
Remove the
back cover
oF

5
CONTROL PANEL OPERATION
DEHUMIDIFYING OPERATION
DEHUMIDIFYING AND COOLING OPERATION
The operating ranges for cooling operation is 650F-860F(or 180C-310C)and
the operating range for dehumidifying is 650F-860F(or 180C-310C).
POWER SOURCE
*The AC socket must secured and in good condition
*Do not connect the PC7 to anoutlet which is also being used for other electrical equipment.
*Fully insert plug into A/C outlet,
* The unit will beep for 2 seconds.
After two seconds has passed, press" " button, the unit will begin to run.
1. Keep windows and doors closed to aid in effectively dehumidifying the room.
2. Ensure that the drain tank is properly seated in the unit
3. Repeatedly press " " button to choose the dehumidifying mode, LCD window will show
"DRY". Note: Fan speed cannot be adjusted during dehumidification.
4. When using as a dehumidifier, do not use the air exhaust duct.
NOTE:
In order to improve the cooling efficiency of the unit,ensure that:
a) Do not place the unit in direct sunlight
b) Do not place unit near another heat source.
COOLING OPERATION
1. Ensure that the drain tank is properly seated in the unit.
2.Repeatedly press " " button to choose the cooling mode, LCD window will show "cool".
Note: During the cooling operation, always place the duct through an open window open to
exhaust warm air from the room.
3. Repeatedly press " " button to set a proper room TEMP.at 650F-860F(or 180FC-310C).
4. Press " " button to cycle between fan, high, middle, and low speed.
5. Press " " button to turn on/off louver autoswing, The LCD window will show " " when on.
MODE
+
-
MODE

USE OF CONTROL PANEL
6
WATER DRAINAGE
When in cooling or dehumidifying mode, the condensate water will drain
into the tank. When the tank gets full, the WATER FULL indicator will flash.
As shown in the Fig. 1, 2 and 3 below, remove the condensate tank,
empty condensate tank and replace in original position
WATER DRAINAGE METHODS
AUTO SWING FUNCTION
1.Auto swing function
Press" " button, LCD window will show " " and the louvers will swing automatically.
2.Press once again" "button, the symbol " " in the LCD window will disappear, and the
louvers will stop swinging automatically.
fig. 1
Attention:
Press " " and " " buttons together for more than two seconds to lockout the keys. LCD
window will show " " , press the two buttons together again to unlock the keys, " " will
disappear.
TIME SET FUNCTION
To set start time, while the machine is turned off (but power supplied), press" " button, the
LCD window will show " ", press the TIME button to set the start time. The setting range
is 1-12 hours.
To set stop time, while the unit is operating locate and press " " button,the LCD window
will show " ", press the TIME button again to set the stop time. The setting range
is 1-12 hours.
ON
OFF
+
-

7
1. When in cooling or dehumidifying mode, do not take out the condensate tank,or
the buzzer will sound,the compressor will stop, and the mode will change to FAN.
2. If you wish to empty the condensate water before the tank is full, first stop the
unit and wait 3 minutes before removing the condensate tank to prevent water
from spilling ontothe floor.
3. There is a plastic tube with a plug located in the condensate tank area. Do not
remove the plug while the unit is operating.
CAUTION
WATER DRAINAGE METHODS
fig. 2
fig. 3

MAINTENANCE/SERVICE
8

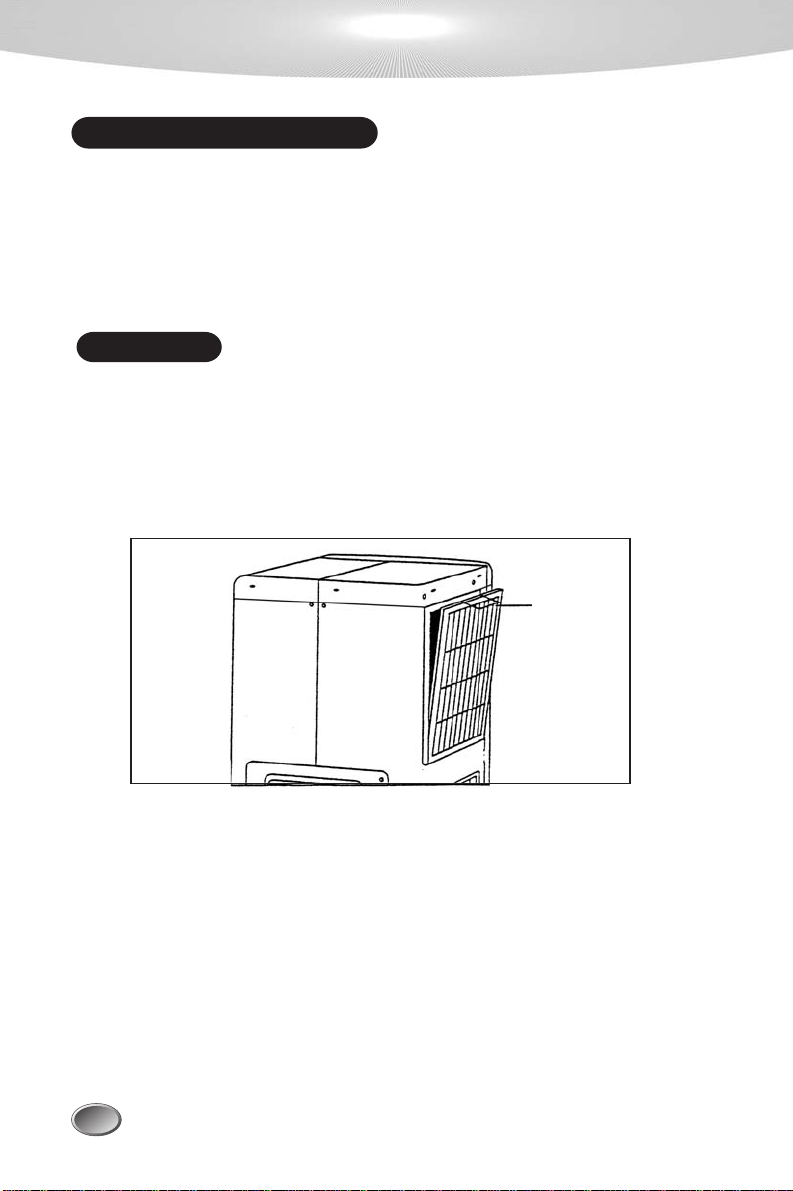

If the air filter is dirty the unit's air flow volume may be affected. It is recommended
to clean filter once every two weeks.
Removing the air filter
1. Pull the air filter cover out, then up to remove the air filter cover from the unit.
2. Remove foam filter from the air filter cover.
AIR FILTER
*Unplug the unit before cleaning to prevent accidents caused by electric shock.
*
*Do not use chemical solvent ( like benzene, alcohol glazer) to clean the
surface of the unit. The surface of the PC7 will be scratched,damaged,and
plastic casing can become deformed.
MAINTENANCE METHODS
Clean
Wash the air filter by immersing it gently into warm (approximately 1040F) water
with a neutral detergent, rinse the filter of detergent and dry thoroughly in a
shaded area.
Mounting
1. Attach the filter to the filter cover using the attachment hooks on the inside
surface of the cover.
2. Place tabs at the bottom of the filter cover into mating holes in the case, push
filter back into its orginal position.
grip

9
CLEANING SURFACE
Clean the surface of the unit with a damp cloth, then dry using a duster or
similar type of lint-free cloth.
WATER TANK
1. Slowly pull condensate tank away from unit
2. Empty water, clean dirt with neutral detergent, wash and dry
3. Place condensate tank in original position
MAINTENANCE/SERVICE

1. Remove condensate drain tank from unit
2. Locate plastic tube as shown in Fig. 4. Remove plug and operate the unit in fan mode
for half a day or until tube is dry.
3. Turn unit off and disconnect the power cord from wall outlet
4. Secure power cord to unit.
5. Wrap the machine with the plastic bag and keep dry.
END OF SEASON OPERATIONS
10
STORAGE METHODS
fig. 4
fig. 5
plastic duct
plug

SAFETY CAUTIONS
* Do not use the unit in a very narrow room with obstaclesso as to avoid damaging
the unit when being moved
* Avoid using unit in direct sunlight to avoid panel surface color changing
* Do not use the unit in or near water.
* Do not use near gas appliances, fires, or near of flammable liquids.
11
OCCASION
*Do not use with a damaged or improper A/C socket.
*When unplugging the unit, hold the power plug securely and pull it out carefully.
POWER SOURCES
*Keep the unit 3 feet away from TV sets or radios to avoid the risk of electromagnetic
interference.
*Do not cover the air outlet to avoid overheating. Maintain 20" clearance from openings
OTHERS
*Do not tip over or incline the PC7,If the unit does tip over please unplug at once
and call your nearest reseller for further directions.
*Do not spray with insecticide or other chemicals as the plastic case may
be damaged.
SERIOUS CAUTION

TROUBLESHOOTING
Unplug unit and discontinue use in the following cases. Contact your local reseller as soon
as possible.
1. The fuse and circuit breaker trip often.
2. The power cord is hot or the sleeve of the cord broken.
12
The PC7 is equiped with self-diagnostic codes to assist users in troubleshooting the unit.
Please see the following chart below
Before seeking repair or service, please firstly check the following.
Trouble Check Action
Air conditioner does
not operate at all
Cooling performance
insufficient?
Excessive noise and
vibration
The machine starts
and stopsfrequently
Is there a power failure?
Is plug fully seated?
Is power fuse or switch off?
Isdrain tank indicator is lit?
Isthe water tank positioned correctly?
Is the SET TIME correct?
Is air inlet or outlet blocked?
Is there any other heat source in room?
Are air filters dirty?
Is SET TEMP. to high?
Is indoor fan speed set at low?
The refrigerant is flowing inside.
Is unit installed at an angle?
Is the voltage of the power source normal?
(115V)
Is the air exhaust duct strait or bent?
Normal. Push the plug into the wall socket.
Change the fuse or switch on.
Empty water from the water
tank.
Fully seat the water tank into
the rightposition.
CorrectSET TIME
Remove obstruction
Move unit away from heat
source
Clean the air filters
Set new temperature
Increase fan speed.
Normal operation
Place unit on a horizontal
floor
Call qualified electrician
Keep outlet duct as strait as
possible
CAUTION
Self diagnosis function
Check code
FAULT E8
FAULT E3
FAULT E2
Overheating
Faulty coils
Room temperature faults
Diagonosis of malfuncion
FAULT E4 Units faults

INSTALLATION
13
Selection of installation lacation
Put the mobile air conditioner in a flat location where the air outlets cannot
be obstructed,place the unit no less than 20" away from a wall or other
obstacles.
heated exhaust air
duct tachm
exhaust air
opening
window
hot air
ferminal
50cm(20
inch) 50cm(20 inch)
1) Fix the square end of the exhaust dust to the exhaust terminal of the unit
2) Put the other end(discharge) to the nearest window
Note: Exhaust length is between 24 in -71in,
When connecting duct,keep the air exhaust horizonal.Do not enlarge or
connect another discharge duct.
The air exhaust duct mounting method
exhaust (hot) air
duct attachment
exhaust air
opening
hot air terminal
window
375mm(12.8
inch)
830mm(327 inch)
5
0cm
440mm
(17.3 inch)
(20 inch)

14
If the air exhaust requires bends,see diagrams below.
INSTALLATION
Recommended exhaust mounting is shown below (If mounting in the wall,the
heightof the hole should be 16in ~51in)
fig. 23
(51 inch)
(16 inch)
(20 inch)
(24 inch)
(20 inch)

15
See diagram below for incorrect exhaust mounting (Air exhaust bendstoo large)
INSTALLATION
Window Kit Installation
Your window kit has been designed to fit most standard "vertical" and "horizontal" windows
However, it may be necessary for you to modify some aspects of the window panels for
certain types of windows. Please refer to Fig. 24 & Fig. 24a for minimum and maximum
window openings.
CAUTION: WINDOW KIT DOES NOT PREVENT UNAUTHORIZED ACESSS
This unit is equipped with a fail-safe switch which turns the unit off water in the event the water tank
overflows and/or is FULL with water. The unit will signal 8 BEEPS and the WATER FULL indicator
light will flash red continuously until the water tank is correctly positioned and/or emptied.
NOTE:
The fan motor will continue to operate under this condition. Nocooling or dehumidifying
will occur until the tank is emptied and/or correctly installed (The compressor may cycle through
internal time delay).
Water Tank Safety Feature
Fig.24
Fig.24a
Fig.24

16
Installation Accessories Fig. 25
Description
Flexible exhaust hose with adapters...........3/set
streches from 19 1/2" (50 cm) up to 78 3/4"(200cm)
Window exhaust adapter (flat mouth )........1pc
Adjustable window slider kit......................2/set
from 26 5/8" (67.5 cm) up to
48 3/8" (123 cm)
Drain hose connector...............................1 pc
For continuous drain option (hose not included)
SPECIAL NOTE: Drain hose extension is
not included with this unit and can be purchased
through a local Hardware Store.
For the continous drainage:
1. Take off the plug of the drainage tube (see
illustration)
2. Extend the tube outside the unit as indicated.
Note: The drain hose cannot exceed the height
of the the drain hose opening or unit will overflow
Power roll wire clasp
Secure power cord to unit by using the two
located on the back of the panel
INSTALLATION
Fig. 25
I

“TEST”Button
“RESET”Button
AFCI / LCDI Power Cord Manual
WARNING
CAUTION
!
TEST Button
RESET Button
!
The AFCI / LCDI device is a non-serviceable part. Attempting to open the
device may expose the user to hazardous electric shock, and voids any warranties
and performance claims. Manufacturer’s liability is limited to the replacement of
the device.
1. Read manual for proper use and handling of this device.
2. Press “RESET” button before starting the A/C unit. Press “TEST” to check
function then “RESET” again. Start the A/C unit.
3. Do not immerse in water
4. This device must only be plugged on appropriate wall outlet.
5. In the event that this device trip, the cause of the malfunction should be corrected
before any further use.
6. Using the device beyond recommended voltage poses risk to users
7. Reset and Test button orientation may differ by model
“TEST”Button
“RESET”Button
