Movisens Move 4 Quick guide

Move 4
Physical Activity Sensor
Operating and Safety Instructions

2
Imprint
Move 4 Operating and Safety Instructions
Version: 21.08.2019
movisens GmbH
Augartenstraße 1
76137 Karlsruhe
Germany
Phone: [phone]
Fax: [phone]
Internet: www.movisens.com
E-Mail: [email protected]om
© Copyright: movisens GmbH

3
1Welcome!
Dear customer,
Thank you for choosing the Physical Activity Sensor Move 4 from movisens.
With this sensor, you get the newest technology for mobile monitoring of
physical activity in everyday life.
Please read this manual completely and thoroughly before bringing the
measurement system into service!
In this manual you will find the most relevant operating instructions and the
safety instructions.
Please find the full movisens documentation here:
docs.movisens.com
If you have any further questions, don’t hesitate to contact us. It is our
pleasure to help you:
Phone: [phone]
E-Mail: [e-mail]

4
2Intended use
Move 4 is a scientific research instrument that captures the physical activity
and other secondary parameters derivable from these measurement
signals. Move 4 is designed and tailored for the use in research
applications.
The physical activity sensor Move 4 is not a medical device!
The sensor measures the physical activity of a person based on the
acquisition of acceleration in three dimensions and atmospheric air
pressure. Moreover the sensor also records the rotation rate and the
ambient temperature.
The sensor configuration occurs via a USB 2.0 connection to a Windows PC
using the Sensor Manager software.
3Explanation of Symbols
Caution.
Read the manual and the safety instructions to
find out about possible hazards and the needed
actions to avoid these hazards!

5
4Safety Instructions
Please follow these safety instructions. Improper use of the product may
impair/affect the protection provided by the product and cause product
damage or personal/physical injury:
!Move 4 is not a medical device. Do not use it for a medical
purpose.
!Only use Move 4 for the intended use.
!Carefully read and follow the cleaning instructions.
!For long term measurements (> 1 day) we suggest wearing
pauses of at least 20min per day.
!If any problems occur by wearing the sensor, band, belt or
attachments (e.g. pressure marks, skin irritations or other
discomfort), stop using the system immediately.
!Only use the Move 4 under the specified environmental
conditions.
!To charge the battery of Move 4, only use USB 2.0 standard
compatible devices.
!Charge the sensor only at ambient temperatures below 45°C.
!The use of the cradle is only intended for indoor use.
!Never open Move 4.
!The battery of Move 4 may only be changed by the
manufacturer.

6
5Scope of Delivery
The following components are included in delivery:
Article
Order No.
Move 4
Physical Activity Sensor,
Cradle,
Micro USB cable,
Belt Clip,
Operating and safety instructions
10400
To be able to do measurements a PC is needed in addition to the scope of
delivery.
6Accessories
The following accessories can be ordered optionally:
Article
Order No.
Wrist Band (S)
Size: S
Wrist Measurement: 13 to 16 cm
30431
Wrist Band (M)
Size: M
Wrist Measurement: 15 to 18 cm
30432
Wrist Band (L)
Size: L
Wrist Measurement: 17 to 23 cm
30433
Wrist Band (XL)
30434

7
Size: XL
Wrist Measurement: 20 to 28 cm
Hip Belt
Elastic Belt with SensorFix
Hip Measurement: 67 cm to 125
cm
30412
Cradle 4
Cradle for Move 4
with Micro USB Interface
30400
USB Charger
USB Charger for 110-240V
30100
USB Hub
USB Hub 2.0, 7 Ports
30101
Micro USB Cable
30102
7Consumables
The following consumables can be ordered optionally:
Article
Order No.
Meliseptol Rapid (250 ml)
Ready-to-use alcoholic
disinfectant for spraying or
wiping.
40410
SensorFilm (50 pcs.)
Transparent adhesive film for
attaching the sensors to the skin,
breathable and waterproof,
simple and secure frame
application, size 10 x 12 cm
40402

8
8Description of the Sensor
Depending on the application, Move 4 sensor can be worn in various
locations: hip, chest, wrist, thigh, ankle, upper arm.
For the different sensor locations, the sensor system offers different
possibilities for the analysis of the acceleration signal. The preferred
position for energy expenditure measurements is the hip.
Included in the delivery you also receive a cradle with a micro USB interface.
To connect the sensor to a PC, you have to separate it from the chest belt
or the electrodes and plug it into the cradle.
Move 4 is also equipped with a Bluetooth Smart interface. The sensor can
be used in conjunction with a gateway or a mobile phone for live
applications. The Bluetooth Smart interface is activated in the default
configuration of the sensor. To deactivate this interface, a firmware update
is required.
The axes of the integrated acceleration sensor are defined as described in
the following figure:
9User interface and indicators
Move 4 is equipped with a multi-colored LED to show the status of the
sensor:

9
Status-LED
Meaning
Flashing red (once
per second)
The sensor is active and records
data
Flashing red
slowly (every two
seconds)
Delayed recording active
Flashing green
The sensor is connected to a PC or
a charger. The battery is fully
charged.
Flashing blue
The sensor is connected to a PC or
a charger. The battery is actually
being charged.
Flashing magenta
The sensor is active and records
data. It is connected to a charger.
The battery is actually being
charged.
Flashing yellow
The sensor is active, records data. It
is connected to a charger. The
battery is fully charged.
Flashing blue fast
(three times per
second)
The battery is low, sensor will turn
off soon.
Flashing red fast
(three times per
second)
An Error occurred. Reset the sensor
with the Reset Sensor Program. If
the sensor doesn’t stop flashing,
please contact the manufacturer.
No LED active
The sensor is inactive.

10
Combinations of red and green blinking as well as red and blue blinking are
possible with the appropriate combination of the above described
meanings.
Move 4 features a vibration alarm. It vibrates two times when a marker is
set. During measurement a marker can be set by double tapping on the
front of the sensor.
10 Software Installation
Please ensure that your PC fulfills the requirements:
⚫A PC with Microsoft Windows 7 or higher, 64bit
⚫USB 2.0 Port
⚫Administrator rights during installation
⚫A minimum of 300 MB free space on hard disc
Step 1: Download the SensorManager from the movisens Website
Step 2: Double click the file “movisens_SensorManager_Setup.exe“
✓The Installation runs automatically in the background. After successful
installation, shortcuts are created in the Windows Start Menu under the
entry “movisens SensorManager”.
Step 3: Download the UnisensViewer from the movisens Website:
Step 4: Double click the file “UnisensViewer_Setup_Full.exe“
✓The Installation runs automatically in the background. After successful
installation, a shortcut “UnisensViewer” is created in the Windows Start
Menu.
11 Handling

11
This chapter describes how to prepare a measurement and how to attach
the sensor to a test person. Furthermore you get information on how to
save, delete and analyze data from the sensor.
11.1 Charging the Sensor

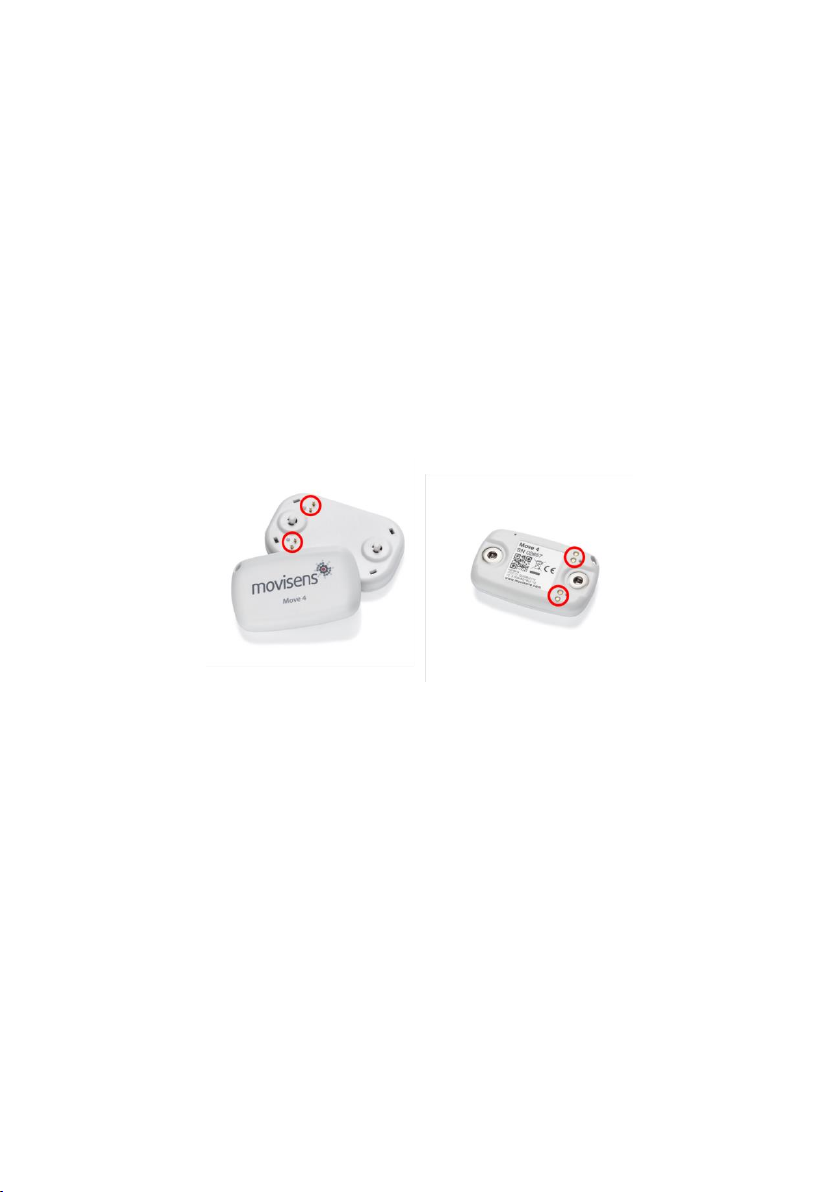

Step 1: Connect the cradle with the USB cable to a USB 2.0 port (USB port
of your computer or another port that conforms to USB standard like USB
hub or USB charger). Attach the sensor with the help of the push buttons at
the cradle. Please make sure that the 4 contacts are connected (marked red
in the picture). To charge multiple sensors at the same time, we suggest
using a USB hub.
✓After connecting the sensor to a USB port, the charging process starts
immediately. During charging, the status LED is blinking blue. If the
sensor is fully charged, the LED is blinking green. The charging process
of the sensor can take up to two hours, depending on the battery
status of your sensor.
✓If the sensor is fully charged, the battery run time during recording is 3
days.
11.2 Preparing a Measurement
Step 1: Start the SensorManager by selecting
Windows Startmenu →movisens SensorManager →SensorManager

12
Step 2: Connect the Move 4 sensor to your PC using the cradle.
The SensorManager application shows information about sensor hardware,
sensor state and sensor configuration.
Before you start a measurement please check the charging status of the
battery. The maximum measurement duration can only be reached when
the battery is fully charged.
11.3 Starting a Measurement
To start a measurement, please perform the following steps:
Step 1: In the SensorManager software click on the „Start Recording“
button in the lower left of the window.
Step 2: Please supply the requested information into the text fields.
Step 3: Start the measurement by clicking the „Start“ button.
Step 4: Please follow the instructions and remove the sensor from the
cradle.
✓The status LED will flash red once per second as soon as the
measurement has started and data will be recorded. If a delayed start
was configured the LED flashes red every two seconds until the
measurement starts.
✓At the end of the measurement the LED stops flashing.
11.4 Attaching the Sensor to the Test
Person

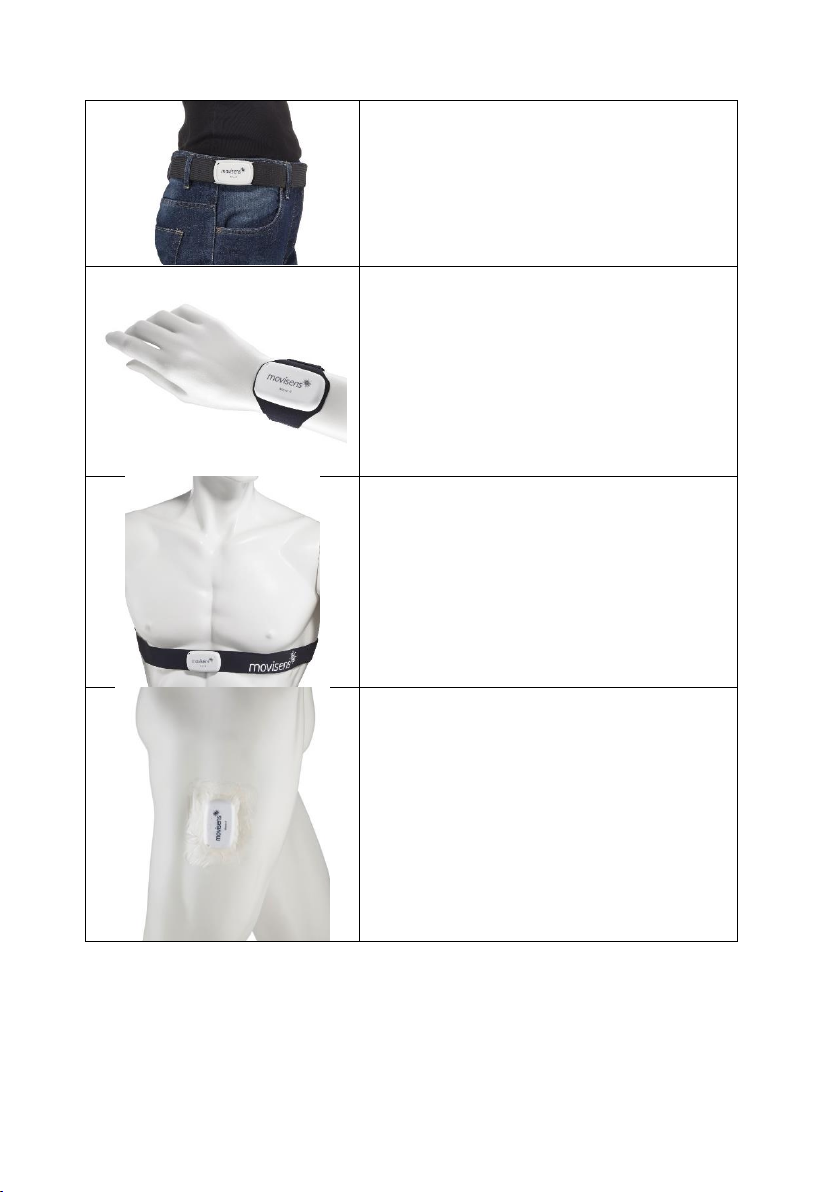

Attach the sensor to one of the following locations:

13
Use the belt attachment to attach the
sensor to the right side hip. The
movisens logo should face directly to
the right as depicted in the following
image.
Use the wrist band to attach the sensor
to the non-dominant hand of the test
person. At this position only simple
parameters like Movement Acceleration
can be measured.
Use a chest belt to attach the sensor
level with the participant’s sternum. The
movisens logo should face directly
forward.
Use adhesive film to tape the sensor in
place. Suitable for the upper arms and
thighs.

14
Disposable electrodes can also serve as
an attachment mechanism, and can be
used at various locations such as upper
arms, thighs, and chest
Depending on the position of the sensor, different parameters can be
analyzed after the measurement. For more details refer to the user manual
of the DataAnalyzer.
11.5 Stopping a Measurement
The measurement will automatically be stopped if the configured
measurement duration has passed.
A running measurement will also be stopped when:

15
⚫The sensor is connect to a PC
⚫The end of the battery run time has been reached
If the battery is low, this is indicated by fast blue flashing light (three times
per second). The sensor will turn off soon.
11.6 Storing Measurement Data
The measurement data of the sensor is stored as raw data (e.g. the
acceleration data as it is measured).
To store recorded measurement data on the PC do the following steps:
Step 1: Start the SensorManager by selecting
Windows Start menu →movisens SensorManager →SensorManager
Step 2: Connect Move 4 sensor to the PC using the cradle.
Step 3: Click on „Save Data“.
Step 4: Please type in the requested information.
Step 5: Finally click on „Save data“
The measurement data will be stored either in the unisens format or as .csv
file. Unisens is an open data format for multi sensor data. You can find
further information about unisens here: www.unisens.org
12 Cleaning Instructions
It is important to clean the sensor, the wrist bands and the hip belts
regularly to avoid possible infections between users.
Clean the sensor and the band/belt at least after each participant.

16
12.1 Cleaning the Sensor
If you want to clean Move 4 and plastic attachment parts, please note the
following:
⚫Disconnect the sensor from band/belt or cradle.
⚫Use fast-acting alcoholic surface disinfectant (e.g. Meliseptol Foam
Pure) to clean the complete sensor housing. Respect the
instructions of the manufacturer.
12.2 Cleaning the Bands and Belts
To clean the band and belt please observe the following:
⚫Disconnect the sensor from the band/belt.
⚫Disinfect the band/belt with fast-acting alcoholic surface
disinfectant (e.g. Meliseptol rapid). Respect the instructions of the
manufacturer.
⚫Wash the band/belt by hand and not in the washing machine. Use
a mild liquid detergent.
⚫After washing rinse the band/belt with clear water.
⚫Directly after washing, air-dry the band/belt before storing or using
it for new measurements.
13 Maintenance and Proper
Disposal
13.1 Maintenance

17
Besides charging the batteries, Move 4 does not need any further
maintenance. The battery capacity will decrease slowly with charging cycles
and age. The battery can only be changed by movisens. Please contact us in
the case when a replacement is necessary.
13.2 Proper disposal
For the proper disposal send Move 4 back to movisens. Alternatively
contact a licensed, certified electronic scrap disposal merchant. Please
consider your local regulations for waste disposal.
14 Troubleshooting
Frequently asked questions related to all of our products can be found
here: https://www.movisens.com/en/faq/

18
15 Technical Data
Power supply
Lithium-Polymer-Battery, 3,7V
Number of charging cycles
300 (with 1 C / 1 C > 80%)
Internal memory
4 GB
Maximum recording capacity
2 weeks
Battery run time
~ 3 days
Recharging time
~ 1 hour
Connectors
USB 2.0 via Micro-USB, 5V, 500mA
Size of sensor (W x H x D)
62,3mm x 38,6mm x 11,5mm
Weight of sensor
26 g
Internal sensors
3D acceleration sensor:
Measurement range: +/- 16 g
Output rate: 64 Hz
Rotation rate sensor:
Measurement Range: +/-2000 dps
Resolution: 70 mdps
Output rate: 64 Hz
Pressure sensor:
Measurement range: 300 - 1100
hPa
Resolution: 0,03 hPa
Output rate: 8 Hz
Temperature sensor:
Output rate: 1 Hz

19
Live Analysis
Heart Rate, bpmBxB, NN-List, HRV
Rmssd, HRV is valid, Movement
Acceleration, Step count
Indicators
LED, 3-color
Vibration alarm
User Interfaces
Marker (tapping)
Wireless interface
Bluetooth Smart (4.0)
API
Java API for USB (Windows)
Java Bluetooth Smart Gatt Library
Wear locations
Chest
Wearing systems
Chest Belt, adhesive Electrodes
Environmental conditions Sensor
indoor/outdoor use, pollution
degree 2
Altitude: up to 2000m
Ambient Temperature:
-20 °C to 55 °C
5°C to 40°C during charging
Maximum rel. humidity: 80% for
temperatures up to 31°C, linearly
decreasing to 50% for
temperatures >= 40°C
Environmental conditions Cradle
indoor use only, pollution degree
1, other conditions as above

20
16 Legal Notes
16.1 Disclaimer
The products this manual describes are subject to change without prior
notice. movisens makes no representations or warranties with respect to
this manual or with respect to the products described herein.
movisens shall not be liable for any damages, losses, costs or expenses,
direct, indirect or incidental, consequential or special, arising out of, or
related to the use of this material or the products described herein.
16.2 Trademarks
Microsoft and Windows are either registered trademarks or trademarks of
Microsoft Corporation in the United States and/or other countries.
