ABC-01-P-M12
Quick Installation Guide
Automatic Backup Configurator
Edition 1.0, May 2018
Technical Support Contact Information
www.moxa.com/support
Moxa Americas:
Toll
-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa China (Shanghai office):
Toll
-free: 800-820-5036
Tel:
[phone]
Fax:
[phone]
Moxa Europe:
Tel:
[phone]
Fax:
[phone]
Moxa Asia-Pacific:
Tel:
[phone]
Fax:
[phone]
Moxa India:
Tel:
[phone]
Fax:
[phone]

2018 Moxa Inc. All rights reserved.

- 2 -
Overview
The ABC-01-P-M12 is designed for system backup and restoration to
enhance maintenance efficiency and reduce system downtime in railway
applications, including rolling stock and wayside installations. The
ABC-01-P-M12 Automatic Backup Configurator tool can be used to save
and load the configuration of Moxa’s ToughNet (TN) managed Ethernet
switches and wireless APs/bridges/clients through the RS-232 console
port. The ABC-01-P-M12 can be continuously plugged into Moxa’s
Ethernet switches and wireless APs/bridges/ clients while the devices are
operating, and makes it easier to back up system parameters and
manage configurations. With the ABC-01-P-M12, you can quickly
configure a replacement switch (of the same model).
Package Checklist
The ABC-01-P-M12 is shipped with the following items.
•1 x ABC-01-P-M12
•Quick installation guide (printed)
•Warranty card
NOTE
If any of these items is missing or damaged, please contact your
customer service representative for assistance.
Features
•RS-232 M12 console port connection
•Complete configuration storage, including the IP address for one
switch
•Automatic loading of system configuration after system reboot
•Manual loading and saving of system configuration through web
console
•Portable low-power design that requires no power supply
•Designed to be continuously plugged into the Moxa device
•CE, FCC approval

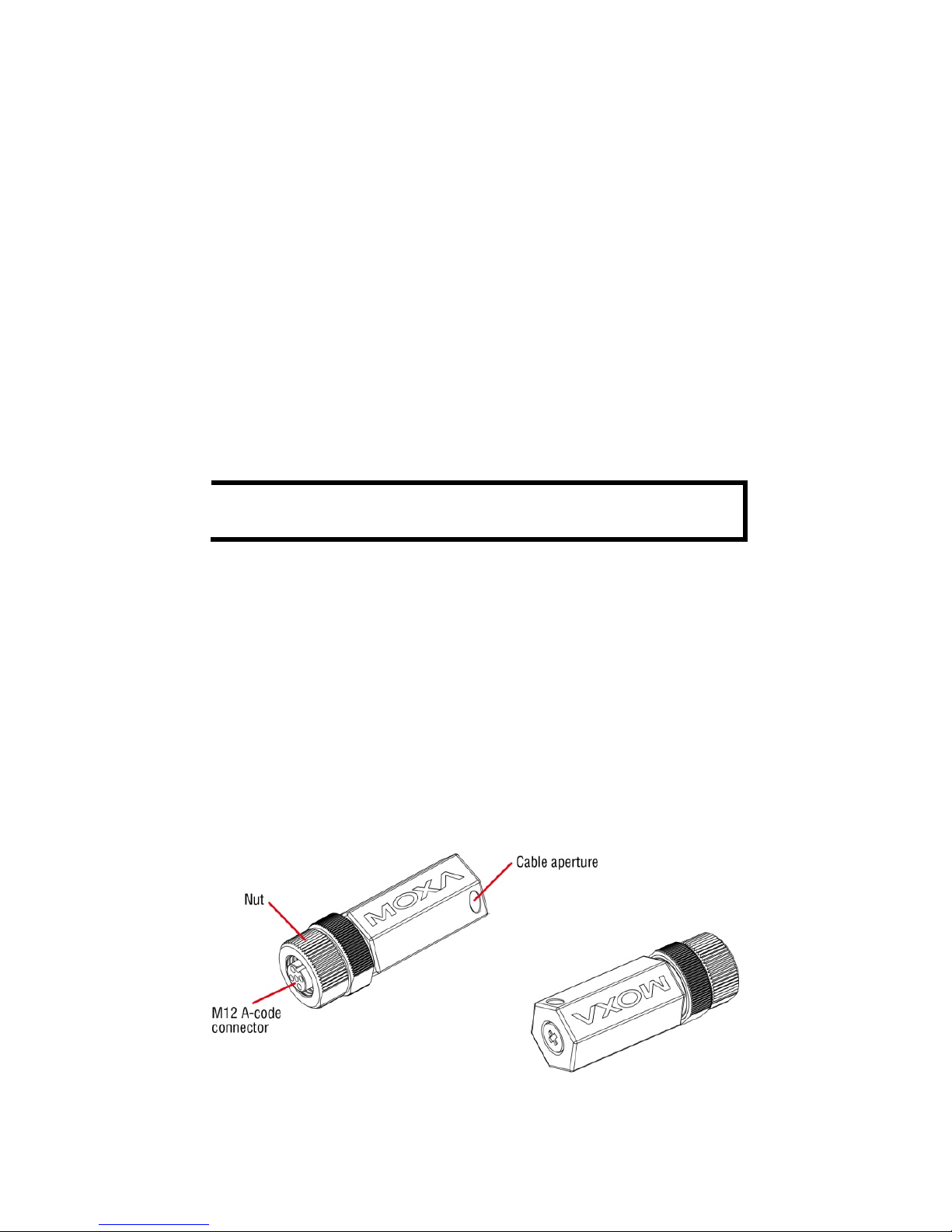

Hardware Description

- 3 -
Product Installation
The ABC-01-P-M12 is designed solely for use with an RS-232 serial port.
To use the ABC-01-P-M12, simply plug it into the M12 console port of your
Moxa TN managed switch. Refer to the Product Operation section for
instructions on how to save and load the configuration.
NOTE
Please check firmware release notes on Moxa’s website to obtain
the most up-to-date firmware version for the ABC-01-P-M12.
Product Operation
Save a switch’s configuration to the ABC-01-P-M12
Use the switch’s web console to save the switch’s configuration to the
ABC-01-P-M12. This function can be found under “Basic Settings/System
File Upgrade/Backup Media” in the web console.
Load the configuration from the ABC-01-P-M12 to the switch
There are two ways to load the configuration from the ABC-01-P-M12 to a
Moxa TN-series managed switch:
1. Load Automatically
When the ABC-01-P-M12 is plugged in, the switch will automatically
load the configuration from the ABC-01-M12 after the switch
reboots. This function can be disabled through the web console
under “Basic Settings/System File Upgrade/Backup Media,” or
through the Telnet console under “Basic Settings/Backup Media.”
2. Load Manually
When the ABC-01-P-M12 is plugged in, the configuration can be
loaded manually through the switch’s web console under “Basic
Settings/System File Upgrade/Backup Media.”
NOTE
For further details on the ABC-01-P-M12 operation through the
switch’s web console, please refer to the switch’s user manual.
WARNING
DO NOT remove the ABC
-01-P-M12 when the STATE LED is
blinking or when the web console is showing WORKING status.
NOTE
The status of the ABC-01-P-M12 can be checked on the switch’s
web console or by observing the switch
’s front panel LEDs.
Operation
Switch LED status
Save/Load in
progress
FAULT, MSTR/HEAD, CPLR/TAIL LEDs
blink sequentially and circularly
Save/Load
successful
FAULT LED lights off
Save/Load failed
FAULT LED lights on

- 4 -
Specifications
Connectors
RS-232 M12 Port
Storage Capacity
64 KB
Power Requirement
3 to 5 VDC, power input via RS-232 RTS
Configuration
via Moxa TN managed switch's web console
Casing
Aluminum, IP67
Weight
35 g (0.08 lb)
Dimension
55 mm x Ø20 mm (2.17 in x Ø0.79 in)
Operating Temperature
-40 to 75°C (-40 to 167°F)
Storage Temperature
-40 to 85°C (-40 to 185°F)
Ambient Relative
Humidity
5 % to 95 % (non-condensing)
EMC
EN 55032, EN 55024
EMI
CISPR 32, FCC Part 15B Class A
EMS
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 20 V/m (80 MHz to 1 GHz)
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8
Rail Traffic
EN 50155*, EN 50121-4, EN 45545-2
*This product is suitable for rolling stock railway applications, as defined
by the EN 50155 standard. For a more detailed statement, click here:
www.moxa.com/doc/specs/EN_50155_Compliance.pdf
Shock
EN 50155, IEC 61373
Freefall
IEC 60068-2-31
Vibration
EN 50155, IEC 61373
MTBF (mean time
between failures)
19,563,216 hrs
Standard
Telcordia SR332
Warranty
5 years
Details
See www.moxa.com/warranty
