MP-Man TR400 User manual

User Manual
EN
Electric Scooter

1/Product and accessories
3/Product assembly
5/Learn to use the product
8/Maintenance
9/Technical parameters of the product
----------------------------------------------------- 02
-------------------------------------------------------------- 03
-------------------------------------------------------------- 04
----------------------------------------------------------- 05
---------------------------------------------------- 06
---------------------------------------------------------- 07
------------------------------------ 12
------------------------------------------------------------------- 14
------------------------------------- 16
Contents
- 01 -

User Manual
EN
Electric Scooter
1/Product and accessories

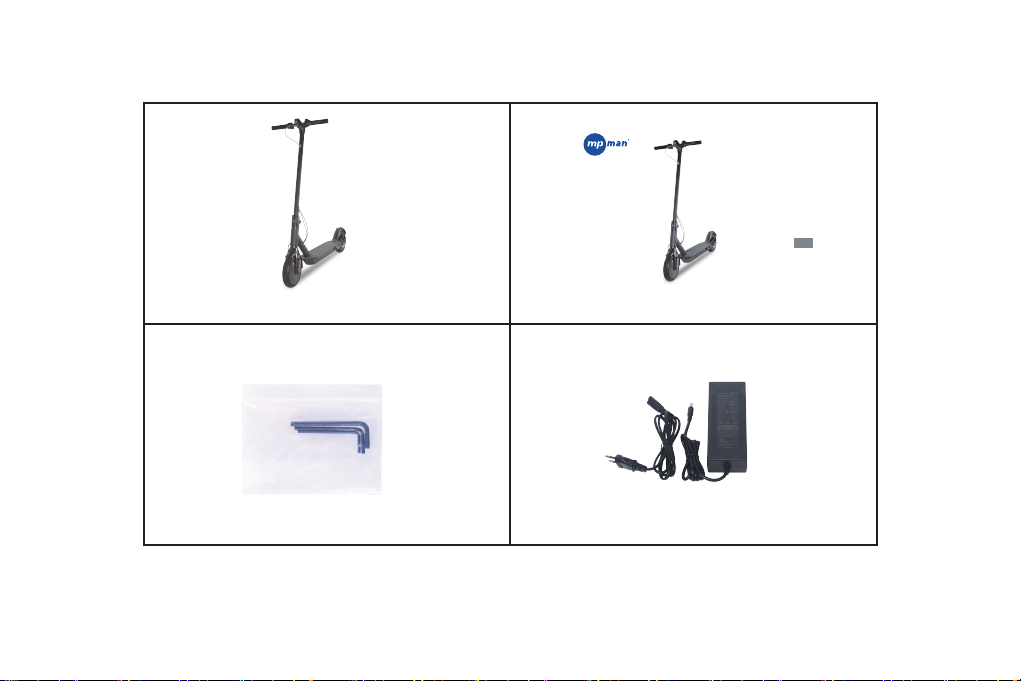

Please check that the box contains all the accessories named above
User manual
Accessories Adapter charger
- 02 -
Vehicle

Control panel
1.Display speed: shows the speed of the device while you ride
2.Mode display: the LED will be blue when the device is turned on. A quick double press on
the on / off switch will switch the device to fast mode, the LED will turn red.
When the four LEDs are lit the load is between 85% and 100%, when three are lit the charge
Accelerator
Control panel
Front light
Brake
Brake light
Parking stand
Charge socket
Motor
compartment
Disc brake
Folding buckle
Folding mechanism
- 03 -

3/Product assembly

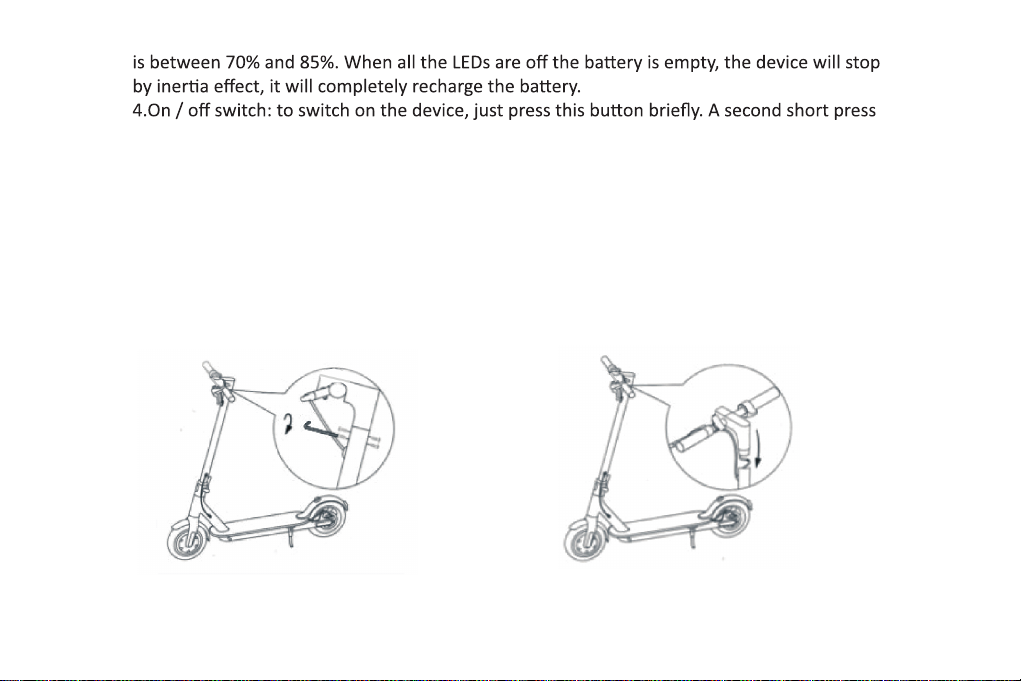

1.Block the column and open the parking
stand
2.Install the handlebar / control panel on
the column
makes it possible to turn on or turn off the front light. A quick double press will switch the
unit from low speed mode to maximum speed mode. A long press will switch off the device.
- 04 -

- 05 -
3.Use the screws and key provided in the
packaging to fix the handlebars the device to make sure everything works
Open the rubber
cover of the charger the charger and close the rubber cover

There is a risk of falling and injury during the study
period, so equip yourself with a helmet and
- 06 -

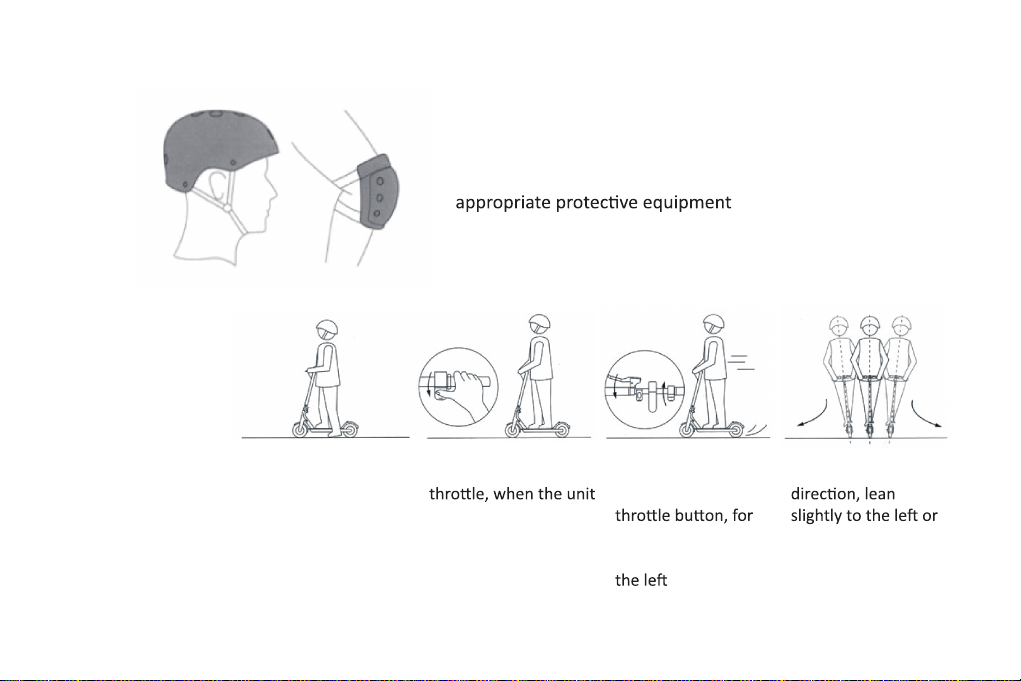

1.Turn on the
device and check
the charge level
2.Pose one foot on
the turntable, the
other foot on the
ground
3.Gently press the
has reached a constant
speed put the other
foot on the turntable
4.To slow down
simply release the
stronger braking use
the brake handle on
5.To turn or change
right and turn the
handlebars slightly.
5/Learn to use the product

- 07 -
Avoid driving in the rain
obstacles in height
Do not accelerate downhill
slow down the unit. If the road is very rough it must maintain a
low speed (between 5 and 10km / h max). By staying flexible

- 08 -
Do not lean on the accelerator when you walk
beside the device
Do not hang heavy objects on the handlebars
Be careful of any obstacles while using
the device
Allow a calm and concentrated driving,

- 09 -

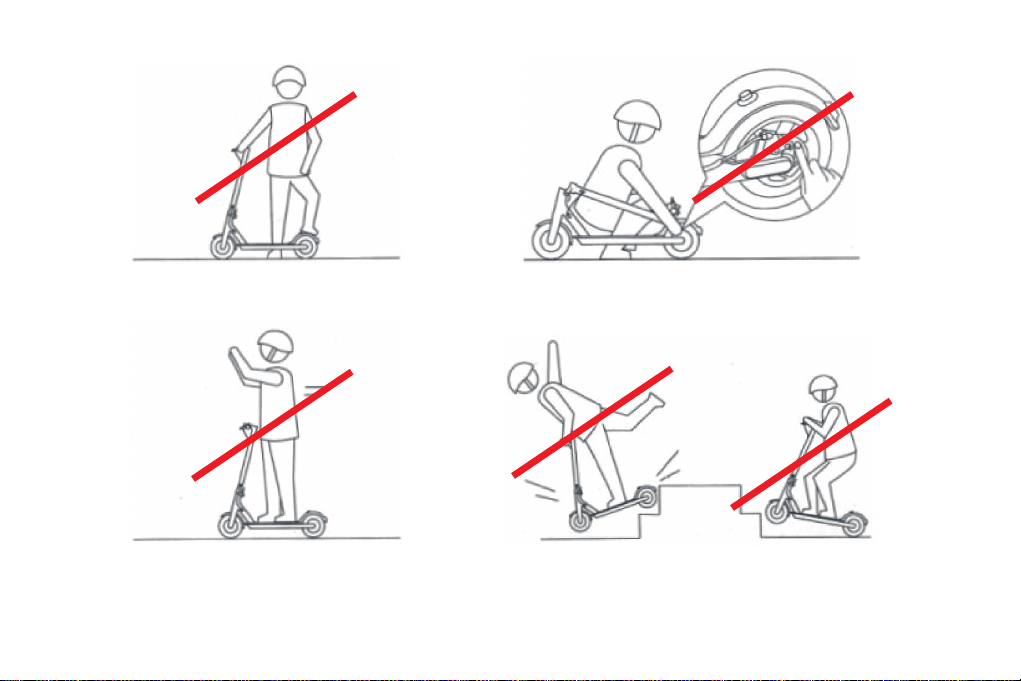

Do not ride on the road
Do not ride in water, mud or snow Do not ride together or with a child on the
device
speed

- 10 -
It is forbidden to walk on the rear
mudguard
Do not let go of the handlebars while
driving the unit
Do not jump obstacles, do not go down the stairs
with the device risk of accident or damage to the
device
Do not touch the disc brake

You must subscribe to an insurance policy for this type of device in the case of damage or injury caused to a
third party but also in the case of injury to the user. Please inquire with your insurer.
This device may be used by persons 14 years of age or older and by persons with reduced physical, sensory
were given to them.
Don't allow people under 14, the elderly and pregnant women to use it.
This device is allowed to circulate only on pedestrian routes at a maximum speed of 6km / h.
request.
Do not use the product on the roadway. The device is not approved.
You must be aware that when you ride in a public area you are subject to strict rules but also to the risk of
falls, collisions with pedestrians or other vehicles. As with other vehicles, the
higher your speed, the longer the braking. Emergency braking on a smooth surface can cause the device to
slide and cause a fall and injury. It is therefore very important to adapt your
driving style and speed and to leave an appropriate safety distance with pedestrians or other
means of transport.
Be alert and control your speed when entering unknown terrain.
Please respect the pedestrians as you pilot the device. Avoid frightening pedestrians,
especially children and the elderly. When you pass a pedestrian you have to slow down and
pass pedestrians as far as possible.
- 11 -

Do not lend your device to someone who has not been trained to use it. Be sure that this
please do not use your device and contact an authorized repairer.
- 12 -
Folding

To unfold the device you must press the hook located at the bell, raise the column and
- 13 -
Unfolding
You can then transport the device as shown in the diagram.
Transport

Cleaning and storage of the device:
expected you can use a toothbrush to clean the dirt.
your device both in appearance and in its internal structure. Do not use a high-pressure gun to clean
the device. More generally when you clean your device make sure it is turned off, the charger cable is
unplugged and the rubber cover is closed.
When you are not using your device, store it in a dry room away from moisture, do not store your
device outdoors. Too much exposure to sun, heat, or cold can damage the device and accelerate the
injure or kill the user.
3 / Use only the original charger otherwise it may damage the device or cause a fire.
- 14 -
8/Maintenance

fire or explosion.
fire hazard.
a fire, it could cause an explosion.
opposite and extend the brake cable.
wrench.
- 15 -

- 16 -
9/Technical parameters of the product
Index Type de paramètre Paramètre
Unfolded 1080*430*1140mm
Folded 1080*430*490mm
Weight 12.5kg
Max weight 120kg
Min age 14 ans
Min height 120cm
Max speed 20km/h
Average distance
(max distance depends on user’s weight,
external temperature and road inclinaon)
15km
Products dimensions
Product weight
To drive
Principal parameters Slope max. 15°
Driving field Flat dirt path / step jump more than
1 cm / empty of not more than 3cm
-10°C +40°C
Storage temperature -20°C +45°C
IP54
Paramètres de la
Voltage 36V
Charge 42V max
Capacity 6000mAh

BMS
Abnormal temperature management,
overvoltages, double overload,
Nominal power 250W
Motor parameters
Charging parameters
Max power 350W
Nominal power 71W
VAC 110-210V
VDC 42V
Current 1.5A
3.5H
Imported by:
JME S.A
77 RUE DODONEE 1180
BRUSSELS BELGIUM
We company JME S.A 77 RUE DODONEE 1180 BRUSSELS BELGIUM, declare that this conformity
- 17 -

Brand: MPMAN Reference: TR400 Type: Electric Scooter
JME S.A
In which this product is in compliance with the CEM directory standards CE 2014/30 / EU and
-EN 55014-1:2017 et EN 55014-2:2015
-EN 61000-3-2:2014 et EN 61000-3-3:2013
-EN ISO 12100 :2010
-EN 60204-1 :2006+A1 :2009+AC :2010
consequences, which could de facto affect the conformity of the device with CE marking, any
- 18-
Place of issue Date : For JME.S.A
Uccle April 17th, 2019 Signed
Name :
