MRF BG72 User manual

COPYRIGHT © 2022
MESSER REPAIR AND FABRICATING, LLC
SAUK CENTRE, MN
PRINTED IN USA
ALL RIGHTS RESERVED
OPERATOR’S MANUAL
GRAPPLES
All Models
Serial Number 16418-
Manual# 96371 SEPT 2022 ENGLISH

2
Introducon
Using This Manual
Your loader operator’s manual contains instructions to safely operate the
loader. Anyone who operates a loader with this attachment installed must
rst read, understand and follow the instructions in the loader operator’s
manual.
This manual contains instructions to safely operate and service the
attachment. Anyone who operates or services the attachment must rst
read, understand and follow the instructions in this manual.
Additional operating or servicing information for the attachment may be
provided online, in video, or in other publications. This additional infor-
mation does not replace, and is not a substitute for reading and following,
the instructions in this manual.
The safety alert symbol is shown in WARNING statements to alert users
to hazards which could cause death or injury. Carefully read and follow
the messages.
IMPORTANT notices alert users to instructions which, if not followed,
could result in damage. Carefully read and follow the messages.
There may be times when the attachment and loader shown in this man-
ual may not be your exact model. The model shown will be close enough
to your attachment or loader to accurately convey the information.
The most current information available is included in this manual. The
publisher may revise this manual at any time and is not required to notify
users of revisions.
Replacement Manuals
Be sure to include this operator’s manual if you sell or transfer owner-
ship of the attachment.
Contact Messer Repair and Fabricating, LLC for a printed manual, or
nd a downloadable manual on our website.
Using This Aachment
These attachments are designed for transporting brush and roots, rocks,
manure, and other materials.
The attachment is designed for installation on a full-size loader, connect-
ed to the loader’s front auxiliary hydraulic couplers.
The manufacturer reserves the right to make improvements, and to dis-

3
Introducon
continue or change specications, models or design without notice and
without incurring obligation.
Loader Compability
Conrm your loader’s Rated Operating Capacity (ROC) in the loader op-
erator’s manual. Conrm your attachment’s ROC in SPECIFICATIONS
in this manual.
Do not install the attachment on the loader if the combined weight of
the attachment and attachment load will exceed the loader ROC during
operation because this may cause diculty in controlling the loader or
may cause loader damage.
Do not exceed the attachment’s ROC because this may damage the
attachment.
Attachment compatibility with your loader should be conrmed before
the intitial purchase. If you receive the attachment as part of a later
resale or transfer of ownership, contact the manufacturer to conrm the
attachment is designed to be used with your loader before you install the
attachment.
Product Misuse
Product misuse can cause accidents, injury and death.
The manufacturer of the attachment is not responsible for any harm or
injury resulting from product misuse.
Product misuse includes operating or servicing the attachment without
following the instructions in this manual and in the loader manuals, using
the attachment in any way for which it was not designed, neglecting to
conrm loader compatibility, and modifying the attachment.
Modicaons
Do not modify the attachment in any way.
Manufacturer Contact
Call Messer Repair and Fabricating, LLC at [phone], or see us at
www.messerrepair.com.

4
Idencaon Numbers
Record your product information to provide when you contact the dealer
or manufacturer.
Brush and Root Grapple
Manure Fork Grapple
Material Bucket Grapple
Rock Bucket Grapple
Serial Number 16418-
Serial Number Locaon
Product Idencaon
Purchase Date
Dealer
Dealer Phone
Model
Serial #

5
Specicaons
Brush and Root Grapple
Model: 72 Inch BG72
Overall Width x Height 183 x 76 cm (72 x 30 in.)
Weight 342 kg (755 lb.)
Model: 78 Inch BG78
Overall Width x Height 201 x 76 cm (79 x 30 in.)
Weight 358 kg (790 lb.)
Model: 85 Inch BG85
Overall Width x Height 216 x 76 cm (85 x 30 in.)
Weight 370 kg (815 lb.)
Model: All BG72, BG78, BG85
Depth 112 cm (44 in.)
Teeth Thickness 1/2 in. Grade 50
Space Between Teeth 15 cm (6 in.)
Grapple Jaw Opening 107 cm (42 in.)
Cylinders (2) 2 in. x 8 in. 3500 psi welded
cross tube
Manure Fork Grapple
Model: 60 Inch MFG60
Overall Width x Height 152 x 79 cm (60 x 31 in.)
Number of Tines 8
Weight 318 kg (700 lb.)
Model: 68 Inch MFG68
Overall Width x Height 173 x 79 cm (68 x 31 in.)
Number of Tines 9
Weight 340 kg (750 lb.)

6
Specicaons
Manure Fork Grapple
Model: 75 Inch MFG75
Overall Width x Height 191 x 79 cm (75 x 31 in.)
Number of Tines 10
Weight 361 kg (795 lb.)
Model: 84 Inch MFG84
Overall Width x Height 213 x 79 cm (84 x 31 in.)
Number of Tines 11
Weight 381 kg (840 lb.)
Model: All MFG60, MFG68,
MFG75, MFG84
Depth 97 cm (38 in.)
Grapple Jaw Opening 107 cm (42 in.)
Tines Center to Center 20 cm (8 in.)
Cylinders (2) 2 in. x 8 in. 3500 psi welded
cross tube
Material Bucket Grapple
Model: 66 Inch MBG66
Overall Width x Height 191 x 79 cm (67 x 31 in.)
Weight 361 kg (925 lb.)
Capacity/Struck 15.9 cubic .
Capacity/Heaped 19.1 cubic .
Model: 72 Inch MBG72
Overall Width x Height 185 x 79 cm (73 x 31 in.)
Weight 435 kg (960 lb.)
Capacity/Struck 17.3 cubic .
Capacity/Heaped 20.8 cubic .

7
Specicaons
Material Bucket Grapple
Model: 78 Inch MBG78
Overall Width x Height 201 x 79 cm (79 x 31 in.)
Weight 454 kg (1000 lb.)
Capacity/Struck 18.8 cubic .
Capacity/Heaped 22.6 cubic .
Model: 84 Inch MBG84
Overall Width x Height 216 x 79 cm (85 x 31 in.)
Weight 470 kg (1035 lb.)
Capacity/Struck 20.2 cubic .
Capacity/Heaped 24.2 cubic .
Model: All MBG66, MBG72,
MBG78, MBG84
Depth 97 cm (38 in.)
Grapple Jaw Opening 112 cm (44 in.)
Cylinders (2) 2 in. x 8 in. 3500 psi welded
cross tube
Rock Bucket Grapple
Model: 68 Inch RBG68
Overall Width x Height 175 x 79 cm (69 x 30 in.)
Weight 397 kg (875 lb.)
Model: 75 Inch RBG75
Overall Width x Height 191 x 79 cm (75 x 30 in.)
Weight 424 kg (935 lb.)
Model: 82 Inch RBG82
Overall Width x Height 208 x 79 cm (82 x 30 in.)
Weight 445 kg (980 lb.)

8
Rock Bucket Grapple
Model: 88 Inch RBG88
Overall Width x Height 226 x 79 cm (89 x 30 in.)
Weight 465 kg (1025 lb.)
Model: All RBG68, RBG75,
RBG82, RBG88
Depth 107 cm (42 in.)
Teeth Thickness 3/8 in. Grade 50
Space Between Teeth 7.6 cm (3 in.)
Grapple Jaw Opening 107 cm (42 in.)
Cylinders (2) 2 in. x 8 in. 3500 psi welded
cross tube
Specicaons

9
Safety Decals

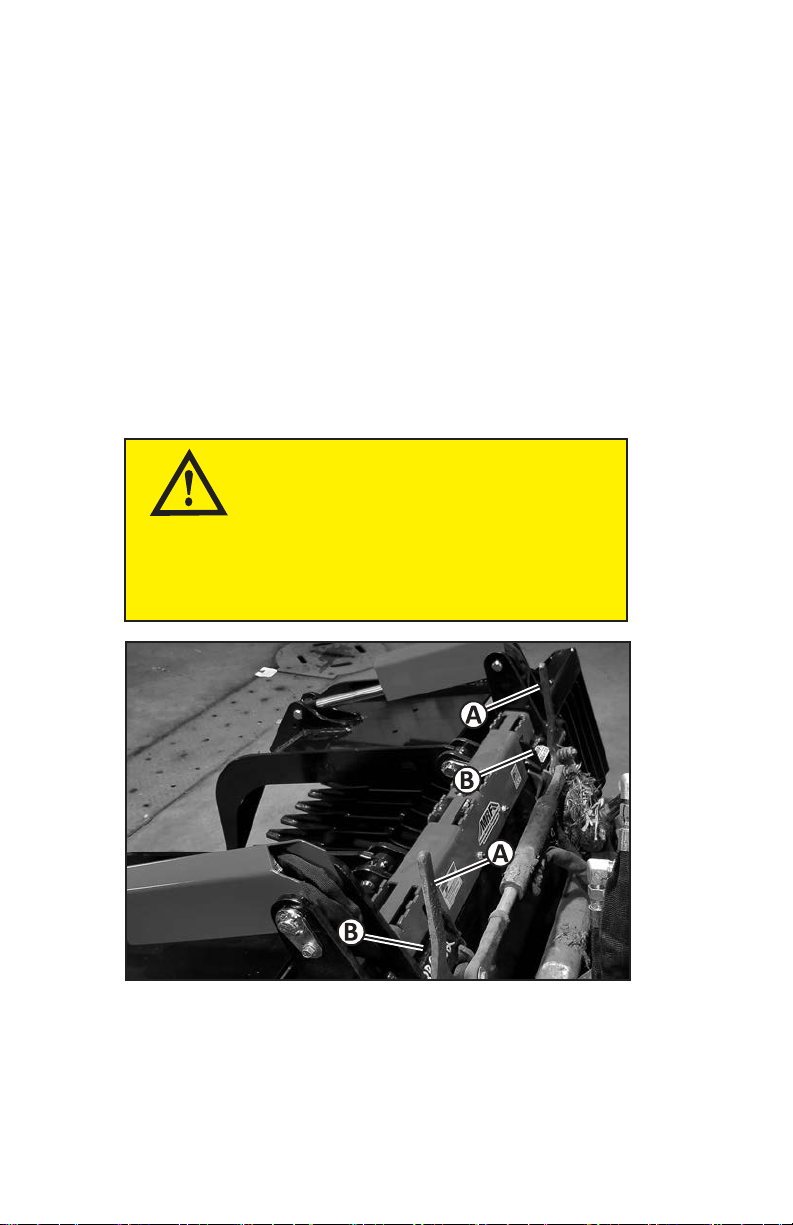

Decal Locaons
Locaon Descripon Part Number
A Stand Clear Decal 96028
B Warning Decal 96117
STAND CLEAR DECAL 96028
STAND CLEAR WHILE IN OPERATION
WARNING DECAL 96117
HIGH PRESSURE FLUID HAZARD
To prevent serious injury or death:
• Relieve pressure on system before repairing, adjusng or discon-
necng.
• Wear proper hand and eye protecon when searching for leaks. Use
wood or cardboard instead of hands.
• Keep all components in good repair.

10
Wear Protecve Equipment
• Wear gloves to protect hands from burns if hydraulic couplers be-
come hot during operation.
• Never wear sandals or other light footwear when operating or servic-
ing the attachment. Wear protective footwear when handling blades
or heavy parts.
• Do not wear loose tting clothing which may become entangled
when operating or servicing the attachment.
Parking Safely
1. Follow the instructions in the loader operator’s manual to park the
loader safely.
2. Fully lower the attachment to level ground.
3. Stop the loader engine and remove the key from the switch.
4. Do not leave the loader operator seat until the engine and all other
moving loader and attachment parts have stopped.
5. Follow the instructions in the loader operator’s manual to exit the
loader safely. Use the attachment step area if one is provided.
Operang Aachments Safely
• Always be aware of the weight of any loads you are transporting
with an attachment. The weight of any load must not exceed the
attachment’s Rated Operating Capacity. The weight of the attachment
combined with the attachment load must not exceed the loader’s
Rated Operating Capacity.
• Do not allow anyone to operate the attachment unless they have rst
read and understood the loader and the attachment operator’s manu-
als.
• Do not allow anyone to operate the attachment unless they have rst
read and understood the safety and warning decals on the loader and
on the attachment.
• The attachment owner is responsible for training others to safely
operate the attachment, and is responsible for any injuries or harm
which occurs while the attachment is being operated.
• If an area to step on the attachment has been provided, be sure to use
it when entering and exiting the loader.
Safety

11
Safety
• Before operating, replace any worn or damaged safety decals.
• Before operating, thoroughly inspect the attachment to be sure all
hardware (bolts, nuts, etc.) is installed and tightened.
• Before operating, thoroughly inspect the attachment to be sure it is
in working order. If the attachment is damaged or otherwise not in
working order, do not operate until it has been repaired by a qualied
technician.
• Before raising or lowering the attachment be sure the area is clear of
bystanders.
• Do not operate the loader or the attachment if you are under the
inuence of alcohol, drugs, or medications which may cause drows-
iness.
• Do not allow children to operate the loader or the attachment.
• Do not allow anyone who has not been trained to operate the loader
or the attachment.
• Never allow riders on the attachment.
• Keep hands, feet or other objects away from underneath the attach-
ment while operating.
• Fully lower the attachment to level ground when you are done oper-
ating.
• Never leave the attachment unattended while in a raised position.
• When transporting the attachment installed on the loader, travel at a
slower speed to maintain control.
Using Grapples Safely
• Keep the load centered on the attachment during travel.
• The hooks on the attachment can crush or pinch body parts. Keep
bystanders and animals away during operation.
• Conrm the attachment is completely under the load and the grapples
are closed securing the load before lifting it.
• Do not attempt to lift a load with a height greater than the distance
of the fully raised hooks. The hooks must securely “grip” the load
before lifting and transporting the load.

12
Safety
Servicing Safely
• Disconnect the attachment hydraulic hoses from the loader before
servicing. Do not service the attachment when the hydraulic hoses
are installed on the loader.
• Remove the attachment from the loader before servicing when in-
structed to do so in this manual.
• Do not allow anyone to service the attachment unless they have rst
read and understood the loader and the attachment operator’s or
service manuals.
• Do not allow anyone to service the attachment unless they have rst
read and understood the safety and warning decals on the loader and
on the attachment.
• The attachment owner is responsible for training others to safely
service the attachment, and is responsible for any injuries or harm
which occurs while the attachment is being serviced.
• Before inspecting or servicing the attachment, follow the Parking
Safely instructions in this manual and disconnect the attachment
hydraulic hoses from the loader.
• Always securely block the attachment to prevent accidental release
of the lifting mechanism when inspecting or servicing the attach-
ment.
Hydraulic Fluid Safety
• Read and understand the hydraulic safety information in the loader
operator’s manual before operating or servicing the attachment.
• Use cardboard or a board when you check for a leak.
• Fluid in hydraulic hoses is under extreme pressure. If uid is injected
into your skin seek medical treatment immediately.
• Do not handle any hydraulic components until pressure has been
relieved from the system.
• Disconnect the attachment hydraulic hoses from the loader before
inspection or service.
• Inspect attachment hydraulic hoses and hose shields for damage or
wear before attaching to the loader.

13
Safety
Safety Decals
Safety decals may be installed on the attachment to warn users of safety
hazards:
• DANGER decals provide warnings about hazardous situations which
will result in death or serious injury if not avoided.
• WARNING decals provide warnings about hazardous situations
which could result in death or serious injury if not avoided.
• CAUTION decals provide warnings about hazardous situations
which could result in injury if not avoided.
Read and understand all safety decals before operating or servicing the
attachment.
See the Decal Locations illustration in this manual to conrm where
decals are installed on the attachment.
Safety decals which are missing, worn or faded must be replaced. Re-
placement safety decal part numbers are included in this manual. Contact
the attachment manufacturer for replacement decals.

14
Installing and Removing
Preparing for Installaon
1. Check the loader and attachment hydraulic couplers to be sure the
surfaces are clean before connecting.
2. Inspect the couplers for damage or wear and replace if needed for
proper connection.
Installing the Aachment
1. Follow the instructions in the loader operator’s manual to install the
attachment and exit the operator station safely.
2. Fully lower the loader lift arms.
3. Move the loader attaching plate levers (A) to the unlocked (up) posi-
tion either manually or by using the loader controls.
WARNING
AVOID INJURY!
Loader aaching plate levers which are operated
manually may have spring tensioning. Firmly grasp
the levers and move the levers slowly.

15
Installing and Removing
4. Tilt the loader attaching plate forward, and drive the loader forward
until the top edge of the loader attaching plate is under the top ange
(B) of the attachment mounting frame.
5. Raise the loader lift arms slightly until the attaching plate is fully
seated under the top ange.
6. Tilt the attaching plate backward to raise the front of the attachment.
7. Move the loader attaching plate levers (A) to the locked (fully down)
position either manually or by using the loader controls.
8. Park the loader. (See Parking Safely in this manual.)
IMPORTANT
AVOID DAMAGE!
Aaching plate levers may be damaged if they
strike the aachment. Be sure the aaching plate
levers do not hit the aachment during installaon.
IMPORTANT
AVOID DAMAGE!
The aachment may come o the loader if it is
not secured to the aaching plate. The aaching
plate pins or wedges must be extended into the
aachment with the levers fully down.

16
Installing and Removing
Picture Note: Wedge on left side shown. Check the wedges or pins on
both sides of the attachment.
9. Check to be sure the loader attaching plate pins or wedges (C)
extended into the holes in the bottom of the attachment mounting
frame. If not, move the loader attaching plate levers to the unlocked
(up) position and repeat installation.
10. Connect the attachment hydraulic hoses to the loader’s front auxilia-
ry couplers (D).
a. Install the male couplers into the female couplers and pull or push
the sleeves (E) to be sure they are locked into place.
b. Rotate the coupler sleeves as shown so the ball (F) is outside the
groove (G) to prevent the coupler disconnecting (Some sleeves
may not have this locking mechanism).

17
Installing and Removing
Removing the Aachment
1. Follow the instructions in the loader operator’s manual to remove the
attachment and exit the operator station safely.
2. Fully lower the loader lift arms and the attachment to level ground.
3. Follow instructions in the loader operator’s manual to relieve hydrau-
lic pressure in the front auxiliary hydraulic coupler lines.
4. Stop the loader engine.
5. Disconnect the attachment hydraulic hoses from the loader’s front
auxiliary couplers (A).
a. Rotate the coupler sleeves (B) so the ball (C) is aligned with the
groove (D) to allow the coupler to disconnect (Some sleeves may
not have this locking mechanism).
b. Grasp and push or pull the sleeves to disconnect the couplers.
6. Install protective caps on the couplers if they are provided.
WARNING
AVOID INJURY!
Hydraulic couplers may become hot during op-
eraon. Avoid burns by wearing gloves when
disconnecng hydraulic couplers.

18

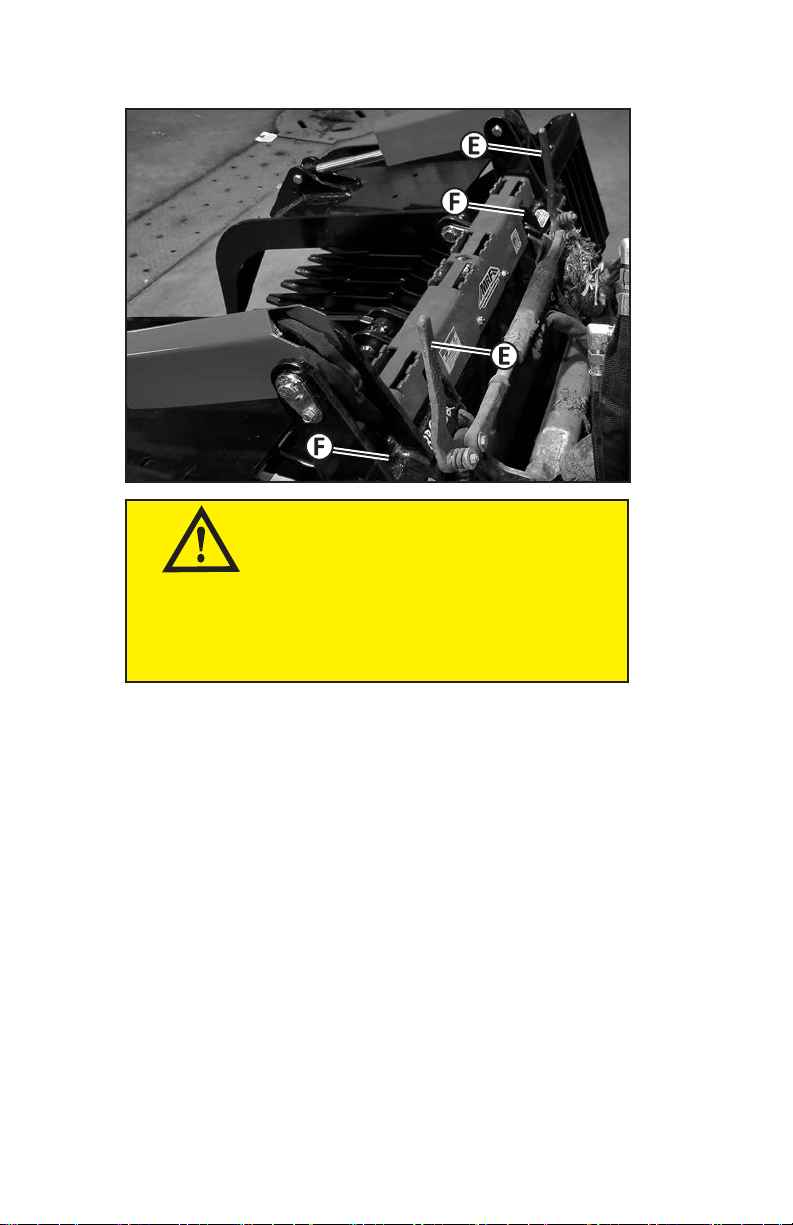

7. Move the loader attaching plate levers (E) to the unlocked (up) posi-
tion as shown either manually or by using the loader controls.
8. Tilt the loader attaching plate forward slightly and drive the load-
er backward until the top edge of the attaching plate clears the top
ange (F) of the attachment mounting frame.
Installing and Removing
WARNING
AVOID INJURY!
Loader aaching plate levers which are operated
manually may have spring tensioning. Firmly grasp
the levers and move the levers slowly.

19
Operang
Pre-Operaon Inspecon
Before starting operation, inspect the area you will be clearing and in-
spect the attachment.
Conrm Loader Compability
It may be possible for the hooks on the grapple to cause damage when
they are fully raised if they contact the lift arms on some loader models.
Before beginning operation fully raise the hooks to conrm whether they
may come into contact with the loader lift arms. If they do, avoid fully
raising the hooks during operation to avoid machine damage.
Inspect the Work Area
1. Conrm the area is clear of bystanders including animals. Establish
a safety zone by keeping bystanders and animals beyond a 100 foot
radius around the attachment when operating.
Inspect the Aachment
1. Inspect the attachment to be sure it is in working order. If the attach-
ment is damaged or not in working order, do not operate until it has
been repaired by a qualied technician.
Descripon

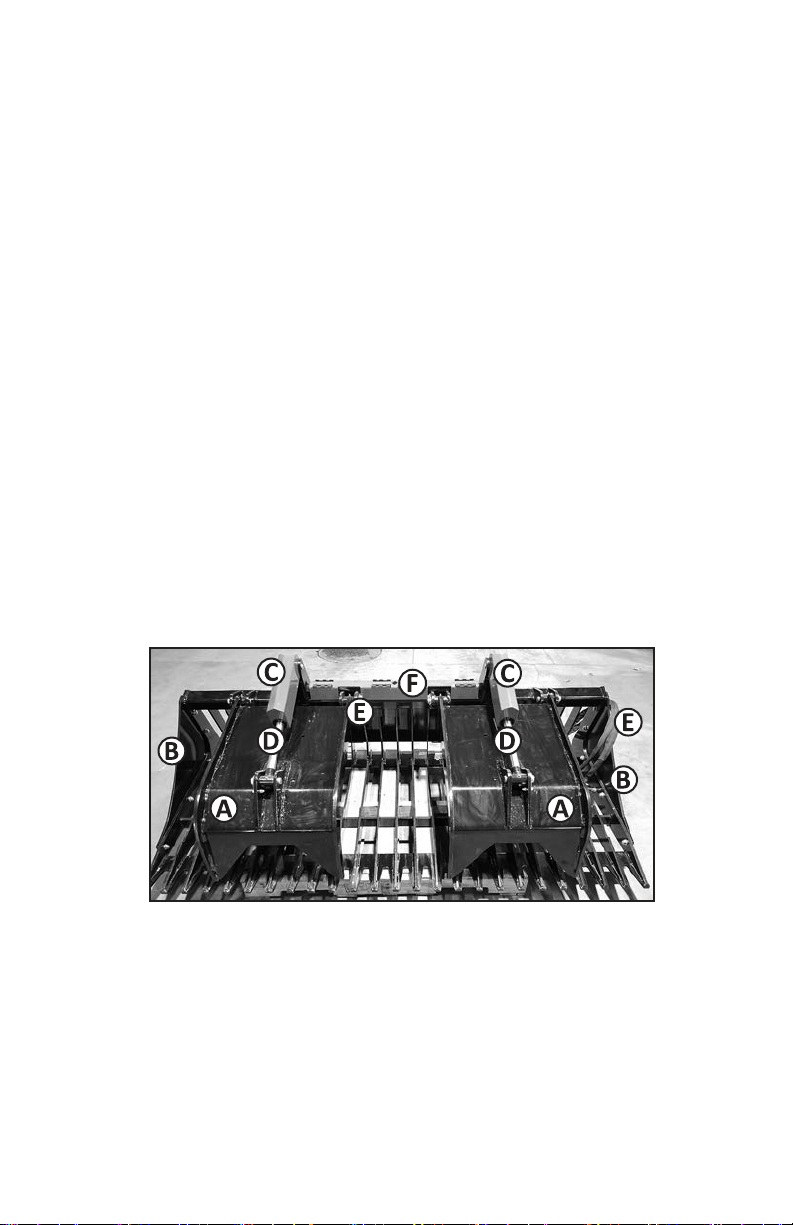

Theory of Operaon
The Grapple hydraulic hoses are connected to the loader front auxiliary
hydraulic couplers. The loader’s hydraulic controls are used to extend
and retract the hydraulic cylinders, which raise and lower the hooks to
hold the material in the attachment.
A - Hook
B - Removable Side
C - Cylinder Guard
D - Hydraulic Cylinder
E - Hydraulic Hoses
F - Step Area

20
Operang
Operaon
1. Follow the instructions in the Installing and Removing section to
install the attachment.
2. Park the loader. (See Parking Safely in this manual.)
3. Perform the pre-operation inspection.
Loading the Material
1. Conrm the material to be lifted will not exceed the loader’s Rated
Operating Capacity. Reduce the amount of material and load weight
if needed.
2. Use the loader hydraulic controls to fully raise the hooks (A).
3. Drive forward until the material reaches the back of the attachment.
4. Use the loader hydraulic controls to lower the hooks until you have a
rm “grip” on the material.
5. Tilt the attachment back.
6. Raise the attachment from the ground only as far as needed to travel
with the load.
IMPORTANT
AVOID DAMAGE!
Do not aempt to li a load with a height greater
than the distance of the fully raised hooks. The
hooks must securely “grip” the load before liing
and transporng.
