MrHeater MH4GC Assembly instructions

www.mrheater.com 800-251-0001 2017 CB
PORTABLE PROPANE HEATER FOR
RECREATIONAL AND COMMERCIAL USE
CARBON MONOXIDE HAZARD
This appliance can produce carbon
monoxide which has no odor.
Using it in an enclosed space can kill
you.
Never use this appliance in an
enclosed space such as a camper,
tent, car or home.
DANGER FOR YOUR SAFETY
If you smell gas:
1. Do not attempt to light appliance.
2.Extinguish any open flames.
3.Disconnect from fuel supply.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
READ INSTRUCTIONS CAREFULLY: Read and follow all instructions. Place instructions in a safe
place for future reference. Do not allow anyone who has not read these instructions to assemble,
light, adjust or operate the heater.
OPERATING INSTRUCTIONS AND OWNERS MANUAL
PORTABLE RADIANT
GOLF CART HEATER MH4GC
Model #
LANGUAGES INCLUDES:
•ENGLISH

Mr. Heater MH4GC Golf Cart Heater 2
SPECIFICATIONS
MODEL NO. ....................................................MH4GC
GAS TYPE ......................................................PROPANE
INPUT BTU/HR. ...................................................
CLEARANCE TO COMBUSTIBLES
TOP ........................................................................
FRONT ....................................................................
SIDES ......................................................................
REAR .......................................................................
CONTENTS
General Safety Instructions ............................................... 3
General Information .......................................................... 3
Operating with Disposable Propane Cylinders ................... 4
Maintenance..................................................................... 4
Troubleshooting ................................................................ 5

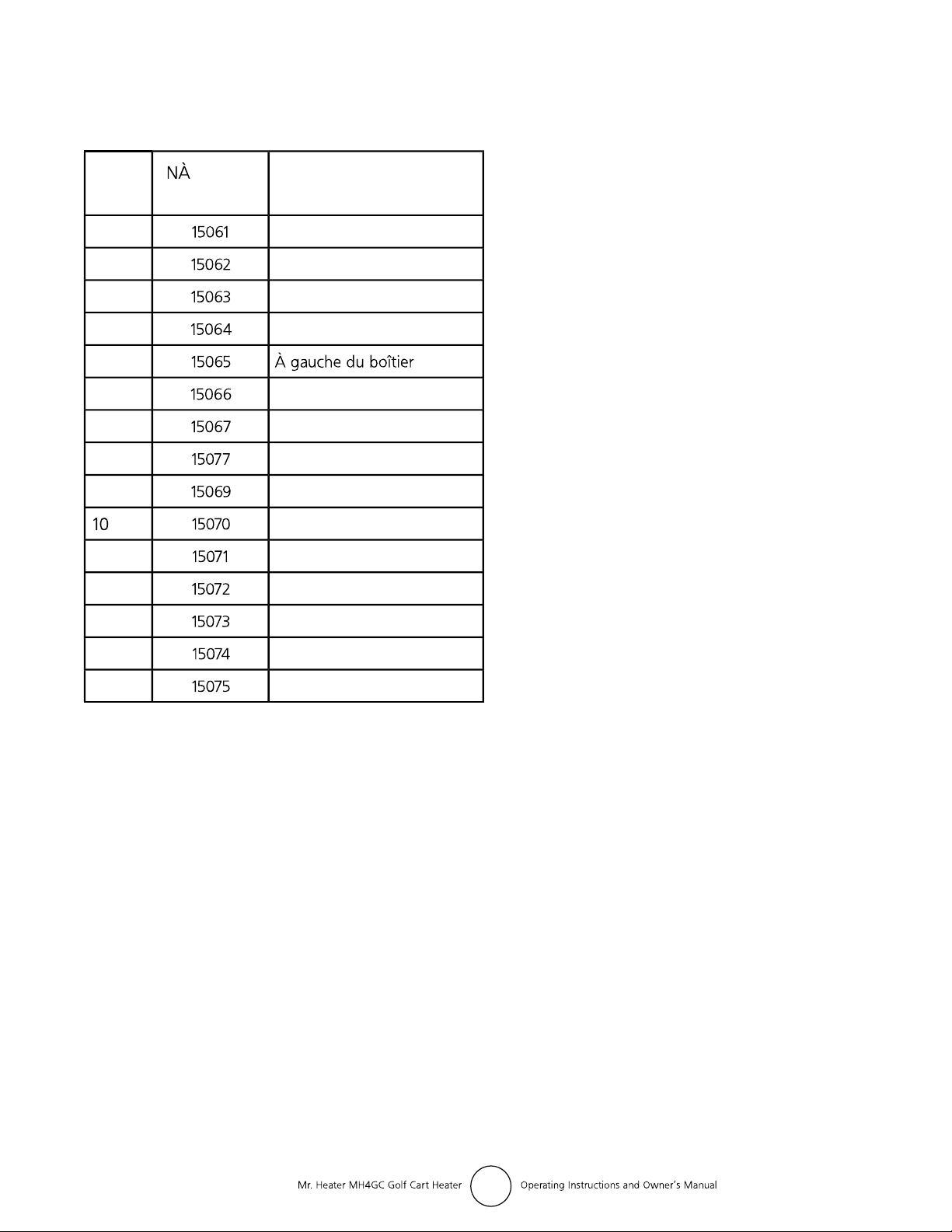

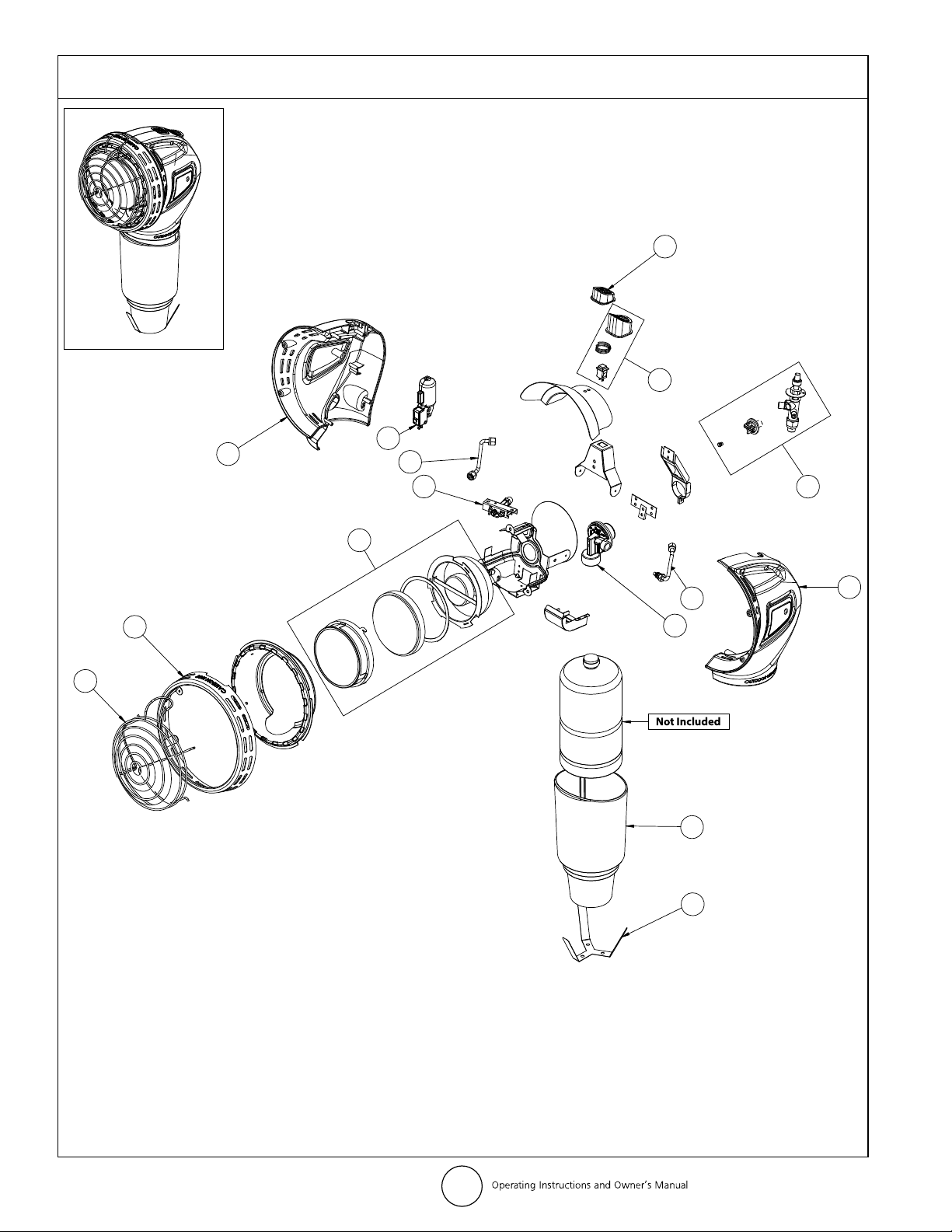

Parts List ........................................................................... 6
Parts Ordering Information ............................................... 8
Service Information ........................................................... 8
WARNING:
Every time hose or tank is connected to unit, connection must be checked for leaks in one or more ways: Apply soapy
water to connection, look for bubbles, listen for hiss of escaping gas, feel for extreme cold, smell for rotten egg odor. Do
not use if leaking!
THE STATE OF CALIFORNIA REQUIRES THE FOLLOWING WARNINGS:
WARNING: Combustion by-products produced when using this product contain carbon monoxide, a chemical
known to the State of California to cause cancer and birth defects (or other reproductive harm).
WARNING:
Early signs of carbon monoxide poisoning resemble the
flu, with headache, dizziness and/or nausea. If you have
these signs, heater may not be working properly. Get
fresh air at once! Have heater serviced.
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects
or other reproductive harm.
WARNING:
Any changes to this heater or its controls can be
dangerous.
NOTICE:

3
Only cylinders marked with propane may be used with
the appliance.
Do not use non-approved attachments on this heater.
Due to high temperatures, the appliance should be
located out of traffic and away from combustible
materials.
Children and adults should be alerted to the hazard of
high surface temperatures and should stay away to avoid
burns or clothing ignition.
Young children should be carefully supervised when they
are near the appliance.
Do not place clothing or other flammable material on or
near the appliance.
This heater is for outdoor use only.
GAS PRESSURE AT HEATER IS REGULATED AND FIXED
AT 1 PSI.
REGULATOR IN HEATER MUST ALWAYS BE IN PLACE
DURING OPERATION.
Any safety screen or guard removed for servicing the
appliance must be replaced prior to operating the
heater.
The appliance should be inspected before each
use. Frequent cleaning may be required. The
control compartments, burner and circulating air
passageways of the appliance must be kept clean, see
MAINTENANCE.
DO NOT use this heater if any part has been under
water. Immediately call a qualified service technician to
inspect the heater and to replace any part of the control
system and any gas control, which has been under
water.
When used without adequate combustion and
ventilation air, this heater may give off excessive
CARBON MONOXIDE, an odorless, poisonous gas.
Some people - pregnant women, persons with heart
or lung disease, anemia, those under the influence of
alcohol, those at high altitudes - are more affected by
carbon monoxide than others.
THIS HEATER IS EQUIPPED WITH A TIP OVER SWITCH
THAT WILL SHUT THE HEATER OFF IF THE HEATER TIPS
OVER HOWEVER, DO NOT LEAVE HEATER UNATTENDED
OR WHERE CHILDREN MAY CAUSE THE HEATER TO TIP
OVER. NEVER OPERATE THE HEATER WHILE SLEEPING!
Do not leave this appliance unattended while it is in
operation.
GENERAL SAFETY INSTRUCTIONS
THIS IS A HEATING APPLIANCE. DO NOT OPERATE
THIS APPLIANCE WITHOUT THE FRONT WIRE GUARD
INSTALLED. DO NOT ATTEMPT TO WARM OR COOK
FOOD ON THIS HEATER.

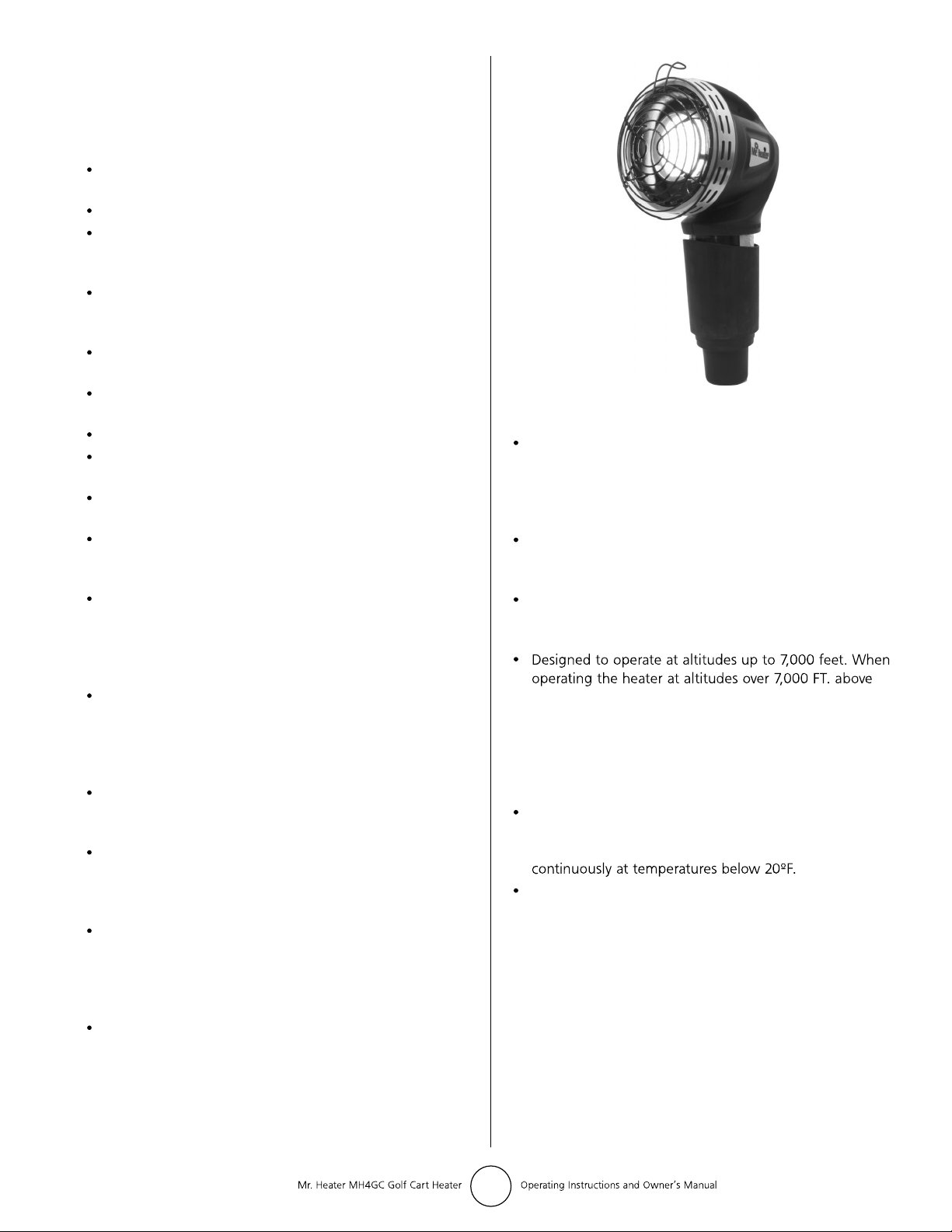

GENERAL INFORMATION:
When the heater is cold, it will take a few minutes for
the burner tile to turn bright orange. This is normal and
the heater is working properly. If burner tile is visibly
flaming, turn heater off and call a qualified service
technician.
When the unit is lit, there should be about a quarter
inch border around the tile that will not turn bright
orange. This is normal.
When operating the heater for the first time, the top
area of the reflector may discolor. This is also normal
and is no reason for concern.
sea level, the unit may not burn as bright as in lower
altitudes. This is normal. At higher altitudes, the heater
may shut-off. If this happens, provide fresh air, wait 5
minutes and re-light. If the heater continues to shut
off, there may not be enough oxygen available to feed
proper combustion.
Operating time will be approximately 5 1/2 hours on
a one 1lb cyclinder. Due to the properties of LP gas,
runtimes can be significantly reduced when operating
This heater is equipped with a tip-over safety switch.
Nuisance shut-downs may be experienced if the unit
is bumped or moved. If this occurs simply relight the
heater.
• Due to natural operation of small tanks, condensation
may build up on tank and drip on surface under heater.
Sometimes this condensation may freeze due to the
extreme cold caused when propane vaporizes. This is
normal and no reason for alarm.

Mr. Heater MH4GC Golf Cart Heater 4
A slight yellow flame may occur where the pilot flame
and main burner flame meet. The burner should be bright
orange (with a slight blue color around the border, a red-
orange haze that is visible on the ceramic tile is acceptable)
and without a noticeable flame.
A blue flame that rolls out at the top of the ceramic tile
indicates an accumulation of dust, lint or spider webs
inside the housing assembly and main burner assembly.
If the pilot is yellow or the burner has a noticeable flame,
cleaning may be required. Use the following procedure to
inspect the casing assembly and main burner assembly. It
is necessary to periodically check the burner orifice and
burner venturi to make sure that they are clear of insects/
nests or spider webs that may accumulate over time. A
clogged tube can lead to a fire.
CLEANING INSTRUCTIONS:
1. Allow heater to thoroughly cool before performing
any maintenance.
2. Remove disposable 1 lb. propane cylinder from
heater.
3. Remove right side plastic service panel (Parts diagram
ref. 4) by removing the four screws holding it in
place.
4. Inspect the interior of casing for accumulation of
dust, lint or spider webs. If necessary, clean the
interior of the casing assembly with a vacuum cleaner
components within the casing assembly when you
are cleaning.
5. Inspect and clean main burner (Parts Diagram ref. 3)
and orifice (ref. 8) by using a vacuum or compressed
6. Inspect and clean pilot tube (Parts Diagram ref.
7). Insert a doubled over pipe cleaner into the
pilot tube until it bottoms against the pilot orifice
of times and remove. Blow out the remaining debris
using compressed air.
LIGHTING / OPERATING INSTRUCTIONS
WARNING: Always inspect propane cylinder and heater
propane connections for damage, dirt, and debris before
attaching propane cylinder. Do not use if head of cylinder is
damaged, punctured or deteriorated.
ALWAYS ATTACH OR DETACH CYLINDER OUTDOORS AWAY
FROM FLAMES, OTHER IGNITION SOURCES, AND ONLY
WHEN HEATER IS COOL TO TOUCH. NEVER SMOKE WHEN
ATTACHING OR REMOVING PROPANE CYLINDER!
LP cylinders must be marked in accordance with
Use only LP-gas cylinders marked in accordance with the
U.S. Dept. of Transportation (DOT).
Use only 16.4 oz. (1 lb.) disposable cylinders that mate
Heater and attached cylinder must be in an upright
position during operation.
Screw 1 lb. disposable LP-gas supply cylinder clockwise
(from bottom) into portable heater until hand-tight and
fit cylinder into cup adapter. Do not use thread sealant
on this connection. Be sure cup adapter fits tightly into
cup holder before moving.
Check cylinder connection for leaks with soapy water
at the threaded connection under the domed plastic
cover where the cylinder screws into the regulator. SEE
WARNING! ON PLASTIC COVER.
The white tile will take a few moments to start to glow.
• CAUTION: After turning heater off, wire guard will
remain hot. Allow to thoroughly cool before storing.
Do not operate, store or remove cylinder near
flammable items or ignition sources.
HEATER WHEN NOT IN USE!
liquids during ignition or operation.
MAINTENANCE:
Always keep the heater area clear and free from
combustible materials, gasoline and other flammable
vapors and liquids.
Keep the vent areas (slots in the bottom and top of the
heater) clear at all times.

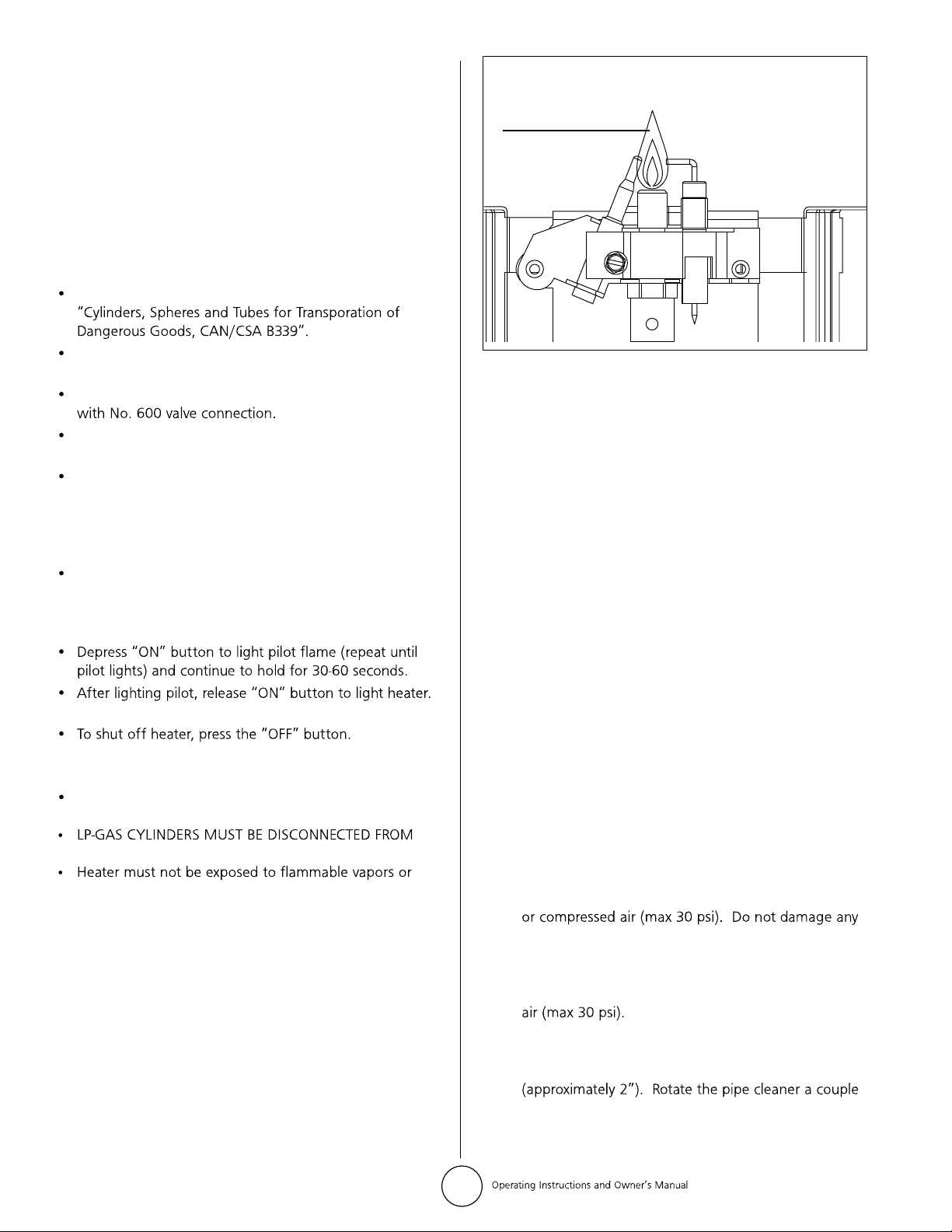

Visually inspect the pilot flame and burner periodically
during use. The pilot flame should be blue in color (not
yellow) and will extend to the thermocouple. The flame will
surround the thermocouple just below the tip, see Figure 2.
Pilot Flame
Oxygen Depletion Sensor
Figure 2

5
WARNING: Never use needles, wires or similar cylindrical
objects to clean the pilot to avoid damaging the
calibrated ruby that controls the gas flow through the
pilot orifice.
tile of burner assembly and venturi tube to remove
dust, lint and spider webs.
8. Reinstall the right side plastic service panel.
TROUBLESHOOTING INFORMATION:
If Spark electrode does not produce spark.
CHECK
electrode. -- attach
assembly.
If Spark electrode produces spark but pilot does not light.
CHECK
cylinder.
pilot, see MAINTENANCE.
If Pilot flame does not stay lit when button is released.
CHECK
to purge air from line.
clean pilot, see MAINTENANCE.
•
tip switch (check off switch and off switch
wiring).
If Main burner does not ignite.
CHECK
see MAINTENANCE.
If Heater keeps shutting “OFF” during normal operation.
CHECK
MAINTENANCE.
Re-light
—INTENTIONALLY LEFT BLANK —

Mr. Heater MH4GC Golf Cart Heater 6
Mr. Heater MH4GC

7
NOTES:
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
PARTS LIST:
SEE BACK PAGE FOR PARTS ORDERING INFORMATION
ITEM
NO
PART
NUMBER DESCRIPTION
1Guard, Wire
2Ring
3Burner, Plenum Assembly
4Housing, Right
5Housing, Left
6TIpover Switch
7Pilot, Tube, Assembly
8Pilot, ODS Assembly
9Regulator, Assembly
Tube, Regulator
11 Valve, Assembly
12 OFF-Button Assembly
13 Button, ON
14 Adapter, Cup
15 Clip, Spring

ANSIZ21.63 CSA.11.3-2011
Mr. Heater and Portable Buddy are registered trademarks of Enerco Group, Inc.
© 2017, Enerco/Mr. Heater. All rights reserved
Enerco Group, Inc. reserves the right to make changes at any time, without notice or
obligation, in colors, specifications, accessories, materials and models.
WARNING:
COULD CAUSE INJURY OR DEATH. REPLACEMENT PARTS ARE ONLY AVAILABLE
DIRECT FROM THE FACTORY AND MUST BE INSTALLED BY A QUALIFIED SERVICE
AGENCY.
PARTS ORDERING INFORMATION:
PURCHASING: Accessories may be purchased at any Mr. Heater local dealer or direct
from the factory
FOR INFORMATION REGARDING SERVICE
VISIT: mrheater.com
Please include the model number, date of purchase, and description of problem in all
communication.
LIMITED WARRANTY
Enerco Group, Inc. warrants its heaters and accessories to be free from defects in
material and workmanship for a period of 1 year from date of purchase. Enerco
Group, Inc. will repair or replace this product free of charge if it has been proven to
be defective within the 1-year period, and is returned at customer expense with proof
of purchase to Enerco Group, Inc. within the warranty period. This warranty gives you
specific legal rights, and you may also have other rights which vary from state to state.
READ INSTRUCTIONS CAREFULLY: Read and follow all instructions. Place instructions in a safe place
for future reference. Do not allow anyone who has not read these instructions to assemble, light,
adjust or operate the heater.
OPERATING INSTRUCTIONS AND
OWNERS MANUAL MH4GC
Model #

www.mrheater.com 800-251-0001 2017 CB
APPAREIL DE CHAUFFAGE PORTATIF AU
COMMERCIAL
PRODUCTION DE MONOXYDE
DE CARBONE
Cet appareil produit du monoxyde de
carbone, un gaz inodore.
endroit fermé risque de causer la mort.
véhicule récréatif, une automobile ou une
maison.
POUR VOTRE SÉCURITÉ
Si vous percevez une odeur de gaz :
chauffage.
POUR VOTRE SÉCURITÉ
appareil.
LISEZ SOIGNEUSEMENT LES INSTRUCTIONS : Lisez et observez toutes les instructions. Conservez les in-
PORTABLE RADIANT
GOLF CART CHAUFFE MH4GC
DANGER
LANGUES INCLUS:

Mr. Heater MH4GC Golf Cart Heater 2
SPÉCIFICATIONS
.....................................................MH4GC
TYPE DE GAZ ................................................PROPANE
PUISSANCE BTU/H..............................................
DESSUS .............................................................
AVANT ............................................................... 45 cm
................................................................15 cm
..............................................................
TABLE DES MATIÈRES
Instructions générales en matière de sécurité .................. F3
Renseignements généraux ............................................... F3
Fonctionnement avec des bouteilles de propane jetables . F4
Entretien ......................................................................... F4
Dépannage ..................................................................... F5
Liste des pièces ............................................................... F6
Information sur la commande de pièces .......................... F8
Information sur le service ................................................ F8
AVERTISSEMENT :
-
AVERTISSEMENT :
Toute modification de cet appareil de chauffage ou
de ses commandes constitue un danger.
AVERTISSEMENT :
de carbone ressemblent aux symptômes de la grippe
AVERTISSEMENT :
L’ÉTAT DE LA CALIFORNIE IMPOSE L’AVERTISSEMENT SUIVANT :
AVERTISSEMENT :
reproduction).
AVERTISSEMENT :

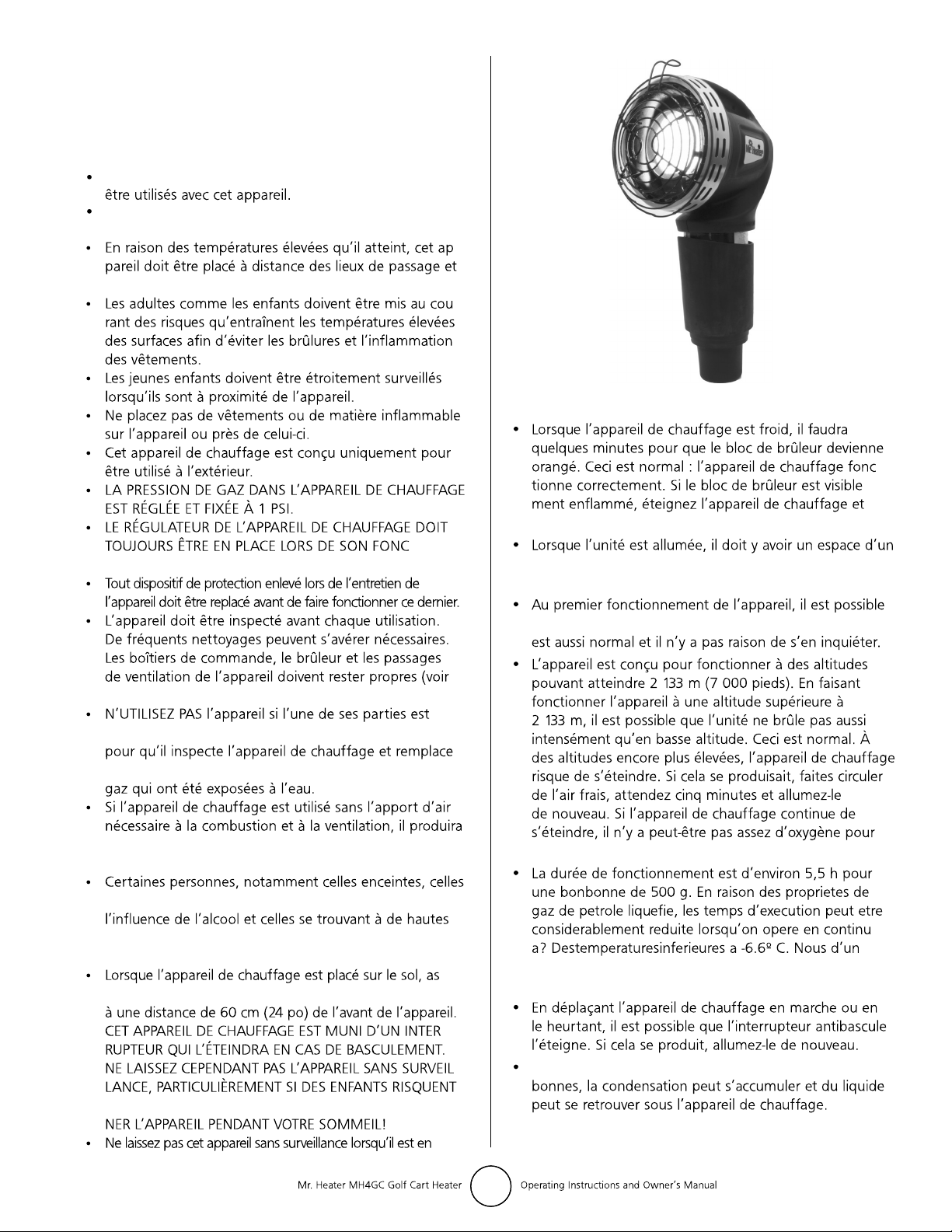

REMARQUEZ :

3
Seules les bouteilles marquées avec du propane peuvent
Ne pas utiliser non accessoires approuves sur ce
chauffage.
-
des matériaux combustibles.
-
-
TIONNEMENT.
ENTRETIEN).
mouillée. Appelez immédiatement un technicien qualifié
les parties du système de commandes et de contrôle du
une quantité excessive de MONOXYDE DE CARBONE, un
gaz toxique et inodore.
affectées de problèmes cardio-respiratoires, celles sous
altitudes, seront davantage affectées par le monoxyde
de carbone que les autres.
-
surez-vous que ce dernier est de niveau. Gardez les objets
-
-
DE LE FAIRE BASCULER. NE FAITES JAMAIS FONCTION-
marche.
INSTRUCTIONS GÉNÉRALES EN MATIÈRE DE
SÉCURITÉ
CET APPAREIL SERT AU CHAUFFAGE. NE LE FAITES
PAS FONCTIONNER SANS LA GRILLE PROTECTRICE. NE
PAS ESSAYER DE CHAUFFER OU CUIRE LES ALIMENTS
SUR LA CHAUFFAGE.
INFORMATIONS GÉNÉRALES :
-
-
appelez un technicien qualifié.
demi-centimètre entourant le bloc qui ne devienne pas
orangé. Ceci est normal.
que la surface supérieure du réflecteur se décolore. Ceci
permettre une combustion suffisante.
reservoir de GPL de 9 Kg est recommende dans ces
conditions.
En raison du fonctionnement normal des petites bon-

Mr. Heater MH4GC Golf Cart Heater 4
une brume rouge orangée visible sur le bloc céramique est
acceptable) sans flamme apparente.
obstrué peut causer un incendie.
INSTRUCTIONS POUR LE NETTOYAGE :
Diagramme réf. 4) en retirant les quatre vis qui le
maintiennent en place.
maximum).
6. Inspectez et nettoyez le tube de la veilleuse (Pièces
Diagramme réf. 7). Pour nettoyer, insérez un long
AVERTISSEMENT :
la veilleuse.
diffuseur pour enlever la poussière, les peluches et les toiles
INSTRUCTIONS D’ALLUMAGE ET DE
FONCTIONNEMENT
AVERTISSEMENT : Vérifiez toujours les raccords de la bouteille
la présence de particules, de poussières et de dommages. Si
servez pas.
CHAUFFAGE EST FROID AU TOUCHER. NE FUMEZ JAMAIS EN
RACCORDANT OU EN RETIRANT LA BOUTEILLE DE PROPANE NI
verticale pendant le fonctionnement.
ajustez-la au adaptateur tasse. NE PAS utiliser du produit d
etancheite pour filetages sur cette liaison.Assurez-vous
gobelet avant de se déplacer.
raccord fileté situé sous le couvercle bombé en plastique,
• ATTENTION :
la grille protectrice restera chaude. Laissez-la refroidir
DE
ENTRETIEN
ou vapeurs inflammables.
Faites en sorte que les espaces de ventilation (les fentes dans les
soient dégagés en tout temps.

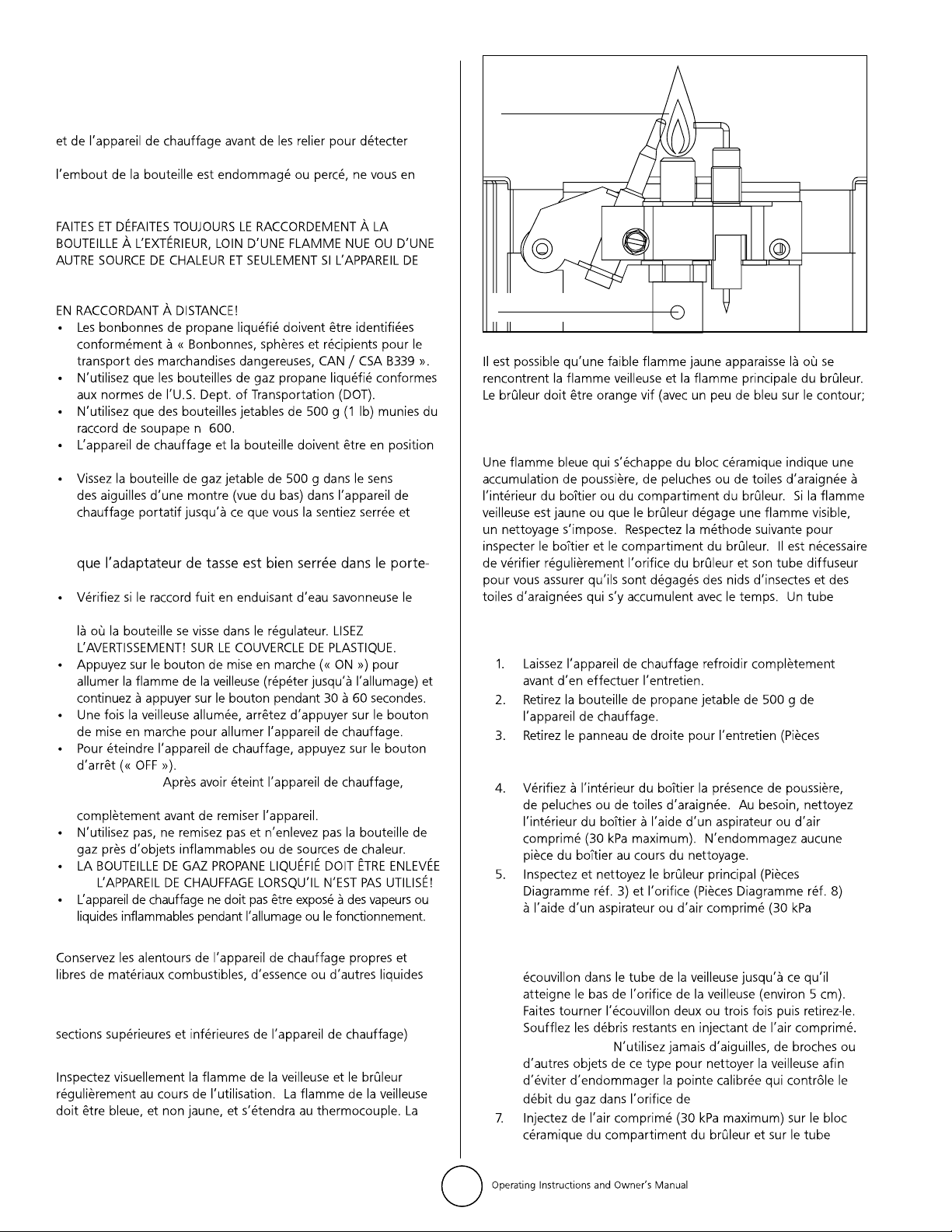

flamme doit entourer le thermocouple juste en dessous de son
extrémité (voir Figure 2).
Flamme de la veilleuse
Détecteur de raréfaction de l’oxygène
Figure 2

5
DÉPANNAGE
Si l’électrode ne produit pas d’étincelle.
VÉRIFIEZ
remplacez-le.
le compartiment de la valve de gaz.
Si l’électrode produit une étincelle mais que la veilleuse ne
s’allume pas.
VÉRIFIEZ
chauffage, installez de nouveau ou remplacez
la bouteille de gaz.
(voir ENTRETIEN).
Si la flamme de la veilleuse ne reste pas allumée lorsque
vous relâchez le bouton.
VÉRIFIEZ
tuyau.
thermocouple : nettoyez la veilleuse
(voir ENTRETIEN).
défectueux, remplacez-le.
sont débranchés, rebranchez-les (vérifiez
Si le brûleur principal ne s’allume pas.
VÉRIFIEZ
Si l’appareil ne cesse de s’éteindre pendant un
fonctionnement normal.
VÉRIFIEZ
ENTRETIEN).
moins (par exemple, une ouverture de
5 x 5 cm).
– PARTIE LAISSÉE BLANCHE INTENTIONNELLEMENT –

Mr. Heater MH4GC Golf Cart Heater 6
Mr. Heater MH4GC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

7
NOTES :
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
LISTE DES PIÈCES
CONSULTEZ LA DERNIÈRE PAGE POUR DES INFORMATIONS
SUR LES COMMANDES DE PIÈCES
Article
NO DE LA PICE DESCRIPTION
1Grille de Protection
2Anneau
3Burner Assemblée Plenum
4Le Côté Droit du Logement
5
6Tipover Commutateur
7Pilot, Tube, Assemblée
8Pilot, Assemblée ODS
9Régulateur, Assemblée
Tube, Régulateur
11 Valve, Assemblée
12 OFF-Assemblée Bouton
13 Bouton ON
14 Adaptateur, Coupe
15 Clip, Printemps

ANSIZ21.63 CSA.11.3-2011
Mr. Heater and Portable Buddy are registered trademarks of Enerco Group, Inc.
© 2017, Enerco/Mr. Heater. All rights reserved
préavis ni obligation, aux couleurs, aux spécifications, aux accessoires, aux matériaux et
aux modèles.
AVERTISSEMENT :
INFORMATIONS SUR LA COMMANDE DE PIÈCES :
ACHAT :
locaux Mr. Heater ou directement du fabricant.
POUR OBTENIR DES INFORMATIONS SUR LE SERVICE
www.mrheater.com
dans toutes vos communications avec nous.
GARANTIE LIMITÉE
Enerco Group Inc. garantit ses appareils de chauffage et ses accessoires contre les
de la période de garantie. La présente garantie donne des droits spécifiques, et vous
LISEZ SOIGNEUSEMENT LES INSTRUCTIONS : Lisez et observez toutes les instructions. Conservez les in-
DE FONCTIONNEMENT
Modèle
MH4GC
