MS DARK SPY User manual

DARK SPY
drone

EN
Notice:
1 Instructions
Please read the user handbook carefully and then keep it in a safe place for future consultation and maintenance.
1.1 Important Notice
(1) This product is not a toy, it's a piece of complicated equipment which integrated with professional knowledge by mechanic,
electric, air mechanics, high-frequency transmitter and so on, so it should be installed correctly and adjusted to avoid any
accidents.
The owner must always operate in a safe manner, if improper operation that caused human injured or property damage, then
we accept no liability for any safety duties from operation. As we have no control over the way they maintained, used and
operated.
(2) This product is not suitable for users under 14 years of age.
(3) The use of the drone may be prohibited in some areas like train stations, airports, aircrafts, inhabited areas etc. You should
check with the authorities whether the use of the drone is permitted in some public or private areas. Always use the drone
bearing in mind not to breach people's privacy. We exclude liability for any wrong use of the drone.
(4) We accept no liability for any safety duties or fines arising from operation, usage or mis-control after the sale of products.
Warranty does not cover if drone crashes and get damaged.
1.2 Safety Precautions
Keep away from crowd when flying, since drone flight is a high-risk hobby. Misassembled or broken main frame or defective
electronic equipment or unskilled operation may cause accidents of machine damaged or injured. Please pay special attention
to safety operation.
(1) Keep away from people and obstacles
"The flying speed and status of the drone is uncertain, so it may cause potential danger." When choosing a flying site should stay
clear of buildings, trees and power lines. AVOID flying in or near crowded areas. Meanwhile avoid flying in rain, storms, thunder
and lightening to protect machinery and parts out of damage.
(2) Keep away from humid environments
Inside of drone is made up of precise electronic components. Stay away from humidity or water vapor to protect machinery and
parts.
(3) Safety operation
Please fly your drone according to your physical status and flight skill. Fatigue, listlessness and mis-operation will increase
possibilities of accidental hazard.
(4) Keep away from rotating blades
Keep your face and body as well as all spectators away from the rotating blades. The spinning blades of a model of this type can
cause serious injury.
(5)We recommend flying the drone below 10 meters of height.
(6)Follow me Mode
Follow Me Flight mode, suggested flight within 30 meters by app, as may missing the drone signal if interfere seriously when fly
over 30 meters and missing it.
(7) Keep away from heat
A drone is made up of metal, fiber, plastic, electronic components, etc. Keep it away from heat and sunshine to avoid
distortion, and damage.
1.3 Check List Before First Flight
(1) Flying field should be in an open space and we suggest at least 5M length *5M wide
*3M height.
(2) Make sure the receiver and transmitter is fully charged.
(3) Please strictly obey the order of tum-on, turn-off before operation. When starting your flight. First turn on the transmitter,
and connect power cable of drone last; When finishing your flight, please disconnect the power cable of your drone first, tum
off transmitter last. An upset in the order of connection may cause your drone loose control to threaten yourself and others
safely. Please follow a correct habit of tum-on and tum-off.

Battery cover
(4) Make sure the connection is solid between battery or motor. The ongoing vibration may cause bad connection of power
terminal and make the drone uncontrollable.
Battery Installation & Charging
Controller

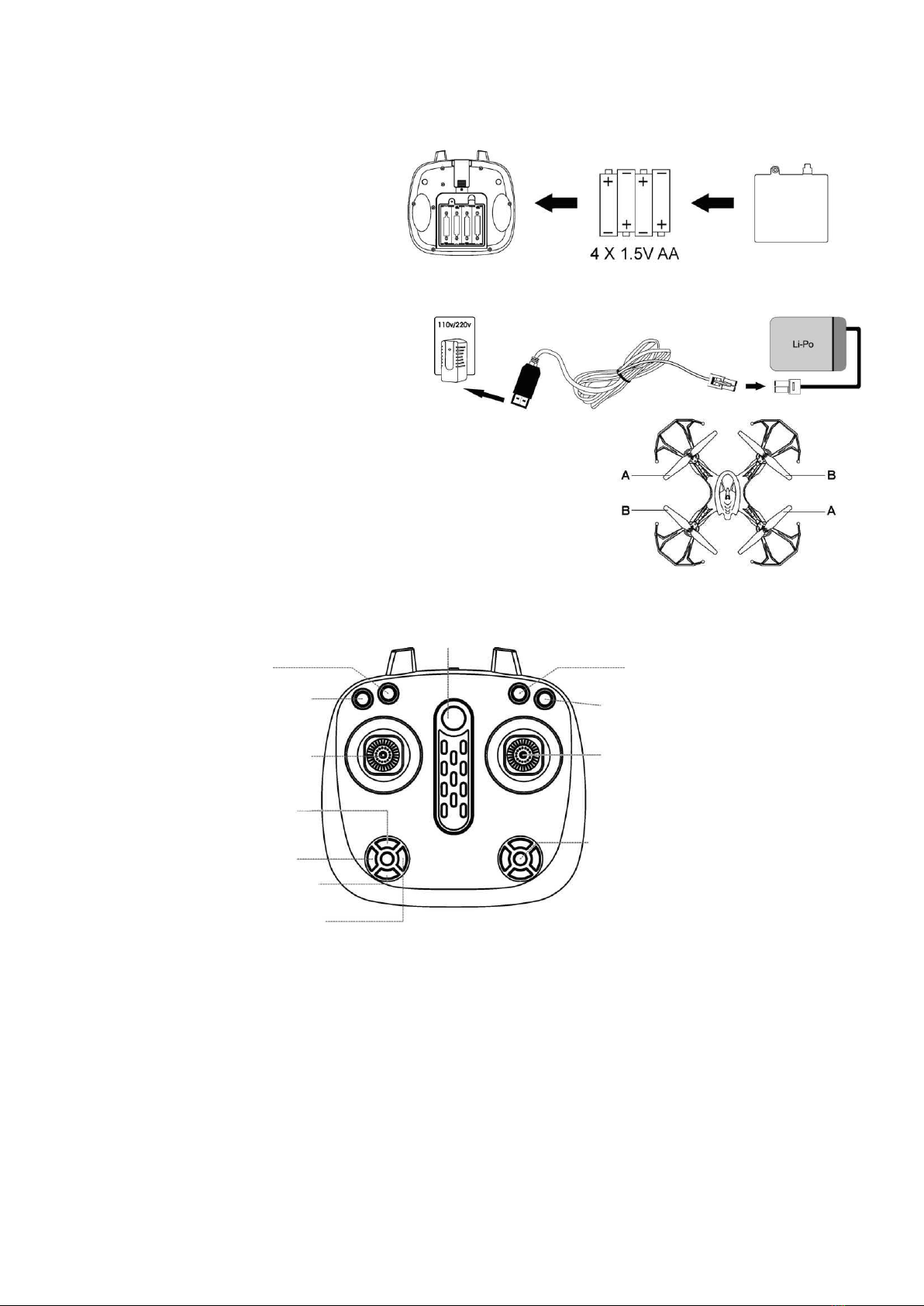

To install batteries: Open the cover of battery case,
insert 4 x 1.5V AA batteries, according to the indicated
polarity (batteries not included).
Note: Battery installation should be done under adult supervision only! Do not mix old and new batteries. Do not mix different
types of batteries.
Charging

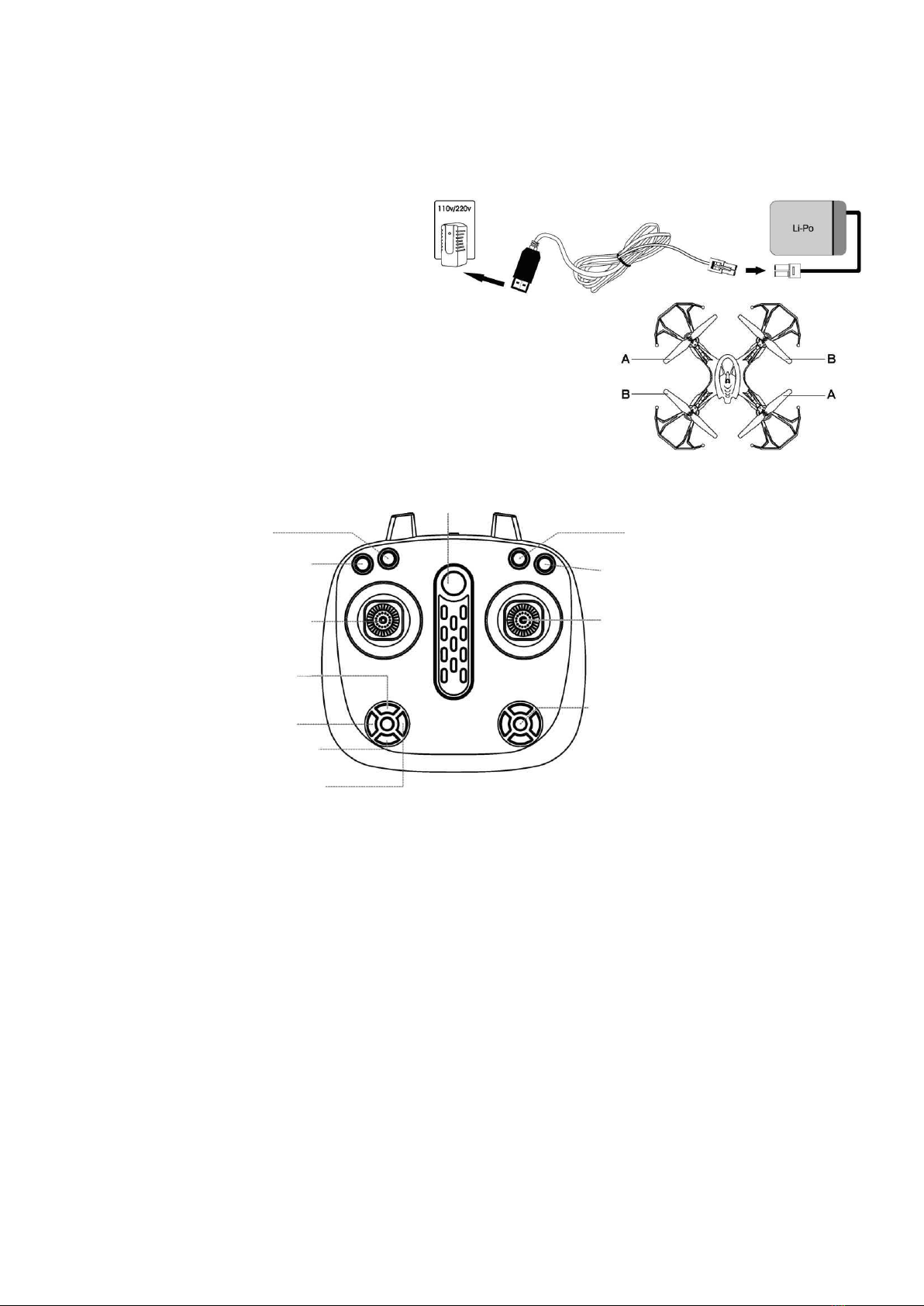

Connect one side of the USB connector with the Li-Po
battery, and the other side into the USB port of any
standard AC adapter (Not included) of smartphones.
Drone
Replacing the damaged blades: Your set will come with 4 spare rotors, two type A and
two type B. You will see the "A" and "B" word on the canopy, then put the rotor on the
motor accordingly.
Remote Control
2. Take-off (short press)
Land (short press)
4. GPS On/Off
GPS On: Di~Di (Long beep)
GPS Off: Di (Short beep)
6. Right joystick (Rudder)
(Forward/Backward/Leftward/
Rightward)
8. Headless mode (Short press)
One Key Return (Long press)
1.Photo/Video
(For non-wifi cams only!)
3. Speed shift
1 beep: Low
2 beeps: High
5. Left joystick (Throttle)
(Ascend/Descend/
turn left/turn right)
7. Camera Upward
(For motor gimbal only)
9. Gyro Calibration
11. Camera Downward
(For motor gimbal only)
13. Compass Calibration
0. Power on/off

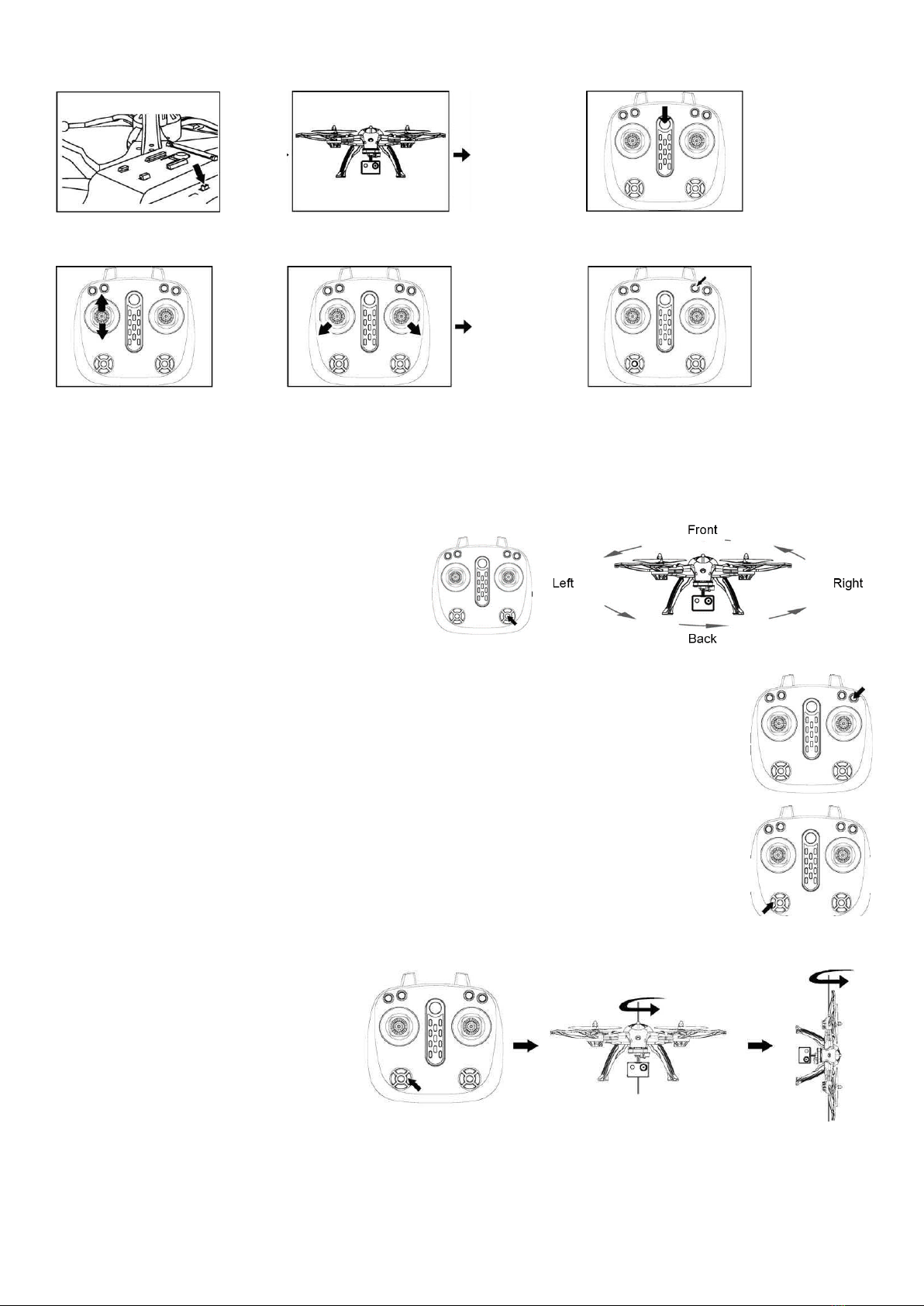

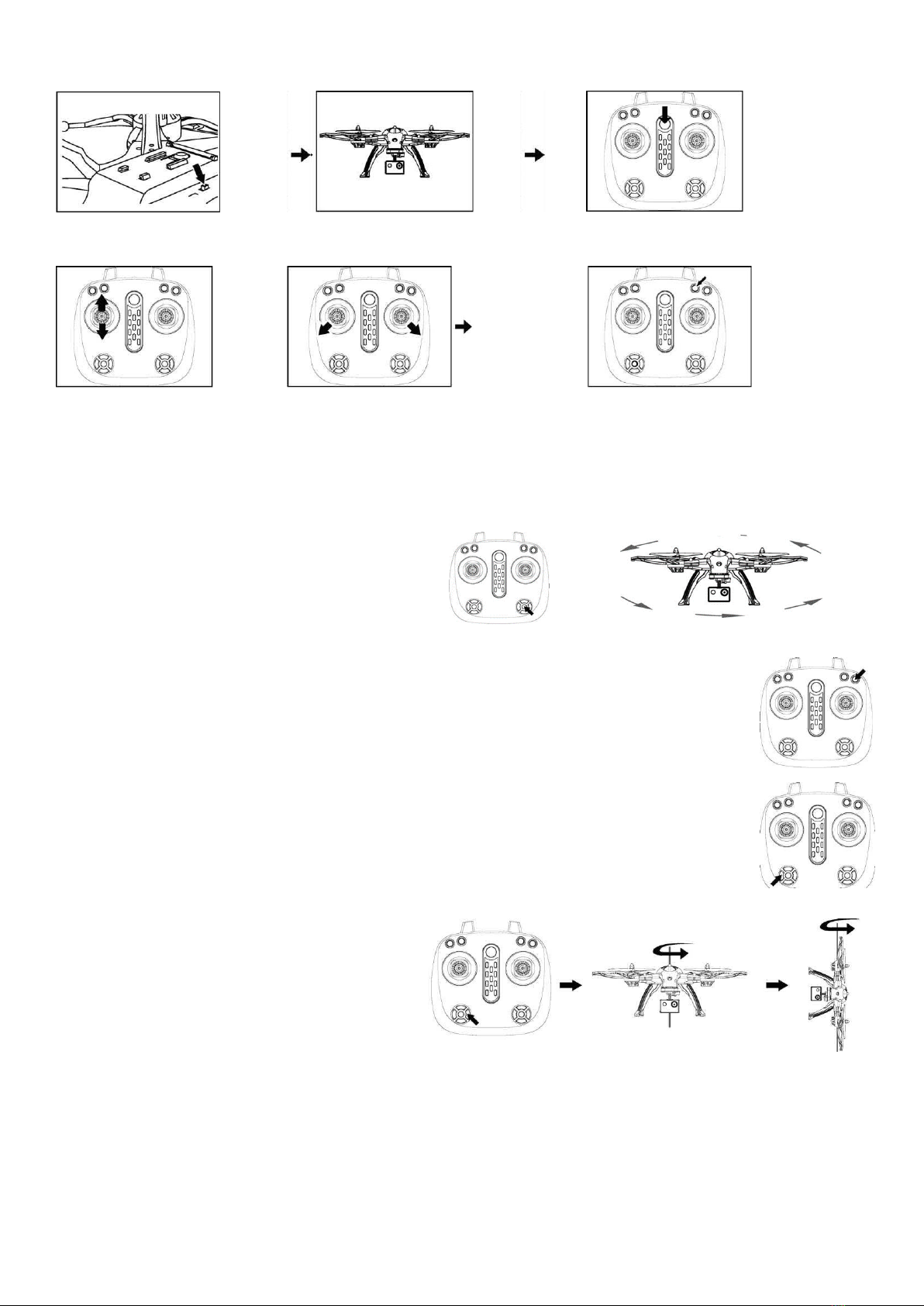

Regular Flying steps
1. Turn on the drone
(LED lights on the drone flashes
slowly
2. Place the drone on a flat surface
3. Turn on the controller
4. Push the throttle up and down,
a beep will sound: controller has
connected with the drone
(LED lights on the drone stops
flashing)
5. To start/stop motors, pull the Throttle to
bottom left and Rudder to bottom right at
the same time.
6. To ascend the drone, press this
key, and drone flys up and hovers at
a fixed height; Press it again, drone
lands on the ground and motors stop.
Note: We strongly suggest that do not flight this GPS drone indoor, and the regular flying under no GPS mode.
Headless Mode
Press the button on controller (Short press)
you will hear beep sounds, then you get into
headless mode. Press it again to quit.
At the moment when you start headless
mode, the direction that controller is
pointing to will be fixed as the directions of
drone. No matter how you rotate the drone,
the front direction won't change accordingly.
GPS MODE
NOTE: The drone defaulted GPS turn “On” when leave factory.
1. GPS ON / OFF
Short press the button on controller, you will hear a long beep sound 'Di~Di', then you get into the GPS
mode. Press it again to quit GPS mode, when you hear a short 'Di'.
2. Gyroscope Calibration
Before flying, press and hold the small button for 3 seconds, the LED lights on the drone flashes quickly for 2
seconds, then let go of the small button. The LED lights on the drone stop flashing and remain on.
Then gyroscope calibration complete.

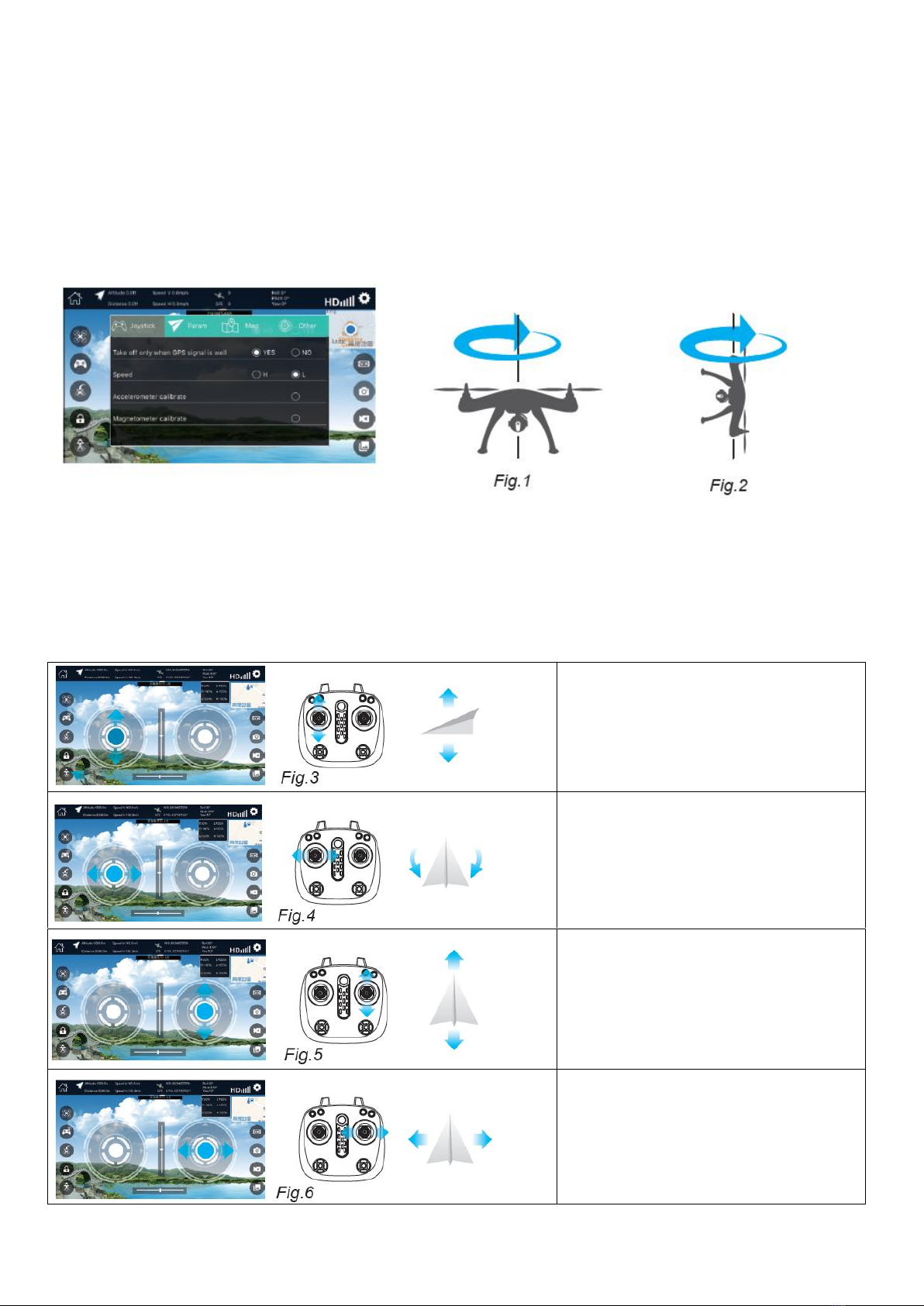

3. Compass Calibration
After the drone connected to controller and GPS is ON, the compass has to be calibrated (at an open area).
3.1 Press and hold the small button for 3 seconds, the LED lights on the drone flashes quickly, then let go of
the small button.
3.2 Hold the drone on hand, rotate it
Horizontally for 3 circles first, then
Vertically (camera facing up) for 3 circles,
afterwards place it on a flat surface, the LED
lights flashes slowly and compass calibration
is completed.
4. Searching for GPS signal
After completing the compass calibration,
keep waiting for 30-40 seconds until the drone LED lights stop flashing and remain ON, GPS signal has been well received.

Note: You can aslo execute step 3.compass calibration firstly, then step 2.Gyroscope calibration; and take some of
the“Important tips”in the last page of each language for reference if searching GPS signal not smoothly.
5. Position Hold
Start the motors and ascend the drone , then release the throttle after the drone goes up to the desired height. Before
controlling the rudder, the drone stays at a point (Position Hold), and now it’s best time for aerial photography.
6. One Key Return
Press and hold the button for 3 seconds, beeps
will keep sounding, then the drone will go up to a
safe height, fly back and land at the Home point
(with 1m-2m tolerance). Note: If the drone
battery is low or remote controller is OFF, the
drone will also return to home point
automatically.
Follow-me Mode
1.APP DOWNLOAD & INSTALLATION
1.1 Search [LW-FPV] from iOS App Store or Android Google Play
1.2 Download and install it onto your smart phone or tablet
2.HOW TO CONNECT DRONE WITH APP
2.1 Power on the drone (Note: Remote controller must be powered OFF first)
2.2 Enter the Setting of your smart phone/tablet, and turn on WiFi.
2.3 Find a WiFi hotspot [WiFi720P...], click to connect it until "connected".
2.4 Start the App [LW-FPV], click the icon [Enter] to enter the control interface.
1. Flight Modes
6. Setting
Click 1 to show following modes
2. Show/Hide joysticks
7. VR Mode
1.1 Manual Control
3. Return to Homepoint
8. Take Photo
1.2 Waypoint mode (Not available now)
4. Motors Start/Stop
9. Take Video
1.3 Follow-me mode
5. Take-off / Land
10. Playback
1.4 Orbit mode (Not available now)
Manual Control (1.1): When GPS signal is well received and LED lights on the drone stop flashing, Click 4 to start motors,
Ascend the drone by clicking Take-off or pushing up the joysticks. Follow-me mode (1.3): When the drone is in the air, switch
into Follow-me mode. Then the drone will fly or turn around automatically following your walking or running path/speed.
Photo/Video (8/9): Photo and Video files will be stored onto smartphone directly
Main Accessories
Li-po Battery
Blade
Blade guards
Landing feet

USB Charge cable
Remote controller
Smartphone holder
APP DOWNLOAD AND INSTALLATION INSTRUCTIONS
1. Download and install the software
2. Connection
Turn on the drone , enter into Mobile phone “setting”, open the wireless network, and then you will find a hotspot named “WIFI
720P.....”, connect it and exit the setting.
Note: if you cannot see wifi hotspot, please turn off wifi and turn on again, and you will see it.
Open the App “LW-FPV” and press “start” to enter the control interface.
Note: pls stay away from other signal interference and keep your mobile phone celluar data working normally;
Open the “LW-FPV” App
Click the “start”
Operation interface
Clike “the function menu”
and see more function button

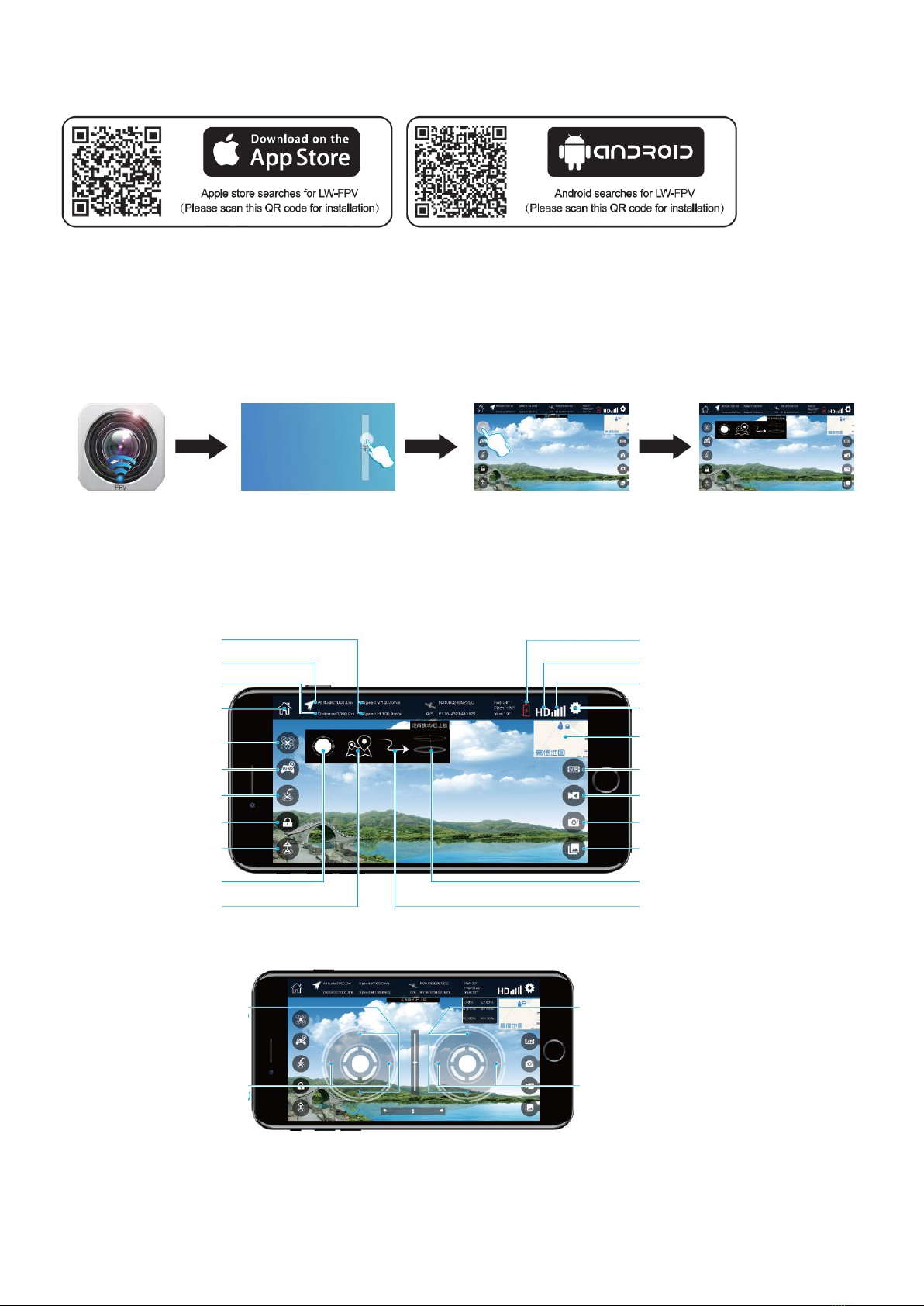

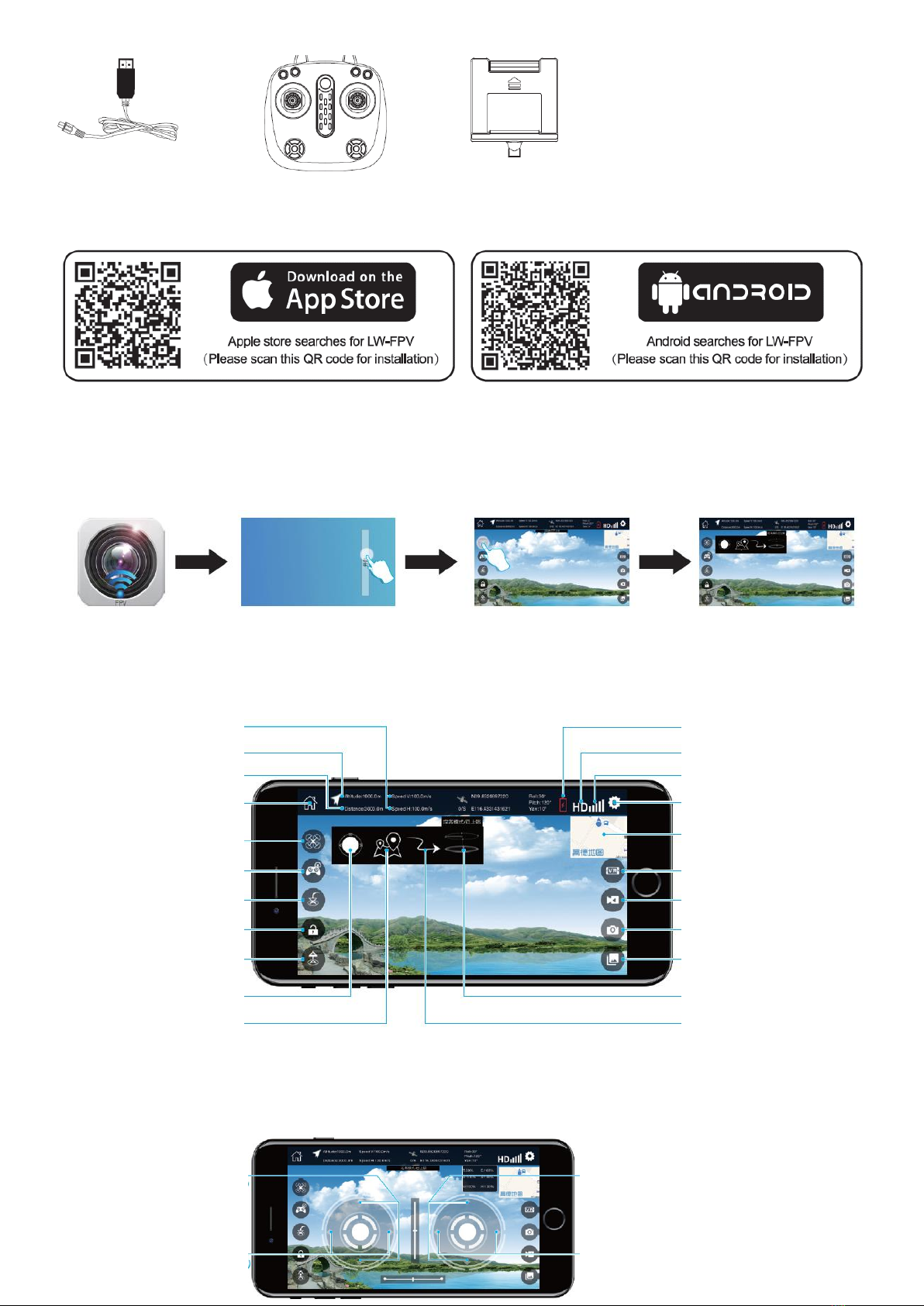

APP CONTROL INTERFACE INTRODUCTION
Note: Waypoint flight/Surround mode (orbit mode) is not available now, pls do not press the two buttons.
Drone battery
WIFI signal
GPS signal
Setting
Map interface switching
VR mode
Video
Photos and video store
(playback)
Surround mode (Orbit mode)
Follow me
Speed (m/s)
Height (m)
Distance (m)
Return to main menu
The function menu
Display/hide joystick control
One key return
Unlocking
One key take off/landing
Joystick control mode
Waypoint flight
Forward back control
(forward/backward Joysticker)
Left and right side fly
(left/right fly joysticker)
Throttle control
(up/down joysticker)
Rotation control
(turn left/right joystickers)

HOW TO THE DRONE WITH APP (just app, no remote controller)
1. Turn on the drone
Turn on the drone, put it on a (horizontal) flat place, the drone leds will be flash normally. Note: the drone is with GPS, so
please fly it outside the house, and make sure the space is big enough, not to much electromagnetic interference around;
2. Magnetometer calibrate(Compass Calibration)
It is easy to be distrubed by electromagnetic interference around, so please compass calibration;
(1) Open the app and enter into the app setting,there are 4 options, pls press “Joystick” and page down , you will find
“Magnetometer calibrate”; and then the drone body leds will flash quickly, indicating that it can be calibrated now. so please
Hold the drone on hand, rotate it Horizontally for 3 circles first, then Vertically (camera facing up) for 3 circles, afterwards
place it on a flat surface, the LED lights flashes slowly and Magnetometer(compass) calibration is completed.
(2) Searching for GPS signal
After completing the Magnetometer (compass) calibration, keep waiting for 30-40 seconds until the drone LED lights stop
flashing and remain ON, GPS signal has been well received.
3. Fly the drone
Press the “display joystick control” and you will see the virtual joystick interface, press “unlocking” key, then the motors start
to run. Note: There is a warning “Yes or No” that appears after you press the “unlocking key,one key take off/landing” button,
You should press “Yes” to confirm the function when prepared well, and press “No” to cancel the request.
1. Press “one key take off” key or push the
left joysticker to up, it will up. If push down,
it will down too. If press one key landing, it
will landing.
2. Push the “turn left/right” key, it will turn
left and right.
3. Push the”forward/backward control” key,
the drone will forward and backward.
4. push the”left/right side fly control” key,
the drone will left/right side fly.

WARNING! The drone will not stable if it is locate 30cm above the ground because of eddy current, which is also
called “ground effect reaction”, the lighter of the drone body, the more affected will be.
4 .One key take off and landing
After unlock, the motors will running normally, press “one key take off/landing ” key, the drone will rise about 1 meter or
more, then you can keep it steady fly above; if you press “one key take off/landing” key, again, then it can automatically
landing.

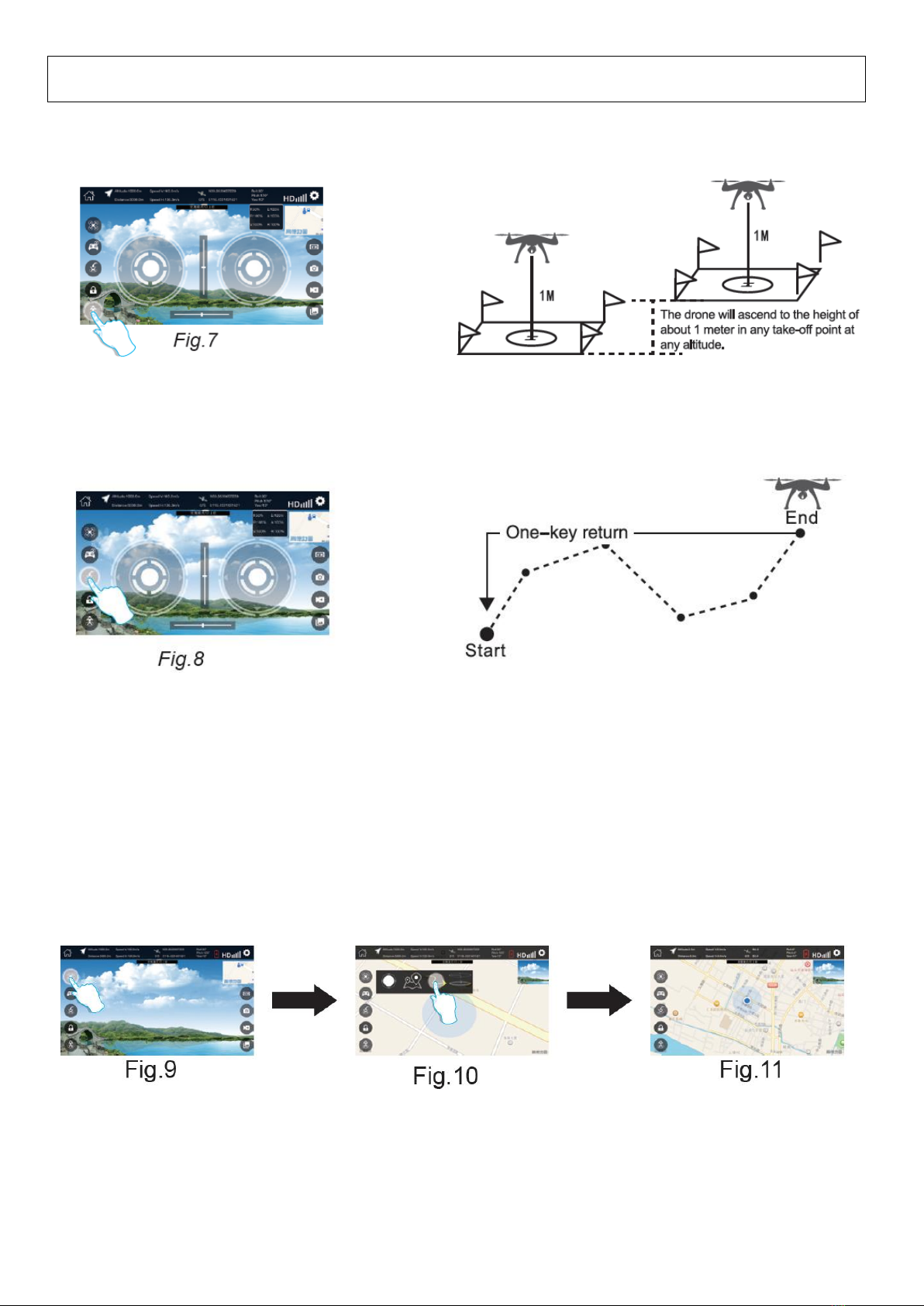

5. One key return
(1)When the drone fly away, press “one key return” (Fig.8), then it will return to its original place. Note: (1) when
the drone LED lights flash slowly, it indicates the drone is low power. Thus you have to pay more attention to it, fly it
within your sight or landing it.
(2) In addition, the drone will automatically return to its original place if low power or lose 2.4G/WIFI signals.
WARNING
Note:
1. After you use “follow me/Waypoint flight/Surround mode” function, you have to press “joystick control mode” key, to enter
into joystick control mode. Or else, the one key take off/landing, one key return or other function cannot be used, or the drone
will be fly away or missing, pls remember this.
2. We do not suggest to use other function when the drone is under “follow me/Waypoint flight/Surround mode” mode, or else,
the drone will fly away or missing. Please use other function after “follow me/ Waypoint flight/Surround mode” function is
finished.
6. Waypoint mode (Not available for this drone)
7. Follow me
Enter the main interface, open the function menu and press “follow me” button(Fig.9 to 10), the drone automatically follow
your mobile phone , and the distance is abased on your location and drone location when you press the button.
Notice: after changing the location of the drone, If the drone does not have the power or exit follow me function, use one
key return function, the return landing point of the drone is not the initial take-off location, but the follow me mode final
location.
8. Surround mode (Not available for this drone)
Joystick control mode, waypoint flight mode, follow me mode, surround mode and other functions enabled.lt ¥U MG ^ must be
performed after unlocking the drone and then clicking on the one key take-off. Otherwise, the button icon will be invalid.

COMMON PROBLEM SOLVING GUIDELINES
Problems
Reasons
Solutions
No response to the drone indicator
flicker
1 .GPS has not been successful
2.Low power
1 .Move the drone to an empty place to re-search
2.Charge the battery
The drone blades turn but can't fly
1 .Insufficient battery power
2.Blade deformation
1 .Charge the battery
2.Replace blade
The drone vibrates badly
Blade deformation
Replace blade
Tweaked to the end but still can't
smooth the drone
1 .Blade deformation
2.Poor motor
1 .Replace blade
2.Replace the motor
The drone was launched again after
the crash, but not stable
The sensor is out of balance
because of the crash
Place the drone separately for 5 to 10 seconds
Important tips:
1. We do not suggest you fly it in house, please fly it outdoor and big space.Because this is GPS model and need search GPS
signal;
2. The drone camera is HD 720P WIFI Camera, if you need high resolution picture/video, please put into one TF card, and make
sure the TF card is Class 6 or higher level, 4GB or more. thus the video/picture is saved in TF card, you can use card reader to
copy it to your computer or download it into your mobile phone, thus your can share it with friend (if you use
QQ,Wechat,Whatsapp, or other instant message app, then the video/picture will be compressed and it will not clear enough). If
you do not use TF card, you can record video/picture into your mobile phone directly, thus the quality is just so so, and you also
need use USB cable to copy it to your computer if you need high level video/picture, or else, it will be compressed.
Note: If you need 720P video/picture, please go to setting and set real time preview: 720P
3. Please make magnetometer(Compass) calibrate at first time when you fly it, and no need to make magnetometer calibrate if
you fly it again in the same place,same time; however, if the drone crash or shock heavily, or fall down ground or other shock,
then you have to make it again. In addition, you have to make magnetometer calibrate again if you cannot search GPS
successfully.
4. Make sure your celluar data working normally.
5. The app is defaulted use Google map for android mobile phone, and for iphone, any map is fine, but we suggest Google map
as well.
6. If you use Remote controller and mobile phone at the same time, pls connect the remote controller at first, and then
connect the mobile phone wifi. Or else, the remote controller cannot work.
7. If you cannot search GPS signals by mobile phone app, please make magnetometer calibrate, if still cannot, you can change a
new place, use remote controller to make gyroscope calibrate and magnetometer calibrate, or turn off drone and turn on drone
again.
8. Please pay more attention to setting, there are four options, Joystick, parameter, Map and other. But there are several
suboptions for each one.In Joystick, there are joystick mode, motion mode, magnetometer calibrate, etc. for parameter, there
are default height of waypoint, default height of homeward,etc; Map has map type, Aircraft display map center and real other
has time view and camera inverse option.

Poklopac baterije
HR BIH CG
Napomena:
1 Upute
Pažljivo pročitajte priručnik za korisnike, a zatim ga držite na sigurnom mjestu za buduća pitanja i održavanje.
1.1 Važna napomena
(1) Ovaj proizvod nije igračka, nego komad komplicirane opreme, stvoren stručnim znanjem o mehanici, elektrici, zračnoj
mehanici, odašiljačima visoke frekvencije i tako dalje, te se stoga treba pravilno instalirati i prilagoditi kako bi se izbjegle
potencijalne nezgode.
Vlasnik mora uvijek koristiti uređaj na siguran način, a ukoliko se nepravilno koristi i dođe do ozljede ili oštećenja imovine, tada
ne prihvaćamo nikakvu odgovornost za bilo kakve sigurnosne obveze zbog takvog korištenja, s obzirom da nemamo kontrolu nad
načinom održavanja, korištenja i rada uređaja.
(4) Ovaj proizvod nije prikladan za korisnike mlađe od 14 godina.
(5) Korištenje drona u nekim područjima može biti zabranjeno, na primjer, željezničke stanice, zračne luke, zrakoplovi,
naseljena područja i slično. Provjerite je li korištenje drona dopušteno na nekim javnim ili privatnim posjedima. Uvijek imajte
na umu da ne kršite privatnost drugih ljudi pri korištenju drona. Isključujemo odgovornost za pogrešnu uporabu drona.
(4) Ne prihvaćamo nikakvu odgovornost za bilo kakve sigurnosne obveze ili novčane kazne koje proizlaze iz korištenja ili
nepravilne kontrole drona nakon prodaje proizvoda. Jamstvo ne pokriva štetu ako dron padne i ošteti se.
1.2 Sigurnosne mjere
Držite se daleko od gužve dok dron leti, budući da takav hobi vuče za sobom visoki rizik. Pogrešno sastavljeni ili slomljeni glavni
okvir ili neispravna elektronička oprema ili nesposobni radovi mogu prouzročiti nezgode, kao što su oštećenje drona ili ozljeda
ljudi. Obratite posebnu pozornost na sigurno upravljanje i korištenje.
(1) Držite dalje od ljudi i prepreka
"Brzina letenja i status drona su neizvjesni, pa mogu uzrokovati potencijalne opasnosti." Prilikom odabira mjesta letenja
odaberite mjesto koje nema zgrade, drveća i vodove. IZBJEGAVAJTE korištenje drona u ili blizu napučenih mjesta. Izbjegavajte
koristiti dron na kiši, oluji i grmljavini kako biste zaštitili strojeve i dijelove od oštećenja.
(2) Držite dalje od vlažnih područja
Unutrašnjost drona sastoji se od preciznih elektroničkih komponenti. Držite dalje od vlage ili vodene pare kako biste zaštitili
dijelove i strojeve.
(3) Sigurno korištenje
Molimo koristite vaš dron prema vašem fizičkom stanju i vještinama letenja dronom. Umor, bezizražajnost i pogrešno korištenje
povećat će mogućnost slučajnih opasnosti.
(4) Držite se podalje od rotirajućih elisa
Držite lice, tijelo i sve gledatelje dalje od rotirajućih elisa. Elise ovakvog modela mogu prouzročiti ozbiljne ozljede.
(5)Preporučujemo da letite dronom ispod 10 metara visine.
(6)Follow me način
Preporučeni način leta u Follow me načinu je do 30 m jer u suprotnom dolazi do smetnji i gubitka signala.
(7)Držite podalje od vrućine.
Dron je sačinjen od metala, vlakana, plastike, elektroničkih dijelova i slično. Držite ga dalje od vrućine i sunca kako biste
izbjegli oštećenja.
1.3 Provjerite popis prije prvog leta
(1) Polje letenja treba biti na otvorenom prostoru i predlažemo barem 5 metara dugo, 5 metara široko i 3 metra visoko.
(5) Provjerite jesu li prijemnik i odašiljač u potpunosti napunjeni.
(6) Molimo da se strogo pridržavate redoslijeda uključivanja. Prilikom početka leta, najprije uključite daljinski upravljač i
spojite kabel za napajanje drona na kraju; prilikom završetka leta najprije iskopčajte kabel za napajanje iz drona, a na kraju
isključite daljinski upravljač. Krivi redoslijed priključivanja može prouzročiti nestabilnu kontrolu nad dronom koja je prijetnja
vašoj i tuđoj sigurnosti. Molimo stvorite naviku točnog redoslijeda paljenja i gašenja.
(7) Provjerite je li veza čvrsta između baterije i motora. Stalna vibracija može uzrokovati lošu vezu terminala za napajanje te
stoga nećete moći kontrolirati dron.
Ugradnja baterije i punjenje
Upravljač
