Operating Manual
Gallet F1XF®
Helmet for Firefighters
Order No.: CH180454 - PQ730140/05

MSA Europe GmbH
Schlüsselstrasse 12
8645 Rapperswil-Jona
Switzerland
[e-mail]
www.MSAsafety.com
© MSA 2019 All rights reserved

For other languages see chapter 6 of the respective manual.
1
2
3
4
5
7
8
11
12
13
14
15
16
18
17
9
10
19
20
21
6
23
22

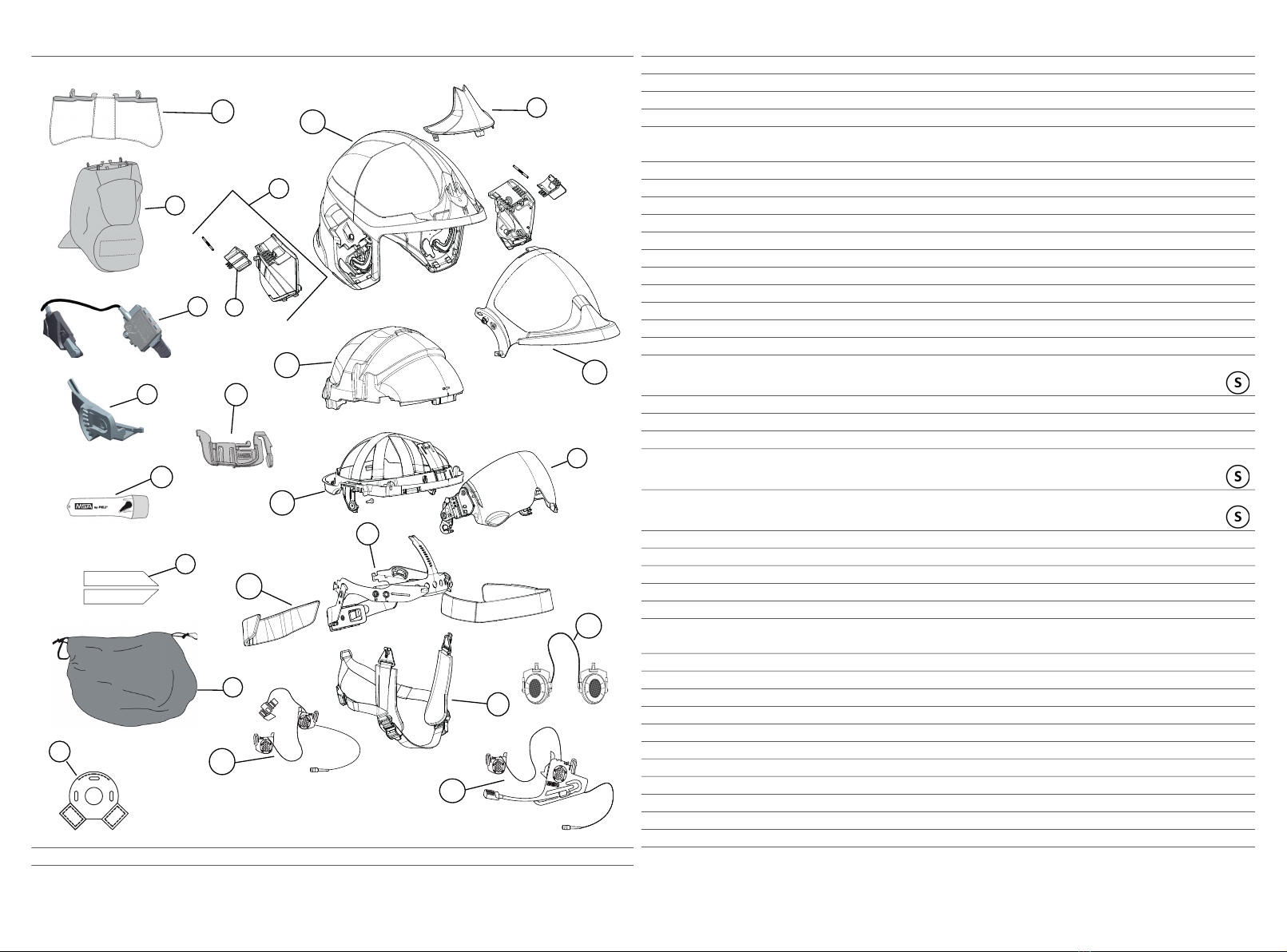

No Part Part. No
1a Aluminized neck curtain F1XF, 3 layers GA1116F
1b Nomex neck curtain F1XF GA1116C
1c Wool/Nomex neck curtain F1XF GA1116D
2a Integral Wool/Nomex neck curtain F1XF
(Size Medium/Large) GA1116B-M GA1116B-L
2b Integral aramid neck curtain F1XF GA1116E-M GA1116E-L
3 Lighting module F1XF GA1484
4 Torch lamp support F1XF (D: right/G: left) GA1485D GA1485G
5a Lamp XPS GA1488
5b Lamp XP LED GA1464
5c Lamp XS zone 0 GA1466
5d Lamp AS-R GA1481
6a Ocular visor kit F1XF, EN14458, clear GA1087A
6b Ocular visor kit F1XF, EN14458, tinted GA1087B
7a Face shield F1XF, EN14458, clear GA1086A
7b Face shield F1XF, EN14458, metalized GA1086B
8 Shell F1XF, Painted, (Size M: Medium/L: Large) GA1090-xxM GA1090-xxL
9 Kitfix F1XF GA1092A
10a Kitfix F1XF mobile GA1092B
10b Kitfix F1XF mobile, PN GA1092C
11 Suspension F1XF, EN443,
(Size M: Medium/L: Large) GA1094-M GA1094-L
12 Impact liner F1XF, EN443, (Size M: Medium/L: Large)GA1095-M GA1095-L
13 Ratchet cradle F1XF GA1098A
14a Chinstrap F1XF, textile GA1128A
14b Chinstrap F1XF, leather GA1128B
15a Textile paddings, F1XF GA1129A
15b Leather paddings, F1XF GA1129B
16 Retroreflective stickers F1XF
(Size M: Medium/L: Large) GA1136-xxM GA1136-xxL
17 Front plate F1XF GA1150-xx
18 Protective bag for helmet GA1382
19a Headset Bone Conductive Microphone F1XF GA010002A3X
19b Headset Bone Conductive Microphone F1XF 2ls GA010002A3AX
20a Headset Boom Microphone F1XF 1ls GA010002B3X
20b Headset Boom Microphone F1XF 2ls GA010002B3AX
21a Hearing F1XF Protect.Bone Conduct.Micro. GA010002C3X
21b Hearing Protection Boom Microphone F1xf GA010002D3X
21c Hearing Protection F1XF GA010002E3X
22 Set of 10 headset interfaces for F1XF GA1131
23 OSTEO interface for F1XF GA010007062

Gallet F1XF®3
Safety Regulations
GB
1 Safety Regulations
1.1 Correct Use
The F1XF helmet - hereafter called helmet - is a safety helmet for the head intended for firefighters
operations, such as fire fighting in buildings and other structures, rescue interventions and other typical
tasks of fire brigades.
The helmet is designed for use with SCBA full face masks.
WARNING!
The safety intended to be provided by the helmet can only be ensured when it is properly assembled
and correctly fitted, removable parts shall not be worn separately.
WARNING!
This helmet is not suitable as a motorcycle helmet.
It is imperative that this operating manual be read and observed when using the product. In particular,
the safety instructions, as well as the information for the use and operation of the product, must be
carefully read and observed. Furthermore, the national regulations applicable in the user's country
must be taken into account for safe use.
Alternative use, or use outside this specification will be considered as non-compliance. This also
applies especially to unauthorized alterations to the product and to commissioning work that has not
been carried out by MSA or authorized persons.
1.2 Liability Information
MSA accepts no liability in cases where the product has been used inappropriately or not as intended.
The selection and use of the product are the exclusive responsibility of the individual operator.
Product liability claims, warranties also as guarantees made by MSA with respect to the product are
voided, if it is not used, serviced or maintained in accordance with the instructions in this manual.
DANGER!
Before use the product operability must be verified. The product must not be used if the function test
is unsuccessful, it is damaged, a competent servicing/maintenance has not been made, genuine MSA
spare parts have not been used.
2 Description
The helmet provides protection of head and face against shocks, sharp objects, splatters of solid,
liquid, corrosive, chemical products (sulphuric acid, sodium hydroxide, p-xylene, butan-1-ol,
n-heptane…), molten metals, radiating heat, flames, electric current.
In situations where the conditions exceed those described in the specifications mentioned above, the
protection of the user is not guaranteed.
Face Shield
The clear or gold coated face shield protects against various risks likely to arise during firefighting inter-
ventions, ambulance and emergency services, except respiratory and smoke and gas / vapour emis-
sion risks. The face shield resists the splatter of chemical products identical to those of the helmet
mentioned above.

Gallet F1XF®
4
Description
GB
2.1 Overview
The helmet consists of the following components:
2.2 Technical Data
12
5
4
6
3
87
1 Shell 5 Kitfix mask adaptor
2 Front plate 6 Inner ring with headband assembly
3 Face shield 7 Impact liner
4 Ocular visor 8 Chin strap
Helmet sizes
• Medium (M) for head sizes from 52 cm to 62 cm (20.5 inches to
24.4 inches)
• Large (L) for head sizes from 57 cm to 65 cm (22.4 inches to
25.6 inches)
Weight
(Helmet with face
shield, no options)
• M: 1450 ± 30 g
• L: 1580 ± 30 g
Weight changes when options are fitted on the helmet. Check manuals for
options for their exact weights.
Options
• Neck curtain (4 types)
• Integrated lighting module
• Lamp bracket to fit a helmet mounted flashlight
• Ocular visor
• Communication headset
• Hearing protection with or without communication
Detailed information regarding the lighting module and the communication
headset can be found in the separate user manual for these devices.
Warranty
•Helmet
• Options
2 years, parts and labour from the date of purchase
2 years, parts and labour from the date of purchase
Legal warranty
For defects and hidden defects according to the conditions stipulated in arti-
cles 1641 and pursuant to the Civil Code (in France).
Different national regulations may apply.

Gallet F1XF®5
Description
GB
2.3 Certifications/Approvals/Technical Specifications
The helmet meets the (EU) 2016/425 regulation and is certified according to EN 443:2008,
EN 16471:2014 and EN 16473:2014. Module D surveillance by: APAVE (0082), 8 rue Jean-Jacques
Vernazza, CS 60193, 13322 Marseille Cedex 16, France.
Standards and Directives for Helmet
Standards and Directives for Visors
Certification
agencies Helmet
INSPEC International Ltd. (0194), 56 Leslie Hough Way, Salford,
Greater Manchester, M6 6AJ, United Kingdom
BG BAU, DGUV Test (0299), Prüf- und Zertifizierungsstelle
FB PSA, Zwengenberger Straße 68, 42781 Haan, Germany
Standards and
directives:
(EU) 2016/425 Personal protection equipment regulation
EN 443:2008 “Helmets for firefighting in buildings and other structures” by
INSPEC International Ltd. (0194).
EN 16471:2014 "Helmets for wildland fire fighting" by BG BAU (0299).
EN 16473:2014 "Helmets for technical rescue" by BG BAU (0299).
Depending on the individual helmet configuration, optional EN 443:2008 requirements may be
marked on the helmet, as explained below:
Type B Indicates the protection zone assured by the helmet (area 1a -1b).
Type B3b Indicates the extended protection zone assured by the helmet (area 1a-1b and 3b)
E2 Indicates the electrical insulation of the damp helmet.
E3 Indicates a non-conductive surface of the shell.
*** / ** Indicates protection at low temperature down to -30°C/ -20°C
CIndicates a resistance to liquid chemical products. (sulphuric acid, sodium
hydroxide, p-xylene, butan-1-ol, n-heptane)
Marking
(Wheelmark): Meets 2014/90/EU Marine Equipment Directive (MED)
Certification
agency
Face shield: INSPEC International Ltd. (0194), 56 Leslie Hough Way,
Salford, Greater Manchester, M6 6AJ, United Kingdom
Ocular visor BG BAU, DGUV Test (0299), Prüf- und Zertifizierungsstelle
FB PSA, Zwengenberger Straße 68, 42781 Haan, Germany
Standards and
directives:
(EU) 2016/425 Personal protection equipment regulation
EN 14458:2004 Personal eye equipment
(+) or (=) Conforms to the additional requirements of firefighters or general use
Visor type: Eye guard
Visor type : Face guard
-30 °C; 120 °C Extremes of temperature to which the visor has been tested (-30 °C & +120 °C)
ΩComplies with the electrical properties
AResistance to high energy impact 190 ms-1
TResistance to medium energy impact at extremes of temperatures
AT Resistance to high energy impact (190ms-1) at extremes of temperature
KResistance to abrasion according EN 168: 2001, clause 15
NResistance to fogging
2C-2.5 and 2C-1.2 UV filtering according to EN170:2002 for metalized and clear face shield
2-1.2 and 5-3.1 UV filtering according to EN170:2002 for clear and tinted ocular

Gallet F1XF®
6
Adjusting the Helmet
GB
The Declaration of Conformity can be found under the following link: https://MSAsafety.com/DoC.
The protection against radiating heat ensured by the face shields varies with the temperature of the
heat source, see figure above. It is recommended to only use the face shield when the face shield can
reduce the heat exposure to the wearer's eyes to less than 100W/m2.
WARNING!
When fitted with another item of personal protective equipment or with an accessory, (other than as
supplied by the helmet manufacturer for use with this helmet) a helmet marked as complying with
EN 443 might no longer satisfy all clauses of the standard. Refer to information supplied by the helmet
manufacturer.
3 Adjusting the Helmet
3.1 Before Donning
%
Transmission
Radiant heat protection
%
Source Temperature (K)
35
40
45
50
55
60
65
70
75
1600 1800 2000 2200 2400 2450 2600 2800 3000 3200
GA1086A
GA1086B
(1) Choose helmet size M or L (see Technical
Data) according to your head size.
(2) Adjust front headband by sliding it up or
down.
(3) Position front headband inside the helmet to
avoid contact between headband and mask.
(4) Adjust rear headband by rotating to optimise
fit on back of the head.

Gallet F1XF®7
Adjusting the Helmet
GB
3.2 Donning
The following adjustments have to be carried out when the helmet is donned.

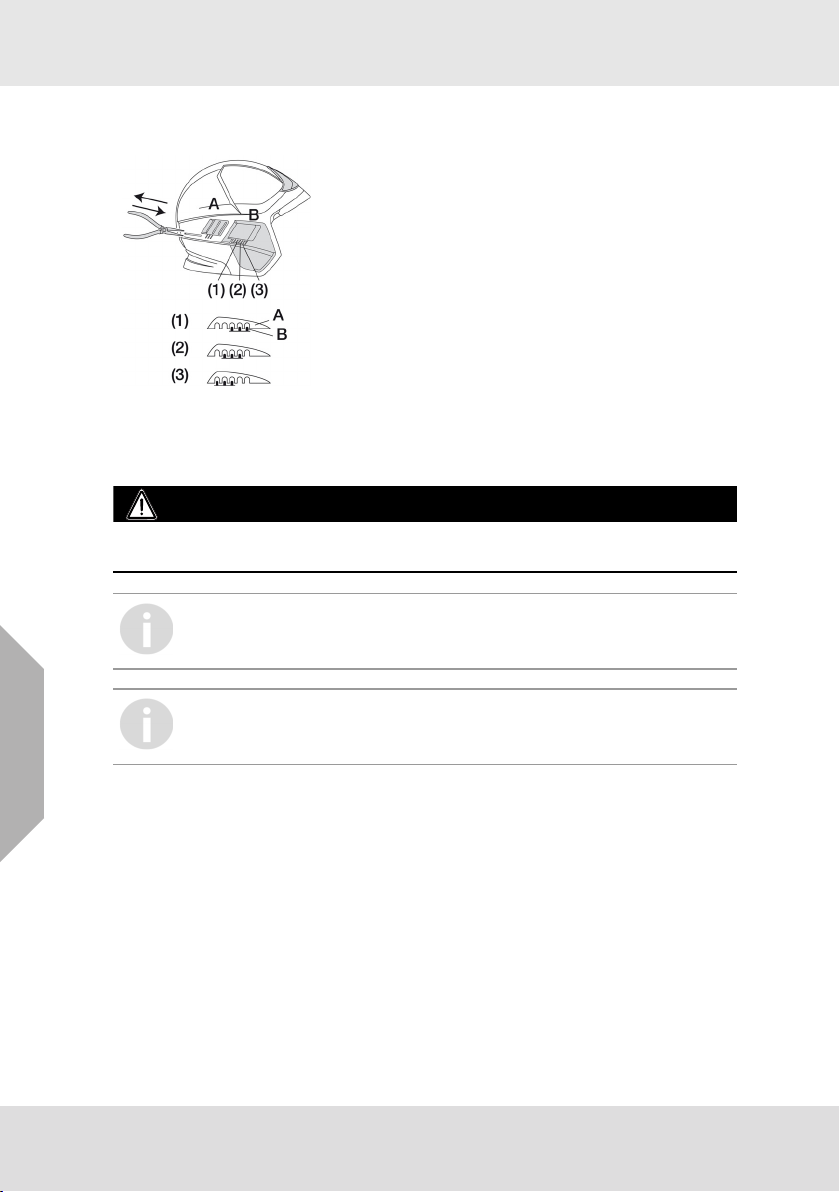

The chin strap is equipped with 3 adjustment points to allow quick and simple adjustment while the
helmet is on the head.
(5) Adjust wearing height with the Velcro
fasteners on the two rear suspension straps.
(1) Position the chin strap as shown before
donning the helmet.
(2) Adjust head size:
Turn knob clockwise to tighten the ratchet
headband.
Turn knob anticlockwise to loosen the
ratchet headband.
(3) Check that the helmet is correctly adjusted:
The helmet should not fall off when the
head is leaning forward and the chin strap
is unfastened.
(1) Maximally loosen the 3 adjustment points.
(2) Place helmet on head. Make sure that it is well positioned.
(3) Close the buckle of the chin strap.
(4) Tighten the chin strap.
(5) Tighten the two rear adjustment straps until a tight but still
comfortable fit is achieved.
The wearing angle shown here is indicative.
It may vary slightly depending on user's head size and shape.

Gallet F1XF®
8
Adjusting the Helmet
GB
WARNING!
The helmet only meets the retention requirements of EN 443:2008 when the chin strap provided by the
helmet manufacturer is worn and adjusted according to the instructions.
3.3 Visors
WARNING!
Visors worn over non-designated corrective frames may transmit impacts which may damage the
corrective eyewear thus creating a hazard to the user.
Service life of visors is depending on the conditions of use.
Any face shield that has been scratched, dropped or damaged must be replaced.
The visor type "Face guard" will provide protection to the eyes and substantial areas of the face.
Performances of the visor are obtained only in use position (low position). Visors should be in
standby position (stored under the helmet shell) during the use of a breathing apparatus (SCBA).
Equipment not marked with "T" should only be used at non-extreme ambient temperatures.
Ensure that you are using an EN443 helmet with a visor marked "+" for structural firefighting.
Materials that come in contact with the wearer's skin could cause allergic reactions in susceptible
individuals.
The ocular visor can be adjusted to optimize the distance between visor and face.
Face Shield
(1) Position by pulling it completely up or down.
Ocular Visor (optional)
(1) Position by pulling it up or down.
(2) Tilt the ocular visor towards the face for an optimal fit.

Gallet F1XF®9
Attaching the Accessories
GB
(1) Don helmet and pull down ocular visor.
4 Attaching the Accessories
4.1 Neck Curtains
2 types of neck curtain can be installed:
• Neck curtain for rear protection
• Integral neck curtain
(2) Unclip and clip the yellow stopper in positions
(A), (B) or (C) to optimize fit of the ocular visor
on the face.
The helmet has 8 slots for installing the neck curtain:
• 4 at the rear for the rear neck curtain (A, B, C, D).
• 4 more at the front for the integral neck curtain
(E, F, G, H)
(1) Place the neck curtain upside down
above the helmet.
(2) Insert the 2 clips marked in the central
slots.
(3) Push the 2 pressure clips till locking.
For the integral neck curtain, repeat the operation for
the 4 front attachment points.

Gallet F1XF®
10
Attaching the Accessories
GB
4.2 Ocular Visor
4.3 Lighting Module
(1) Place the ocular visor upside down above
the helmet.
(2) Insert the 2 clips simultaneously into the
dedicated slots.
(3) Lock the ocular visor module by fixing it on
the shell plot (right and left).
(1) Place the helmet upside down with the face
shield towards you.
(2) Insert the left box (L) of the F1XF Lightning
module into the space provided on the left
side of the helmet and clip into place.
(3) Follow the same procedure for the right box
(R).
When the lighting module and F1XF boom microphone are both installed inside the helmet, always
disassemble the lightning module first, then the boom microphone.

Gallet F1XF®11
Attaching the Accessories
GB
See the Lighting module user instruction delivered with the product for details on operation.
4.4 Lamp Bracket and Lamp
(4) Ensure that the cable is placed in the indi-
cated area.
CLICK
(1) Slide the lamp bracket along the shell shape.
(2) Insert the lamp into the lamp bracket from
the rear open side (A).
(3) Rotate, then press forward to secure the
attachment (B).
(4) Tilt the lamp up and down into the required
position.
(5) To remove the lamp, slightly press it
towards the helmet while sliding it to the
rear open side (A) of the lamp bracket.

Gallet F1XF®
12
Maintenance and Cleaning
GB
4.5 Mask Adapter (Kitfix)
Attach a mask using the "Kitfix" connector kits A.
5 Maintenance and Cleaning
The length of the useable life of this helmet will be affected by the type(s) of material used in its
construction and the environments in which the helmet is used and stored. Recommendations on this
topic should be sought from the manufacturer.
WARNING!
Do not apply paint, stickers, cleaning products with a hydrocarbon base or solvents to the helmet or
visors to prevent damaging the materials of your helmet.
To maximize helmet lifetime:
• Store the helmet in a proper storage bag and/or in a closed cabinet to avoid extended exposure
to cold, humidity, exhaust fumes, etc.
• Clean the helmet (shell and internal components) after use before storing.
Checks After Each Use
After each use, check every part of the helmet and especially all the fixing points:
• Correct anchor points used
• No evident wear
• No fractures or cracks
Check that the helmet fit is always correct.
To adjust mask tightness on helmet:
(1) Use a pair of pliers to remove the pin.
(2) Adjust the Kitfix to position (1) (2) or (3) (according to desired
mask tightness).
(3) Use the pin to lock the Kitfix in place (push it in completely).
(4) Test mask seal after attaching the mask if necessary.
Do not drop the helmet.
Prevent the helmet from impacts which could damage the shields (cracks/scratches).
The parts in contact with skin have to be inspected regularly for cracks or wear that could
cause discomfort. Changing those parts regularly will maintain user comfort level.

Gallet F1XF®13
Maintenance and Cleaning
GB
Maintenance by a Trained Maintenance Specialist
Only trained people should perform the regular maintenance.
WARNING!
Replace any damaged parts only with original MSA parts, as only these original parts are authorized
and ensure the performance of the helmet.
Helmet absorbs the energy of a blow by partial destruction of, or damage to, the helmet. Even though
such damage may not be readily apparent, any helmet subjected to a severe impact should be
replaced.
Periodically, perform a complete check of the helmet with detailed inspection of each critical compo-
nent. MSA provides upon request a Service and Maintenance manual which details conformity criteria
for all safety components of the helmet and parts replacement procedures.
MSA recommends that this complete control is performed at least every two (2) years, more regularly
in case of intensive use (every year for instance), or each time the helmet has been exposed to very
severe conditions (mechanical impact, very high temperature, direct flame contact, contact with
pouring metal or chemicals). In cases where frequency of use is very low and none of the mentioned
exposures and damages are recorded, an inspection should be performed at least every 4 years. Local
regulations may apply.
WARNING!
In case of visible damage identified during the daily check (before or after use), such as impacts, signif-
icant scratches, coating removal on the shell or visors, melted parts, broken parts, torn straps or
paddings, missing components, non-operational moving parts (such as visors or ratchet), etc., the
helmet should be taken to the trained maintenance technician or an MSA approved maintenance
center for complete control processing.
WARNING!
Components that are particularly critical to the safety of the product, such as suspension, shell and
impact liner, are marked with .
Treat such parts with special attention and care during inspection and assembly.
5.1 Cleaning
WARNING!
Do not use solvent-based products (acetone, alcohol etc.) or softeners.
Do not use abrasive materials.
The helmet must be completely dried before returning to service (max. drying temperature 40°C).
Plastic Components, Face Shield and Ocular Visor
• Use soapy water and a soft cloth.
Soft Goods (Chin Strap, Rear and Front Padding)
(1) Remove the textile or leather components (fastened with Velcro).
(2) Clean it as follows:
a) Textile chin strap + textile headband liner: 30°C with a mild detergent.
b) Leather chin strap + leather headband liner: Use soapy water and a lint-free soft cloth.

Gallet F1XF®
14
Maintenance and Cleaning
GB
Neck Curtains
See the Cleaning and Care Guidelines by using the following link:
https://msa.webdamdb.com/bp/#/folder/1777763/98866226
Chin Strap Disassembly before Cleaning
Chin Strap Assembly after Cleaning
Neck curtains made of Nomex, wool:
• Cleaning at 30°C with a mild detergent
Integral Aramid neck curtain:
• Cleaning at 60°C with a mild detergent.
Aluminized neck curtain:
• Manual cleaning at 30°C with soapy water,
using a sponge.
(1) Unlock metallic trapezoid (chin strap 3rd
point) from the hook by pushing it.
(2) Rotate the clips on right and left side of the
chin strap 90 degrees towards the rear of the
helmet.
(3) Push each clip forward and raise it on the
back.
(1) Insert both clips into the slots vertically. (2) Rotate clips 90 degrees towards the rear and
push them in.

Gallet F1XF®15
Maintenance and Cleaning
GB
5.2 Transport
Helmet with Visor(s)
Store the visor(s) inside the helmet (out of use position), store the helmet in a MSA Gallet protective
bag (GA1382).
Visor as Spare Part
The visors have to be kept in their plastic bags until they are mounted on the helmet.
5.3 Discard
The helmet must be treated as ordinary industrial waste/non-hazardous waste according to local regu-
lations. For further information contact MSA.
(3) Rotate the clips 90 degrees forward into
the wearing position.
Attachment of the 3rd point (at the back)
(4) Insert the metallic trapezoid and lock it in
the hook by pulling it vertically.

Gallet F1XF®
16
Spare Parts, Accessories and Options
GB
6 Spare Parts, Accessories and Options
No Part Part. No
1a Aluminized neck curtain F1XF, 3 layers GA1116F
1b Nomex neck curtain F1XF GA1116C
1c Wool/Nomex neck curtain F1XF GA1116D
2a Integral Wool/Nomex neck curtain F1XF (Size Medium/Large) GA1116B-M GA1116B-L
2b Integral aramid neck curtain F1XF GA1116E-M GA1116E-L
3 Lighting module F1XF GA1484
4 Torch lamp support F1XF (D: right/G: left) GA1485D GA1485G
5a Lamp XPS GA1488
5b Lamp XP LED GA1464
5c Lamp XS zone 0 GA1466
5d Lamp AS-R GA1481
6a Ocular visor kit F1XF, EN14458, clear GA1087A
6b Ocular visor kit F1XF, EN14458, tinted GA1087B
7a Face shield F1XF, EN14458, clear GA1086A
7b Face shield F1XF, EN14458, metalized GA1086B
8 Shell F1XF, Painted, (Size M: Medium/L: Large) GA1090-xxM GA1090-xxL
9 Kitfix F1XF GA1092A
10a Kitfix F1XF mobile GA1092B
10b Kitfix F1XF mobile, PN GA1092C
11 Suspension F1XF, EN443,
(Size M: Medium/L: Large) GA1094-M GA1094-L
12 Impact liner F1XF, EN443, (Size M: Medium/L: Large) GA1095-M GA1095-L
13 Ratchet cradle F1XF GA1098A
14a Chinstrap F1XF, textile GA1128A
14b Chinstrap F1XF, leather GA1128B
15a Textile paddings, F1XF GA1129A
15b Leather paddings, F1XF GA1129B
16 Retroreflective stickers F1XF (Size M: Medium/L: Large) GA1136-xxM GA1136-xxL
17 Front plate F1XF GA1150-xx
18 Protective bag for helmet GA1382
19a Headset Bone Conductive Microphone F1XF GA010002A3X
19b Headset Bone Conductive Microphone F1XF 2ls GA010002A3AX
20a Headset Boom Microphone F1XF 1ls GA010002B3X
20b Headset Boom Microphone F1XF 2ls GA010002B3AX
21a Hearing F1XF Protect.Bone Conduct.Micro. GA010002C3X
21b Hearing Protection Boom Microphone F1XF GA010002D3X
21c Hearing Protection F1XF GA010002E3X
22 Set of 10 headset interfaces for F1XF GA1131
23 OSTEO interface for F1XF GA010007062
For illustrations of parts see fold-out page.

For local MSA contacts, please visit us at MSAsafety.com
