MSI PRO AP162T ADL User manual

PRO Series
All-in-One PC
PRO AP162T ADL (MS-A602)
User Guide

2
Contents
Getting Started.............................................................................................................. 3
Package Contents................................................................................................... 3
Safety & Comfort Tips ............................................................................................ 3
System Overview..................................................................................................... 4
Connecting the Power .......................................................................................... 10
Adjusting the Monitor ........................................................................................... 11
Component Replacement & Upgrade .................................................................. 12
Windows 11 System Operations................................................................................ 13
Power Management ............................................................................................. 13
Network Connections........................................................................................... 17
System Recovery .................................................................................................. 25
F3 Hotkey Recovery (Optional) .................................................................................. 27
Troubleshooting.......................................................................................................... 28
Safety Instructions...................................................................................................... 30
ENERGY STAR Certification....................................................................................... 32
Regulatory Notices..................................................................................................... 33
Revision
V1.0, 2023/10

3
Getting Started
This chapter provides you with the information on hardware setup procedures. While
connecting devices, be careful in holding the devices and use a grounded wrist strap
to avoid static electricity.
Package Contents
All-in-One PC PRO AP162T ADL
Documentation
User Guide (Optional)
Quick Start Guide
Warranty Card (Optional)
Warranty Book (Optional)
Accessories
Mouse (Optional)
Keyboard (Optional)
Power Cord
External Power Supply
VESA Plate (Optional)
VESA Mount Screws (Optional)
⚠
Important
∙ Contact your place of purchase or local distributor if any of the items is damaged or
missing.
∙ Package contents may vary by country.
∙ The included power cord is exclusively for this personal computer and should not be
used with other products.
Safety & Comfort Tips
∙Choosing a good workspace is important if you have to work with your PC for a long
period of time.
∙Your work area should have enough illumination.
∙Choose the proper desk and chair and adjust their height to fit your posture when
operating.
∙When sitting on the chair, sit straight and keep a good posture. Adjust the chair’s
back (if available) to support your back comfortably.
∙Place you feet flat and naturally on the floor, so that your knees and elbows have the
proper position (about 90-degree) when operating.
∙Put your hands on the desk naturally to support your wrists.
∙Avoid using your PC in a place where discomfort may occur (such as on the bed).
∙The PC is an electrical device. Please treat it with great care to avoid personal
injury.

4
System Overview
Front View
1
2
3
4
5
1Digital Microphone
The built-in microphone can be used for video chatting online.
2Webcam
The built-in webcam with the microphone can be used for picture taking,
video recoding, online conferencing and any other interactive applications.
3LED Indicator
The LED indicator indicates when it is recording. The LED indicator
should be on when device is capturing video and off when the device is not
capturing video.
4Touch Screen
The 15.6” LED backlighting display is with an optimal resolution of 1920 x
1080 pixels full HD and standard proportion of 16:9 widescreen.
5Stereo Speakers
The built-in stereo speakers deliver high quality sound with stereo system.

5
Rear View
1
2
3
1
4
1Ventilator
The ventilator on the enclosure is used for air convection and to prevent
the equipment from overheating. Do not cover the ventilator.
2Kensington Lock Port
This PC provides a Kensington lock port, which allows users to secure
the PC in place with a key or some mechanical PIN device and attached
through a rubberised metal cable. The end of the cable has a small loop
which allows the whole cable to be looped around a permanent object,
such as a heavy table or other similar equipment, thus securing the PC in
place.
3Stand
Use this stand to position your system on a flat and stable surface.
4Cable Routing Hole
Route the cables through the cable routing hole to avoid cable spaghetti
when connecting devices.

6
Side View
1
2
3
4
5
6
7
8
1Power Button
Press the power button to turn the system on and off.
2Power LED
The power LED glows when the system is turned on and goes off when
the system is shut down. In terms of power saving, the LED blinks in S3
(Suspend to RAM) mode and goes off in S4 (Suspend to Disk) mode.
3Hard Disk Drive LED
This indicator shows the activity status of the HDD. It flashes when the
system is accessing data on the HDD and remains off when no disk activity
is detected.
4Brightness Button
These buttons adjust the brightness level.
5Card Reader
The built-in card reader supports various types of memory cards.
6USB 3.2 Gen 2 Port
This connector is provided for USB peripheral devices. (Speed up to 10
Gbps)

7
7Power Jack
Power supplied through this jack supplies power to your system.
⚠
Important
We suggest that you connect the AC/DC adapter to your PC first and then
connect the AC power cord to the socket-outlet for safety concerns.
82.5” Storage Rapid Upgrade Holder (Optional)
This holder allows users to upgrade their 2.5” storage with ease.

8
Top & Bottom View
1
2
1
3 7654
1Ventilator
The ventilator on the enclosure is used for air convection and to prevent
the equipment from overheating. Do not cover the ventilator.
2Combo Audio Jack
This connector is provided for headphones, speakers, or microphones.
3USB 2.0 Port
This connector is provided for USB peripheral devices. (Speed up to 480
Mbps)
⚠
Important
High-speed devices are recommended for USB 3.2 ports whereas low-
speed devices, such as mouse or keyboard, are suggested to be plugged
into the USB 2.0 ports.
41 Gbps LAN Jack
The standard RJ-45 LAN jack is provided for connection to the Local Area
Network (LAN). You can connect a network cable to it.
LINK/ACT
LED
SPEED
LED
LED Status Description
Link/
Activity LED
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Off 10 Mbps
Green 100 Mbps
Orange 1 Gbps

9
5VGA Port
The VGA port supports monitors and other VGA interface devices.
6Serial Port
The serial port supports barcode scanners, barcode printers, bill printers,
credit card machine, etc.
7Parallel Port
The parallel port supports printers and other parallel interface devices.

10
Connecting the Power
Connect the adapter to the AIO PC and plug in the power cord. Press the power button
to power on the AIO PC.
∙External Power Supply 65W
• Input: 100-240V~, 50-60Hz
• Output: 19.0V 3.42A
1
2
3
4
⚠
Important
∙ The illustrations are for reference only. Your AIO PC may vary in appearance.
∙ Please make sure the AIO PC has been grounded to earth through the AC power
cord and the electrical outlet before powering on the AIO PC.

11

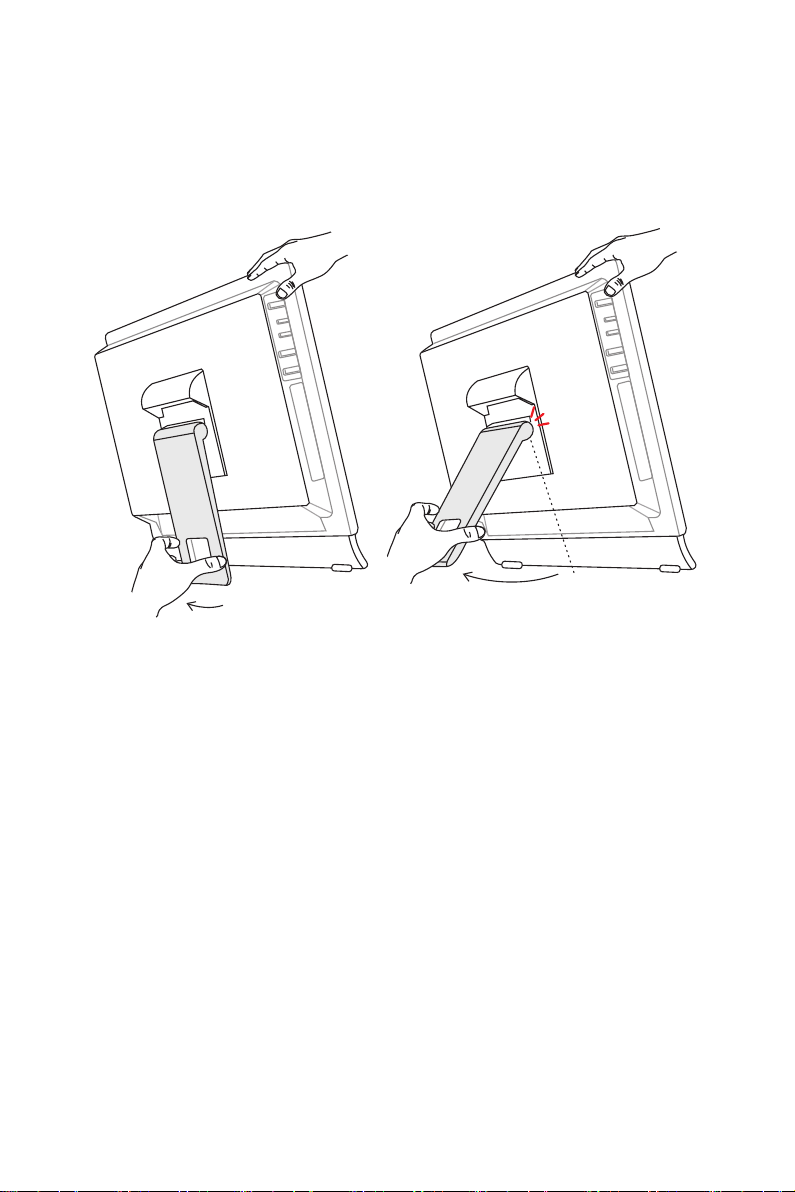

Adjusting the Monitor
This AIO PC is designed to maximize your viewing comfort with its adjustment
capabilities.
⚠
Important
∙ Do not use any sharp objects on the display panel.
∙ Avoid pressing the display panel when adjusting.

12

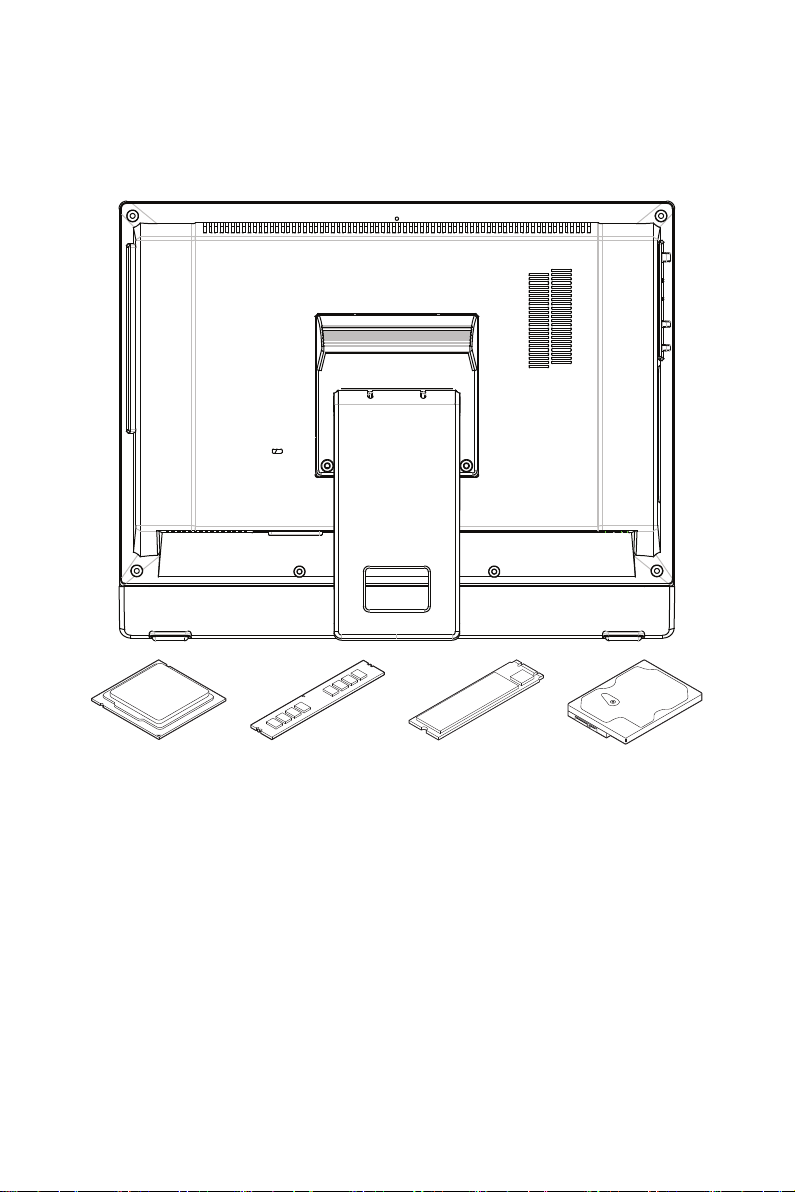

Component Replacement & Upgrade
Please note that certain components preinstalled in the product may be upgradable or
replaceable by user’s request depending on the models users purchased.
For any further information on the product users purchased, please contact the local
dealer. Do not attempt to upgrade or replace any component of the product if you are
not an authorized dealer or service center, since it may cause the warranty void. It is
strongly recommended that you contact the authorized dealer or service center for
any upgrade or replace service.

13
Windows 11 System Operations
⚠
Important
All information and Windows screenshots are subject to change without prior notice.
Power Management
Power management of personal computers (PCs) and monitors has the potential to
save significant amounts of electricity as well as deliver environmental benefits.
To be energy efficient, turn off your display or set your PC to sleep mode after a period
of user inactivity.
1. Right-click [Start] and select [Power Options] from the list.
2. Adjust [Screen and sleep] settings and select a power mode from the list.

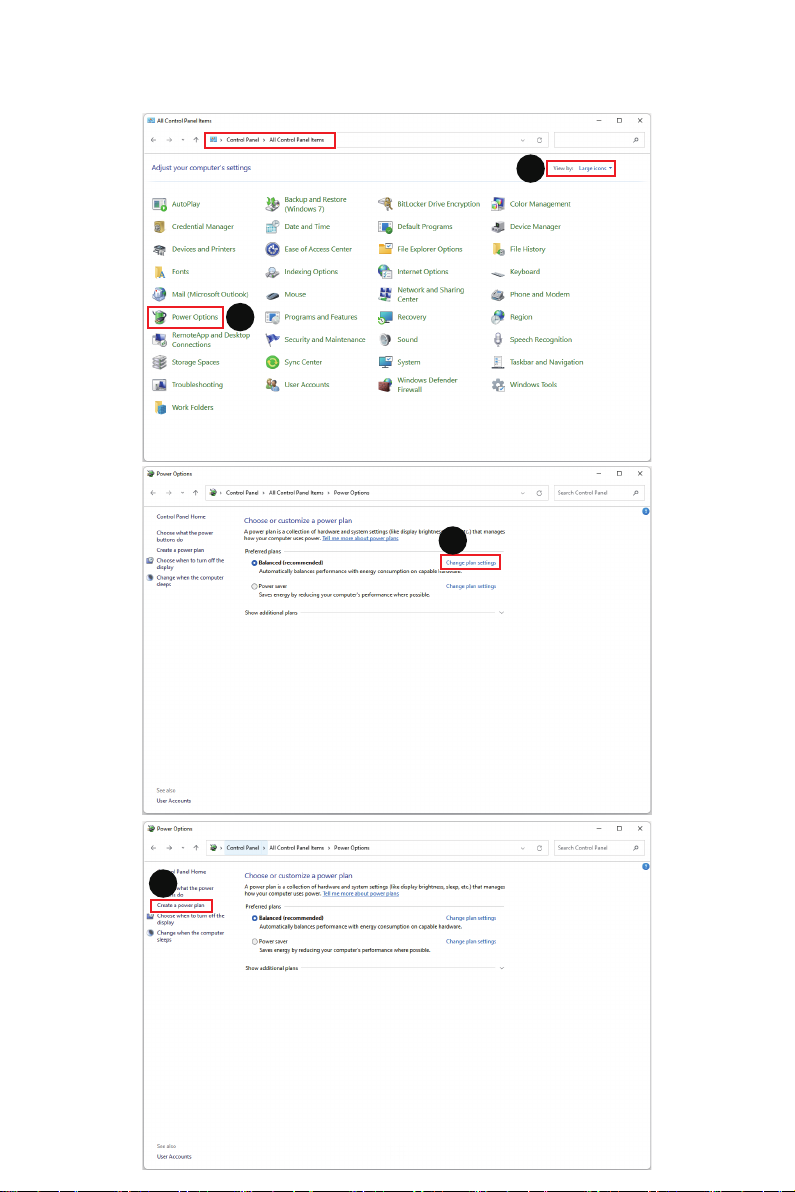

3. To choose or customize a power plan, type control panel in the search box and
select [Control Panel].
4. Open up [All Control Panel Items] window. Select [Large icons] under [View by]
drop-down menu.
5. Select [Power Options] to continue.
6. Select a power plan and fine-tune the settings by clicking [Change plan settings].
7. To create your own power plan, select (Create a power plan).
8. Select an existing plan and give it a new name.
9. Adjust settings for your new power plan.
10.The [Shut down or sign out] menu also presents power saving options for rapid and
easy management of your system power.
Energy Savings
The power management feature allows the computer to initiate a low-power or
“Sleep” mode after a period of user inactivity. To take advantage of these potential
energy savings, the power management feature has been preset to behave in the
following ways when the system is operating on AC power:
∙Turn off the display after 10 minutes
∙Initiate Sleep after 30 minutes
Waking the System Up
The computer shall be able to wake up from power saving mode in response to a
command from any of the following:
∙the power button,
∙the network (Wake On LAN),
∙the mouse,
∙the keyboard.
Energy Saving Tips:
∙Turn off the monitor by pressing the monitor power button after a period of user
inactivity.

14
∙Tune the settings in Power Options under Windows OS to optimize your PC’s power
management.
∙Install power saving software to manage your PC’s energy consumption.
∙Always disconnect the AC power cord or switch the wall socket off if your PC would
be left unused for a certain time to achieve zero energy consumption.
2
3
1

15
7
4
5
6

16
10
8
9

17
Network Connections
Wi-Fi

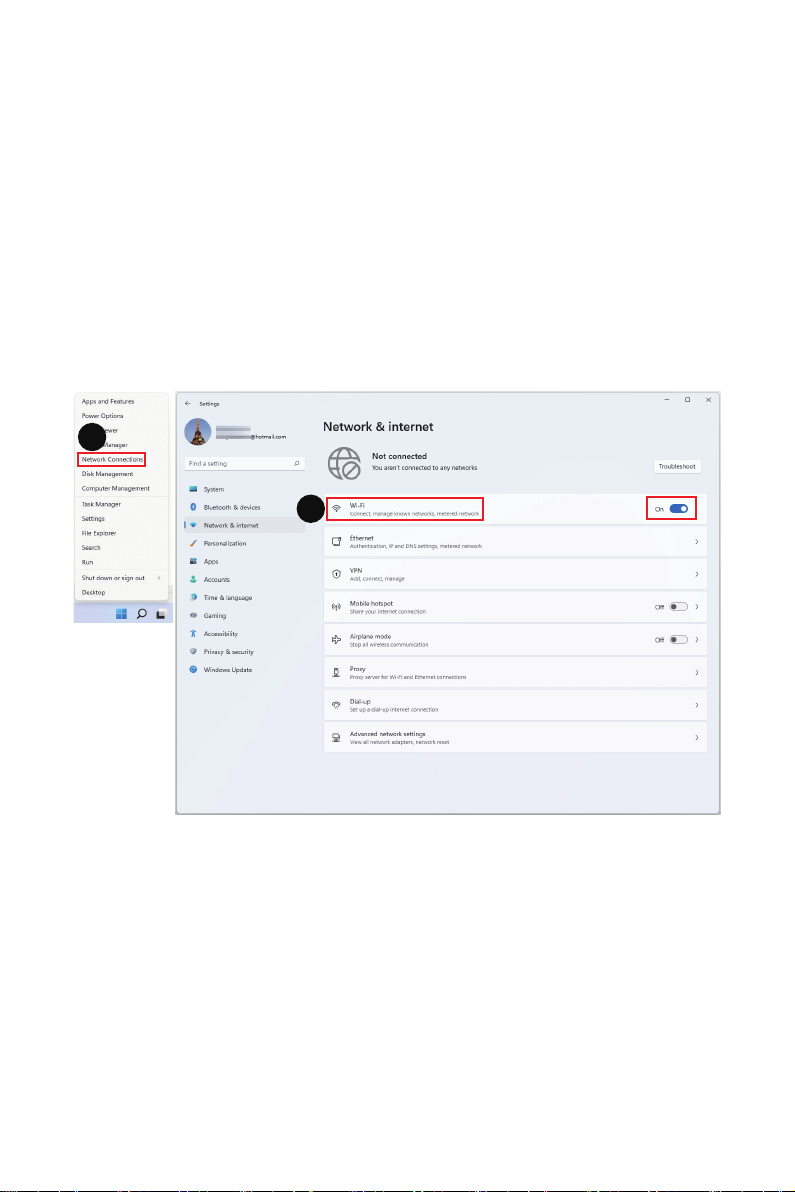

1. Right-click [Start] and select [Network Connections] from the list.
2. Select and turn on [Wi-Fi].
3. Select [Show available networks]. A list of available wireless networks pops up.
Choose a connection from the list.

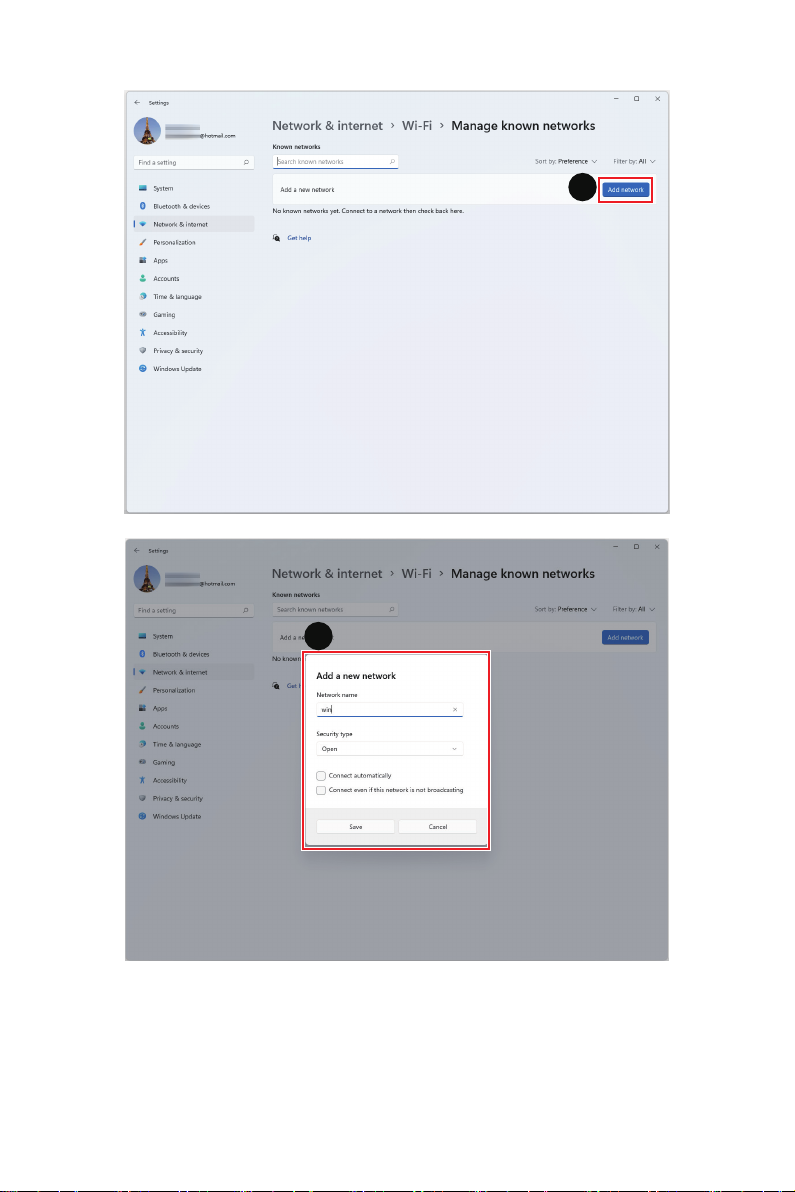

4. To establish a new connection, select [Manage known networks].
5. Select [Add network].
6. Enter information for the wireless network you intend to add and click [Save] to
establish a new connection.
1
2

18
3
4

19
5
6

20
Ethernet

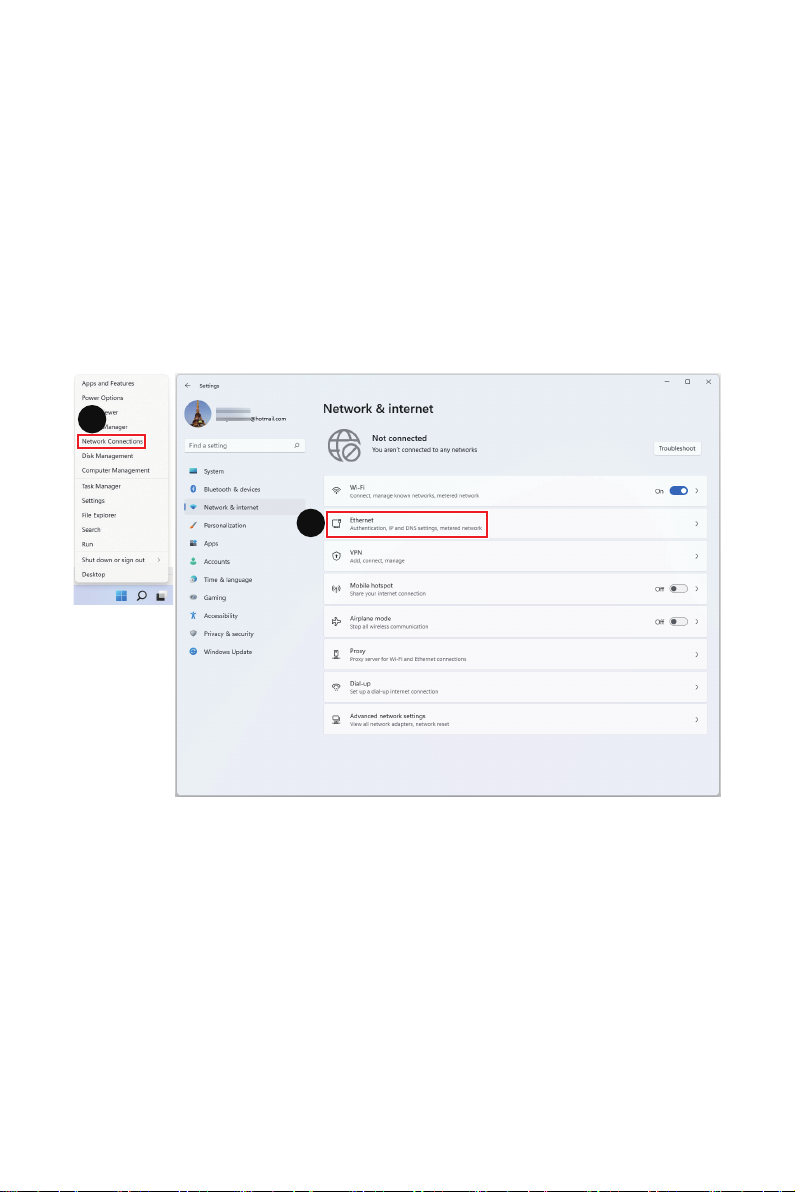

1. Right-click [Start] and select [Network Connections] from the list.
2. Select [Ethernet].
3. The [IP assignment] and [DNS server assignment] are automatically set as
[Automatic (DHCP)].
4. For a Static IP connection, click [Edit] of [IP assignment].
5. Select [Manual].
6. Switch on the [IPv4] or [IPv6].
7. Type the information from your Internet Service Provider and click [Save] to
establish a Static IP connection.
1
2
