MSI 845 Pro User manual

Introduction
1-1
Chapter 1.
Introduction
The 845 Pro (MS-6529) ATX mainboard is a high-performance
computer mainboard based on Intel®82845 & 82801BA chipsets. The 845
Pro (MS-6529) is designed for Intel®Pentium®4 processor in the 423 pin
package that delivers a high performance and professional desktop platform
solution.
The Intel®82845 Memory Controller Hub (MCH) provides the proces-
sor interface, SDRAM interface, AGP interface and hub interface. It supports:
a single processor with a data transfer rate of 400MHz, SDRAM at 133MHz
operation (PC133), AGTL+ host bus with integrated termination supporting
32-bit host addressing, 1.5V AGP interface with 4x SBA/data transfer and 2x/4x
fast write capability, and 8-bit, 66MHz 4x hub interface to the Intel ICH2.
The Intel®82801BA (ICH2) chipset is a highly integrated
multifunctional I/O Controller Hub that provides the interface to the PCI Bus
and integrates many of the functions needed in today’s PC platforms. It
communicates with the host controller over a dedicated hub interface and
provides added flexibility in designing cost-effective system solutions.
This chapter includes the following topics:
Mainboard Specification 1-2
Mainboard Layout 1-4
Quick Components Guide 1-5
Key Features 1-6
MSI Special Features 1-7
1

Chapter 1
1-2
CPU
zSupports Intel®Pentium 4 processor (423 pin package)
zSupports1.1GHz,1.2GHz,1.8GHzorfaster
Chipset
zIntel®845chipset (593FC-BGA)
- AGP 4x/2x universal slot
- Supports 100MHz FSB
- Supports 400MHz Intel NetBurst micro-architecture bus
zIntel®ICH2 chipset (360 BGA)
- AC’97 Controller Integrated
- 2 full IDE channels, up to ATA100
- Low pin count interface for SIO
Main Memory
zSupports three 168-pin DIMM sockets
zSupports 64MB to 1GB technologies up to 3GB
Slots
zOneCNR (CommunicationNetwork Riser)
zOne AGP (Accelerated Graphics Port) 2x/4x slot
zFive PCI 2.2 32-bit Master PCI Bus slots
zSupports 3.3v/5v PCI bus Interface
On-Board IDE
zAn IDE controller on the ICH2 chipset provides IDE HDD/CD-ROM with
PIO, Bus Master and Ultra DMA66/100 operation modes.
zCan connect up to four IDE devices
On-Board Peripherals
zOn-Board Peripherals include:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and
2.88Mbytes
- 2 serial ports (COM A + COM B)
Mainboard Specification
Note: The AGP slot does NOT support 3.3V AGP 2x card. Use of
3.3V AGP 2x card may cause damages to the mainboard.

Introduction
1-3
- 1 parallel port supports SPP/EPP/ECP mode
- 4 USB ports (Rear * 2 / Front * 2), one for USB PC 2 PC Networking
function
- 1 Line-In/Line-Out/Mic-In/Game port
- 1 D-Bracket™ header (Optional)
Audio
zS/W Audio ICH2 chip integrated
zAC’972.1Compliant
zSupport 2/4 Channel Audio
BIOS
zThe mainboard BIOS provides “Plug & Play” BIOS which detects the
peripheral devices and expansion cards of the board automatically.
zThe mainboard provides a Desktop Management Interface(DMI) function
which records your mainboard specifications.
Dimension
zATXFormFactor 30.5cm x 21.5cm
Mounting
z6 mounting holes

Chapter 1
1-4

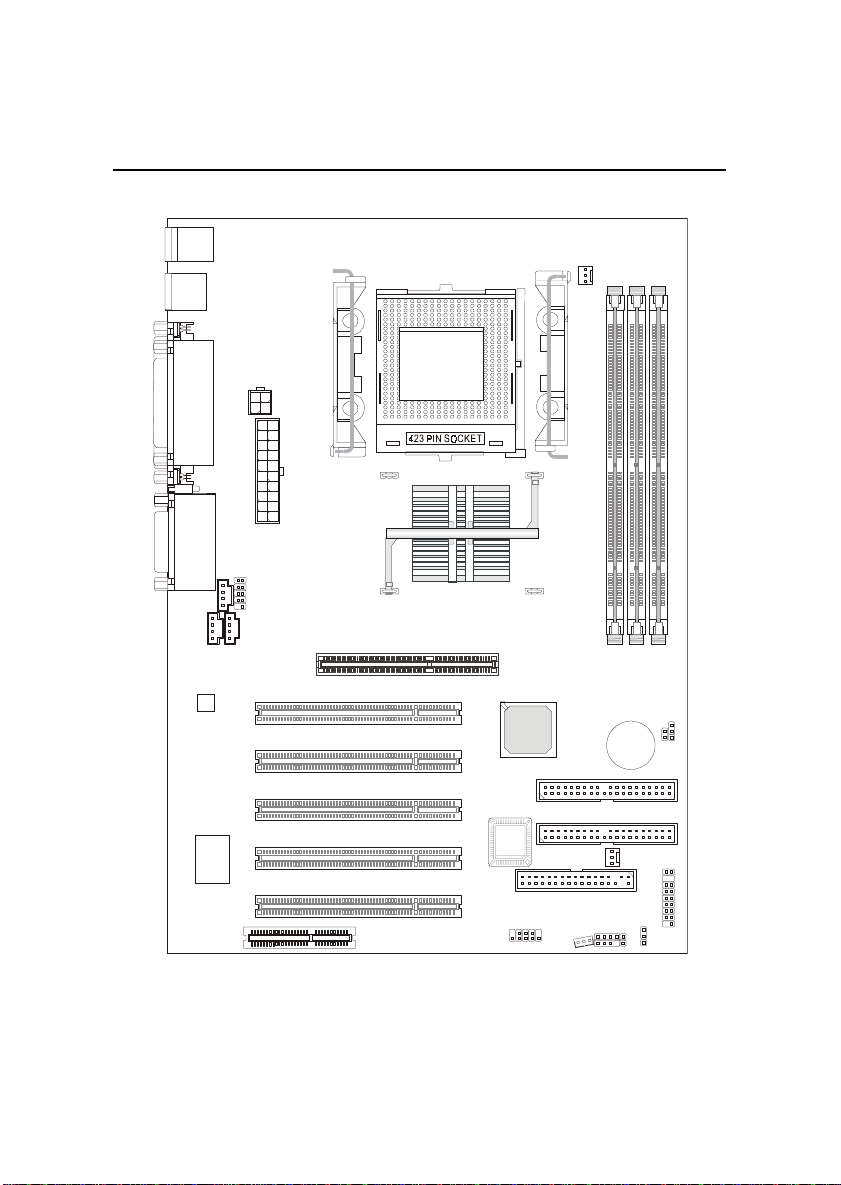

Mainboard Layout
845 Pro (MS-6529) ATX Mainboard
Intel
845
chipset
BATT
+
ICH2
JUSB1
(Optional)
ATXPowerSupply
F_P1
JGL1
IR2
JMDM1
JWOL1
S_FAN1
JGS1
JBAT1
C_FAN1
FWH
PCI Slot 5
PCI Slot 4
PCI Slot 3
PCI Slot 2
PCI Slot 1
IDE1
IDE2
Winbond
W83627HF
Codec
AUX_IN1 MDM_IN1
CD_IN1 J2(Optional)
CNR
USB
Ports
Top :
ParallelPort
Bottom:
COM A
COM B
T : mouse
B:keyboard
JPW1
Top :
Game port
Bottom:
Line-Out
Line-In
Mic
FDD 1
AGP Slot
DIMM1
DIMM2
DIMM3
D-LED

Introduction
1-5
Quick Components Guide
Component Function Reference
DIMM1~3 Installing DIMM modules See p. 2-5~2-6
Socket 423 Installing CPU See p. 2-2~2-3
C_FAN1 Connecting to CPU FAN See p. 2-20
S_FAN1 Connecting to SYSTEM FAN See p. 2-20
ATX Power Supply Installing power supply See p. 2-7
JPW1 Connecting to 12V ATX power supply See p. 2-8
IDE1& IDE2 Connecting to IDE hard disk drives See p. 2-14
FDD1 Connecting to floppy disk drive See p. 2-13
JUSB1 Connecting to USB interfaces See p. 2-22~2-24
PCI Slot 1~5 Installing PCI expansion cards See p. 2-28
AGP Slot Installing AGP cards See p. 2-28
CNR Slot Installing CNRcards See p.2-29
JMDM1 Connecting to modem module See p. 2-19
JWOL1 Connecting to LAN module See p. 2-19
JBAT1 Clearing CMOS data See p. 2-27
F_P1 Connecting to case See p. 2-15
JGS1 Connecting to power saving switch See p. 2-18
JGL1 Connecting to power saving LED See p. 2-17
IR2 Connecting to IR module See p. 2-18
J2 Connecting to D-Bracket™ See p. 2-25

Chapter 1
1-6
ATX Form Factor
CPU: Socket 423 for Intel®Pentium®4 Processors
Memory: 3 SDRAM DIMMs
Slot: 1 AGP slot, 1 CNR slot, 5 PCI slots
I/O: 2 serial ports, 1 parallel port, 4 USB 1.1 ports, 1 floppy port, 1 IrDA
connector, 1 Audio/Game port
PC2001Compliant
Vcore/Vio Adjustable
USB Interface: USB 1.1 PC to PC Networking (Optional)
LAN Wake up Function
Modem (Internal) Ring Wake up Function
D-LED™ -- 4 Diagnostics LEDs embedded on the mainboard
Supports Optional D-Bracket™ (Optional)
TOP Tech™ III -- Thermal Overheat Protection Technology
Fuzzy LogicTM III overclocking utility
Live BIOS™ -- allows you to update BIOS online
Live Driver™ -- allows you to update drivers online
Audio: Chip integrated
Key Features

Introduction
1-7
MSI Special Features
The MSI special features are designed by MSI R&D which are only available in
MSI mainboards. The 845 Pro (MS-6529) mainboard is equipped with Fuzzy
Logic™III ,D-LED™, T.O.P. Tech™ III,LiveBIOS™ andLiveDriver™.
Fuzzy Logic™III
The Fuzzy Logic™ III utility allows users to overclock the CPU FSB
(Front Side Bus) frequency in the Windows environment. Select the CPU
frequency you prefer and click Go to apply the frequency or click Save
allowing the system to run at the specified frequency each time when the
system is powered on.
Features:
Display Current System Status
- CPU Fan
-CPUTemp.
-Vcore
-Vio
- Memory Clock
-CPUClock
-AGPClock
-PCIClock
Adjust CPU FSB Frequency

Chapter 1
1-8

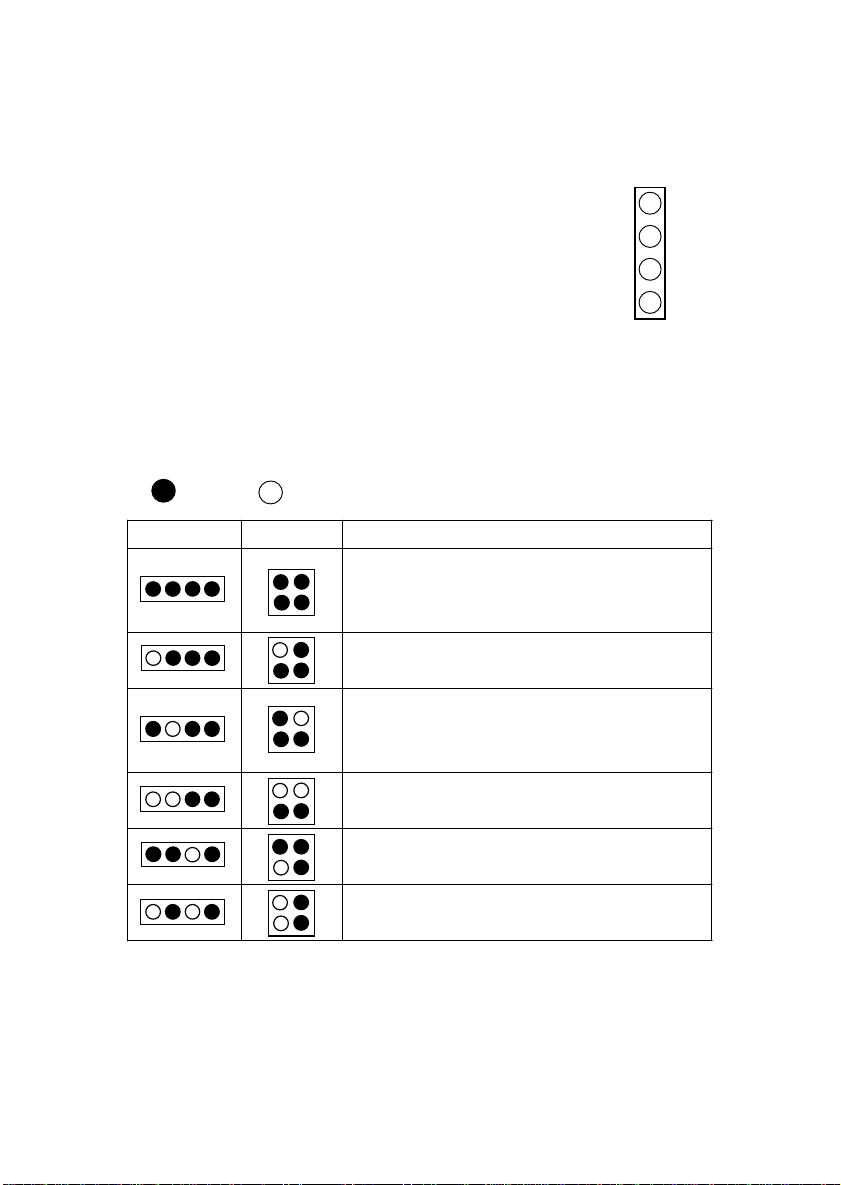

D-LED™ & D-Bracket™
The D-LED™ uses graphic signal display to help
users understand their system. Four LEDs embedded in
the mainboard provide up to 16 combinations of signals to
debug the system. The 4 LEDs can debug all problems that
fail the system, such as VGA, RAM or other failures. This
special feature is very useful for the overclocking users.
These users can use the feature to detect if there are any
problems or failures.
If your motherboard supports and installs D-
Bracket™ which also integrates four Diagnostic LEDs, definitions of the
LED signals are the same as D-LED™ as shown below.
4
3
2
1
Diagnostic LED
D-LED D-Bracket Description
System Power ON
- The D-LED will hang here if the processor is damaged or
not installed properly.
Early Chipset Initialization
Memory Detection Test
- Testing onboard memory size. The D-LED will hang if
the memory module is damaged or not installed properly.
Decompressing BIOS image to RAM for fast booting.
Initializing Keyboard Controller.
Testing VGA BIOS
- This will start writing VGA sign-on message to the screen.
Red Green
1 2 3 4 1 2
3 4

Introduction
1-9

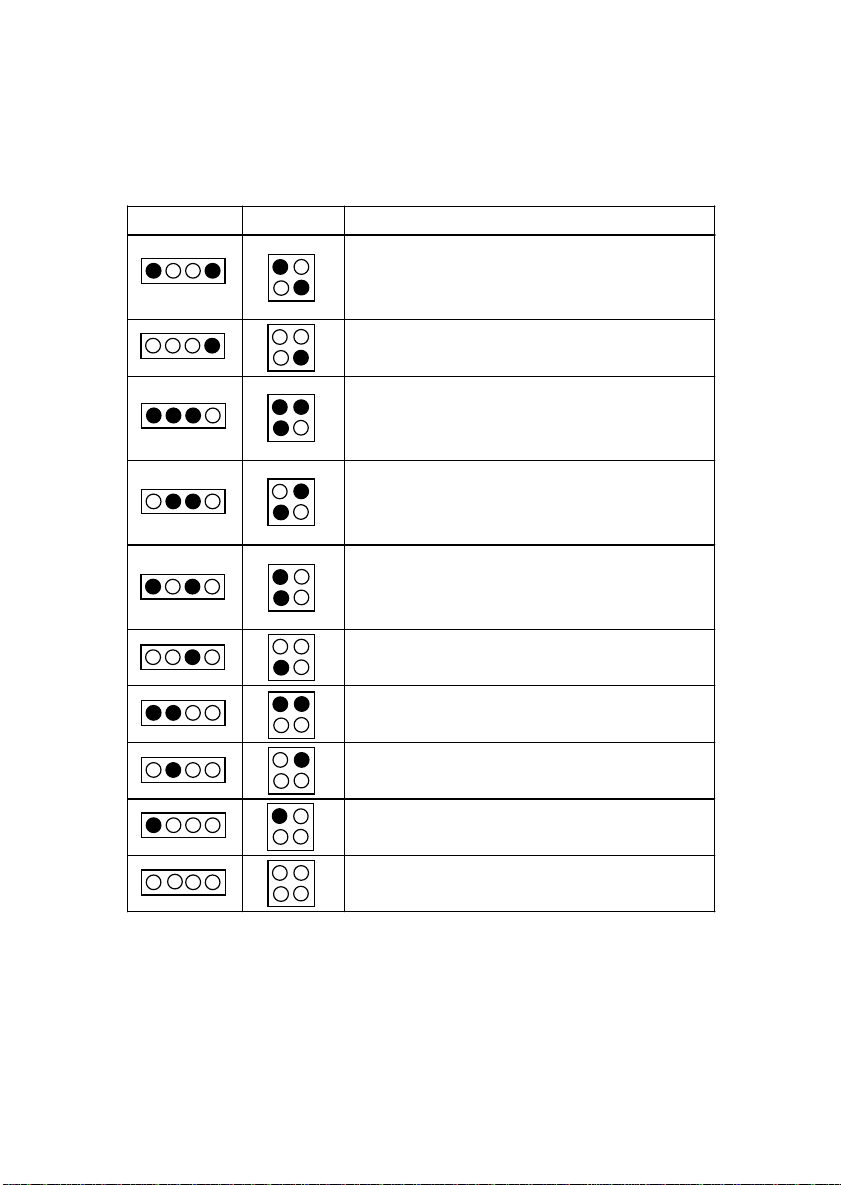

D-LED D-Bracket Description
Processor Initialization
- This will show information regarding the processor (like
brand name, system bus, etc…)
Testing RTC (Real Time Clock)
Initializing Video Interface
- This will start detecting CPU clock, checking type of video
onboard. Then, detect and initialize the video adapter.
BIOS Sign On
- This will start showing information about logo, processor
brand name, etc….
Testing Base and Extended Memory
- Testing base memory from 240K to 640K and extended
memory above 1MB using various patterns.
Assign Resources to all ISA.
Initializing Hard Drive Controller
- This will initialize IDE drive and controller.
Initializing Floppy Drive Controller
- This will initializing Floppy Drive and controller.
Boot Attempt
- This will set low stack and boot via INT 19h.
Operating System Booting
1 2 3 4 1 2
3 4

Chapter 1
1-10
T.O.P Tech™ III
The T.O.P TechTM is a extended sensing device that can 100% accu-
rately detect the CPU’s temperature. You can find out the temperature on BIOS
setup menu. The PC AlertTM also provides the information.
CPU temperaure on Setup menu
AMIBIOS SETUP - Hardware Monitor Setup
(C)2001 American Megatrends, Inc. All Rights Reserved
ESC : Quit ↑↓←→ : Select Item
F1 : Help PU/PD/+/- : Modify
F5 : Load Previous Values
F6 : Load Fail-Safe Defaults
F7 : Load Optimized Defaults
CPU Ratio Selection 8.0x
CPU FSB (Mhz) 100
Spread Spectrum Enabled
CPU Vcore Adjust No
CPU Vcore 1.750V
DRAM Voltage Adjust 3.3V
Chassis Intrusion Disabled
CPU Temperature 29°C/84°F
System Temperature 39°C/102°F
CPU Fan Speed 6124 RPM
System Fan Speed 0 RPM
Vcore 1.71V
Vtt 1.50V
Vio 3.26V
+ 5.0V 4.92V
+12.0V 11.40V
–12.0V –11.56V
– 5.0V – 4.99V
Battery 3.22V
+5V SB 4.87V

Introduction
1-11
Live BIOS™ & Live Driver™
The Live BIOS™ & Live Driver™ is a tool used to detect
and update your BIOS and drivers online so that you don’t
need to search for the correct BIOS or drivers version through
the whole web site. To use the function, you need to install the
“MSI Live Update Series” application. After installation, the
“MSI Live Update Series” icon (as the right view) will appear on the screen.
Double click the “MSI Live Update Series” icon, and the following
screen will appear.
Four buttons are placed on the left column of the screen. Click the
desired button to start the update process.
 
 
 Live BIOS – Updates the BIOS online. If your motherboard does
not support the function, the “sorry” message is displayed.
 
 
 Live Driver – Updates the drivers online. If your motherboard
does not support the function, the “sorry” message is displayed.
 
 
 Live VGA BIOS – Updates the VGA BIOS online. If your VGA
device does not support the function, the “sorry” message appears.
 
 
 Live VGA Driver – Updates the VGA driver online. If your VGA
device does not support the function, the “sorry” message is
displayed.
For more information on the update instructions, insert the companion
CD and refer to the “Live Update Series Guide” under the “Manual” tab.

Hardware Setup
2-1
Hardware Setup
This chapter provides you with the information about hardware setup
procedures. While doing the installation, be careful in holding the compo-
nents and follow the installation procedures. For some components, if you
install in the wrong orientation, the components will not work properly.
Use a grounded wrist strap before handling computer components.
Static electricity may damage the components.
This chapter contains the following topics:
Central Processing Unit (CPU) 2-2
Memory 2-5
Power Supply 2-7
BackPanel 2-9
Connectors 2-13
Jumpers 2-27
Slots 2-28
2
Chapter 2. Hardware Setup

Chapter 2
2-2

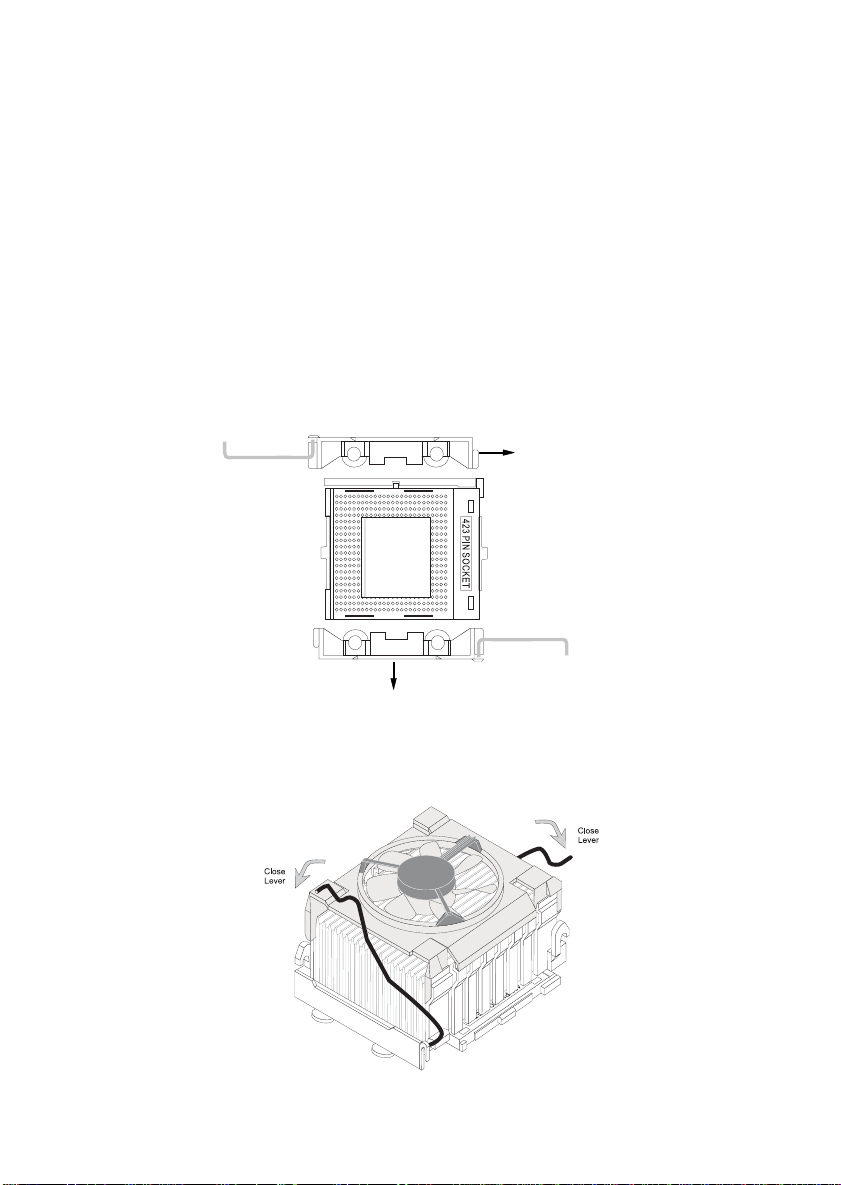

Central Processing Unit: CPU
The mainboard supports Intel®Pentium®4 processor. The mainboard
uses a CPU socket called Socket 423 for easy CPU installation. Make sure
that the CPU has a Heat Sink and a cooling fan attached to prevent
overheating. If you do not find the Heat Sink and cooling fan, contact your
dealer or purchase them before turning on the computer.
Overheating will seriously damage the CPU
and system, always make sure the cooling fan can work
properly to protect the CPU from overheating.
WARNING!
1. Pull the lever sideways away
from the socket. Then, raise
the lever up to a 90-degree
angle.
2. Look for the gold arrow.
The gold arrow should point
towards the end of lever.
The CPU will only fit in the
correct orientation.
3. Hold the CPU down firmly,
and then close the lever to
complete the installation.
CPU Installation Procedures

Hardware Setup
2-3
Installing the CPU Fan
As processor technology pushes to faster speeds and higher
performance, thermal management becomes increasingly important. To
dissipate heat, you need to attach the CPU cooling fan and heatsink on top
of the CPU. The Pentium 4 has its specific CPU fan. Unproper CPU fan may
lead to overheating problem that will damage the CPU. Therefore, make sure
you use the appropriate CPU fan. Follow the instructions below to install
the Heatsink/Fan:
2. Position the fan module onto the retention mechanism. Close the levers
to fix the attachment.
1. Open the levers of the retention mechanism.
Retention mechanism
Open lever
Open lever
Retention mechanism

Chapter 2
2-4
CPU Core Speed Derivation Procedure
If CPUClock = 100MHz
Core/Bus ratio = 14
then CPU core speed = Host Clock x Core/Bus ratio
= 100MHzx14
= 1.4GHz
Overclocking
This motherboard is designed to support overclocking.
However, please make sure your components are able to
tolerate such abnormal setting, while doing overclocking.
Any attempt to operate beyond product specifications is
not recommended. We do not guarantee the damages or
risks caused by inadequate operation or beyond product
specifications.
If you overclock the CPU FSB clock over 160MHz, the use
of PC150 or better DRAM modules is strongly
recommended.
WARNING!

Hardware Setup
2-5
Intel
845
chipset
The mainboard supports a maximum memory size of 3GB. It provides
three 168-pin unbuffered SDRAM DIMM (Double In-Line Memory Module)
sockets and supports 64MB to 1GB technology.
Memory
DIMM Slots
(DIMM 1~3)
Introduction to SDRAM
Synchronous DRAM (SDRAM) is a type of dynamic RAM memory
chip that has been widely used starting in the latter part of the 1990s. SDRAMs
are based on standard dynamic RAM chips, but have sophisticated features
that make them considerably faster. First, SDRAM chips are fast enough to be
synchronized with the CPU's clock, which eliminates wait states. Second, the
SDRAM chip is divided into two cell blocks, and data is interleaved between
the two so that while a bit in one block is being accessed, the bit in the other is
being prepared for access. This allows SDRAM to burst the second and
subsequent, contiguous characters at a rate of 10ns, compared to 60ns for the
first character.
SDRAM provides 800 MBps or 1 GBps data transfer depending on
whether the bus is 100MHz or 133MHz.

Chapter 2
2-6
You can install one or more DIMM modules in the following
combination:
DIMM Modules Combination
DIMM Socket Memory Module Total Memory
Socket 1
(Bank 0 & Bank 1) 64MB, 128MB, 256MB, 512MB, 1GB 64MB ~ 1GB
Socket 2
(Bank 2 & Bank 3) 64MB, 128MB, 256MB, 512MB, 1GB 64MB ~ 1GB
Socket 3
(Bank 4 & Bank 5) 64MB, 128MB, 256MB, 512MB, 1GB 64MB ~ 1GB
Total System Memory 64MB ~ 3GB
1. The DIMM slot has 2 Notch Keys “VOLT and DRAM”, so the DIMM
memory module can only fit in one direction.
2. Insert the DIMM memory module vertically into the DIMM slot. Then
push it in.
3. The plastic clip at each side of the DIMM slot will automatically
close.
VOLTDRAM
Front View Rear View
Installing DIMM Modules
Note: As 845 chipset does not properly support the PC100 memory, it
is strongly recommended to install PC133 DIMM modules for the
better system performance and stability. We do not guarantee the
system stability when installing PC 100 DIMM modules.

Hardware Setup
2-7
Intel
845
chipset
Power Supply
ATX 20-Pin Power Connector
This connector allows you to connect to an ATX power supply. To
connect to the ATX power supply, make sure the plug of the power supply is
inserted in the proper orientation and the pins are aligned. Then push down
the power supply firmly into the connector.
ATX
Power Connector
The mainboard supports ATX power supply for the power system.
Before inserting the power supply connectors, always make sure that all com-
ponents are installed properly to ensure that no damage will be caused.
10
1
20
11
PIN SIGNAL
11 3.3V
12 -12V
13 GND
14 PS_ON
15 GND
16 GND
17 GND
18 -5V
19 5V
20 5V
PIN SIGNAL
1 3.3V
2 3.3V
3 GND
45V
5 GND
65V
7 GND
8 PW_OK
9 5V_SB
10 12V

Chapter 2
2-8
Intel
845
chipset
ATX 12V Power Connector: JPW1
Attaching the ATX power supply to the connector helps offering suf-
ficient voltage to Pentium 4 CPU.
12
34
JPW1
PIN SIGNAL
1 GND
2 GND
3 12V
4 12V
Note: We strongly recommend users to purchase and use the ATX
power supply that comes with the 12V connector. Otherwise, the
system might become unstable without connection of the 12V power
connector after a period of time .

Hardware Setup
2-9
The Back Panel provides the following connectors:
Mouse Connector
The mainboard provides a standard PS/2®mouse mini DIN connector
for attaching a PS/2®mouse. You can plug a PS/2®mouse directly into this
connector.
Back Panel
PS/2 Mouse (6-pin Female)
21
3
4
5
6PIN SIGNAL DESCRIPTION
1 Mouse DATA Mouse DATA
2 NC No connection
3 GND Ground
4 VCC +5V
5 Mouse Clock Mouse clock
6 NC No connection
Pin Definition
Mouse
Keyboard USB
Parallel
COM A COM B L-out L-in MIC
Midi/Joystick
