MSI B350M BAZOOKA User manual

I
Quick Start
Quick Start
Thank you for purchasing the MSI®B350M BAZOOKA/ A320M
BAZOOKA motherboard. This Quick Start section provides
demonstration diagrams about how to install your computer. Some
of the installations also provide video demonstrations. Please link
to the URL to watch it with the web browser on your phone or tablet.
You may have even link to the URL by scanning the QR code.
Kurzanleitung
Danke, dass Sie das MSI®B350M BAZOOKA/ A320M BAZOOKA
Motherboard gewählt haben. Dieser Abschnitt der Kurzanleitung
bietet eine Demo zur Installation Ihres Computers. Manche
Installationen bieten auch die Videodemonstrationen. Klicken Sie
auf die URL, um diese Videoanleitung mit Ihrem Browser auf Ihrem
Handy oder Table anzusehen. Oder scannen Sie auch den QR Code
mit Ihrem Handy, um die URL zu öffnen.
Présentation rapide
Merci d’avoir choisi la carte mère MSI®B350M BAZOOKA/ A320M
BAZOOKA. Ce manuel fournit une rapide présentation avec des
illustrations explicatives qui vous aideront à assembler votre
ordinateur. Des tutoriels vidéo sont disponibles pour certaines
étapes. Cliquez sur le lien fourni pour regarder la vidéo sur votre
téléphone ou votre tablette. Vous pouvez également accéder au lien
en scannant le QR code qui lui est associé.
Быстрый старт
Благодарим вас за покупку материнской платы MSI®B350M
BAZOOKA/ A320M BAZOOKA. Вэтом разделе представлена
информация, которая поможет вам при сборке комьютера.
Для некоторых этапов сборки имеются видеоинструкции.
Для просмотра видео, необходимо открыть
соответствующую ссылку ввеб-браузере на вашем телефоне
или планшете. Вы также можете выполнить переход по
ссылке, путем сканирования QR-кода.

II Quick Start

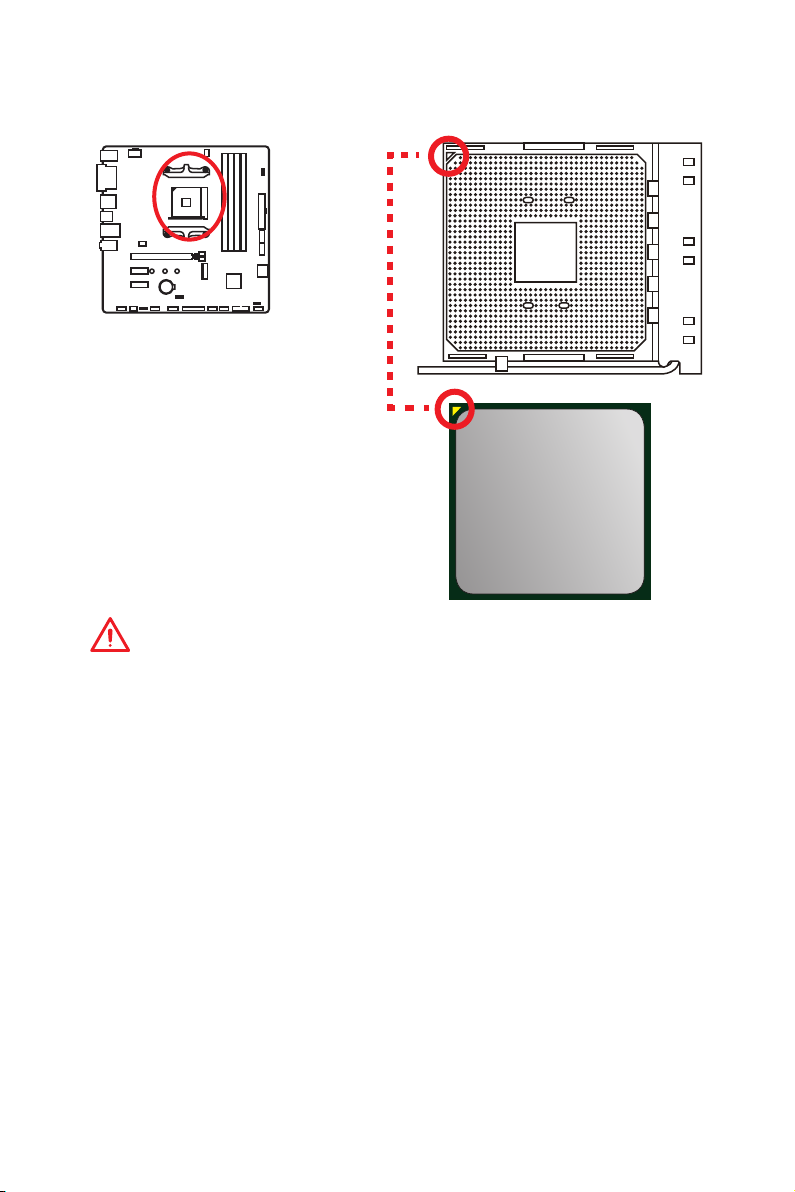

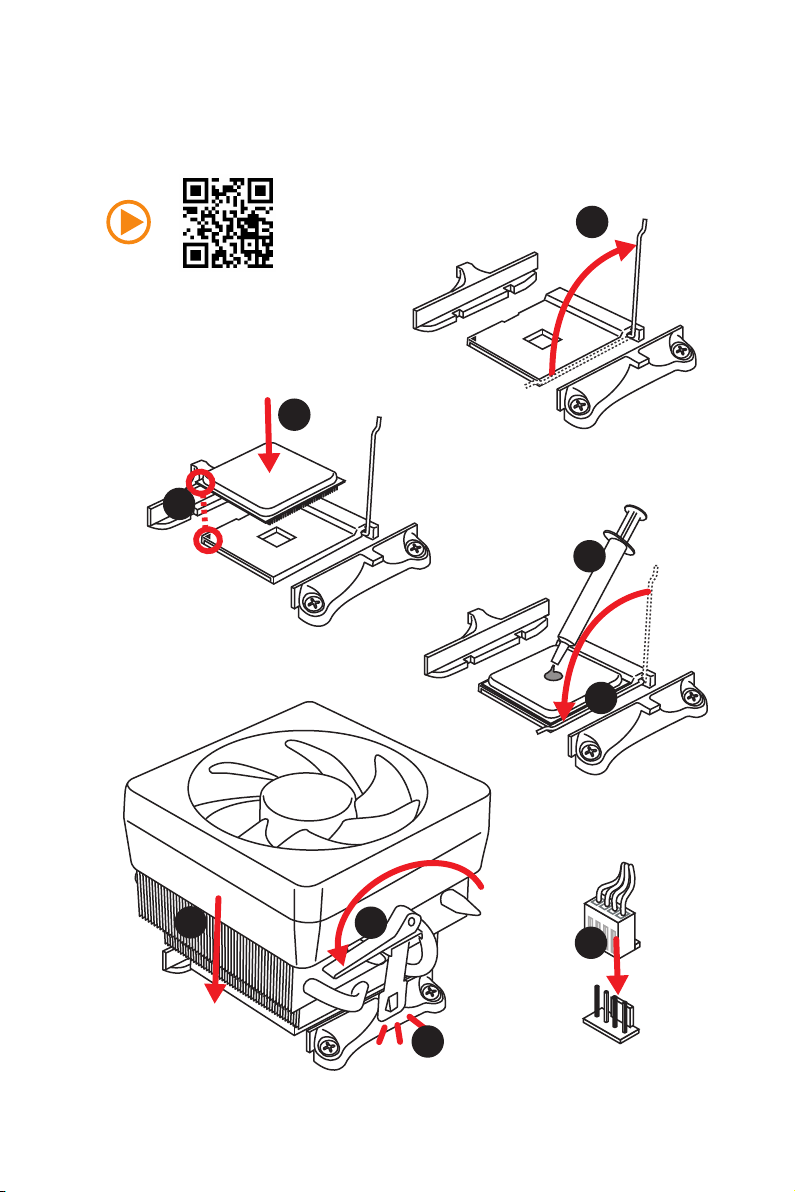

Installing a Processor/ Installation des Prozessors/ Installer un
processeur/ Установка процессора
1
2
3
6
4
5
7
89
https://youtu.be/Xv89nhFk1vc

III
Quick Start

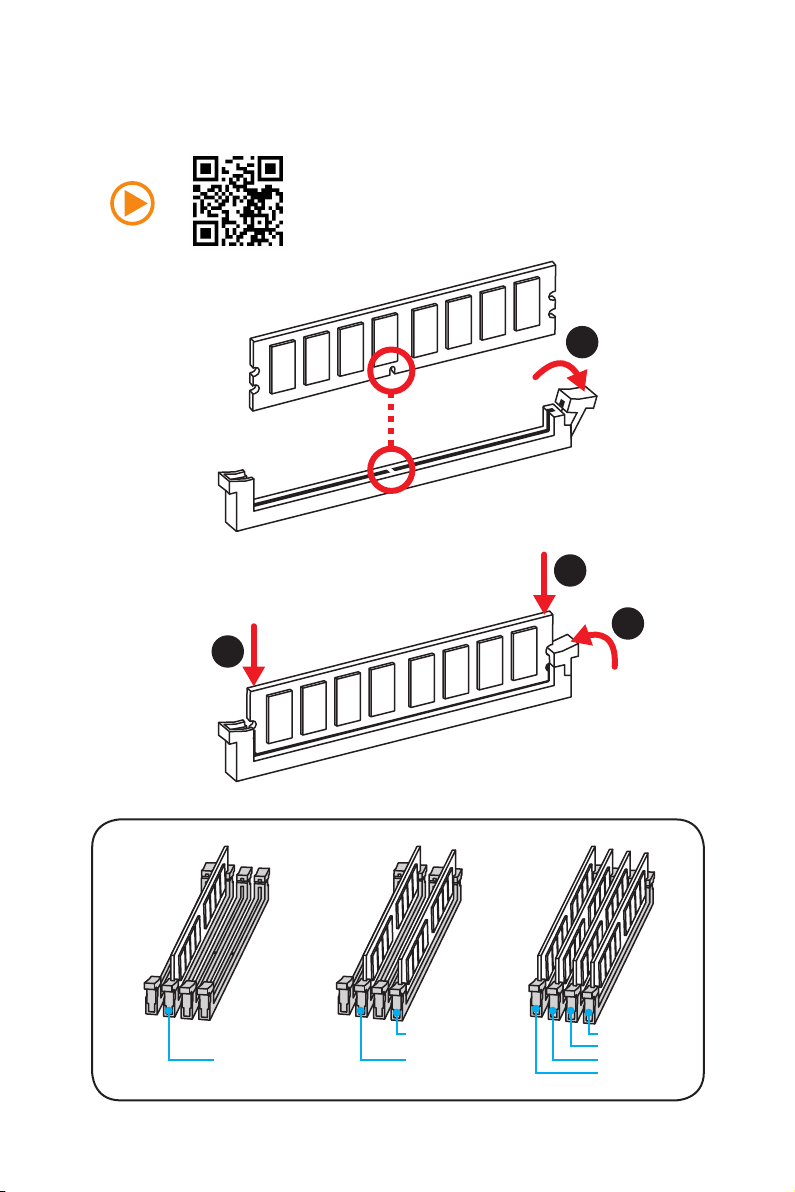

Installing DDR4 memory/ Installation des DDR4-Speichers/
Installer une mémoire DDR4/ Установка памяти DDR4
http://youtu.be/T03aDrJPyQs
DIMMB2 DIMMB2
DIMMB1
DIMMA2 DIMMA2 DIMMA2
DIMMA1
1
2
2
3

IV Quick Start
http://youtu.be/DPELIdVNZUI
1
2 10
9
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED
HDD LED
RESET SW
JFP1
HDD LED HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
Connecting the Front Panel Header/ Anschließen der
Frontpanel-Stiftleiste/ Connecter un connecteur du panneau
avant/ Подключение разъемов передней панели

V
Quick Start

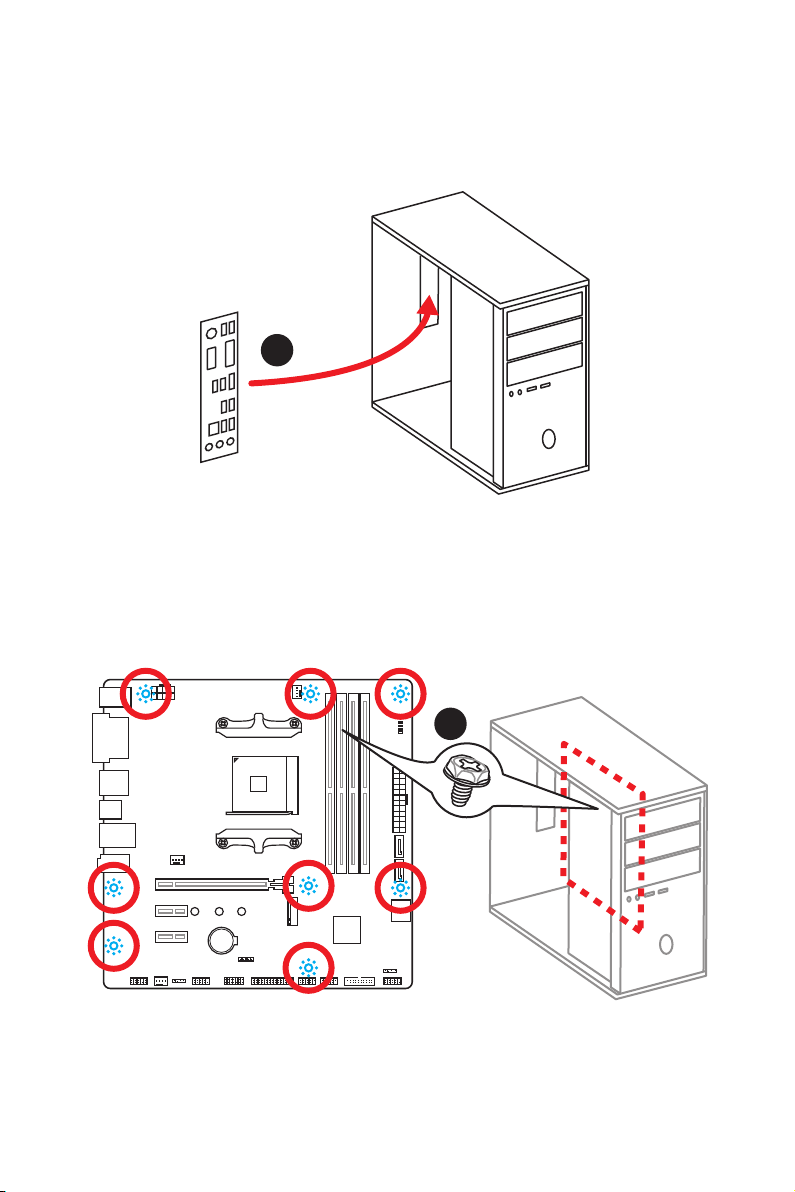

Installing the Motherboard/ Installation des Motherboards/
Installer la carte mère/ Установка материнской платы
1
2

VI Quick Start

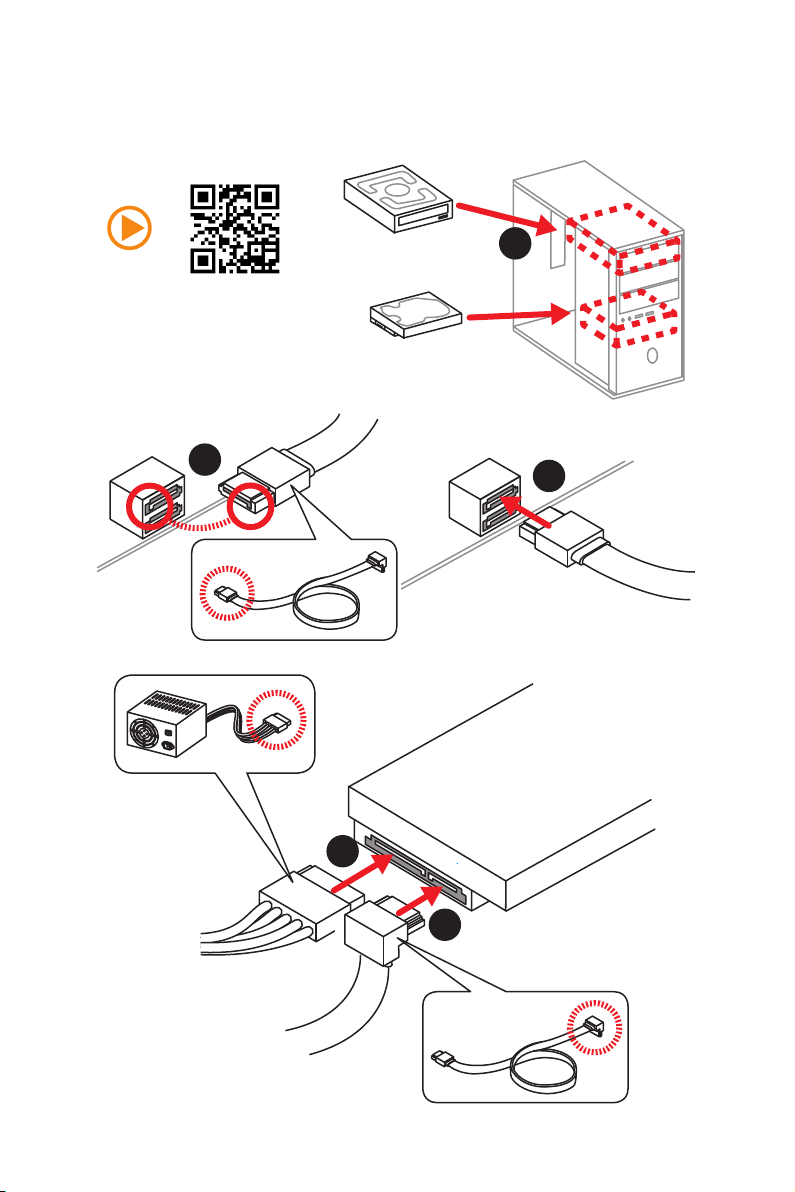

Installing SATA Drives/ Installation der SATA-Laufwerke/
Installer le disque dur SATA/ Установка дисков SATA
http://youtu.be/RZsMpqxythc
1
23
4
5

VII
Quick Start

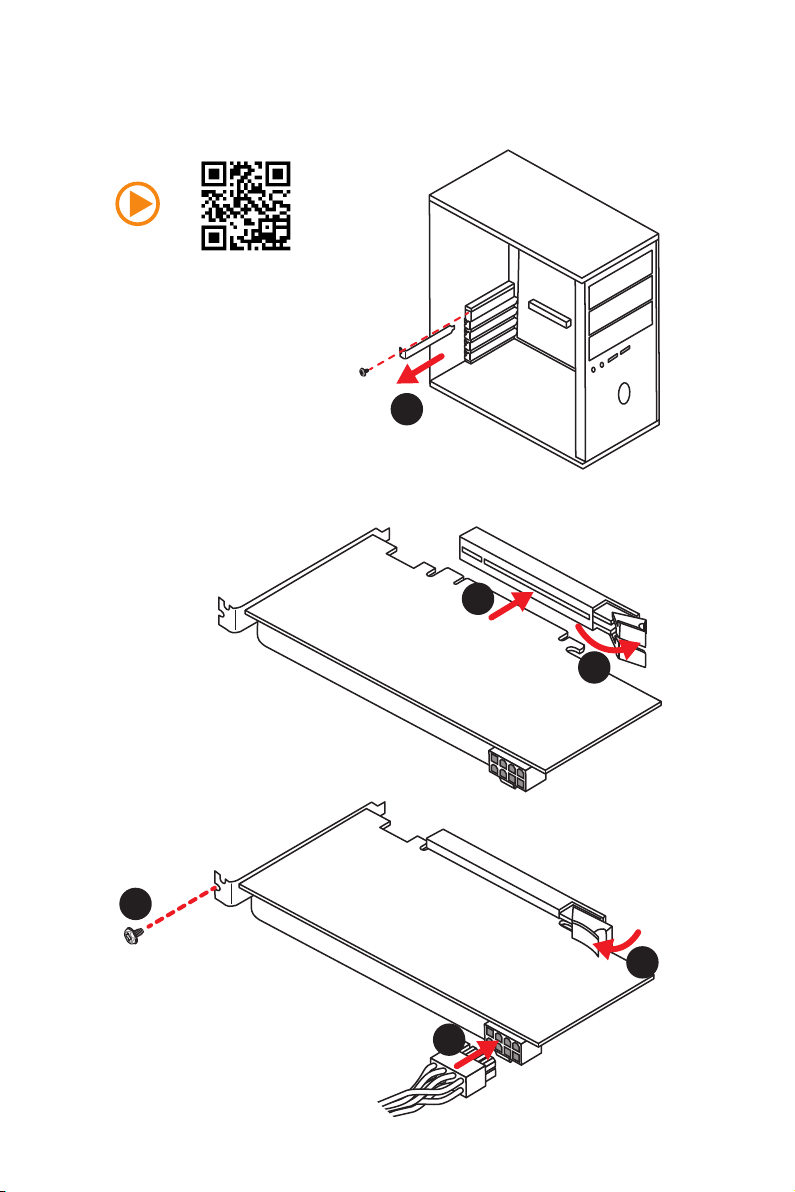

Installing a Graphics Card/ Einbau der Grafikkarte/ Installer
une carte graphique/ Установка дискретной видеокарты
http://youtu.be/mG0GZpr9w_A
1
2
3
4
5
6

VIII Quick Start
Connecting Peripheral Devices/ Peripheriegeräte/
Connecter un périphérique anschliessen/ Подключение
периферийных устройств
(7th Gen A-series/ Athlon™ processor)

IX
Quick Start

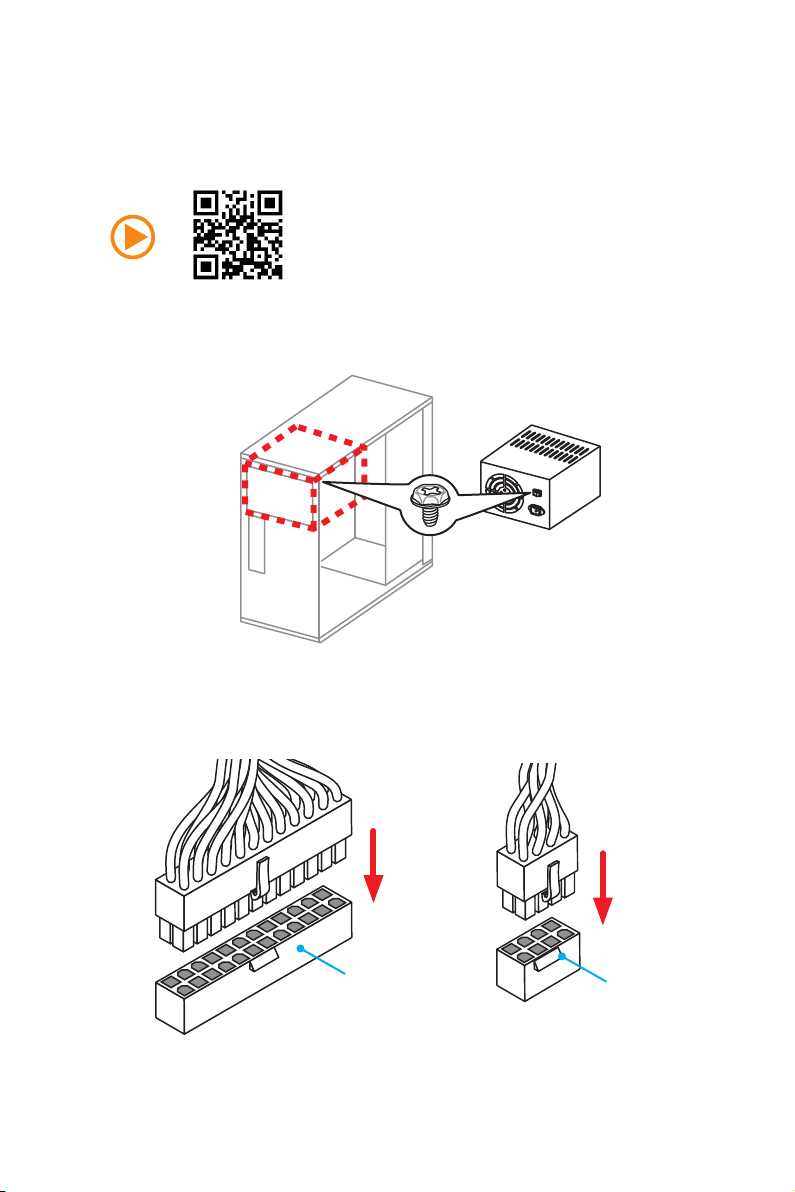

Connecting the Power Connectors/ Stromanschlüsse
anschliessen/ Connecter les câbles du module d’alimentation/
Подключение разъемов питания
http://youtu.be/gkDYyR_83I4
ATX_PWR1 CPU_PWR1

XQuick Start
1
4
2
3
Power On/ Einschalten/ Mettre sous-tension/ Включение
питания

1
Contents
Contents
Safety Information................................................................................................. 2
Specifications......................................................................................................... 3

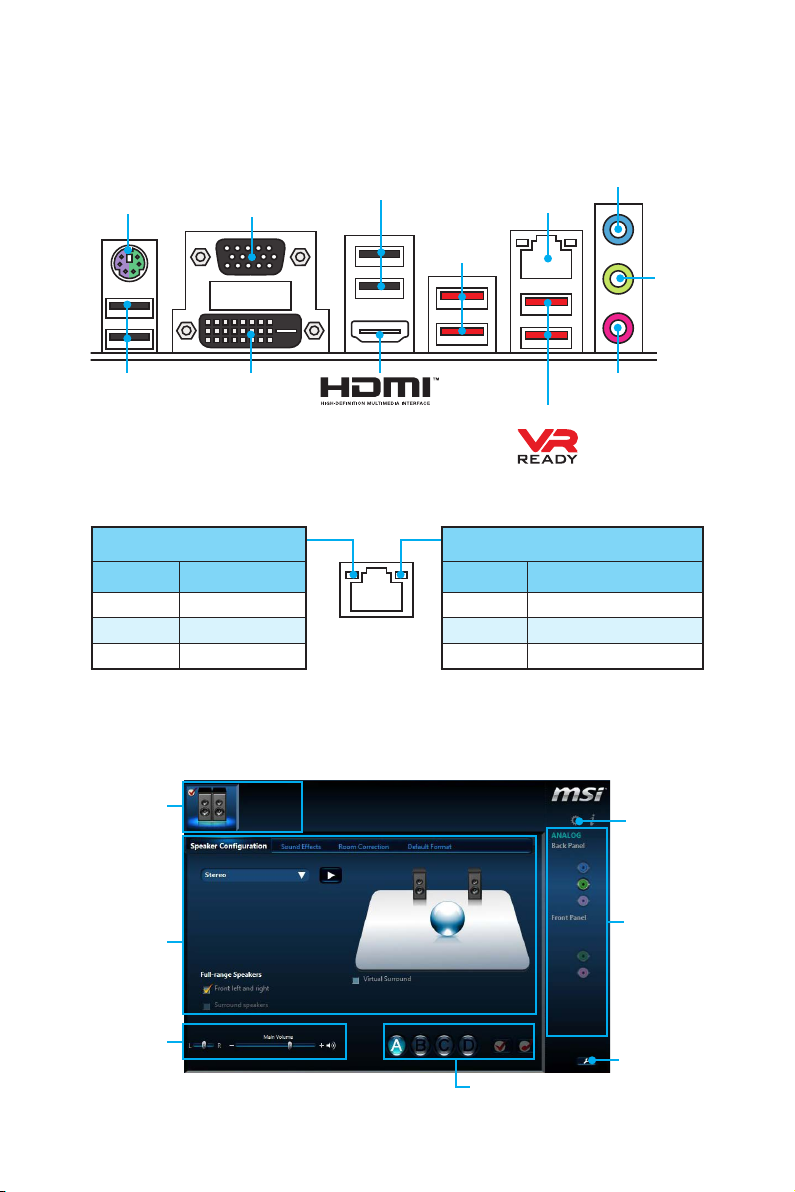

Rear I/O Panel ....................................................................................................... 7
LAN Port LED Status Table..................................................................................... 7
Realtek HD Audio Manager .................................................................................... 7
Overview of Components ...................................................................................... 9
CPU Socket ........................................................................................................... 10
DIMM Slots............................................................................................................ 11
PCI_E1~3: PCIe Expansion Slots.......................................................................... 12
SATA1~4: SATA 6Gb/s Connectors ....................................................................... 12
M2_1: M.2 Slot (Key M)......................................................................................... 13
JAUD1: Front Audio Connector ............................................................................ 14
JFP1, JFP2: Front Panel Connectors................................................................... 14
JTPM1: TPM Module Connector........................................................................... 14
CPU_PWR1, ATX_PWR1: Power Connectors ....................................................... 15
JLPT1: Parallel Port Connector ........................................................................... 15
JUSB1~2: USB 2.0 Connectors............................................................................. 16
JUSB3: USB 3.1 Gen1 Connector ......................................................................... 16
CPU_FAN1, SYS_FAN1~2: Fan Connectors.......................................................... 17
JCI1: Chassis Intrusion Connector....................................................................... 18
JCOM1: Serial Port Connector ............................................................................. 18
JLED1: RGB LED strip connector......................................................................... 19
JBAT1: Clear CMOS (Reset BIOS) Jumper........................................................... 20
GPU LED ............................................................................................................... 20
EZ Debug LEDs..................................................................................................... 20
BIOS Setup........................................................................................................... 21
Entering BIOS Setup............................................................................................. 21
Resetting BIOS...................................................................................................... 22
Updating BIOS....................................................................................................... 22
EZ Mode ................................................................................................................ 23
Advanced Mode .................................................................................................... 25
OC Menu................................................................................................................ 26
Software Description........................................................................................... 29
Installing Windows®7 64-bit/ Windows®10 64-bit............................................... 29
Installing Drivers .................................................................................................. 29
Installing Utilities ................................................................................................. 30

2Safety Information
Safety Information
yThe components included in this package are prone to damage from electrostatic
discharge (ESD). Please adhere to the following instructions to ensure successful
computer assembly.
yEnsure that all components are securely connected. Loose connections may cause
the computer to not recognize a component or fail to start.
yHold the motherboard by the edges to avoid touching sensitive components.
yIt is recommended to wear an electrostatic discharge (ESD) wrist strap when
handling the motherboard to prevent electrostatic damage. If an ESD wrist strap
is not available, discharge yourself of static electricity by touching another metal
object before handling the motherboard.
yStore the motherboard in an electrostatic shielding container or on an anti-static
pad whenever the motherboard is not installed.
yBefore turning on the computer, ensure that there are no loose screws or metal
components on the motherboard or anywhere within the computer case.
yDo not boot the computer before installation is completed. This could cause
permanent damage to the components as well as injury to the user.
yIf you need help during any installation step, please consult a certified computer
technician.
yAlways turn off the power supply and unplug the power cord from the power outlet
before installing or removing any computer component.
yKeep this user guide for future reference.
yKeep this motherboard away from humidity.
yMake sure that your electrical outlet provides the same voltage as is indicated on
the PSU, before connecting the PSU to the electrical outlet.
yPlace the power cord such a way that people can not step on it. Do not place
anything over the power cord.
yAll cautions and warnings on the motherboard should be noted.
yIf any of the following situations arises, get the motherboard checked by service
personnel:
Liquid has penetrated into the computer.
The motherboard has been exposed to moisture.
The motherboard does not work well or you can not get it work according to user
guide.
The motherboard has been dropped and damaged.
The motherboard has obvious sign of breakage.
yDo not leave this motherboard in an environment above 60°C (140°F), it may damage
the motherboard.

3
Specifications
Specifications
CPU Supports AMD®RYZEN series processors and 7th Gen
A-series/ Athlon™ processors for Socket AM4
Chipset AMD® B350 Chipset (B350M BAZOOKA)
AMD® A320 Chipset (A320M BAZOOKA)
Memory
y4x DDR4 memory slots, support up to 64GB
Support DDR4 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/
3200(OC)+ Mhz* (B350M BAZOOKA)
Support DDR4 1866/ 2133/ 2400/ 2667(OC) Mhz* (A320M
BAZOOKA)
yDual channel memory architecture
ySupport ECC UDIMM memory (non-ECC mode)
ySupport non-ECC UDIMM memory
* 7th Gen A-series/ Athlon processors support a maximum of DDR4 2400 Mhz.
Please refer www.msi.com for more information on compatible memory.
Expansion Slots
y1x PCIe 3.0 x16 slot
RYZEN series processors support x16 mode
7th Gen A-series/ Athlon™ processors support x8 mode
y2x PCIe 2.0 x1 slots
Onboard Graphics
y1x VGA port, supports a maximum resolution of
2048x1280@60Hz, 1920x1200@60Hz*
y1x DVI-D port, supports a maximum resolution of
1920x1200@60Hz*
y1x HDMI™ port, supports a maximum resolution of
4096x2160@24Hz*
* Only support when using a 7th Gen A-series/ Athlon™ processor
Storage
AMD®B350/ A320 Chipset
y4x SATA 6Gb/s ports*
Support RAID 0, RAID 1 and RAID 10
y1x M.2 port (Key M)
Supports PCIe 3.0 x4 (RYZEN Series Processors) or PCIe
3.0 x2 (7th Gen A-series/ Athlon™ processors ) and SATA
6Gb/s 2242/ 2260 /2280 storage devices
Audio yRealtek®ALC892 Codec
y7.1-Channel High Definition Audio
LAN y1x Realtek®8111H Gigabit LAN controller
Continued on next page

4Specifications
Continued from previous page
USB
yAMD®B350 Chipset (B350M BAZOOKA)
2x USB 3.1 Gen1 (SuperSpeed USB) ports available
through the internal USB 3.1 Gen1 connector
8x USB 2.0 (High-speed USB) ports (4 Type-A ports on
the back panel, 4 ports available through the internal
USB 2.0 connectors)
yAMD®A320 Chipset (A320M BAZOOKA)
2x USB 3.1 Gen1 (SuperSpeed USB) ports available
through the internal USB 3.1 Gen1 connector
6x USB 2.0 (High-speed USB) ports (2 Type-A ports on
the back panel, 4 ports available through the internal
USB 2.0 connectors)
yAMD®processor
4x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the
back panel
Back Panel
Connectors
y1x PS/2 keyboard/ mouse combo port
y4x USB 2.0 Type-A ports (B350M BAZOOKA)
y2x USB 2.0 Type-A ports (A320M BAZOOKA)
y1x VGA port
y1x DVI-D port
y1x HDMI™ port
y4x USB 3.1 Gen1 Type-A ports
y1x LAN (RJ45) port
y3x audio jacks
Continued on next page

5
Specifications
Continued from previous page
Internal Connectors
y1x 24-pin ATX main power connector
y1x 8-pin ATX 12V power connector
y4x SATA 6Gb/s connectors
y2x USB 2.0 connectors (supports additional 4 USB 2.0
ports)
y1x USB 3.1 Gen1 connector (supports additional 2 USB 3.1
Gen1 ports)
y1x 4-pin CPU fan connector
y2x 4-pin system fan connectors
y1x Front panel audio connector
y2x Front panel connectors
y1x TPM module connector
y1x Chassis Intrusion connector
y1x Serial port connector
y1x Parallel port connector
y1x RGB LED strip connector
y1x Clear CMOS jumper
I/O Controller NUVOTON NCT6795D Controller Chip
Hardware Monitor
yCPU/System temperature detection
yCPU/System fan speed detection
yCPU/System fan speed control
Form Factor yMicro-ATX Form Factor
y9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
BIOS Features
y1x 128 Mb flash
yUEFI AMI BIOS
yACPI 5.0, SM BIOS 3.0
yMulti-language
Continued on next page

6Specifications
Continued from previous page
Software
yDrivers
ySUPER CHARGER
yCOMMAND CENTER
yLIVE UPDATE 6
yMSI SMART TOOL
yDRAGON EYE
yGAMING APP
yX-BOOST
yRAMDISK
yGAMING LAN MANAGER
ySteelSeries Engine 3
yCPU-Z MSI GAMING
yGoogle Chrome™,Google Toolbar, Google Drive
yNorton™Internet Security Solution
Special Features
yAudio Boost
yGAMING LAN with Gaming LAN Manager
ySmart Fan Control
yTurbo M.2
yMystic Light Extension
yGaming DNA with bottom LED
yMystic light SYNC
yEZ DEBUG LED
yPCI-E Steel Armor
yDDR4 Boost
yGAME Boost
yMilitary Class 4
y7000+ Quality Test
yVR Ready
yGAMING HOTKEY
yGAMING MOUSE Control
yClick BIOS 5
yAMD FreeSync™ Ready
yAMD OverDriver™ Ready
yGAMING Certified
ySteelSeries Certified
yWTFast*
* This offer is valid for a limited period only, for more information please visit
www.msi.com

7
Rear I/O Panel
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
LAN Port LED Status Table
Rear I/O Panel
PS/2 LAN
USB 2.0
(only for B350M BAZOOKA) Line-in
DVI-D
VGA
USB 3.1
Gen1
USB 3.1 Gen1
Line-out
Mic-in
Realtek HD Audio Manager
After installing the Realtek HD Audio driver, the Realtek HD Audio Manager icon will
appear in the system tray. Double click on the icon to launch.
Jack Status
Device
Selection
Connector
Strings
Profiles
Main Volume
Application
Enhancement
Advanced
Settings
USB 2.0

8Rear I/O Panel
yDevice Selection - allows you to select a audio output source to change the related
options. The check sign indicates the devices as default.
yApplication Enhancement - the array of options will provide you a complete
guidance of anticipated sound effect for both output and input device.
yMain Volume - controls the volume or balance the right/left side of the speakers
that you plugged in front or rear panel by adjust the bar.
yProfiles - toggles between profiles.
yAdvanced Settings - provides the mechanism to deal with 2 independent audio
streams.
yJack Status - depicts all render and capture devices currently connected with your
computer.
yConnector Settings - configures the connection settings.
Audio 7.1-channel Configuration
To configure 7.1-channel audio, you have to connect front audio I/O module to JAUD1
connector and follow the below steps.
1. Click on the Advanced Settings to open the dialog below.
2. Select Mute the rear output device, when a front headphone plugged in.
3. Plug your speakers to audio jacks on rear and front I/O panel. When you plug into
a device at an audio jack, a dialogue window will pop up asking you which device is
current connected.

9
Overview of Components
Overview of Components
SATA2
SATA1
SATA▼3▲4
CPU_FAN1
PCI_E1
PCI_E2
PCI_E3
CPU Socket
CPU_PWR1
M2_1
DIMMA1
SYS_FAN1
JTPM1
JFP2
JCI1
DIMMA2
DIMMB1
DIMMB2
JFP1
JUSB3
JUSB2
SYS_FAN2
JCOM1
JUSB1
JLPT1
JAUD1
JLED1
ATX_PWR1
JBAT1

10 Overview of Components
CPU Socket
Introduction to the AM4 CPU
The surface of the AM4 CPU has a
yellow triangle to assist in correctly
lining up the CPU for motherboard
placement. The yellow triangle is
the Pin 1 indicator.
Important
y When changing the processor, the system configuration could be cleared and reset
BIOS to default values, due to the AM4 processor’s architecture.
y Always unplug the power cord from the power outlet before installing or removing
the CPU.
y When installing a CPU, always remember to install a CPU heatsink. A CPU heatsink
is necessary to prevent overheating and maintain system stability.
y Confirm that the CPU heatsink has formed a tight seal with the CPU before booting
your system.
y Overheating can seriously damage the CPU and motherboard. Always make sure
the cooling fans work properly to protect the CPU from overheating. Be sure to
apply an even layer of thermal paste (or thermal tape) between the CPU and the
heatsink to enhance heat dissipation.
y If you purchased a separate CPU and heatsink/ cooler, Please refer to the
documentation in the heatsink/ cooler package for more details about installation.
y This motherboard is designed to support overclocking. Before attempting to
overclock, please make sure that all other system components can tolerate
overclocking. Any attempt to operate beyond product specifications is not
recommended. MSI
®
does not guarantee the damages or risks caused by
inadequate operation beyond product specifications.
