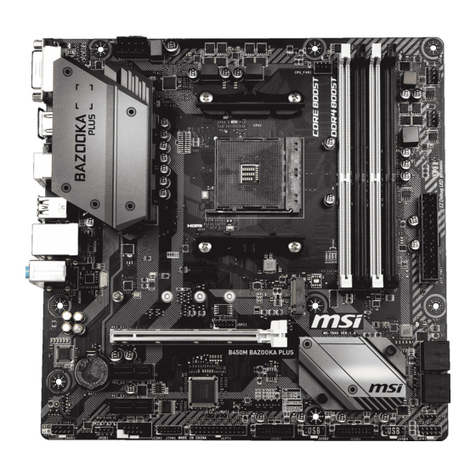

UEFI BIOS

MSI UEFI BIOS is compatible with UEFI (Unified Extensible Firmware Interface)

architecture. UEFI has many new functions and advantages that traditional BIOS

cannot achieve, and it will completely replace BIOS in the future. The MSI UEFI

BIOS uses UEFI as the default boot mode to take full advantage of the new chipset’s

capabilities. However, it still has a CSM (Compatibility Support Module) mode to be

compatible with older devices. That allows you to replace legacy devices with UEFI

compatible devices during the transition.

⚠

Important

The term BIOS in this user guide refers to UEFI BIOS unless otherwise noted.

UEFI advantages

∙Fast booting - UEFI can directly boot the operating system and save the BIOS self-

test process. And also eliminates the time to switch to CSM mode during POST.

∙Supports for hard drive partitions larger than 2 TB.

∙Supports more than 4 primary partitions with a GUID Partition Table (GPT).

∙Supports unlimited number of partitions.

∙Supports full capabilities of new devices - new devices may not provide backward

compatibility.

∙Supports secure startup - UEFI can check the validity of the operating system to

ensure that no malware tampers with the startup process.

Incompatible UEFI cases

∙32-bit Windows operating system - this motherboard supports only Windows 10 64-

bit operating system.

∙Older graphics card - the system will detect your graphics card. When display a

warning message There is no GOP (Graphics Output protocol) support detected in this

graphics card.

⚠

Important

We recommend that you to replace with a GOP/UEFI compatible graphics card or

using integrated graphics from CPU for having normal function.

How to find the BIOS version?

After entering the BIOS, find the BIOS version at the top of the screen.

MB:

CPU:

Memory Size:

BIOS Ver:

BIOS Buide Date:

4BIOS Setup

BIOS Setup

The default settings offer the optimal performance for system stability in normal

conditions. You should always keep the default settings to avoid possible system

damage or failure booting unless you are familiar with BIOS.

⚠

Important

∙

The BIOS setup screens, options and settings in this manual are for reference only

and may vary from the motherboard you purchased. Please refer to the actual BIOS

version of your system for detailed screens, settings and options.

∙

BIOS items are continuously updated for better system performance. Therefore, the

description may be slightly different from the latest BIOS and should be for reference

only. You could also refer to the HELP information panel for the BIOS item description.

∙

The BIOS options and settings for each motherboard may vary slightly with the BIOS

version, please refer to the actual BIOS of your system for settings and options.

Entering BIOS Setup

Press Delete key, when the Press DEL key to enter Setup Menu, F11 to enter Boot

Menu message appears on the screen during the boot process.

Function key

F1: General Help list

F2: Add/ Remove a favorite item

F3: Enter Favorites menu

F4: Enter CPU Specifications menu

F5: Enter Memory-Z menu

F6: Load optimized defaults

F7: Switch between Advanced mode and EZ mode

F8: Load Overclocking Profile

F9: Save Overclocking Profile

F10: Save Change and Reset*

F12: Take a screenshot and save it to USB flash drive (FAT/ FAT32 format only).

Ctrl+F: Enter Search page

* When you press F10, a confirmation window appears and it provides the modification

information. Select between Yes or No to confirm your choice.

BIOS Setup

BIOS Setting Mode

It provides two modes for you to configure BIOS: EZ mode and Advanced mode. Please

press F7 to switch between these two modes.

EZ Mode

At EZ mode, it provides the basic system information and allows you to configure the

basic setting. To configure the advanced BIOS settings, please enter the Advanced

Mode by pressing the Setup Mode switch or F7 function key.

XMP Profile

Component

Information

System

information

Boot device

priority bar

Function

buttons

Language

GAME BOOST/

CREATOR

GENIE

BIOS Search

Screenshot Smart Button

Setup Mode switch

M-Flash

Hardware

Monitor

Favorites

∙GAME BOOST - click on it to toggle the GAME BOOST for overclocking. This function

is only available when both of the motherboard and CPU are supporting this function.

⚠

Important

Please don’t make any changes in OC menu and don’t load defaults to keep the

optimal performance and system stability after activating the GAME BOOST function.

∙CREATOR GENIE - click on it to toggle the CREATOR GENIE for performance

optimization.

⚠

Important

Please don’t make any changes in OC menu and don’t load defaults to keep the

optimal performance and system stability after activating the CREATOR GENIE

function.

∙XMP Profile - allows you to select the XMP profile for memory to overclock. This

function is only available when the system, memory and CPU are supporting this

function.

6BIOS Setup

∙Setup Mode switch - press this tab or the F7 key to switch between Advanced mode

and EZ mode.

∙Screenshot - click on this tab or the F12 key to take a screenshot and save it to USB

flash drive (FAT/ FAT32 format only).

∙BIOS Search - click on this tab or the Ctrl+F keys to enter the search page. It allows

you to search by BIOS item name. Move the mouse over a blank space and right click

the mouse to exit the search page.

⚠

Important

In search page, only the F6, F10 and F12 function keys are available.

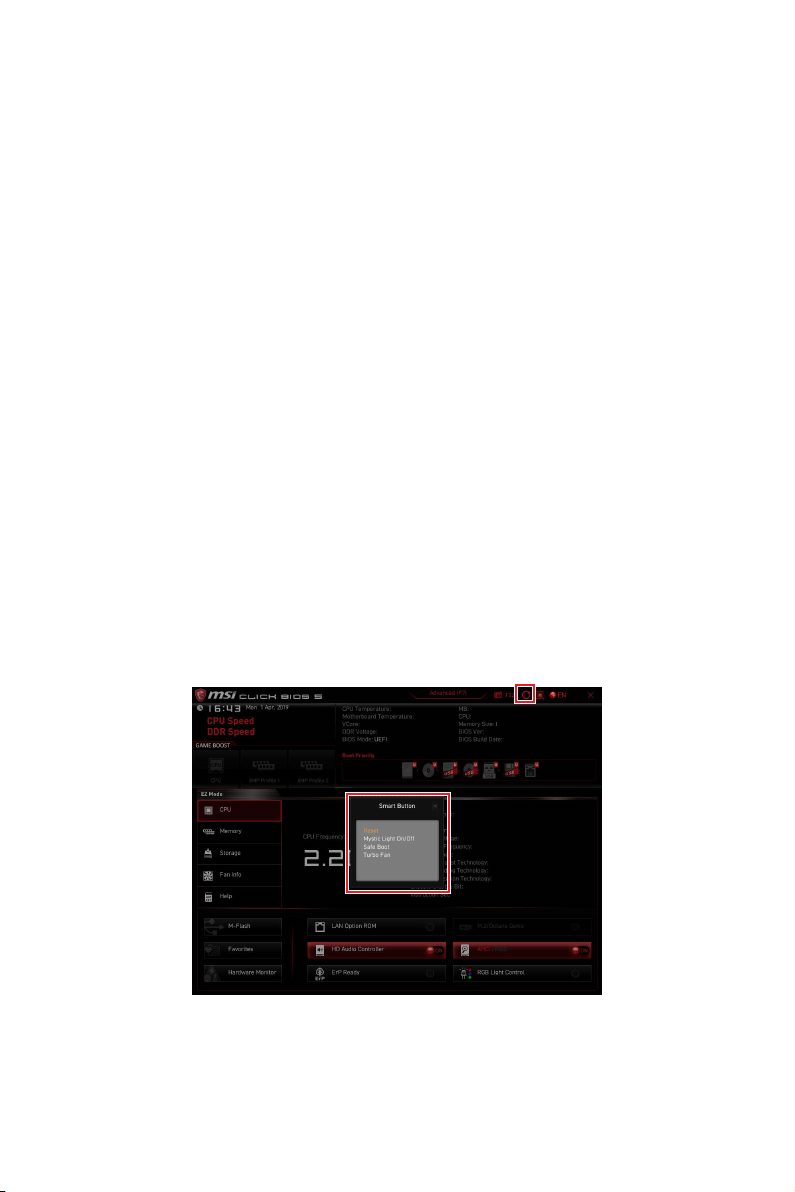

∙Smart Button - it provides 4 function modes to be achieved by reset button.

▪Reset - press the reset button to reset the system.

▪Mystic Light on/ off - press the reset button to turn on/ off all the onboard LEDs.

⚠

Important

The Mystic Light on/ off function mode is unavailable when the LED_SW1 (EZ LED

Control) switch turns OFF.

▪Safe Boot - press the reset button to reboot the system and the system will be

forced into BIOS with the previous BIOS settings.

▪Turbo Fan - press the reset button for all fans to operate full speed or default

speeds.

▪Configuring Smart Button

1. Click on Smart Button and select a function mode.

2. Press F10 to save the change and select Yes to restart the system.

BIOS Setup

∙Language - allows you to select language of BIOS setup.

∙System information - shows the CPU/ DDR speed, CPU/ MB temperature, MB/ CPU

type, memory size, CPU/ DDR voltage, BIOS version and build date.

∙Boot device priority bar - you can move the device icons to change the boot priority.

The boot priority from high to low is left to right.

∙Component Information - click on the CPU, Memory, Storage,Fan Info and Help

buttons to show the information of the connected device.

∙Function buttons - enable or disable the BIOS functions by clicking on these

buttons. The button shows ON after enableing the function .

▪CPU Fan Fail Warning Control - enables or disables to show the CPU fan fail

warning message on the POST.

▪M.2/Optane Genie - enables or disables the Optane function for NVMe or PCIe

storage devices.

▪Thunderbolt Control - enables or disables the thunderbolt I/O device support.

▪AHCI/RAID - select either AHCI or RAID mode for SATA devices.

▪ErP Ready - enables or disables the system power consumption according to

ErP regulation.

▪Debug Code LED Control - enables or disables the debug code LED.

▪HD Audio Controller - enables or disables the HD audio controller.

▪EZ LED Control - turns on or turns off all the LEDs of motherboard.

∙M-Flash - click on this button to enter the M-Flash menu that provides the way to

update BIOS with a USB flash drive.

∙Hardware Monitor - click on this button to enter the Hardware Monitor menu that

allows you to manually control the fan speed by percentage.

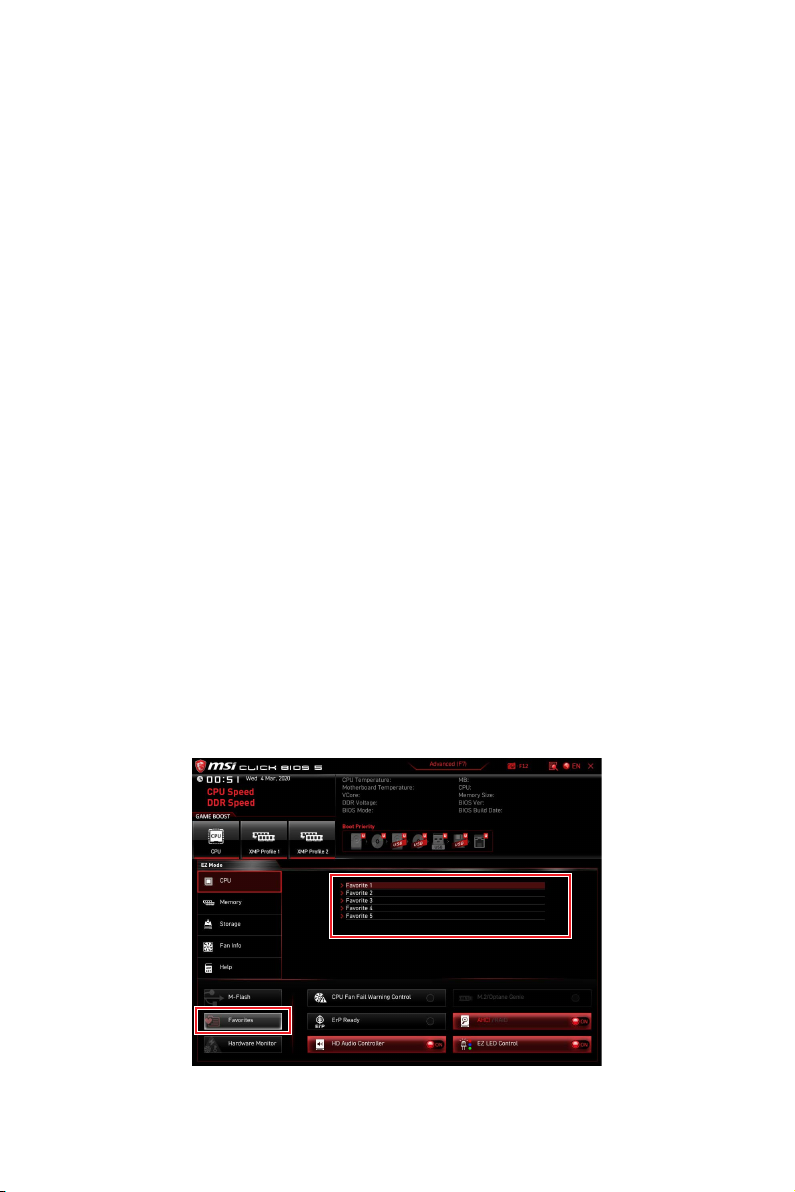

∙Favorites - click on this button or press the F3 key to show the Favorites window.

It provides 5 menus for you to create personal BIOS menu where you can save and

access favorite/ frequently-used BIOS setting items.

8BIOS Setup

▪To add a BIOS item to a favorite menu

1. Select a BIOS item not only on BIOS menu but also on search page.

2. Right-click or press F2 key.

3. Choose a favorite page and click on OK.

▪To delete a BIOS item from favorite menu

1. Select a BIOS item on favorite menu.

2. Right-click or press F2 key.

3. Choose Delete and click on OK.

BIOS Setup

Advanced Mode

Press Setup Mode switch or F7 function key can switch between EZ Mode and

Advanced Mode in BIOS setup.

BIOS menu

selection

Menu display

BIOS menu

selection

∙BIOS menu selection - the following options are available:

▪SETTINGS - allows you to specify the parameters for chipset and boot devices.

▪OC - allows you to adjust the frequency and voltage. Increasing the frequency

may get better performance.

▪M-FLASH - provides the way to update BIOS with a USB flash drive.

▪OC PROFILE - allows you to manage overclocking profiles.

▪HARDWARE MONITOR - allows you to set the speeds of fans and monitor

voltages of system.

▪Beta Runner - provides the beta functions or features for the user who craves

the new experience. However, we welcome and expect you to give us some more

feedback on user experience. That will be helpful in improving the functions.

▪Security - allows you to set the administrator password and the user password

for system security.

▪Menu display - provides BIOS setting items and information to be configured.

10 BIOS Setup

SETTINGS Menu

This menu allows you to specify the parameters for system, chipset and boot devices.

System Status

The System Status sub-menu allows you to set the system clock and view system

information.

▶System Date

Sets the system date. Use tab key to switch between date elements.

The format is <day> <month> <date> <year>.

<day> Day of the week, from Sun to Sat, determined by BIOS. Read-only.

<month> The month from Jan. through Dec.

<date> The date from 1 to 31 can be keyed by numeric function keys.

<year> The year can be adjusted by users.

▶System Time

Sets the system time. Use tab key to switch between time elements. The time format

is <hour> <minute> <second>.

BIOS Setup

▶SATA PortX/ M2_X/ U2_X

Shows the information of connected SATA/ M.2/ U.2 devices.

⚠

Important

If the connected SATA/ M.2/ U.2 device is not displayed, turn off computer and

re-check SATA/ M.2/ U.2 cable and power cable connections of the device and

motherboard.

▶System Information

Shows detailed system information, including CPU type, BIOS version, and Memory

(read only).

▶DMI Information

Shows system information, desktop Board Information and chassis Information. (Read

only).

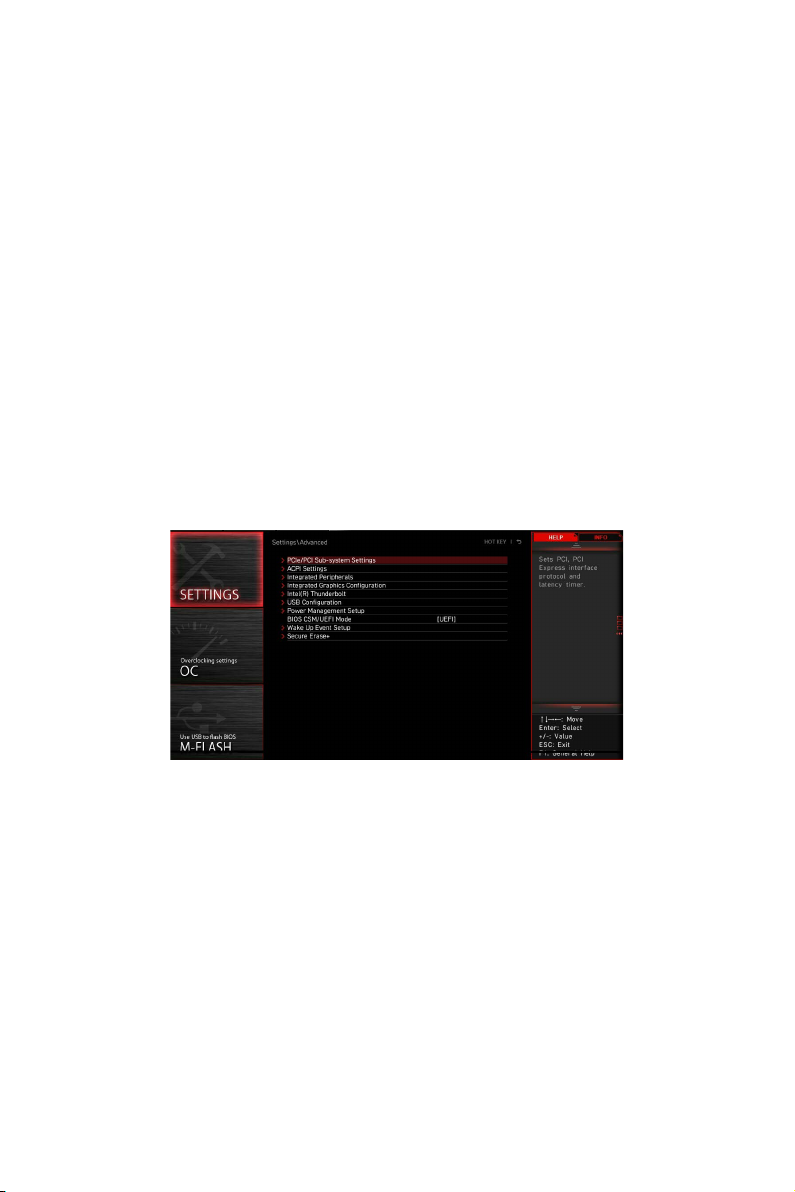

Advanced

The Advanced sub-menu allows you to adjust and set the parameters and behaviors of

PCIe, ACPI, integrated peripherals, integrated graphics, USB, power management and

Windows.

12 BIOS Setup

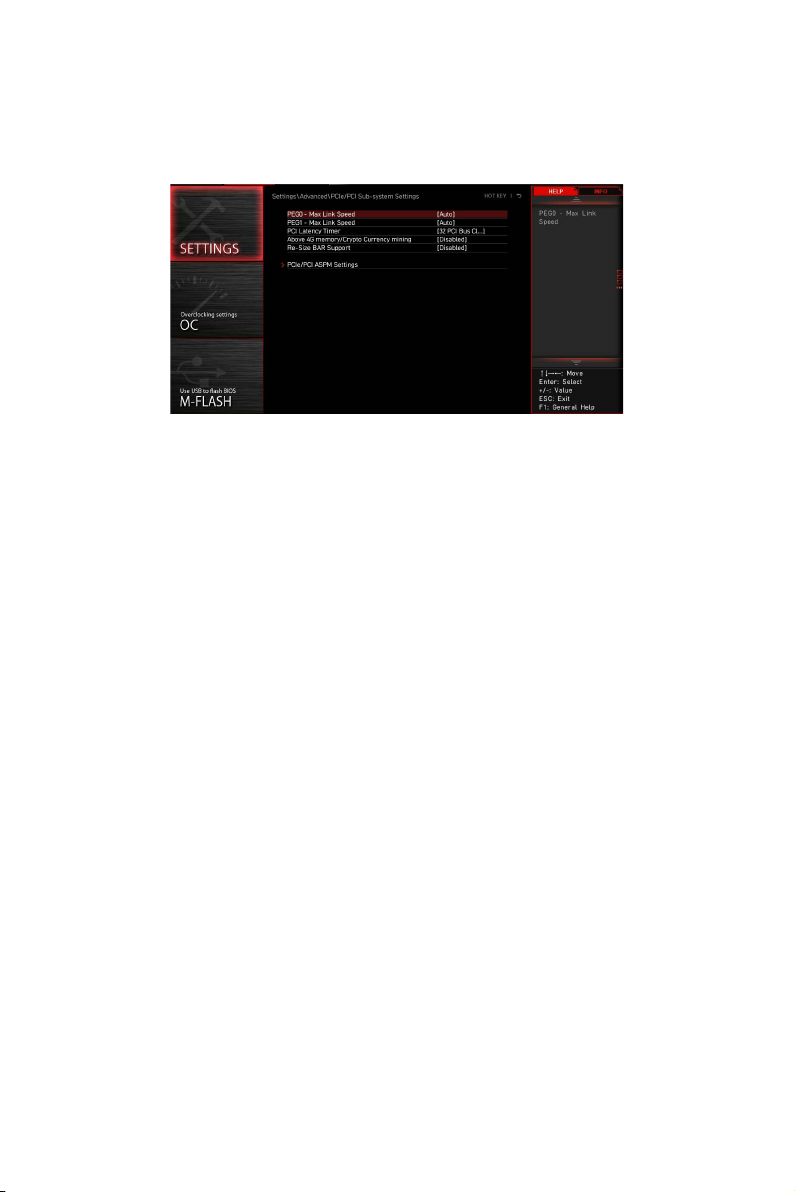

▶PCIe/PCI Sub-system Settings

Sets PCI, PCI express interface protocol and latency timer. Press Enter to enter the

sub-menu.

▶PEG0 - Max Link Speed

Sets PCI Express protocol for matching di󽙋erent installed devices.

[Auto] This item will be congured automatically by BIOS.

[Gen1] Enables PCIe Gen1 support only.

[Gen2] Enables PCIe Gen2 support only.

[Gen3] Enables PCIe Gen3 support only.

[Gen4] Enables PCIe Gen4 support only. (optional)

▶PEG1 - Max Link Speed

Sets PCI Express protocol for matching di󽙋erent installed devices.

[Auto] This item will be congured automatically by BIOS.

[Gen1] Enables PCIe Gen1 support only.

[Gen2] Enables PCIe Gen2 support only.

[Gen3] Enables PCIe Gen3 support only.

[Gen4] Enables PCIe Gen4 support only. (optional)

▶PEG2 - Max Link Speed

Sets PCI Express protocol for matching di󽙋erent installed devices.

[Auto] This item will be congured automatically by BIOS.

[Gen1] Enables PCIe Gen1 support only.

[Gen2] Enables PCIe Gen2 support only.

[Gen3] Enables PCIe Gen3 support only.

[Gen4] Enables PCIe Gen4 support only. (optional)

BIOS Setup

▶PEG3 - Max Link Speed

Sets PCI Express protocol for matching di󽙋erent installed devices.

[Auto] This item will be congured automatically by BIOS.

[Gen1] Enables PCIe Gen1 support only.

[Gen2] Enables PCIe Gen2 support only.

[Gen3] Enables PCIe Gen3 support only.

[Gen4] Enables PCIe Gen4 support only. (optional)

▶CPU PCIe Lanes Configuration

Sets PCIe lanes from CPU for the connected PCIe x16 slots to match di󽙋erent

installed devices.

▶PCI Latency Timer

Sets latency timer of PCI interface device.

▶Above 4G memory/ Crypto Currency mining

Enables or disables 64-bit capable devices to be decoded in above 4G address

space. It is only available if the system supports 64-bit PCI decoding.

[Enabled] Allows you to utilize more than 4x GPUs.

[Disabled] Disables this function.

▶Re-Size BAR Support

Enables or disables the Resize BAR (Base Address Register) support. It is only

available if the system supports 64-bit PCI/ PCIe decoding. If the system supports

64-bit PCI/ PCIe decoding, please enable this item for compatible PCIe device.

▶PCIe/PCI ASPM Settings

Sets PCIe/ PCI ASPM (Active State Power Management) state for di󽙋erent installed

devices. Press Enter to enter the sub-menu.

▶PEG 0 ASPM
