MSI MPG Z690 EDGE WIFI DDR4 User manual

I
MPG Z690 EDGE WIFI DDR4
Motherboard
User Guide
Benutzerhandbuch
Manuel d’utilisation
Руководство пользователя
取扱説明書
사용 명서
使用手冊
使用手册

V
Installing DDR4 memory/ Installation des DDR4-Speichers/
DIMMA2 DIMMA2
DIMMB2
DIMMA1
DIMMA2
DIMMB1
DIMMB2
http://youtu.be/T03aDrJPyQs
Youtube
http://v.youku.com/v_show/id_XNzUyMTI5ODI4.html

VI
HDD LED
RESET SW
JFP1
HDD LED HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
1
2 10
9
+
+
+---
-
+
Power LED
HDD LED Reset Switch
Reserved
Power Switch
JFP1
1 HDD LED + 2 Power LED +
3HDD LED - 4Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED
http://youtu.be/DPELIdVNZUI
Youtube
http://v.youku.com/v_show/id_XNjcyMTczMzM2.html

VII
Installing the Motherboard/ Installation des Motherboards/
https://youtu.be/wWI6Qt51Wnc
https://v.youku.com/v_show/id_
XNDUwMDUyNTkwOA==.html
Youtube
1
2
Torque:
3 kgf·cm*
*3 kgf·cm
= 0.3 N·m
= 2.6 lbf·in

XI

XII
4
3
12

1
Safety Information................................................................................................. 3
Case stand-off notification ..................................................................................... 4
Avoid collision notification...................................................................................... 4
Specifications......................................................................................................... 5
Package contents ................................................................................................ 12
..................................................................................................... 13
LAN Port LED Status Table .................................................................................. 13
Audio Ports Configuration.................................................................................... 13
Realtek Audio Console ......................................................................................... 14
.................................................................................... 17
CPU Socket ........................................................................................................... 18
DIMM Slots............................................................................................................ 19
PCI_E1~4: PCIe Expansion Slots.......................................................................... 20
JTBT1: Thunderbolt Add-on Card Connector ...................................................... 20
M2_1~4: M.2 Slots (Key M) ................................................................................... 21
SATA5~8 & SATAA~B: SATA 6Gb/s Connectors................................................... 23
JAUD1: Front Audio Connector ............................................................................ 23
JFP1, JFP2: Front Panel Connectors................................................................... 24
CPU_PWR1~2, ATX_PWR1: Power Connectors................................................... 25
JUSB4: USB 3.2 Gen 2 Type-C Connector............................................................ 26
JUSB3: USB 3.2 Gen 1 Connector ........................................................................ 26
JUSB1~2: USB 2.0 Connectors............................................................................. 27
JTPM1: TPM Module Connector........................................................................... 27
CPU_FAN1, PUMP_FAN1, SYS_FAN1~6: Fan Connectors.................................. 28
JCI1: Chassis Intrusion Connector....................................................................... 29
JBAT1: Clear CMOS (Reset BIOS) Jumper........................................................... 30
JDASH1 : Tuning Controller connector................................................................ 30
JRGB1: RGB LED connector................................................................................. 31
JRAINBOW1~3: Addressable RGB LED connectors ............................................ 32
...................................................................................................... 33
EZ Debug LED....................................................................................................... 33
LED_SW1: EZ LED Control................................................................................... 33
JPWRLED1: LED power input............................................................................... 33
.................................................................... 34
Installing Windows 10/ Windows 11..................................................................... 34
English

2
Installing Drivers .................................................................................................. 34
MSI Center............................................................................................................ 34
............................................................................................................. 35
BIOS Setup............................................................................................................ 36
Entering BIOS Setup............................................................................................. 36
BIOS User Guide ................................................................................................... 36
Resetting BIOS...................................................................................................... 37
Updating BIOS....................................................................................................... 37

3
Safety Information
Safety Information
The components included in this package are prone to damage from electrostatic
discharge (ESD). Please adhere to the following instructions to ensure successful
computer assembly.
Ensure that all components are securely connected. Loose connections may cause
the computer to not recognize a component or fail to start.
Hold the motherboard by the edges to avoid touching sensitive components.
It is recommended to wear an electrostatic discharge (ESD) wrist strap when
handling the motherboard to prevent electrostatic damage. If an ESD wrist strap is
not available, discharge yourself of static electricity by touching another metal object
before handling the motherboard.
Store the motherboard in an electrostatic shielding container or on an anti-static
pad whenever the motherboard is not installed.
Before turning on the computer, ensure that there are no loose screws or metal
components on the motherboard or anywhere within the computer case.
Do not boot the computer before installation is completed. This could cause
permanent damage to the components as well as injury to the user.
If you need help during any installation step, please consult a certified computer
technician.
Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing any computer component.
Keep this user guide for future reference.
Keep this motherboard away from humidity.
Make sure that your electrical outlet provides the same voltage as is indicated on
the PSU, before connecting the PSU to the electrical outlet.
Place the power cord such a way that people can not step on it. Do not place
anything over the power cord.
All cautions and warnings on the motherboard should be noted.
If any of the following situations arises, get the motherboard checked by service
personnel:
Liquid has penetrated into the computer.
The motherboard has been exposed to moisture.
The motherboard does not work well or you can not get it work according to user
guide.
The motherboard has been dropped and damaged.
The motherboard has obvious sign of breakage.
Do not leave this motherboard in an environment above 60°C (140°F), it may damage
the motherboard.

4
To prevent damage to the motherboard, any unnecessary mounting stand-off between
the motherboard circuits and the computer case is prohibited. The Case standoff keep
out zone signs will be marked on the backside of motherboard (as shown below) to
serve as a warning to user.
Protective paint is printed around each screw hole to prevent parts from being
scratched.

5
Specifications
Specifications
Supports 12th Gen Intel® Core™, Pentium® Gold and
Celeron® Processors*
Processor socket LGA1700
* Please go to www.msi.com to get the newest support status as new processors
are released.
Intel® Z690 Chipset
Memory
4x DDR4 memory slots, support up to 128GB*
Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC &
POR)*
Max overclocking frequency:
1DPC 1R Max speed up to 5200+ MHz
1DPC 2R Max speed up to 4800+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
*Please refer to www.msi.com for more information on compatible memory
Expansion Slot
3x PCIe x16 slots
PCI_E1 slot (From CPU)
Supports PCIe 5.0 x16
PCI_E3 & PCI_E4 slots (From Z690 chipset)
Supports PCIe 3.0 x4
1x PCIe 3.0 x1 slot (From Z690 chipset)
Supports AMD® CrossFire™ Technology
1x HDMI™ 2.1 with HDR port, supports a maximum
resolution of 4K 60Hz*/**
1x DisplayPort 1.4 port with HBR3, supports a maximum
resolution of 4K 60Hz*/**
*Available only on processors featuring integrated graphics.
** Graphics specifications may vary depending on the Processor installed.
Continued on next page

6Specifications
Continued from previous page
Storage
6x SATA 6Gb/s ports
SATA5~8 (From Z690 Chipset)*
SATAA~B (From ASMedia ASM1061)
4x M.2 slots (Key M)
M2_1 slot (From CPU)
Supports PCIe 4.0 x4
Supports 2260/ 2280/ 22110 storage devices
M2_2 slot (From Z690 Chipset)
Supports PCIe 4.0 x4
Supports 2260/ 2280 storage devices
M2_3 slot (From Z690 Chipset)
Supports PCIe 4.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_4 slot (From Z690 Chipset)
Supports PCIe 4.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_2~4 support Intel® Optane™ Memory
Supports Intel® Smart Response Technology for Intel
Core™ processors
* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_4 slot.
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA
storage devices*
Supports RAID 0, RAID 1 and RAID 5 for M.2 PCIe storage
devices
* SATAA & SATAB do not support RAID function.
Realtek® ALC4080
7.1-Channel High Definition Audio
Supports S/PDIF output
Continued on next page

7
Specifications
Continued from previous page
Intel® Z690 Chipset
1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back
panel
6x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal
connector and 5 Type-A ports on the back panel)
2x USB 2.0 Type-A ports on the back panel
2x USB 3.2 Gen 1 5Gbps ports available through the
internal USB connector
USB Hub-GL850G
4x USB 2.0 ports available through the internal USB
connectors
1x Intel® I225V 2.5Gbps LAN controller
Intel® Wi-Fi 6
The Wireless module is pre-installed in the M.2 (Key-E)
slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to
2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.2
1x Flash BIOS button
2x USB 2.0 ports
1x DisplayPort
1x HDMI™ port
5x USB 3.2 Gen 2 10Gbps Type-A ports
1x USB 3.2 Gen 2x2 20Gbps Type-C port
1x 2.5Gbps LAN (RJ45) port
2x Wi-Fi Antenna connectors
5x audio jacks
1x Optical S/PDIF Out connector
Continued on next page

8Specifications
Continued from previous page
1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
6x SATA 6Gb/s connectors
4x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2
USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0
ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1xTPM module connector
1x Clear CMOS jumper
1x Tuning controller connector
1x TBT connector (Supports RTD3)
1x 4-pin RGB LED connector
3x 3-pin RAINBOW LED connectors
1x EZ LED Control switch
4x EZ Debug LED
NUVOTON NCT6687D Controller Chip
CPU/ System/ Chipset temperature detection
CPU/ System/ Pump fan speed detection
CPU/ System/ Pump fan speed control
Form Factor ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Continued on next page

9
Specifications
Continued from previous page
1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.4, SMBIOS 3.4
Multi-language
Drivers
MSI Center
Intel® Extreme Tuning Utility
MSI APP Player (BlueStacks)
Open Broadcaster Software (OBS)
CPU-Z MSI GAMING
Google Chrome™, Google Toolbar, Google Drive
Norton™ Internet Security Solution
Features
Gaming Mode
Smart Priority
Gaming Highlight
LAN Manager
Mystic Light
Ambient Devices
Frozr AI Cooling
User Scenario
True Color
Live Update
Hardware Monitoring
Super Charger
Speed Up
Smart Image Finder
MSI Companion
Continued on next page

10 Specifications
Continued from previous page
Special Features
Audio
Audio Boost 5
Network
2.5G LAN
LAN Manager
Intel® WiFi
Cooling
All Aluminum Design
Heat-pipe Design
Extended Heatsink Design
M.2 Shield Frozr
7W/mK MOSFET thermal pad
Choke thermal pad
Pump Fan
Smart Fan Control
LED
Mystic Light
Mystic Light Extension (RAINBOW/RGB)
Mystic Light SYNC
Ambient Devices Support
Continued on next page
Other manuals for MPG Z690 EDGE WIFI DDR4
1
Table of contents
Other MSI Motherboard manuals

MSI
MSI MS-9642 User manual

MSI
MSI 880GM-E43 Series User manual

MSI
MSI FM2-A85XA-G43 series User manual

MSI
MSI MPG Z790 CARBON WIFI User manual

MSI
MSI X370 GAMING PRO CARBON User manual

MSI
MSI B550-A PRO User manual

MSI

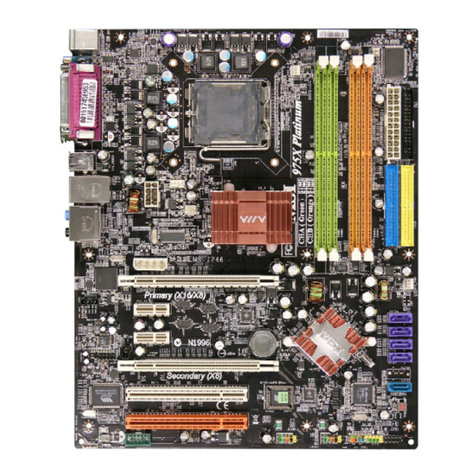

MSI 975X Platinum Series User manual

MSI
MSI IM-GM45 User manual

MSI
MSI K9NGM4 Series User manual

MSI
MSI Z87I User manual

MSI

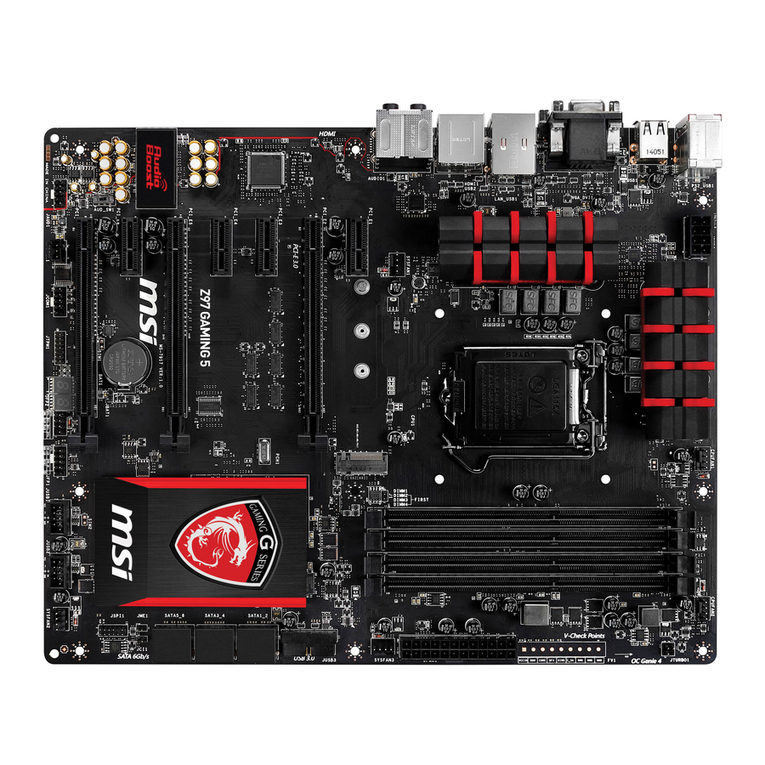

MSI Z97 GAMING 5 User manual

MSI
MSI G52-75221X5 User manual

MSI
MSI 870-C45 FX V2series User manual

MSI
MSI MS-7003 User manual

MSI
MSI MS-6198 User manual

MSI
MSI MS-16D3 User manual

MSI
MSI MPG Z390 GAMING EDGE AC User manual

MSI

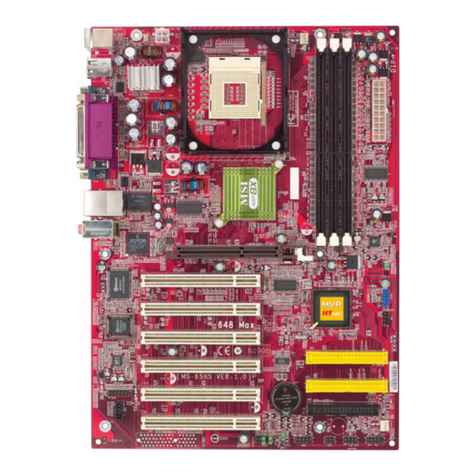

MSI 648 Max User manual

MSI
MSI K8N Diamond User manual

MSI
MSI K7N2GM2-ILSR User manual
