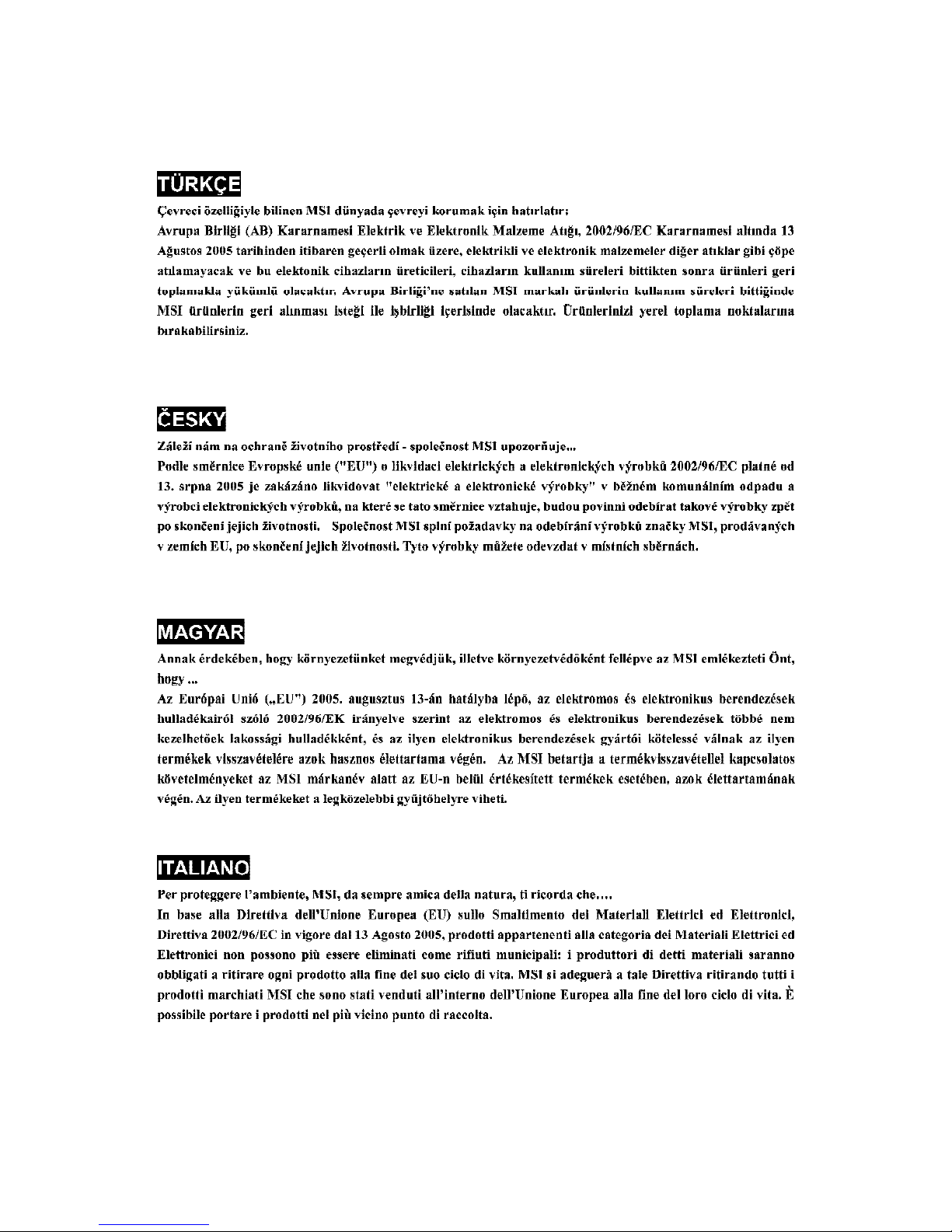

WEEE (WasteElectricaland ElectronicEquipment) Statement
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

vi
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

vii
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

viii
CONTENTS
CopyrightNotice..............................................................................................................ii
Trademarks.......................................................................................................................ii
RevisionHistory..............................................................................................................ii
Technical Support...........................................................................................................ii
SafetyInstructions.........................................................................................................iii
FCC-B RadioFrequencyInterferenceStatement........................................................iv
WEEE(WasteElectricalandElectronicEquipment)Statement....................................v
Chapter1GettingStarted.....................................................................................1-1
MainboardSpecifications...................................................................................1-2
MainboardLayout................................................................................................1-4
WatchDog TimerSetting.....................................................................................1-5
Chapter2HardwareSetup....................................................................................2-1
Quick ComponentsGuide....................................................................................2-2
CPU(CentralProcessingUnit)............................................................................2-3
Memory.................................................................................................................2-7
FrontPanel I/O.....................................................................................................2-8
PowerSupply......................................................................................................2-9
Connector..........................................................................................................2-14
Jumper................................................................................................................2-21
Slot / Golden Finger...........................................................................................2-22
Chapter3BIOSSetup.............................................................................................3-1
EnteringSetup.....................................................................................................3-2
The Menu Bar......................................................................................................3-4
Main......................................................................................................................3-5
Advanced............................................................................................................3-6
Boot....................................................................................................................3-15
Security..............................................................................................................3-18
Chipset...............................................................................................................3-19
Exit......................................................................................................................3-20
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

1-1
Getting Started
Getting Started
Chapter1
Thankyouforchoosingthe3200Network(MS-91A2
V1.X),anexcellentserverboardfromMSI.
Basedontheinnovative Intel 3210/3200 &ICH9
chipsetsforoptimalsystemefficiency,the3200Net-
workaccommodatesthelatestIntel®Pentium4(Quad-
CoreKentsfield/Yorkfield&Dual-CoreConroe/Wolfdale/
CeleronD)processorsinLGA775packageandsup-
portsuptotwounbufferednon-ECCDDR2667/800
DIMMslotstoprovidethe maximumof8GBmemory
capacity.
Intheentry-levelandmid-rangemarketsegment,the
3200Network canprovide ahigh-performancesolu-
tion fortoday’sfront-end and general purposeserver,
aswellasin thefuture.
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

MS-91A2ServerBoard
1-2
MainboardSpecifications
Processor
-IntelPentium4(Quad-CoreKentsfield/Yorkfield&Dual-CoreConroe/
Wolfdale/CeleronD)processorsinLGA775package
FSB
-800/1066/1333MHz
Chipset
-Northbridge:Intel3210/3200 chipset
-Southbridge:IntelICH9chipset
Memory
-2unbufferednon-ECC DDR2667/800 DIMM slots(240pin/1.8V)
-Upto8GBmemorycapacity
LAN
-Supports6PCI-EGbLANbyIntel82575(including 2-pairRJ45LAN
bypassand 1-pairfiberLAN)
-Supports1RJ45 LANbyIntel82566forLANmanagement
IDE
-1IDEportbyJMicron JMB368
-SupportsATA133/100/66
-ATA/ATAPI-7compliant
CF
-1CompactFlashTypesocket byJMicronJMB368
-SupportsUltraDMA66/100/133 mode
SATA
-4SATA3Gb/sportsbyICH9
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

1-3
Getting Started
Graphics
-XGIZ7graphicscontroller
OnboardI/O
FrontI/O
-1serialconsoleport(RJ-45 jack)
-2USB 2.0ports
-2NICfiberLANportswithlink/activityLEDs
-5individualRJ-45 GigabitLANportswithLEDs
OnboardConnectors
-1USB 2.0connector(2ports)
-1serialportconnector
-1D-Sub VGAconnector
-1mouse/keyboardconnector
-1SPI FlashROMconnector(fordebugging)
Slot/GoldenFinger
-1MiniPCIslot
-2PCIExpress x4goldenfinger
Regulations
-FCC,CE
Dimension
-230mmx400mm
Mounting
-9mountingholes
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

MS-91A2ServerBoard
1-4
3200 Network (MS-91A2V1.X) ServerBoard
MainboardLayout
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

1-5
Getting Started
MS-91A2watchdogtimerisusingSuperI/OWinbondW83627EHG.
Setupprocedures
A.EntersuperI/Oconfigurationmode-
mov dx,04eh
mov al,087h
out dx,al
out dx,al
B. Setpin77toWDTO#function
mov dx,04eh
mov al,02Dh;; ;Register2Dh
out dx,al
inc dx
in al,dx
and al,0FEh ;ConfigBit0As0
out dx,al ;Config PIN77asWDTO#
C. SelectLogicalDevice8
mov dx,04eh
mov al,07h
out dx,al ;pointtoLogical DeviceNumberRegister
inc dx
mov al,08h ;selectLogicalDevice8
out dx,al
D. Enable watchdogtimer
ActivateWDTO#
WatchDog TimerSetting
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

MS-91A2ServerBoard
1-6
mov dx,04eh ;CR30h:bit0fillin1
mov al,030h
out dx,al
inc dx
mov al,01h
out dx,al
;SetupWDTO#count mode
;Setbit 4and bit3byrequest
;Set bit2to0
;Set bit1to1
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

1-7
Getting Started
mov dx,04eh ;CRF7h: bit4fill 0(clearevent)
mov al,0f7h
out dx,al
inc dx
in al,dx
and al,0efh
out dx,al

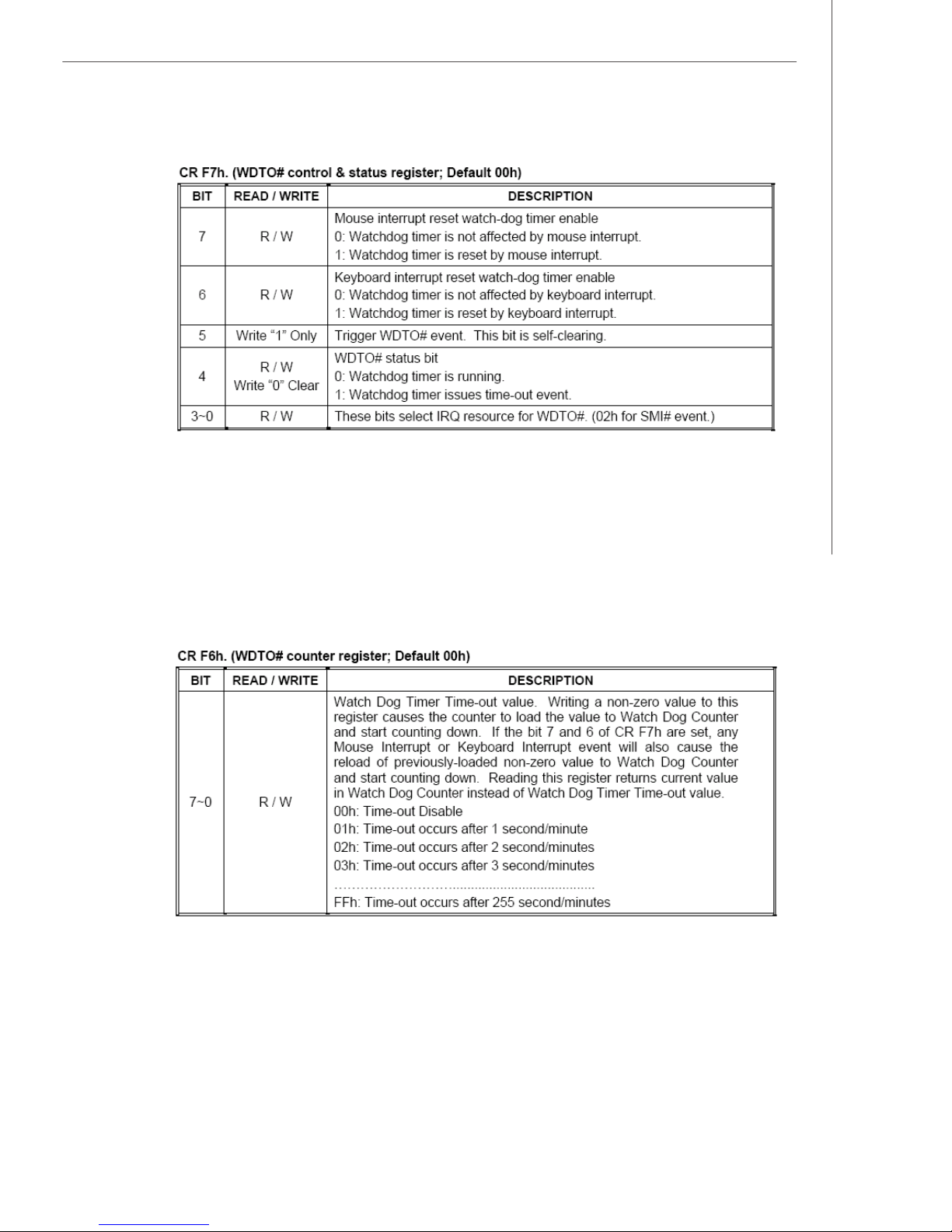

;CRF6h:bit0~7fillincountertime
E. Exitconfigurationmode
mov dx,04eh
mov al,0aah
out dx,al
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com


2-1
HardwareSetup
HardwareSetup
Chapter2
Thischapterprovidesyou withtheinformation about
hardwaresetupprocedures.Whiledoingthe installation,
becarefulinholdingthecomponentsandfollowthe
installationprocedures.Forsomecomponents,ifyou
install inthewrong orientation,thecomponentswillnot
workproperly.
Useagroundedwrist strapbeforehandlingcomputer
components.Staticelectricitymaydamagethe
components.
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

2-2
MS-91A2ServerBoard
Quick ComponentsGuide
COM2,p.2-16
GoldenFinger,
p.2-22
CF1, p.2-23
SATA1~4,
p.2-15
SYS_FAN1~2,
p.2-16
JUSB1, p.2-17
JSPI1, p.2-15
J3, p.2-19
J_BOOT1, p.2-21
CPU_FAN1, p.2-16
CPU, p.2-3
DIMM Slots,
p.2-7
J_CMOS1,p.2-21
FrontPanel
I/O, p.2-9
JPWR1,p.2-8
JLCD1,p.2-18
JP1, p.2-19
JPWR2,p.2-8
JPBTN1, p.2-18
JFP1, p.2-18
FRONT_FAN1,
p.2-16
VGA1, p.2-17
IDE1, p.2-14
MINIPCI1, p.2-22
JCFV_SEL1,
JCF_SEL1,
p.2-23
JLED1,p.2-20
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

2-3
HardwareSetup
ThismainboardsupportsIntel®Pentium4(Quad-CoreKentsfield/Yorkfield &Dual-
CoreConroe/Wolfdale/Celeron D)processorsin LGA775 package.Whenyouinstall
theCPU, make surethatyou install thecoolertopreventoverheating. If you
donothavetheCPUcooler,consultyourdealerbeforeturning onthecomputer.
Introduction toLGA775 CPU
The surfaceof LGA775CPU.
Remembertoapplysomether-
mal pasteonitforbetterheat
dispersion.
Yellowtriangleisthe Pin1indicator
Thepin-padsideofLGA775
CPU.
Yellowtriangleisthe Pin1indicator
Alignment Key Alignment Key
Important
Overheating
Overheating will seriouslydamage the CPUand system.Always makesure
thecoolingfancanworkproperlytoprotectthe CPUfromoverheating.Make
surethatyouapplyan even layerofthermalpaste(orthermaltape)between
the CPUand the heatsinktoenhanceheatdissipation.
ReplaceingtheCPU
Whilereplacing theCPU,alwaysturnoffthepowersupplyorunplugthe
powersupply spowercordfromthegrounded outlet firsttoensurethe safety
ofCPU.
CPU(CentralProcessingUnit)
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

2-4
MS-91A2ServerBoard
Important
1.ConfirmifyourCPUcoolerisfirmlyinstalledbeforeturning on yoursystem.
2.Donottouchthe CPUsocketpinstoavoiddamaging.
3.The availabilityoftheCPUlandside coverdependsonyourCPUpacking.
2.Removethecap fromleverhinge
side(asthearrowshows).
1.The CPUsockethasaplasticcap
onittoprotectthecontactfrom
damage.Beforeyouinstall theCPU,
alwayscoverittoprotect thesocket
pin.
3.Thepinsof socketreveal.
CPU&Cooler Installation
WhenyouareinstallingtheCPU, makesuretheCPUhasacoolerattached on
thetoptopreventoverheating. Meanwhile,donotforgettoapplysomethermal
pasteonCPUbeforeinstalling theheatsink/coolerfanforbetterheatdispersion.
Followthestepsbelowtoinstall theCPU&coolercorrectly.Wrong installationwill
causethedamageofyourCPU&mainboard.
4.Opentheloadlever.
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com
Other manuals for 3200 Master Series
1
Table of contents
Other MSI Server Board manuals

MSI
MSI 5000P Master2 Series User manual

MSI
MSI 945GC Network User manual

MSI
MSI MS-S0361 User manual

MSI
MSI MS-91F7 User manual

MSI
MSI MS-S0571 User manual

MSI
MSI MS-S0121 User manual

MSI
MSI E7210 Master-FARM User manual

MSI
MSI MS-S0131 User manual

MSI
MSI K9ND Speedster User manual

MSI
MSI 5520 Master Series User manual
