PRODUCT MANUAL
IDLE TIMER ETR CONTROLLER 12/24 V
Part No. 11450 | 11452 | 11951 | 12286

2| 20
M0712.docx | Rev 4.1 | Modified on 13/05/2021 | © Remote Control Technologies Pty Ltd
LEGAL NOTICE
1. You acknowledge that this document is protected under copyright law and Remote Control Technologies Pty Ltd or its related bodies
corporate (“RCT”) owns the copyright in this document or otherwise have permission or licence from the relevant owner to use certain
specific works.
2. You must not make any changes, amendments, variations, alterations or modifications to the document.
3. You must not reproduce this document in any form or by any means, or to make copies of this document without RCT’s prior written
consent.
4. The contents in this document constitute confidential information of RCT. You must not circulate, distribute or otherwise allow the
document to be available in the public domain, or to disclose or share the document with any third party, without RCT’s prior written
consent.
5. RCT provides the document to you on an “as is” basis. RCT is not required to provide any updates to this version of the document.
RCT may make any change, amendment or modification to the contents in this document without notice to you.
6. RCT takes a best endeavour basis to ensure that the contents in this document are accurate, complete and reliable. RCT does not
warrant that the document will continue to be reliable, relevant, accurate or complete due to RCT’s continuous efforts in product
development, innovation and technology.
7. Any trademarks used in this document belongs to RCT or is used under a licence. The trademarks are not to be used for any
purposes, without RCT’s prior written consent.
8. Any illustrations used in this document are for illustration purposes only. Illustrations are intended as aids to facilitate your
understanding of the subject matter or issue.
9. RCT disclaims all liability, loss or damage that you suffer as a result of your reliance on this document.
10. By your conduct of using or reading this document, you agree to and accept the terms in this notice.

M0712.docx | Rev 4.1 | Modified on 13/05/2021 | © Remote Control Technologies Pty Ltd
3| 20
Contents
General Safety Warnings 4
Personal Safety 4
Machine 4
Product 4
Product Overview 5
Features and Functions 5
Operation and Use 6
Park Brake Applied Detection (Optional) 6
Ground Level Shutdown (Optional) 6
Controller Status Indicator Operation 6
Installation Guide 7
Wiring Connections 7
9087 Upgrade Connection Details 8
5956 Upgrade Connection Details 9

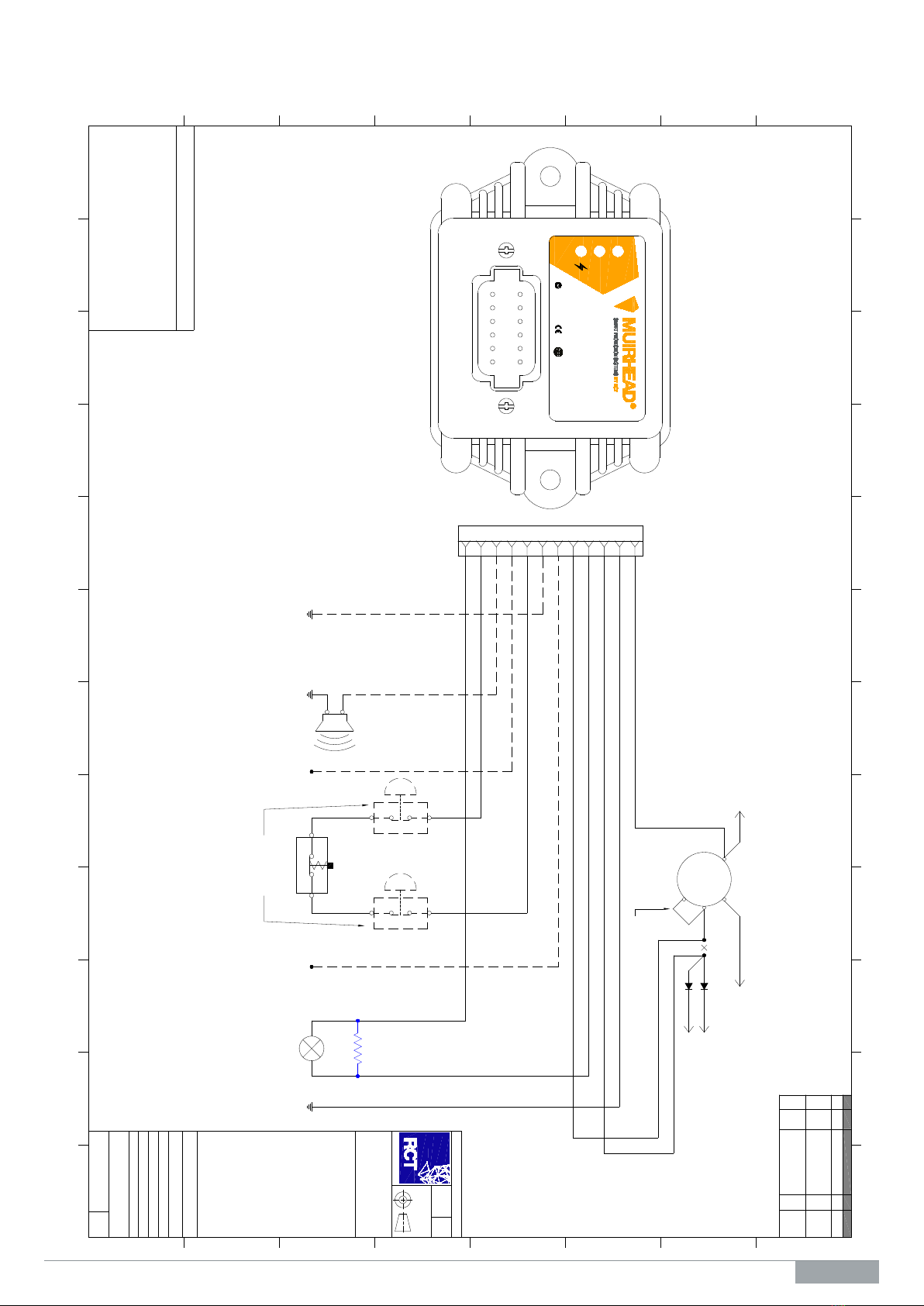

Wiring Diagrams 10
−External Wiring Diagram (476l) 10
−Loom to Suit Idle Time Controller (476m) 11
−Suggested Wiring to Suit Komatsu Machines (513c) 12
−Suggested Wiring to Suit Late Model Komatsu Machines (513l) 13
−External Wiring to Suit Shutdown When Shutdown Switch Activated With Key On Or Off (514z) 14
Calibration 15
11450 Idle Timer Controller 15
Calibration Mode 15
Changing Idle Time Value 15
Service Information 16
Service Schedule 16
Service Procedure 16
Parts List 16
11452 Idle Timer Kit 16
12286 Idle Timer Kit to suit Komatsu 16
Optional 16
Technical Specifications 17
Compliance and Standards 17
Troubleshooting 17
Glossary 18
Warranty 18

4| 20
M0712.docx | Rev 4.1 | Modified on 13/05/2021 | © Remote Control Technologies Pty Ltd
General Safety Warnings
Personal Safety
■Everyone is responsible for safety.
■The installer/service personnel should be trained and authorized to complete the required work.
■Ensure that the machine is safely isolated during installation and testing to protect all personnel.
■Complete all required risk assessments and job safety analysis (JSA) before commencing work.
■Observe all site specific and machine OEM procedures regarding the following:
– working at heights
– working in heat
– working in confined spaces
– all other site specific occupational health and safety (OH&S) procedures
Machine
■Carry out all prestart operations as per site and machine OEM procedures.
■Ensure the machine is safely isolated during installation and testing to protect the machine and other
equipment in the area.
■Do not operate any machine with a known fault and report all findings to the supervisor in writing.
■Test and operate machine as per machine OEM and site procedures.
■Read and understand machine and site specific operational and testing instructions.
Product
Before applying power to the equipment, the user/repairer/ installer must read all product instructions. If in
doubt, seek assistance.
■Ensure electrical connections are made as per RCT’s recommendations. Test circuits prior to connecting
power to any component.
■The equipment contains no user serviceable parts inside. Return the unit to RCT for repairs.
■Retain product and installation instructions for future use.
■Ensure that RCT’s recommended service procedures are included in the machine’s service routine.
■Observe all machine, site and RCT product warnings.
■Follow all machine, site and RCT product operating procedures at all time.
The application of safety should not be limited to the above recommendations.

M0712.docx | Rev 4.1 | Modified on 13/05/2021 | © Remote Control Technologies Pty Ltd
5| 20
Product Overview
The Muirhead®Idle Timer Controller, part number 11450, is designed to ensure a machine is ‘idled down’ for
the correct period of time as recommended by the original equipment manufacturer (OEM). This idle down
period allows the machine to cool slowly and prevent engine damage from heat stress. A prime example of
this is the engine’s turbochargers that require oil for bearing lubrication—the high temperatures of the
turbochargers must be dissipated before the engine is switched off.
Features and Functions
■Multi-voltage 12-24 V
■Selectable idle time cycle provides flexibility in shutdown time from 1 - 12 minutes, in one minute
increments
■Suitable for Energised To Run (ETR) systems
■Steering accumulator bleed down output
■Park brake applied detection
■Ground level machine shutdown
■Universal application
■Visual warning
■Integrated mount
■Environmentally sealed - IP65
■Simple and easy to use
■Customised idle timers are available with additional features such as lights and auxiliary shutoff on request.

6| 20
M0712.docx | Rev 4.1 | Modified on 13/05/2021 | © Remote Control Technologies Pty Ltd
Operation and Use
The Muirhead®Idle Timer Controller, part number 11450, operates (by default) by shutting down the machine
after a three-minute time delay when the ignition is switched off. The operation of the controller is detailed
below;
1. Turn the ignition switch off.
−The machine will continue to run for the pre-programmed time cycle with the cycle LED (usually
mounted in the instrument panel) illuminated. Once the timed cycle has been completed, the machine
will shut down.
−If the ignition is switched back to run at any time within the timed cycle, the timer will reset and
commence the full cycle, once the ignition is switched back to off position.
2. Activating the engine shutdown switch while the unit is in idle down mode will cause the machine to shut
down immediately. This will only occur with the ignition in the off position.
Note
If the ground level shutdown feature is active, then the engine shutdown switch will shut down the machine
when the key is in the on or off position.
Park Brake Applied Detection (Optional)
If this option is used, the park brake switch must be connected to the controller.
1. When the key is switched to the off position and the park brake is applied, the controller will enter idle
down mode. If the park brake is released while in idle down mode, the alarm will sound and the machine
will shut down instantly, preventing an operator driving off with the key in the off position.
2. If the key is switched off at any time with the park brake released, the machine will shut down immediately
and the alarm will sound.
3. If an operator is required to mobilise the machine whilst the key is switched to the off position and the
machine is in idle down mode, the key must be returned to the run position before the park brake is
released.
Ground Level Shutdown (Optional)
If this option is used, it allows additional ground level shutdown switches to be installed in series with the
standard engine shutdown switch. It also allows the machine to be shut down at any time whether it is in idle
down mode or not.
These switches allow for shutdown of the machine when not in idle down mode (key ON).
To activate this option, pin 7 must be connected to machine ground.
Warning
This product has been designed to shut down the engine while at idle only. If the engine RPM is high, there is
a possibility of the control unit not being able to force a shutdown.
Controller Status Indicator Operation
State
Indicator Sequence
Battery Power-up
■All indicators will turn on.
■All indicators will turn off.
■After power-up, the controller will revert to normal operation.
Status Indicator in Operation
RED – Fault.
■If outputs have problems, this will turn on.
■Outputs 1 & 2 – high current outputs: checked for overcurrent.
■Output 3 – not checked as it is a low side driver.
■Output 4 – checked for correct output voltage.
■Temperature – checked for board temperature exceeding 80 °C.
YELLOW – Pulses during normal operation, indicates system OK.
■Flashes on and off at one-second intervals (on for one second, off
for one
second).
GREEN – On for normal operation.
Alarm Indication
System Status
Power Indication

M0712.docx | Rev 4.1 | Modified on 13/05/2021 | © Remote Control Technologies Pty Ltd
7| 20
Installation Guide
1. Install the controller in a suitable location preferably in the cabin.
2. Refer to the wiring table below and the wiring diagram in this manual to connect the controller.
It is recommended that the wiring is installed alongside the OEM wiring ensuring that it is secured at regular
intervals; this will provide protection from heat and abrasion and any other excess damage that may occur
with extended vehicle operation. When securing the wiring to the OEM wiring, ensure that the loom is
away from moving vehicle parts which could lead to loom damage.
3. Mount the LED in a suitable location that is visible to the operator. Install the engine shutdown switch in
an area that is easily accessible to the operator.
4. Disconnect the existing ignition (OEM) wires from the ignition terminal at the key switch and connect the
orange wire (pin 5) to the ignition terminal.
5. Connect the yellow/blue wire (pin 3) to the (OEM) ignition wires previously disconnected from the ignition
terminal at the key switch.
6. If you are installing the device on machines using the C terminal at the key switch for auxiliary control after
shutdown, e.g., Caterpillar, disconnect the existing (OEM) wire no. 326 from the C terminal at the key
switch and connect to the purple wire (pin 9) from the controller
Wiring Connections
No.
Colour
Function
Description
1 Red Battery +VE Connect to the permanent battery supply at the key switch
(supply 12-24 Vdc).
2 Black Ground Earth (ground).
3 Yellow/Blue Output 1
Ignition Output. Connect to the (OEM) ignition wires previously
disconnected from the ignition terminal at the key switch (10 A
continuous output).
4 Black Output 3 LED −VE (low side 0.6 A sink).
5 Orange Input 1
Ignition Input. Disconnect the existing ignition (OEM) wires from
the ignition terminal at the key switch and connect the orange
wire to the ignition terminal.
6 White
(Optional) Input 3 Optional. Park brake input.
7 Brown
(Optional) Input 4 Optional. Ground input (this input is connected when ground-
level shutdown switches are fitted).
8
Pink
Input 2
Engine shutdown stop switch (N/C).
9 Purple
(Optional) Output 4
Only to be used on machines using the C terminal at key switch
for auxiliary control after shutdown, e.g., Caterpillar. Disconnect
the existing (OEM) wire no. 326 from the C terminal at the key
switch and connect to the purple wire from the controller
(maximum 0.7 A continuous output. If a larger load is required
this output can be used to trigger a relay).
10 Blue
(Optional) Output 2 Positive alarm output (used when park brake input is connected).
11 Pink - VE Engine shutdown stop switch (N/C) (ground).
12 Yellow Battery +VE LED +VE (supply 12-24 V).

8| 20
M0712.docx | Rev 4.1 | Modified on 13/05/2021 | © Remote Control Technologies Pty Ltd
9087 Upgrade Connection Details
Refer to the following table if you are upgrading from an older RCT Idle Timer (part number 9087) to the new
idle timer (part number 11450).
Match the plug and pin to the corresponding 12-pin Deutsch connection.
Old Idle Timer (9087) Plug Connections New Idle Timer (11450) 12-Pin Deutsch Connections
Plug A – pin 1 – BK-4 Pin 2
Plug A – pin 2 – YL/BU-4 Pin 3
Plug A – pin 3 – RD-4 Pin 1
Plug A – pin 4 – OR-4 Pin 5
Plug A – pin 5 – PU-4 Pin 9
Plug B – pin 1 – PK-4 Pin 8
Plug B – pin 2 – PK-4 Pin 11
Plug B – pin 3 – BK-4 Pin 4
Plug B – pin 4 – YL-4 Pin 12
If there are any concerns when performing this upgrade, contact your local RCT branch.

M0712.docx | Rev 4.1 | Modified on 13/05/2021 | © Remote Control Technologies Pty Ltd
9| 20
5956 Upgrade Connection Details
Refer to the following table if you are upgrading from an older RCT Idle Timer (part number 5956) to the
new idle timer (part number 11450).
Match the plug and pin to the corresponding 12-pin Deutsch connection.
Old Idle Timer (5965)
Plug Connections
New Idle Timer (11450)
12-Pin Deutsch Connections
Plug A – pin 1 – BK-4 Pin 2
Plug A – pin 2 – YL/BU-4 Pin 3
Plug A – pin 3 – RD-4 Pin 1
Plug A – pin 4 – OR-4 Pin 5
Plug A – pin 5 – PU-4 Pin 9
Plug B – pin 1 – Positive Output from Park Brake Switch Pin 6
Plug B – pin 2 Pin 8
Plug B – pin 3 – Connect to Ground (Pin 2 or Pin 11)
Plug B – pin 4 Pin 11
Plug B – pin 5 – Pin 12
Plug B – pin 6 – Pin 4
Plug B – pin 7 – Not Required –
Plug B – pin 8 – Pin 10
If there are any concerns when performing this upgrade, contact your local RCT branch.

10 | 20
M0712.docx | Rev 4.1 | Modified on 13/05/2021 | © Remote Control Technologies Pty Ltd
Wiring Diagrams
External Wiring Diagram (476l)
ENGINE
SHUTDOWN
+ -
LED
CYCLE
Y
GROUND
IGNITION
OUTPUT
(ETR)
BATTERY
SUPPLY
AT KEY
IGNITION
SUPPLY
AT KEY
AUXILIARY
CONTROL
(OPTIONAL)
1
2
3
4
5
6
7
8
9
10
11
12
(11450)
IDLE TIMER CONTROLLER
RD-4
BK-4
YL/BU-4
BK-FVT
OR-4
PK-FVT PU-4 PK-FVT
YL-FVT
IDLE TIMER
11450
!

www.rct.net.au
N12596
1.2kO
1 2 3 4 5 6 7 8 9 10 11 12
B
A
C
D
E
F
G
H
B
A
C
D
E F
G
H
1 2 345 6 78 9 10 11 12
A4
COPYRIGHT - ALL RIGHTS RESERVED
This drawing is the property of REMOTE
CONTROL TECHNOLOGIES PTY LTD (RCT),
and is not to be copied or used in whole or in
part for any purpose without the express
authority of RCT. The drawing is to be returned
to RCT, on demand.
IDLE TIMER
CONTROL
EXTERNAL WIRING
www.rct.net.au
UNCONTROLLED DOCUMENT
REV
2
DWG No 476l
STATUS
NTS
SCALE
Released
SHEET 1of 1
BY EY
DRN EH DATE 26/04/13
APPD DAS DATE 26/04/13
STOCK CODE MH-EC-MV-ER
PART NO 11450
3rd ANGLE
PROJECTION
ALL DIMENSIONS IN MILLIMETERS
REV ZONE DESCRIPTION BY DATE
1H4 LED note added DH 10/09/14
2E9 resistor added CamB 11/11/15
WIRE LEGEND
BK -BLACK PK -PINK
BU -BLUE PU -PURPLE
BN -BROWN RD -RED
GN -GREEN WH -WHITE
GY -GREY YL -YELLOW
OR -ORANGE TQ -TURQUOISE
NOTE:
WHEN USING LED PART NO 11111, OR AN EQUIVALENT NO LOAD LED, A RESISTOR
SHOULD BE CONNECTED ACROSS THE LED TO PREVENT CURRENT LEAKAGE
WHICH CAUSES A FALSE INDICATION. RESISTOR TYPE IS (1W 1.2K OHM RCT PART
NUMBER 11981)

M0712.docx | Rev 4.1 | Modified on 13/05/2021 | © Remote Control Technologies Pty Ltd
11 | 20
Loom to Suit Idle Time Controller (476m)
PK-FVT PK-FVT
BK-FVT
YL-FVT
A
B B B B
1
2
3
4
5
6
7 8 9
10
11
12
(2022) (1959)
PK-FVT PK-FVT
A8 A11
BK-FVT
YL-FVT
A4 A12
B
ENGINE
SHUTDOWN
N/C
+ -
LED
CYCLE
(11111)
(0821)
Y
(7919) (0824)
(11981)
WH-FVT
PU-FVT
BK-4 BU-FVT
D
C C
D
BN-FVT
YL/BU-4
D
C
OR-4
RD-4
C C
D
C
YL/BU-4A3
OR-4A5
PU-FVTA9
BK-4A2
RD-4A1
BN-FVT A7
BU-FVT A10
WH-FVT A6
WIRING CONNECTIONS
PIN WIRE COLOUR FUNCTION
1RD-4 RED-4mm 12V BATTERY SUPPLY
2BK-4 BLACK-4mm GROUND
3YL/BU-4 YL/BU-4mm IGNITION OUTPUT
4BK-FVT BLACK-FVT NEGATIVE IDLE DOWN LED
5OR-4 ORANGE-4mm IGNITION INPUT
6WH-FVT WHITE-FVT PARK BRAKE INPUT
7BN-FVT BROWN-FVT GROUND LEVEL SHUTDOWN (CONNECT TO GROUND TO ALLOW MACHINE TO SHUTDOWN WITH KEY ON) 8PK-FVT PINK-FVT ENGINE SHUTDOWN SWITCH 9PU-FVT PURPLE-FVT AUXILIARY CONTROL (OPTIONAL)
10 BU-FVT BLUE-FVT POSITIVE ALARM OUTPUT (USED WHEN PARK BRAKE INPUT IS CONNECTED)
11 PK-FVT PINK-FVT ENGINE SHUTDOWN SWITCH
12 YL-FVT YELLOW-FVT POSITIVE IDLE DOWN LED
1 2 3 4 5 6 7 8 9 10 11 12
B
A
C
D
E
F
G
H
B
A
C
D E
F
G
H
1 2 345 6 78 9 10 11 12
A4
COPYRIGHT - ALL RIGHTS RESERVED
This drawing is the property of REMOTE
CONTROL TECHNOLOGIES PTY LTD (RCT),
and is not to be copied or used in whole or in
part for any purpose without the express
authority of RCT. The drawing is to be returned
to RCT, on demand.
LOOM TO SUIT IDLE
TIMER CONTROLLER
ENERGISED TO RUN
(ETR)
LOOM
CONFIGURATION
www.rct.net.au
UNCONTROLLED DOCUMENT
REV
7
DWG No 476m
STATUS
NTS
SCALE
Released
SHEET 1of 1
BY EY
DRN EH DATE 26/04/13
APPD DAS DATE 26/04/13
STOCK
CODE 11450-L
PART NO 11451
3rd ANGLE
PROJECTION
ALL DIMENSIONS IN MILLIMETERS
NOTE:
WHEN USING LED PART NO 11111, OR AN EQUIVALENT NO LOAD LED, A RESISTOR
SHOULD BE CONNECTED ACROSS THE LED TO PREVENT CURRENT LEAKAGE
WHICH CAUSES A FALSE INDICATION. RESISTOR TYPE IS (1W 1.2K OHM RCT PART
NUMBER 11981)
REV ZONE DESCRIPTION BY DATE
1resistor added to LED
wiring DH 28/03/14
2
resistor location note
added, sleeving size
change
EY 31/03/14
3
ADDED WIRES TO
PLUG A, WIRES IN
CENTER ADDED TO
JOIN
DH 19/06/14
4sleeving size to A
reduced DH 20/06/14
5H1+H8 Table added and note
added DH 09/09/14
6D6-7
label 'CAUTION
shortening loom .... ' added
JB 30/03/15
7H3
Text to function of Pin 6 in Table modified, ETR
added to Title
MT 28/04/15

12 | 20
M0712.docx | Rev 4.1 | Modified on 13/05/2021 | © Remote Control Technologies Pty Ltd
Suggested Wiring to Suit Komatsu Machines (513c)
1
2
3
4
5
6
7
8 9
10
11
12
(11450)
IDLE TIMER CONTROLLER
IDLE TIMER
11450
ENGINE
SHUTDOWN
+ -
LED
CYCLE
Y
GROUND
AUXILIARY
CONTROL
(OPTIONAL)
RD-4
BK-4
YL/BU-4
BK-FVT
OR-4
PK-FVT PU-FVT PK-FVT
YL-FVT
WH-FVT
BU-FVT
+
-
ALARM
(OPTIONAL)
PARK BRAKE
INPUT POSITIVE
WHEN RELEASED
(OPTIONAL)
N C
N C
(OPTIONAL)
GROUND LEVEL
SHUTDOWN SWITCHES
CONNECT TO
GROUND TO
ALLOW MACHINE
TO SHUT DOWN WITH
KEY ON.
NOTE: THIS OPTION IS USED
WHEN MULTIPLE GROUND LEVEL
SWITCHES ARE WIRED IN SERIES
WITH THE ENGINE SHUTDOWN SWITCH
BN-FVT
BR
C
B
ACC
TO BATTERIES TO START CIRCUIT
TO ENGINE CONTROL
CUT WIRE
TO BATTERY RELAYS
!

www.rct.net.au
N12596
1.2kO
1 2 3 4 5 6 7 8 9 10 11 12
B
A
C
D
E
F
G
H
B
A
C
D
E F
G
H
1 2 345 6 78 9 10 11 12
A4
COPYRIGHT - ALL RIGHTS RESERVED
This drawing is the property of REMOTE
CONTROL TECHNOLOGIES PTY LTD (RCT),
and is not to be copied or used in whole or in
part for any purpose without the express
authority of RCT. The drawing is to be returned
to RCT, on demand.
IDLE TIMER
CONTROL (11450) TO
SUIT KOMATSU
MACHINES
SUGGESTED
EXTERNAL WIRING
www.rct.net.au
UNCONTROLLED DOCUMENT
REV
3
DWG No
513c
STATUS
NTS
SCALE
Released
SHEET
1of 1
BY BT
DRN EH DATE 06/06/14
APPD BT DATE 06/06/14
STOCK CODE ----
PART NO ----
3rd ANGLE
PROJECTION
ALL DIMENSIONS IN MILLIMETERS
REV ZONE DESCRIPTION BY DATE
1LED NOTE ADDED DH 10/09/14
2D5-G9
title change, wire 7,9
added, wire 6,10 to
optional, NC switches
added as optional
DAS 04/11/14
3F10
add resistor
CamB 11/11/15
NOTE:
WHEN USING LED PART NO 11111, OR AN EQUIVALENT NO LOAD LED, A RESISTOR
SHOULD BE CONNECTED ACROSS THE LED TO PREVENT CURRENT LEAKAGE
WHICH CAUSES A FALSE INDICATION. RESISTOR TYPE IS (1W 1.2K OHM RCT PART
NUMBER 11981)
WIRE LEGEND
BK -BLACK PK -PINK
BU -BLUE PU -PURPLE
BN -BROWN RD -RED
GN -GREEN WH -WHITE GY -GREY YL -YELLOW
OR -ORANGE TQ -TURQUOISE

M0712.docx | Rev 4.1 | Modified on 13/05/2021 | © Remote Control Technologies Pty Ltd
13 | 20
Suggested Wiring to Suit Late Model Komatsu Machines (513l)
1
2
3
4
5
6
7
8
9
10
11
12
(11450)
IDLE TIMER CONTROLLER
IDLE TIMER
11450
ENGINE
SHUTDOWN
+ -
LED
CYCLE
Y
GROUND
AUXILIARY
CONTROL
(OPTIONAL)
RD-4
BK-4
YL/BU-4
BK-FVT
OR-4
PK-FVT PU-FVT PK-FVT
YL-FVT
WH-FVT
BU-FVT
+
-
ALARM
(OPTIONAL)
PARK BRAKE
INPUT POSITIVE
WHEN RELEASED
(OPTIONAL)
N C
N C
(OPTIONAL)
GROUND LEVEL
SHUTDOWN SWITCHES
CONNECT TO
GROUND TO
ALLOW MACHINE
TO SHUT DOWN WITH
KEY ON.
NOTE: THIS OPTION IS USED
WHEN MULTIPLE GROUND LEVEL
SWITCHES ARE WIRED IN SERIES
WITH THE ENGINE SHUTDOWN SWITCH
BN-FVT
BR
C
B
ACC
TO BATTERIES TO START CIRCUIT
OEM ACC WIRE
CUT WIRE
OEM BN WIRE
LINK BR AND ACC
!

www.rct.net.auN12596
1.2kO
1 2 3 4 5 6 7 8 9 10 11 12
B
A
C
D
E
F
G
H
B
A
C
D E
F
G
H
1 2 345 6 78 9 10 11 12
A4
COPYRIGHT - ALL RIGHTS RESERVED
This drawing is the property of REMOTE
CONTROL TECHNOLOGIES PTY LTD (RCT),
and is not to be copied or used in whole or in
part for any purpose without the express
authority of RCT. The drawing is to be returned
to RCT, on demand.
IDLE TIMER
CONTROL (11450) TO
SUIT LATE MODEL
KOMATSU MACHINES
SUGGESTED
EXTERNAL WIRING
www.rct.net.au
UNCONTROLLED DOCUMENT
REV
3
DWG No 513l
STATUS
NTS
SCALE
Released
SHEET 1of 1
BY
BT
DRN
EH
DATE
11/06/14
APPD
BT
DATE
11/06/14
STOCK
CODE
----
PART NO
----
3rd ANGLE
PROJECTION
ALL DIMENSIONS IN MILLIMETERS
REV ZONE DESCRIPTION BY DATE
1LED NOTE ADDED DH 10/09/14
2D5-G9
title change, wire 7,9
added, wire 6,10 to
optional, NC switches
added as optional
DAS 04/11/14
3D5-G9
add resistor
CamB 11/11/15
WIRE LEGEND
BK -BLACK PK -PINK BU -BLUE PU -PURPLE BN -BROWN RD -RED
GN -GREEN WH -WHITE GY -GREY YL -YELLOW
OR -ORANGE TQ -TURQUOISE
NOTE:
WHEN USING LED PART NO 11111, OR AN EQUIVALENT NO LOAD LED, A RESISTOR
SHOULD BE CONNECTED ACROSS THE LED TO PREVENT CURRENT LEAKAGE
WHICH CAUSES A FALSE INDICATION. RESISTOR TYPE IS (1W 1.2K OHM RCT PART
NUMBER 11981)

14 | 20
M0712.docx | Rev 4.1 | Modified on 13/05/2021 | © Remote Control Technologies Pty Ltd
External Wiring to Suit Shutdown When Shutdown Switch Activated With Key On Or Off (514z)
1
2
3
4
5
6
7 8 9
10
11
12
(11450)
IDLE TIMER CONTROLLER
IDLE TIMER
11450
ENGINE
SHUTDOWN
+ -
LED
CYCLE
Y
GROUND
IGNITION
OUTPUT
(ETR)
BATTERY
SUPPLY
AT KEY
IGNITION
SUPPLY
AT KEY
AUXILIARY
CONTROL
(OPTIONAL)
RD-4
BK-4
YL/BU-4
BK-FVT
OR-4
PK-FVT PU-FVT PK-FVT
YL-FVT
WH-FVT
BU-FVT
+
-
ALARM
(OPTIONAL)
PARK BRAKE
INPUT POSITIVE
WHEN RELEASED
(OPTIONAL)
N C
N C
(OPTIONAL)
GROUND LEVEL
SHUTDOWN SWITCHES
CONNECT TO
GROUND TO
ALLOW MACHINE
TO SHUT DOWN WITH
KEY ON.
NOTE: THIS OPTION IS USED
WHEN MULTIPLE GROUND LEVEL
SWITCHES ARE WIRED IN SERIES
WITH THE ENGINE SHUTDOWN SWITCH
BN-FVT
!

www.rct.net.auN12596
1.2kO
1 2 3 4 5 678 9 10 11 12
B
A
C
D
E
F
G
H
B
A
C
D E
F
G
H
1 2 345 6 78 9 10 11 12
A4
COPYRIGHT - ALL RIGHTS RESERVED
This drawing is the property of REMOTE
CONTROL TECHNOLOGIES PTY LTD (RCT),
and is not to be copied or used in whole or in
part for any purpose without the express
authority of RCT. The drawing is to be returned
to RCT, on demand.
IDLE CONTROL
TIMER (11450) WITH
PARK BRAKE INPUT
AND OPTIONAL
GROUND LEVEL
SHUTDOWN
SWTICHES
EXTERNAL WIRING
www.rct.net.au
UNCONTROLLED DOCUMENT
REV
4
DWG No
514z
STATUS
NTS
SCALE
Released
SHEET
1of 1
BY BT
DRN RH DATE 19/06/14
APPD BT DATE 19/06/14
STOCK
CODE ----
PART NO ----
3rd ANGLE
PROJECTION
ALL DIMENSIONS IN MILLIMETERS
WIRE LEGEND
BK -BLACK PK -PINK
BU -BLUE PU -PURPLE
BN -BROWN RD -RED
GN -GREEN WH -WHITE
GY -GREY YL -YELLOW
OR -ORANGE TQ -TURQUOISE
REV ZONE DESCRIPTION BY DATE
1wire colour pin 7 to BN DH 17/07/14
2LED NOTE ADDED DH 10/09/14
3F12
title changes - "this
version will shutdown ..."
removed, 11450 added
DAS 04/11/14
4E9
add resistor
CamB 11/11/15
NOTE:
WHEN USING LED PART NO 11111, OR AN EQUIVALENT NO LOAD LED, A RESISTOR
SHOULD BE CONNECTED ACROSS THE LED TO PREVENT CURRENT LEAKAGE
WHICH CAUSES A FALSE INDICATION. RESISTOR TYPE IS (1W 1.2K OHM RCT PART
NUMBER 11981)

M0712.docx | Rev 4.1 | Modified on 13/05/2021 | © Remote Control Technologies Pty Ltd
15 | 20
Calibration
11450 Idle Timer Controller
Setting No.
Description
Units*
Default
1
Idle time
The time the unit will keep the engine running when the
key is turned off, adjustable between 1 and 12 minutes.
minutes 3
2** Alarm output
Can be configured to be continuous or pulsed. Pulsed
3** Park brake input
Can be configured to be standard or inverted.
Standard
(positive when
released)
*Note
The units’ column indicates the value that setting will increase by with each increment.
**Note
These parameters can be changed through programming; however, this will require the use of the
programmable controller utility available from RCT
Calibration Mode
Read the entire procedure before starting.
To enter calibration mode:
1. Hold the engine shutdown switch in the active position.
2. Turn on ignition.
3. Turn off ignition.
4. Release the engine shutdown switch.
5. The cycle LED will be flashing.
If performed correctly, the device will now be in calibration mode. This is indicated by all device status indicators
flashing very fast.
Note
The calibration mode will time out and exit if there is no user input for 60 seconds.
To exit calibration mode:
1. Cycle the power to the device (e.g., remove the Deutsch plug from the device and then reinsert it).
Changing Idle Time Value
1. Enter calibration mode;
2. Toggle the engine shutdown switch (i.e., turn it on and then off again) to increment the idle time value by
one minute to a maximum of 12 minutes.
3. To save the new value, hold the engine shutdown switch on again and it must remain on for more than 10
seconds (this does not count as a toggle).

16 | 20
M0712.docx | Rev 4.1 | Modified on 13/05/2021 | © Remote Control Technologies Pty Ltd
Service Information
Service Schedule
The manufacturer recommends that the following service procedure should be performed at each machine’s
scheduled service interval.
Service Procedure
1. Perform a visual inspection; include the following:
a) Controller
b) Wiring connections and looms
c) Switches
2. Perform a system test as per the Operation and Use section of this manual for the operation of the
controller.
Parts List
11452 Idle Timer Kit
Part No. Description
Quantity
Included Parts Suggested Parts
11450 Idle Timer Controller 1 1
11451 Loom to suit 11450 Idle Timer Controller 1 -
12286 Idle Timer Kit to suit Komatsu
Part No. Description Quantity
Included Parts
Suggested Parts
11450 Idle Timer Controller 1 1
12297 Loom to suit 12253 Komatsu Spec 1 -
Optional
Part No. Description
8918 Emergency Stop Switch

M0712.docx | Rev 4.1 | Modified on 13/05/2021 | © Remote Control Technologies Pty Ltd
17 | 20
Technical Specifications
Dimensions, controller only:Length: 119 mm | Width: 80 mm | Height/Depth: 65 mm
Dimensions, boxed for freight:
Length: 220 mm | Width: 120 mm | Height/Depth: 120 mm
Weight, controller only:
255 g
Weight, including loom / packaging
for freight:
600 g
Input nominal voltage:
12 to 24 Vdc
Ignition output continuous current
maximum:
10 A standard
Auxiliary output continuous
current maximum: 0.7 A
Operating temperate range:
−40 °C to +85 °C
Connection types:
12-pin receptacle
Inputs:
Ignition supply, battery supply, chassis ground
Min & max input voltage: 9 to 35 Vdc
Circuit protection:
External control
Enclosure type:
Polycarbonate / alloy base for heatsinking
Environmental protection IP rating:IP67
Programming/adjustment: Refer to the Calibration section.
Compliance and Standards
RCT has an obligation as a manufacturer to comply with the regulations as required by the relevant regulatory
bodies, depending on the market and location.
This product currently complies with the following:
ACMA
■IEC 61000-6-1:2005 Electromagnetic Compatibility (EMC) – Part 6-1: Generic Standards – Immunity for
Residential, Commercial and Light Industrial Environments.
■IEC 61000-6-3:2006, A1:2010 Electromagnetic Compatibility (EMC) – Part 6-3: Generic Standards –
Emissions for Residential, Commercial and Light Industrial Environments.
EU
■IEC 61000-6-1:2005 Electromagnetic Compatibility (EMC) – Part 6-1: Generic Standards – Immunity for
Residential, Commercial and Light Industrial Environments.
■IEC 61000-6-3:2006, A1:2010 Electromagnetic Compatibility (EMC) – Part 6-3: Generic Standards –
Emissions for Residential, Commercial and Light Industrial Environments.
■RoHS 2 Directive 2011/65/EU
FCC
This device is exempt from FCC regulations under 47 CFR 15.103 Exempted devices.
IC
This device is exempt from IC regulations under ICES-003 — Information Technology Equipment (ITE) —
Limits and Methods of Measurement.
Troubleshooting
Fault
Possible Cause
Device not working. Check wiring and connections.
Intermittent fault. Check wiring and connections.

18 | 20
M0712.docx | Rev 4.1 | Modified on 13/05/2021 | © Remote Control Technologies Pty Ltd
Glossary
Warranty
Please see the RCT standard warranty, available on our website - www.rct-global.com.
A
Amp (Ampere)
mW
Milliwatts
ac
alternating current
N/A
Not Applicable
AMS
Advanced Management System
N/C
Normally Closed
Aux
Auxiliary Output
N/O
Normally Open
CAN
Controller Area Network
OEM
Original Equipment Manufacturer
CMIO
Control Master Input Output PCB
O/P
Outputs
CMR
Control Master Receiver
Out
Output
CMT
Control Master Transmitter
PB
Push Button
CM2200
Control Master 2200 Remote Set
PC
Personal Computer
COMMS
Communications
PCB
Printed Circuit Board
CPU
Central Processor Unit
PIN
Personal Identification Number
dc
direct current
PLC
Programmable Logic Controller
E.G.
For example
POT
Potentiometer
ETR
Energised To Run
PPM
Pulses Per Metre
ETS
Energised To Stop
PWM
Pulse Width Modulation
ESD
Engine Shutdown
PWR
Power
FET
Field Effect Transistor
Rev
Revision
GND
Ground
RF
Radio Frequency
H
Hours
RH
Relative Humidity
HEX
Hexadecimal Numbering System
RPM
Revolutions per minute
ID
Identity
RX
Receiver
i.e That is RS232
Recommended Standard (number 232)
for serial data transfer
In
Input
Source
The output can supply/drive current out
IP
Ingress Protection
SYS
System
kg
Kilogram
TOV
Text On Video
Km/h
Kilometres Per Hour
TX
Transmitter
LCD
Liquid Crystal Display
V
Volts
LED
Light Emitting Diode
°C
Degrees Centigrade
LK
Link
#
Number
M
Minutes
<
Less Than
mA
Milliamps
>
Greater Than
MAX
Maximum
%
Percentage
MCU
Multi-Control Unit
MFU
Multi-Function Unit
MHz
Mega Hertz (million(s) cycles per
second)
MIN
Minimum
mm
millimetres

M0712.docx | Rev 4.1 | Modified on 13/05/2021 | © Remote Control Technologies Pty Ltd
19 | 20
Notes

Discover more: www.rct-global.com
[e-mail]
AUSTRALIA: [phone]
AFRICA: [phone]
CANADA: [phone]
RUSSIA / CIS: [phone]
SOUTH AMERICA: [phone]
USA: [phone]
