PRODUCT MANUAL
PARK BRAKE WARNING SYSTEM
12/24 VOLTS
Part No. 11377 | 11386 | 11387

2| 16
M0701.docx | Rev 1.5 | Modified on 26/03/2021 | © Remote Control Technologies Pty Ltd
LEGAL NOTICE
1. You acknowledge that this document is protected under copyright law and Remote Control Technologies Pty Ltd orits related bodies
corporate (“RCT”) owns the copyright in this document or otherwise have permission or licence from the relevant owner to use certain
specific works.
2. You must not make any changes, amendments, variations, alterations or modifications to the document.
3. You must not reproduce this document in any form or by any means, or to make copies of this document without RCT’s prior written
consent.
4. The contents in this document constitute confidential information of RCT. You must not circulate, distribute or otherwise allow the
document to be available in the public domain, or to disclose or share the document with any third party, without RCT’s prior written
consent.
5. RCT provides the document to you on an “as is” basis. RCT is not required to provide any updates to this version of the document.
RCT may make any change, amendment or modification to the contents in this document without notice to you.
6. RCT takes a best endeavour basis to ensure that the contents in this document are accurate, complete and reliable. RCT does not
warrant that the document will continue to be reliable, relevant, accurate or complete due to RCT’s continuous efforts in product
development, innovation and technology.
7. Any trademarks used in this document belongs to RCT or is used under a licence. The trademarks are not to be used for any
purposes, without RCT’s prior written consent.
8. Any illustrations used in this document are for illustration purposes only. Illustrations are intended as aids to facilitate your
understanding of the subject matter or issue.
9. RCT disclaims all liability, loss or damage that you suffer as a result of your reliance on this document.
10. By your conduct of using or reading this document, you agree to and accept the terms in this notice.

M0701.docx | Rev 1.5 | Modified on 26/03/2021 | © Remote Control Technologies Pty Ltd
3| 16
Contents
GENERAL SAFETY WARNINGS 4
PRODUCT OVERVIEW 5
FEATURES AND FUNCTIONS 5
OPERATION AND USE 5
CONTROL UNIT STATUS INDICATOR OPERATION 6
INSTALLATION INSTRUCTIONS 6
WIRING CONNECTIONS 6
EXTERNAL WIRING DIAGRAM 8
-LOOM DIAGRAM (474s) 8
-EXTERNAL WIRING DIAGRAM (474u) 9
CALIBRATION 10
SERVICE INFORMATION 10
SERVICE SCHEDULE 10
SERVICE PROCEDURE 10
PARTS LIST 10
11386 KIT PARK BRAKE WARNING 10
11387 KIT PARK BRAKE WARNING WITH ONE SWITCH AND NO OVERRIDE 11
TECHNICAL SPECIFICATIONS 11
COMPLIANCE AND STANDARDS 12
TROUBLESHOOTING 12
GLOSSARY 13
WARRANTY 13

4| 16
M0701.docx | Rev 1.5 | Modified on 26/03/2021 | © Remote Control Technologies Pty Ltd
GENERAL SAFETY WARNINGS
PERSONAL SAFETY
■Everyone is responsible for safety.
■The installer/service personnel should be trained and authorized to complete the required work.
■Ensure that the machine is safely isolated during installation and testing to protect all personnel.
■Complete all required risk assessments and job safety analysis (JSA) before commencing work.
■Observe all site specific and machine OEM procedures regarding the following:
–working at heights
–working in heat
–working in confined spaces
–all other site specific occupational health and safety (OH&S) procedures
MACHINE
■Carry out all prestart operations as per site and machine OEM procedures.
■Ensure the machine is safely isolated during installation and testing to protect the machine and other
equipment in the area.
■Do not operate any machine with a known fault and report all findings to the supervisor in writing.
■Test and operate machine as per machine OEM and site procedures.
■Read and understand machine and site specific operational and testing instructions.
PRODUCT
Before applying power to the equipment, the user/repairer/ installer must read all product instructions. If in
doubt, seek assistance.
■Ensure electrical connections are made as per RCT’s recommendations. Test circuits prior to connecting
power to any component.
■The equipment contains no user serviceable parts inside. Return the unit to RCT for repairs.
■Retain product and installation instructions for future use.
■Ensure that RCT’s recommended service procedures are included in the machine’s service routine.
■Observe all machine, site and RCT product warnings.
■Follow all machine, site and RCT product operating procedures at all time.
The application of safety should not be limited to the above recommendations.

M0701.docx | Rev 1.5 | Modified on 26/03/2021 | © Remote Control Technologies Pty Ltd
5| 16
PRODUCT OVERVIEW

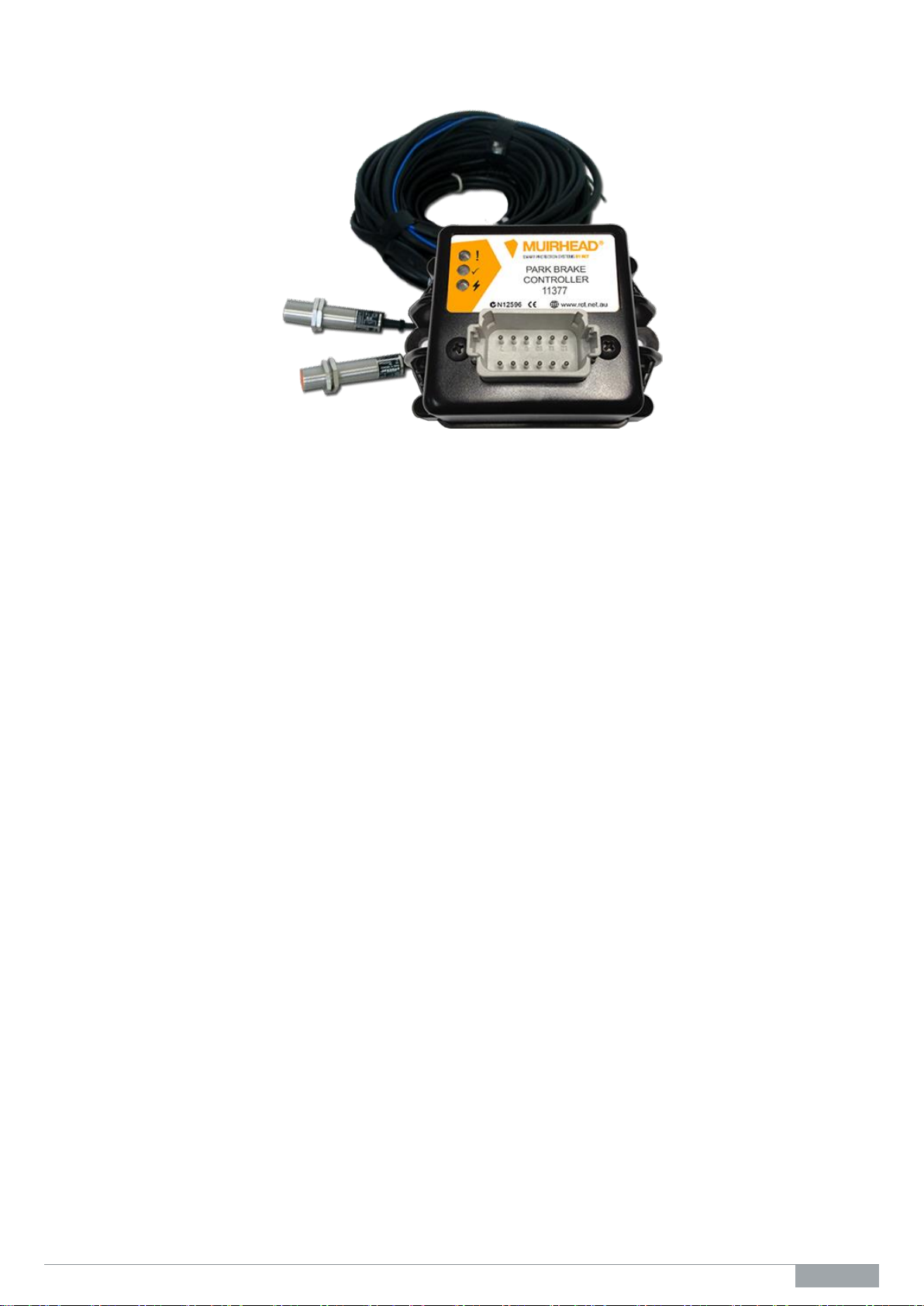

The Muirhead®Park Brake Warning systems, part numbers 11386 and 11387, are preventative action systems
that not only alert the operator that the machine’s park brake is not applied, but also alert any personnel within
the vicinity of the machine.
The control unit senses when a door is opened or closed via proximity switches. The 11386 kit has two door
proximityswitches whilst the 11387 kit has only one. If a machine’s door is open, the system alerts the operator
and personnel by means of an audible horn and a instrument panel-mounted LED that the machine’s park
brake has not been applied. When the machine’s battery isolator is turned on, the system runs through a test
cycle, turning on all outputs for two seconds before returning to its operational state.
FEATURES AND FUNCTIONS
Increases operator and workplace safety
Enforces safe operating practices
Multi-voltage 12 to 24 volts
Compact and robust design
Environmentally sealed –IP65
Audio and visual indicators
Door sensing
Park brake sensing
Self-test outputs at startup
Customised circuitry
Override switch
Protects personnel working on and near machine
Helps prevent unattended machine run away accidents
OPERATION AND USE
When the park brake warning system is first powered up, the alarms will self-test for approximately one to two
seconds. When the two doors are closed and the park brake is applied, the park brake warning system is in
its armed state.
When the park brake is released and a door is opened, a flashing LED will operate and the OEM horn will
operate repeatedly until the park brake is reset. Simply closing the door will not reset the system. The park
brake will have to be reapplied to reset the system.
When the park brake is applied and a door is opened, this has no effect on the park brake warning system
until the park brake is released.
The park brake warning system has a keyed override (11386 kit only) incorporated in the external circuitry, so
that when the override is turned to the off position, the system becomes inactive to allow for maintenance.

6| 16
M0701.docx | Rev 1.5 | Modified on 26/03/2021 | © Remote Control Technologies Pty Ltd
CONTROL UNIT STATUS INDICATOR OPERATION
STATE
INDICATOR SEQUENCE
Battery Power-up
■All indicators will turn on.
■All indicators will turn off.
■After power-up, the control unit will revert to normal operation.
Status Indicator in
Operation
RED –Fault.
■If outputs have problems, this will turn on.
■Outputs 1 & 2 –high current outputs: checked for over current.
■Output 3 –not checked as it is a low side driver.
■Output 4 –checked for correct output voltage.
■Temperature –checked for board temperature exceeding 80 °C.
YELLOW –Pulses during normal operation, indicates system OK.
■Flashes on and off at one-second intervals (on for one second, off for
one second).
GREEN –On for normal operation.
INSTALLATION INSTRUCTIONS
1. Mount the control unit in suitable location.
2. Refer to the wiring table below and the wiring diagram in this manual to connect the control unit.
It is recommended that the wiring is installed alongside the OEM wiring ensuring that it is secured at regular
intervals; this will provide protection from heat and abrasion, and any other excess damage that may occur
with extended vehicle operation. When securing the wiring to the OEM wiring, ensure that the loom is away
from moving vehicle parts which could lead to loom damage.
3. Mount the LED on the instrument panel in the cabin clear view of the operator.
WIRING CONNECTIONS
NO.
COLOUR
FUNCTIONS
DESCRIPTION
1
Red
Ignition Input
Keyed override switch (11386 kit only). Connect to the ignition
supply at the key switch (ensure it is circuit breaker protected).
2
Black
Ground
Earth
3
Green
Output 1
Flashing LED +ve (13 A)
4
-
Output 3
Optional output (solid). Please that wires must be added to the
supplied loom if you wish to use this output.
5
-
Input 1
Not used
6
Blue
Input 3
Left door switch input
7
Blue
Input 4
Right door switch input (11387 kit join BU wire to BK wire - earth)
8
Grey
Input 2
Park brake switch input
9
-
Output 4
Optional output (flashing). Please that wires must be added to the
supplied loom if you wish to use this output.
10
White
Output 2
OEM horn +ve (13 A)
11
-
Battery Supply –ve
Not used
12
-
Battery Supply +ve
Not used
Note: Manufacturer recommends that the Pin 10 Output - (white) be connected to the OEM horn circuit via a
relay if the current draw is greater than 13 amps.
Alarm Indication
System Status
Power Indication

M0701.docx | Rev 1.5 | Modified on 26/03/2021 | © Remote Control Technologies Pty Ltd
7| 16
Please refer to the following table if you are upgrading from a 0230 or 10886 device:
Upgrading From 0230 or 10886 –Equivalent Pin Outs
8-PIN PLUG
12-PIN PLUG
WIRE COLOUR
Pin1
Pin1
Red
Pin 2
Pin 2
Black
Pin 3
Pin 10
White
Pin 4
Pin 3
Green
Pin 5
Pin 6
Blue
Pin 6
Pin 7
Blue
Pin 7
Pin 8
Grey
Pin 8 (Not connected)
All other pins on the 12 pin connector are not connected and should be sealed using the blocking contacts.
The following parts are required when upgrading the old control unit:
PART NO.
DESCRIPTION
QTY
2022
12-socket connector (supplied separately)
1
1959
Lock wedge 12 socket (supplied separately)
1
2118
Blocking contact #16 (supplied separately)
5

8| 16
M0701.docx | Rev 1.5 | Modified on 26/03/2021 | © Remote Control Technologies Pty Ltd
EXTERNAL WIRING DIAGRAM

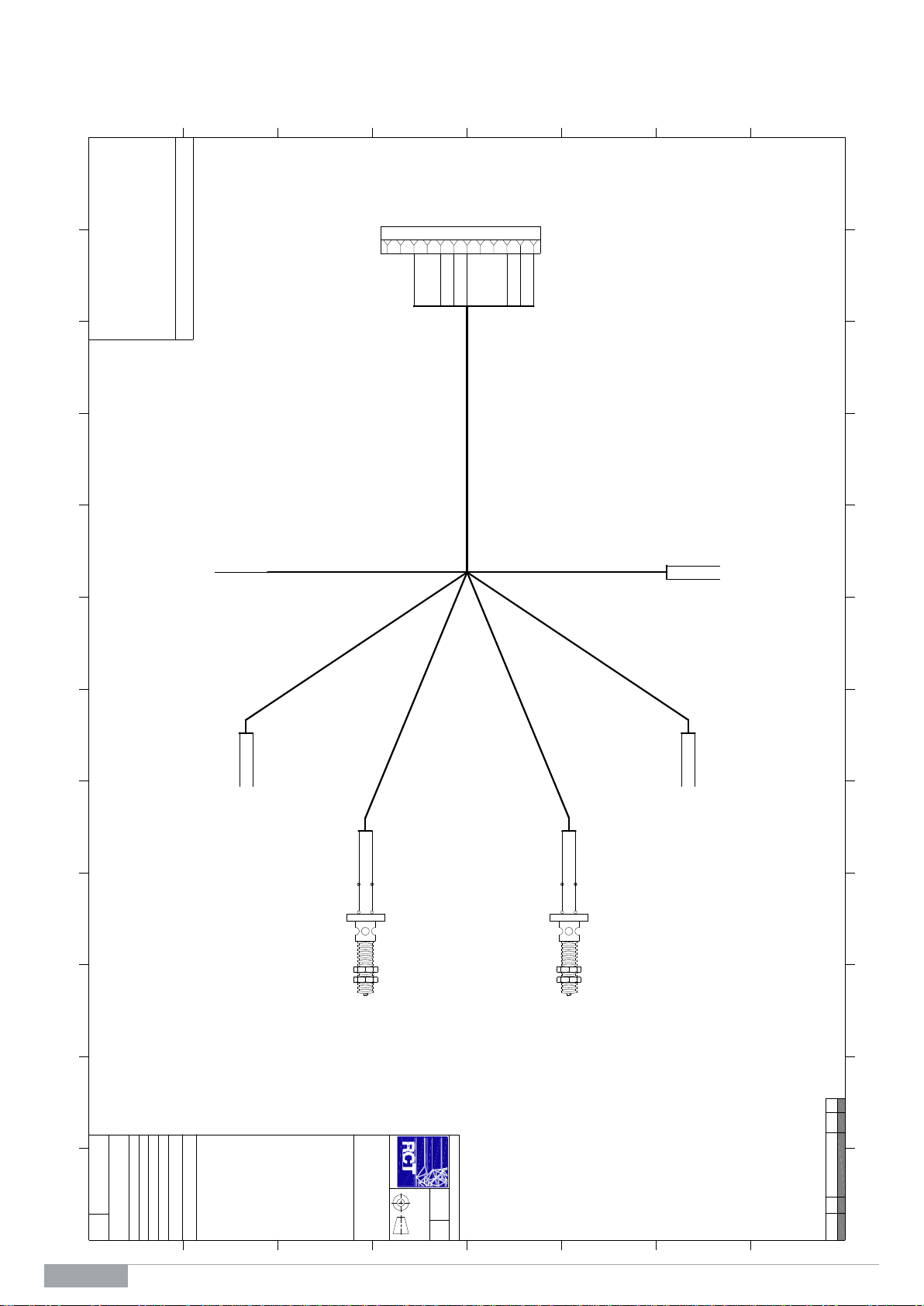

LOOM DIAGRAM (474s)
RD
BK
GN
BU BU
GY
WH
GN
BK
BU
BK
B
POWER
C
FLASHING
LED
D
LEFT DOOR
SWITCH
A
PARK BRAKE
WARNING
CONTROL UNIT
WH
BK
BK
BU
G
TO OEM
HORN
F
PARK BRAKE
SWITCH
E
RIGHT DOOR SWITCH
(OPTIONAL FOR 11386 KIT ONLY.
JOIN BU TO BK IF 11387 KIT USED)
GY
BN BU BN BU
PROXIMITY
SWITCH
(6812)
PROXIMITY
SWITCH
(6812)
B B
C
D
E
F
G
A3 A2
A7 A2 A6 A2
A2 A7
A10
1
2
3
4
5
6
7
8 9
10
11
12
RD
BK
A1
A2
12345678910 11 12
B
A
C
D
E
F
G
H
B
A
C
D
E F
G
H
12345678910 11 12
A4
COPYRIGHT - ALL RIGHTS RESERVED
This drawing is the property of REMOTE
CONTROL TECHNOLOGIES PTY LTD (RCT),
and is not to be copied or used in whole or in
part for any purpose without the express
authority of RCT. The drawing is to be returned
to RCT, on demand.
PARK BRAKE
WARNING LOOM
LOOM
CONFIGURATION
www.rct.net.au
UNCONTROLLED DOCUMENT
REV
0
DWG No 474s
STATUS
NTS
SCALE
Released
SHEET 1 of 1
BY EY
DRN EH DATE 25/03/13
APPD DAS DATE 25/03/13
STOCK CODE MH-PBWS-L
PART NO 11378
3rd ANGLE
PROJECTION
ALL DIMENSIONS IN MILLIMETERS
WIRE LEGEND
BK - BLACK PK - PINK BU - BLUE PU - PURPLE BN - BROWN RD - RED
GN - GREEN WH - WHITE GY - GREY YL - YELLOW
OR - ORANGE TQ - TURQUOISE
REV ZONE DESCRIPTION BY DATE

M0701.docx | Rev 1.5 | Modified on 26/03/2021 | © Remote Control Technologies Pty Ltd
9| 16

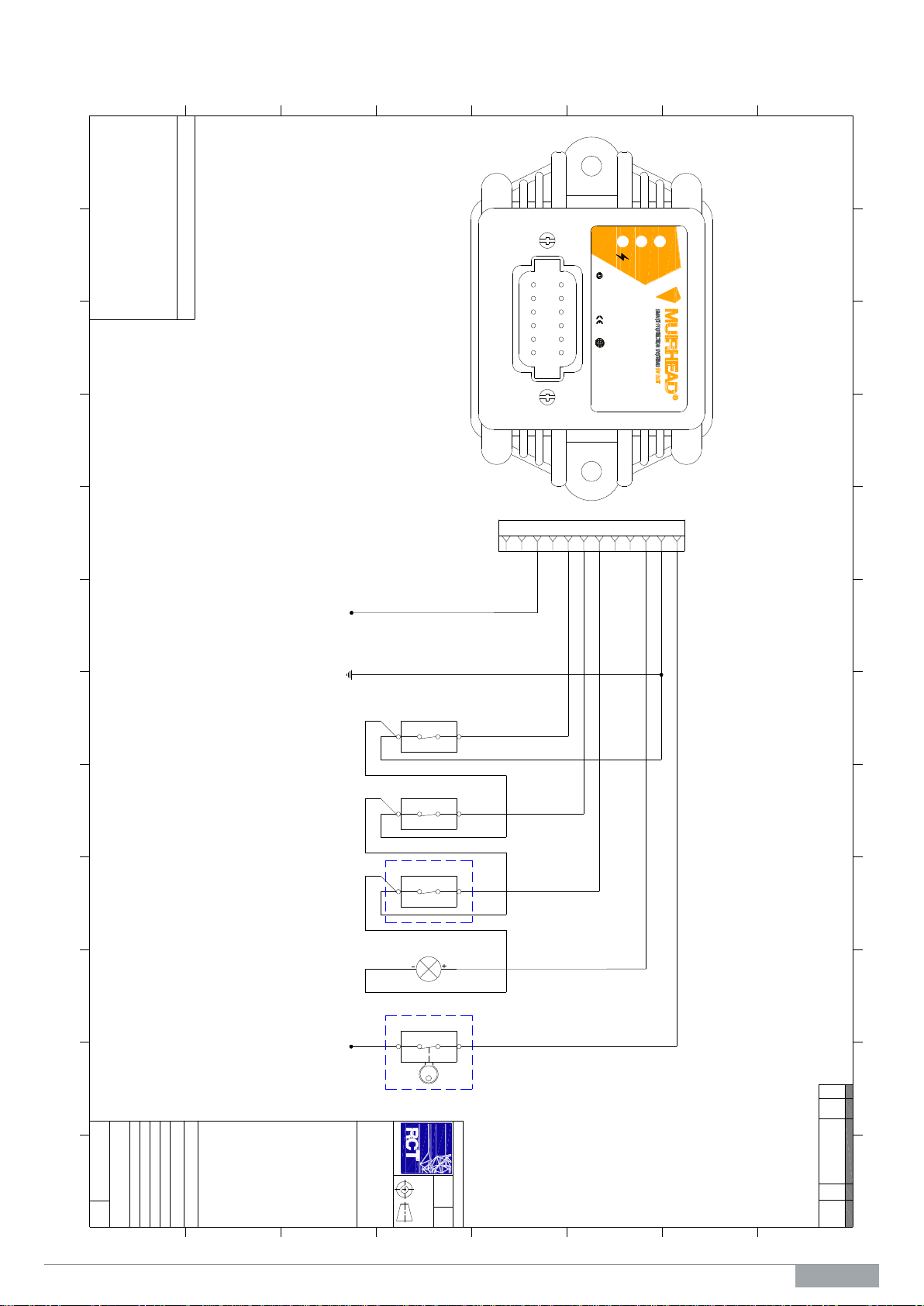

EXTERNAL WIRING DIAGRAM (474u)
(11377)
PARK BRAKE
WARNING CONTROLLER
NOTE:
A) ALL SWITCHES ARE SHOWN AS THEY WOULD BE WITH
THE PARK BRAKE APPLIED AND THE DOORS CLOSED.
B) IF ONLY ONE DOOR SWITCH IS USED THE OTHER DOOR
SWITCH WIRING MUST BE LINKED TOGETHER.
BK
RD
GY
BU BU
GN
WH
EARTH FUSED
BATTERY
+VE
NC
NC
PARK
BRAKE
SWITCH
NC
LEFT
DOOR
SWITCH
NC
RIGHT
DOOR
SWITCH
FLASHING
LED
HORN
(OEM)
OPTIONAL
DOOR SWITCH
(11386 KIT ONLY)
(11387 KIT REQUIRES
PIN 6 TO BE BRIDGED
TO PIN 11)
OPTIONAL
SUPPLIED KEYED
OVERRIDE SWITCH
(11386 KIT ONLY)
(2022)
(9393)
(3543) (5510)
(6812)
(6812)
1
2
3
4
5
6
7
8 9
10
11
12
PARK BRAKE CONTROLLER
11377
!

www.rct.net.au
N12596
12345678910 11 12
B
A
C
D
E
F
G
H
B
A
C
D
E F
G
H
12345678910 11 12
A4
COPYRIGHT - ALL RIGHTS RESERVED
This drawing is the property of REMOTE
CONTROL TECHNOLOGIES PTY LTD (RCT),
and is not to be copied or used in whole or in
part for any purpose without the express
authority of RCT. The drawing is to be returned
to RCT, on demand.
PARK BRAKE
WARNING SYSTEM
EXTERNA WIRING
www.rct.net.au
UNCONTROLLED DOCUMENT
REV
1
DWG No 474u
STATUS
NTS
SCALE
Released
SHEET 1 of 1
BY EY
DRN EH DATE 25/03/13
APPD DAS DATE 25/03/13
STOCK CODE MH-PBWS-K / 01
PART NO 11386/11387
3rd ANGLE
PROJECTION
ALL DIMENSIONS IN MILLIMETERS
WIRE LEGEND
BK - BLACK PK - PINK BU - BLUE PU - PURPLE BN - BROWN RD - RED
GN - GREEN WH - WHITE GY - GREY YL - YELLOW
OR - ORANGE TQ - TURQUOISE
REV ZONE DESCRIPTION BY DATE
1C5,
G9,11
redrawn with pins in
numerical order, optional
noted moved, right door
sw. note changed. MT 20/03/15

10 | 16
M0701.docx | Rev 1.5 | Modified on 26/03/2021 | © Remote Control Technologies Pty Ltd
CALIBRATION
Not Applicable
SERVICE INFORMATION
SERVICE SCHEDULE
The manufacturer recommends that the following service procedure should be performed at each machine’s
scheduled service interval.
SERVICE PROCEDURE
1. Perform a visual inspection; include the following:
a) Control unit
b) Wiring connections and looms
c) Park brake switch
d) Door proximity switches
2. Perform a system test as per the following:
a) Refer to the Operation and Use section of this manual for instructions on the operation of each function,
and checking the controller for maintenance or repairs that may be required to keep it functional and
operational.
b) For any problems found when testing, refer to the Troubleshooting section of this manual.
PARTS LIST
11386 KIT PARK BRAKE WARNING
PART NO.
DESCRIPTION
QUANTITY
INCLUDED
PARTS
SUGGESTED
SPARES
6812
Proximity Switches
2
1
11377
Control unit to suit 11386
1
1
0658
Door Open Warning Label
1
–
5054
Park Brake Switch
2
–
0821
Terminal F/Spade Blue
4
–
0825
Terminal Blue 5.3 mm Hole
1
–
0826
Terminal Blue 6.6 mm Hole
1
–
9393
LED M/V Red 2T Flashing
1
–
11378
Loom To Suit 11386
1
–
5343
System Override Label
1
–
3543
Key Switch Head Stay Put L/H
1
–
5510
Switch Body with 1 x N/C Contact
1
–

M0701.docx | Rev 1.5 | Modified on 26/03/2021 | © Remote Control Technologies Pty Ltd
11 | 16
11387 KIT PARK BRAKE WARNING WITH ONE SWITCH AND NO OVERRIDE
PART NO.
DESCRIPTION
QUANTITY
INCLUDED
PARTS
SUGGESTED
SPARES
6812
Proximity Switches
1
1
11377
Control unit to suit 11387
1
1
0658
Door Open Warning Label
1
–
5054
Park Brake Switch
1
–
0821
Terminal F/Spade Blue
4
–
0825
Terminal Blue 5.3 mm Hole
1
–
0826
Terminal Blue 6.6 mm Hole
1
–
9393
LED M/V Red 2T Flashing
1
–
11378
Loom To Suit 11387
1
–
5343
System Override Label
–
–
3543
Key Switch Head Stay Put L/H
–
–
5510
Switch Body with 1 x N/C Contact
–
–
TECHNICAL SPECIFICATIONS
Dimensions, control unit only
Length: 119 mm | Width: 80 mm | Height/Depth: 65 mm
Dimensions, boxed for freight
Length: 300 mm | Width: 200 mm | Height/Depth: 180 mm
Weight, control unit only
255 g
Weight, including harness /
packaging for freight
2 kg
Input nominal voltage
12 to 24 V DC
Min & Max Input Voltage
8 to 35 V DC
System current rating:
10 A continuous
Operating temperature:
−10 to +65 °C
Connection types
12-pin Deutsch receptacle
Inputs
3
Environmental rating:
IP65
Circuit protection
External control, reverse polarity protection
Enclosure material
Polycarbonate

12 | 16
M0701.docx | Rev 1.5 | Modified on 26/03/2021 | © Remote Control Technologies Pty Ltd
COMPLIANCE AND STANDARDS
Remote Control Technologies Pty Ltd has an obligation as a manufacturer to comply with the regulations as
required by the relevant regulatory bodies, depending on the market and location.
This product currently complies with the following:
ACMA
IEC 61000-6-1:2005 Electromagnetic Compatibility (EMC) –Part 6-1: Generic Standards –Immunity for
Residential, Commercial and Light Industrial Environments.
IEC 61000-6-3:2006, A1:2010 Electromagnetic Compatibility (EMC) –Part 6-3: Generic Standards –
Emissions for Residential, Commercial and Light Industrial Environments.
EU
IEC 61000-6-1:2005 Electromagnetic Compatibility (EMC) –Part 6-1: Generic Standards –Immunity for
Residential, Commercial and Light Industrial Environments.
IEC 61000-6-3:2006, A1:2010 Electromagnetic Compatibility (EMC) –Part 6-3: Generic Standards –
Emissions for Residential, Commercial and Light Industrial Environments.
RoHS 2 Directive 2011/65/EU.
FCC
This device is exempt from FCC regulations under 47 CFR 15.103 Exempted devices.
IC
This device is exempt from IC regulations under ICES-003 —Information Technology Equipment (ITE) —
Limits and Methods of Measurement.
TROUBLESHOOTING
FAULT
POSSIBLE CAUSE
Device not working.
Check wiring and connections.
Intermittent fault.
Check wiring, connections, and proximity switch adjustment.

M0701.docx | Rev 1.5 | Modified on 26/03/2021 | © Remote Control Technologies Pty Ltd
13 | 16
GLOSSARY
WARRANTY
Please see the RCT standard warranty, available on our website - www.rct-global.com.
A
Amp (Ampere)
mW
Milli Watts
AC
Alternating Current
N/A
Not Applicable
AMS
Advanced Management System
N/C
Normally Closed
Aux
Auxiliary Output
N/O
Normally Open
CAN
Controller Area Network
OEM
Original Equipment Manufacturer
CMIO
Control Master Input Output PCB
O/P
Outputs
CMR
Control Master Receiver
Out
Output
CMT
Control Master Transmitter
PB
Push Button
CM2200
Control Master 2200 Remote Set
PC
Personal Computer
COMMS
Communications
PCB
Printed Circuit Board
CPU
Central Processor Unit
PIN
Personal Identification Number
DC
Direct Current
PLC
Programmable Logic Controller
E.G.
For example
POT
Potentiometer
ETR
Energised To Run
PPM
Pulses Per Metre
ETS
Energised To Stop
PWM
Pulse Width Modulation
ESD
Engine Shutdown
PWR
Power
FET
Field Effect Transistor
Rev
Revision
GND
Ground
RF
Radio Frequency
H
Hours
RH
Relative Humidity
HEX
Hexadecimal Numbering System
RPM
Revolutions per minute
ID
Identity
RX
Receiver
i.e
That is
RS232
Recommended Standard (number 232) for
serial data transfer
In
Input
Source
The output can supply/drive current out
IP
Ingress Protection
SYS
System
kg
Kilogram
TOV
Text On Video
Km/h
Kilometres Per Hour
TX
Transmitter
LCD
Liquid Crystal Display
V
Volts
LED
Light Emitting Diode
°C
Degrees Centigrade
LK
Link
#
Number
M
Minutes
<
Less Than
mA
Milli Amps
>
Greater Than
MAX
Maximum
%
Percentage
MCU
Multi Control Unit
MFU
Multi Function Unit
MHz
Mega Hertz (million(s) cycles per
second)
MIN
Minimum
mm
millimetres

14 | 16
M0701.docx | Rev 1.5 | Modified on 26/03/2021 | © Remote Control Technologies Pty Ltd
NOTES

M0701.docx | Rev 1.5 | Modified on 26/03/2021 | © Remote Control Technologies Pty Ltd
15 | 16
NOTES

Discover more: www.rct-global.com
[e-mail]
AUSTRALIA: [phone]
AFRICA: [phone]
CANADA: [phone]
RUSSIA / CIS: [phone]
SOUTH AMERICA: [phone]
USA: [phone]
