MT5600BR-V92 Quick Start Guide
3
Product Description

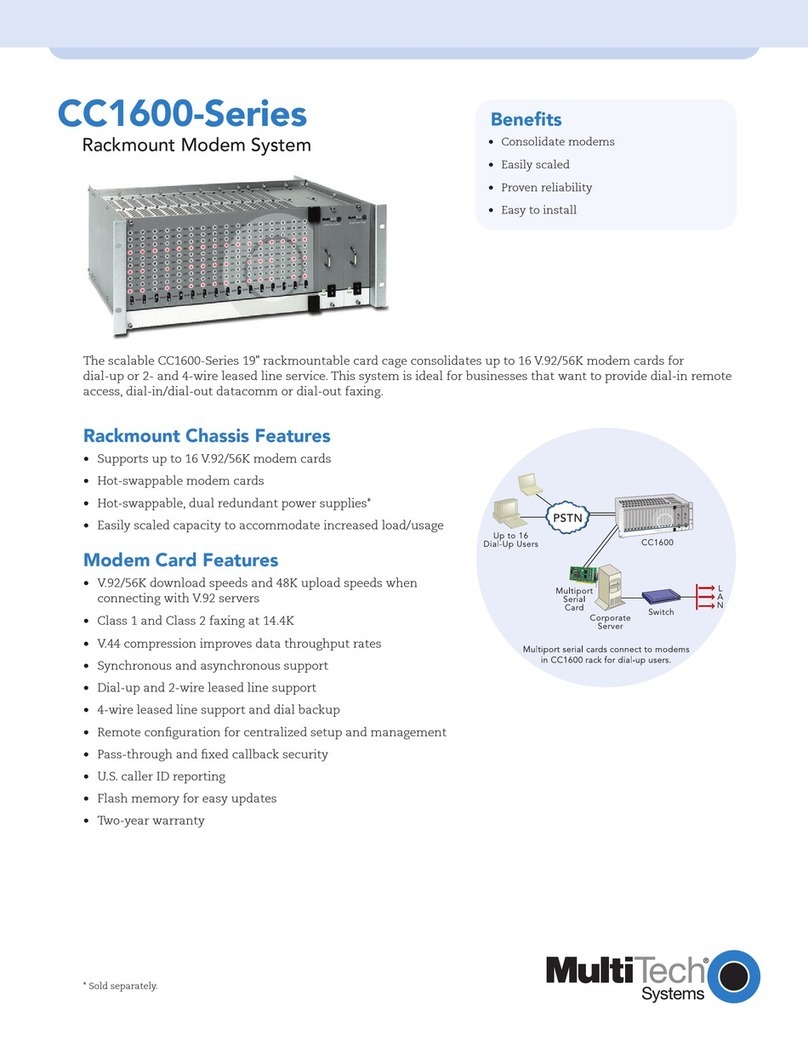

The Multi-Tech Intelligent Data/Fax modem, model MT5600BR-V92 is
designed to mount in Multi-Tech’s modem rack, model CC1600.The
CC1600 modem rack is a EIA-standard 19-inch wide by 7-inch high rack
that mounts in a standard computer cabinet.
Unpacking
Package contains:
· One MT5600BR-V92 modem.
· One telephone cable.
· One MT5600BR-V92 CD
· This Quick Start Guide.
· One brochure with a warranty card.
If any item is missing, please contact Multi-Tech Systems or your dealer/
distributor.
Safety Warnings
1. Never install telephone wiring during a lightning storm.
2. Never install a telephone jack in wet locations unless the jack is
specifically designed for wet locations.
3. This product is to be used with UL and cUL listed computers.
4. Never touch uninsulated telephone wires or terminals unless
the telephone line is disconnected at the network interface.
5. Use caution when installing or modifying telephone lines.
6. Avoid using a telephone (other than a cordless type) during an
electrical storm.There may be a remote risk of electrical shock.
7. Do not use the telephone near a gas leak to report the leak.
8. To reduce the risk of fire, use only 26 AWG or larger
telecommunications line.
9. The telephone cord is to be disconnected before accessing the
inside of the equipment.

4
Multi-Tech Systems, Inc.
PC Board Controls
The MT5600BR-V92 board contains sixteen DIP-Switches. There is a
two-position "Out of Service" (OOS) toggle switch that extends from the
front of the modem circuit card. There is also a two-position TEST/OOS
berg jumper located towards the back and center of the card.
The sixteen DIP-Switches and berg jumper control various modem
options or set default values for the MT5600BR-V92 Command mode.
There is a difference in how several of the switches operate depending
on whether you are in synchronous or asynchronous mode (DIP-Switch #12).
Most communications software packages have installation procedures of
their own, which call for certain modem DIP-Switch settings. If you are
using such a package, follow the software's instructions.

MT5600BR-V92 Quick Start Guide
5
DIP-Switch Settings
The vast majority of installations are similar, with the MT5600BR-V92 being
used to dial up a remote installation where the call is automatically
answered. The factory default DIP-Switch settings are based on this
assumption.The following is a brief description and summary of the
MT5600BR-V92's DIP-Switch options:
Switch Function Position Effect
#1 DTR Forced/ UP* DTR dependent on
interface
DTR from Interface * DOWN DTR forced on all
time
#2 Flow Control &E4* UP* Hardware flow control
(Async/Dial-Up-Leased Line) DOWN Sofrtware flow control
#2 SDLC*/BSC (Sync) UP* SDLC mode
DOWN BSC mode
#3 Result Codes Enabled* UP Q1 Disable Response
(Async Dial-up) DOWN* Q0 Enable Response
#3 DbM Transmit -15dB/-11dB* UP Lease Line
(Async/Sync/Leased Line) DOWN* transmits at -11dB
#4 No affect in async
#4 AS/400 Mode Disabled* UP* AS/400 Mode OFF
(Sync Dial-Up/Leased Line) DOWN AS/400 Mode ON
#5 Auto-Answer Enabled* UP* Enable Auto-Answer
(Async/Sync/Dial-Up) DOWN Disable Auto-Answer
#5 Answer/Originate* UP* Answer mode
(Async/Sync/Leased Line) DOWN Originate mode
#6 Max-Throughput Enabled* UP* Modem set-up to
(Async/Dial-Up/Leased) DOWN operate at highest
efficiency level
#6 Slave Clock Disabled* UP* Slave Clock OFF
(Sync/Dial-Up/Leased) DOWN Slave Clock ON
*Factory default setting.

6
Multi-Tech Systems, Inc.
Switch Function Position Effect
#7 RTS/Normal/Forced* UP RTS dependent on
interface
(Sync/Async/Dial/Leased) DOWN* RTS forced ON
#8 Command Mode Enabled* UP Disable Command Mode
(Sync/AsyncDial/Leased) DOWN* Enabled Command Mode
#9 No affect
#10 Dial-Up*/Leased-Line UP* Dial-Up Operation
DOWN Lease Line Operation
#11 No affect in async
#11 Internal*/External Clocking UP External Clock
(Synchronous) DOWN* Internal Clock
#12 Sync/Async Mode* UP Sync Operation
DOWN* Async Operation
Dip Switch Settings #13 - 16
Switch Position Effect
13/14 UP/UP* V.92 Operation (Default)
13/14 DOWN/UP V.34 Operation
13/14 UP/DOWN V.32b Operation
13/14 DOWN/DOWN V.22b Operation
#15 UP* CD/DSR from Interface
#15 DOWN CD/DSR Forced On
#16 UP 2-Wire Opeation
#16 DOWN 4-Wire Operation
* Factory default setting

MT5600BR-V92 Quick Start Guide
7
Installation
Perform the following procedure to install modem cards into the CC1600
rack. The installation process involves:
1. Verify that the DIP-Switch settings conform to your application
(dial-up or lease line).
2. Slide a modem card into one of sixteen available modem slots.
Start by inserting a modem into the left-most channel (slot #1) of
the rack.The toggle switch should be at the bottom of the card,
with the component side of the card facing the right. The modem’s
gold edge connector is offset so that the modem cannot be
inserted incorrectly. Continue installing modem cards as necessary.
3. Connect one end of an RS232C Cable to the appropriate modem
slot (DB25/25-pin connector-female) at the rear of rack.The other
end of the RS232C cable is connected to the serial port of the
computer.
Note: Any cables connected to the computer must be shielded to
reduce interference.
4. Plug one end of the RJ11 cable provided with the modem into the
rack's RJ11 connector (located on the back plane of the modem
rack) and the other end into the phone-company-provided RJ11 or
RJ11W modular phone jack.
5. Verify the remote modem's current configuration settings with your
MT5600BR-V92 in terms of data compression, error correction,
transmission rate, etc. Refer to the AT commands Reference
Guide on the product CD.
6. Make sure modem and computer/terminal serial port baud rates
are adjusted.
7. Proceed to Chapter 3 in the User Guide, or to your data
communications software manual for additional modem
configuration.
