Benefits
• Lowest total cost of ownership
• Long and stable life cycles
• Certified and carrier approved

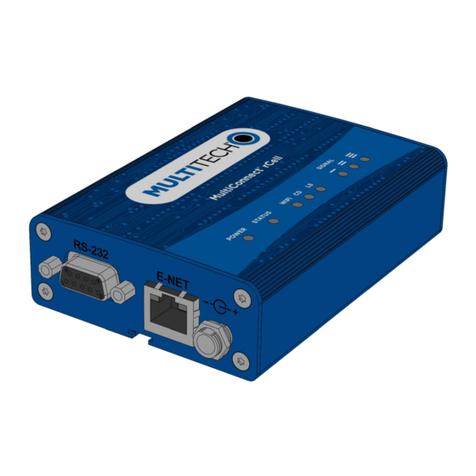

The MultiConnect®rCell 100 Series of cellular routers are
a part of Multi-Tech’s comprehensive portfolio of cellular
connectivity products optimized for M2M (machine-to-machine)
communications. With the Industry’s most cost effective
approach to Cloud-based remote device management
and shared design approach across multiple
cellular technologies, it provides the lowest
total cost of ownership to our customers.
The MultiConnect rCell 100 Series of cellular
routers also offers a long, stable lifecycle, an
important consideration for M2M solutions.
Features
·Remote device management
·3G and 2G models available
·HSPA+, EV-DO, 1xRTT and GPRS
·Ethernet and Serial interfaces
·Supports IPSec VPN tunnels for secure LAN-to-LAN access
·IP Passthrough
·API
·Models with GPS connectivity
·Models with Wi-Fi®/Bluetooth®connectivity
·Rugged, military and SAE tested
·Carrier approved
·Two-year warranty
MultiConnect®rCell 100 Series
Cellular Routers
Central
Monitoring
Location
Internet
Gateways
Cellular Network
INTERNET
®
Multi - Tech
___________________________________________________________
Device Manager

Specifications
Model MTR-H5 MTR-H6
Connectors
Physical Description
Environmental
Certifications
Specifications
Model MTR-H5 MTR-H6
Connectors
Physical Description
Environmental
Certifications
Wi-Fi/Bluetooth Specifications
The Wi-Fi interface can be set up in 802.11 b\g\n Access
Point (AP) or client mode. In AP mode, the router can
support up to 5 client connections. The Bluetooth serial
interface allows you to set up a transparent data pipe from
a Bluetooth device to a remote server. The router can be
configured using TCP or UDP protocols and supports client
and server modes giving you the flexibility you need for
your particular application. RFCOM and SPP profile support.
Contact Multi-Tech about additional Bluetooth profile
support today.
Wi-Fi
·802.11 b\g\n (1x1)
·WEP, WPA, and WPA2 support
·65 Mbps maximum theoretical throughput
Bluetooth
·Version 4.0
·Power Class 1.5

Specifications
Model MTR-EV3 (Coming Soon) MTR-G3 (Coming Soon) MTR-C2
Connectors
Physical Description
Environmental
Certifications
Specifications
Model MTR-EV3 (Coming Soon) MTR-G3 (Coming Soon) MTR-C2
Connectors
Physical Description
Environmental
Certifications
Highlights
Applications
The MultiConnect rCell 100 Series of cellular routers can
be used in a wide variety of applications such as digital
signage, smart vending, smart energy or home medical
monitoring. Because the routers are certified and carrier
approved, customers are able to quickly deploy with cellular
connectivity to realize new revenue streams, Opex reduction
or improved service offering.
Security
The MultiConnect rCell 100 Series of cellular routers
use IPSec industry standard data encryption to provide
high performance, secure LAN-to-LAN VPN connections
with 3DES or AES encryption using IKE and PSK key
management. Support for five concurrent VPN tunnels.

Services & Warranty
Multi-Tech’s comprehensive Support
Services programs offer a full array of
options to suit your specific needs. These
services are aimed at protecting your
investment, extending the life of your
solution or product, and reducing total
cost of ownership. Our seasoned technical
experts, with an average tenure of more
than 10 years, can walk you through smooth
installations, troubleshoot issues and help
you with configurations. Products include a
2-year warranty that can be extended up to
5 years via Multi-Tech’s Extended Warranty
program, which offers the convenience of
Overnight Service* for optimal uptime.
Extended Warranty & Overnight
Services
To give you peace-of-mind and protect your
investment, our Extended Warranty Service
Plans ensure your Multi-Tech products are
covered for 1, 2, or 3 years beyond the
manufacturer’s warranty with an optional
Overnight Service plan*.
Installation Support
Multi-Tech’s Installation Support Service
delivers priority service with the ability to
work one-on-one with an experienced
Multi-Tech technical support engineer, to
guide you through the installation process
for our products.
Technical Support Services
At Multi-Tech, we’re committed to
providing you personalized attention and
quality service while providing you a quick
response to your product support needs.
We have several options of support for you
to choose from.
For additional information on Support
Services as well as other service
offerings, please contact your Multi-Tech
representative or visit
www.multitech.com/support.go.
* Overnight replacement service is currently
available for U.S. customers.
World Headquarters
Multi-Tech Systems, Inc.
2205 Woodale Drive
Mounds View, MN 55112 U.S.A.
Tel: [phone]
Toll-Free: 800-328-9717
Email: [email protected]
www.multitech.com
EMEA Headquarters
Multi-Tech Systems (EMEA)
Unit 1, Thames Court
2 Richfield Avenue
Reading, Berkshire RG1 8EQ
United Kingdom
Tel: +(44) 118 959 7774
Email: [email protected]
Services & Warranty
Multi-Tech’s comprehensive Support
Services programs offer a full array of
options to suit your specific needs. These
services are aimed at protecting your
investment, extending the life of your
solution or product, and reducing total
cost of ownership. Our seasoned technical
experts, with an average tenure of more
than 10 years, can walk you through smooth
installations, troubleshoot issues and help
you with configurations. Products include a
2-year warranty that can be extended up to
5 years via Multi-Tech’s Extended Warranty
program, which offers the convenience of
Overnight Service* for optimal uptime.
Extended Warranty & Overnight
Services
To give you peace-of-mind and protect your
investment, our Extended Warranty Service
Plans ensure your Multi-Tech products are
covered for 1, 2, or 3 years beyond the
manufacturer’s warranty with an optional
Overnight Service plan*.
Installation Support
Multi-Tech’s Installation Support Service
delivers priority service with the ability to
work one-on-one with an experienced
Multi-Tech technical support engineer, to
guide you through the installation process
for our products.
Technical Support Services
At Multi-Tech, we’re committed to
providing you personalized attention and
quality service while providing you a quick
response to your product support needs.
We have several options of support for you
to choose from.
For additional information on Support
Services as well as other service
offerings, please contact your Multi-Tech
representative or visit
www.multitech.com/support.go.
* Overnight replacement service is currently
available for U.S. customers.
World Headquarters
Multi-Tech Systems, Inc.
2205 Woodale Drive
Mounds View, MN 55112 U.S.A.
Tel: [phone]
Toll-Free: 800-328-9717
Email: [email protected]
www.multitech.com
EMEA Headquarters
Multi-Tech Systems (EMEA)
Unit 1, Thames Court
2 Richfield Avenue
Reading, Berkshire RG1 8EQ
United Kingdom
Tel: +(44) 118 959 7774
Email: [email protected]
Highlights
M2M Focused Software Features
·Remote device management simplifies and
scales the management of geographically
dispersed devices. Monitor, upgrade and
configure devices from a single location
resulting in lower total cost of ownership
and increased operational efficiency.
·Persistent connectivity options that
automatically manage the cellular
connection so the connection is available
when it’s needed most
·DDNS support for inbound connectivity
·Flexible Serial-to-IP configurations with
client and server modes to support any
communication architecture
·Flexible GPS configuration allows GPS data
to be sent serially or via TCP/UDP protocols
in client or server modes
·API (RESTful JSON over HTTPs) for
managing all configurations and features
of the device enabling integration into
external applications
·Bridges serial Modbus traffic to Modbus
TCP with support for client and server
modes
Ordering Information
GSM Products
Product Description Bundle Available Available Build Options Region
MTR-H5-Bxx HSPA+ Cellular Router Yes* B07, B08, B09, B10 Global
MTR-H6-Bxx HSPA Cellular Router Yes* B16, B18, B19 Regional
MTR-G3-Bxx GPRS Cellular Router Yes* B16 Regional
* Bundles include the following.
Ordering Codes
-US Includes US style power supply, antenna(s), and Ethernet cables
-EU Includes Euro style power supply, antenna(s), and Ethernet cables
-GB Includes UK style power supply, antenna(s), and Ethernet cables
CDMA Products
Product Description Bundle Available Available Build Options Region
MTR-EV3-Bxx-Nx** EV-DO Cellular Router Yes* B07, B08, B09, B10 US
MTR-C2-Bxx-Nx** 1xRTT Cellular Router Yes* B16, B17 US
* Bundles include the following.
Bundle Ordering Codes
-US Includes US style power supply, antenna(s), and Ethernet cables
** Nx signifies the specific Carrier that the product is approved for.
Carrier Ordering Codes
-N2 For Sprint Networks
-N3 For Verizon Wireless Networks
-N16 For Aeris Communications Networks
1 Ethernet Port RS-232 Serial Wi-Fi/Bluetooth GPS Diversity
B07 X X X
B08 X X X X
B09 X X X X
B10 X X X X X
B16 X X
B17 X X X
B18 X X X
B19 X X X X
Use ordering codes for specific build options. Go to www.multitech.com for detailed product model
numbers.
