Introduction
Congratulations on the purchase of one of the finest
broadband routers available today, Multi-Tech System’s
RouteFinder Model RF500S.
The RouteFinder connects a cable or DSL modem to an
Ethernet LAN to provide high-speed broadband access to the
Internet for up to 253 LAN clients using only 1 IP account. The
RF500S features an integrated 4-port 10/100 switch for LAN
access, one asynchronous port that acts as a backup
resource for Internet access or serves as dial-in remote
access for telecommuters or mobile users. The RouteFinder
RF500S uses the NAT protocol to implement firewall and
gateway security for LAN-based resources. For added LAN
security, the RouteFinder can be used to segment the LAN.
This solution is ideal for any small business looking for cost-
effective broadband access to the Internet for every LAN client
on the LAN or for the home user looking to share their DSL
cable modem.
The RouteFinder RF500S

Introduction
5
Related Documentation
This RF500S DSL/Cable Router Quick Start Guide is intended
to be used by systems administrators and network managers.
This guide provides the necessary information for a qualified
person to unpack, cable, install software, and configure the
device for proper operation.
Adetailed RF500S DSL/Cable Router User Guide in Adobe
Acrobat PDF format is provided on the System CD included
with your RouteFinder RF500S. The User Guide provides in-
depth information on the features and functions available on
your router.
Get Adobe Acrobat Reader
Adobe Acrobat Reader is a free program used to view
documents created inAdobe PDF format. AdobeAcrobat
Reader can be installed from the System CD (click on the
Install Manuals option and select InstallAdobeAcrobat
Reader) or downloaded fromAdobe’s Web site at:
http://www.adobe.com/prodindex/acrobat/readstep.html
Get the User Guide
The User Guide can be installed from the System CD by
clicking Install Manuals on the Installation screen or
downloading the file from our Web site at: http://
www.multitech.com
Save or Print the User Guide
Once the User Guide is displayed on screen using Adobe
Acrobat Reader, you can save the .pdf file to your system or
print a copy.

RouteFinder RF500S Quick Start Guide
6
Hardware Installation
Safety Warnings
1. Never install telephone wiring during a lightning storm.
2. Never install telephone jacks in a wet location unless the
jack is specifically designed for wet locations.
3. This product is to be used with UL and cUL listed
computers.
4. Never touch uninsulated telephone wires or terminals
unless the telephone line has been disconnected at the
network interface.
5. Avoid using a telephone (other than a cordless type)
during an electrical storm. There may be a remote risk of
electrical shock from lightening.
7. Do not use the telephone to report a gas leak in the vicinity
of the leak.
8. To reduce the risk of fire, use only No. 26 AWG or larger
Telecommunications line Cord.
Unpacking your RouteFinder
The RF500S shipping box contains the following items:
• System CD
• Tucows CD
• Power Supply
• The RouteFinder RF500S
• This Quick Start Guide
• A serial cable
If any of the items is missing or damaged, please contact
Multi-Tech Systems.

Hardware Installation
7
Cabling your RouteFinder
Cabling your RouteFinder requires making the appropriate
connections to PCs, Cable or DSL modem, analog modem or
ISDN TA (optional), AC power and the router. Because this
device also provides DHCP server functions, remote access,
routing and firewall protection, after your device is properly
cabled, you will need to complete your configuration by
following the instructions provided in the Software Installation
and Configuration section of this Quick Start Guide.
10/100 BT LAN
Uplink/Normal
1234
ASYNC
Reset
10 BT WAN
5 DC
Power
Optional
Uplink
Serial Cable
To Cable Modem
or DSL Modem
Power Connection
To optional
Modem or
ISDN TA Network Printer
Hub
PC
PC

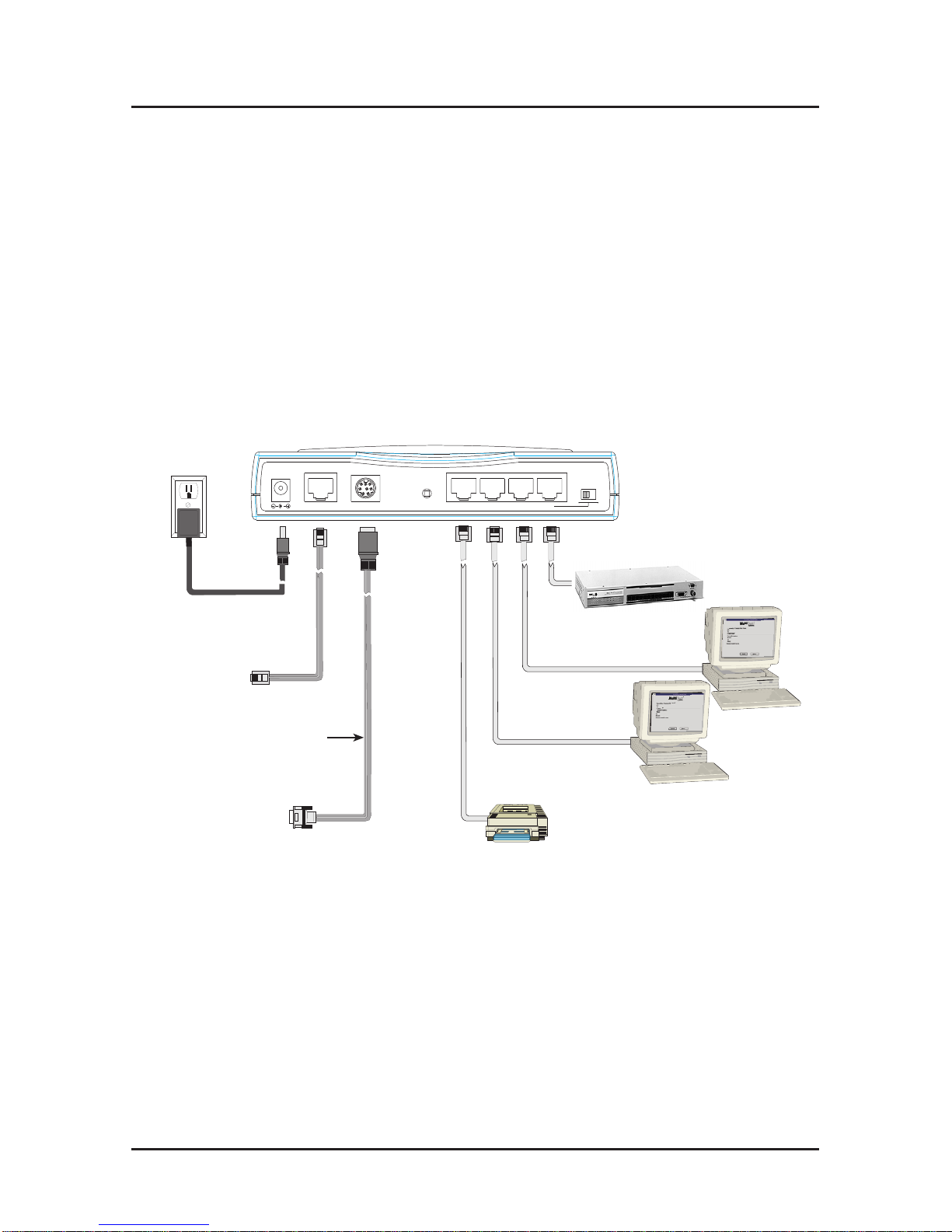

Cabling the RouteFinder RF500S
1. Before beginning, turn the power off on all network devices
(PCs, Cable, DSL modems, analog modems, ISDN TAs
and the router).
2. Connect the Ethernet port of each PC or network device to
one of the 4 LAN ports (if you are using the Uplink option,
port number 1 cannot be used as a LAN port).

RouteFinder RF500S Quick Start Guide
8
3. If you are using an analog modem, connect it to the Serial
Async port.
4. To use the Uplink option to connect to another network
segment, slide the Uplink/Normal switch into the Uplink
position. Connect the LAN cable to LAN port number 1.
Plug the other end of the LAN cable into another hub,
router or switch.
Note: If you are not using the Uplink feature, place the
switch in the Normal position.
5. Connect a network cable from the DSL or Cable modem to
the WAN port.
6. Connect the provided power supply cable to the 5VDC
power port on the back of the router. Plug the power
supply into anAC power outlet as shown.
7. Power on your DSL modem or Cable.
8. If you are using an analog modem or ISDN TA, power on
the device.
9. Press and hold the RouteFinder’s Reset button for 3
seconds to restore the default settings.
10. You are ready to configure software for your router and
network PCs.

Software Installation
9
Software Installation and Configuration
Before beginning the installation process, ensure that your
system meets all hardware and software requirements:
•Intel 486 or higher processor.
•10/100 BaseT cable to connect the RF500S to the
network.
•One DSL or Cable Modem.
•A networked computer with Windows 95/98/2000,
Windows NT 3.5 or higher and TCP/IP protocol installed,
(Or, a non-Windows system with TCP/IP properly installed
to enable Telnet configuration).
•Any Windows communication application for Dial-Out
operation.
•Any PPP supported communication application for Dial-In
operation.
•TCP/IP installed and configured on each workstation
accessing the Internet.
Software Installation
The software installation process involves installing the
RouteFinder Utilities, including RouteFinder Setup Wizard,
RouteFinder Manager and RouteFinder Monitor. Adescription
of each component follows:
RouteFinder Setup Wizard
The RouteFinder Setup Wizard provides a step-by-step
process to assist you in entering all the basic settings needed
to configure your RF500S for general use. All settings that are
entered in the Setup Wizard can be found in their respective
menus in RouteFinder Manager.

RouteFinder Quick Start Guide
10
RouteFinder Manager
RouteFinder Manager is the main program used to configure
all settings for your RF500S. Complete information about
options within the RouteFinder Manager can be found in the
User Guide.
RouteFinder Monitor
RouteFinder Monitor is a multi-purpose utility designed to let
you know the status of your RF500S connection. The monitor
offers the ability to point and click on an event to access
context-sensitive troubleshooting procedures. Refer to the
User Guide for more information about RouteFinder Monitor.
Using RouteFinder Setup Wizard
Note: Before beginning this procedure, ensure that your
RF500S is properly connected to the network and the device is
powered on.
After installing the software, you may return to the
RouteFinder Setup Wizard, by clicking Start | Programs |
RouteFinder Manager | RouteFinder Wizard.
Before running the Setup Wizard, it is strongly recommended
that you exit all Windows programs.
1. Insert the RF500S System CD into your computer’s CD-
ROM drive. The RF500S System CD screen appears.
Note: IfAutorun is disabled on your computer, use
Windows Explorer to view the contents of the CD.
Double-click the CD icon to display the RF500S System
CD main screen.
2. Click Install Software.
3. Follow the on-screen instructions to install the software.

Software Installation
11
4. When the software installation completes, the Setup
Wizard dialog box displays.
Click OK.

RouteFinder Quick Start Guide
12

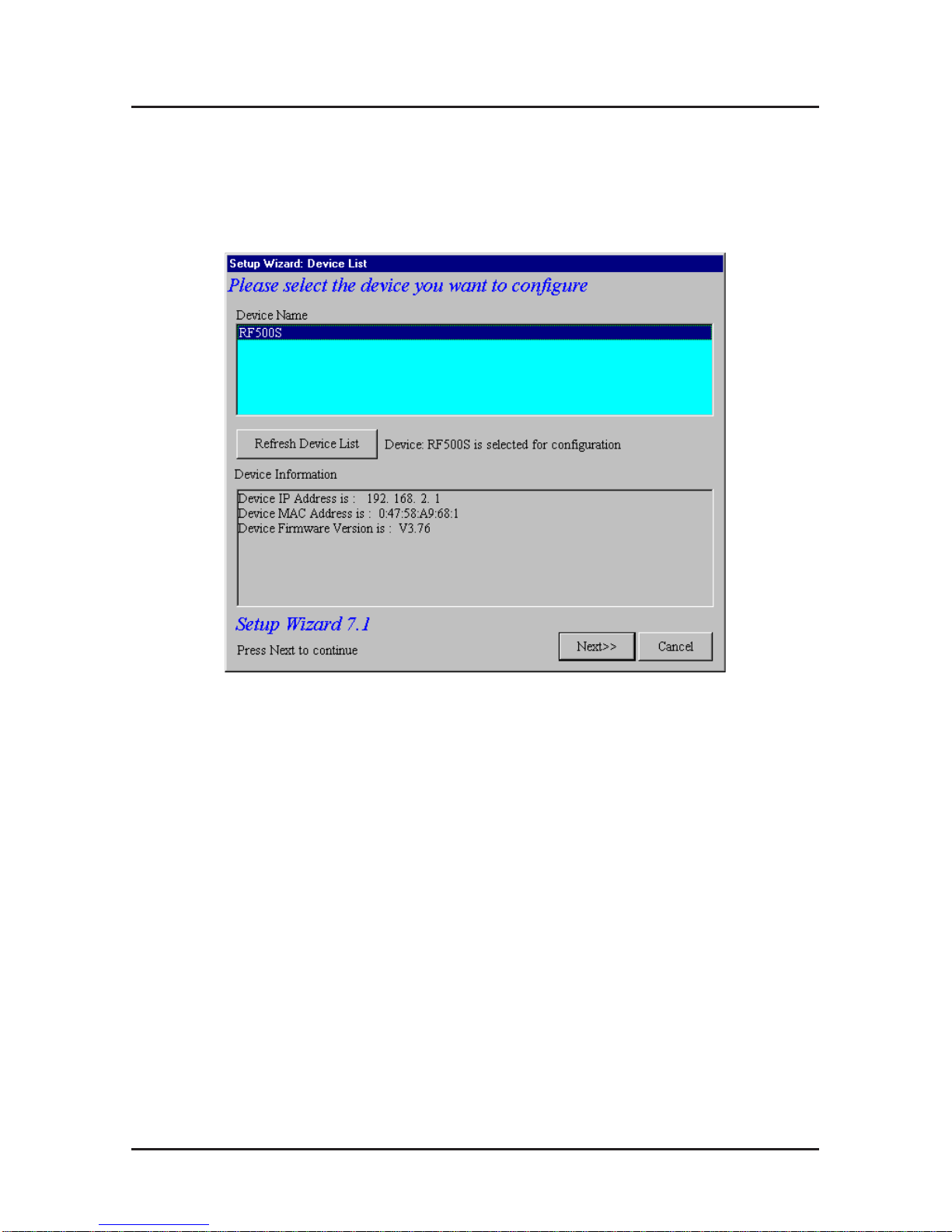

5. The Setup Wizard: Device List dialog box displays. The
Setup Wizard automatically checks your network for
available network devices and displays them on the
screen.
Select the device you wish to configure from the Device
Name list.
Record the values presented in the Device Information
panel for later reference.
Device IPAddress ______________________
Device MAC Address ____________________
Device Firmware Version _________________
Click Next>>.
Note: If a message appears indicating the device is not
found, or you do not see the device you are attempting to
configure listed, click the Refresh Device List button.

Software Installation
13
6. The Setup Wizard: Device IPAddress dialog box
displays.
Enter your local internal network’s IP address for this
device.
The Setup Wizard will automatically detect the first three
octets of your local IP address. You must enter the last
octet only.
If you wish, you can change the network name of your
RouteFinder. If you are connecting to an ISP, the device
name can act as your computer name if it is required on
the remote system.
Click Next>> to continue. The device will search the
network to ensure that the IP address is valid. This may
take several seconds.
Note: If your ISP provided you with an IP address, do not
enter that address in this field. Enter the IP address for
this device on your local network. Refer to the Glossary in
the User Guide for additional information on IP addressing.

RouteFinder Quick Start Guide
14
7. The Select Function dialog box displays.
Select the function of the WAN Ethernet port by selecting
IP Routing (NAT Enabled) , IP Routing (NAT Disabled . If
you are using NAT Enabled, you may also select Enable
PPPoE .
•Select IP Routing (NAT Enabled) to allow local LAN clients
to share one external IP address for accessing the
Internet. This option is most often used when the RF500S
is connected to a DSL or cable modem, or when the IP
segment of the server needs firewall protection.
•Select IP Routing (NAT Disabled) to allow the RF500S to
function as a router between the IP segment of the server
and another IP segment. This option is ideal for
organizations needing to segment workgroups.
•Select Enable PPPoE to use the RF500S with a time-
base, rather than fixed-cost DSL modem connection. Enter
the User Name and Password provided by your ISP. This
option is most often used when connecting via DSL to the
Internet.
Note: Enable PPPoE is valid only when IP Routing (NAT
Enabled) is selected.
Click Next>>.

Software Installation
15
8. The External IP Assignment dialog box displays.
Enter the WAN Ethernet IP address information provided
by your ISP or other external network administrator .
•In the External IPAddress box, enter the ISP or remote
system’s IP address.
•In the External IP Netmask box, enter the ISP or remote
system’s IP segment netmask (for Class C networks, the
Netmask is generally set to 255.255.255.0).
•In the External Gateway IPAddress box, enter the IP
address of the ISP or remote network’s Gateway to their
network.
Note: If your ISP uses dynamic IP addressing, leave the
External IP address and the External Gateway IP address
at the default values of 0.0.0.0. Set the External IP
Netmask to the default value of 255.255.255.0.
Click Next>>.

RouteFinder Quick Start Guide
16
9. The Asynchronous Port Function dialog box displays.
Select 1.) Remote Access, 2.) IP Routing (NAT
Enabled) or 3.) IP Routing (NAT Disabled).
•Select Remote Access to allow remote users to dial-in to
the network to access resources as if the remote user is
connected to the network locally. Continue with the
Remote Access instructions on page 17.
•Select IP Routing (NAT Enabled) to allow all users in the
two IP segments (LAN and WAN Ethernet) to share one IP
address to the Internet. You may also select this option to
use the async port for dial-up backup in the event the DSL
or cable becomes unavailable.
Note: The IP Routing (NAT Enabled) feature of the async
port is valid only if the WAN port is configured as NAT
Disabled .
•Select IP Routing (NAT Disabled) to connect other IP
segments through the async port. Proceed to the IP
Routing instructions on page 20.
Click Next>>.

Software Installation
17
1.) Remote Access
You must define the location of your remote user account
database by selecting a) Use Local Client List or b) Use
RADIUS Server. Follow the instructions for the user
database your system will use..
Note: The Local Client List allows you to add a maximum
of 64 users.
a.) Use Local Client List
Use Local Client List allows you to create an
authentication database consisting of user names,
passwords and dial-in options for each remote user. You
must provide the following information for each client:
User Name: Enter the User Name to authenticate the
remote dial-in user.
Password: Enter the Password to authenticate the remote
dial-in user.
Password Verification: Re-enter the remote dial-in
user’s password.

RouteFinder Quick Start Guide
18
Callback Type: Select one of the following three callback
options for each remote client:
• No Callback: Select this option to allow the remote user
to immediately connect to the network after being
authenticated. No Callback is the default setting.
• Fixed Callback: This option allows you to specify a fixed
callback telephone number for the user. After the PPP
negotiation, the device will callback the telephone number
you enter in the callback telephone number field. This
option is best used for clients requiring callback security
while dialing-in from the same location each time.
• Variable Callback: Select Variable Callback for remote
users that travel or dial-in from various locations and need
callback security. This option allows clients to specify the
callback telephone number each time they connect to the
network.
Click Add after entering information for each Local Client.
Click Next>> and continue with Step 10 when all users
have been added to the database.

Software Installation
19
b.) Use RADIUS Server
Select this option if you would like your remote clients to
be authenticated on a RADIUS server. You must enter the
following RADIUS Server Settings:
• RADIUS Access Server IP Address: Enter the IP address
of the RADIUS Access Server.
• RADIUS Accounting Server IPAddress: Enter the IP
address of the RADIUS Accounting Server.
• Secret: Enter your Secret RADIUS code or password.
• Secret Verification: To confirm your Secret code, re-enter
your code or password.
Note: In most cases, the RADIUS Access Server and the
RADIUS Accounting Server are the same server, so the IP
address will be the same.
Click Next>> and continue with Step 10.

RouteFinder Quick Start Guide
20
2.) IP Routing (NAT Enabled) and
3.) IP Routing (NAT Disabled)
If you select IP Routing for the asynchronous port, the
Setup Wizard: IP Routing dialog box displays.
Enter the information required to dial-up and login to your
ISP’s remote server:
• Telephone Number : Enter the phone number used to
dial your remote server (ISP).
Note: If you must dial a number to get an outside line
(e.g., “9”, or “0”), enter the required number plus a
“w”(wait) or a comma in the Telephone box. (e.g., 9w555-
2323 or 9,,5552323) Each comma provides a 3-4 second
delay.
• User Name: Enter the User Name for your remote server
or ISP account.
• Password: Enter the Password for your remote server or
ISP account.
• Password Verification: Re-enter the password for your
remote account.
Click Next>>.
