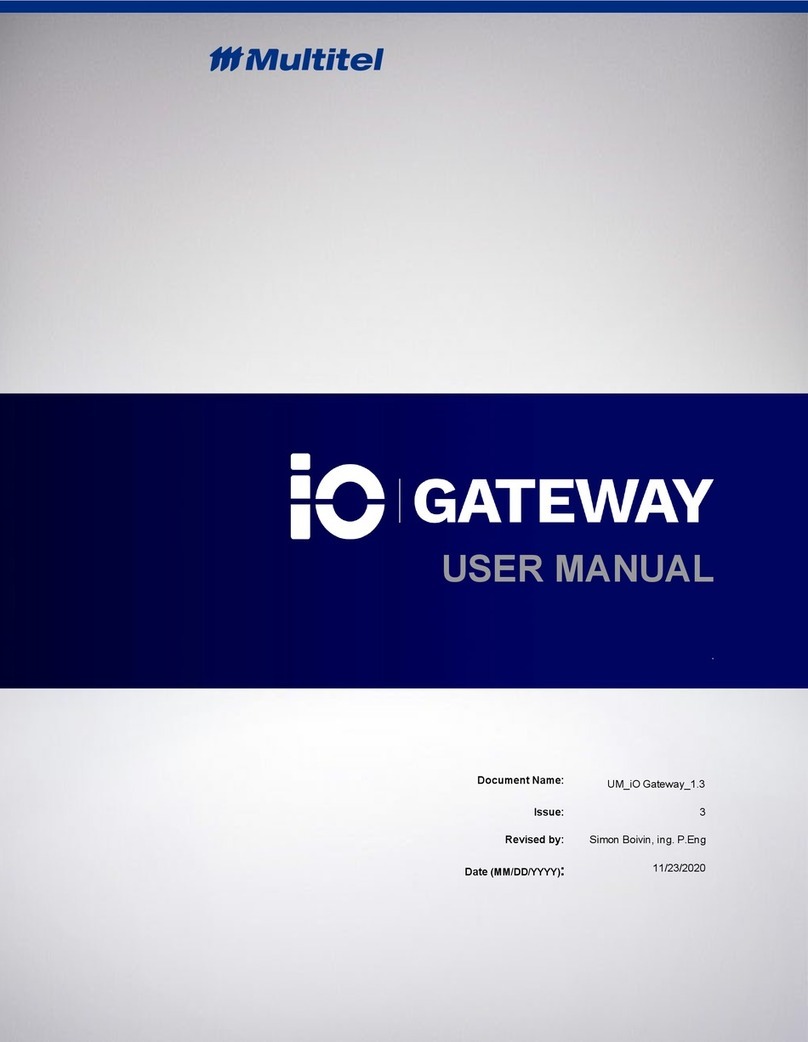

Multitel IO Gateway User manual

INSTALLATION GUIDE

INSTALLATION GUIDE - IO GATEWAY
© All rights reserved. Multitel 2020. Printed in Canada.
PROPRIETARY INFORMATION
The information contained in this document is the property of MULTITEL INC. Except as specifically authorized in writing by MULTITEL INC.,
the holder of this document shall:
1. Keep all information contained herein confidential and shall protect same in whole or in part from disclosure and dissemination to all third
parties and;
2. Use this document for operating and maintenance purposes only.
Document Name:
GUSB_IOGatewayv1_0
Issue:
1.0
Revised by:
Simon Boivin, PLM
Date (MM/DD/YYYY):
17/10/2019

INSTALLATION GUIDE - IO GATEWAY
© All rights reserved. Multitel 2020. Printed in Canada.
TABLE OF CONTENTS
1. HARDWARE INSTALLATION .......................................................................................................................................... 8
1.1 PREPARING TO INSTALL IOGATEWAY..........................................................................................................................................8
1.1.1 Equipment supplied by Multitel ............................................................................................................................................. 9
1.1.2 Required tools and/or material not supplied by Multitel....................................................................................................... 9
1.2 MOUNTING IOGATEWAY ......................................................................................................................................................9
1.2.1 Rack Mounting ..................................................................................................................................................................... 10
1.2.2 Standalone ........................................................................................................................................................................... 10
1.2.3 Mounted with Fusion ........................................................................................................................................................... 10
1.2.4 Chassis Ground..................................................................................................................................................................... 10
1.3 DEVICES CONNECTION TO IOGATEWAY ....................................................................................................................................11
1.3.1 Ethernet Ports Connection .................................................................................................................................................. 12
1.3.2 RS-485 Ports Connection..................................................................................................................................................... 13
2. POWERING IO GATEWAY ........................................................................................................................................... 15
2.1 WIRING POWER INPUT ...........................................................................................................................................................15
3. INSTALLATION CHECKLIST .......................................................................................................................................... 17
4. IO GATEWAY SETUP FIRST TIME CONNECTION........................................................................................................... 18
4.1 LOGIN.................................................................................................................................................................................20
4.2 SETTINGS.............................................................................................................................................................................21
4.2.1 User and Access Levels......................................................................................................................................................... 21
4.2.2 Site Information ................................................................................................................................................................... 22
4.2.3 Connections.......................................................................................................................................................................... 22
4.3 PROTOCOLS .........................................................................................................................................................................28
4.3.1 HTTP/HTTPS......................................................................................................................................................................... 28
4.3.2 PING ..................................................................................................................................................................................... 28
4.3.3 Modbus ................................................................................................................................................................................ 28
4.4 CATEGORIES AND MODELS......................................................................................................................................................29
4.4.1 Category ............................................................................................................................................................................... 29
4.4.2 Model ................................................................................................................................................................................... 30
4.5 DATA SOURCE ......................................................................................................................................................................31
4.6 IOGATEWAY MONITORING CAPABILITIES ..................................................................................................................................31
4.6.1 Standard Mode..................................................................................................................................................................... 31
4.6.2 Transparent Mode................................................................................................................................................................ 31
4.7 PASSTHROUGH .....................................................................................................................................................................44

INSTALLATION GUIDE - IO GATEWAY
© 2020 Multitel – IO Gateway Installation Guide v1.0
4
FIGURES
Figure 1 - Maximum Distances .............................................................................................................................8
Figure 2 – iO Gateway Standalone Rack .............................................................................................................10
Figure 3 – iO Gateway Mounted with Fusion .......................................................................................................10
Figure 4 - Chassis Ground ...................................................................................................................................11
Figure 5 - Front Ethernet Ports..............................................................................................................................12
Figure 6 - Back Ethernet Ports .............................................................................................................................12
Figure 7 – RS-485 connectors..............................................................................................................................14
Figure 8 – iO Gateway Power Input and Fail .......................................................................................................15
Figure 9 – iO Gateway First Time Connection .....................................................................................................18
Figure 10 – Changing IPv4 Properties on PC .....................................................................................................19
Figure 11 – IP address in Web browser ..............................................................................................................19
Figure 12 – First Time Login................................................................................................................................20
Figure 13 – Reset User Password.......................................................................................................................21
Figure 14 – Login Page with site information .......................................................................................................22
Figure 15 – iO Gateway Connections.................................................................................................................23
Figure 16 – iO Gateway Connections.................................................................................................................24
Figure 17– Ethernet 1- Back interface..................................................................................................................25
Figure 18- iO Gateway – LAN Configuration ........................................................................................................25
Figure 19 - Ethernet 2 - Front interface ................................................................................................................26
Figure 20– iO Gateway LAN/WAN Connection....................................................................................................27
Figure 21 – iO Gateway Network and Serial Connections ...................................................................................27
Figure 22 – RS-485 COM A Interface ..................................................................................................................28
Figure 23 – Modbus Protocol Interface ..............................................................................................................29
Figure 24 – New Equipment Category Interface ..................................................................................................30
Figure 25 – New Equipment Model Interface .......................................................................................................30
Figure 26 – iO Gateway – Monitoring Architecture ..............................................................................................32
Figure 27 – Step 1 ................................................................................................................................................32
Figure 28 – Equipment Creation Interface ...........................................................................................................33
Figure 29 – Standard Mode ..................................................................................................................................33
Figure 30 – Modbus TCP/IP - Standard Mode Equipment Interface....................................................................34
Figure 31 – Modbus TCP/IP - Standard Mode Equipment in Data Source / Dashboard Interface.....................34
Figure 32 – Modbus TCP/IP – Standard Mode List Data Points Interface...........................................................35
Figure 33 – Data source / Dashboard with Data Points Interface ........................................................................35
Figure 34– Transparent Mode ..............................................................................................................................35
Figure 35 – Modbus TCP/IP - Transparent Mode Equipment Interface...............................................................36
Figure 36 –Modbus TCP/IP – Transparent Mode Equipment in Data Source / Dashboard Interface .................36
Figure 37 –SNMP .................................................................................................................................................36
Figure 38– SNMP Get v1/v2c Equipment Creation Interface...............................................................................37
Figure 39 –SNMP Get v3 Equipment Creation Interface .....................................................................................38
Figure 40 –SNMP Get Equipment in Data Source / Dashboard Interface ...........................................................38
Figure 41– SNMP Get Data Point Interface .........................................................................................................39
Figure 42 –Data source / Dashboard with SNMP Get Data Point Interface.........................................................39
Figure 43 – Serial ................................................................................................................................................39
Figure 44 – Modbus RTU Advanced Option Interface .........................................................................................40
Figure45– RTU – Standard Mode – Module Configuration ..................................................................................40
Figure 46– RTU – Standard Mode – Data Point Configuration ............................................................................41
Figure 47 – RTU – Standard Mode – Data Point Monitoring ...............................................................................41
Figure 48 – Equipment – Transparent Mode........................................................................................................41
Figure 49 – RTU – Transparent Mode – Module Configuration ...........................................................................41
Figure 50– RTU – Transparent Mode – Data Point Configuration .......................................................................42
Figure 51– Transparent Mode – Data Point Monitoring .......................................................................................42
Figure 52 – SNMP Advanced Option Interface ....................................................................................................43
Figure 53– RTU – SNMP GET – Module Configuration.......................................................................................43

INSTALLATION GUIDE - IO GATEWAY
© 2020 Multitel – IO Gateway Installation Guide v1.0
5
Figure 54– RTU – SNMP GET – Data Point Configuration..................................................................................44
Figure 55 – RTU – SNMP GET – Data Point Monitoring .....................................................................................44
Figure 56 – Passthrough Interface .......................................................................................................................44
Figure 57 –Save & Reboot Confirmation............................................................................................................45
Figure 58 – Passthrough Activated in Data Source/Dashboard...........................................................................45

INSTALLATION GUIDE - IO GATEWAY
© 2020 Multitel – IO Gateway Installation Guide v1.0
6
TABLES
Table 1 – RJ45 Connectors Pinout .......................................................................................................................13
Table 2 – RJ45 Connectors Pinout .......................................................................................................................13
Table 3 – RS-485 Connectors Pinout...................................................................................................................14
Table 4 – iO Gateway power consumption ...........................................................................................................15
Table 5– Power Input Pinout.................................................................................................................................16
Table 6 – Installation Checklist ............................................................................................................................17
Table 7 – iO Gateway Ethernet Ports Factory Settings........................................................................................18
Table 8 - iO Gateway Web Browsers ....................................................................................................................19
Table 9– iO Gateway Default Credentials .............................................................................................................20
Table 10 – Standard Mode – Modbus Register Mapping.....................................................................................40
Table 11 – SNMP GET – Register/OID Mapping .................................................................................................43

INSTALLATION GUIDE - IO GATEWAY
© 2020 Multitel – IO Gateway Installation Guide v1.0
7
CONTROL SHEET
Issue Date
MM/DD/YYYY
Description Originator
1.0
02/24/2020
First release
S. Boivin

INSTALLATION GUIDE
© 2020 Multitel – IO Gateway Installation Guide v1.0
8
1. HARDWARE INSTALLATION
1.1 PREPARING TO INSTALL IO GATEWAY
In accordance with Articles 100-16, 100-17 and 110-18 of the National Electrical Code, ANSI/NFPA # 70 1987 this
equipment shall be installed in a restricted access area. It should be installed by qualified personnel as close as
possible to the equipment to be monitored to reduce cabling and installation time. These are maximum distances
that shall not be exceeded in order to maintain the highest level of performance possible.
Figure 1 - Maximum Distances
Description Cabling Maximum Distance
Logic Ground
24, 26
2000 ft
Input Power
22, 20 twisted pairs
250 ft
Ethernet
Cat-5
328 ft*
RS-485
22, 24 twisted pairs
Up to 4000 ft**
NOTE:
Ethernet Maximum Distance is specified at 328 ft but depending on the configuration it could be possible to reach
greater distances but it is not garantuee. It is recommend to use a booster or a router/switch at each 328ft to
stabilize the network.
NOTE:
RS-485 Maximum Distance will depend on the baudrate. The greater the baudrate is the lower the maximum
distance will be.
Before proceeding with iO Gateway’s installation it is important to have a good understanding of the possible device
relationships and interconnections with third party smart devices. This type of information can be found in
engineering or interconnection diagrams, methods of procedure or other specific application guides.
For additional support please do not hesitate to contact the Multitel Customer Service Engineering Group at
[e-mail].

INSTALLATION GUIDE
© 2020 Multitel – IO Gateway Installation Guide v1.0
9
1.1.1 EQUIPMENT SUPPLIED BY MULTITEL
Each iO Gateway is supplied with the following items:
•1 x 7 pin screw type modular connectors
•2 x 3 pin screw type modular connectors
•1 x ring terminal for wire range 18-14 for ground lug
•1 x hexagon locknut #8-32
•1 x tooth lock washer #8
IMPORTANT NOTE:
Before proceeding with installation verify that all material has been received and is in good condition.
1.1.2 REQUIRED TOOLS AND/OR MATERIAL NOT SUPPLIED BY MULTITEL
•2x Cat-5 Cables
•2x RS-485 Cables
•Ground cable #14 AWG and ground lugs
•Terminal lugs (fork type or others) #22-16
•In-line fuse holders (to protect iO Gateway from signals connected to the shunts or to any point other than
ground Multitel ordering code : FSBL-TL)
•Fuses, 1 1/3 amp
•Safety glasses or goggles
•Anti-static wrist strap
•Computer to access the web interfaces of iO Gateway
•Standard installation tools (various screw drivers, long nose, cutters, etc.)
•Digital voltmeter/multimeter, 3½ digit (or better)
•Ammeter 31/2 digits (or better).
•Crimping tool for the terminal lugs of certain accessories (fork type or others)
•Blade screwdriver 3/32” (2.4mm)
1.2 MOUNTING IO GATEWAY
iO Gateway is designed to be installed in a Telecom Central Office environment, but is also suitable for other
industrial sectors. The iO Gateway must be rack mounted and its chassis should be located as close as possible to
the equipment and the monitoring that has to be physically connected to the system.

INSTALLATION GUIDE
© 2020 Multitel – IO Gateway Installation Guide v1.0
10
1.2.1 RACK MOUNTING
Please note iO Gateway mounting solutions are not included and need to be purchased as an option. There are
two types of mounting options: Standalone and Mounted.
1.2.2 STANDALONE
iO Gateway must be installed in standard 19" or 23" telecommunication relay racks. The provided mounting brackets
adapt rack mounting for European and North American relay rack standards and provide a flush installation. The
19" bracket can support up to 3x iO Gateway or SMX Modules. An 4" extension ear is provided for installation on a
23" rack. Also provided is 3x plates used to cover unused modules.
Figure 2 – iO Gateway Standalone Rack
1.2.3 MOUNTED WITH FUSION
If you have acquired the iO Gateway with a FUSION or you already have a FUSION mounted. This solution is
preferable since it require only an 1U space rack. The mounting option provides a support that is connected to the
FUSION and rack. An extension ear is alo provided for 23" rack installation.
Figure 3 – iO Gateway Mounted with Fusion
1.2.4 CHASSIS GROUND
Once iO Gateway is installed and secured in the rack the chassis must be connected to a reliable ground source.
The ground wire shall be installed in accordance with local electrical safety standards.
• For NEC-compliant grounding, a size 14 AWG (22 mm) or larger copper wire and an appropriate user-supplied
ring terminal with an inner diameter of 1/4 inch (5 to 7 millimeters) are used for the installation.

INSTALLATION GUIDE
© 2020 Multitel – IO Gateway Installation Guide v1.0
11
• For EN/IEC 60950-compliant grounding a size 18 AWG (12 mm) or larger copper wire and an appropriate user-
supplied ring terminal is used for the installation.
IMPORTANT NOTE:
iO Gateway must be grounded. NEVER remove the ground conductor or operate the equipment in the absence of
a suitably installed ground conductor. It may be necessary to contact the appropriate electrical inspection
authority or an electrician to ascertain that a suitable grounding is available.
Follow these steps to install the ground connection:
1. Strip one end of the ground wire to the length required for the ground lug or terminal.
2. Crimp the ground wire to the ground lug or ring terminal using a proper wire crimper of the appropriate
size.
3. Attach the ground lug or ring terminal to the chassis as shown in the figure below. Use the nut and lock
washer provided. Tighten the nut securely.
Figure 4 - Chassis Ground
1.3 DEVICES CONNECTION TO IO GATEWAY
Devices that are not manufactured by Multitel can be connected to iO Gateway. These devices are commercially
available and should be qualified before being installed by competent personnel. Each device carries its own
technical specifications that are not made available in this user guide. Please refer to the manufacturer’s technical
documentation for each equipment specifications.
Following are the technical limitations when connecting a device to the iO Gateway:
•The industry-standard Modbus TCP/IP and SNMP protocols are supported;

INSTALLATION GUIDE
© 2020 Multitel – IO Gateway Installation Guide v1.0
12
•Communication ports are available on Ethernet 1/Ethernet 2 and/or both RS-485 ports;
•Ethernet Speed can be adjusted from 10 Mbps, 100 Mbps or 1Gbps (only Ethernet 1). An Automatic
speed option can also be selected.
•Each Equipment Polling Rate and Time Out can be adjusted.
1.3.1 ETHERNET PORTS CONNECTION
iO Gateway comes with two separate Ethernet ports, a 10/100Mbps port is available on the front panel and a 1Gbps
port is available on the back panel. iO Gateway can support in up to 128x devices with Modbus TCP/IP and in up
to 128x devices with SNMP protocol. Please note that these numbers might not be achieved because of the
limitation of the device computing power. The actual limit will depend on the number of data points of each device,
and the polling rate.
Figure 5 - Front Ethernet Ports
Figure 6 - Back Ethernet Ports
Multitel recommends the use of a straight Cat-5 cable. Both Ethernet ports come with RJ45 connectors. Commercial
Cat-5 cable can be used or Cat-5 cable can be made using the following pinout.

INSTALLATION GUIDE
© 2020 Multitel – IO Gateway Installation Guide v1.0
13
Table 1 – RJ45 Connectors Pinout
PIN Name Type
1
TX “+” Transmit Data – Positive
OUT
2
TX “-“ Transmit Data – Negative
OUT
3
RX “+” Receive Data - Positive
IN
4
Not Used
N/A
5
Not Used
N/A
6
RX “-“ Receive Data – Negative
IN
7
Not Used
N/A
8
Not Used
N/A
There are two (2) LEDs on each RJ45 connector to indicate the network status and the communication activity.
The following table indicates the status of each LED.
Table 2 – RJ45 Connectors Pinout
Name Color Status
Link
Not lit
No TCP/IP connection
Solid Green
TCP/IP is detected
Activity
Lit Green
Ethernet activity
Not lit
No Ethernet activity
1.3.2 RS-485 PORTS CONNECTION
iO Gateway can support up to 64 Modbus RTU devices connection on each RS-485 port. The actual limit will depend
on the number of data points of each device, and the polling rate.
Please refer to the vendor’s technical documentation for installation, wiring and Modbus RTU registry instructions.

INSTALLATION GUIDE
© 2020 Multitel – IO Gateway Installation Guide v1.0
14
RS-485 wiring can be complex when multiple devices are connected. When running wires for long distances, RS-
485 networks should always be wired in a bus (or daisy-chain) configuration. The bus should start at the iO
Gateway and then be run to each meter in turn. Branches and “home-run” wiring (i.e. each module is wired back
to iO Gateway individually) should be avoided. For best results, especially when running longer distances,
shielded twisted-pair cables should be used to prevent interference. NB: Shielded cable should be connected
to ground at one end only.
RS-485 connectors are found on the backplate of the iO Gateway module. There are two independent RS-485
connectors: COM A and COM B. The block used to connect to the COM ports needs to be a 3x position terminal
block header, male pins, shrouded (4 Side) 0.138" (3.50mm) 90°, right angle through holes.
Figure 7 – RS-485 connectors
The following table presents the pinout of the two RS-485 connectors.
Table 3 – RS-485 Connectors Pinout
Connectors PIN Name Type
J3
1
TX/RX+ COM A
IN
2
TX/RX- COM A
IN
3
Shield - COM A
IN
J4
4
TX/RX+ COM B
IN
5
TX/RX- COM B
IN
6
Shield - COM B
IN

INSTALLATION GUIDE
© 2020 Multitel – IO Gateway Installation Guide v1.0
15
2. POWERING IO GATEWAY
iO Module must be powered with a -48Vdc feed with an input voltage range of -43Vdc to -60Vdc.
Table 4 – iO Gateway power consumption
Typical Input
Voltage
Input Voltage
Range Max Current Max Power Consumption Fuse
-48Vdc
-43 Vdc to -60 Vdc
300 mA at 48Vdc
14.4 W
1 1/3 A Max.
Figure 8 – iO Gateway Power Input and Fail
2.1 WIRING POWER INPUT
iO Gateway is powered by a continuous -48Vdc power source. The module is equipped with A & B feed positions
for power redundancy. Power Input status can be found in the General Parameters – System Information.A
readily accessible disconnect device shall be incorporated within the power wiring in order to disconnect the
equipment from the 48Vdc supply for servicing.
Using a wire-stripping tool, strip each of the four wires coming from the DC-input power source to 0.25 inch (6.3
mm) + 0.02 inch (0.5 mm). Do not strip more than 0.29 inch (7.4 mm) of insulation from the wire. Stripping more
than the recommended amount of wire can leave exposed wire from the terminal block plug after the installation.
Insert wires into the terminal block according to the following table.

INSTALLATION GUIDE
© 2020 Multitel – IO Gateway Installation Guide v1.0
16
Table 5– Power Input Pinout
Connectors PIN Name Description Type
J2
4
BRG - B
Battery return ground “B” feed
IN
5
BATT FEED - B
Battery -48V “B” feed
IN
6
BRG - A
Battery return ground “A” feed
IN
7
BATT FEED - A
Battery -48V “A” feed
IN
NOTE:
The pin numbering for the connector is from left to right.

INSTALLATION GUIDE
© 2020 Multitel – IO Gateway Installation Guide v1.0
17
3. INSTALLATION CHECKLIST
iO Gateway installation can be tested using this checklist :
Table 6 – Installation Checklist
QUESTIONS
Are the frame grounds connected?
Are both “A” and “B” feeds powered?
Are there any bare ended power cables?
Are there any loose cables and are all cables attached or tie-wrapped together?
Have all mounting screws been tightened?
Is the iO Gateway POWER/FAIL LED on the front panel solid green?
Are the cable designations clear and self-explanatory?
Are the unit IP addressed labeled?
Have the distribution fuse locations been assigned and designated?
Are all measurement readings calibrated?
Is the polarity for each input signal correct?

INSTALLATION GUIDE
© 2020 Multitel – IO Gateway Installation Guide v1.0
18
4. IO GATEWAY SETUP FIRST TIME CONNECTION
iO Gateway interfaces need to be accessed via a web browser. iO Gateway can either be accessed by the front or
the back Ethernet port. However, for the first connection, the front Ethernet port needs to be used because the backport
doesn’t have a static IP address (DHCP). The following table shows the factory settings for both Ethernet ports.
Table 7 – iO Gateway Ethernet Ports Factory Settings
Ethernet Ports Mode IPv4 Address
Ethernet 1 – Back
DHCP
N/A
Ethernet 2 - Front
Static
192.168.1.2
A local area network (LAN) needs to be configured between the iO Gateway Ethernet front port and the user’s PC.
Figure 9 – iO Gateway First Time Connection
In order to create a LAN between a PC and the iO Gateway. The user needs to change the ethernet port adapter
proprieties. This can be done by on a Windows machine by:
1. Going to control panel
2. Change adapters settings
3. Click on the desire ethernet port
4. Click on properties
5. Click on Internet Protocol Version 4 (TCP/IPv4)
6. Click on properties
7. Change the IP address and subnet mask (ex. 192.168.1.100 & 255.255.255.0).

INSTALLATION GUIDE
© 2020 Multitel – IO Gateway Installation Guide v1.0
19
Figure 10 – Changing IPv4 Properties on PC
Once the LAN is configured the user needs to input the default IP address (192.168.1.2) in the address bar of a web
browser.
Figure 11 – IP address in Web browser
Please note that iO Gateway is using a web server version that has been released in 2019 that doesn’t support legacy
web browsers. Below is a table that shows which web browsers are supported by iO Gateway.
Table 8 - iO Gateway Web Browsers
Web Browser
Chrome
Firefox
EDGE

INSTALLATION GUIDE
© 2020 Multitel – IO Gateway Installation Guide v1.0
20
4.1 LOGIN
Once the default IP address is entered in the address bar and the LAN configuration has been properly done the
user will access iO Gateway Login Page.
Figure 12 – First Time Login
The factory settings for the credential are the following :
Table 9– iO Gateway Default Credentials
Credentials
Administrator
Username
administrator
Password
admin
User
Username
user
Password
user
Viewer
Username
viewer
Password
viewer
