SCA11H
Configuration App User Guide

2
Copyright © Murata Manufacturing Co., Ltd. All rights reserved.

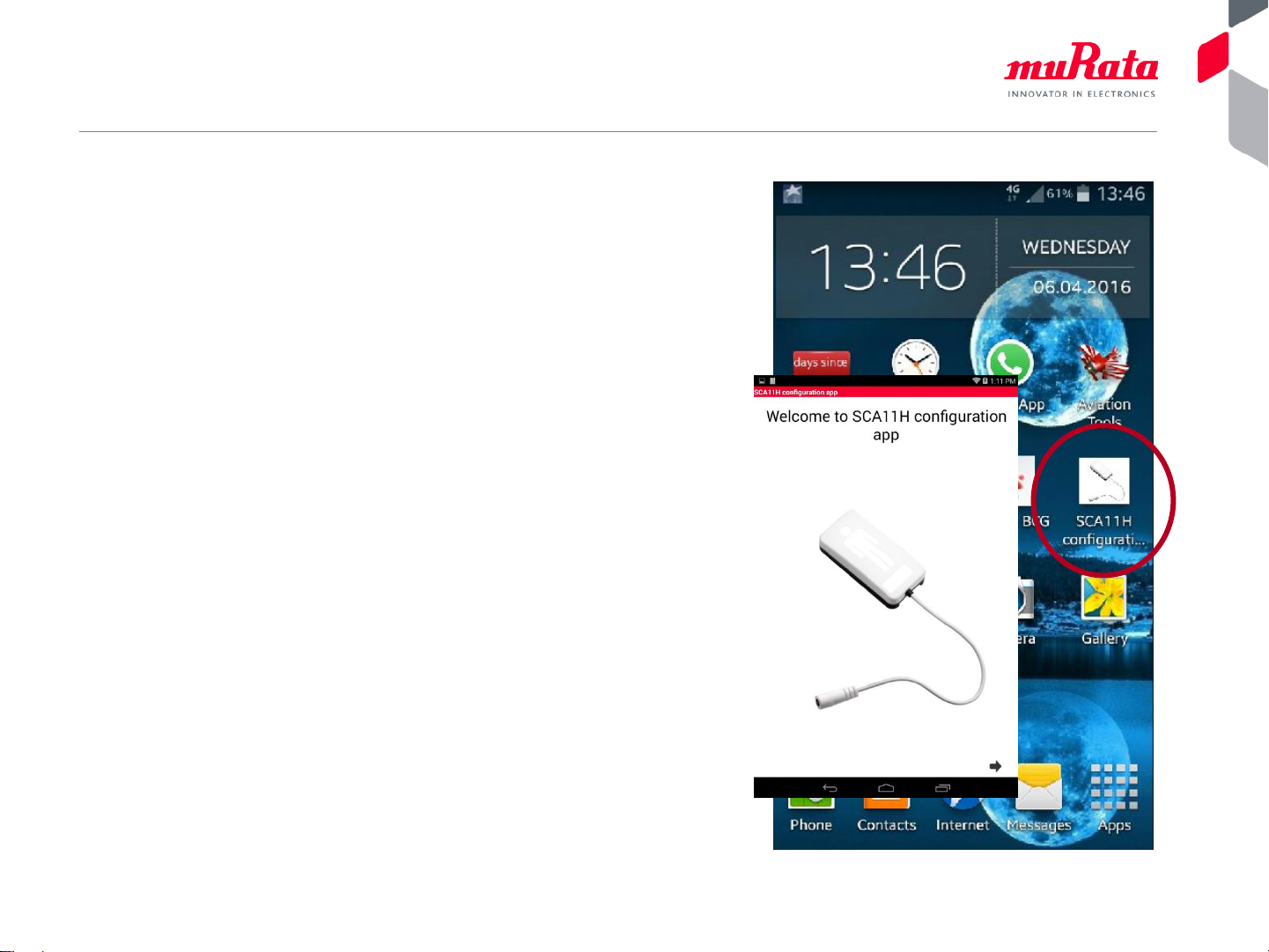

SCA11H Configuration App for Android
•A demo tool to demonstrate how SCA11H sensor node
can be configured via HTTPAPI on Android device
•All features and parameter combinations are not
supported as this app is not intended to be a sellable
product. Check Hostless WLAN HTTPAPI spec for
further details.
•Following steps can be done
1. Define the target local WiFi network where the
SCA11H sensor node will connect to
2. Define bed sensor settings (BCG/datalogger,
measurement direction etc.)
3. Define communication settings (cloud vs local
mode)
4. Configure the node according to steps 1-3. The
same configuration can be done one-by-one to all
sensor nodes in configuration mode.
5. Connect the mobile device to the local WiFi
defined in step 1.

3
Copyright © Murata Manufacturing Co., Ltd. All rights reserved.
Scan/Select Network
Selected WiFi network
(app remembers previous setting)
Press to scan for available networks
if needed, otherwise press arrow to
continue

4
Copyright © Murata Manufacturing Co., Ltd. All rights reserved.
Scan/Select Network (2)
Check the correct BSN WiFi country
code (important!)
Select WiFI network and enter
Network password
or use "Manual Setup" if invisible
network
Press arrow to continue

5
Copyright © Murata Manufacturing Co., Ltd. All rights reserved.
Other Settings
Click to enter Bed sensor settings
Click to enter Communication
settings
Press arrow to continue

6
Copyright © Murata Manufacturing Co., Ltd. All rights reserved.
Bed Sensor Settings
Select the BCG running mode and
the measurement direction.
Press arrow to continue

7
Copyright © Murata Manufacturing Co., Ltd. All rights reserved.
Communication Settings
Select Local or Cloud Mode
Configure other cloud
settings (if applicable).
Press arrow to return to
"Other settings page"

8
Copyright © Murata Manufacturing Co., Ltd. All rights reserved.
Other Settings
When ready, press arrow to continue

9
Copyright © Murata Manufacturing Co., Ltd. All rights reserved.
Select Target device (which sensor node to
configure)
Select sensor node to configure.
After configuration the node will
be rebooted, and next node can
be select (if several nodes to be
configured).
Make sure the attachment plate
is attached before configuring
the node.
When ready, press arrow to
continue

10
Copyright © Murata Manufacturing Co., Ltd. All rights reserved.
Connect to target local WiFi network
Connect to target WiFi network –
the same network the sensor
node(s) will connect to after
reboot
