MUTOH PJ-2646NXE User manual

INSTALLATION
MANUAL
Grand-Format Inkjet Printer
PJ-2646NXE
Rev. PJ2646E-I-00
Read This Manual Before Using The
Product.

PJ-2646NXE INSTALLATION MANUAL
2
TABLE OF CONTENTS
1Introduction･･････････････････････････････････････････････････ 3
1.1 Purpose of this manual･･･････････････････････････････････････････････3
1.2 Safety instruction････････････････････････････････････････････････････3
2Unpacking･･･････････････････････････････････････････････････ 4
2.1 Unpacking procedure ････････････････････････････････････････････････4
2.2 Verification of packaged items ････････････････････････････････････････6
2.2.1 Contents of packaged items････････････････････････････････････････････････7
3Assembly ･･･････････････････････････････････････････････････ 8
3.1 Removal of protective packaging material ･･････････････････････････････8
3.2 Installing the Panel cover････････････････････････････････････････････10
3.3 Removal the media sticking prevention screen ･････････････････････････11
4Installation ･････････････････････････････････････････････････ 12
4.1 Choosing a place for the printer ･･････････････････････････････････････12

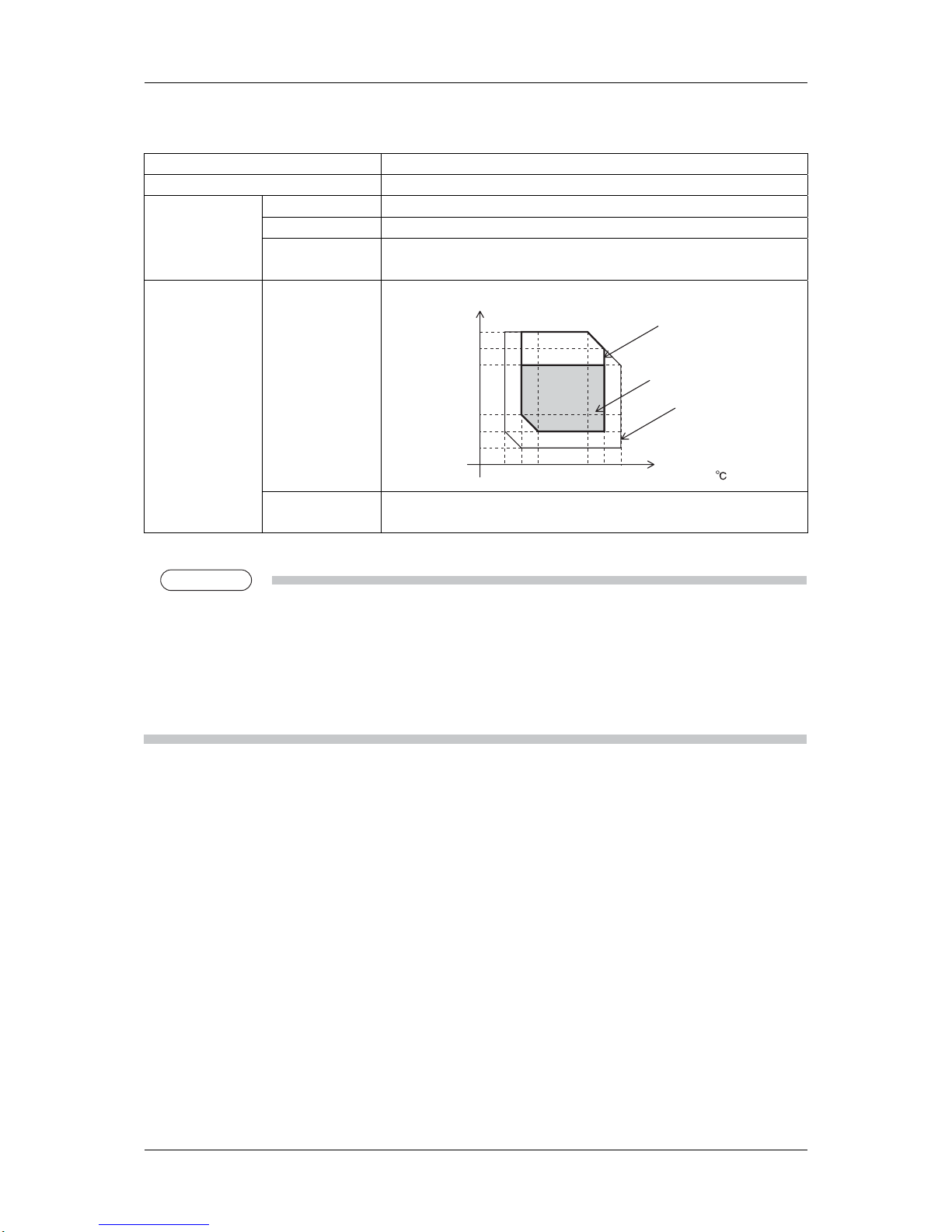

4.1.1 Installation environment Requirements ･････････････････････････････････････13
4.1.2 Required space ･････････････････････････････････････････････････････････14
4.2 Installing the printer･････････････････････････････････････････････････15

PJ-2646NXE INSTALLATION MANUAL
3
1 Introduction
1.1 Purpose of this manual
This manual explains the unpacking, assembly and installation operation procedures of the Grand-Format
Inkjet Printer (PJ-2646NXE) made by MUTOH INDUSTRIES LTD.
This manual is prepared for unpacking, assembly and installation of this printer.
Before unpacking, assembly and installation of the printer, first understand the contents and directions in
this manual.
CAUTION
 No part of this product or manual may be reproduced, copied, or transmitted in any form or
by any means, except for personal use, without the permission of MUTOH INDUSTRIES
LTD.
 The product and the contents of this manual may be changed without prior notification.
 MUTOH INDUSTRIES LTD. has made the best efforts to keep this publication free from
error, but if you find any uncertainties or misprints, please call us or call the shop where you
bought this product.
 MUTOH INDUSTRIES LTD. shall not be liable for any damages or troubles resulting from
the use of this products or this manual.
1.2 Safety instruction
Safety terms in this manual are categorized into the following three types depending on the degree of the
risk (or the scale of accident).
Read the following explanations carefully, and follow the instructions in this manual.
Safety terms Details
WARNING
Must be followed carefully to avoid death or serious bodily injury.
CAUTION
Must be observed to avoid bodily injury (moderately or lightly) or damage to your product.
NOTE
NOTE
Contains important information and useful tips on the operation of your product.

PJ-2646NXE INSTALLATION MANUAL
4

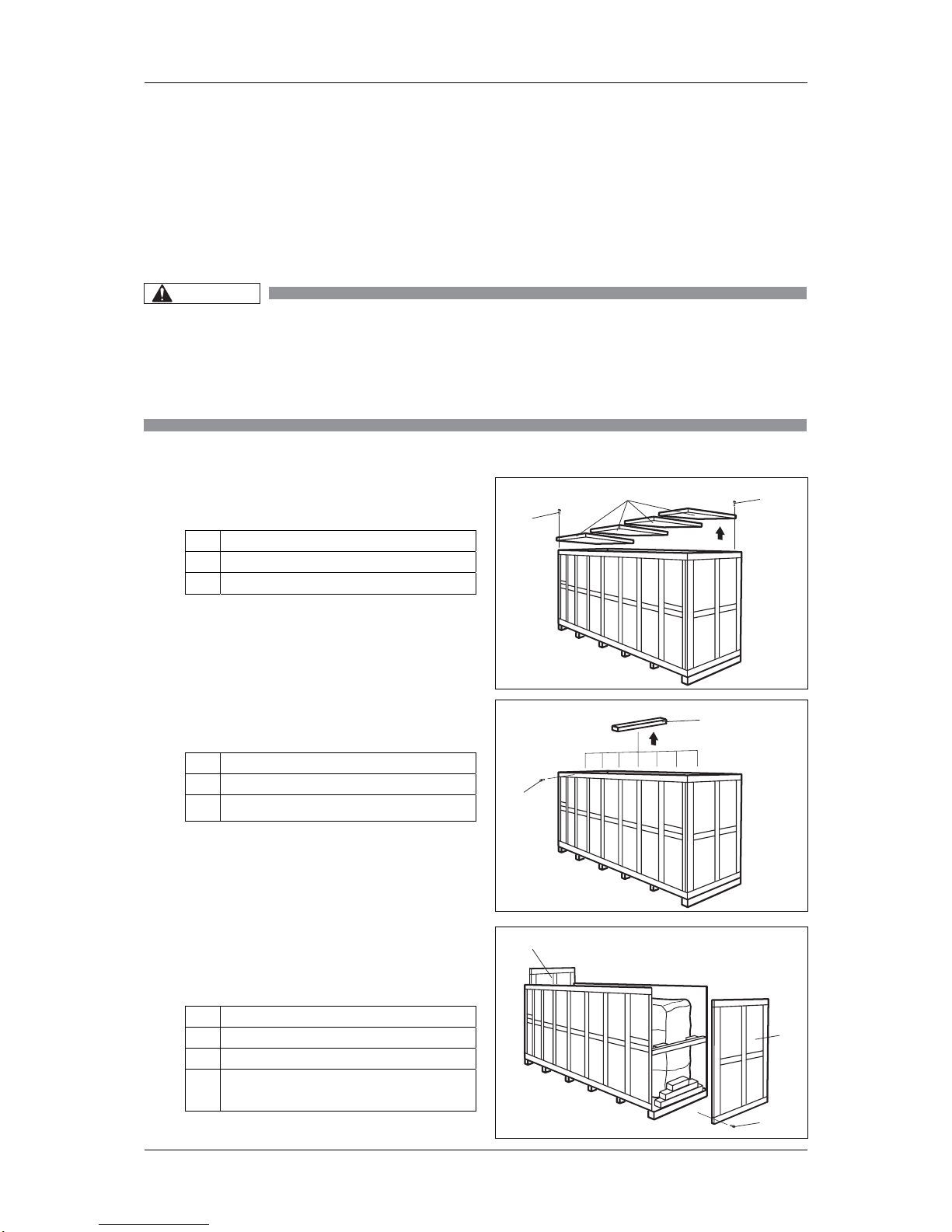

2 Unpacking
The unpacking procedure and contents of the package are described below.
2.1 Unpacking procedure
Unpack the package according to the following procedure.
CAUTION
 When unpacking or moving this product, always work with 4 people or more.
 When removing this product from the packaging box, always remove the vinyl plastic, and
hold on the side of the product. Holding the unit over the vinyl plastic wrapping can result in
slippage and dropping the unit, resulting in damage.
1. Move the packaging to the location to unpack.
2. Remove the bolts (48) fixing the top boards (4) to
remove the top boards (4).
No. Name
1 Top board
2 Hexagon bolt to fix top board
3. Remove the bolts (18) fixing the fixed materials A
(9) to remove the fixed materials A (9).
No. Name
1 Fixed material A
2 Hexagon bolt to fix for fixed material A
4. Remove the bolts (26) fixing the side boards (left
and right) to remove the side boards (left and
right).
No. Name
1 Side board (right)
2 Side board (left)
3 Hexagon bolt to fix for side board (left and
right)
1
22
1
2
1
2
3

PJ-2646NXE INSTALLATION MANUAL
5
5. Remove the bolts (4) fixing the fixed materials
B (left and right) to remove the fixed materials
B (left and right).
No. Name
1 Fixed material B (right)
2 Fixed material B (left)
3 Hexagon bolt to fix for fixed material B (left
and right)
6. Remove the bolts (14) fixing the front board
and rear board to remove the front board and
rear board.
No. Name
1 Front board
2 Rear board
3 Hexagon bolt to fix for front board and rear
board
7. Cut near the welded area of the product
protection sheet with a box cutter to remove the
product protection sheet.
No. Name
1 Product protection sheet
2 Welded area
NOTE
NOTE
When cutting the product protection sheet with a box
cutter, ensure not to damage the product.
8. Remove the bolts (12) fixing the adjuster fixed
materials A (4) and the adjuster fixed materials
B (4) to remove the adjuster fixed materials A
and B.
No. Name
1 Adjuster fixed material
2 Hexagon bolt to fix for adjuster fixed
material
1
2
3
3
1
2
3
3
1
2
1
2

PJ-2646NXE INSTALLATION MANUAL
6
9. Remove the bolts (4) fixing the stand fixed
materials (2) to remove the stand fixed
materials (2).
No. Name
1 Stand fixed material
2 Hexagon bolt to fix for stand fixed material
10. Pick up the slope (2) from the front board
removed in the procedure 6.
11. Attach the slope to the front side of the palette.
12. Using the slope, lower the product from the
palette.
No. Name
1 Slope
2 Palette
2.2 Verification of packaged items
After unpacking the packaging box, inspect to make sure that the unit is not damaged, and that all
necessary parts are present.
NOTE
NOTE
 If any part is missing or broken, contact either of the following;
 The shop where you bought your MUTOH printer.
 Nearest MUTOH local dealer.
1
2
12

PJ-2646NXE INSTALLATION MANUAL
7
2.2.1Contents of packaged items
(1) Packaging box of the main unit
No. Name Q’ty No. Name Q’ty
1 Main unit, stand, winding unit 1 set 2 Media tube (for winding unit) 1
(2) Accessories packaging box
1 2 3
5 6 8 10
9
11
12 19
4
15
13
7
14
16 17 18
No. Name Q’ty No. Name Q’ty
1 Power cable 4 12 Hand pump 1
2 13 Cap Sponge 6
3 Foot switch 1 14 Wash bottle 1
4 Media holder plate 2 15 Screwdriver 1
5 Gloves 1 box 16 Plastic spacer 2
6 Funnel 1 17 Screw（for Plastic spacer）2
7 Polynit wiper 1 box 18 Tray 1
8 Print head wiper 1 19 Accessories box 1
9 Magnet sheet (white) 1 20
10 Panel cover 10 21 Operation Manual 1
11 Magnet sheet (black) 1 22 Installation Manual (this document) 1
1
2

PJ-2646NXE INSTALLATION MANUAL
8

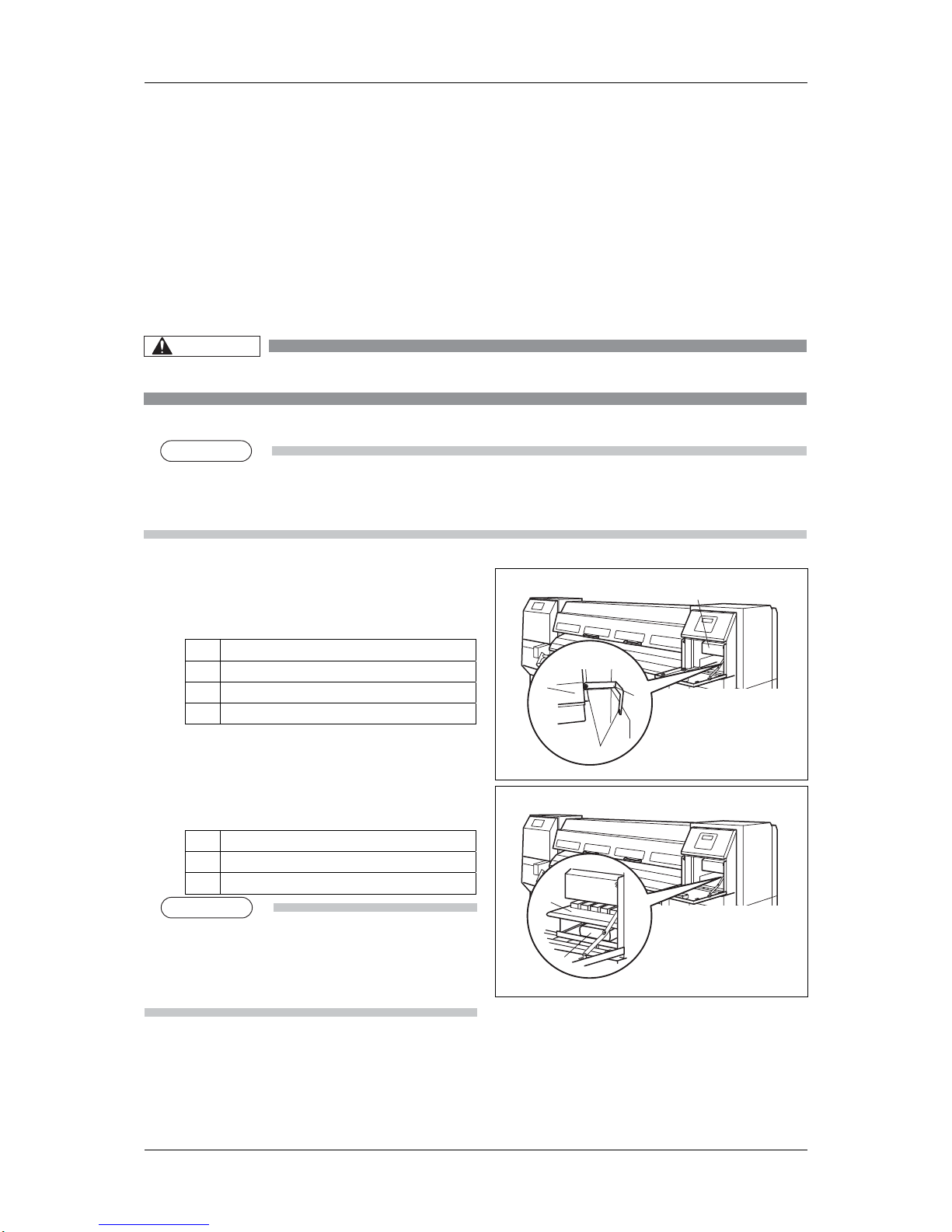

3 Assembly
The assembly of this product is described below.
3.1 Removal of protective packaging material
Protective packaging material is attached in the following locations of this product.
Remove all protective packaging material according to the following procedure.
1. Remove tape from all parts of the product.
CAUTION
 Be careful not to pinch your fingers when opening and closing the maintenance cover.
NOTE
NOTE
 Make sure that the Y-bare cable inside the front cover is as follows when the product is tilted to carry in:
 The Y-bare cable is not fallen down or is not out of position.
 The Y-rail cover is not interfered by the Y-bare cable.
2. Using the screwdriver attached to the product, the
screw that is fixing the head unit fixture material is
loosened.
No. Name
1 Head unit
2 Head unit fixture material
3 Screw
3. Remove the head unit.
4. Remove the protective packaging material from
the bottom of the purge plate.
No. Name
1 Protective packaging material
2 Print head cap
NOTE
NOTE
The print head cap is wrapped at the shipment. Ensure
to remove the vinyl plastic wrapping when using the
product.
5. Close the maintenance cover.
1
12
3
1
2

PJ-2646NXE INSTALLATION MANUAL
9
6. Using the screwdriver attached to the product,
remove the following parts that to fixed both side
of the cushioning roller.
 Screw (2)
 Skirted collar (2)
No. Name
1 Cushioning roller
2 Skirted collar
3 Screw
7. Using the screwdriver attached to the product,
remove the following parts that to fixed both side
of the tension roller.
 Screw (2)
 Skirted collar (2)
No. Name
1 Tension roller
2 Skirted
3 Screw
8. Using the screwdriver attached to the product, fix
the following parts that to fixed both side of the
tension roller.
 Screw (2)
 Plastic spacer (2)
No. Name
1 Tension roller
2 Plastic spacer
3 Screw
123
1
2
3
32
1

PJ-2646NXE INSTALLATION MANUAL
10

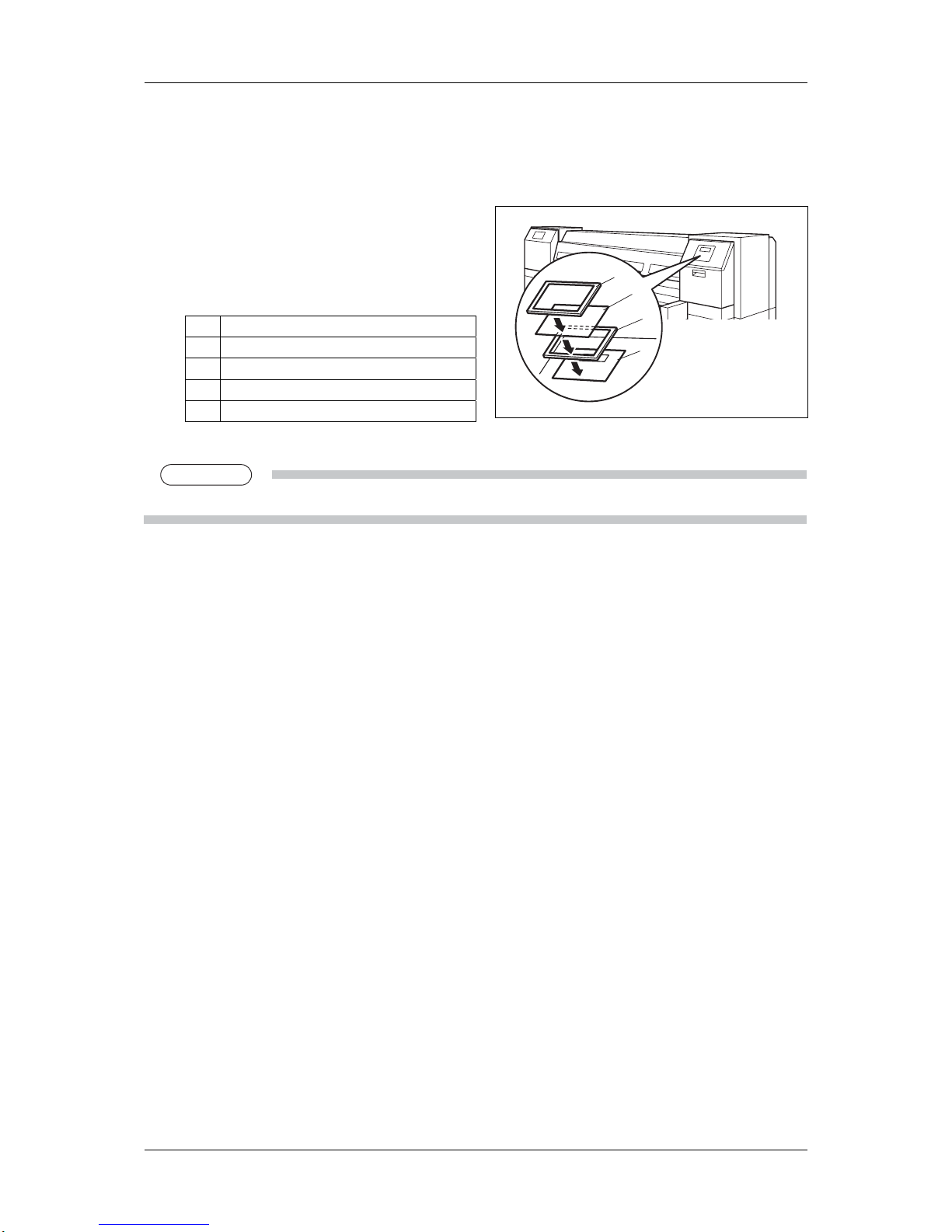

3.2 Installing the Panel cover
Install the panel cover on the operation panel not to stain with the ink or the jetwash fluid.
Install the panel cover according to the following procedure.
1. Install the following parts on the operation panel
one over another as shown in the figure.
 Magnet sheet (black)
 Panel cover
 Magnet sheet (white)
No. Name
1 Operation panel
2 Magnet sheet (black)
3 Panel cover
4 Magnet sheet (white)
NOTE
NOTE
 When the panel cover stains with the ink or the jetwash fluid, change the panel cover for new ones.
1
2
3
4

PJ-2646NXE INSTALLATION MANUAL
11

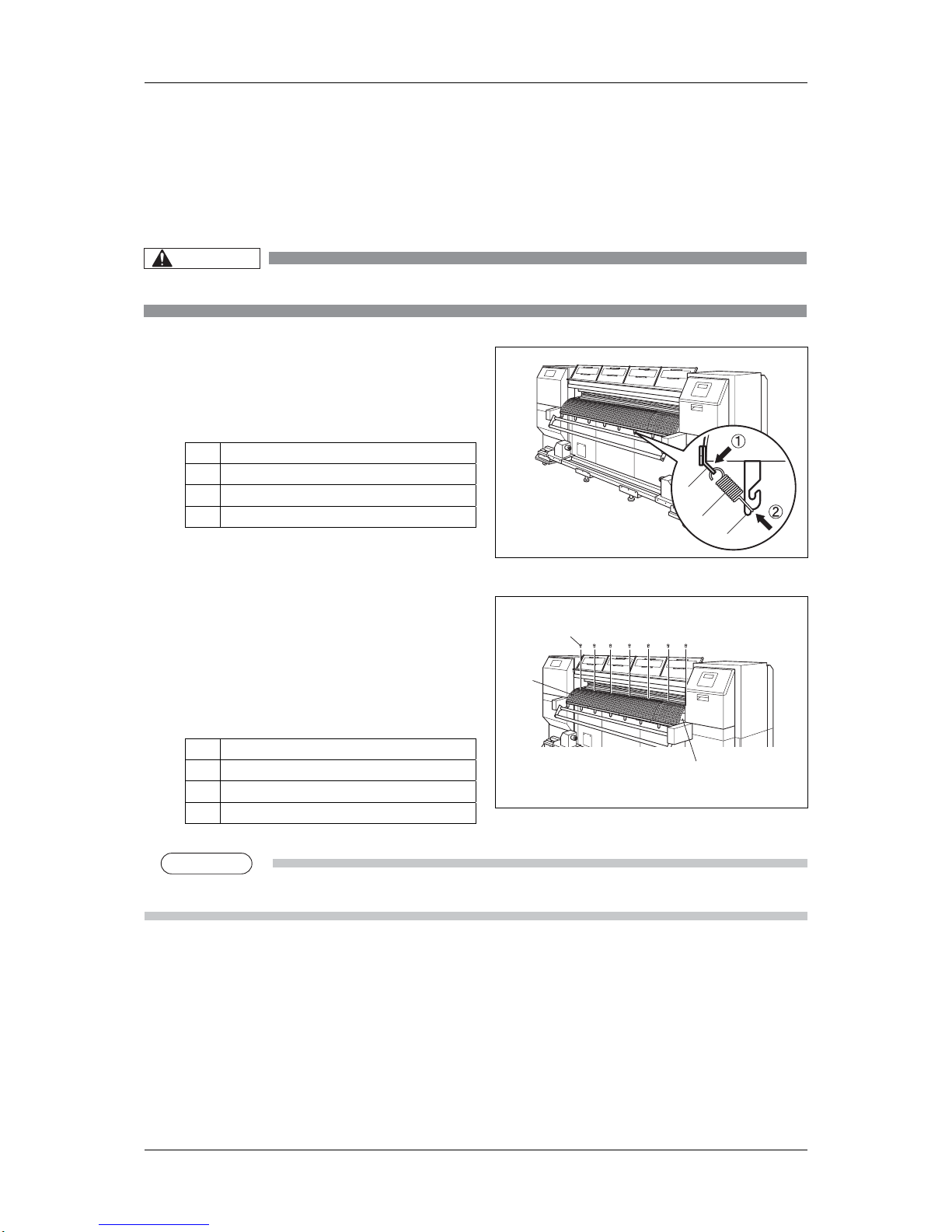

3.3 Removal the media sticking prevention screen
The media sticking prevention screen is attached in the product at the time of product shipment. When not
using papers that are easy to stick, such as a tarpaulin, a prevention network with paper tension is
removed. Remove a media sticking prevention screen according to the following procedures.
CAUTION
 Be careful not to pinch your fingers when opening and closing the front cover.
1. Remove the eight springs from the plate of media
sticking prevention screen.
2. Remove the below springs from media sticking
prevention screen.
No. Name
1 Media sticking prevention screen
2 Spring
3 Bracket
3. Open the front cover.
4. Using the screwdriver coming with the accessory
box, remove the sixteen screws for media sticking
prevention screen.
5. Remove media prevention screen from media
guide.
No. Name
1 Media guide
2 Media sticking prevention screen
3 Screw
6. Close the front cover.
TIP
TIP
Reinstall parts in the opposite order of the removal procedure.
1
23
3
2
1

PJ-2646NXE INSTALLATION MANUAL
12
4 Installation
Printer installation is explained below.
4.1 Choosing a place for the printer
Install the printer in a proper location referring to the following.
WARNING
 The ink and jet wash fluid used for this printer contains an organic solvent
(CYCLOHEXANONE). Make sure to follow the industrial waste disposal laws and ordinances
of your local government.
It is necessary to install a local ventilation unit, push/pull type ventilation unit, or a total
ventilation unit to perform adequate ventilation.
 The ink and jet wash fluid used for this printer contains an organic solvent
(CYCLOHEXANONE). It is flammable so open flame is prohibited in the area. In a dry
environment, static electricity can cause ignition, so before handling the ink, jet wash fluid, or
waist fluid, touch a metallic object first to remove static electricity from your body. Do not
near materials having static, and take appropriate measures against static electricity.
 Do not place the printer in a location under the following conditions. Doing so may cause the
product to fall, become damaged, or cause injury.
 Unstable surfaces
 Slanted surfaces
 Locations that are subject to vibration from other product
 Do not stand on the printer or place any heavy objects on it. Doing so may cause it to fall
over, become damaged, or cause injury.
 Do not cover the ventilation hole of the printer with cloth, such as a blanket or table cloth.
Doing so could prevent the printer from ventilating and cause fire.
 Keep the printer away from humid and busty areas. Failure to do so may result in electrical
shock or fire.

PJ-2646NXE INSTALLATION MANUAL
13
4.1.1Installation environment Requirements
Choose a place for printer installation following the requirements of the table below.
Area 12.6m2(146ft2) or larger. Frontage of 4.7m(15.7ft) or greater.
Floor loading capability 2940Pa (300kg/m2) or over
Voltage AC100V – 120V / AC220V – 240V ±10%
Frequency 50/60Hz±1Hz
Electrical
Capacity AC100V – 120V: 15A or more
AC220V – 240V: 7.5A or more
Operational
conditions Humidity
(%)
70
65
60
40
35
30
0 18 20 22 28 30 32 Temperature( )
Recommended operation
environment
Use operation environmen
t
Recommended environmen
t
when using the winding unit
Environmental
Storage
environment
Temperature: –10℃(14F) to 60℃(140F)
Humidity: 20％to 80％without condensation
NOTE
NOTE
 Avoid the following temperature and humidity conditions. Otherwise, printed images may appear differently from
what you expect.
 Places where sudden changes in temperature and humidity are expected, even though the condition is within the
range written above
 Places where direct sunlight or excessive lighting are expected
 Places where air conditioners blow directly
 MUTOH recommends that the printer should be installed where air conditioning can be adjusted easily.

PJ-2646NXE INSTALLATION MANUAL
14
4.1.2Required space
Install the printer on a flat surface that fulfills the following conditions.
NOTE
NOTE
 See “7.2 Product Specifications” of the PJ-2646Operation Manual for the information of the printer.
a
e
d
cb
a=1000mm (39.4in.)
b=1000mm (39.4in.)
c=1000mm (39.4in.)
d=600mm (23.6in.)
e=1250mm (49.2in.)

PJ-2646NXE INSTALLATION MANUAL
15
4.2 Installing the printer
To install the printer, follow the steps below.
1. Move the printer to where it will be installed.
2. Rotate the adjusters in the direction shown below
to make the printer stable.
 Stand: 4
 Winding unit: 2
 Feed unit: 2
3. Jiggle the printer to make sure that it stable.
No. Name
1 Adjuster
2 Stand
3 Adjuster of the winding unit
4 Adjuster of the feed unit
The above concludes the installation procedure.
Other work is required before operating the unit.
For details see “PJ-2646NXE Operation Manual”.
3
4
2
1

MUTOH INDUSTRIES LTD.
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
http://www.mutoh.co.jp
MUTOH AMERICA INC.
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
http://www.mutoh.com
MUTOH EUROPE N.V.
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
http://www.mutoh.be
MUTOH DEUTSCHLAND GmbH.
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
